Listing# 927209

Tofflon LYO-5 Freeze Dryer

Download High Res Photos

Make an Inquiry Add To Watch List

Seller's Acceptable Currency:

$120,000.00 USD

Make An Offer

Location: BC, Canada

Level of Removal: Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Asset Documents

CoolsoonWaterChillers.pdf (1)
(PDF) Requires® Adobe® Acrobat)

10newtoffloncomprehensivecatalogue2021171410167559051.pdf (2)
(PDF) Requires® Adobe® Acrobat)

Equipment Description

Number of shelves: 5 + 1(upper radiant shelf)
Shelf dimensions:(D*W*T) 1200 × 900 ×20 mm
Total usable shelf area: 5.40m2
Shelf inter distance: 80 mm

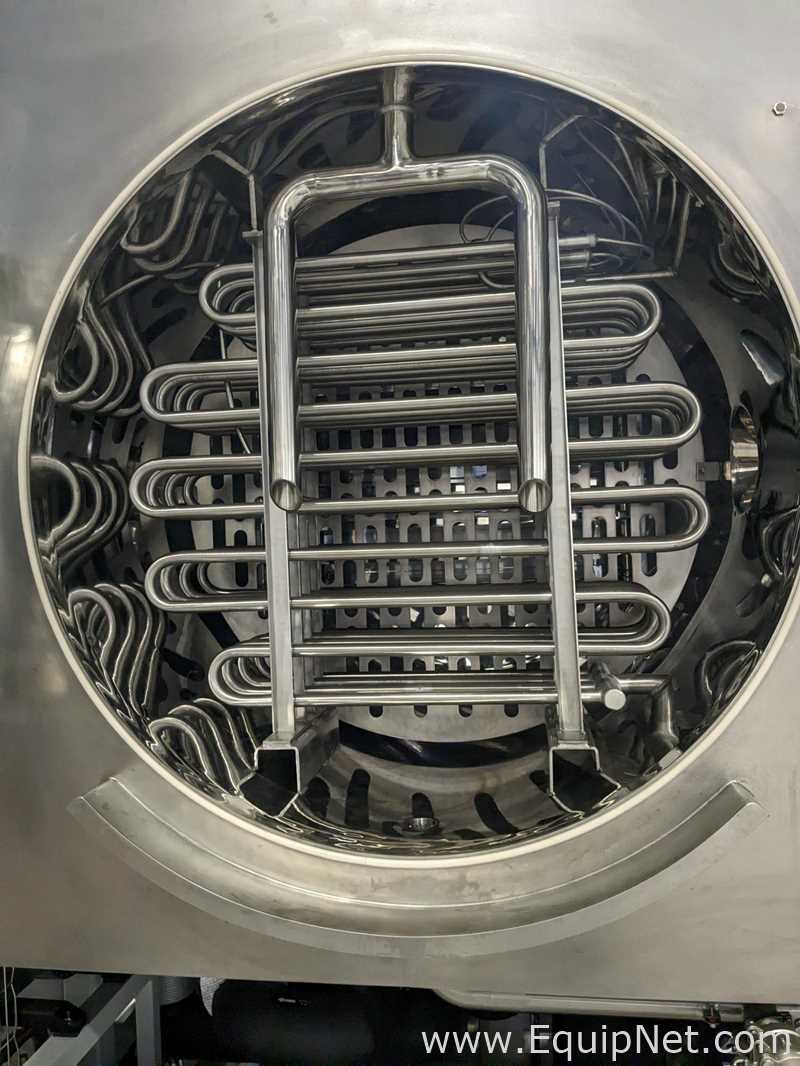

Coil:
Maximum ice capacity 30 kg
Coils surface area Approx 2.35? Seamless pipe, ?25*2 mm, total length around 30 meter

Refrigeration system:
• Number of compressors: 1
• Compressor type: Two-stage semi-hermetic reciprocating
• Compressor capacity: 30HP / compressor
• Minimum coil temperature: -50?C
• Coils cool down rate +20 to -40?C: 30 min. (unloaded)

Heat exchange system:
• Minimum shelf temperature: -30?C
• Maximum shelf temperature: +50?C
• Shelf cool down time (+20 to -30?C): 60 min. (unloaded)
• Shelf heat up time (-30 to +20?C): 60 min. (unloaded)

Vacuum system:
• Vacuum pump type: Two-stage rotary-vane
• Number of vacuum pumps: 1
• Flow rate: 80m3/hr(x2)
• Pump down time to 0.1 mbar: 30 min.
• Ultimate system vacuum: 0.1 mbar
• System leak rate: 0.05 mbar*L/s

• Electricity - total electrical load: 40kW@ 480V, 60Hz,3Phase,5Wire
• Cooling water consumption for refrigerant cooling: 13m3/h @ 1.5~2bar, 12~25°C

Also includes 72kW industrial chiller
Freeze Dryer
Chiller

Specifications:

Standard

Metric

Manufacturer Name

Tofflon

Year:

2021

Serial Number:

2021-002Ca

Model:

LYO-5

Number of Shelves:

5+1

Size of Shelves - length x width:

1200x900x20 in

1200x900x20 MM

Stoppering Capable:

Usable Shelf Area:

58.13 sq ft

5.40 SQ M

Distance Between Shelves:

3.15 in

80 MM

Material of Construction:

STAINLESS STEEL

Voltage:

480 VOLTS

Frequency:

60 HERTZ

Phase:

Current:

47 KW

Recommended Packaging Form:

CRATE

Dimensions:

Standard

Metric

See all item dimensions

Item #1:

177.17 x 90.55 x 122.05 IN - 15,432.35 LBS

4500.00 x 2300.00 x 3100.00 MM - 7,000.00 KGS

Item #2:

78.74 x 44.49 x 67.72 IN - 1,840.86 LBS

2000.00 x 1130.00 x 1720.00 MM - 835.00 KGS

Overall:

255.91 x 90.55 x 122.05 in - 17273.04 lb

6500 x 2300 x 3100 MM - 7835 KGS
