Listing #283262
316L Stainless steel 700 Litre Jacketed Vegetable Gelatine Mixer Melter Vessel No 4

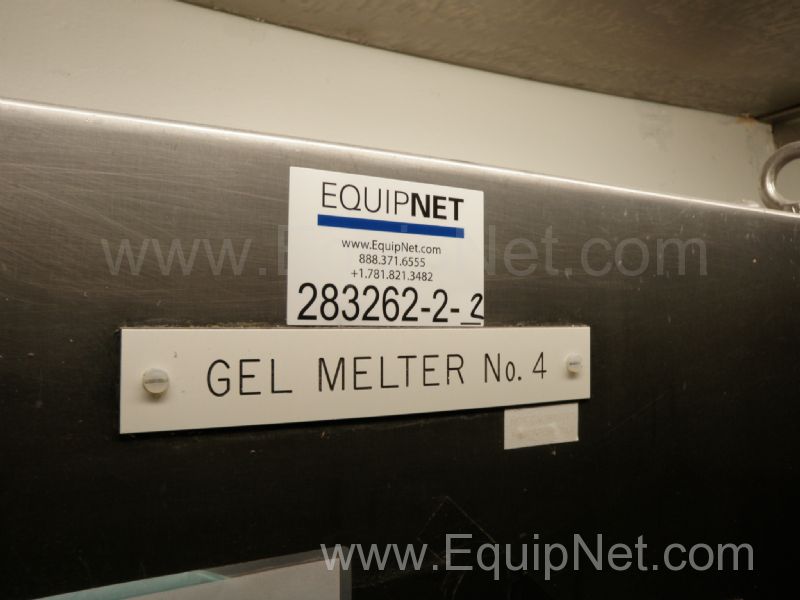

EquipNet Tag #283262-1-2, 283262-2-2, 283262-2-2, 283262-2-2
Equipment Description:
316L Stainless steel 700 Litre Jacketed Vegetable Gelatine Mixer Melter Vessel No 4

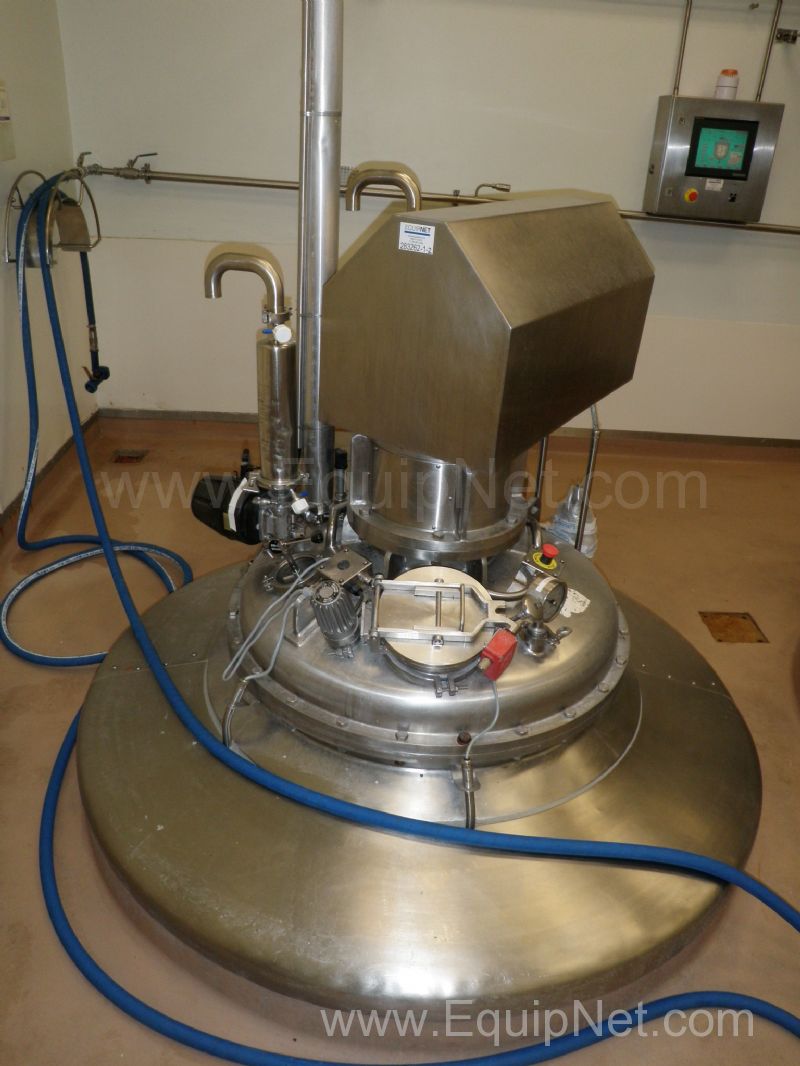

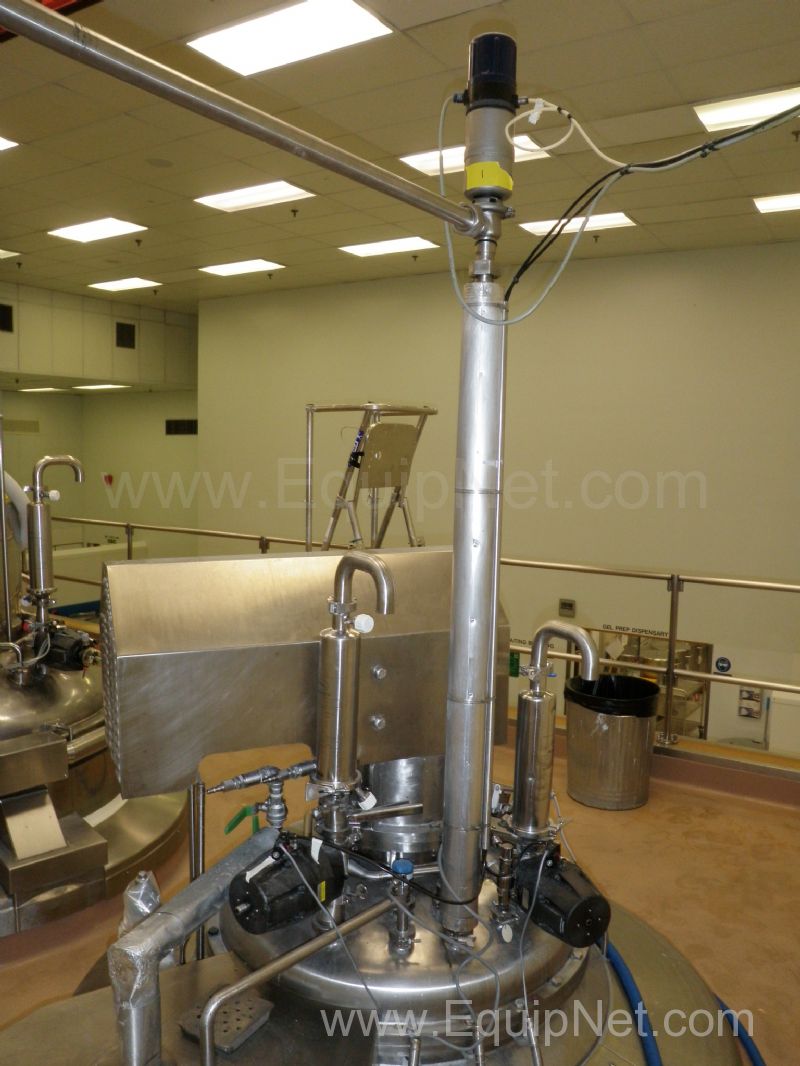

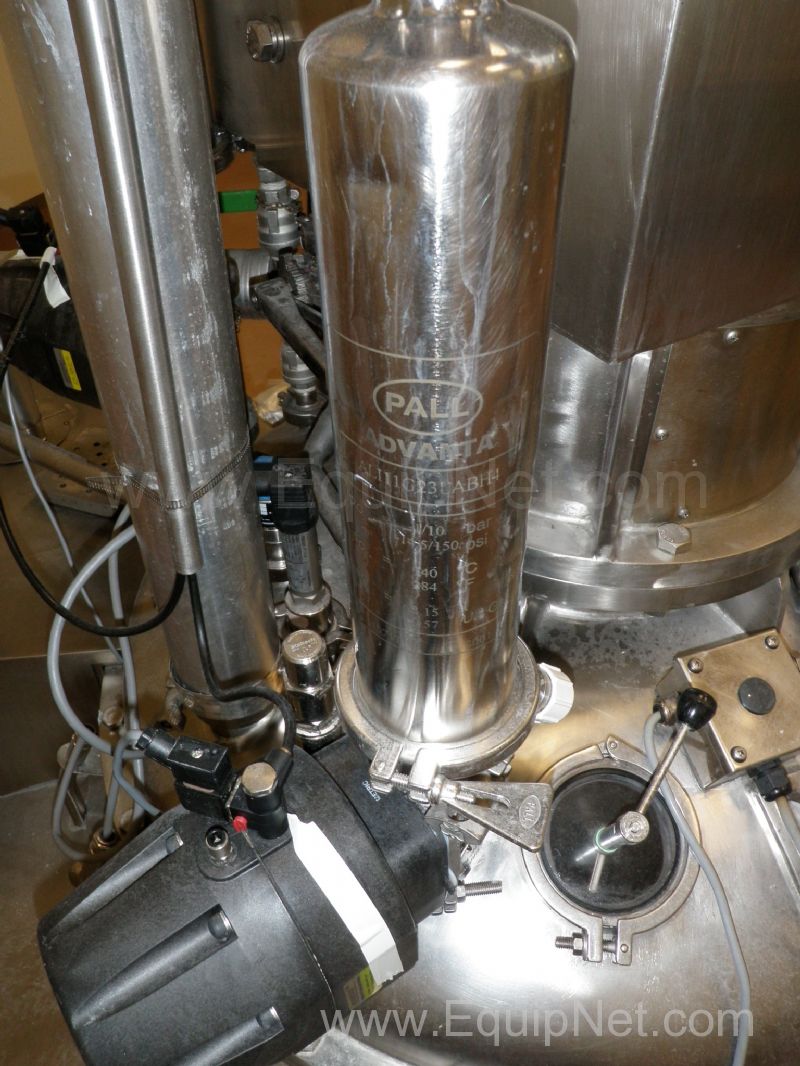

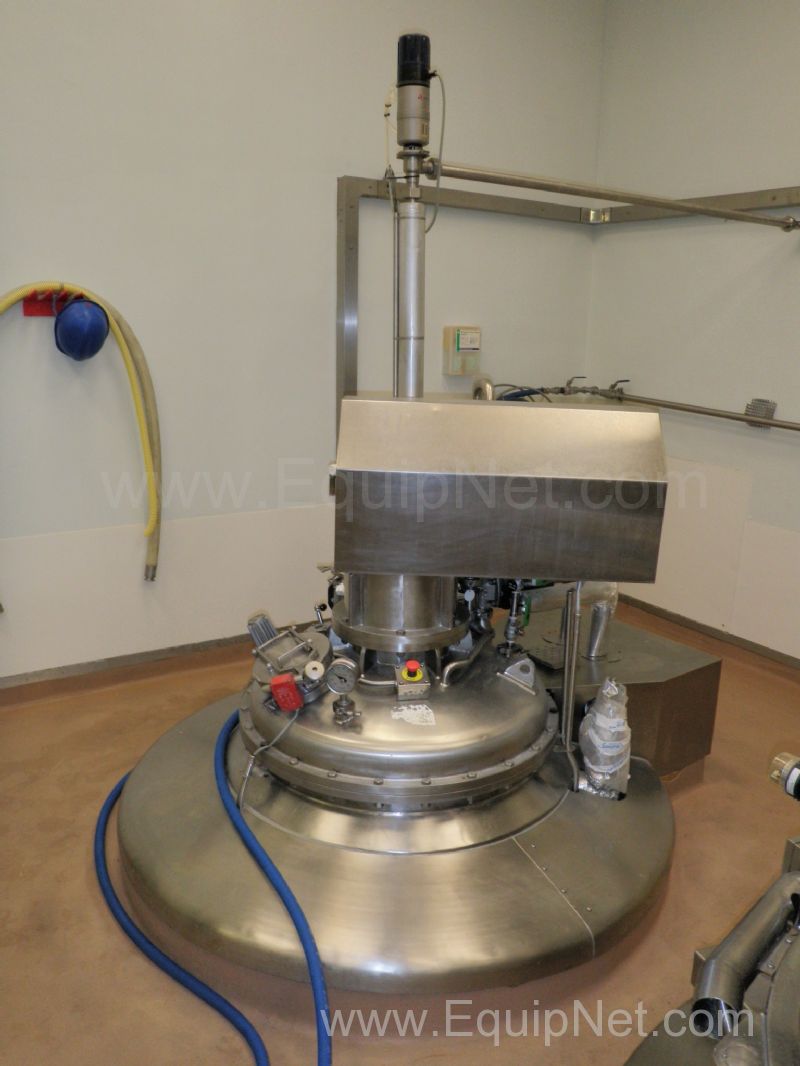

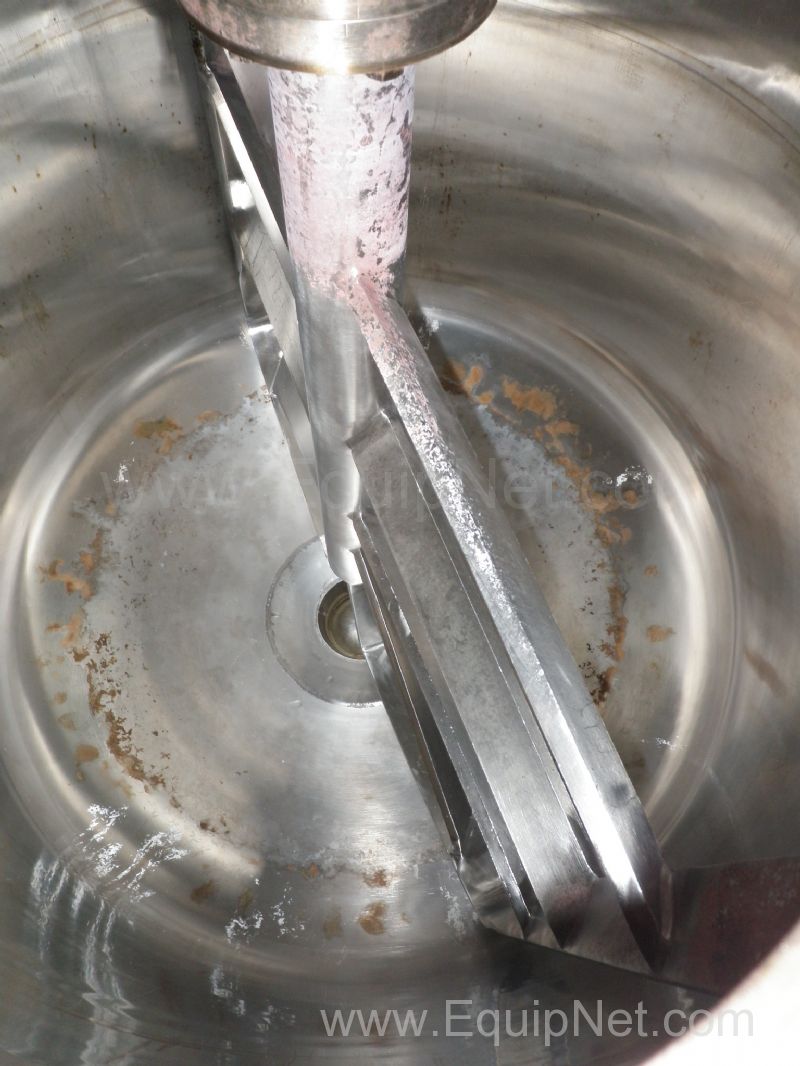

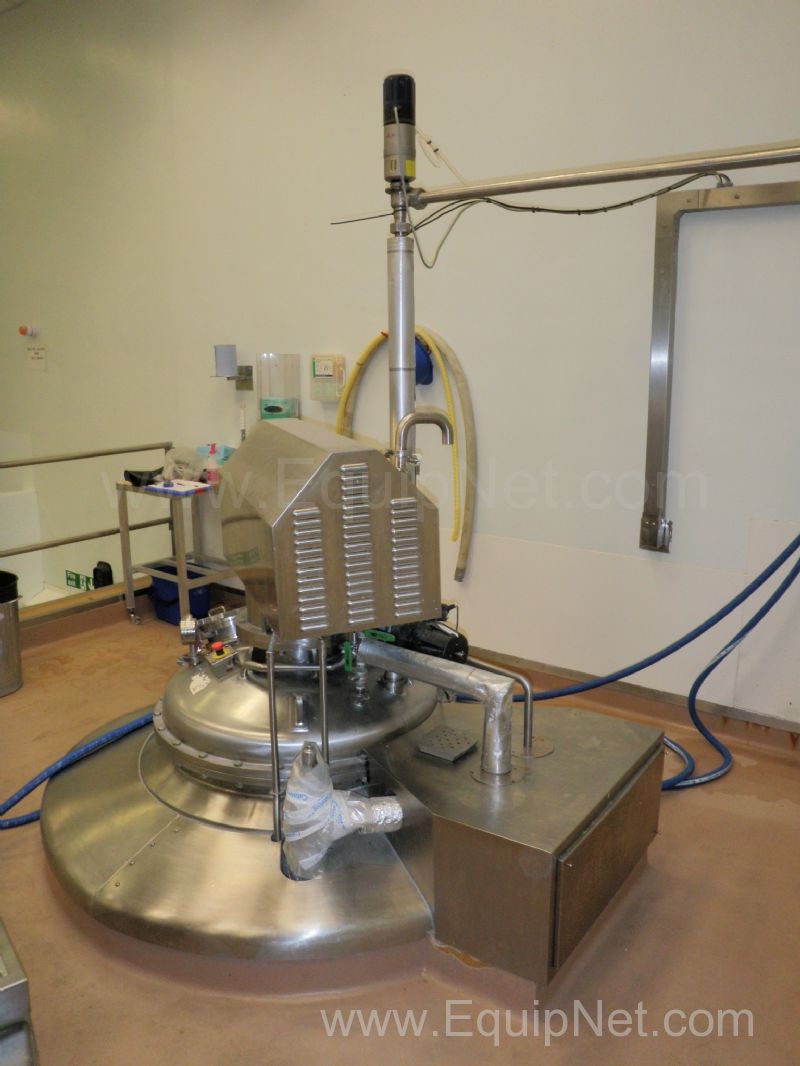

Item 1, The Gelatine Melter / Blender unit is fitted with a domed top, fitted with a central Gate Stirrer Mixer Drive shaft, which is driven by the Overhead mounted Drive unit. Around the front of this Domed vessel top are mounted; 3 x 50mm, 1 x 35mm Pressure Gauge, 4 x 25mm diameter Inlets, plus a 100mm diameter Inspection Window and internal wiper, a 80mm diameter lamp, and a 200mm diameter safety grilled, hinged, interlocked Inspection Door.

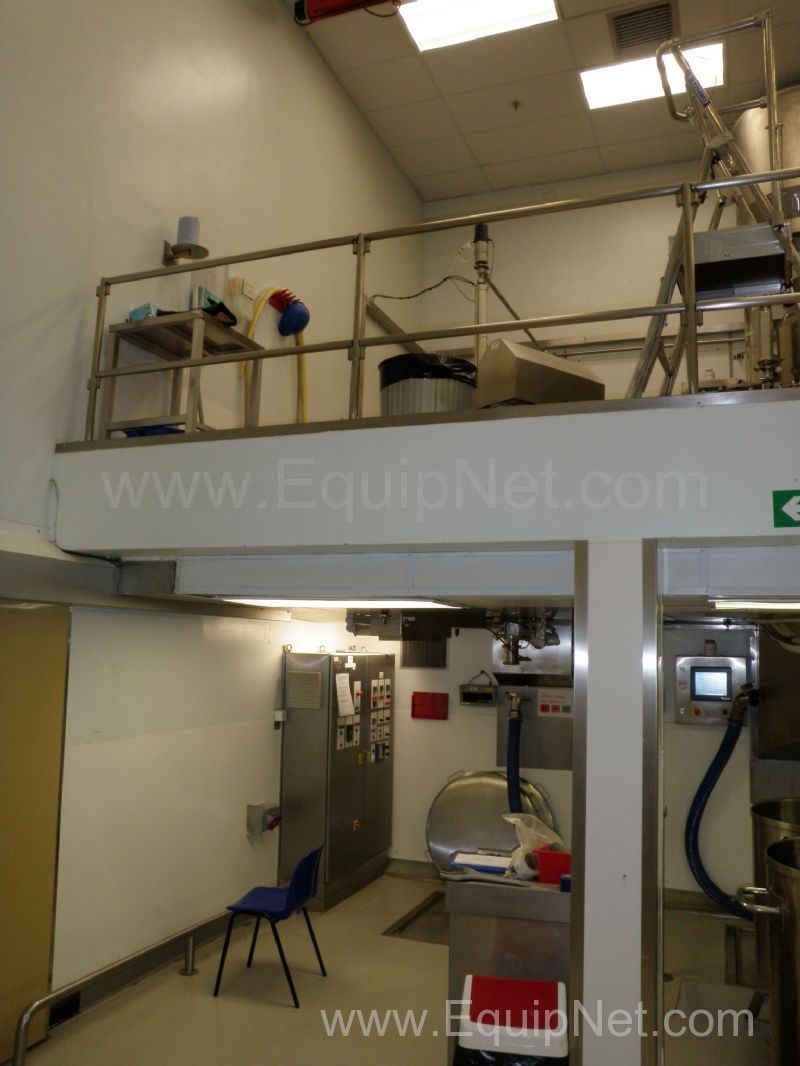

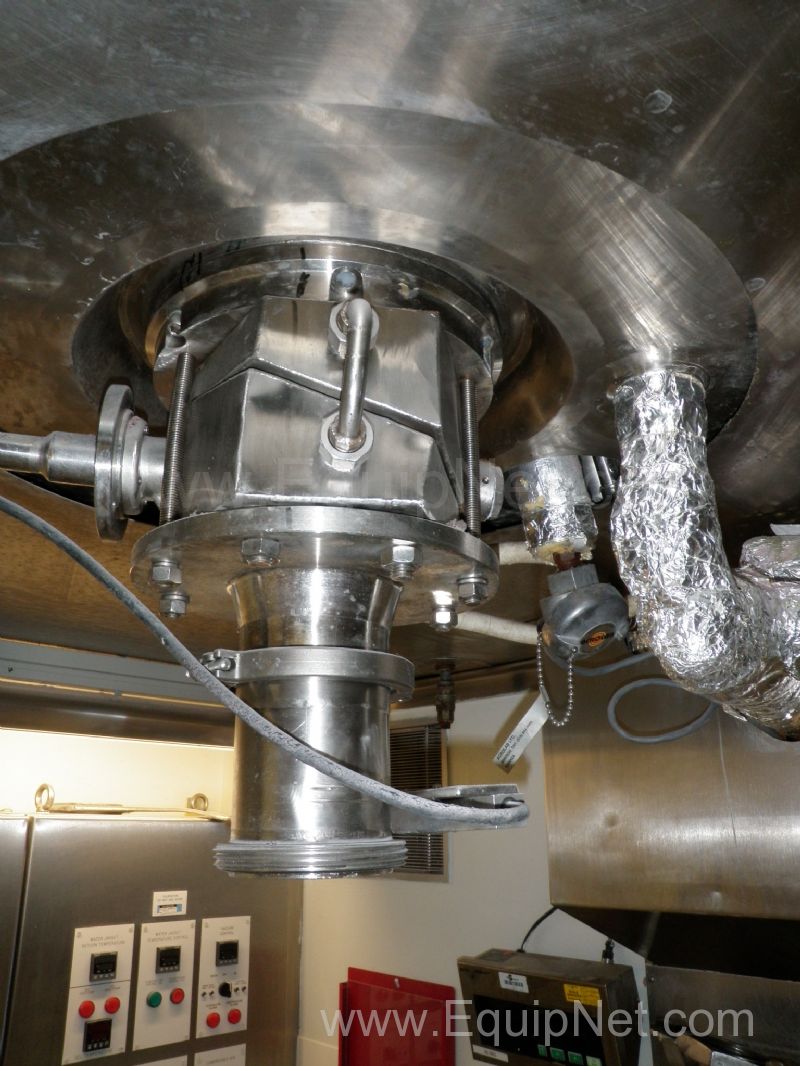

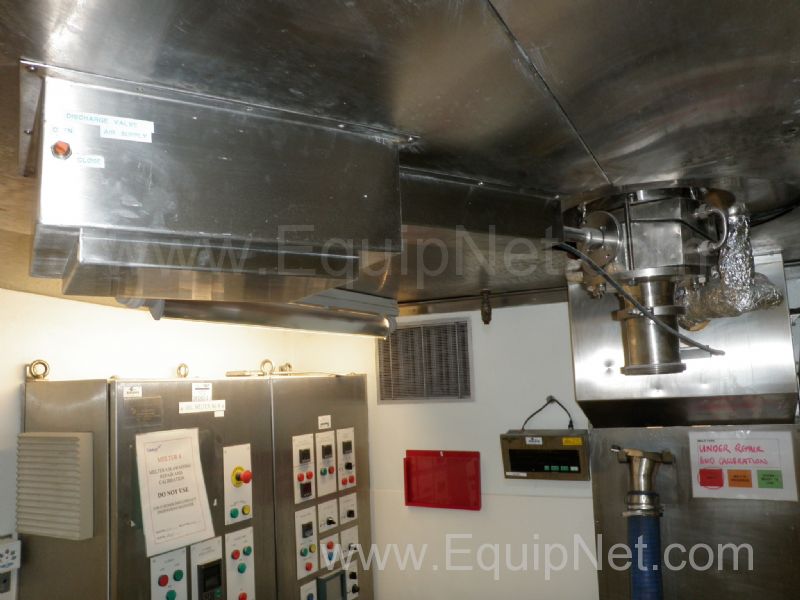

The Gelatine Melter / Blender unit is supported on 3 side lugs from the surrounding Mezzanine floor. Its domed bottom is fitted with a central pneumatically actuated 100mm diameter butterfly valved Outlet, at a height of 1.77m above the lower Drum mounted floor scales.
This Gelatine Melter / Blender unit measures 2.1 x 2 x 2.4m high, and weighs approx 5000 Kgs

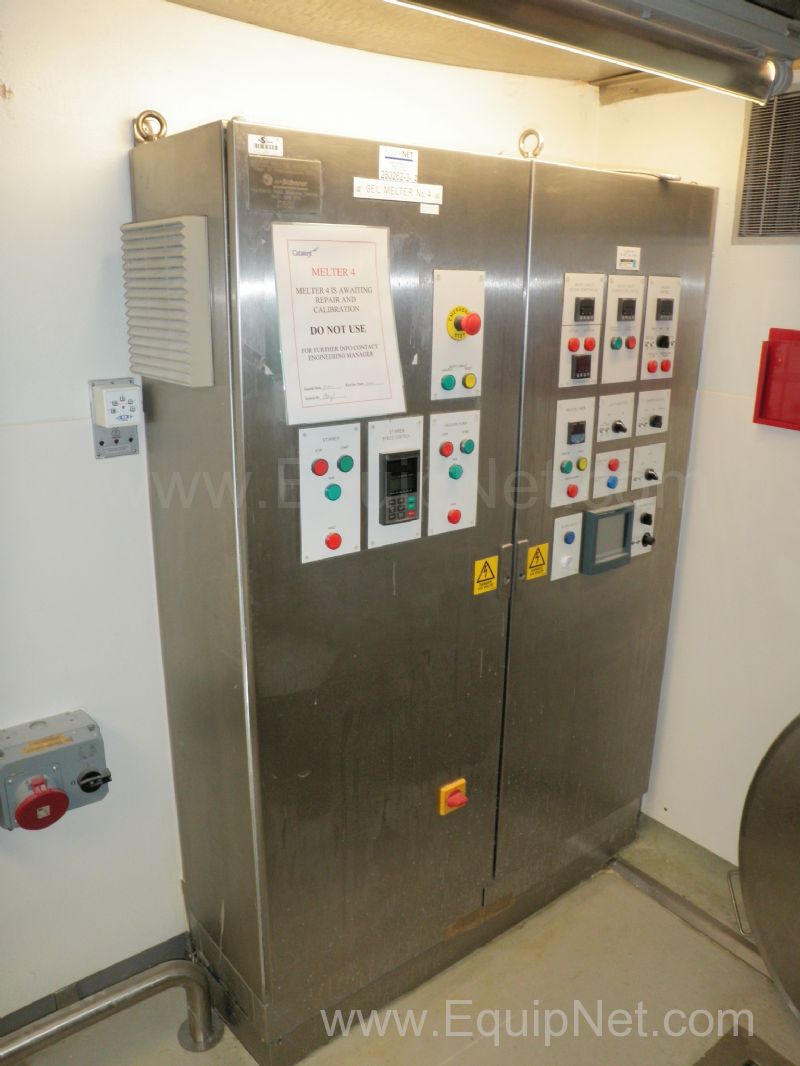

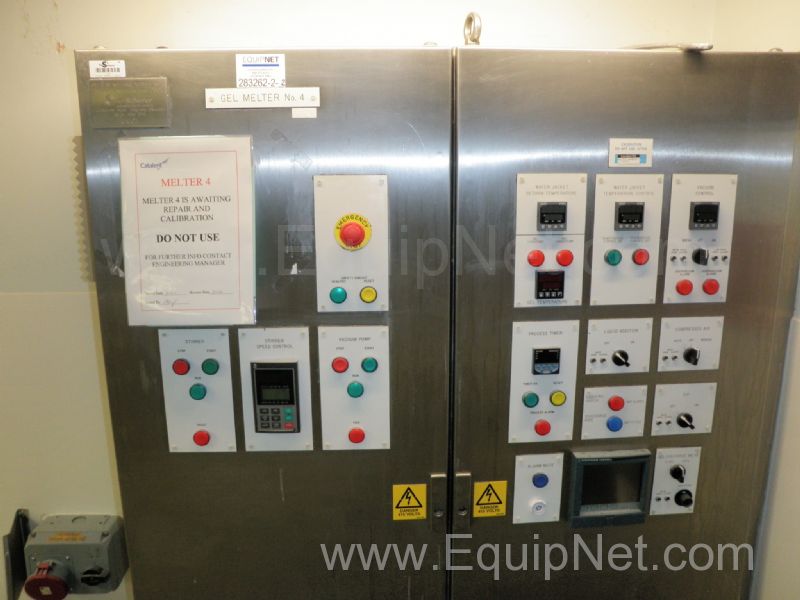

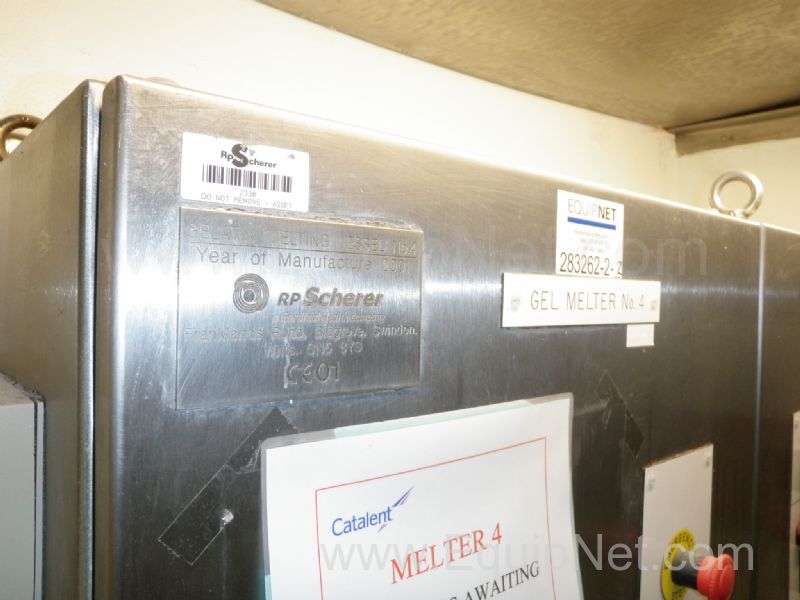

Item 2, Ground Floor S/s wardrobe style double door Main Control Panel, which measures 1.3 x 0.4 x 1.85m high, and weigh approx 300 Kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Unknown |
| Year | 2001 |
| Model | 700 Litre |
| Capacity Size | 700 |
| Products Run | Vegetable Gelatine |
| Material of Construction | 316L STAINLESS STEEL |
| Inlet Size | 3 x 50 MM |
| Agitation | YES |
| Pressure Rating (Temperature) | |
| Pressure Rating (Pressure) | |
| Outside Diameter | 2000 MM |
| Overall Height | 2400 MM |
| Inside Diameter | 1000mm |
| Straight Side (T/T) | 900mm |
| Voltage | 415 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 5300 KGS |
| Legs/Stand | Supported by 3 side lugs from surrounding Mezzanine |
| Top and Bottom Heads | DISHED TOP/FLAT BOTTOM |
| Width | 2 M |
| Recommended Packaging Form | CUSTOM PALLET |
| Length | 3.4 M |
| Height | 2.4 M |
