You are making an offer on a 4100 Cu Ft Carbon Steel Storage Silo & Slurry System located in the USA. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

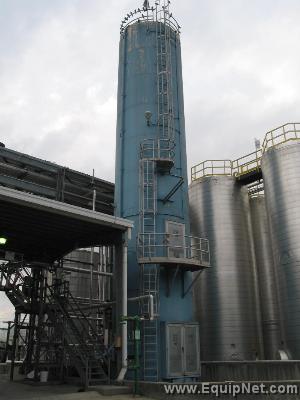

Lime Storage Silo & Slurry System (see print in Equipment Detail 2 for more info) 1.The lime silo is the blue vessel in the middle of the drawing. This is the veiw looking northwest. The baghouse on the top of the silo and the ladders and handrail are included. Notice the pneumatic conveying line on the left side of the silo used for unloading lime into the silo. There is no blower to supply conveying air (we used truck mounted blowers when this silo was in service). There are two light fixtures mounted on the silo which are negotiable.

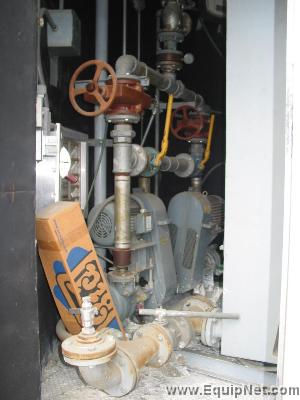

2. This is a photo of the two slurry pumps in the bottom section of the silo. The square slurry tank is on the right side of the photo

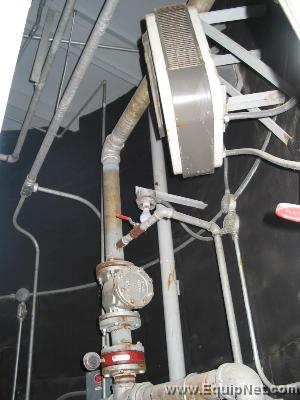

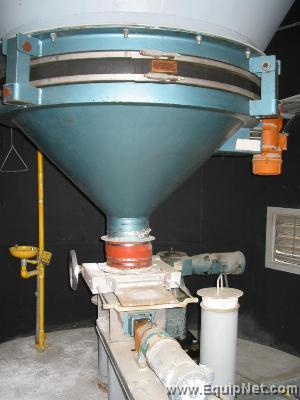

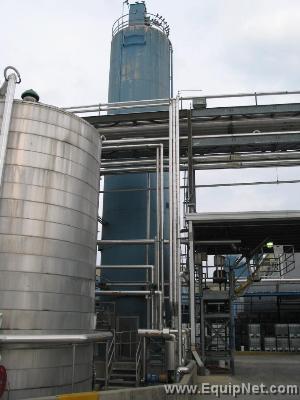

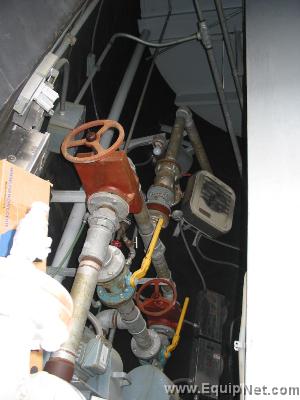

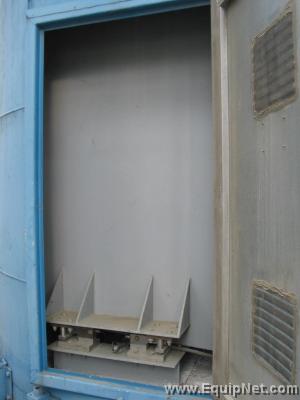

3. Photo of the slurry pump piping4. Photo of the slurry pump piping and space heater5. Photo of back side of the slurry tank. Notice that the tank is on weigh cells6. View of the lime silo looking east7. Lime slurry control panel located in lime feeder section8. Lime slurry control panel detail9. View inside feeder section of vibratory bin activator and lime screw conveyor. The screw conveyor discharges through the floor into the top of the lime slurry tank below.
- Manufacturer Conveying System & Equipment Co
- Year 1991
- Capacity Size 4100 CU FT
- Products Run Out of Service
- Spare/Change Parts N
- Top and Bottom Heads UNKNOWN
- Estimated Shipping Weight 30000 LBS
- Maintenance Log/Records Available N
- MSDS Available N
- Length 60.6 FT
- Width 12 FT
- Height 60.6 FT
- Diameter 12 FT
- Voltage 230/460 VOLTS
- Frequency 60 HERTZ
- Phase 3
- Material Of Construction CARBON STEEL
- Removal Difficulty MODERATE
- Requires rigging or removal YES
- Requires a flatbed truck YES
- Level of shipment preparation necessary STILL INSTALLED
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
North Carolina
Dimensions: 60.6x12x60.6 FT
