Listing #283366
Advanzada Macroflex 6 12 Stainless steel mobile 100 Plastic Bottle per minute Filling system

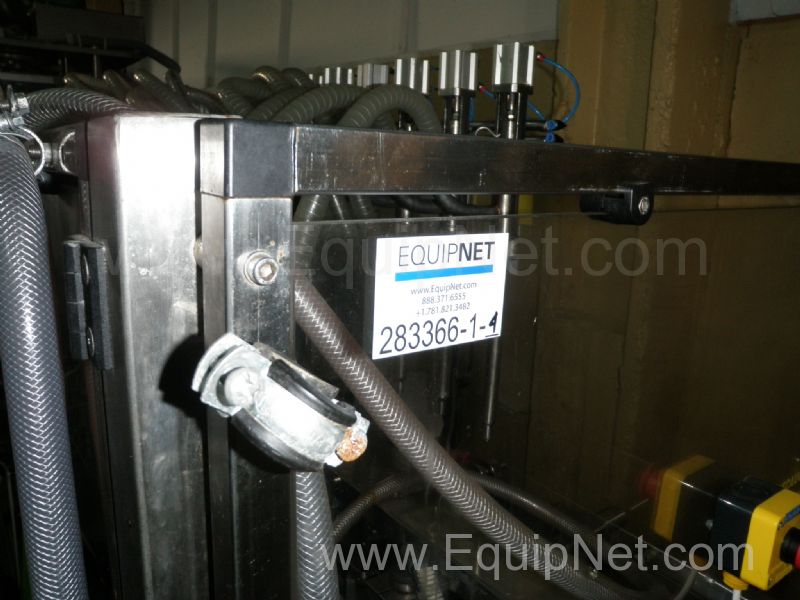

EquipNet Tag #283366-1-4, 283366-2-4, 283366-3-4, 283366-4-4
Equipment Description:

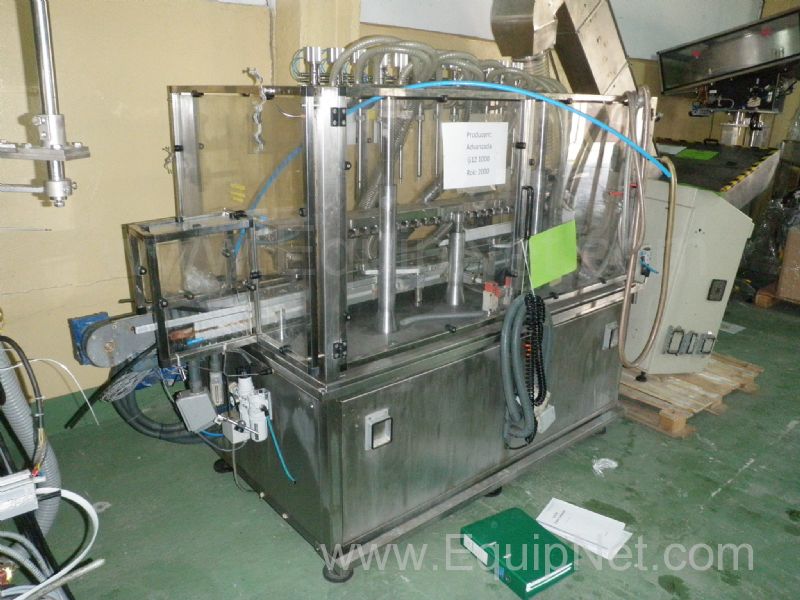

Advanzada Macroflex 6/12 Stainless steel mobile 100 Plastic Bottle per minute Filling system

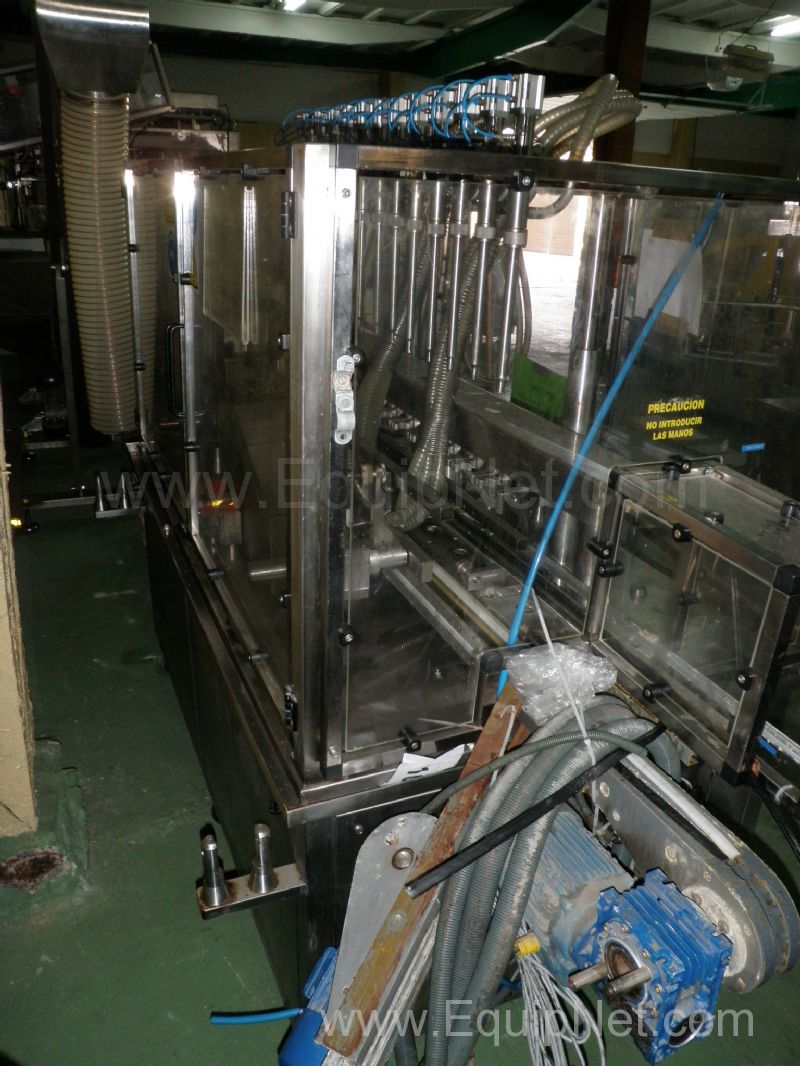

Item 1, 12 headed S/s Mobile Variable speed Plastic Bottle lotion Filling M/c, is capable of filling 150 - 500ml plastic bottles at a rate of upto 100 bottles / minute.

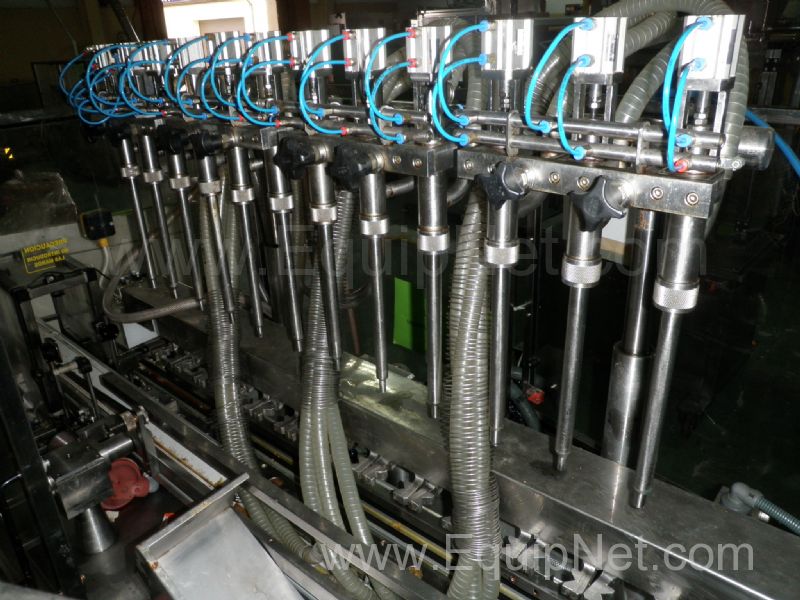

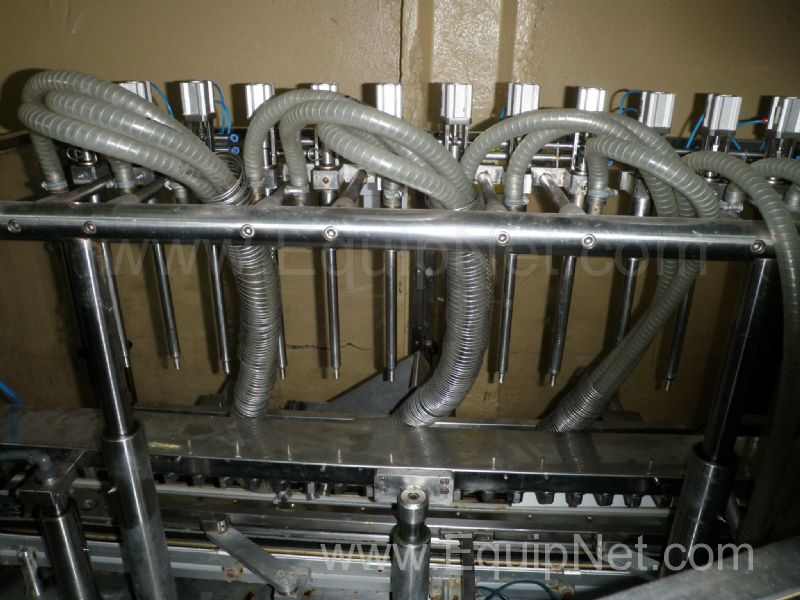

The empty bottles enter the machine held vertically in their their plastic transfer Pucks on a 920mm high x 65mm wide Side guided Slat Infeed Conveyor, and are pushed up against an end stop. The bottles are then pushed sideways 12 at a time onto the Discharge Slat conveyor under the lowering Filling M/c's Filling nozzles / bottle top restraints. Once filled the Filling nozzles / restraints are lifted away, and the filled bottles leave the machine vertically via the 65mm wide x 920mm high Discharge Slat Conveyor.
The Advanzada Macroflex 6/12 Stainless steel mobile Filling Machine measures 2.75 x 1.1 x 1.7m high, and weighs approx 1000 Kgs.

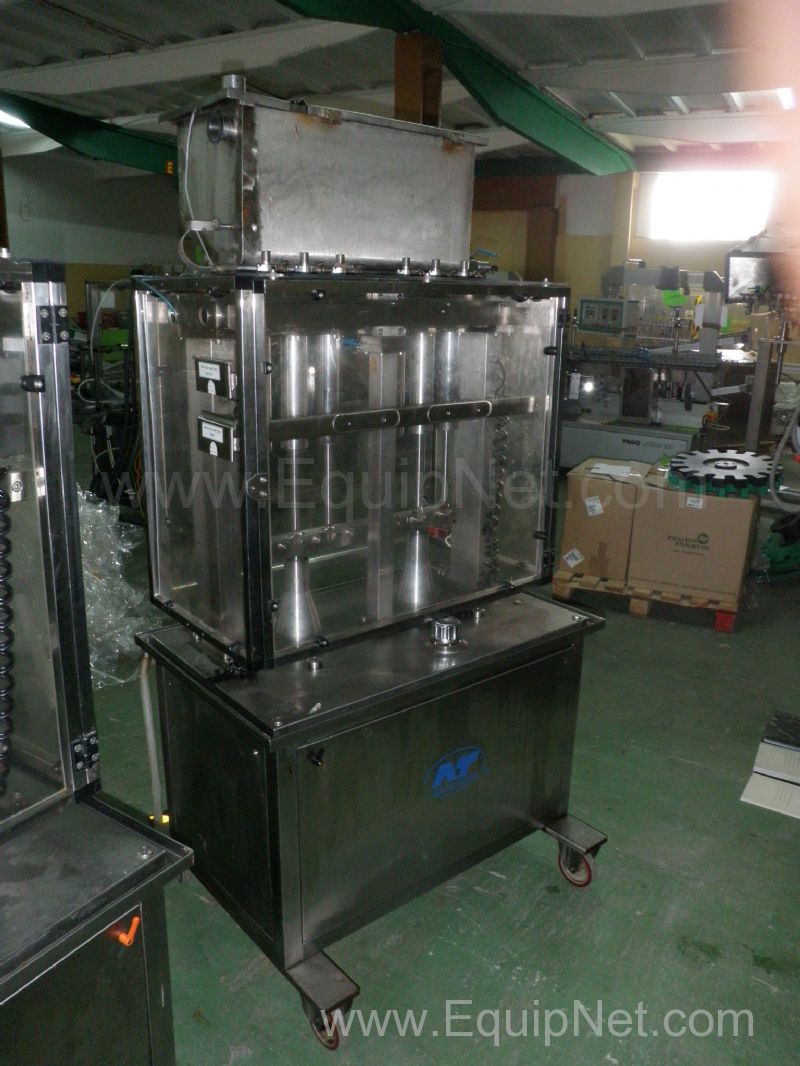

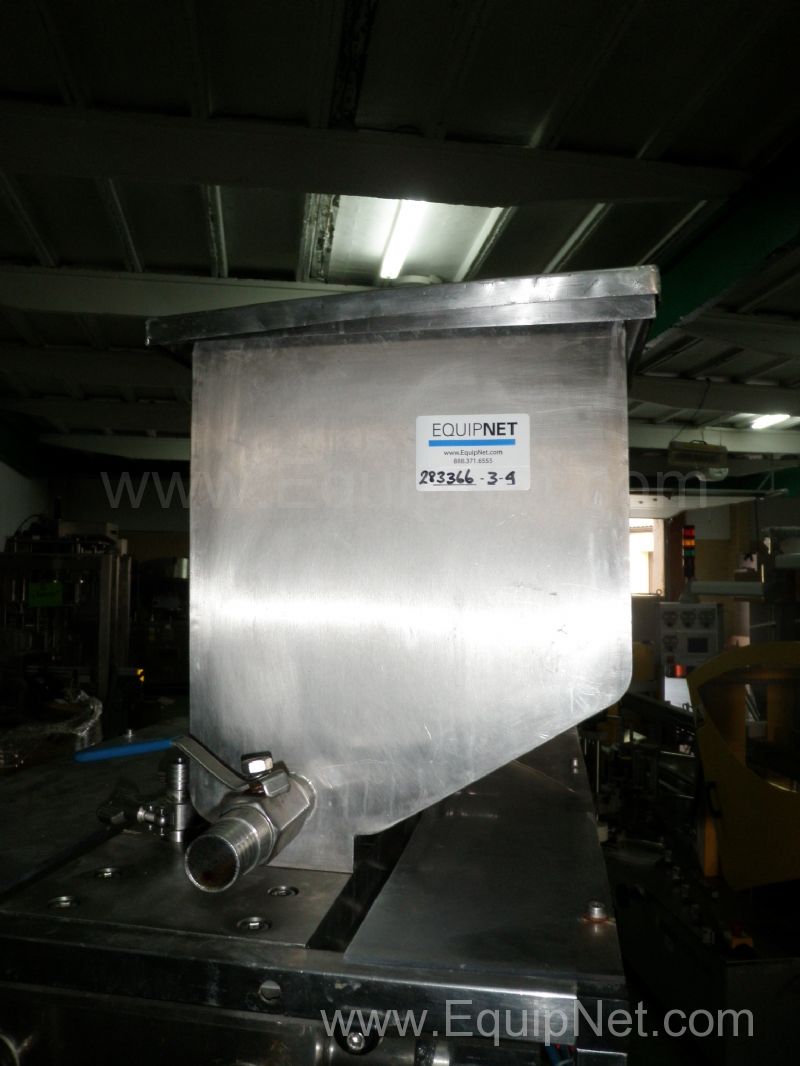

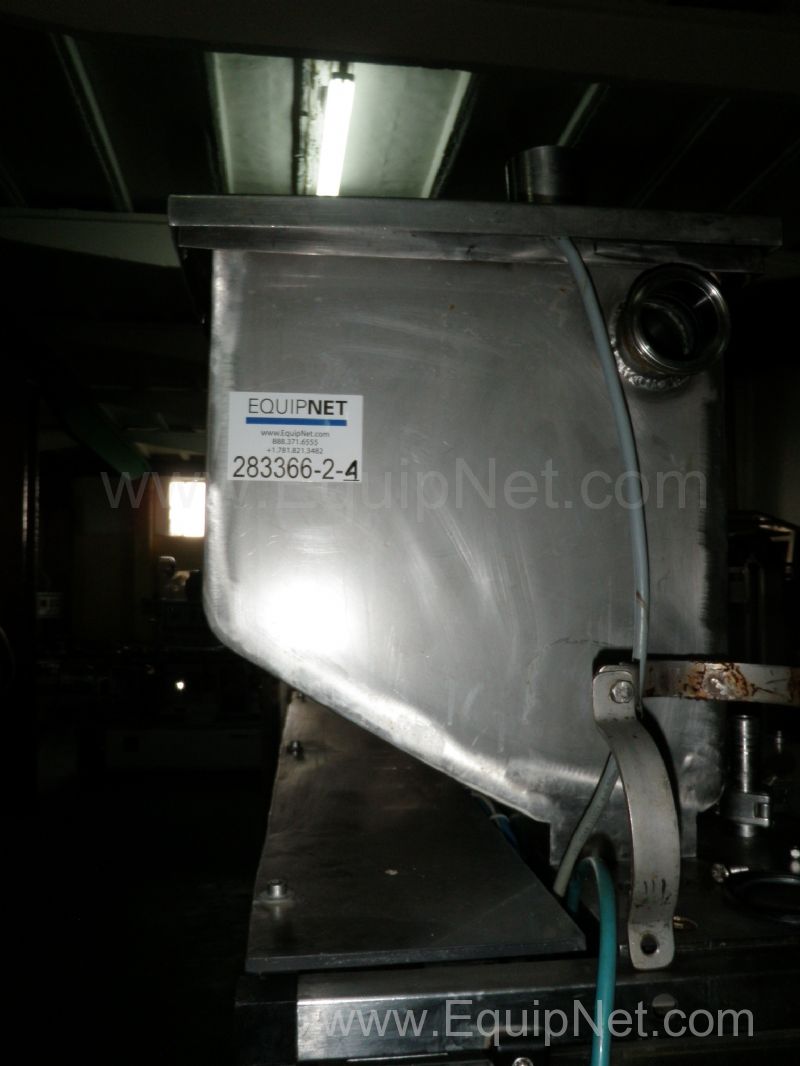

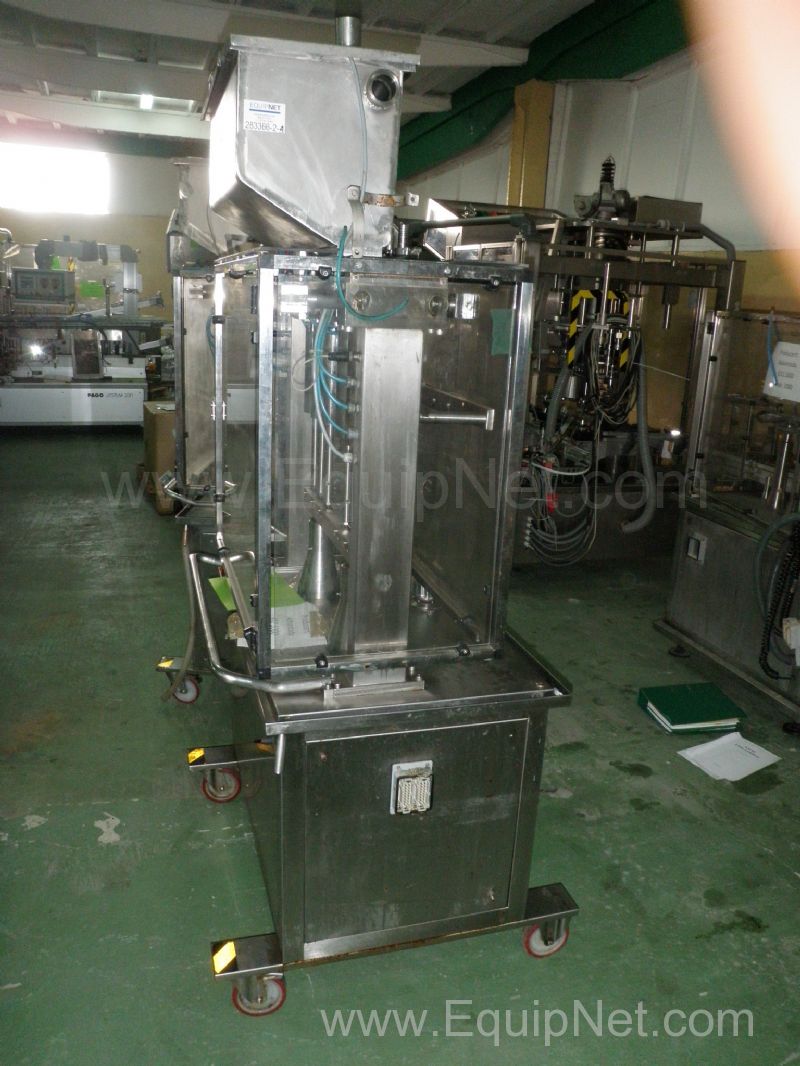

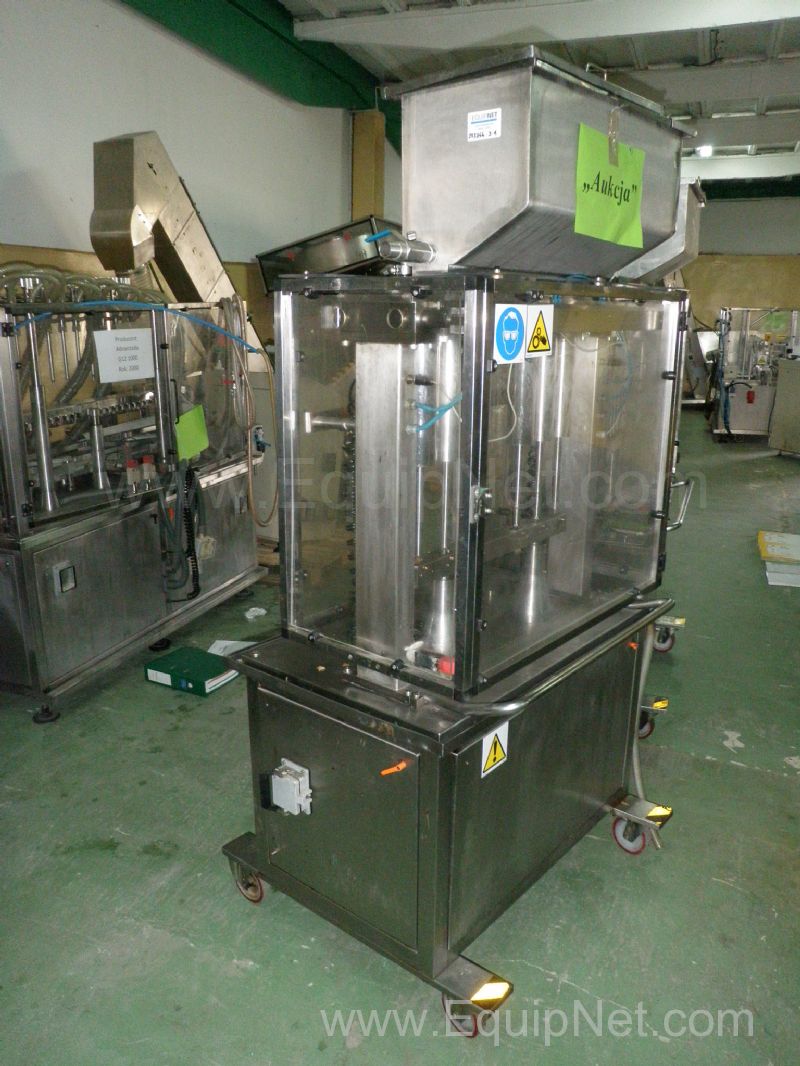

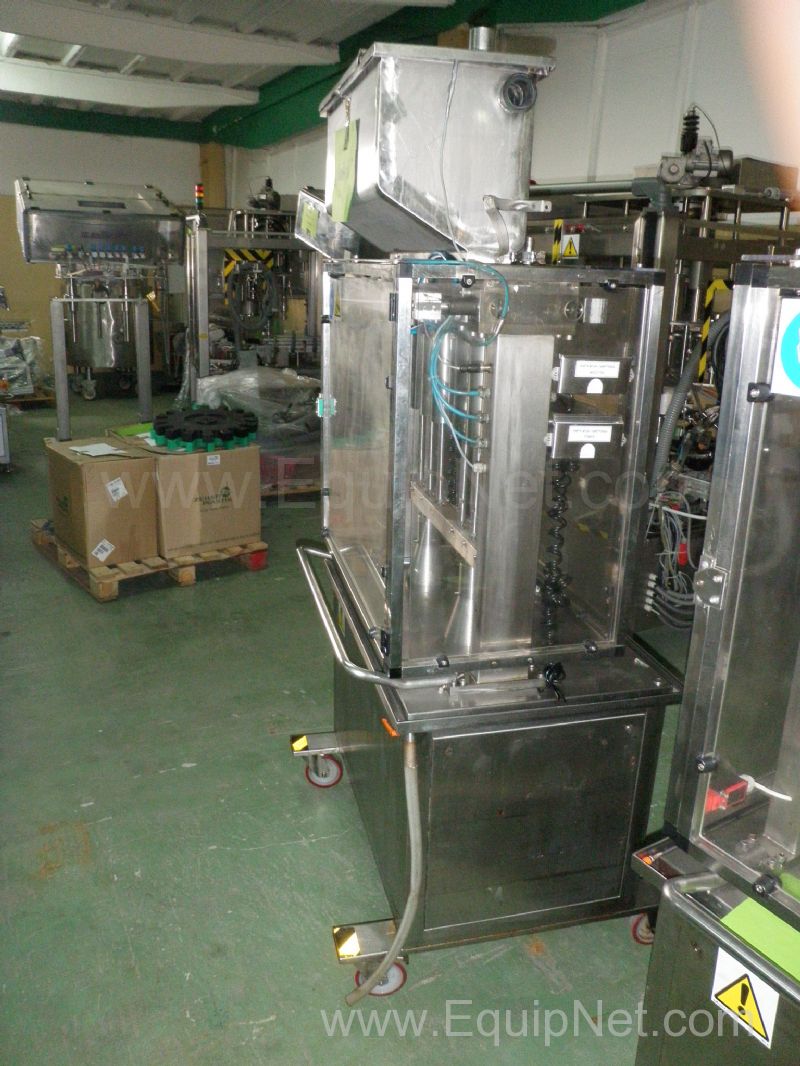

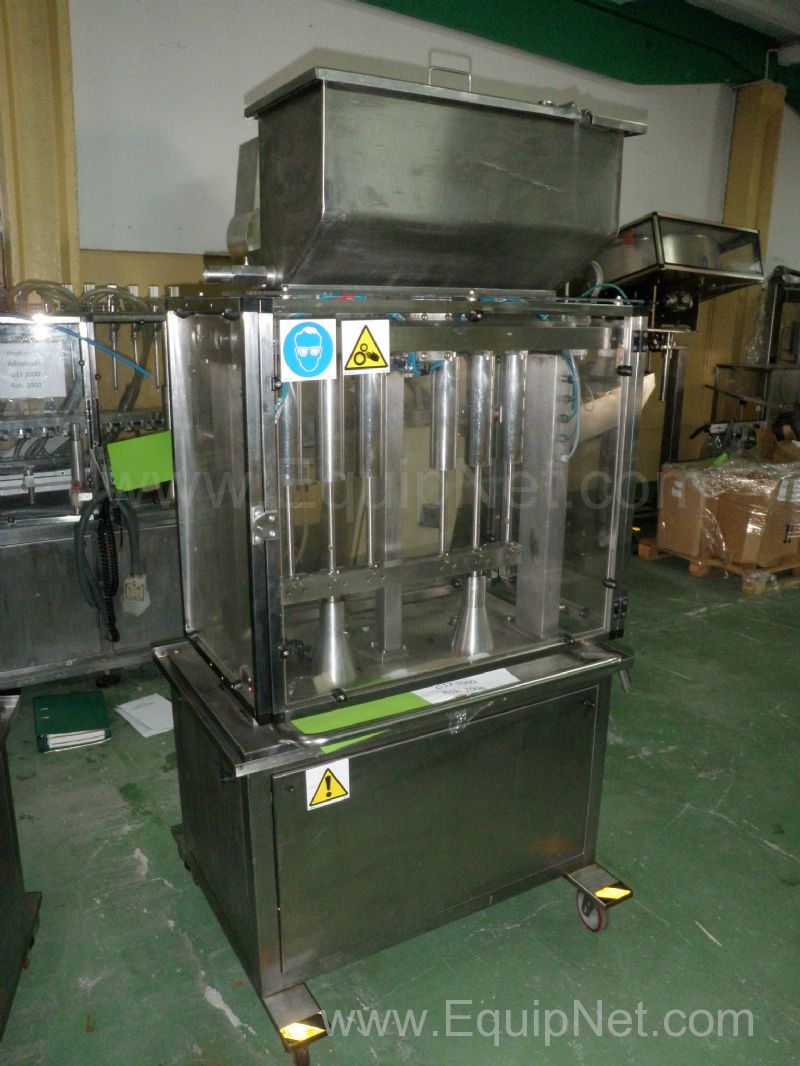

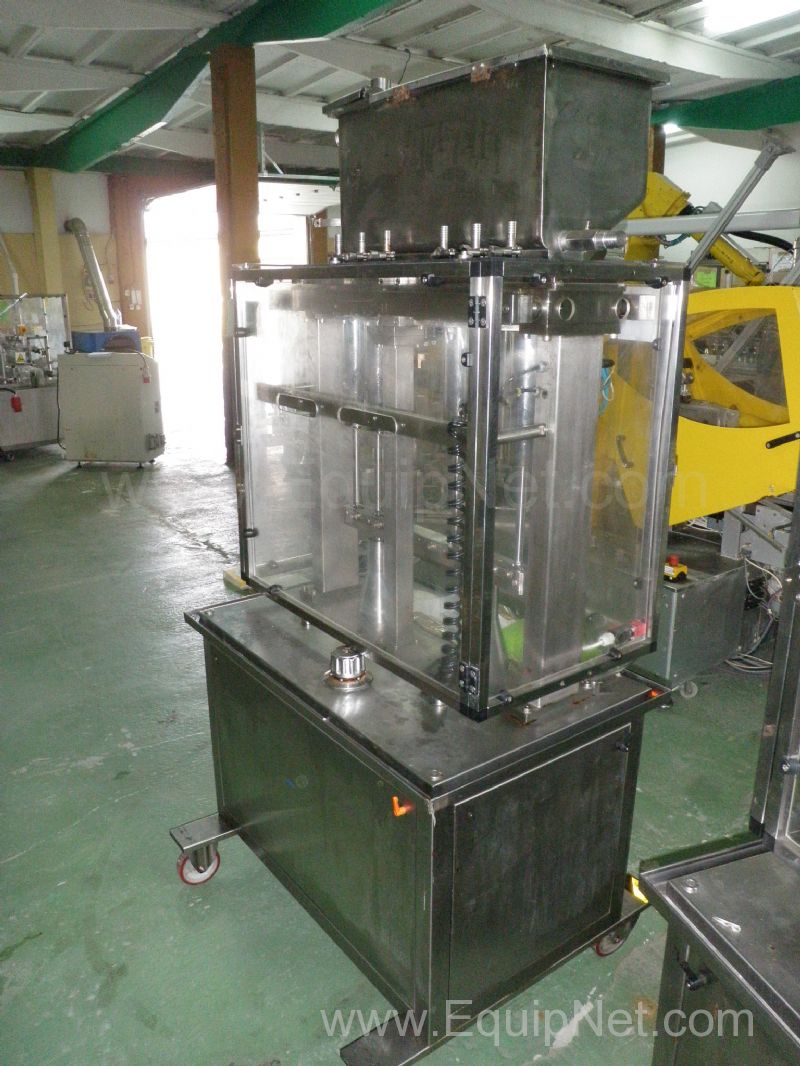

Items, 2 & 3, 2 off Advanzada G12 1000 S/s Mobile 6 headed Pumping units, which are each fitted with a set of 6 adjustable stroke length S/s Piston type pump heads, linked to a common overhead S/s lidded Lotion feed hopper which measures 700 x 300 x 250mm deep. These units are each supported on 4 lockable swivel castors.
These 2 off Advanzada S/s Mobile 6 headed Pumping units, each measure 1.1 x 0.9 x 2.1m high, and weigh approx 600 Kgs each.

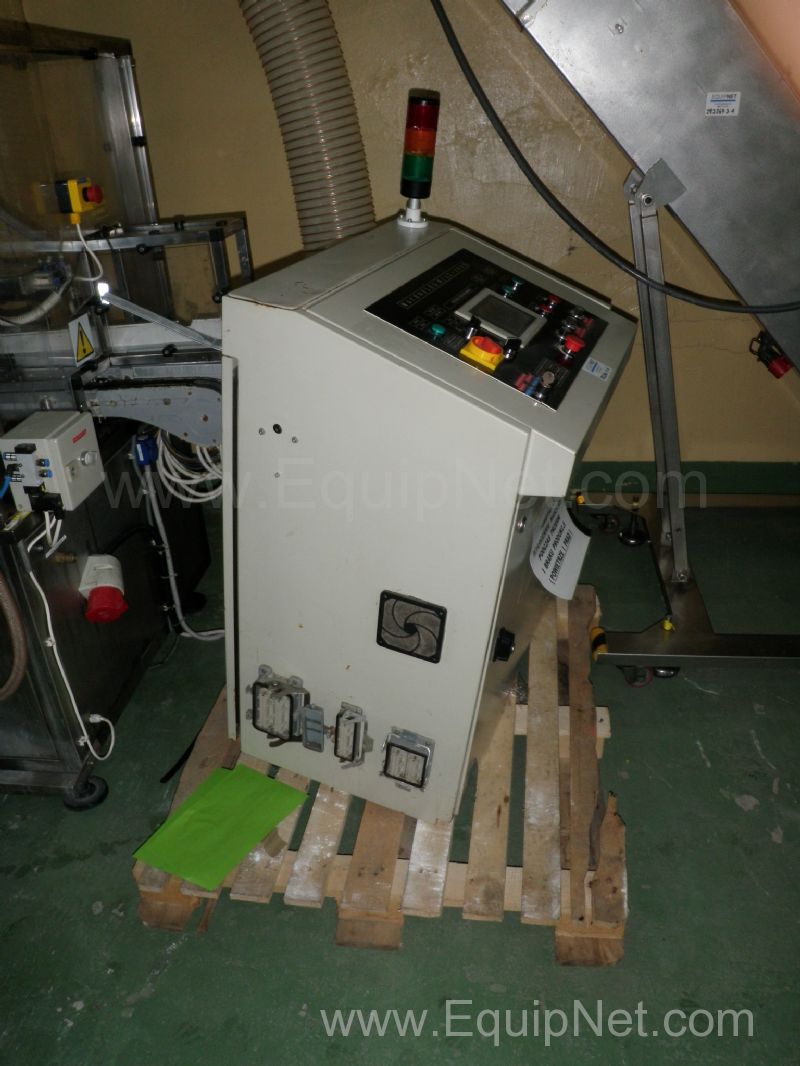

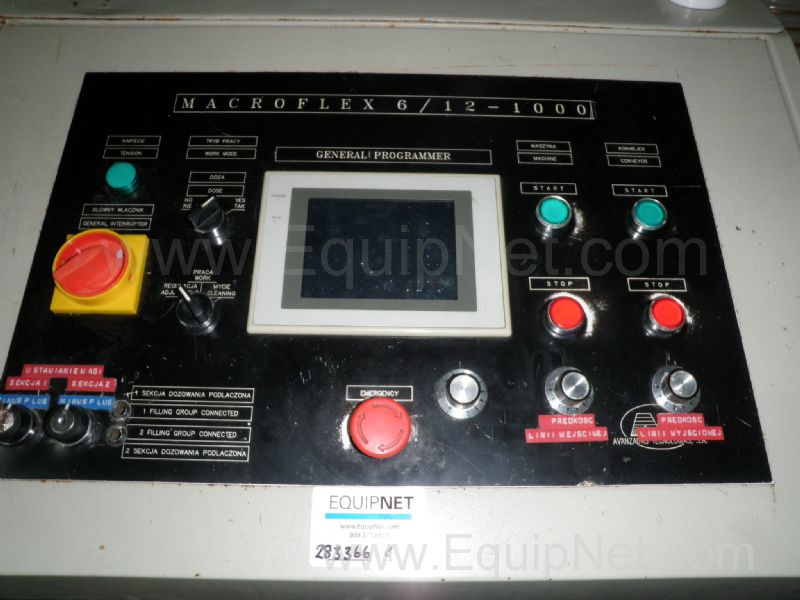

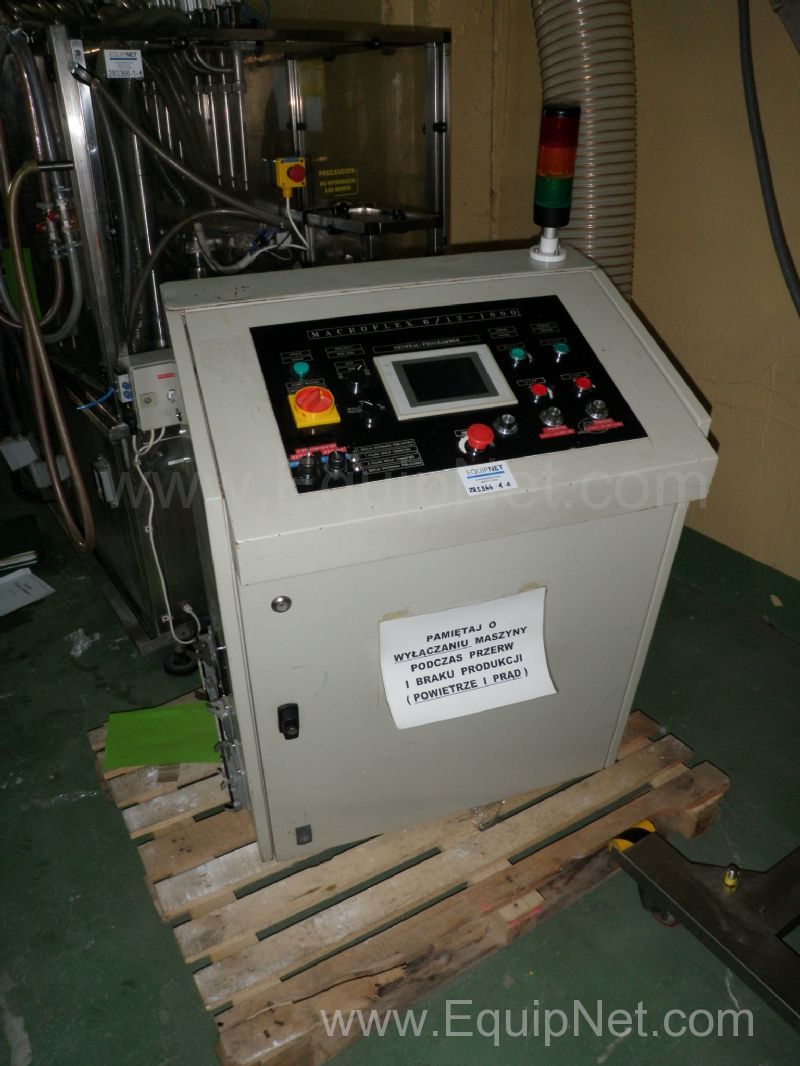

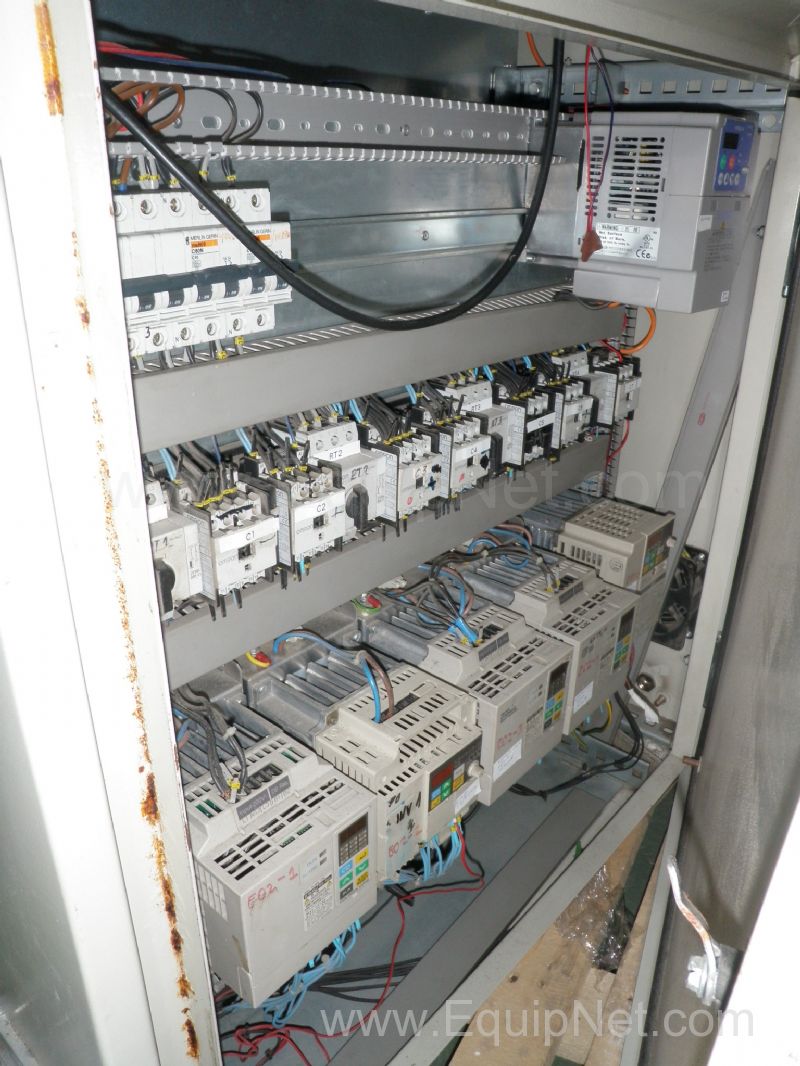

Item 4, Advanzada Macroflex 6/12 Filling system, Pedestal type Stand alone Control Panel, complete with Omron Variable speed inverters, measures 0.8 x 0.6 x 1m high, and weighs approx 300 Kgs.

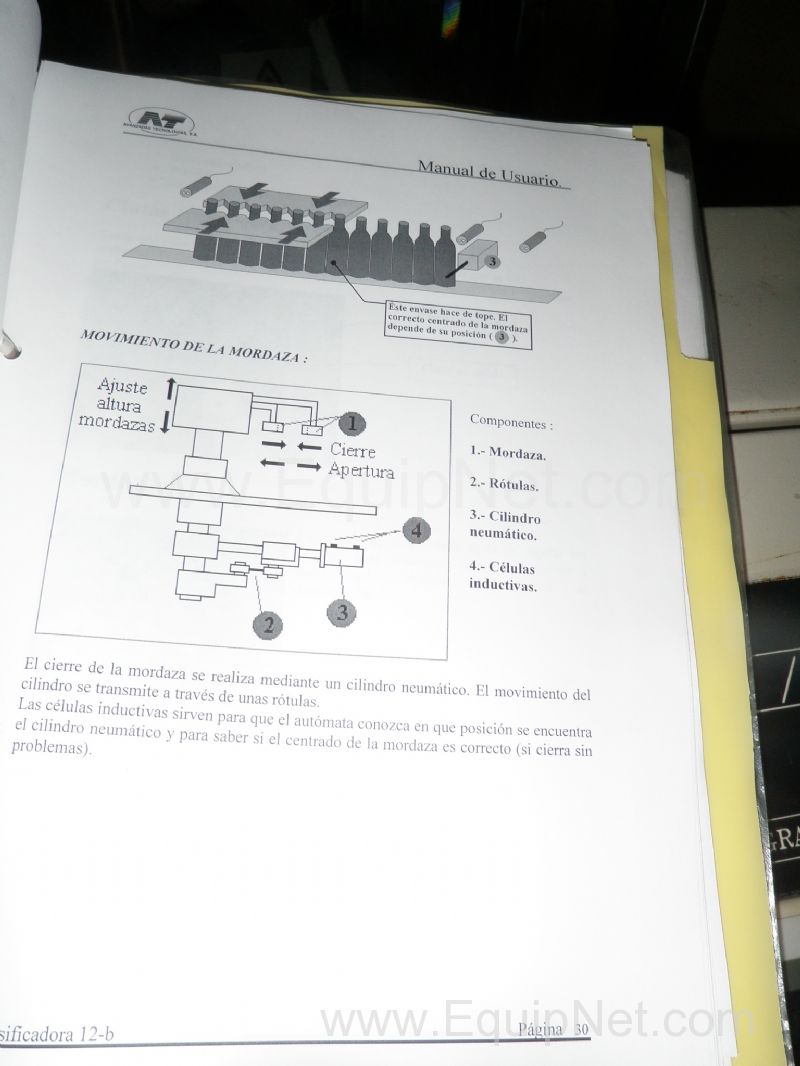

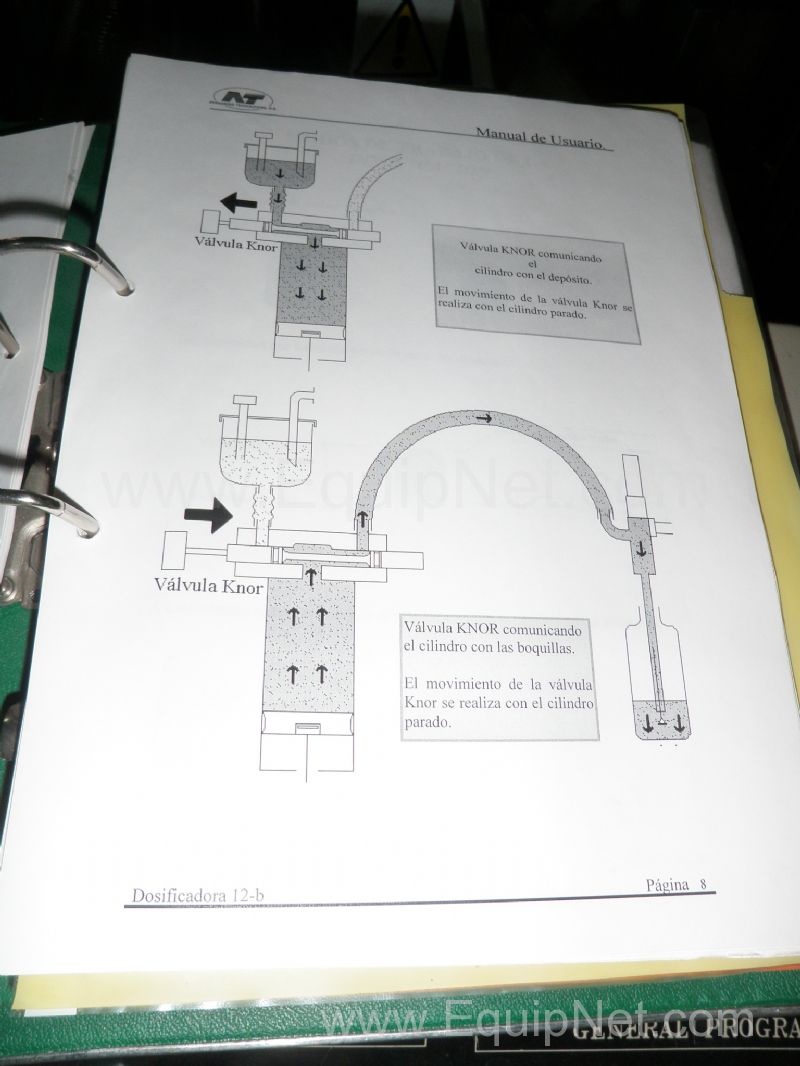

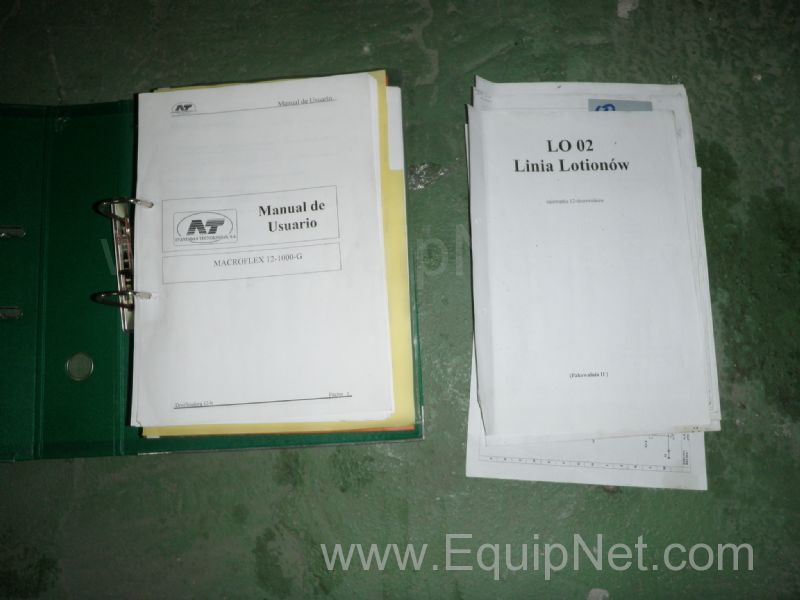

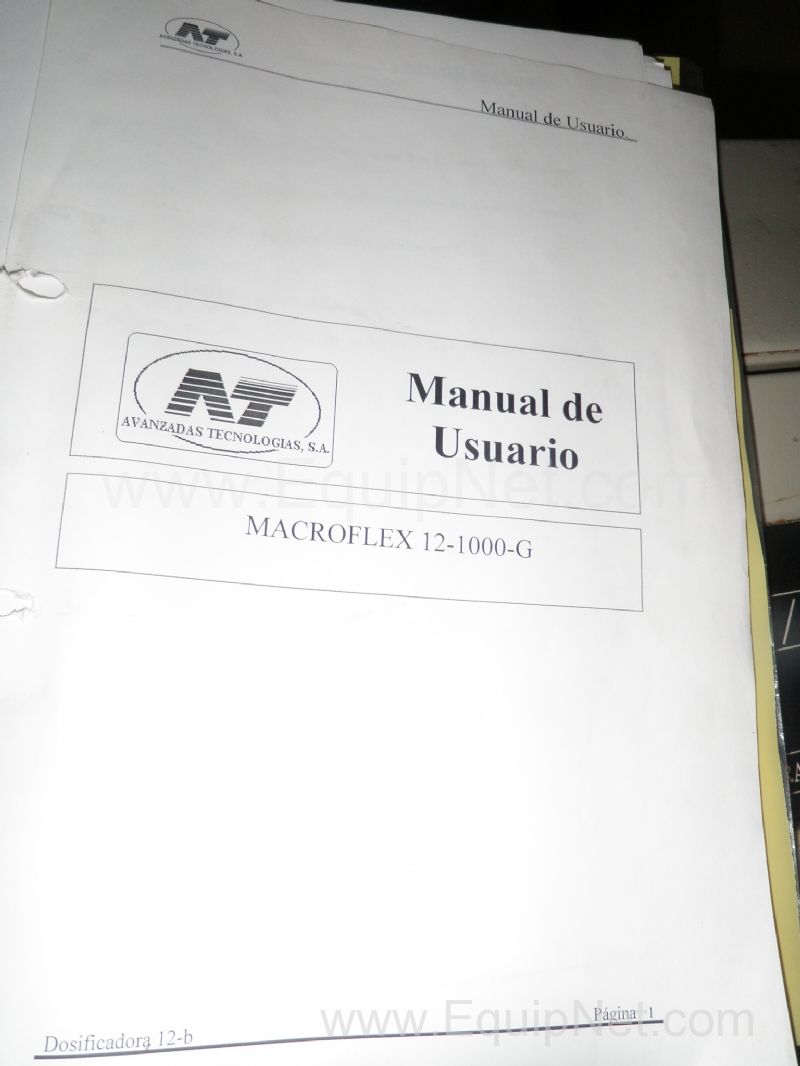

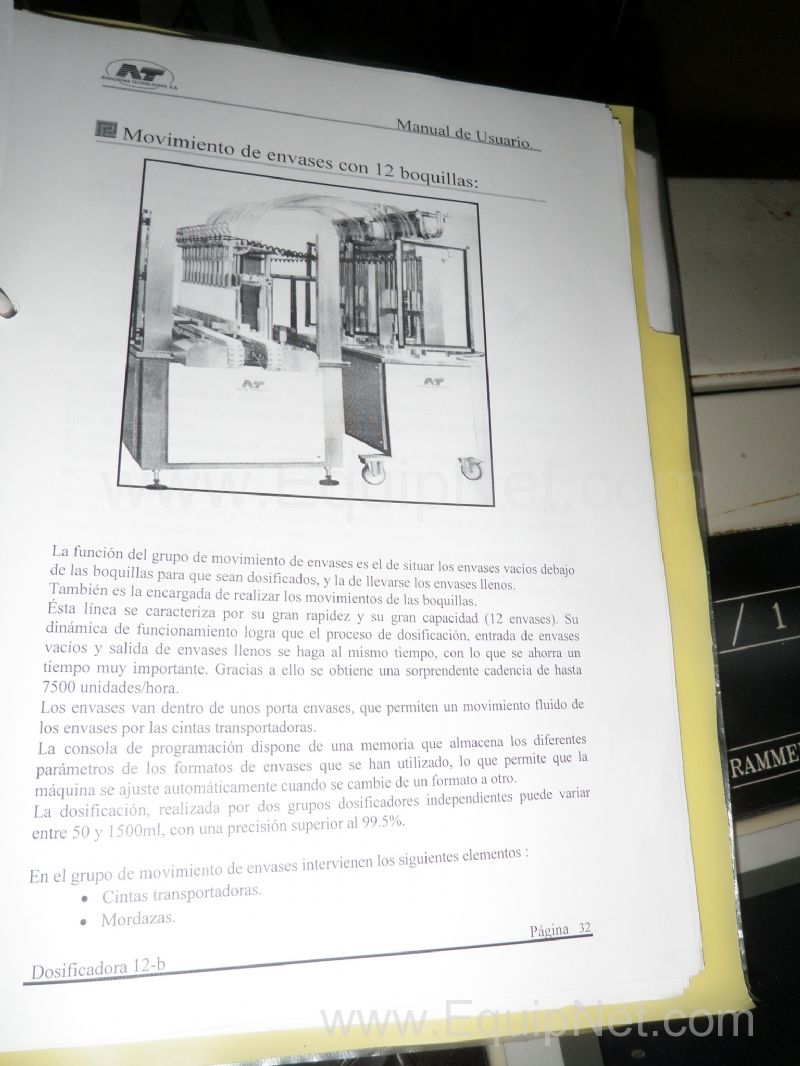

This equipment is supplied with a full set of original OEM Instructions Manuals
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Poland. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Advanzada |
| Year | 2000 |
| Model | Macroflex 6/12 |
| Serial Number | G12 1000 |
| Capacity Speed | 100 BPM |
| Product Sizing | 150 - 500ml Bottles |
| Products Run | Plastic Lotion Bottles |
| Spare/Change Parts | YES |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 2500 KGS |
| Length | 5.75 M |
| Width | 1.1 M |
| Height | 2.1 M |
| Voltage | 400 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Recommended Packaging Form | CUSTOM PALLET |
