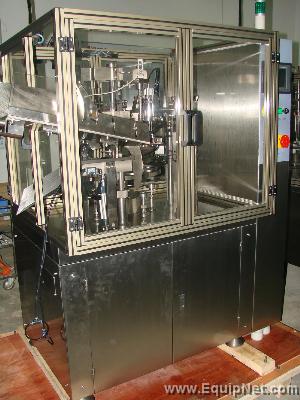

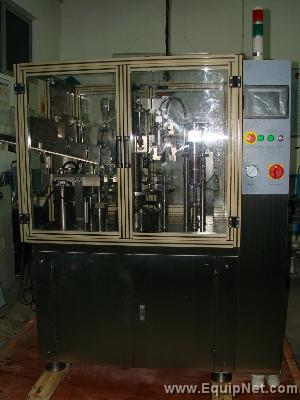

You are making an offer on an Automatic metal tube filler and sealer.NEW. located in China. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Tube filler Features
Tube types: aluminum tubes(metal tubes).
The TFS-200A automatic plastic tube filler/sealer adopt advanced sensor parts from Germany Sicks or Japan Sunx brand.
Tube filler with CE certified.
The TFS-200A automatic aluminum tube filler/sealer uses color touch screen control technology.
Tube filler with PLC control system.
Automatic tube loading, tube washing, positioning, filling, folding and tube ejecting.
Tube loading and tube washing are done pneumatically.
Ruggedly design, durable, easy to operate and simple maintenance.
Tube positioning is control by photoelectric sensor.
Tube filler with no tube, no filler feature.

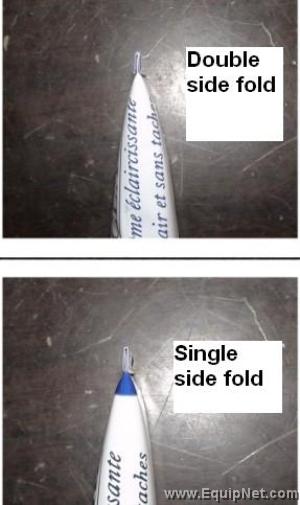

Metal tube filler sealed in the form of twice-edge, triple edge or U-shaped folding.
Safety production and overload protection features are included.
Stainless steel construction and all parts contacted with material are high quality 316L stainless steel to meet cGMP standard.
Tube filler with double jacket temperature control hopper and stirrer are available as options.
Tube filler Specifications
Power supply: 380v 3phase or 220v 3phase.
Filling range: 5-120 ml or 50-200 ml.
Hopper volume: 40 L.
Speed (tubes/minute): 60
Filling precision: 99%.
Tube height: 190 mm (max.).
Tube diameter: 10-30 mm or 19-40 mm.
Air pressure: 0.35-0.5 MPa.
Dimension (L x W x H): 1900×1000×1900 mm.
Weight: 900 kg.
- Manufacturer TotalPack Solutions Pte.Ltd.
- Model TFS-200A
- Length 1000 MM
- Width 900 MM
- Height 1800 MM
- Removal Difficulty EASY
- Estimated Shipping Weight 900 KGS
- Requires rigging or removal YES
- Requires a flatbed truck YES
- Level of shipment preparation necessary ALREADY CRATED
