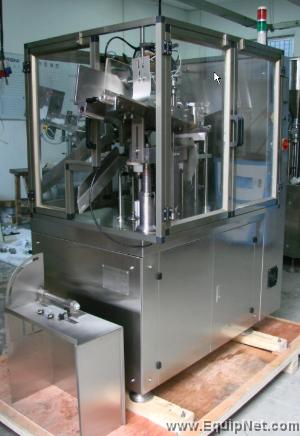

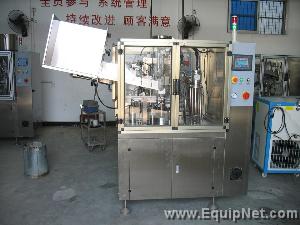

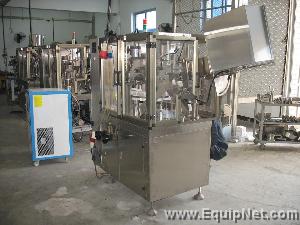

You are making an offer on an Automatic plastic tube filler and sealer.NEW. located in China. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Tube filler Features
Tube types: plastic soft tubes or flexible compound tubes.
The TFS-100A automatic plastic tube filler/sealer adopt advanced sensor parts from Germany Sicks or Japan Sunx brand.
Tube filler with CE certified.
The TFS-100A automatic plastic tube filler/sealer is using color touch screen control technology.
Tube filler with PLC control system.
Tube fiiler with automatic tube loading, tube washing, positioning, filling, sealing & hot air heating and tube ejecting.
With tube loading and tube washing are done pneumatically.
Ruggedly design, durable, easy to operate and simple maintenance.
Tube positioning is control by photoelectric sensor.
Equipped with temperature control and separate cooling system.
The tube filler with no tube, no fill feature.
Tube filler with feature safety production and overload protection features are included.
Stainless steel construction and all parts contacted with material are high quality 316L stainless steel to meet cGMP standard.
Tube filler can be with double jacket temperature control hopper and stirrer are available as options.
Tube filler Specifications
Power supply: 380v 3phase or 220v 3phase.
Filling range: 5-250 ml or 50-500 ml.
Hopper volume: 40 L.
Speed (tubes/minute): 40
Filling precision: 99%.
Tube height: 220 mm (max.).
Tube diameter: 10-50 mm or 20-60 mm.
Air pressure: 0.35-0.5 MPa.
Dimension (L x W x H): 1900×1000×1900 mm.
Weight: 900kg. - Manufacturer TotalPack Solutions Pte.Ltd.
- Model TFS-100A
- Length 1000 MM
- Width 900 MM
- Height 1800 MM
- Removal Difficulty EASY
- Estimated Shipping Weight 900 KGS
- Requires rigging or removal YES
- Requires a flatbed truck YES
- Level of shipment preparation necessary ALREADY CRATED
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
China
Dimensions: 1000x900x1800 MM
Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
|
