Listing #283261
BPT Skerman 316L Stainless steel 1350 Litre Jacketed Vegetable Gelatine Mixer Melter Vessel No 3
EquipNet Tag #283261-1-4, 283261-2-4, 283261-3-4, 283261-4-4
Equipment Description:
BPT Skerman 316L Stainless steel 1350 Litre Jacketed Vegetable Gelatine Mixer Melter Vessel No 3

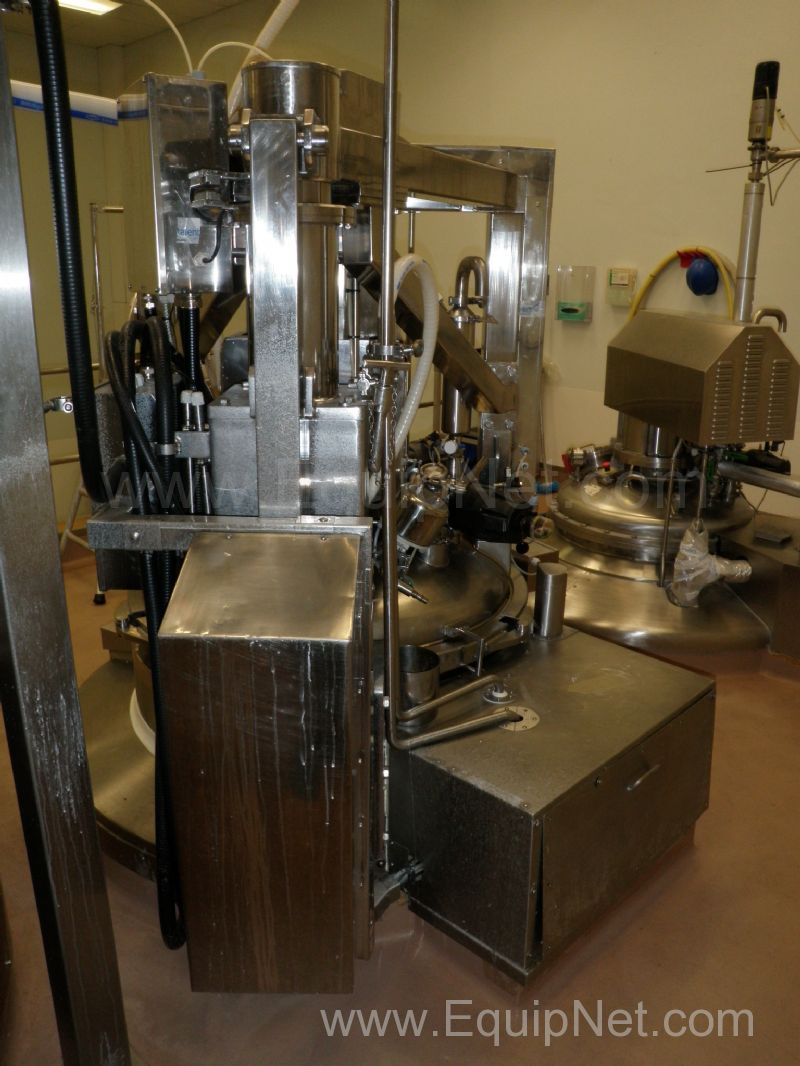

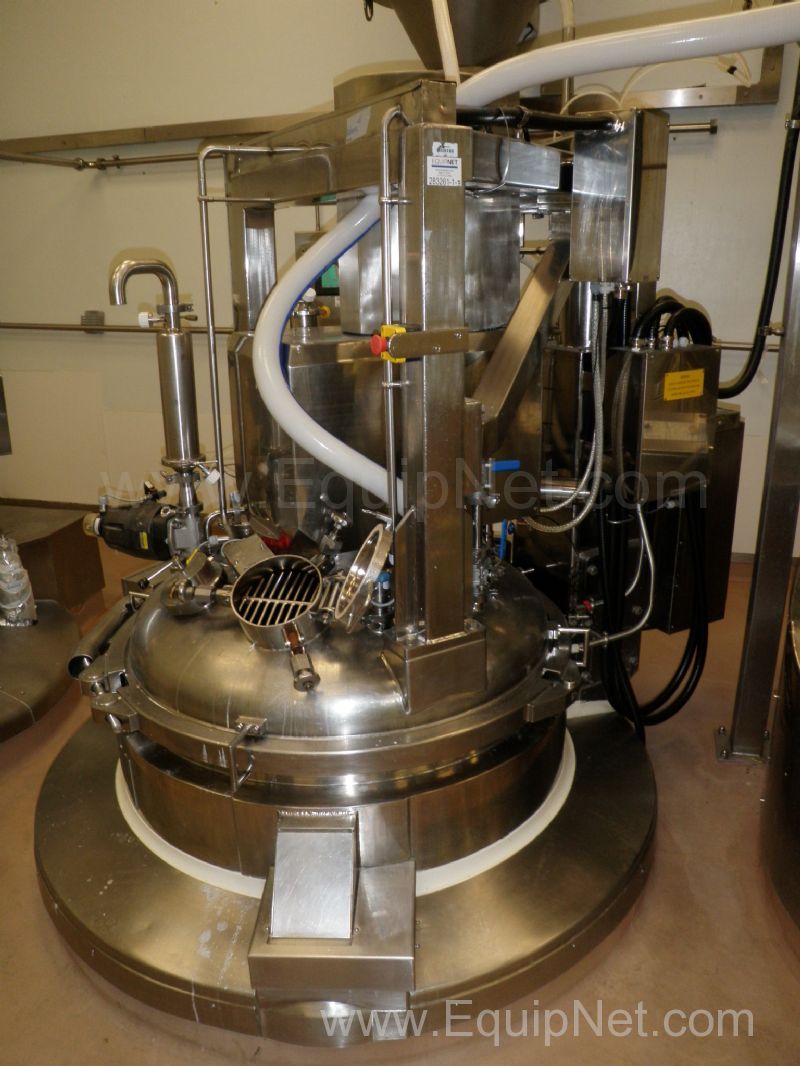

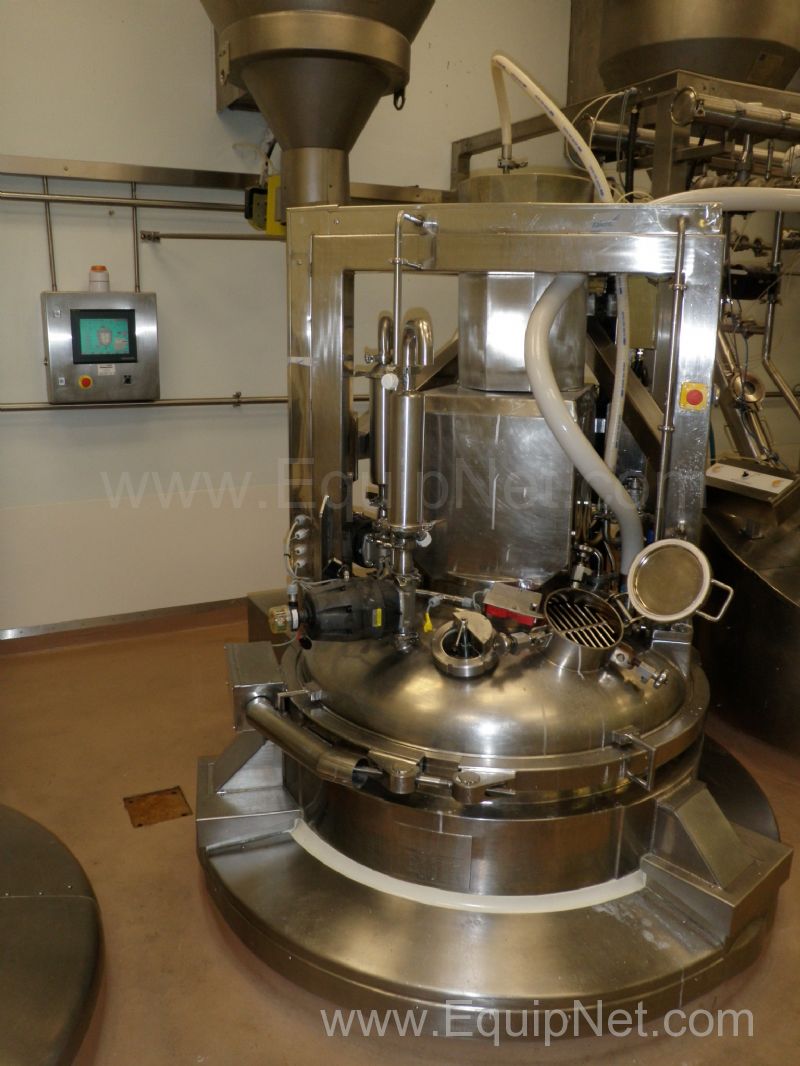

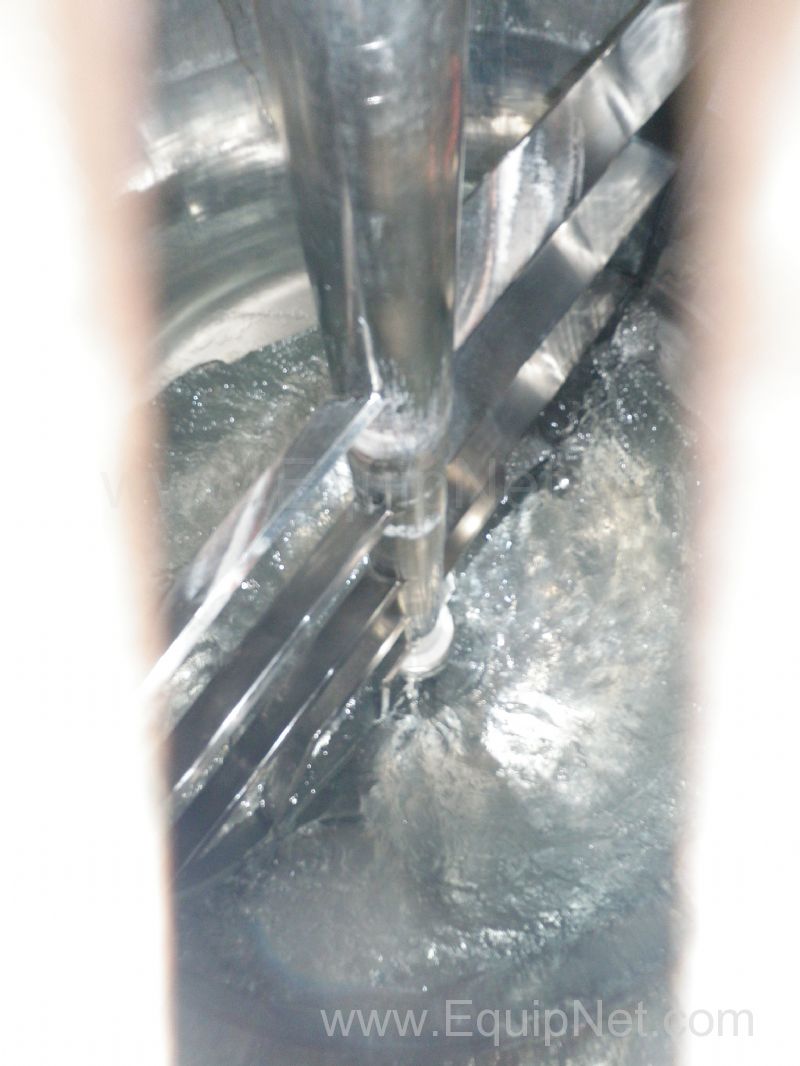

Item 1, The Gelatine Melter / Blender unit is fiited with a domed top, fitted with a central Gate Stirrer Mixer Drive shaft, which is driven at 50 RPM by the Overhead mounted Drive unit. Around the front of this Domed vessel top are mounted; 2 x 100mm, 1 x 70mm, 2 x 50mm, 2 x 25mm diameter Inlets, plus a 120mm diameter Inspection Window with lamp and internal wiper, and a 200mm diameter safety grilled, hinged, interlocked Inspection Door.
The Vessel Design Pressure rating is Full Vacuum to 0.5 Bar at 100 degrees C, Test Pressure = 2.2 Bar, the Hot water Jacket Design Pressure rating is Full Vacuum to 3 Bar at 100 degrees C, Test Pressure = 5.3 Bar

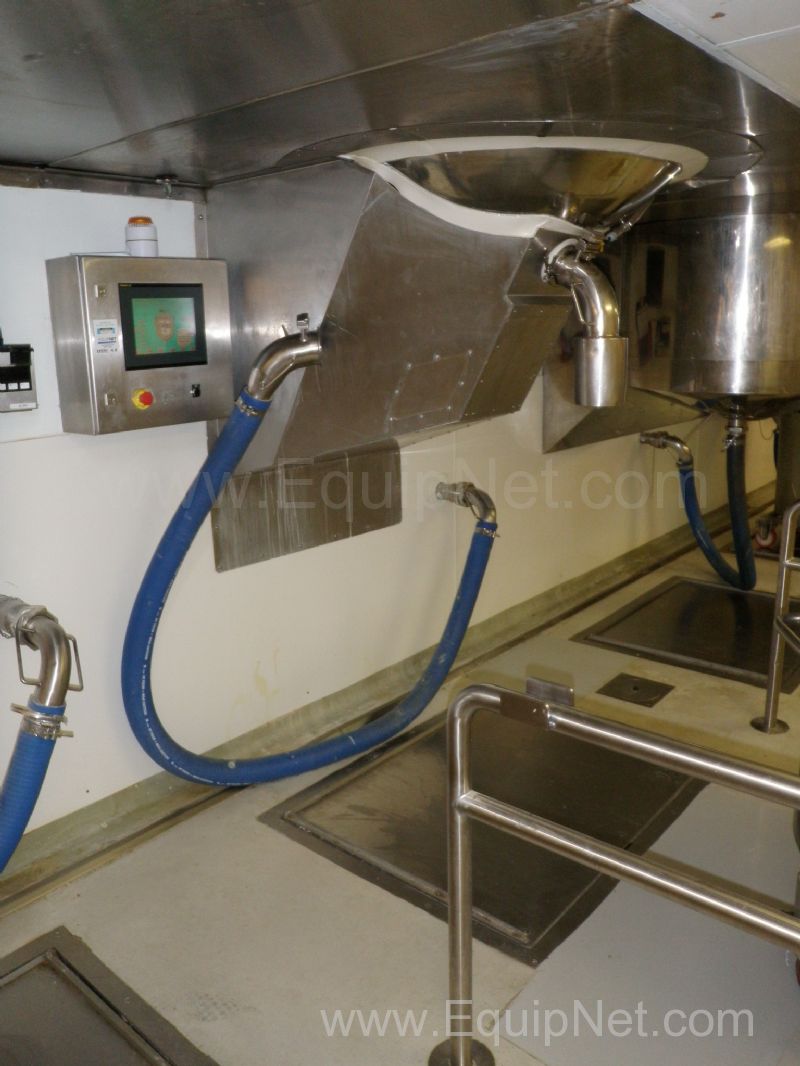

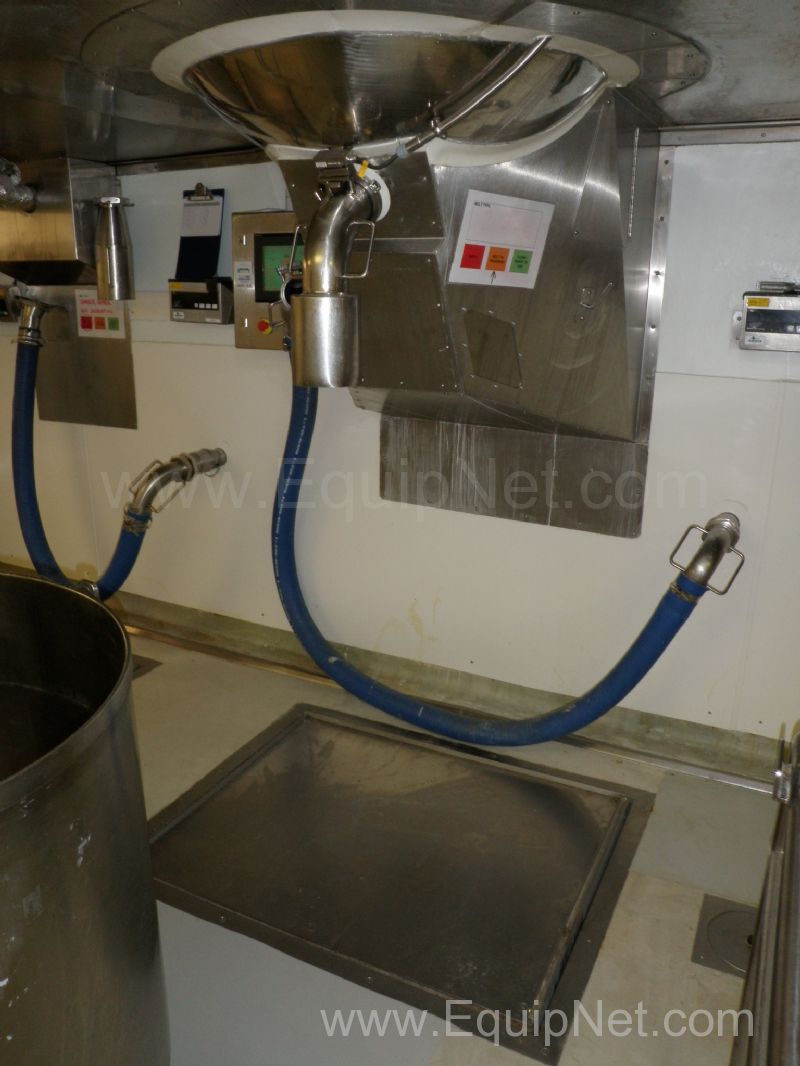

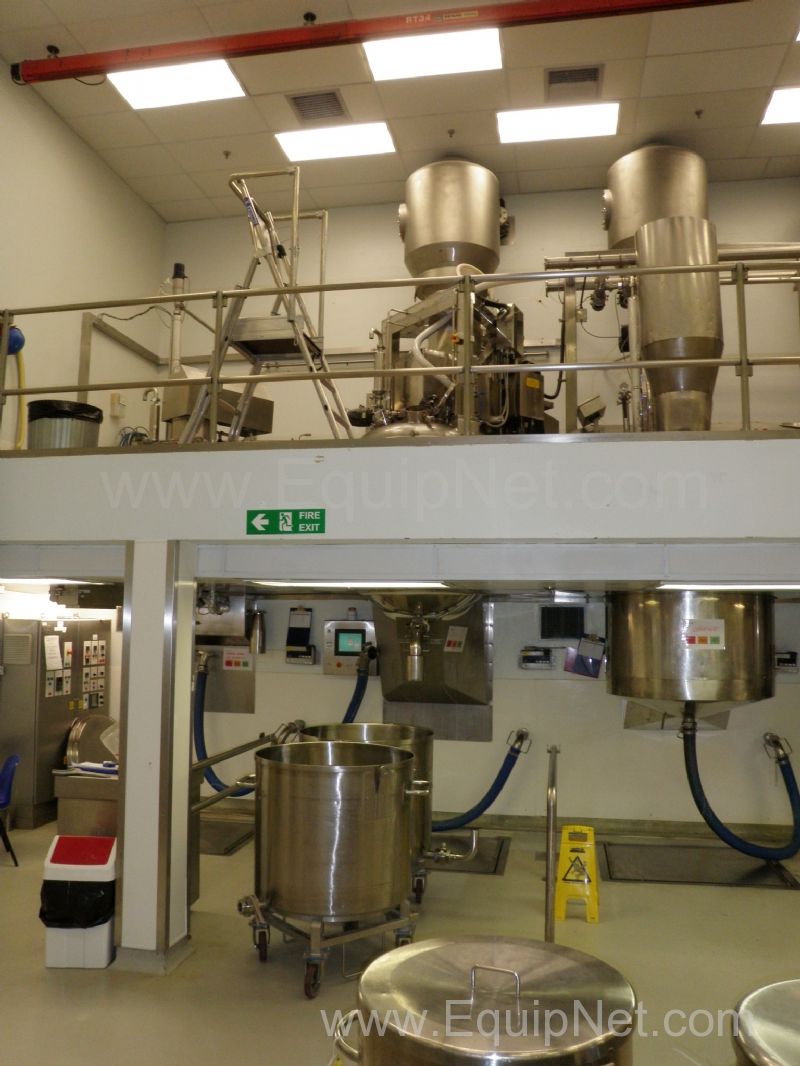

The Gelatine Melter / Blender unit is supported on 3 side lugs which are supported on 3 off Live Loadcells from the surrounding Mezzanine floor. Its domed bottom is fitted with a central 100mm diameter manually valved Outlet, at a height of 1.4m above the lower Drum mounted floor scales.
This Gelatine Melter / Blender unit measures 2.3 x 2.2 x 3.3m high, and weighs approx 7000 Kgs

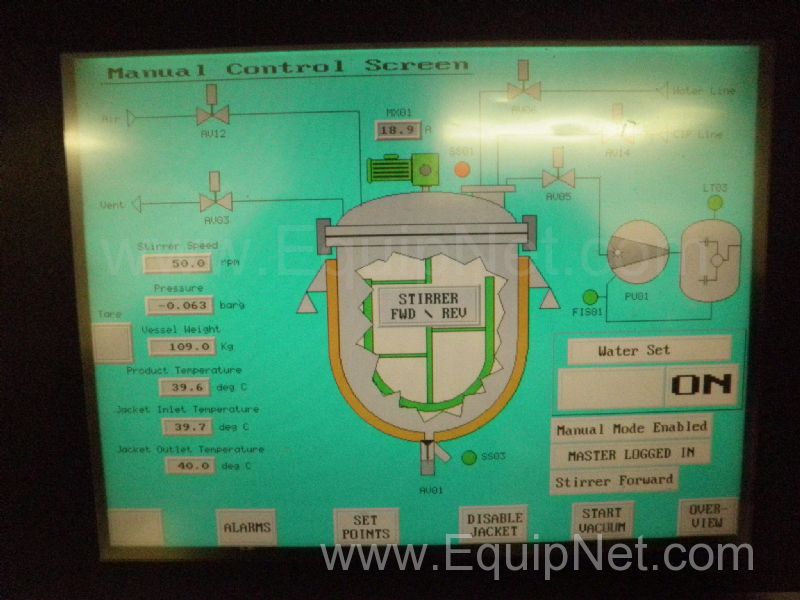

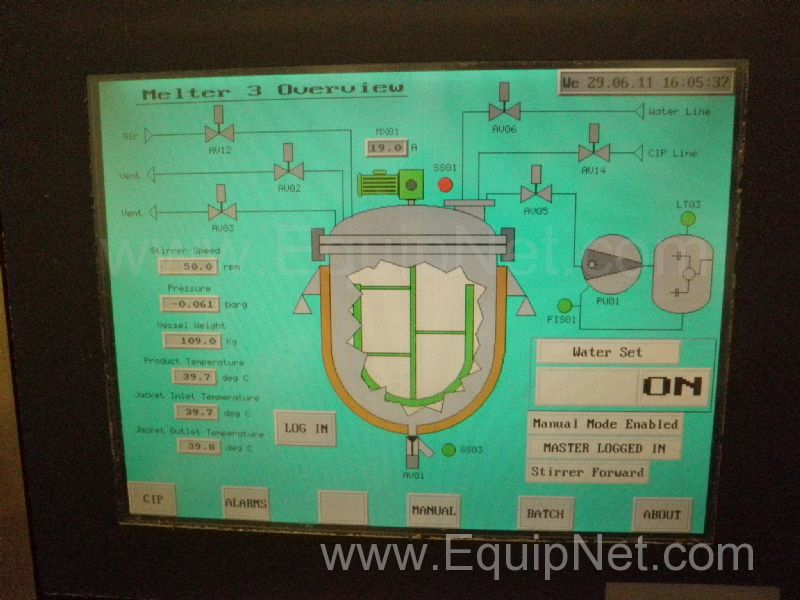

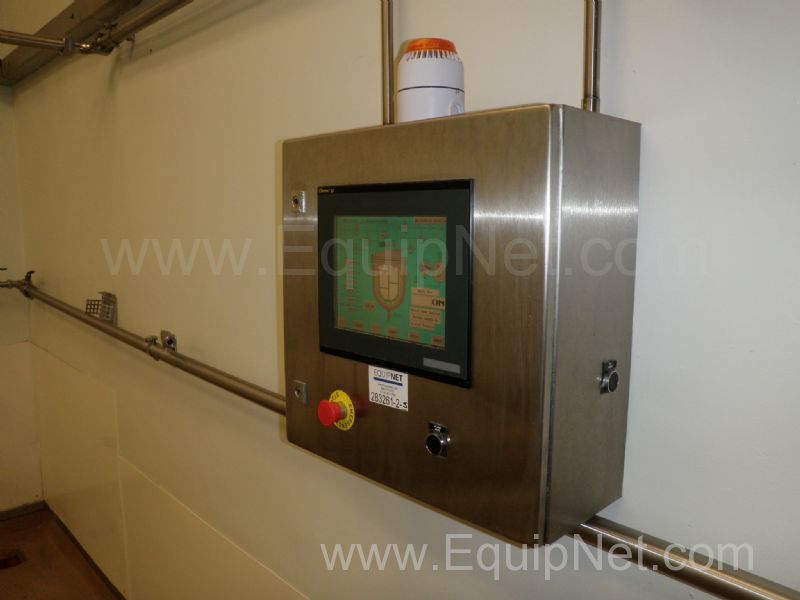

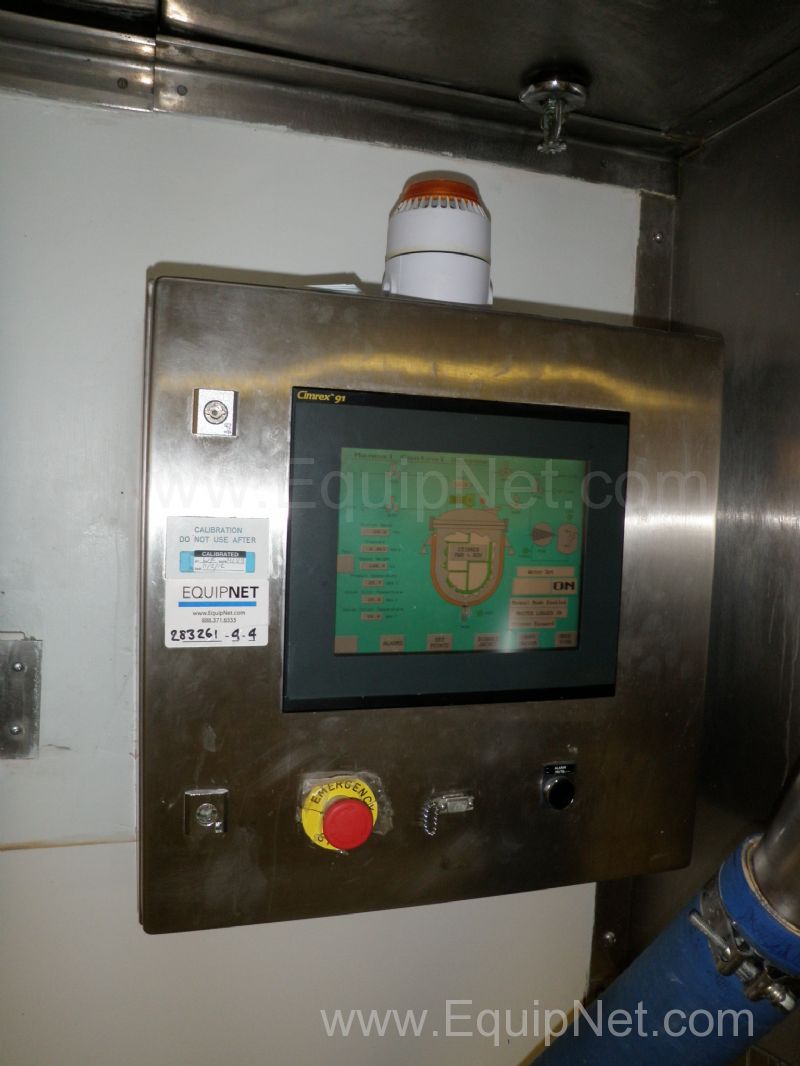

Item 2, Mezzanine Level S/s wall mounted Operator Control / VDU Panel, which measures 500 x 250 x 600mm high, and weighs approx 50 kgs.

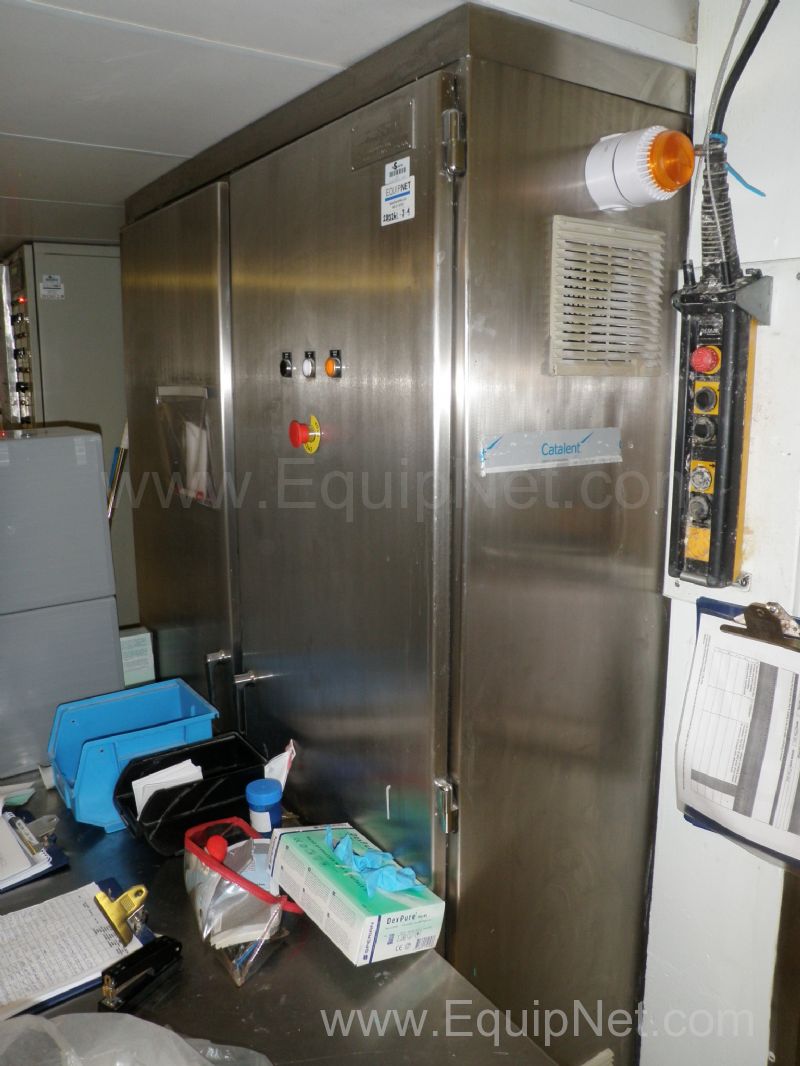

Item 3, Ground Floor mounted S/s wardrobe style double door Main Control Panel, which measures 1.4 x 0.55 x 2.05m high, and weigh approx 400 Kgs.

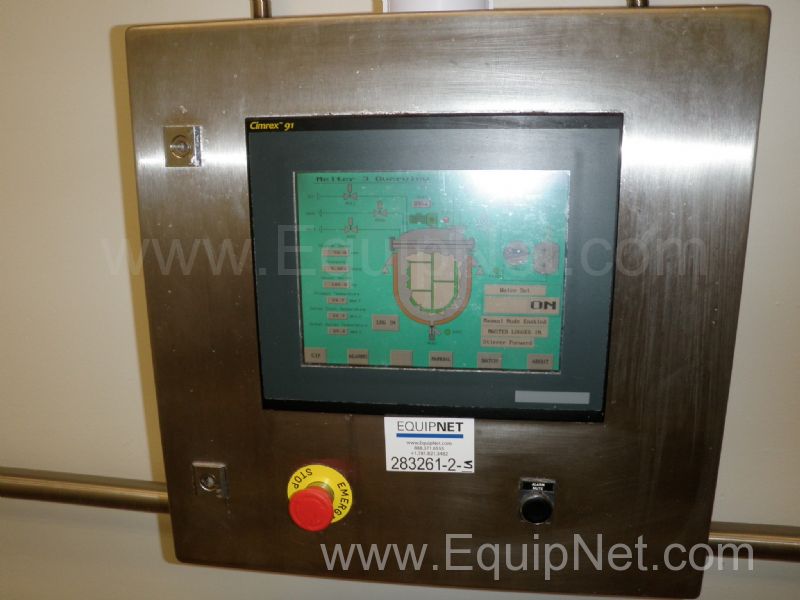

Item 4, Ground Floor Level S/s wall mounted Operator Control / VDU Panel, which measures 500 x 250 x 600mm high, and weighs approx 50 kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:

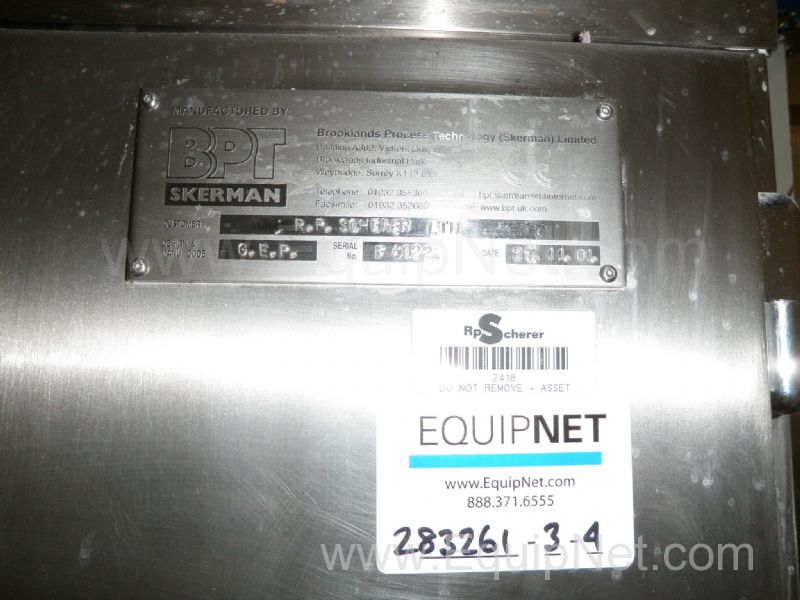

| Manufacturer | BPT Skerman |
| Year | 2001 |
| Model | 1350 Litre |
| Serial Number | F4022 |
| Capacity Size | 1350 |
| Capacity Speed | 50 RPM |
| Products Run | Vegetable Gelatine |
| Material of Construction | 316L STAINLESS STEEL |
| Inlet Size | 2 x 100 MM |
| Agitation | YES |
| Pressure Rating (Temperature) | 100 degrees C |
| Pressure Rating (Pressure) | Full Vacuum to 0.5 Bar |
| Outside Diameter | 2200 MM |
| Overall Height | 3300 MM |
| Inside Diameter | 1200mm |
| Straight Side (T/T) | 1200mm |
| Voltage | 415 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 7500 KGS |
| Legs/Stand | Supported by 3 side lugs from surrounding Mezzanine |
| Top and Bottom Heads | DISHED TOP/DISHED BOTTOM |
| Width | 2.2 M |
| Recommended Packaging Form | CUSTOM PALLET |
| Length | 4.7 M |
| Height | 3.3 M |
