Listing #283362
CAM L30 8 Stainless steel automated 8 Headed 50 Bottles per minute Liquid Filling System
EquipNet Tag #283362-1-3, 283362-2-3, 283362-3-3
Equipment Description:

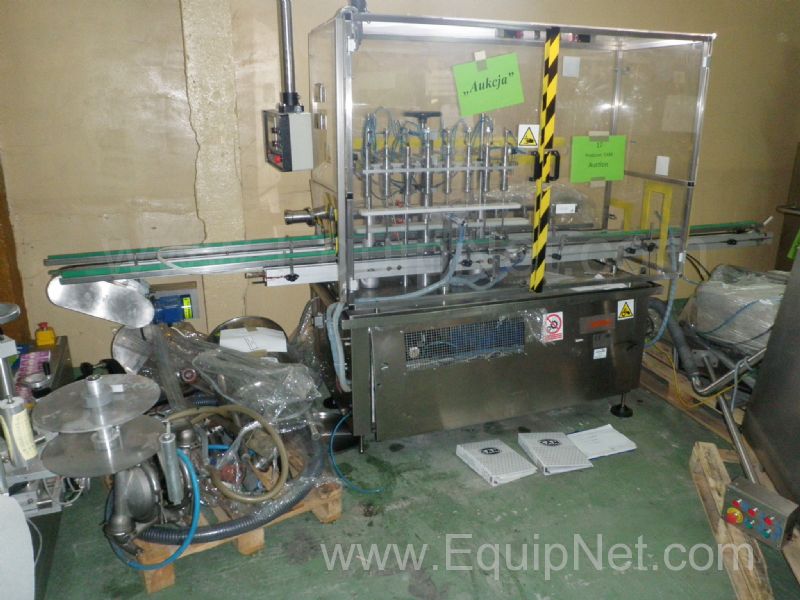

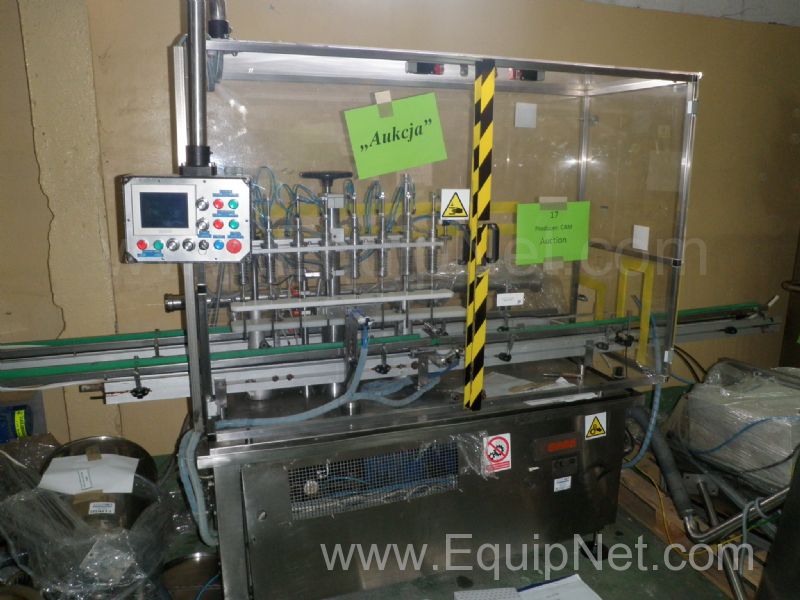

CAM L30/8 Stainless steel automated 8 Headed 50 Bottles per minute Liquid Filling System, Left to Right action, CE Rated.
Item 1, The CAM L30/8 Filling Machine was used to fill at throughput of 50 Bottles / minute at Avon, Poland, but has a rated filling capacity of upto 8000 bottles / hour = 133 bottles / minute for 50cl filling volumes.

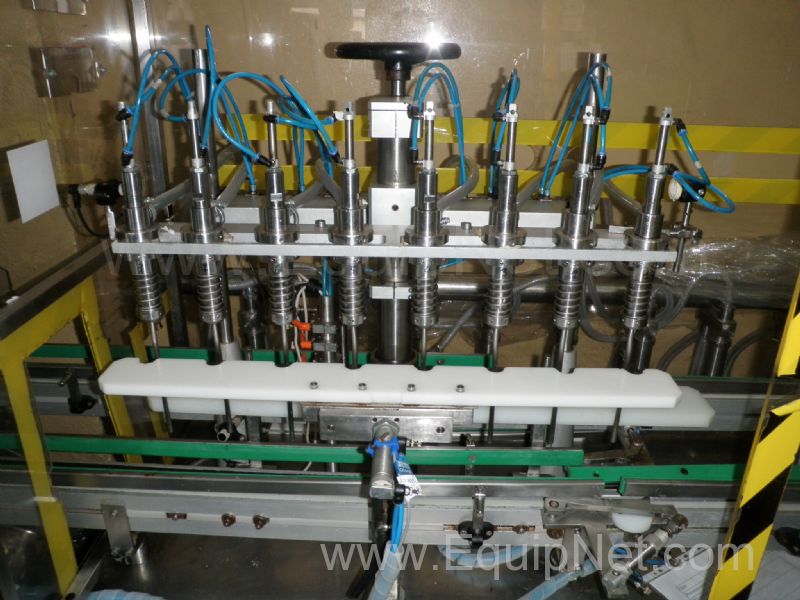

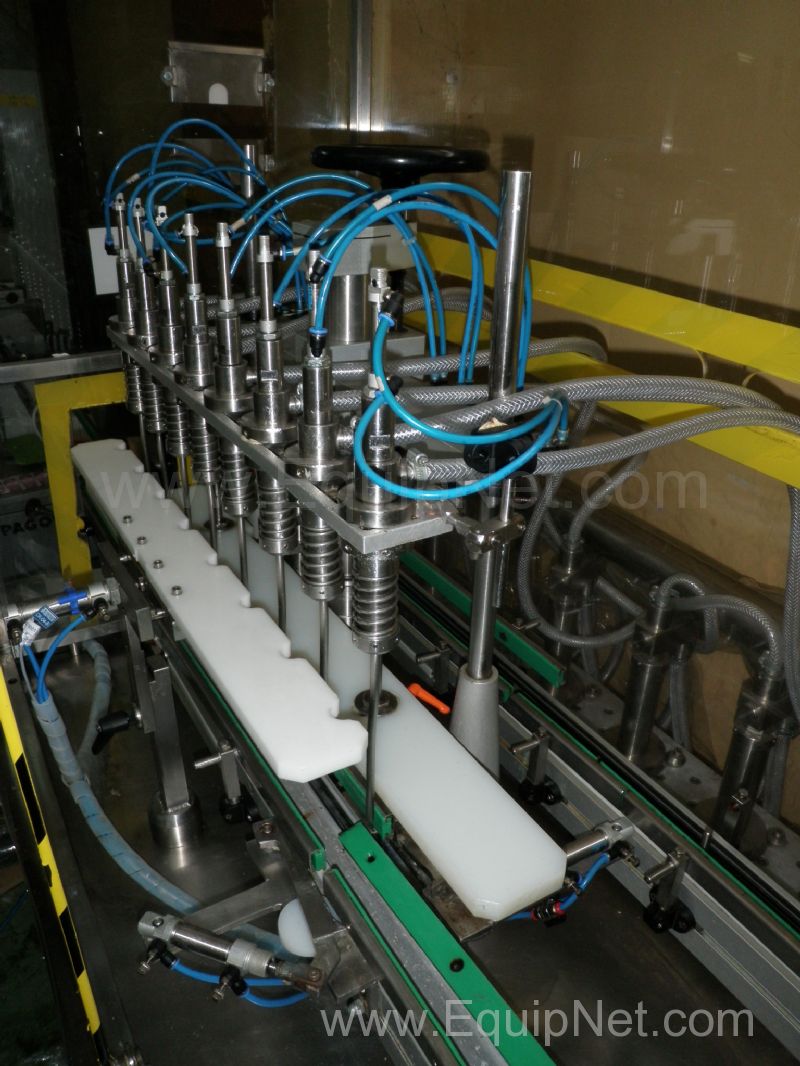

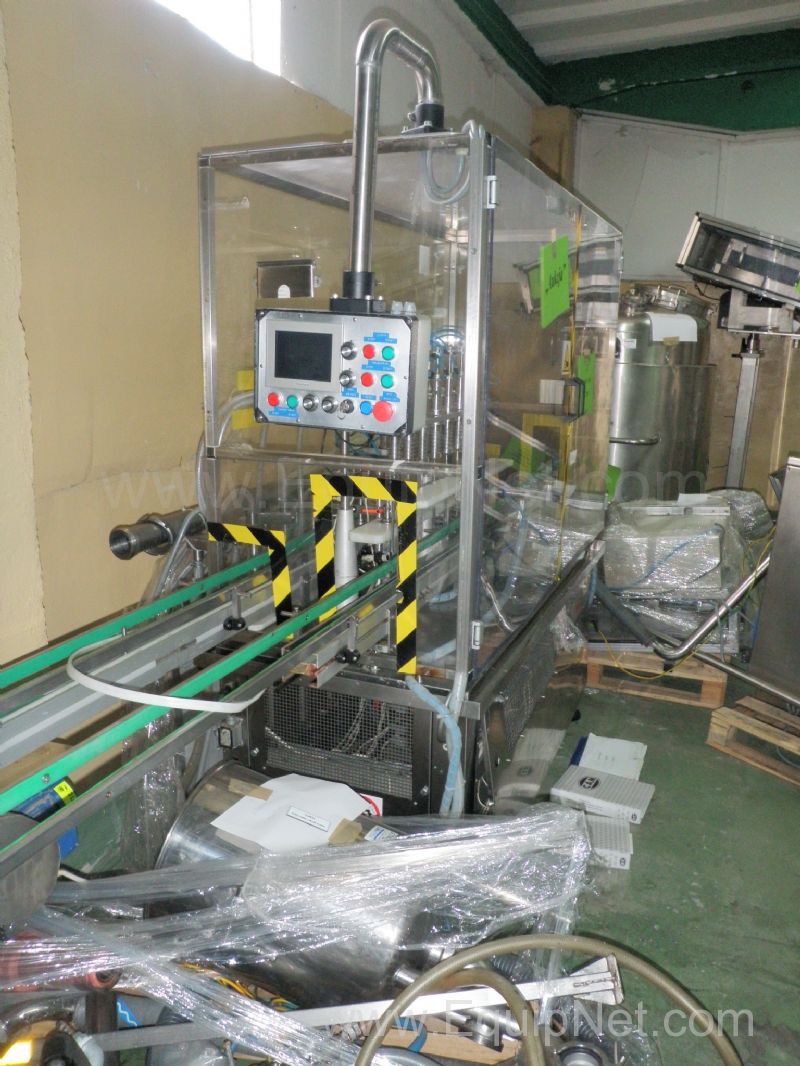

The plastic bottles to be filled with liquid enter the machine vertically on the side guided 900 +/- 50mm high Infeed Slat Conveyor to the 8 headed filling area, where the the bottles are clamped by the top neck clamps 8 at a time prior to the filling tubes being lowered into them to fill them with liquid. The filling liquid is pumped from 8 off rear mounted dedicated adjustable piston pumps linked to the common 80mm diameter S/s Liquid Infeed manifold. Once the Plastic bottles are filled the filling tubes are lifted away, the neck clamps withdrawn, and the bottles released to discharge via the side guided 900 +/- 50mm high Outfeed Slat Conveyor.

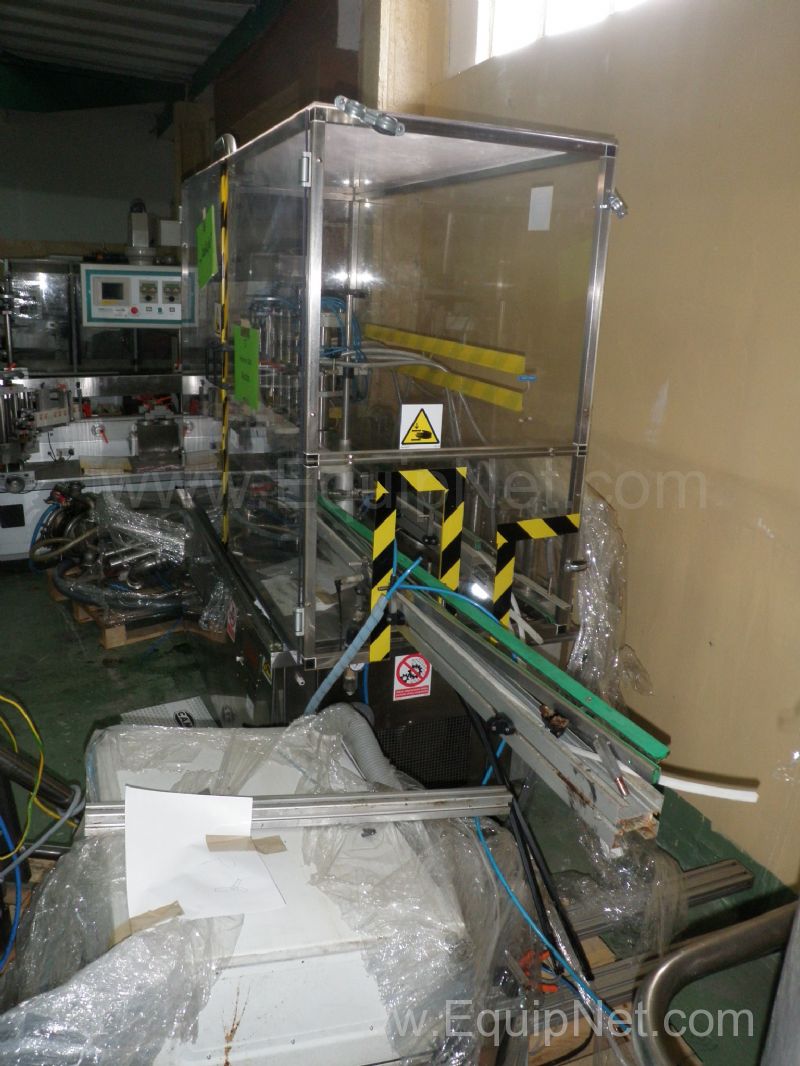

The machine is fully guarded by S/s framed and hinged macralon interlocked door guards.

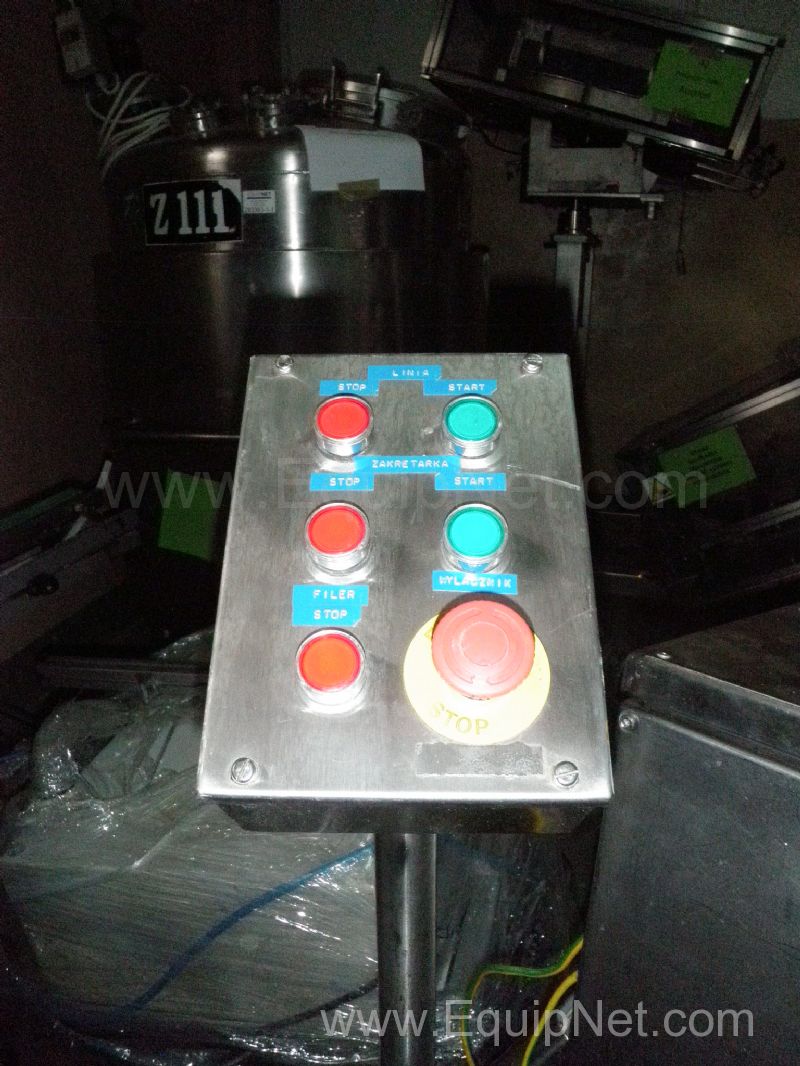

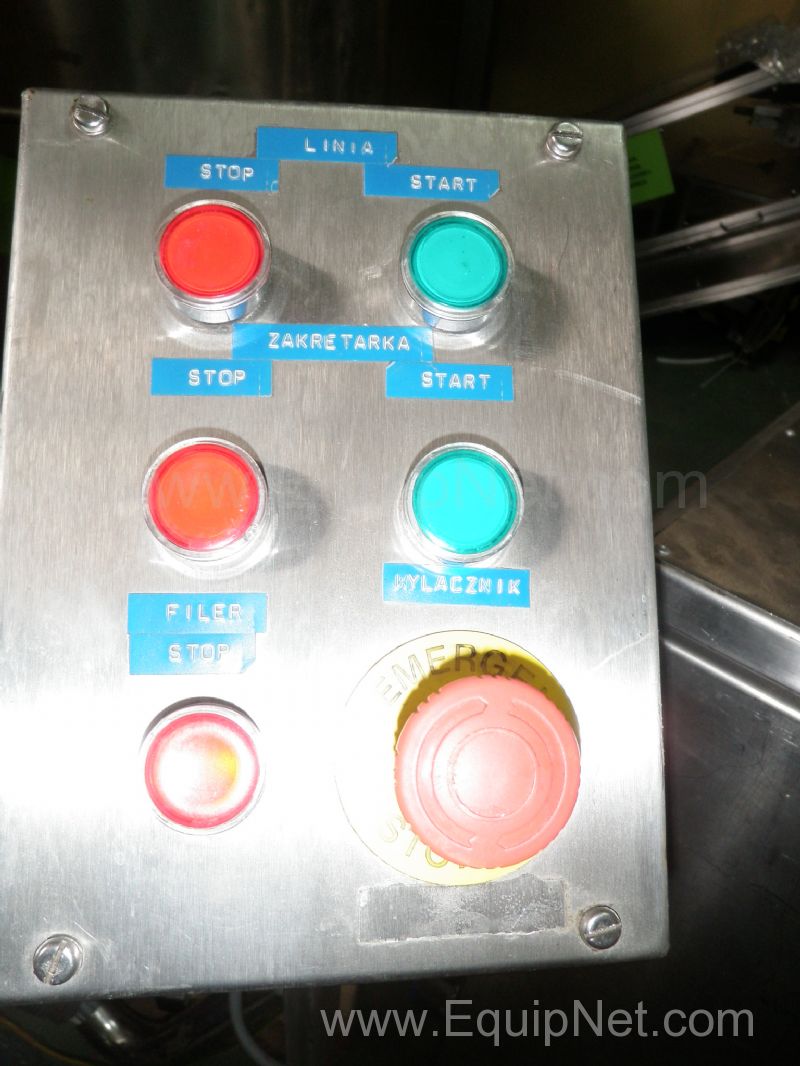

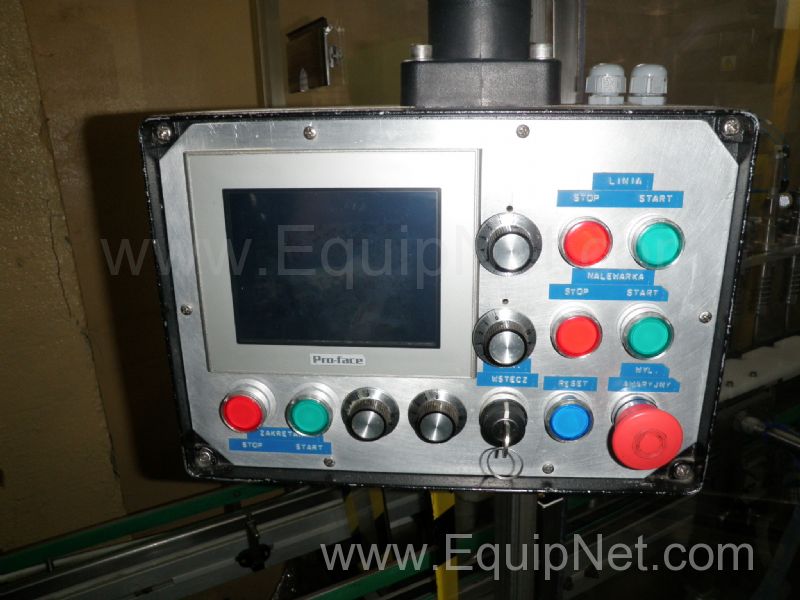

The machine is controlled by means of a swinging cantilever supported Operator Control panel fitted with a Pro-face VDU unit, linked to the remote Stand alone S/s Control Panel, plus a S/s post mounted remote control panel.
The CAM L30/8 Filling Machine measures 2.5 x 0.85 x 2m high, and weighs 650 Kgs.

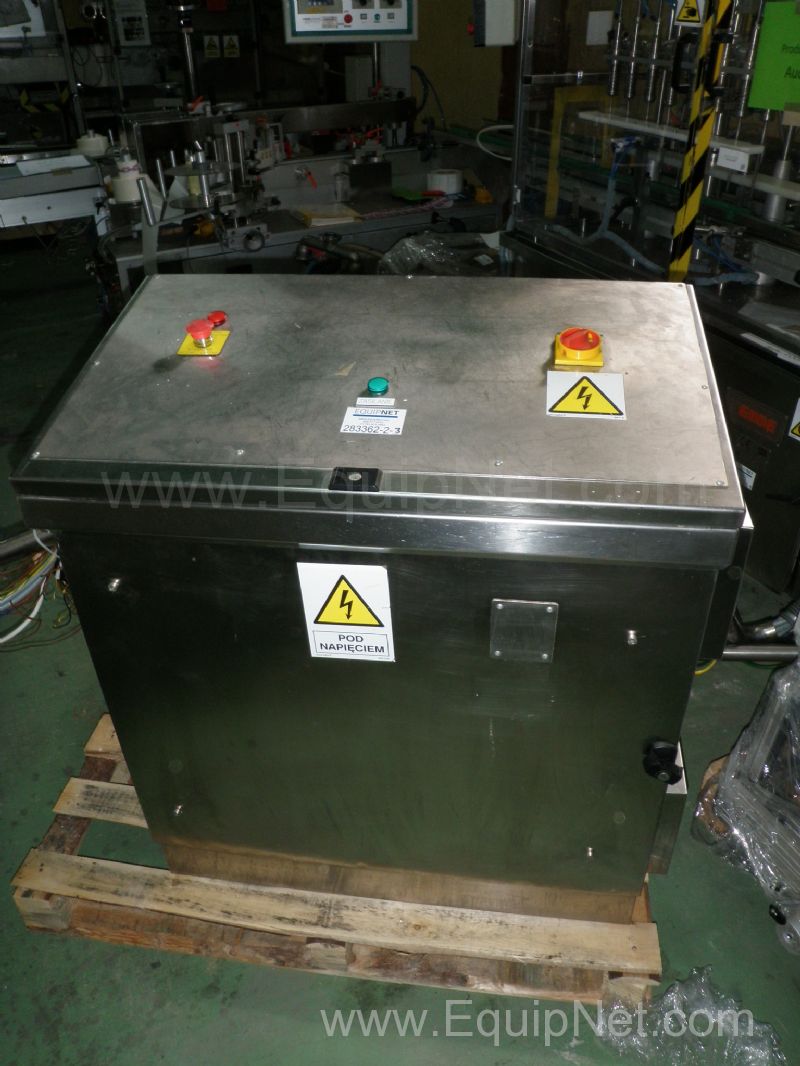

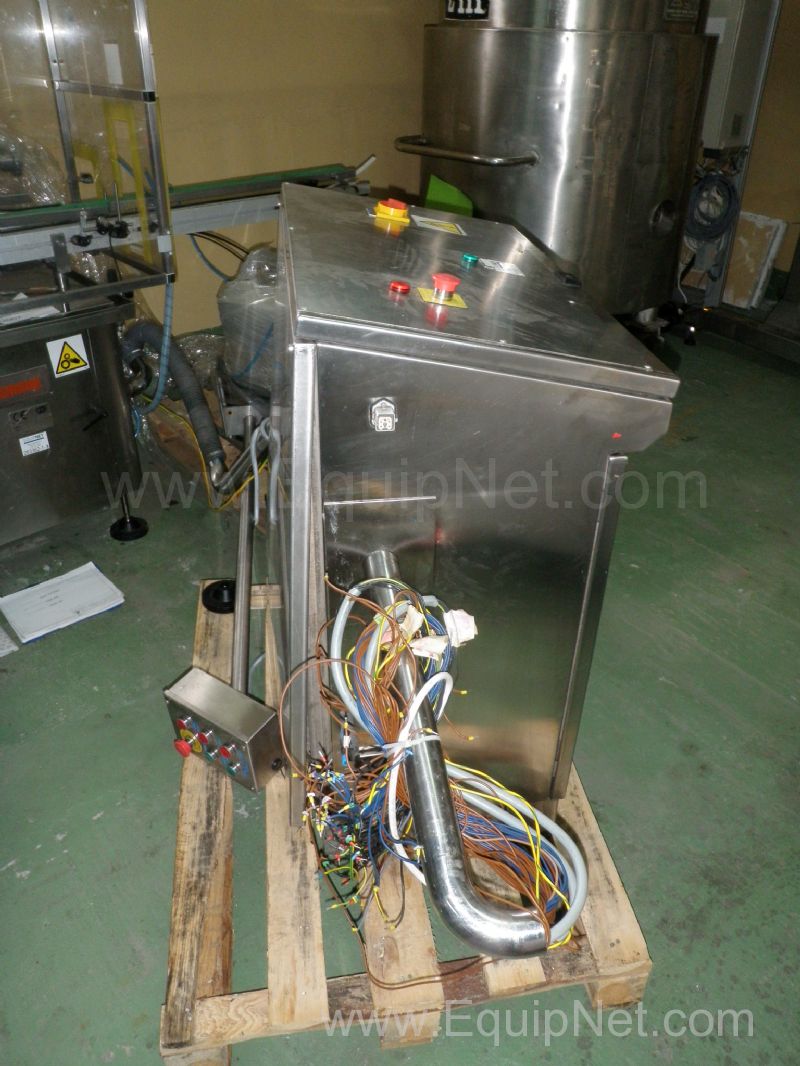

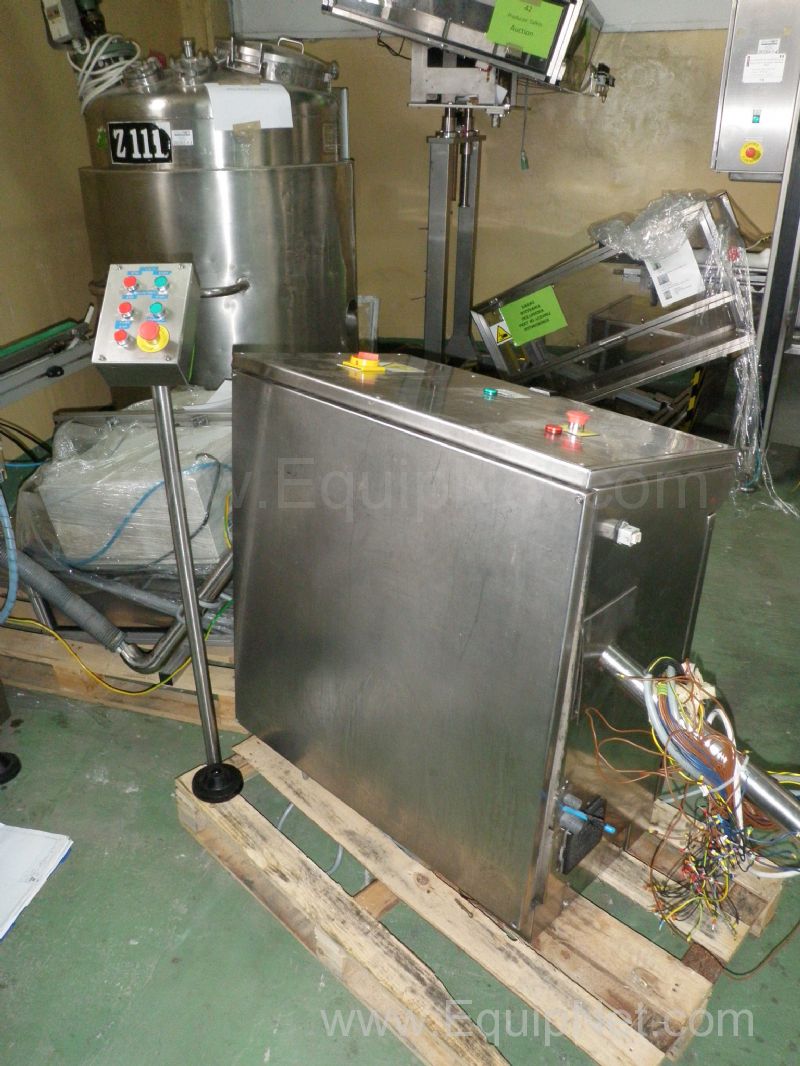

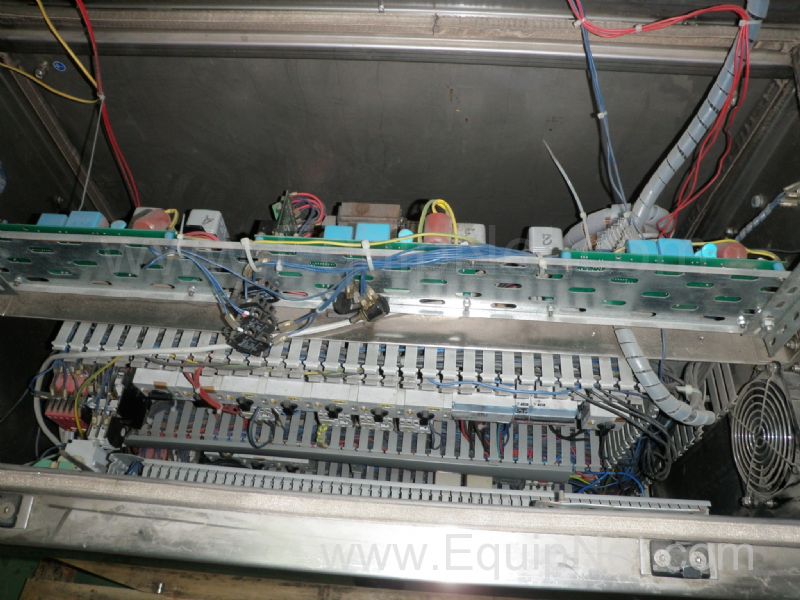

Item 2, Stand alone S/s Pedestal type Control Panel, measures 0.9 x 0.5 x 1.05m high, and weighs approx 150 Kgs.

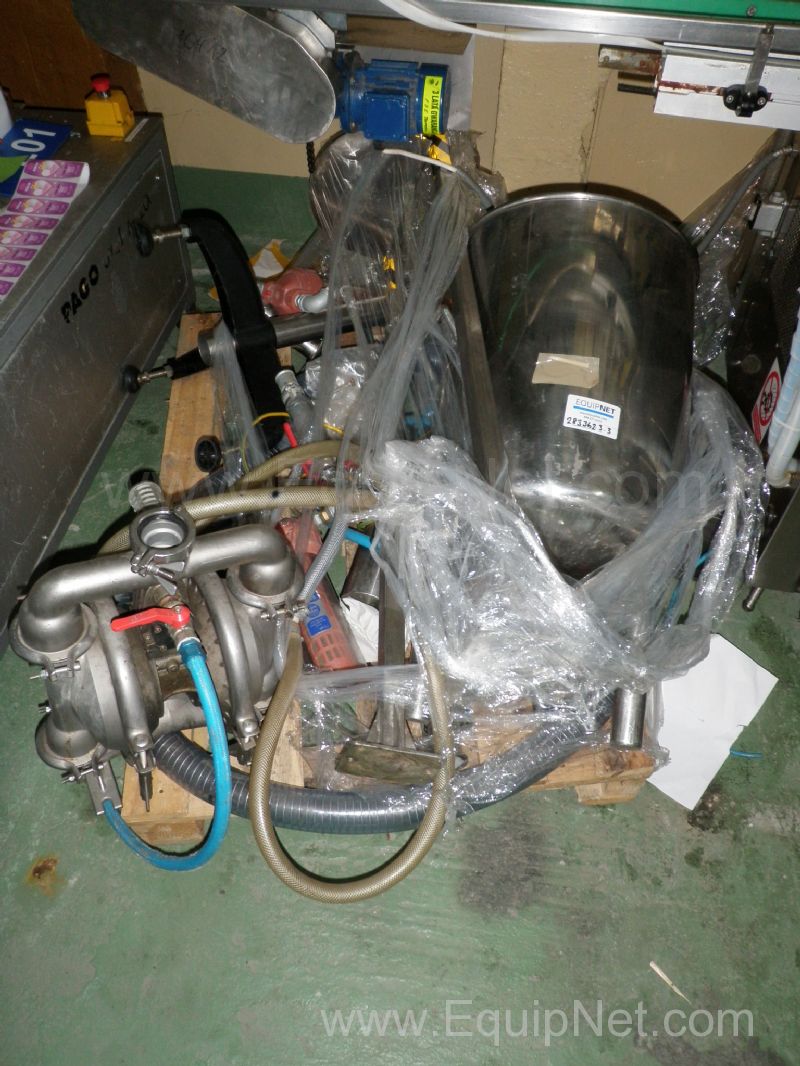

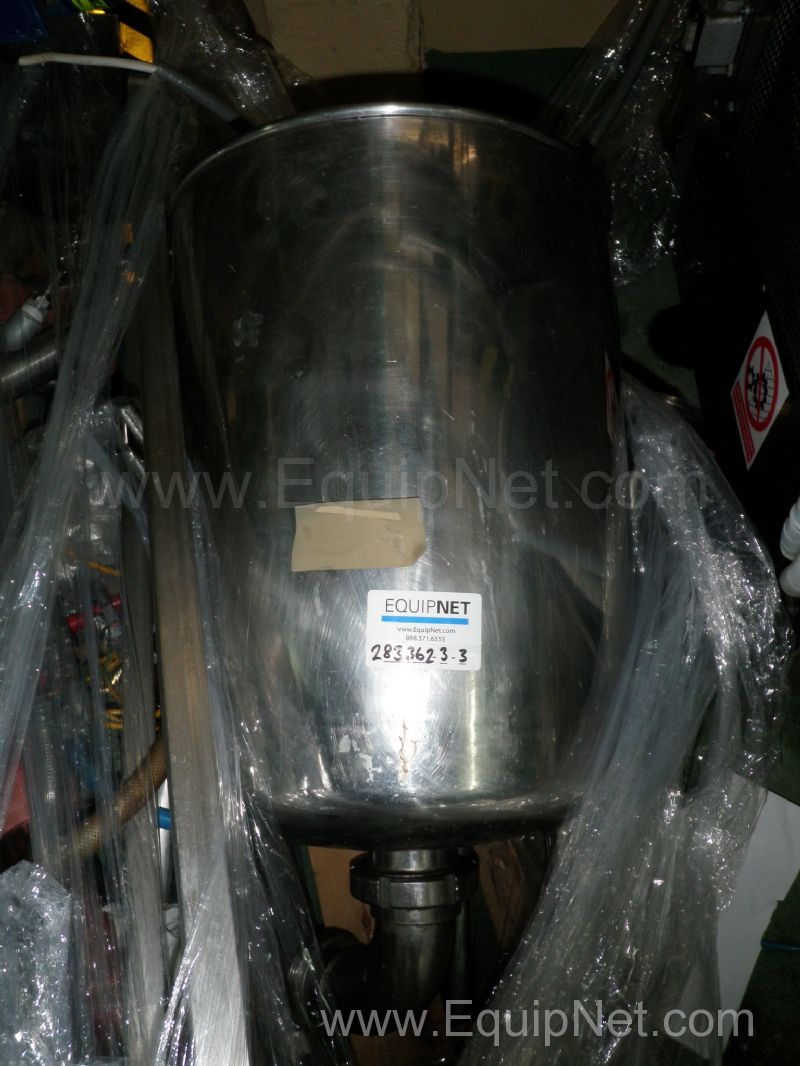

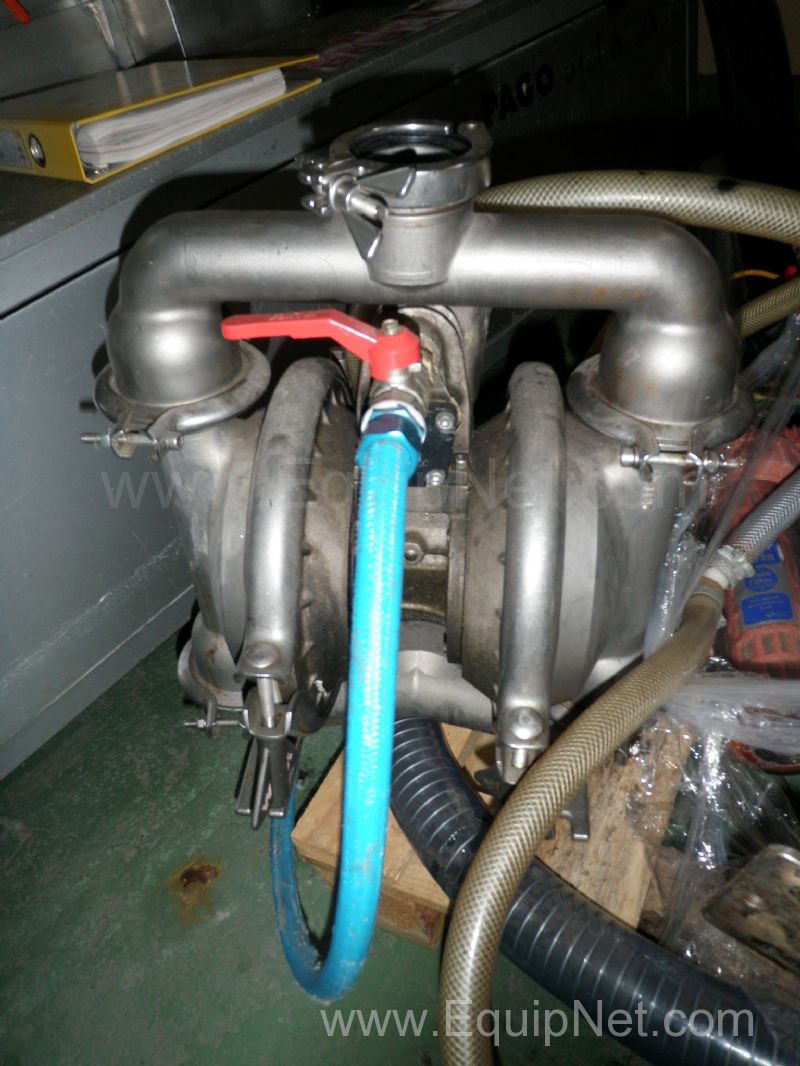

Item 3, CAM L30/8 Liquid Filling Machine Pump and Changeparts Pallet, consists of S/s Air Diaphragm 50mm diameter ported Liquid delivery Pump, a S/s 60 Litre Liquid Feed Vessel, which measures 400mm diameter X 500mm Straight side depth, fitted with a loose flat top lid, domed bottom with 50mm diameter central outlet, mounted on 3 legs, plus a number of Filling Machine Changeparts.

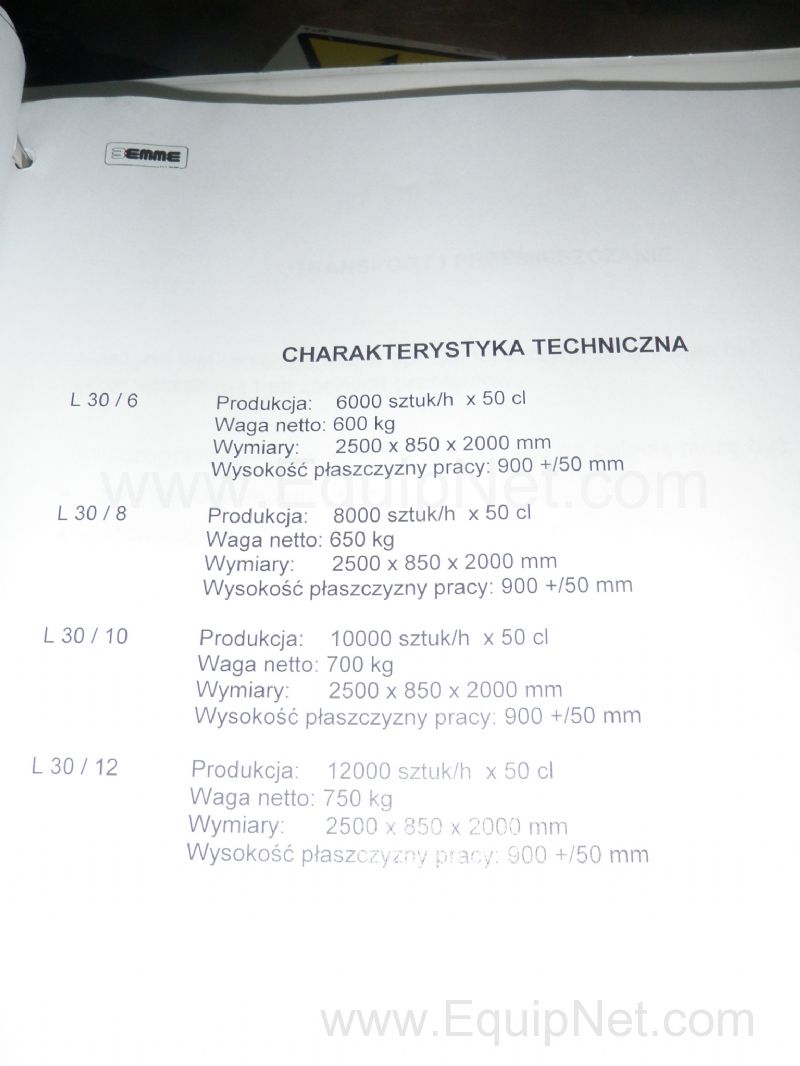

Supplied with the original OEM Manuals and Drawings.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Poland. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:

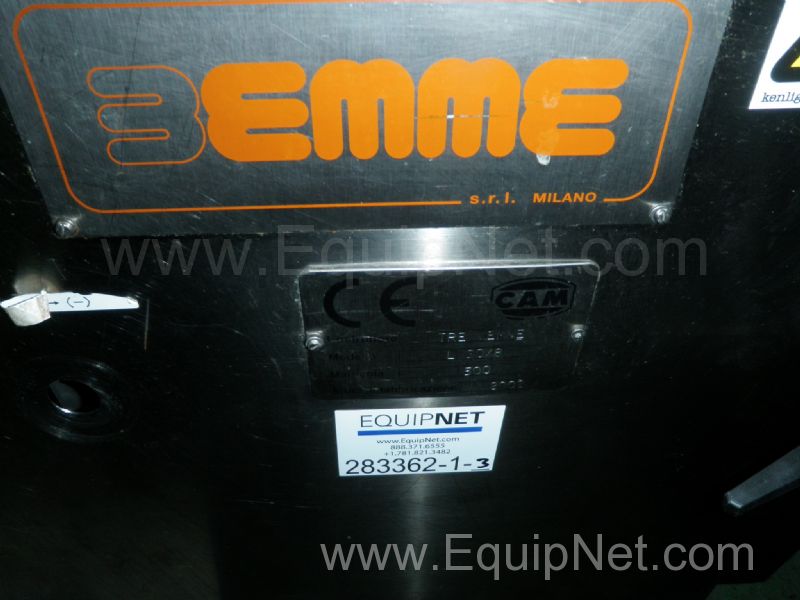

| Manufacturer | CAM |
| Year | 2002 |
| Model | L30/8 |
| Serial Number | 500 |
| Capacity Speed | 8000 BPH |
| Product Sizing | upto 50 cl |
| Products Run | Plastic Bottles |
| Spare/Change Parts | YES |
| Air Requirements | 6 BAR |
| Manual Available | YES |
| Estimated Shipping Weight | 900 KGS |
| Length | 3.4 M |
| Width | 0.85 M |
| Height | 2 M |
| Voltage | 400 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Recommended Packaging Form | CUSTOM PALLET |
