Warehouse Equipment - Miscellaneous Warehouse Equipment - 220541 1 Lot of 4 off Double AGV Forklift Battery Roller transfer support stations
Rate listing info and photo quality why?
Not rated yet
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

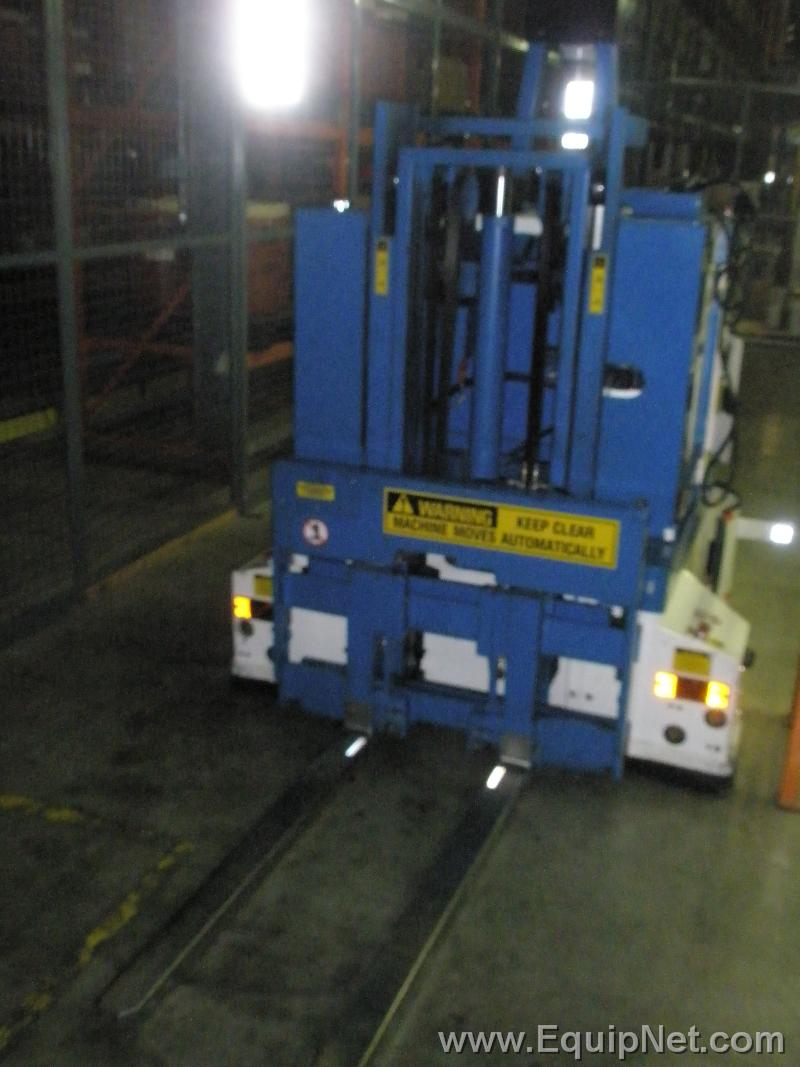

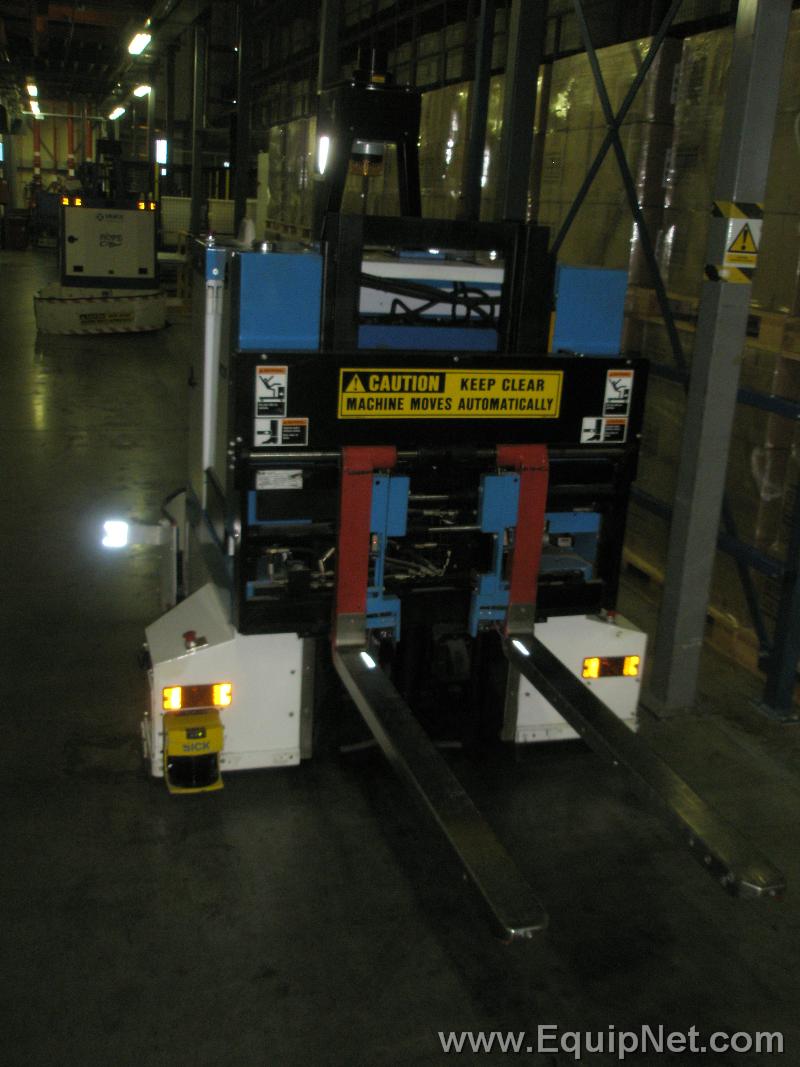

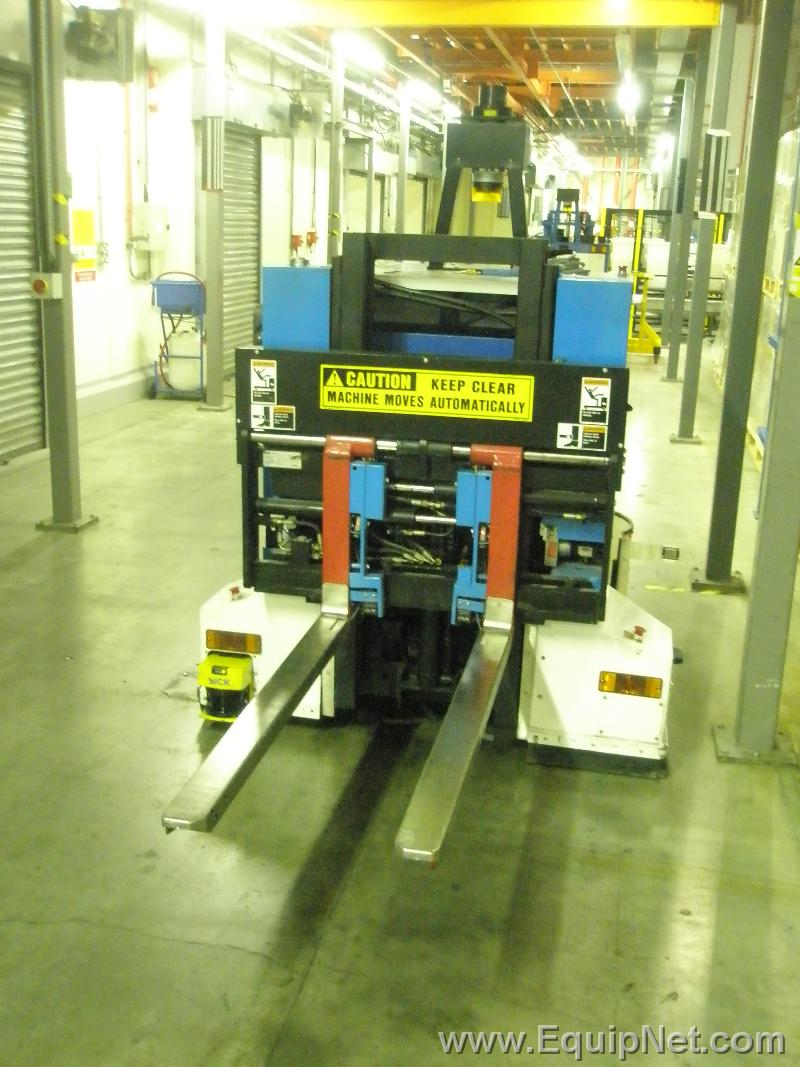

Caterpillar SGL Automatic Guided Forklift Unit 1

Listing #220541
EquipNet Tag #11140879

Part of multi-equipment listing: Caterpillar, Factory based, SGL, Complete Automatically Guided Forklift Product Transfer System
Listing Price:€62,500.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom.

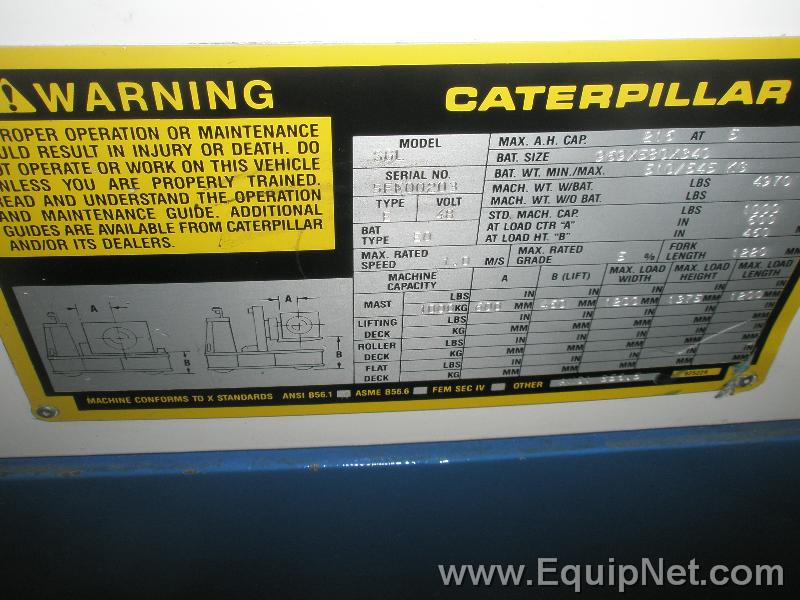

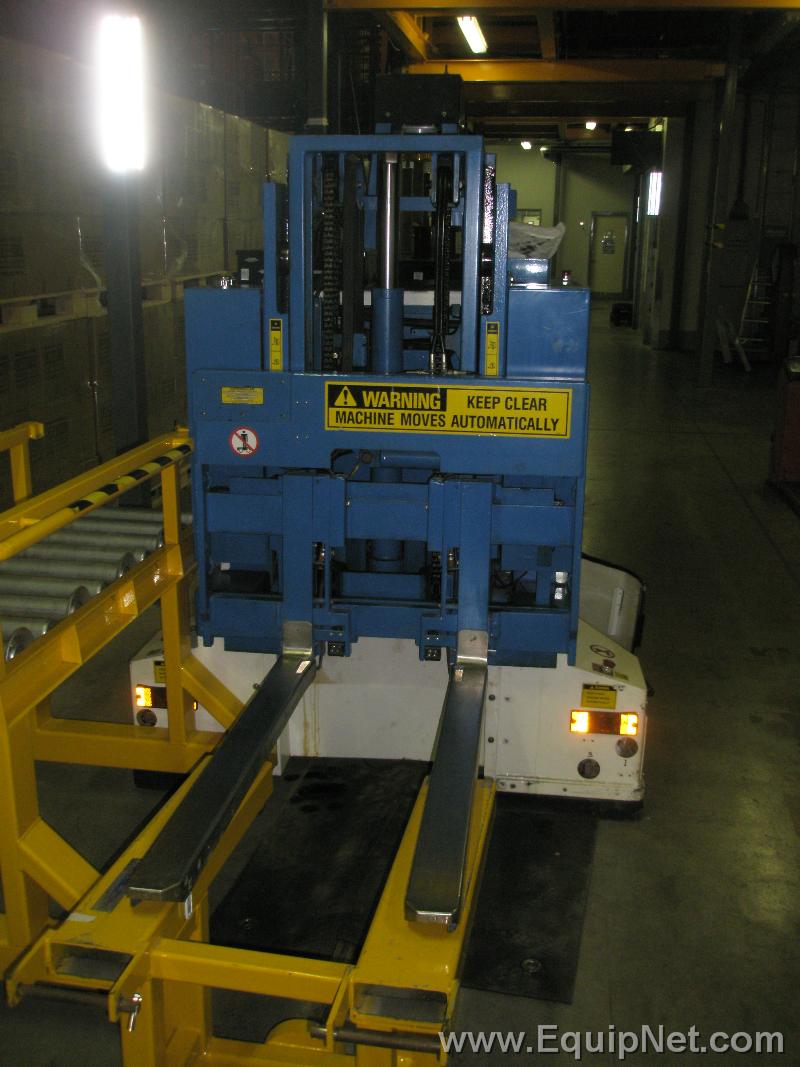

You are making an offer on a Caterpillar FMC, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 4, "Judy" located in GBR.

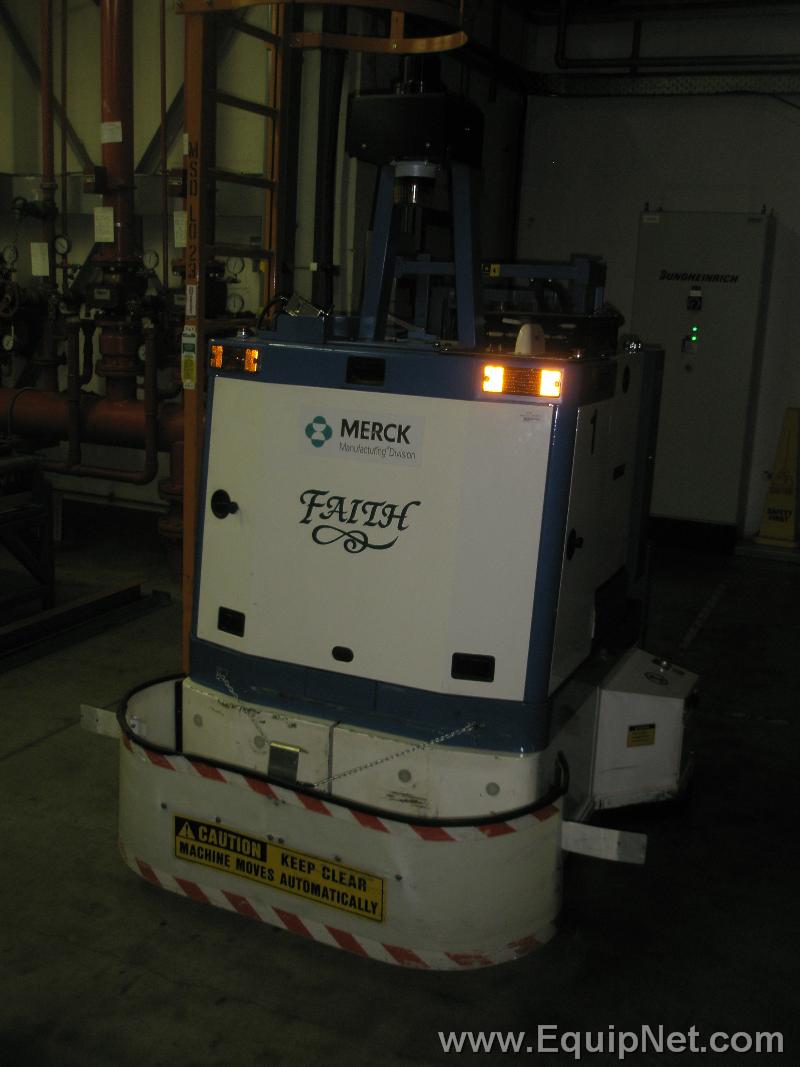

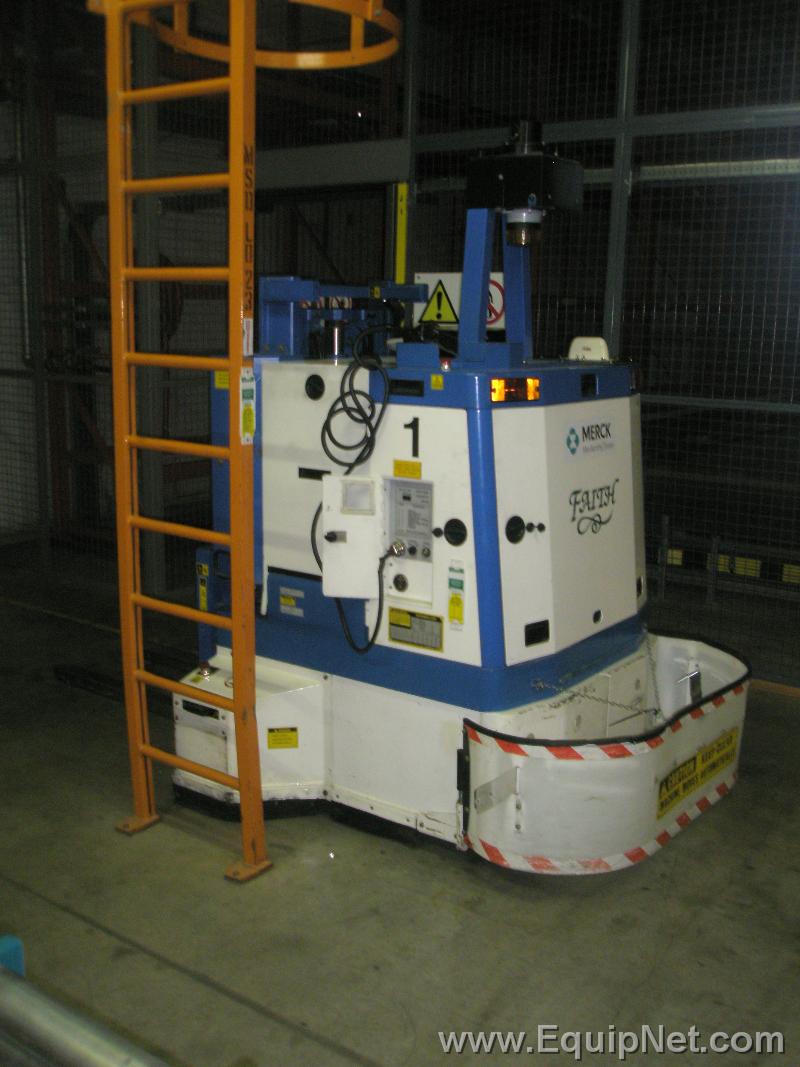

Caterpillar, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 1, "Faith"

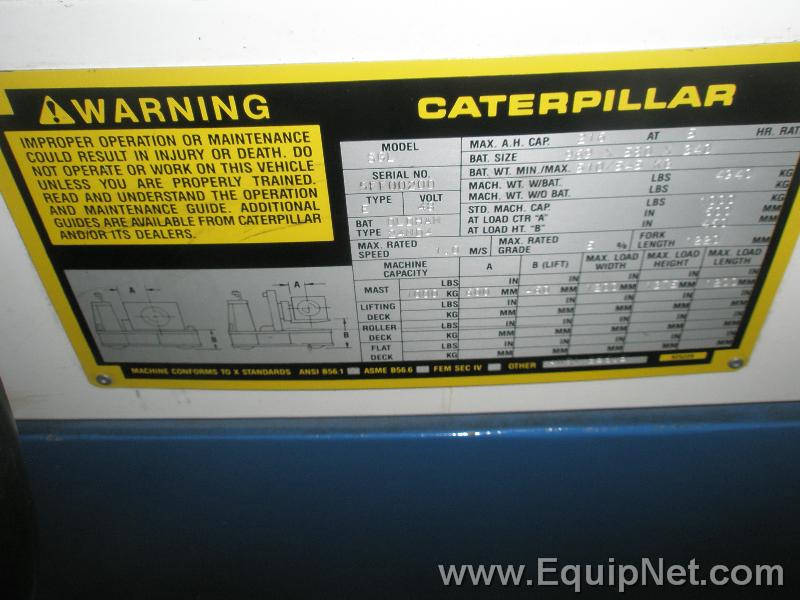

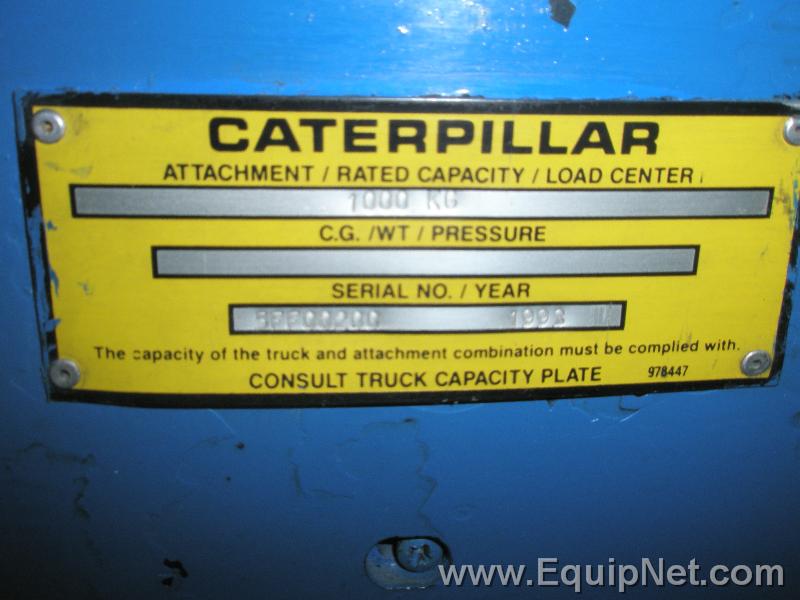

  • This 1993, Laser guided AGV unit is capable of lifting a Maximum Weight of 1000 kgs, at a Load Centre distance of 600mm from the mast, to a Maximum height of 960mm, using Forklifts that are 1220mm long x 95mm wide, that can be adjusted automatically from 550mm - 980mm apart, measured to the outside of forks. The Model No on the Forklift attachment = 5FF 00209.
  • The Maximum sizings of the load to be lifted are; 1200mm long x 1200mm wide x 1375mm high.
  • The Maximum travelling speed of the AGV is 1m/sec, but has been down-rated for safety reasons to 0.2m/sec.
  • The AGV is controlled from a Central Control Computer Scheduling unit, via radio control, and locally guided via a Laser detection system that identifies its position relative to strategically placed Vertical Laser Targets, mounted at a height of 2.2m, throughout the prescribed routes that the AGV's are set to follow.
  • The AGV is powered by a 48 volt x 24 cell rechargeable battery, that produces a maximum of 215 Amphere/hours, and measures 969mm long x 340mm wide x 540mm high, and weighs 510-550 Kgs.
  • Please Note; This unit currently has a problem with its onboard Laser guidance navigation system.

    • Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


    Equipment Specifications
    ManufacturerLogan Fenamec Ltd
    ModelSGL
    Serial Number5FF 00200
    Estimated Shipping Weight4960 kgs
    Height2.3 M
    Length2.9 M
    Width1.6 M
    Recommended Packaging FormCUSTOM PALLET

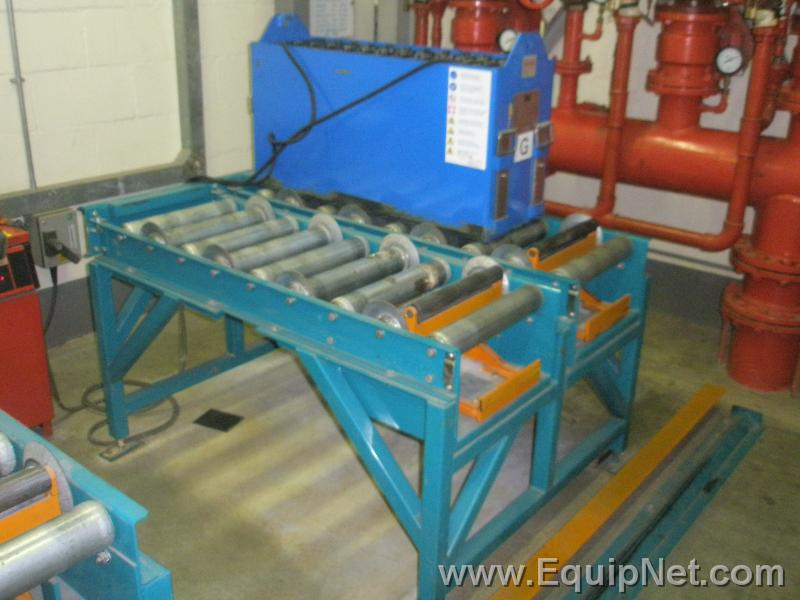

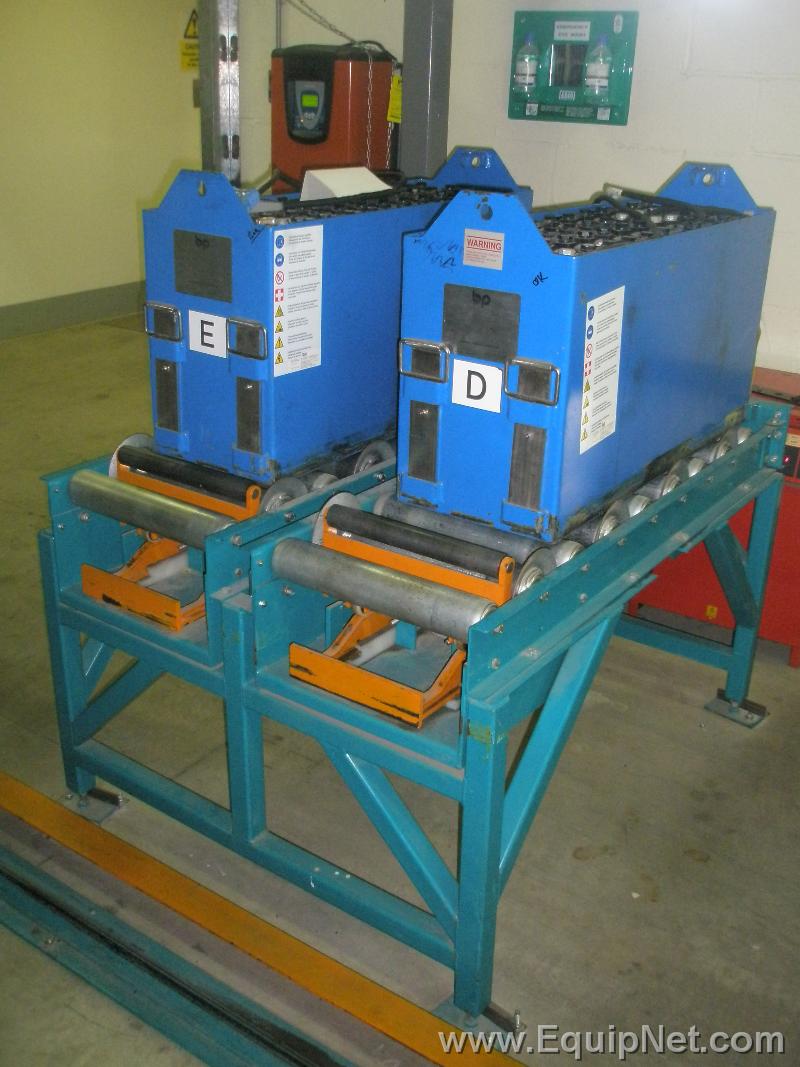

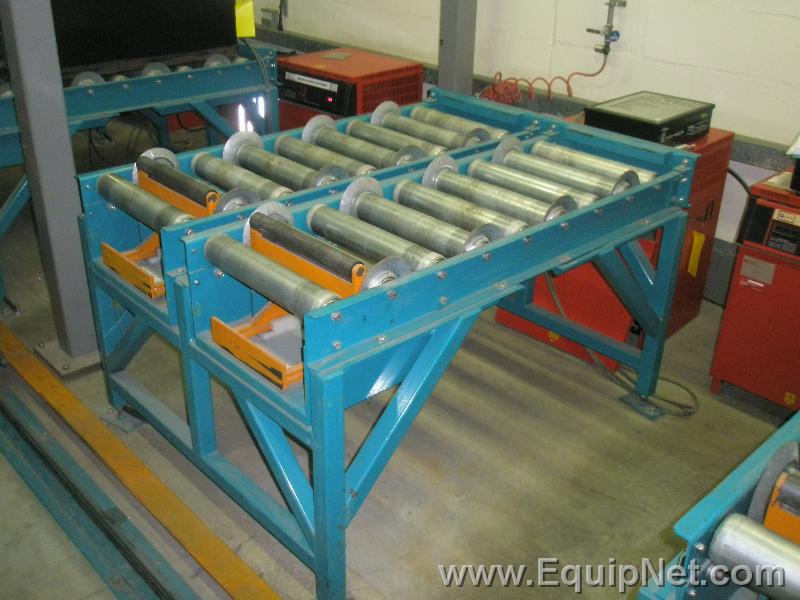

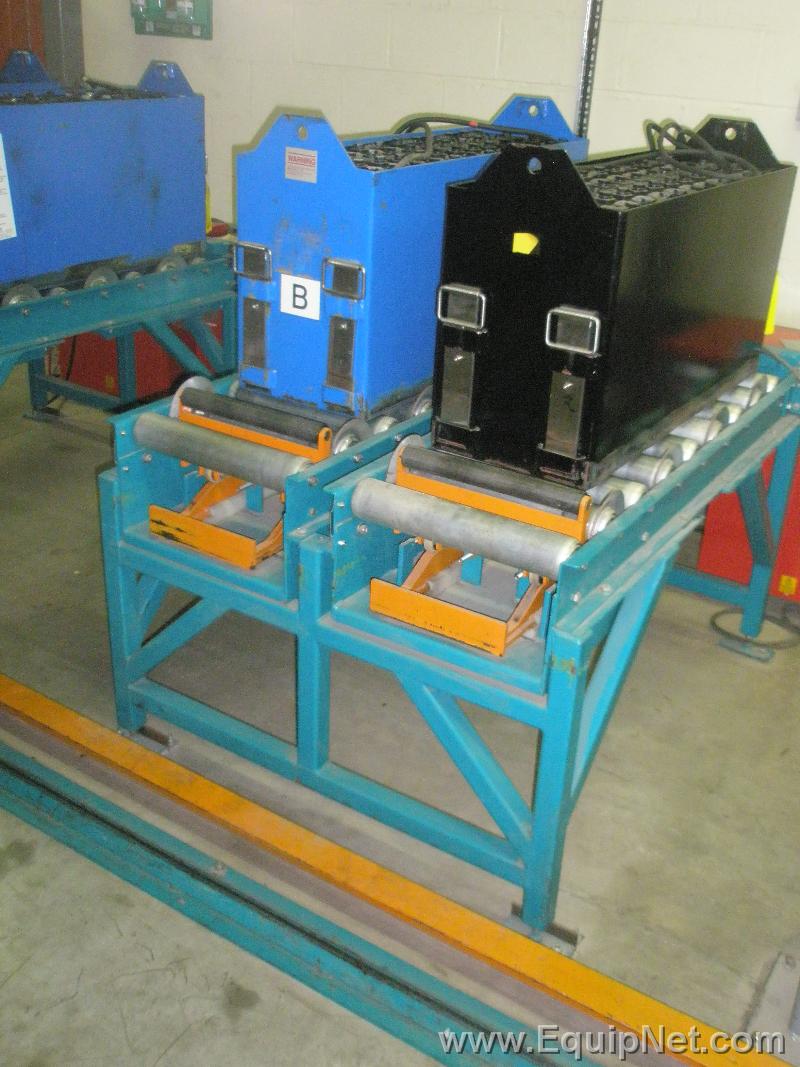

    1 Lot of 4 off Double AGV Forklift Battery Roller transfer support stations

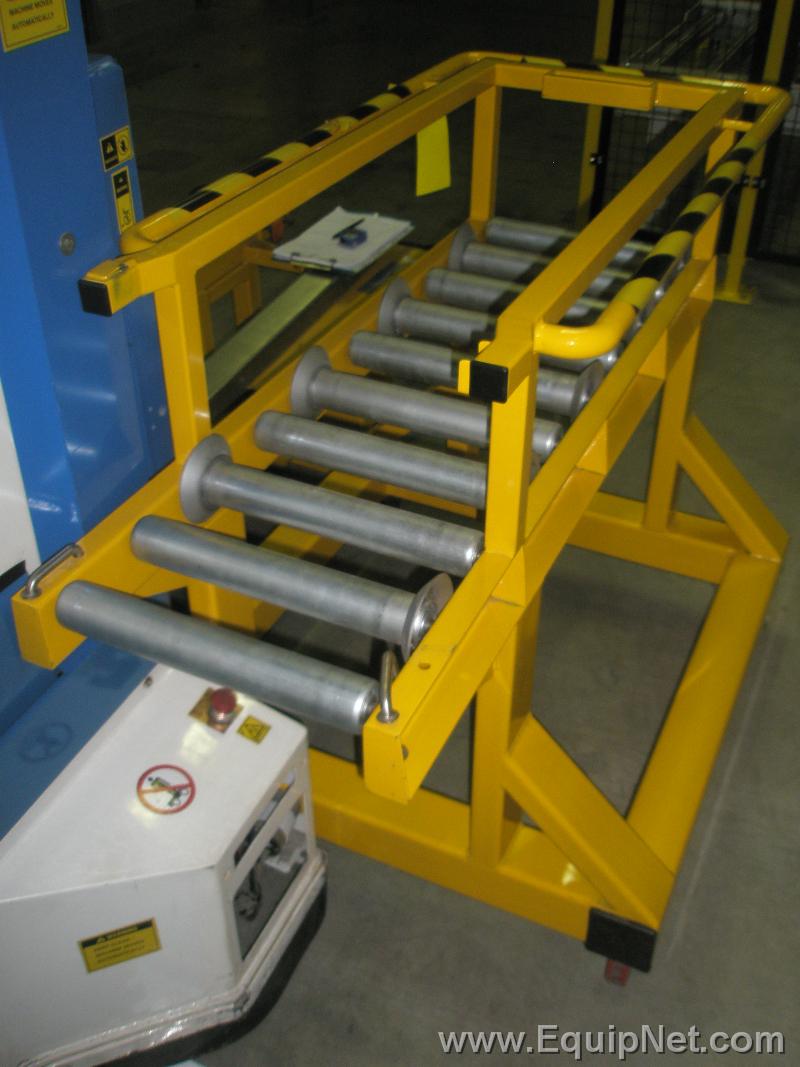

    1 Lot of 4 off Double AGV Forklift Battery, Charging Area, Roller support stations, manufactured by Logan Fenamec Ltd.
  • The 2 sets of battery transfer / support rollers, complete with battery safety stop bar, are mounted on a common frame, supported by 4 legs.
    • Equipment Specifications
    Estimated Shipping Weight1200 Kgs LBS
    Height0.86 M
    Length1.4 M
    Width1.1 M
    Recommended Packaging FormCUSTOM PALLET

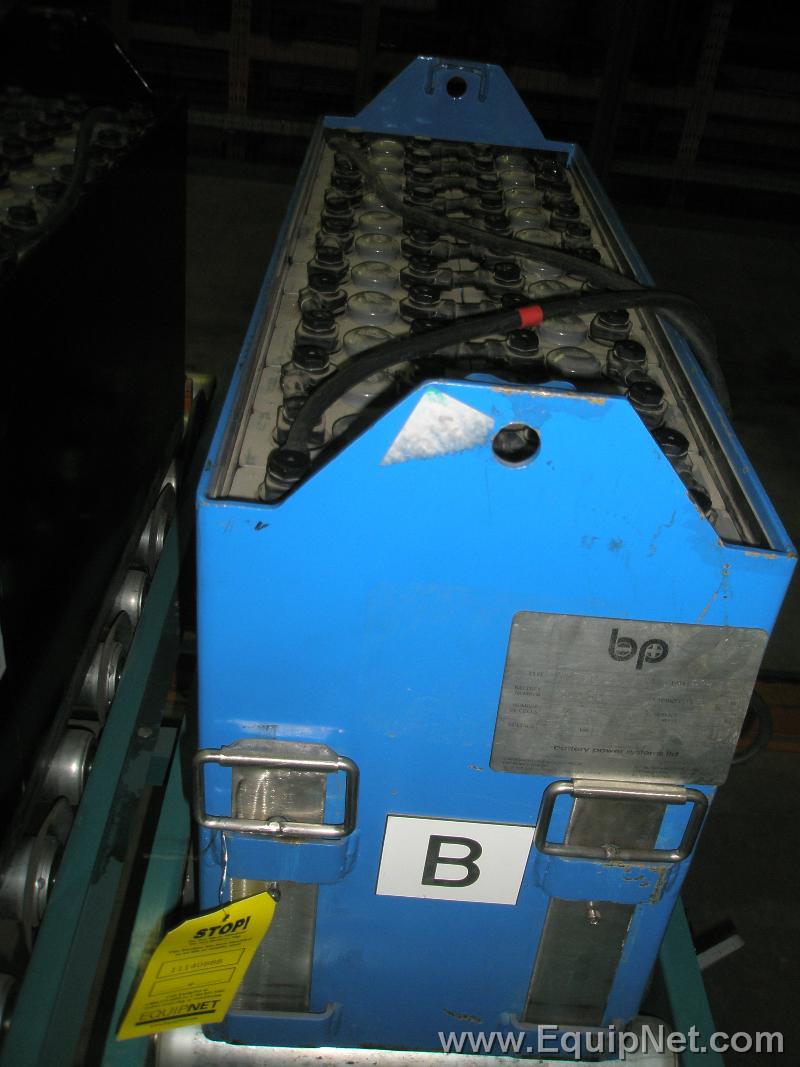

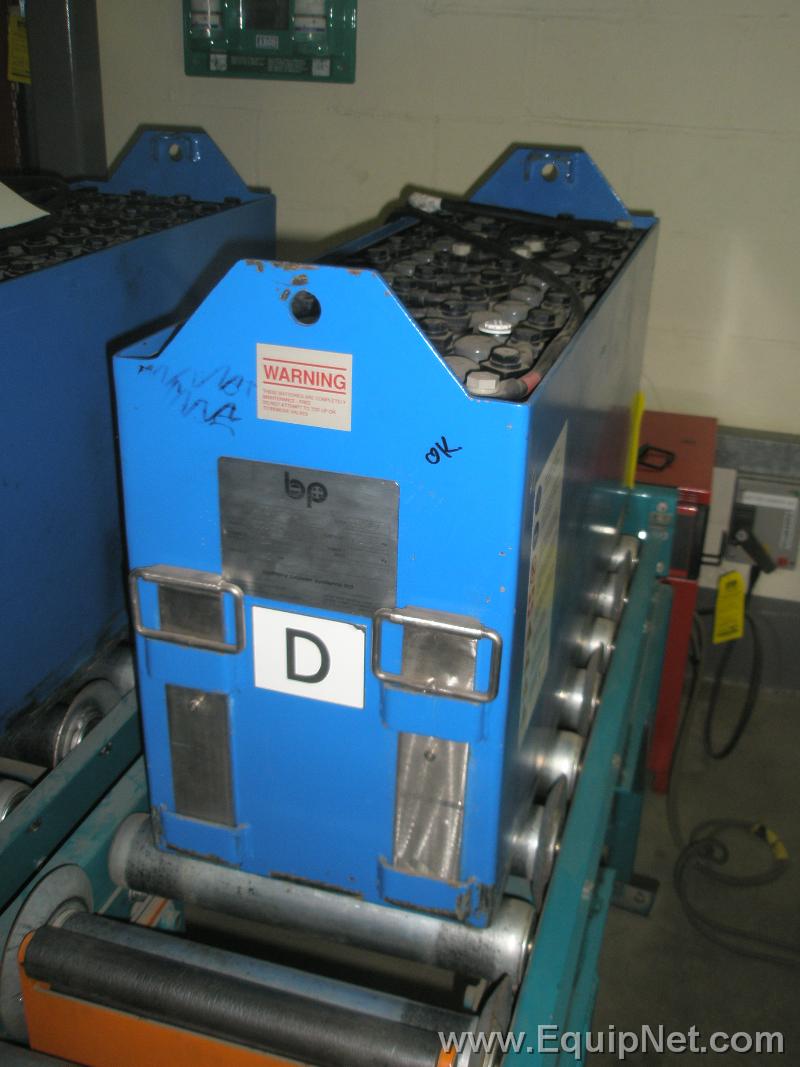

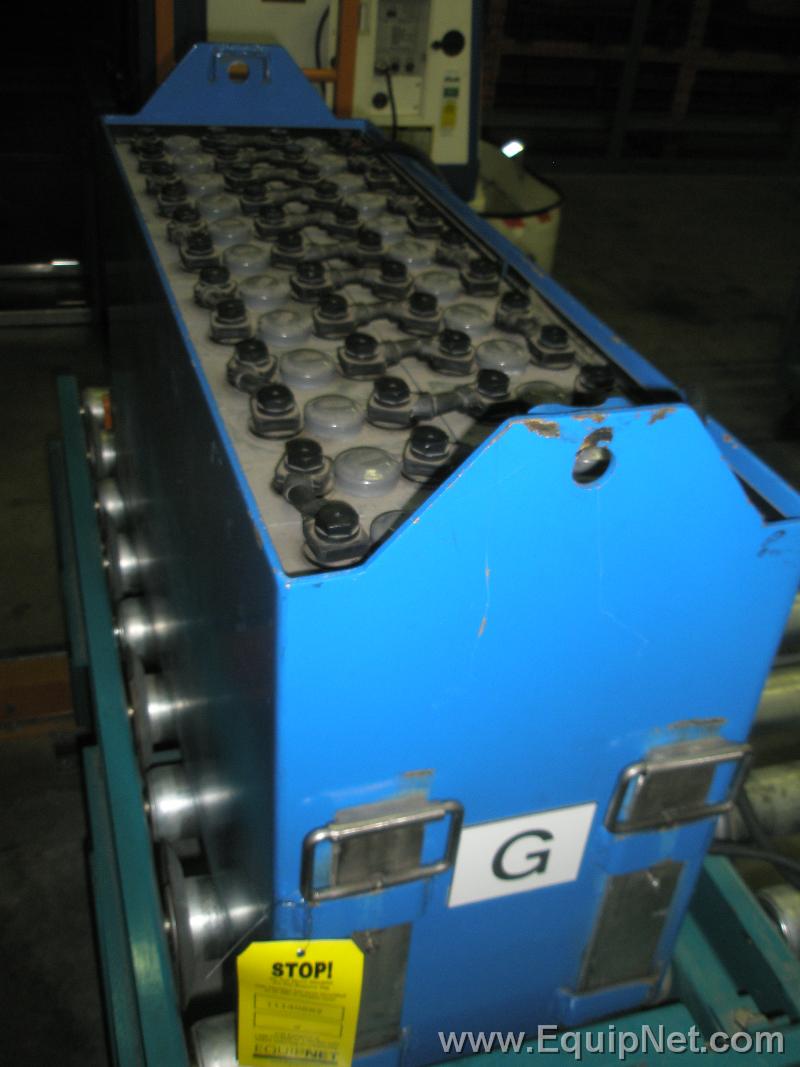

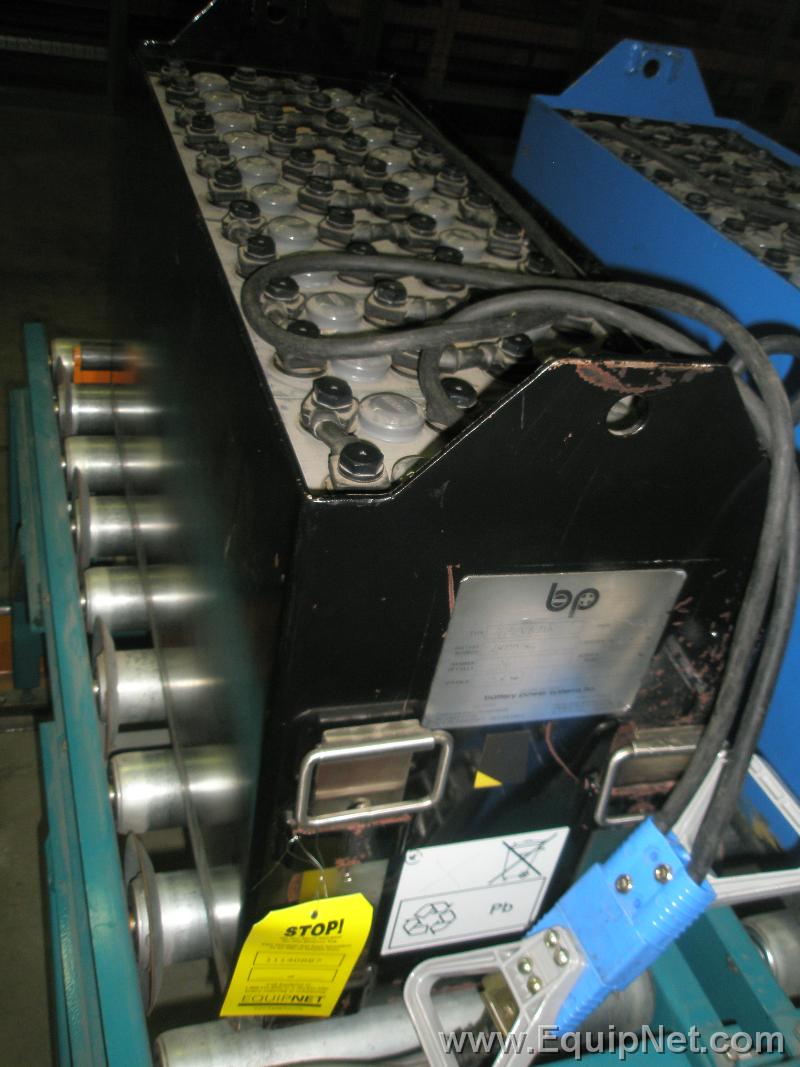

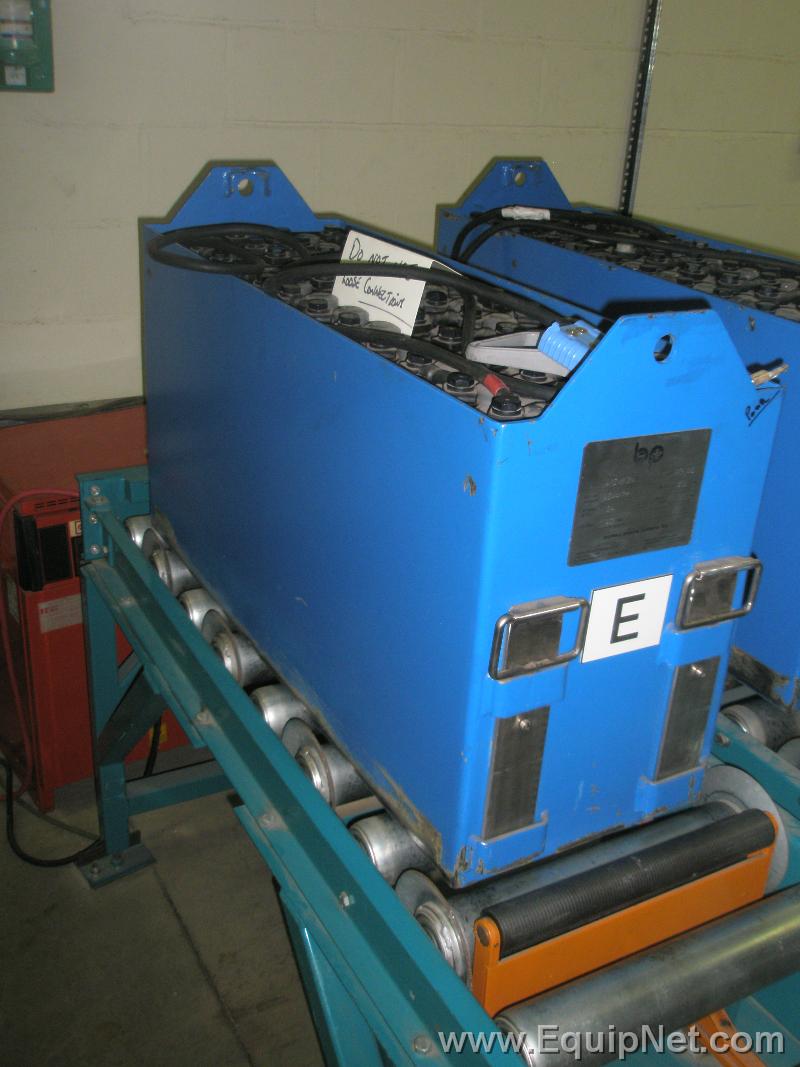

    1 Lot of 5 off 48 volt 24 cell 215 Amphour AGV Forklift Batteries and 4 off Laser Targets

    1 Lot of 5 off 48 volt x 24 cell, 215 Amphour, AGV Forklift Battery's,

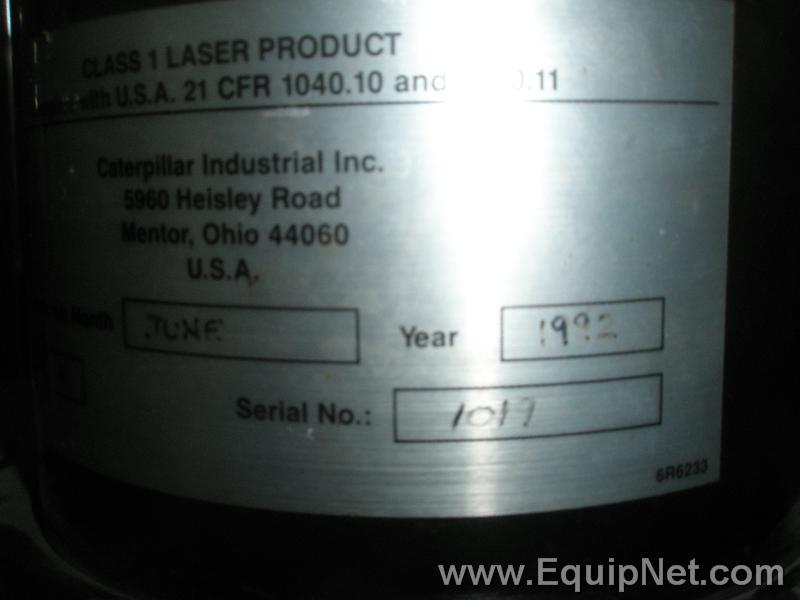

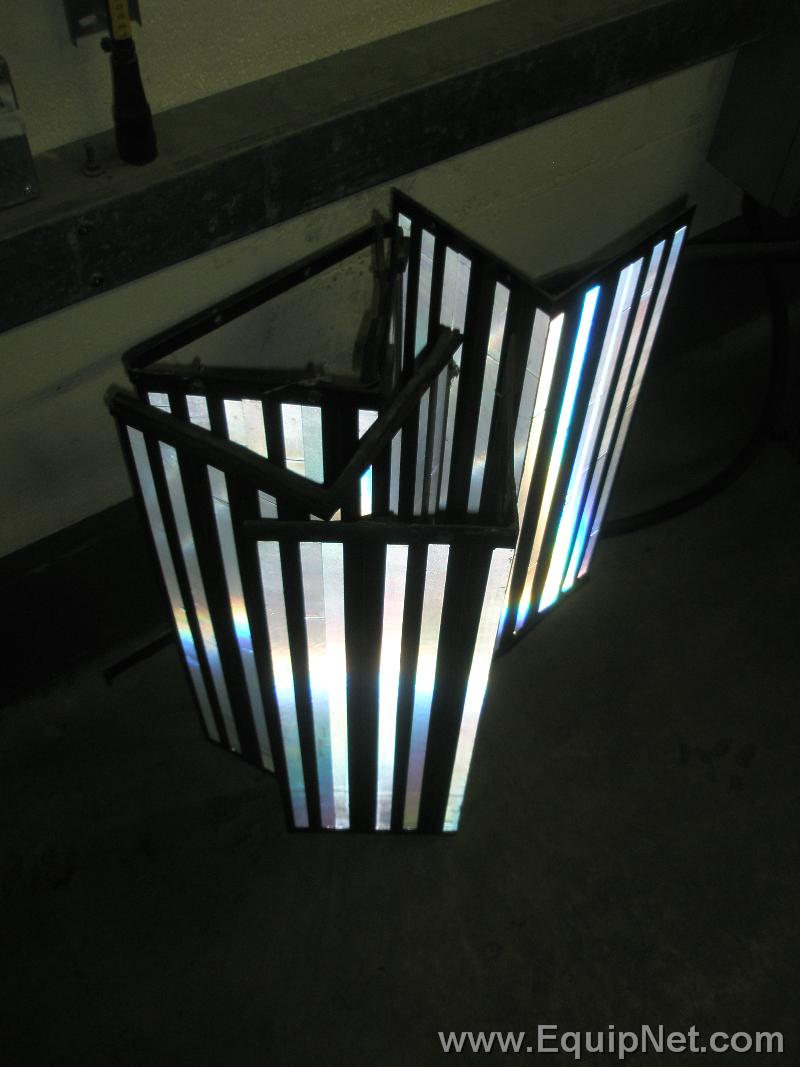

  • 1 Set of 4 off Laser Scanner, Wall mounted AGV Positioning Targets, which each measure 190mm x 190mm x 600mm high.
    • Equipment Specifications
    Model4P ZVB 216
    Serial Number2800180/183/179/182/184
    Estimated Shipping Weight2750 Kgs
    Recommended Packaging FormCUSTOM PALLET

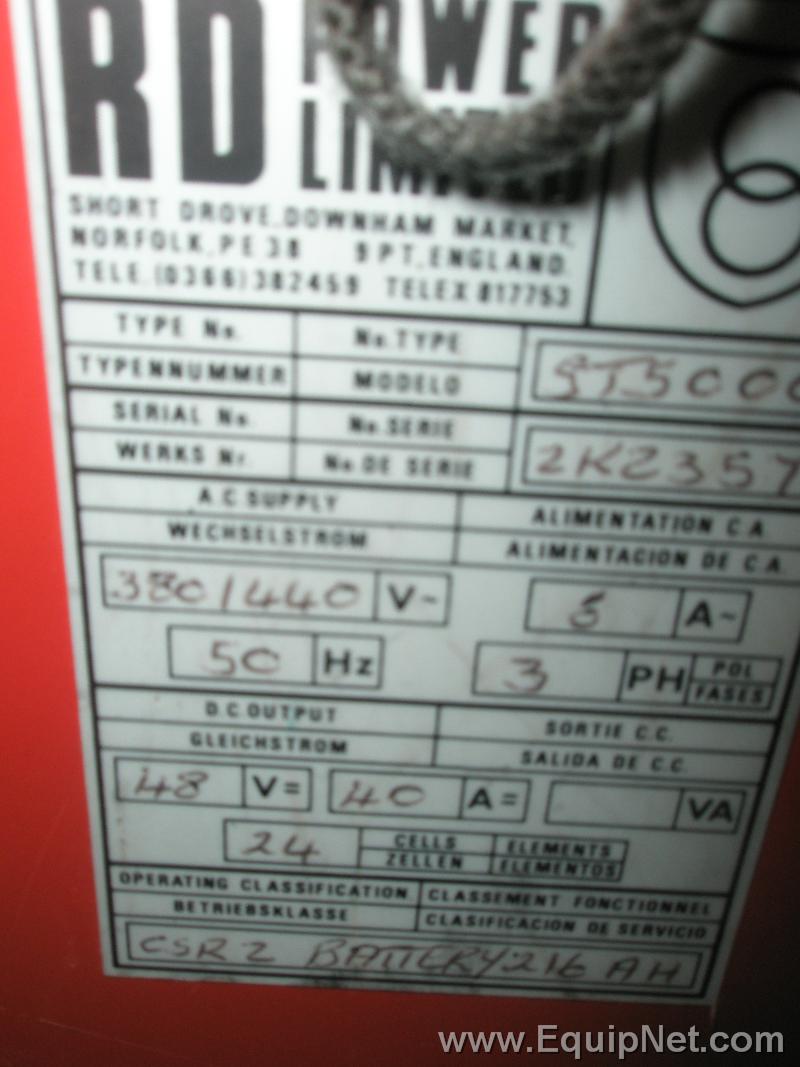

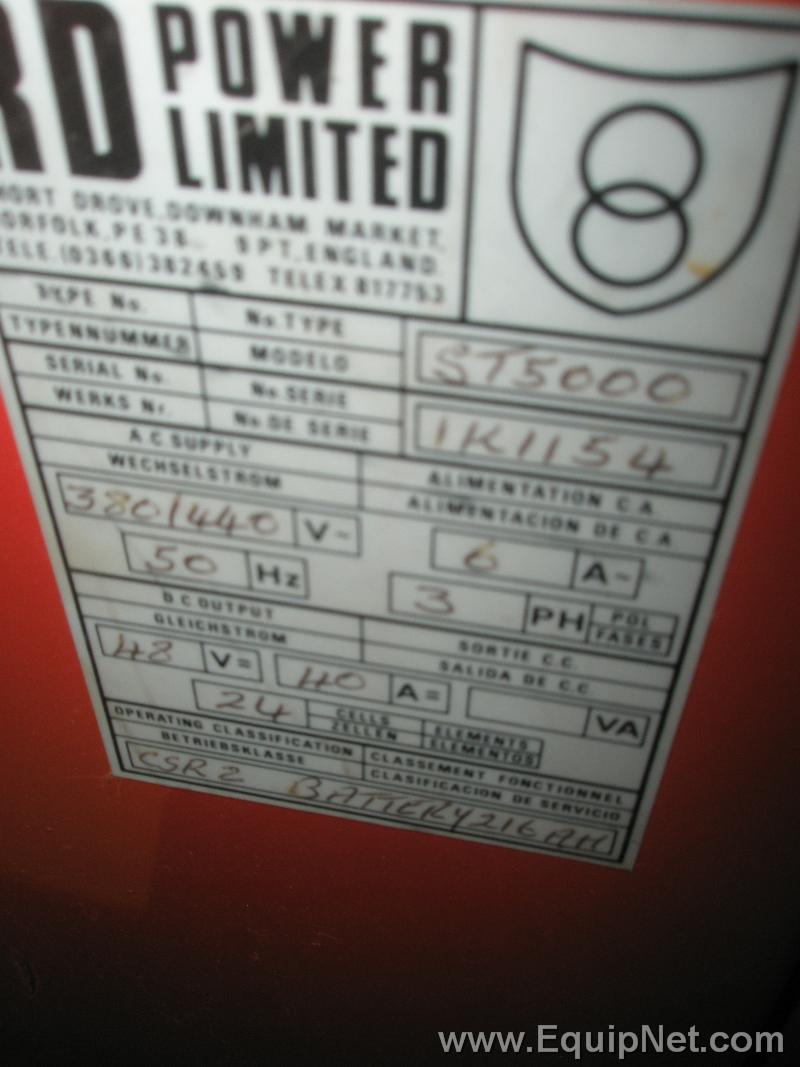

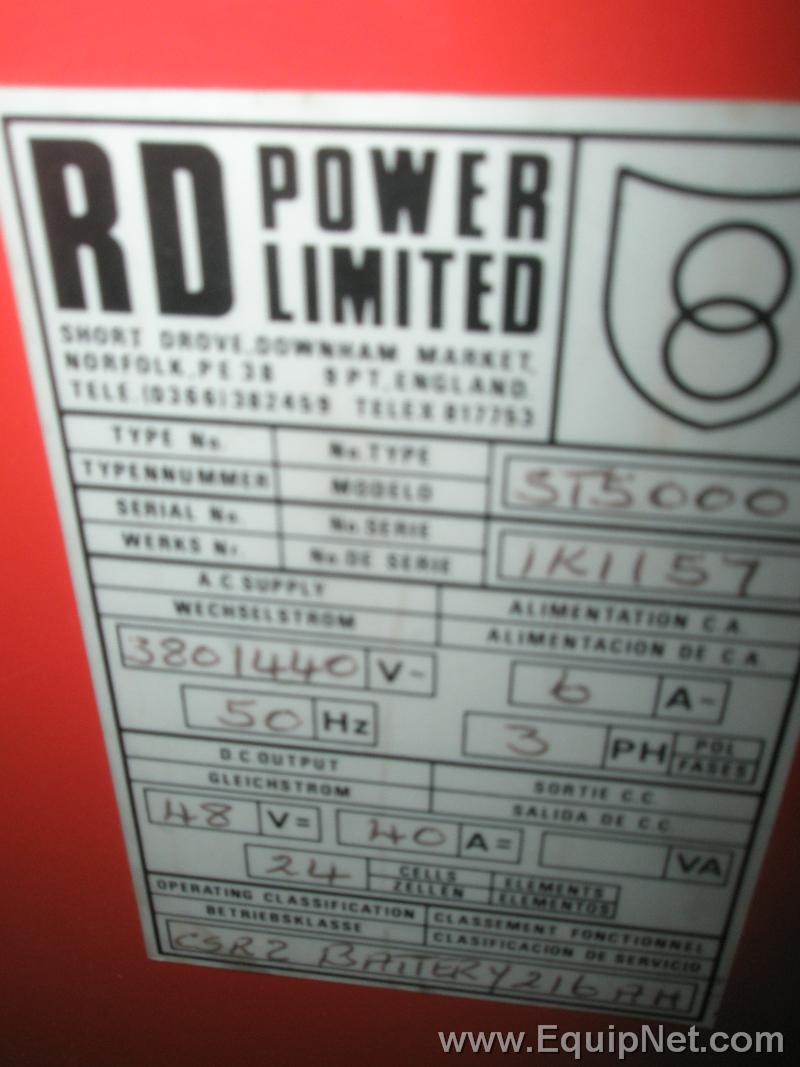

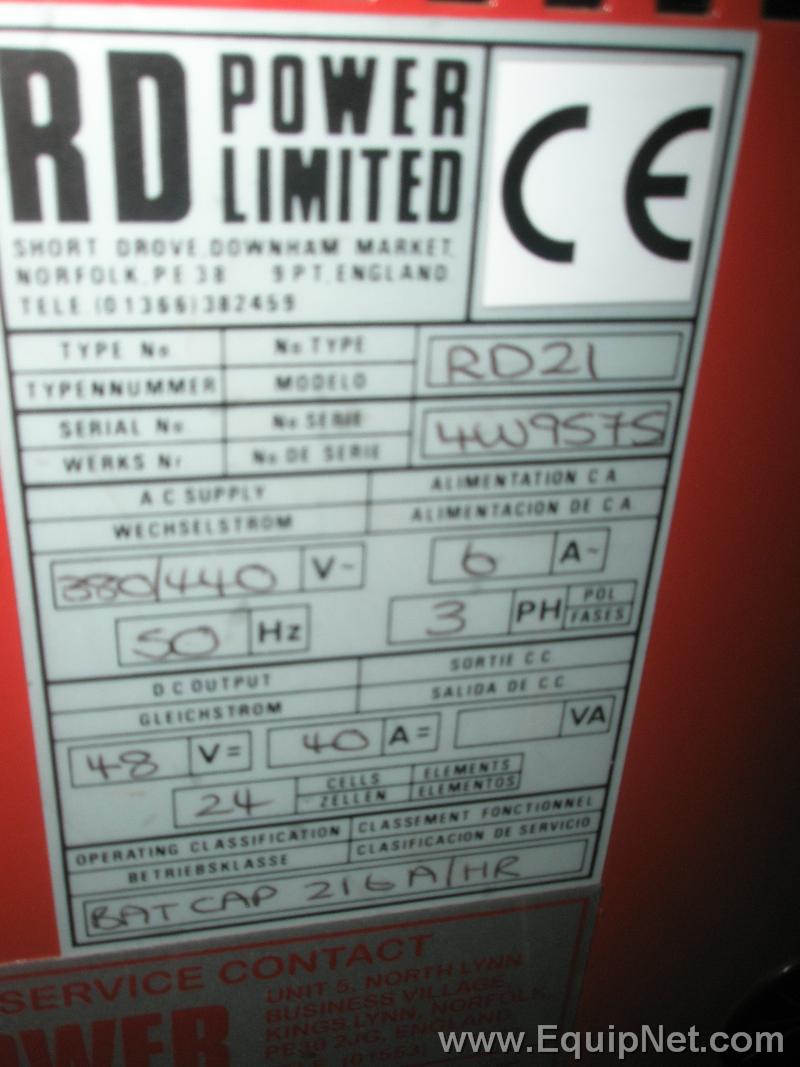

    1 Lot of 5 off Hawker Oldham ST 5000 AGV Battery Chargers and 1 off Hawker PowerTech Battery Charger

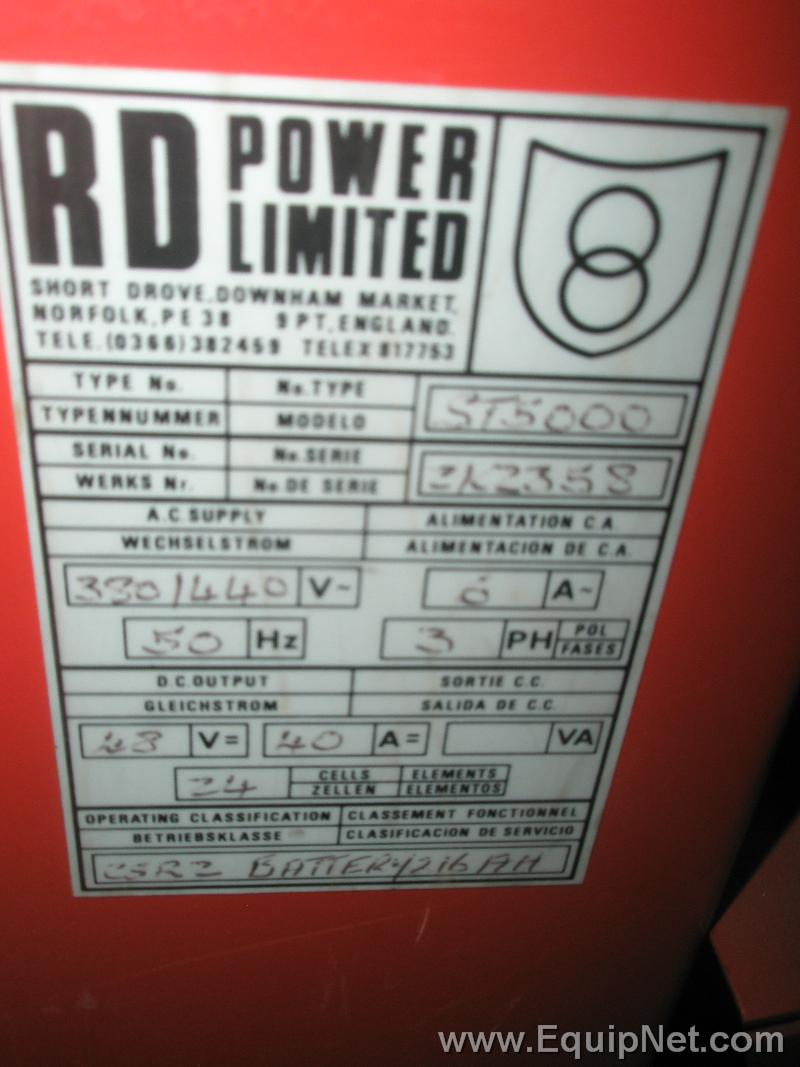

    1 Lot of 5 off Hawker Oldham ST 5000 AGV Battery Chargers, floor mounted + 1 off Hawker PowerTech Battery Charger, Wall mounted.

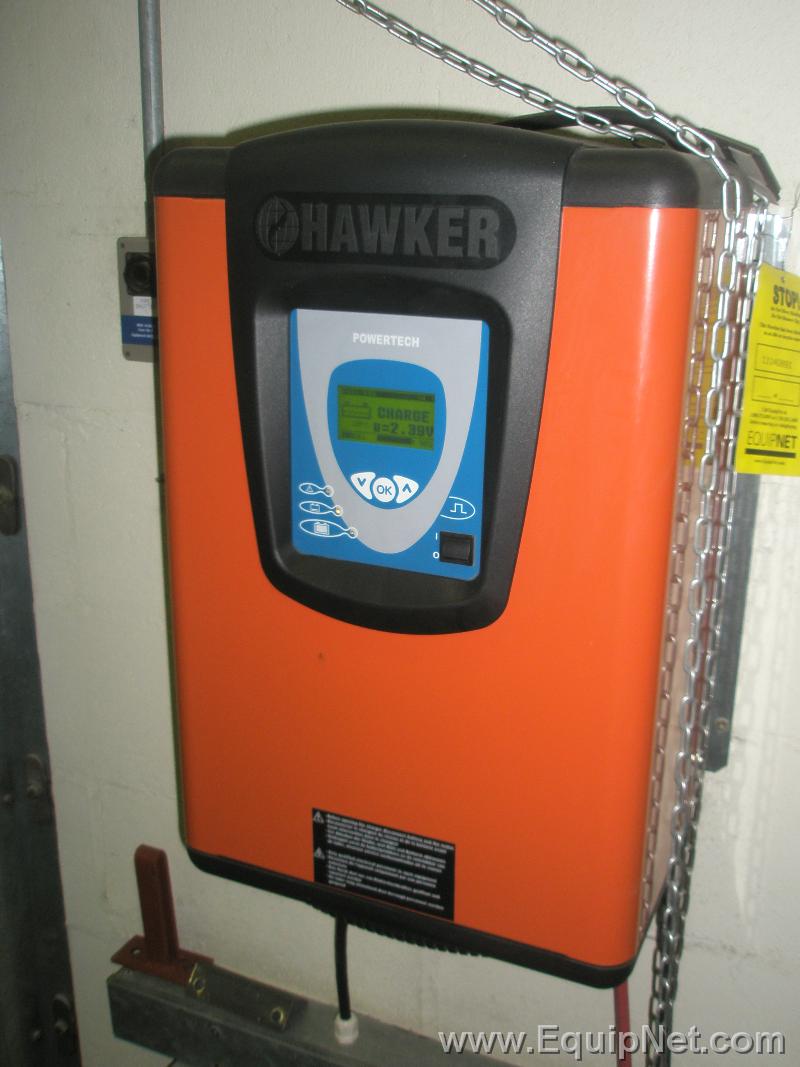

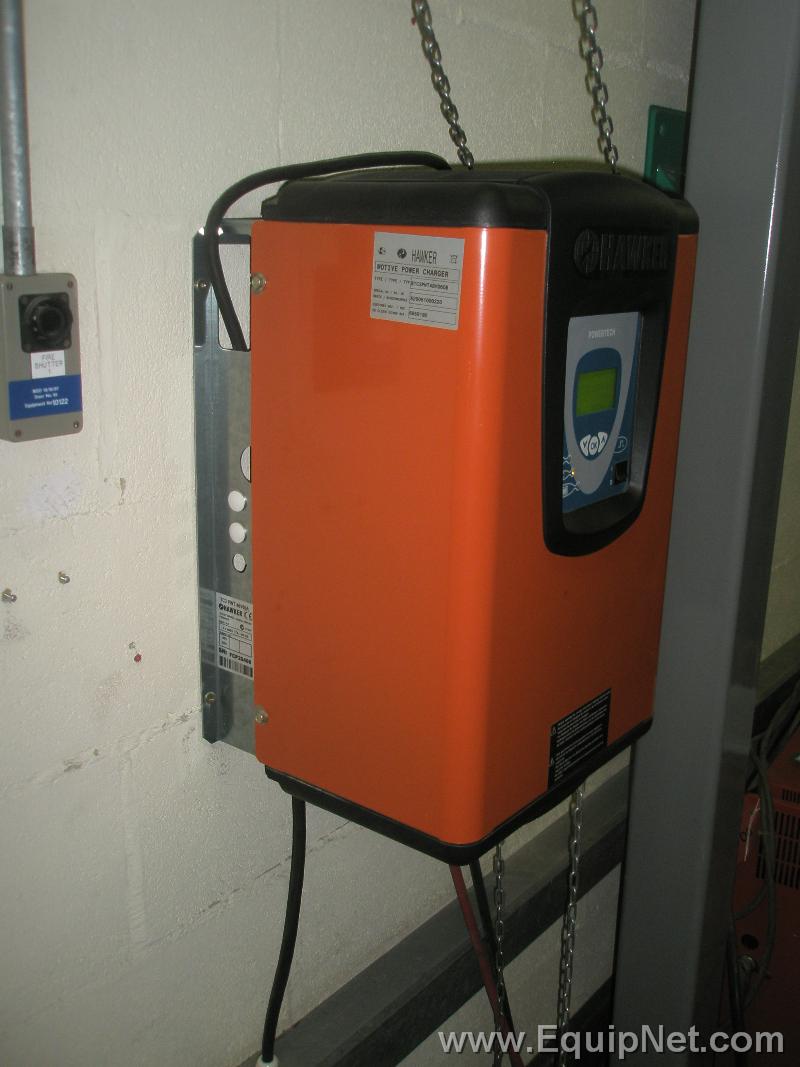

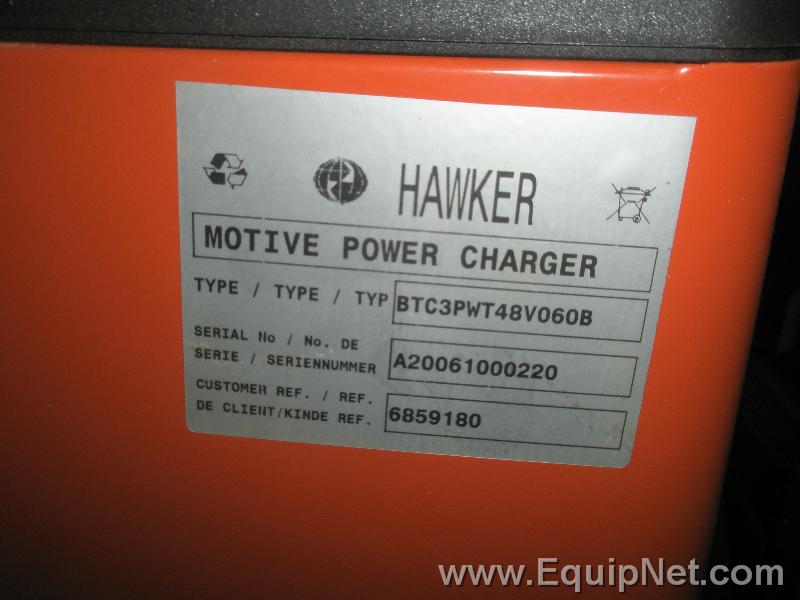

  • The 1 off 2006, Hawker PowerTech Battery Charger, Wall mounted unit, is a Type BTC3 PWT 48v 060B, Serial No A20061000220, Primary = 400v 3 Phase 50 Hz 7 Amps, Secondary = 48 Volts x 60 Amps, and measures 370mm x 300mm x 570mm high, and weighs 30 kgs
    • Equipment Specifications
    ModelSeries ST 5000
    Serial Number1K 1157 / 2K 2355 / 4W 9575 / 1K 1154 / 2K 2357
    Estimated Shipping Weight250 Kgs
    Height0.76 M
    Length0.5 M
    Width0.54 M
    Recommended Packaging FormCUSTOM PALLET

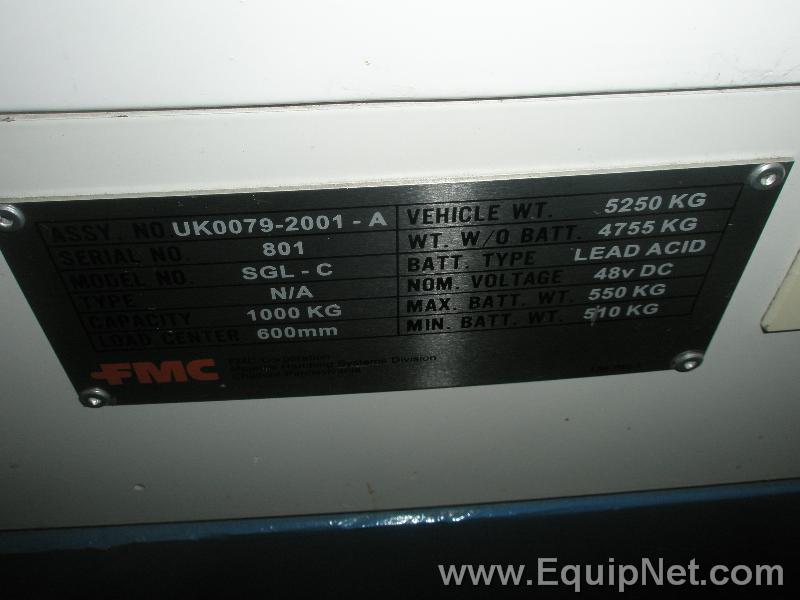

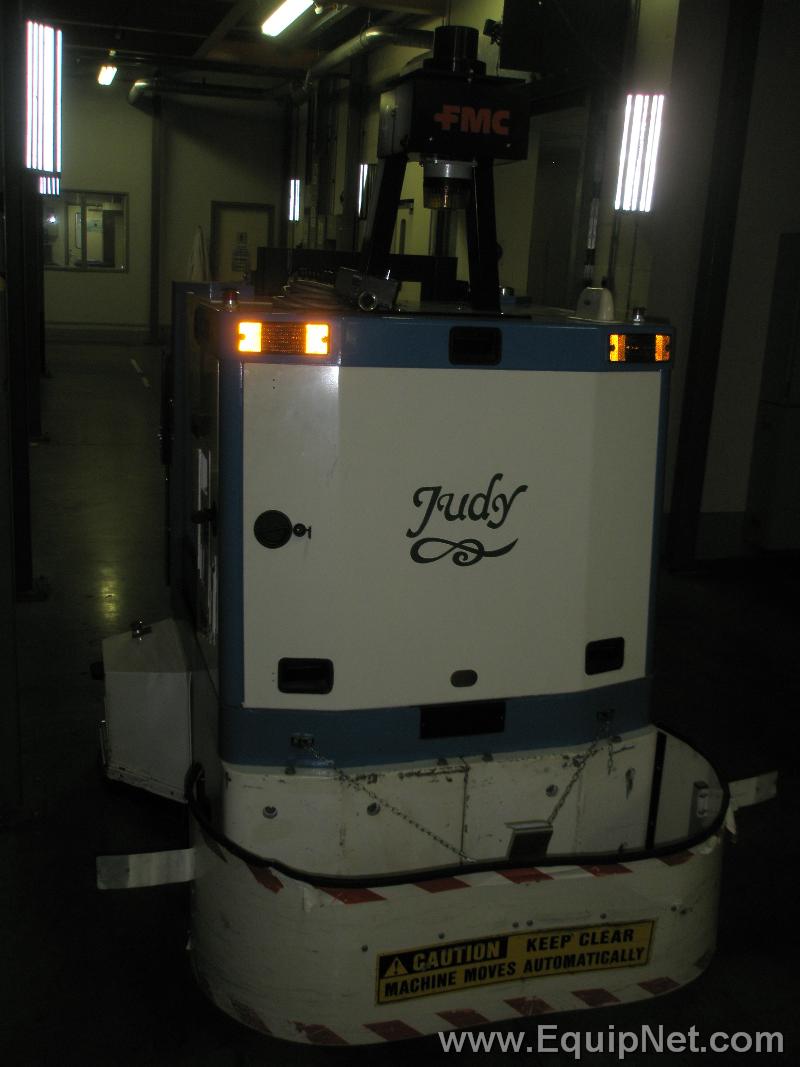

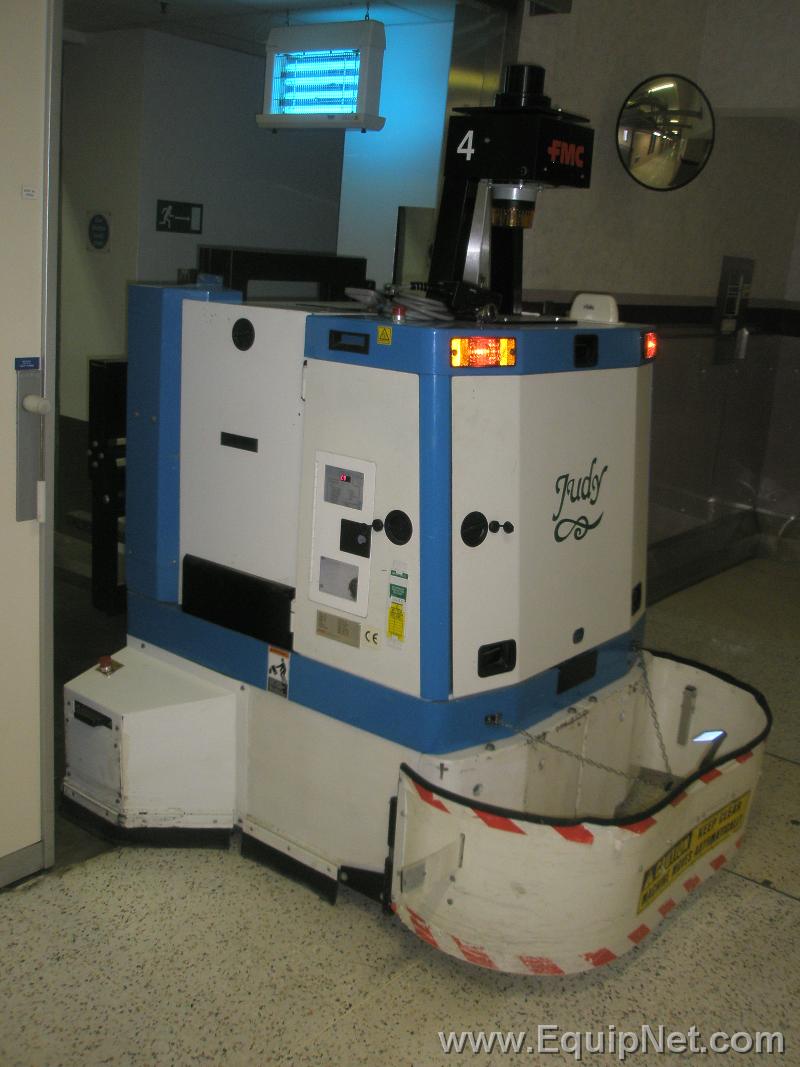

    Caterpillar FMC SGL Automatically Guided Forklift Unit 4

    You are making an offer on a Caterpillar FMC, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 4, "Judy" located in GBR.

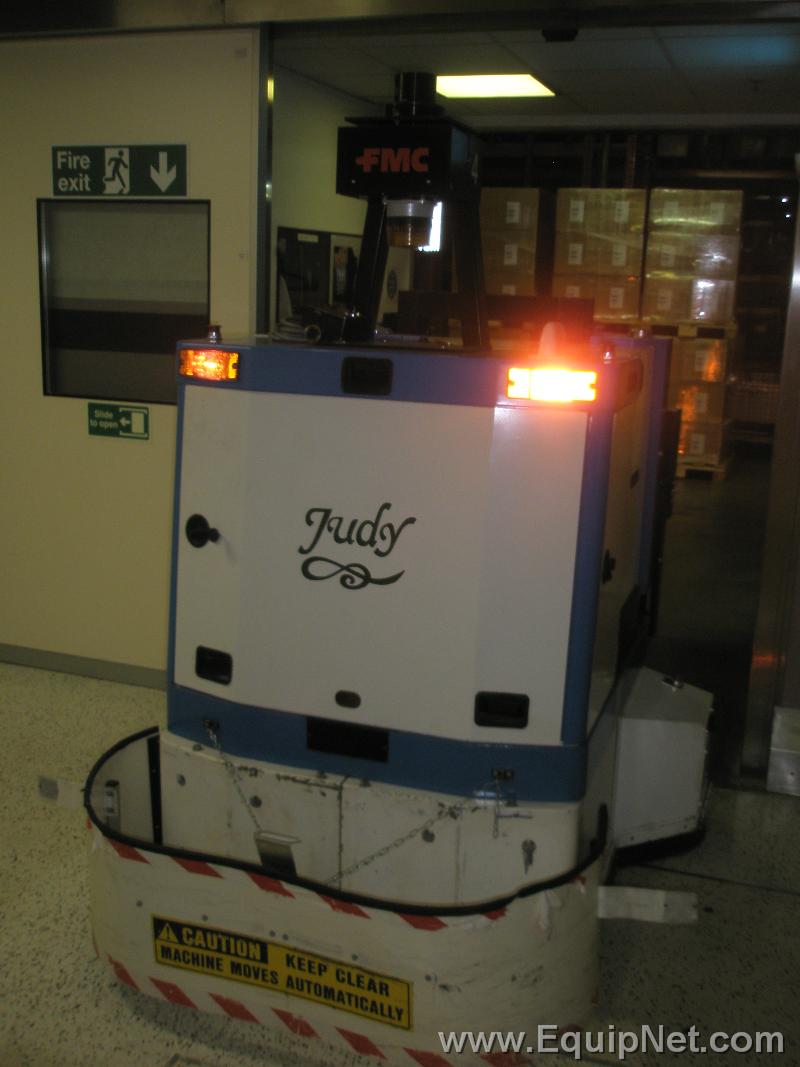

    Caterpillar, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 4, "Judy"

  • This 1999, FMC, Laser guided AGV unit is capable of lifting a Maximum Weight of 1000 kgs, at a Load Centre distance of 600mm from the mast, to a Maximum height of 960mm, using Forklifts that are 1220mm long x 95mm wide, that can be adjusted automatically from 550mm - 980mm apart, measured to the outside of forks.
  • The Maximum sizings of the load to be lifted are; 1200mm long x 1200mm wide x 1375mm high.
  • The Maximum travelling speed of the AGV is 1m/sec, but has been down-rated for safety reasons to 0.2m/sec.
  • The AGV is controlled from a Central Control Computer Scheduling unit, via radio control, and locally guided via a Laser detection system that identifies its position relative to strategically placed Vertical Laser Targets, mounted at a height of 2.2m, throughout the prescribed routes that the AGV's are set to follow.
  • The AGV is powered by a 48 volt x 24 cell rechargeable battery, that produces a maximum of 215 Amphere/hours, and measures 969mm long x 340mm wide x 540mm high, and weighs 510-550 Kgs.
    • Equipment Specifications
    ModelSGL-C, UK 0079-2001-A
    Serial Number801
    Estimated Shipping Weight5250 kgs
    Height2.3 M
    Length3 M
    Width1.6 M
    Recommended Packaging FormCUSTOM PALLET

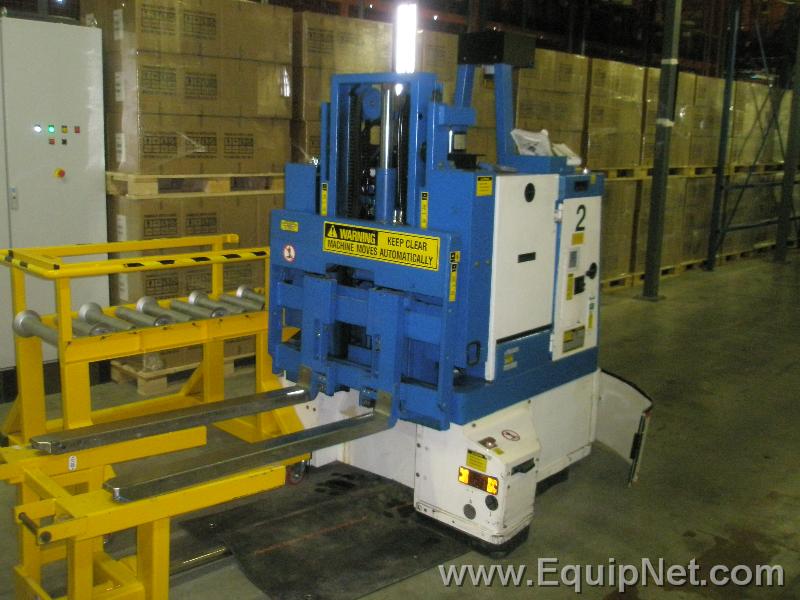

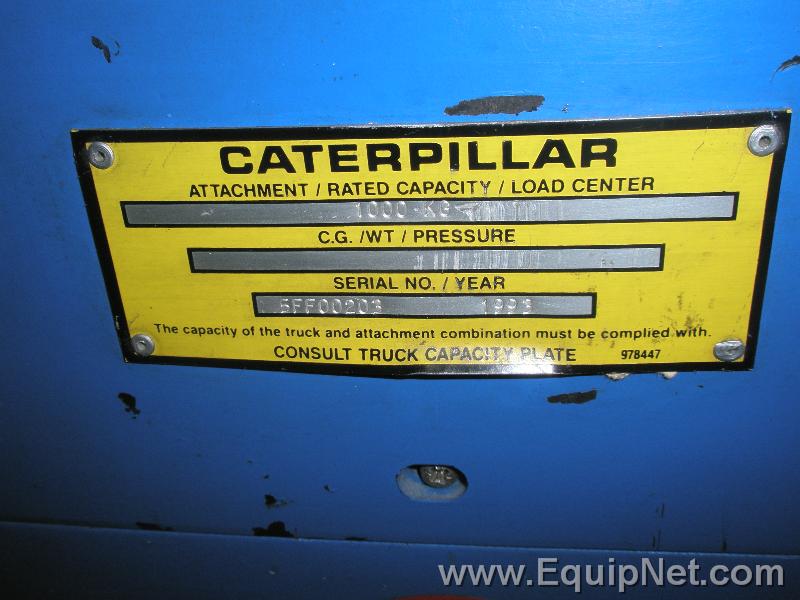

    Caterpillar SGL Automatic Guided Forklift Unit 2

    You are making an offer on a Caterpillar FMC, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 4, "Judy" located in GBR.

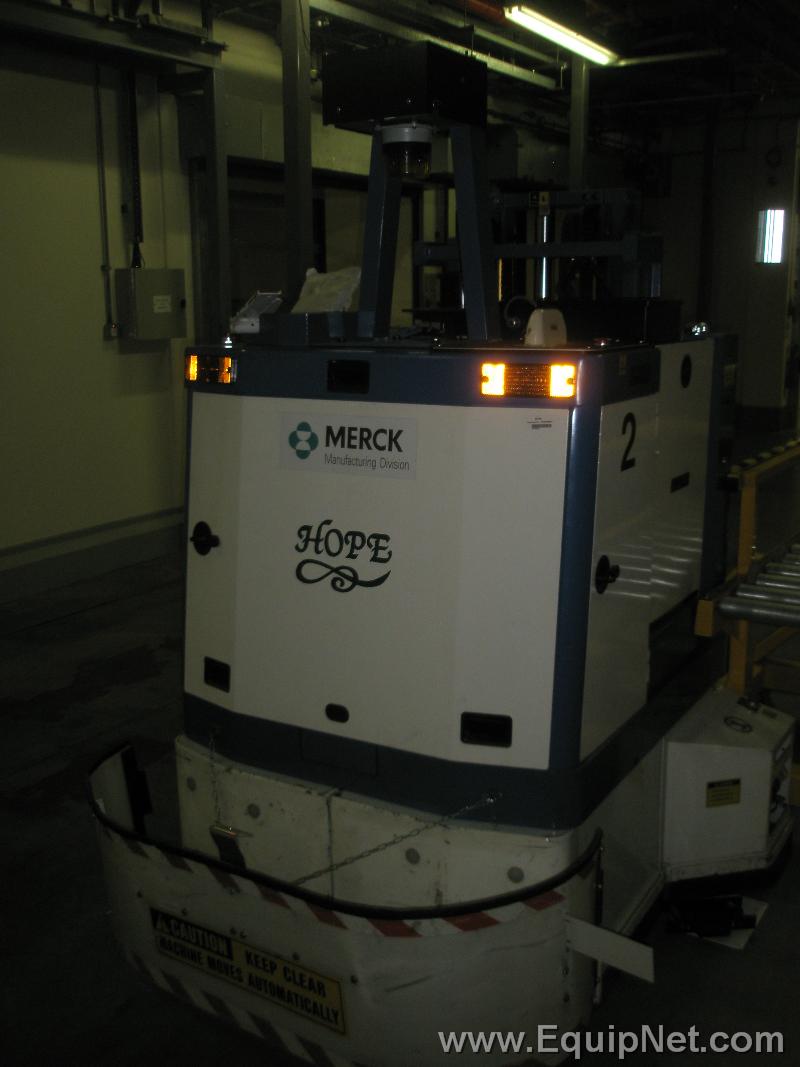

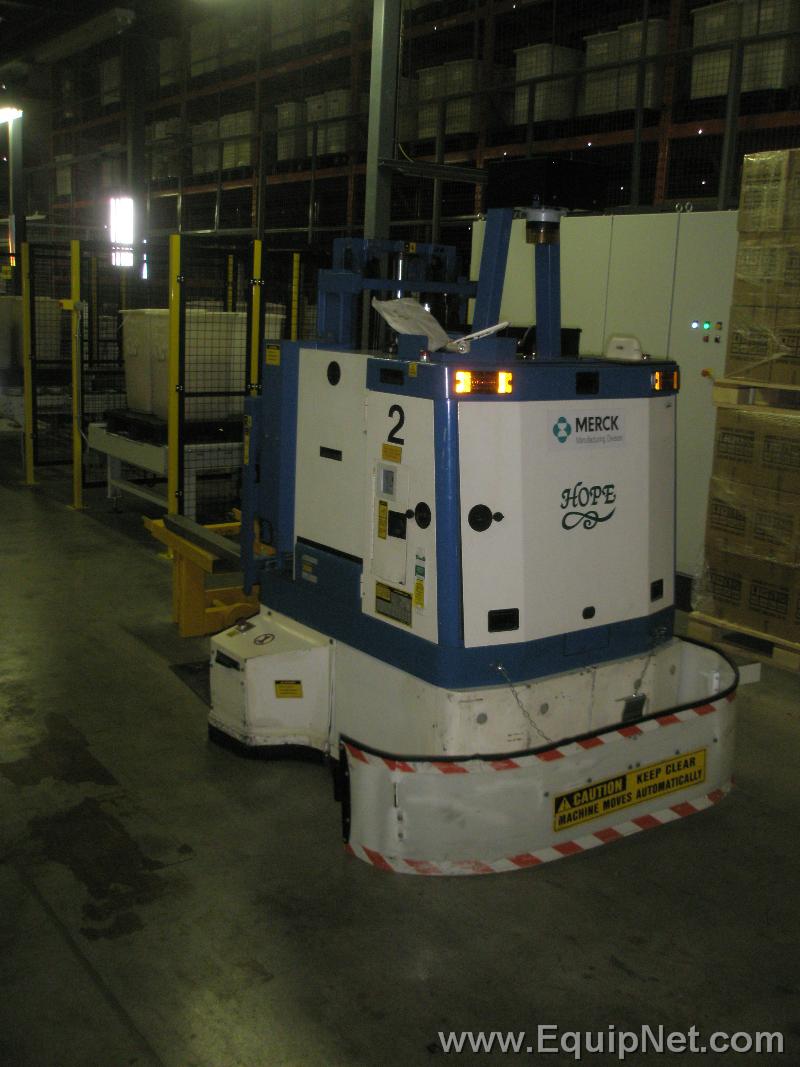

    Caterpillar, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 2, "Hope"

  • This 1993, Laser guided AGV unit is capable of lifting a Maximum Weight of 1000 kgs, at a Load Centre distance of 600mm from the mast, to a Maximum height of 960mm, using Forklifts that are 1220mm long x 95mm wide, that can be adjusted automatically from 550mm - 980mm apart, measured to the outside of forks. The Model No on the Forklift attachment = 5FF 00203.
  • The Maximum sizings of the load to be lifted are; 1200mm long x 1200mm wide x 1375mm high.
  • The Maximum travelling speed of the AGV is 1m/sec, but has been down-rated for safety reasons to 0.2m/sec.
  • The AGV is controlled from a Central Control Computer Scheduling unit, via radio control, and locally guided via a Laser detection system that identifies its position relative to strategically placed Vertical Laser Targets, mounted at a height of 2.2m, throughout the prescribed routes that the AGV's are set to follow.
  • The AGV is powered by a 48 volt x 24 cell rechargeable battery, that produces a maximum of 215 Amphere/hours, and measures 969mm long x 340mm wide x 540mm high, and weighs 510-550 Kgs.
  • Please Note; This unit currently is not functionable, and is being used as spares support for the other 3 AGV's.
    • Equipment Specifications
    ModelSGL
    Serial Number5FF 00203
    Estimated Shipping Weight4960 kgs
    Height2.3 M
    Length2.9 M
    Width1.6 M
    Recommended Packaging FormCUSTOM PALLET

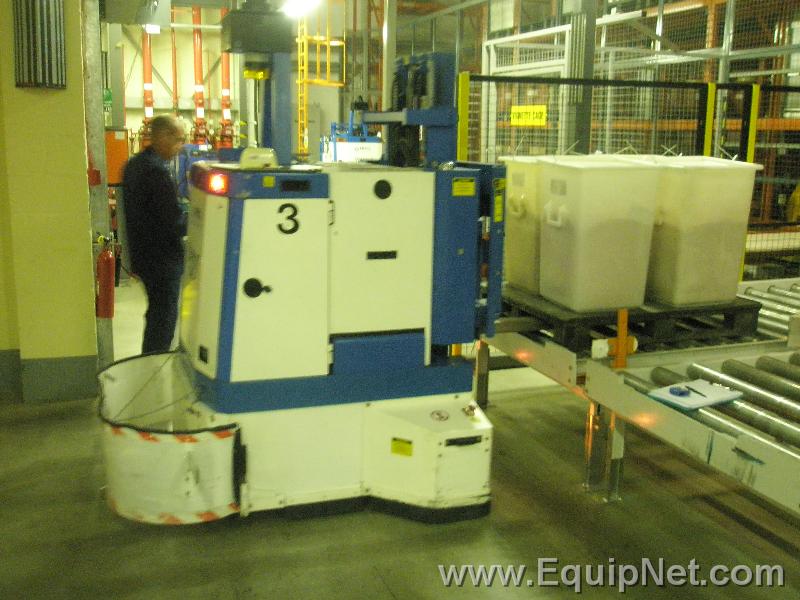

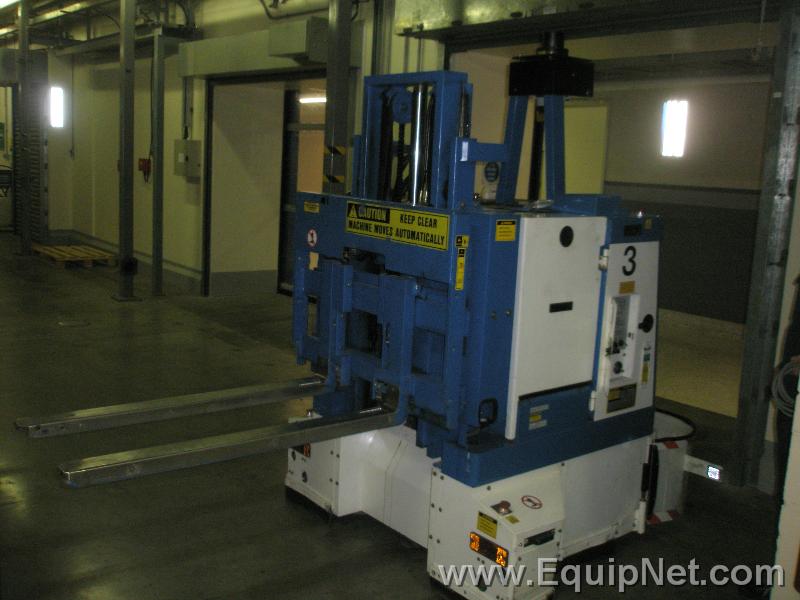

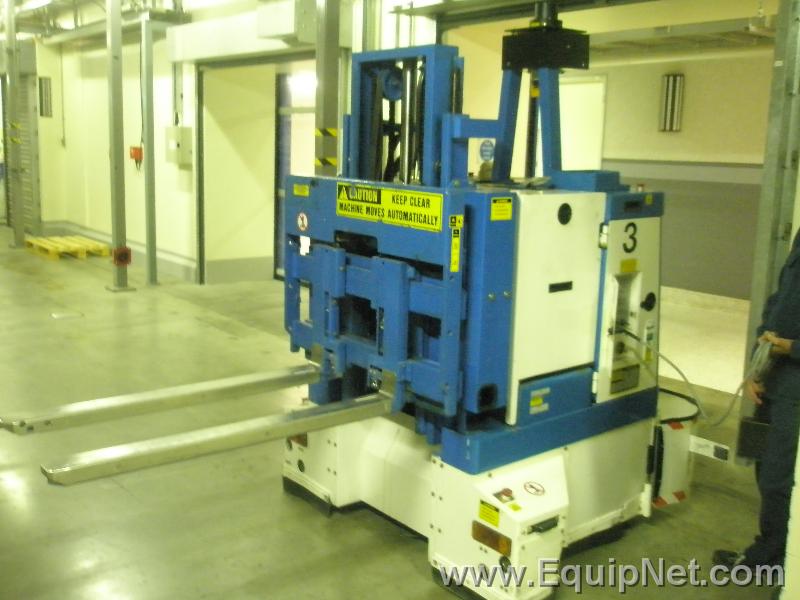

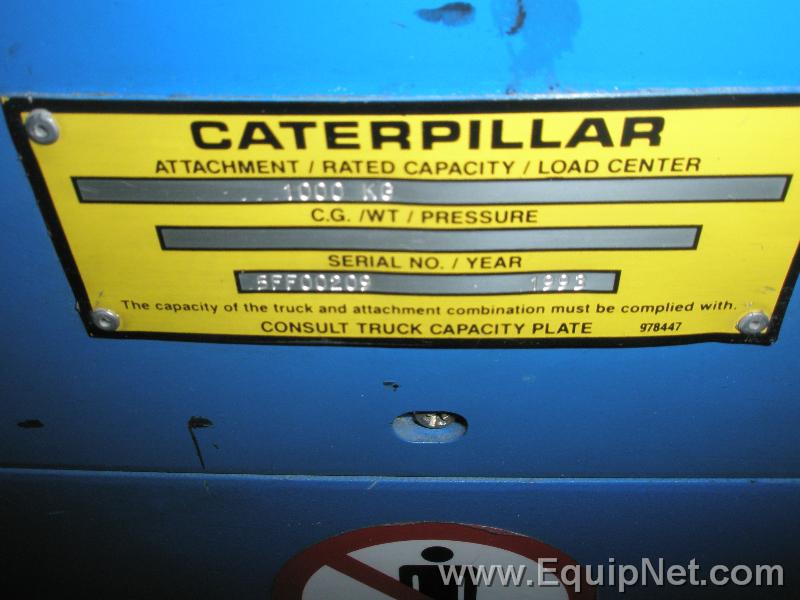

    Caterpillar SGL Automatic Guided Forklift Unit 3

    You are making an offer on a Caterpillar FMC, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 4, "Judy" located in GBR.

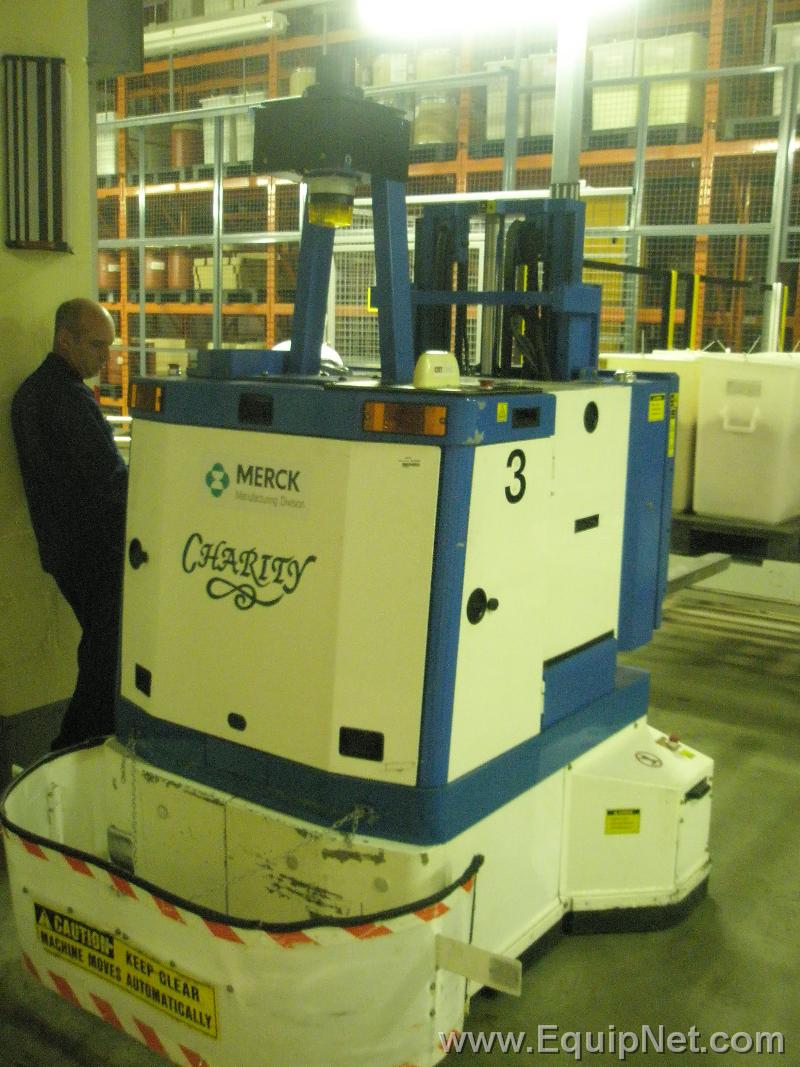

    Caterpillar, Factory based, SGL, Automatically Guided Forklift Product Transfer Unit 3, "Charity"

  • This 1993, Laser guided AGV unit is capable of lifting a Maximum Weight of 1000 kgs, at a Load Centre distance of 600mm from the mast, to a Maximum height of 960mm, using Forklifts that are 1220mm long x 95mm wide, that can be adjusted automatically from 550mm - 980mm apart, measured to the outside of forks. The Model No on the Forklift attachment = 5FF 00200.
  • The Maximum sizings of the load to be lifted are; 1200mm long x 1200mm wide x 1375mm high.
  • The Maximum travelling speed of the AGV is 1m/sec, but has been down-rated for safety reasons to 0.2m/sec.
  • The AGV is controlled from a Central Control Computer Scheduling unit, via radio control, and locally guided via a Laser detection system that identifies its position relative to strategically placed Vertical Laser Targets, mounted at a height of 2.2m, throughout the prescribed routes that the AGV's are set to follow.
  • The AGV is powered by a 48 volt x 24 cell rechargeable battery, that produces a maximum of 215 Amphere/hours, and measures 969mm long x 340mm wide x 540mm high, and weighs 510-550 Kgs.
    • Equipment Specifications
    ModelSGL
    Serial Number5FF 00209
    Estimated Shipping Weight4960 kgs
    Height2.3 M
    Length2.9 M
    Width1.6 M
    Recommended Packaging FormCUSTOM PALLET

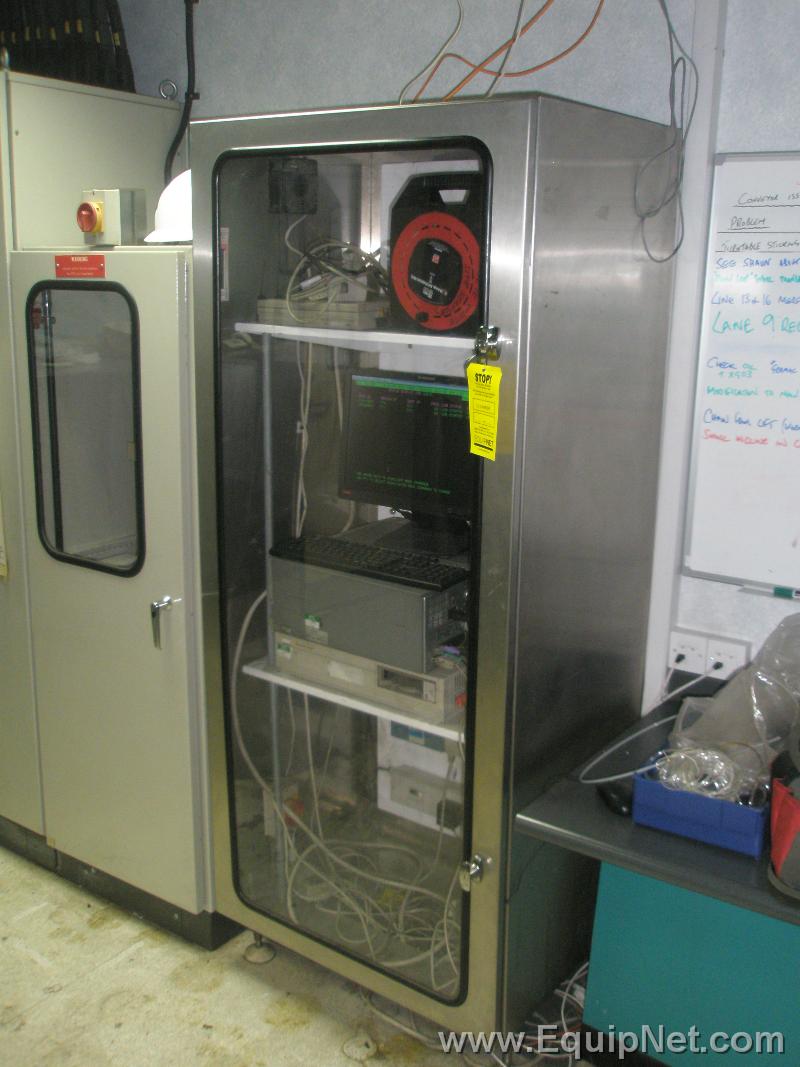

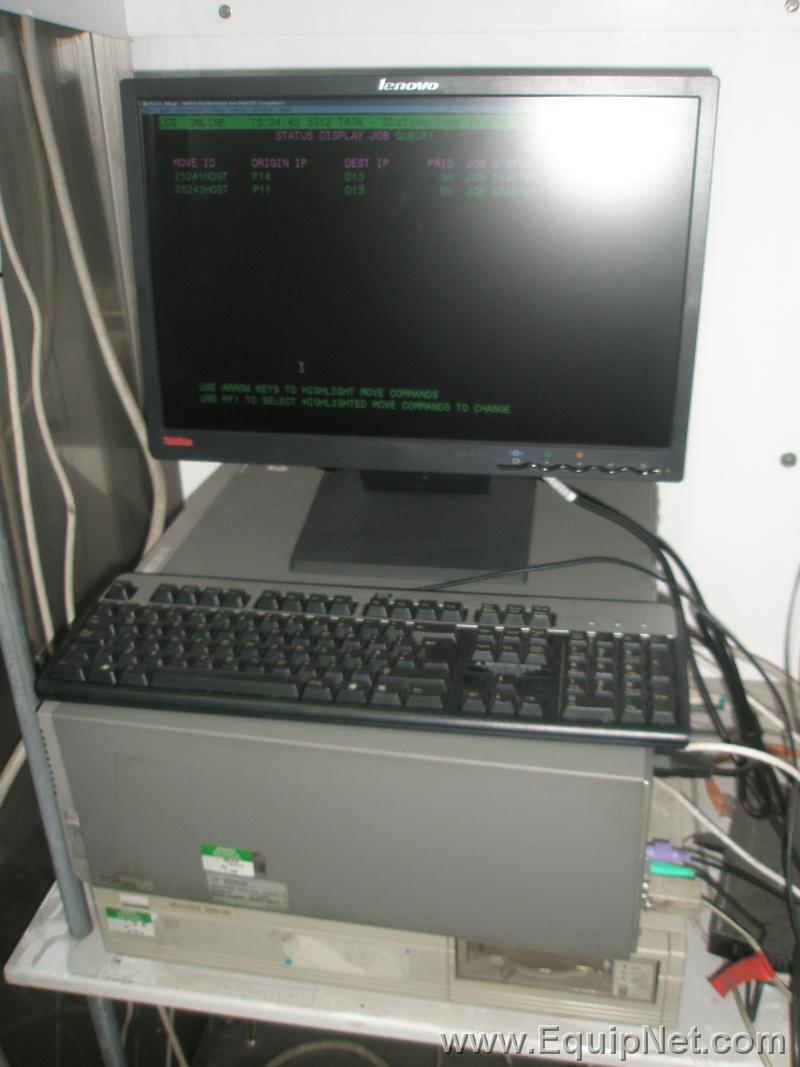

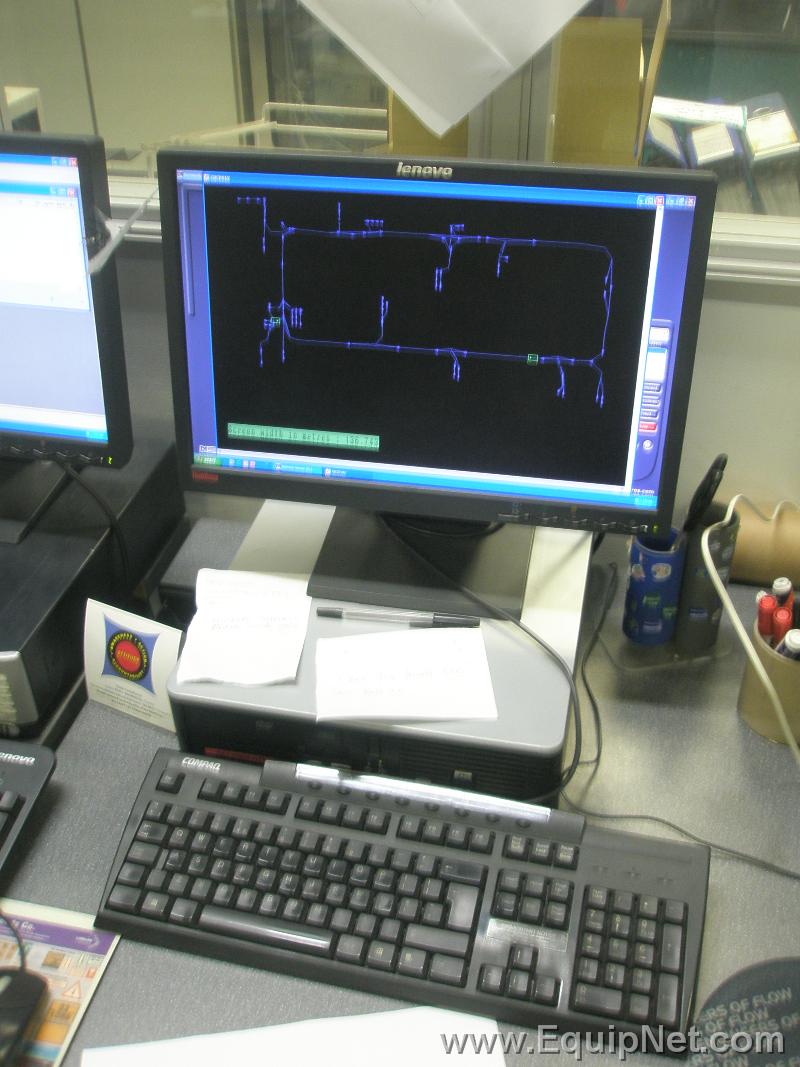

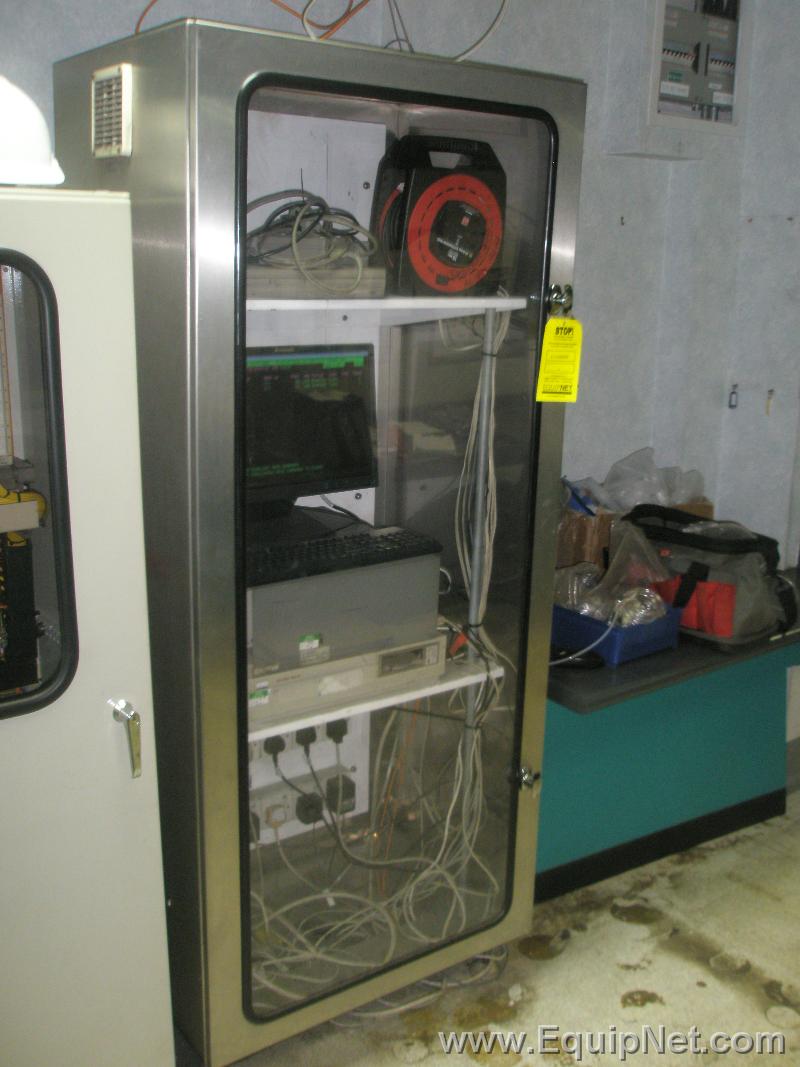

    Caterpillar SGL Master Computer Control System for 4 off Automatic Guided Forklifts

    Caterpillar, SGL, Master Computer Control System, for 4 off Automatic Guided Forklifts + bespoke Software for the Scheduling control, and Visual Display of the AGV Forklift movements, within the Factory Site.

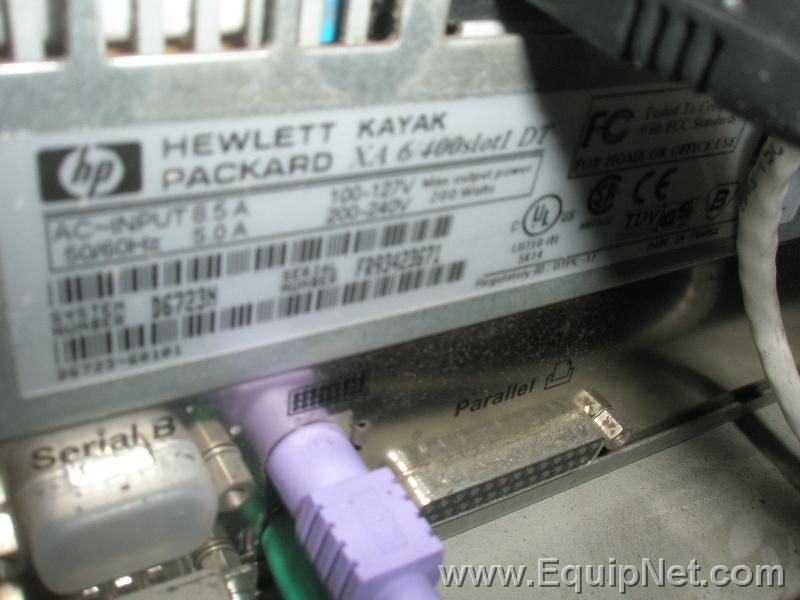

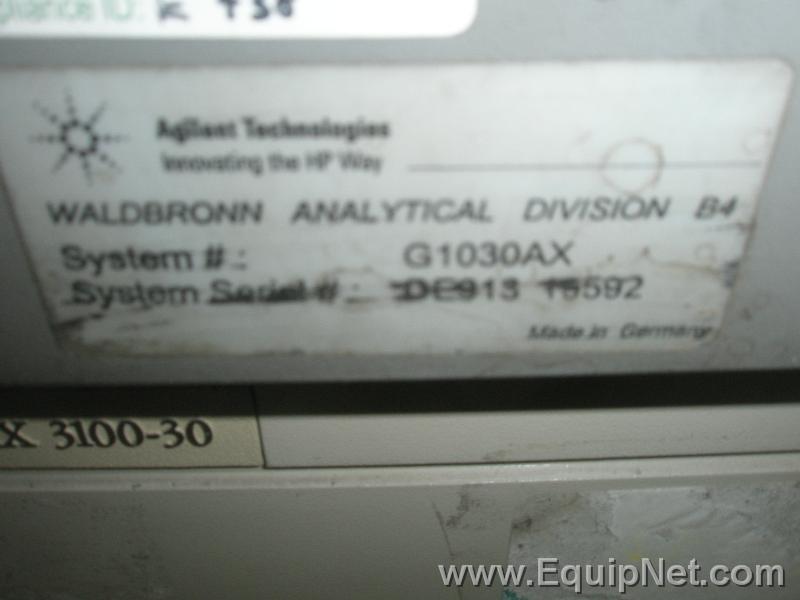

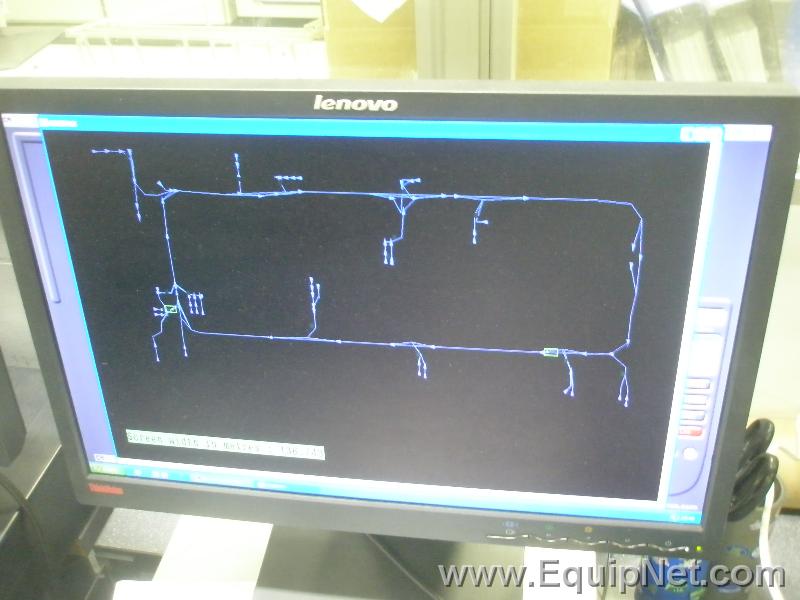

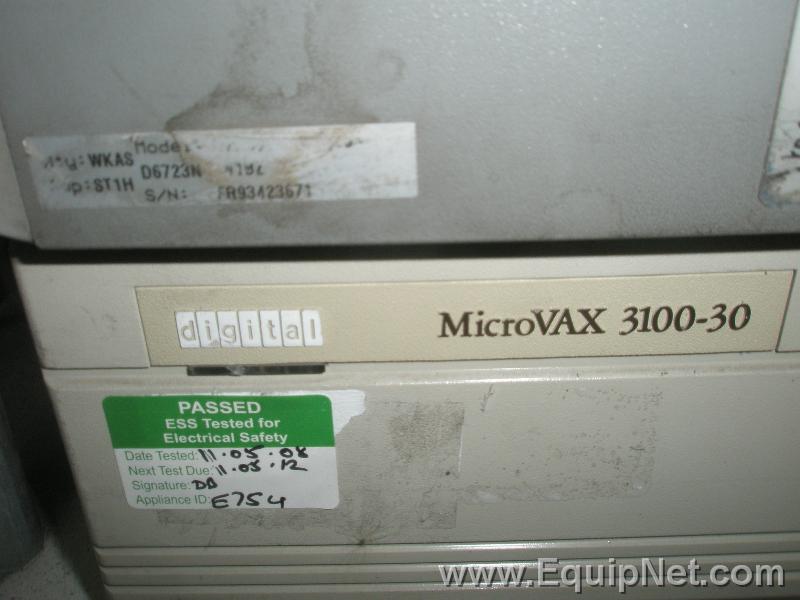

  • The Computer Control system is installed in a Digital MicroVAX 3100-30 unit, linked to a Hewlett Packard PC & Monitor, programmed by Agilent Technologies, with the bespoke Caterpillar AGV scheduling programme, which is displayed on a real time updated Visual Displayed PC in the warehouse.

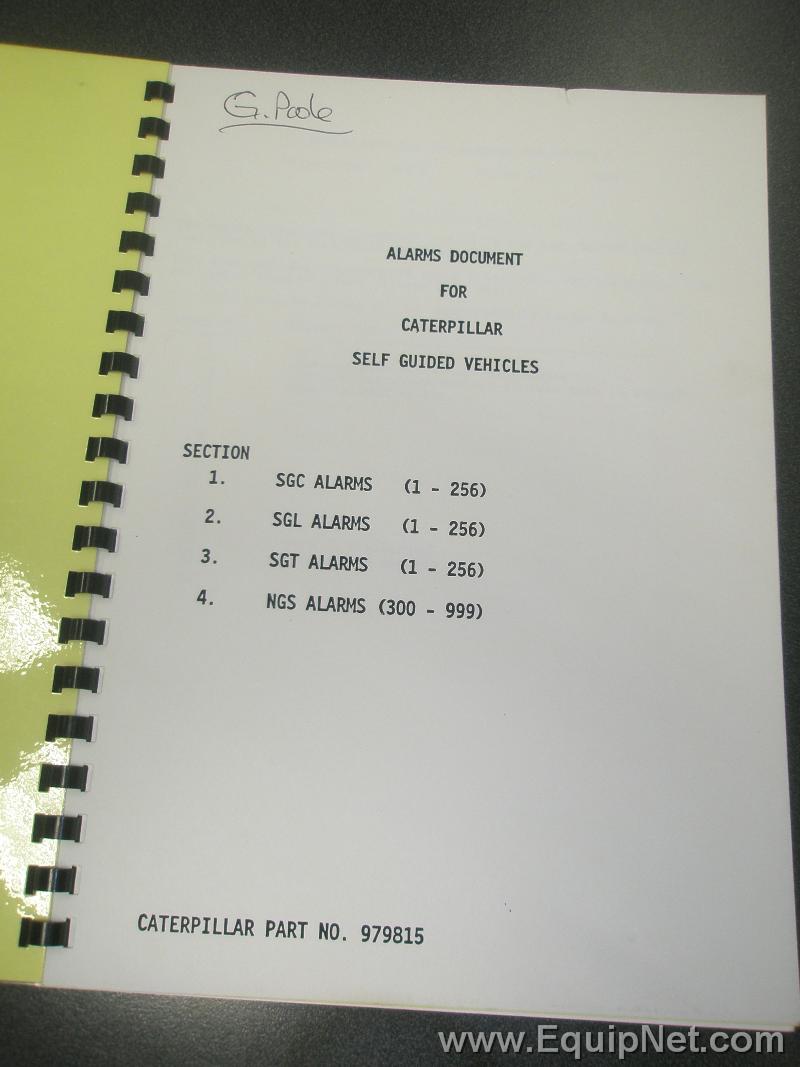

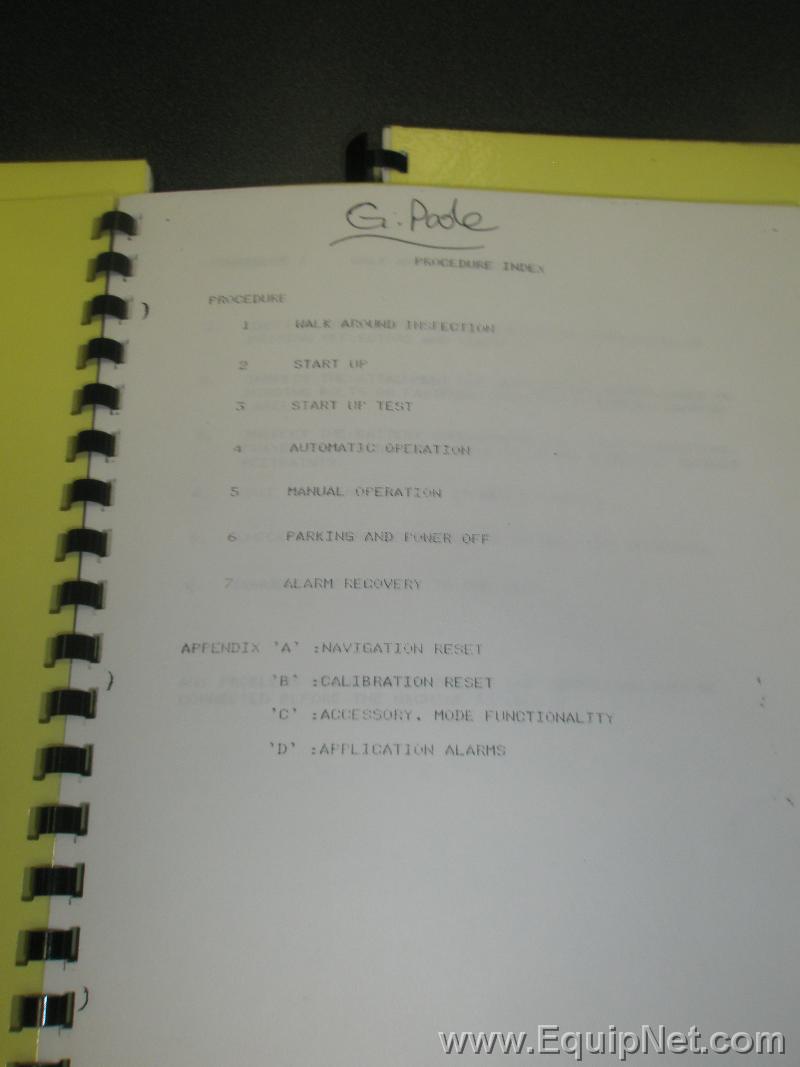

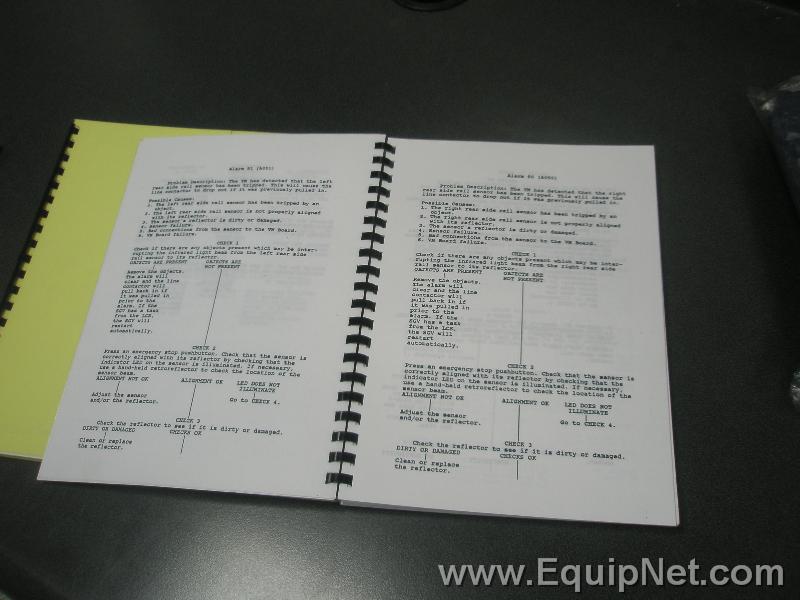

  • There are Caterpillar Fault Finding & Instruction Manuals available, and in the event of Programme alterations needing to be undertaken, then the Software Support for this system is currently provided by; John Bean Technologies, Lincoln, UK, Contact; Mr L Roy Ferrier, Tel; 0116 264 2250.
  • The Computer hardware is housed in a Floor mounted wardrobe style, Stainless Steel, Display Cabinet, which measures 650mm deep x 800mm wide x 1950mm high, and weighs approx 300 kgs.
    • Equipment Specifications
    Estimated Shipping Weight300 Kgs
    Height1.95 M
    Length0.65 M
    Width0.8 M
    Recommended Packaging FormCUSTOM PALLET

    Emergency Mobile AGV Forklift Battery exchange Roller Conveyor unit

    Emergency AGV Forklift Battery Removable Roller Conveyor, Manual, Mobile unit.
  • Mounted on 4 off swivel, lockable castors.
    • Equipment Specifications
    Estimated Shipping Weight600 Kgs
    Height1.1 M
    Length1.5 M
    Width0.95 M
    Recommended Packaging FormCUSTOM PALLET

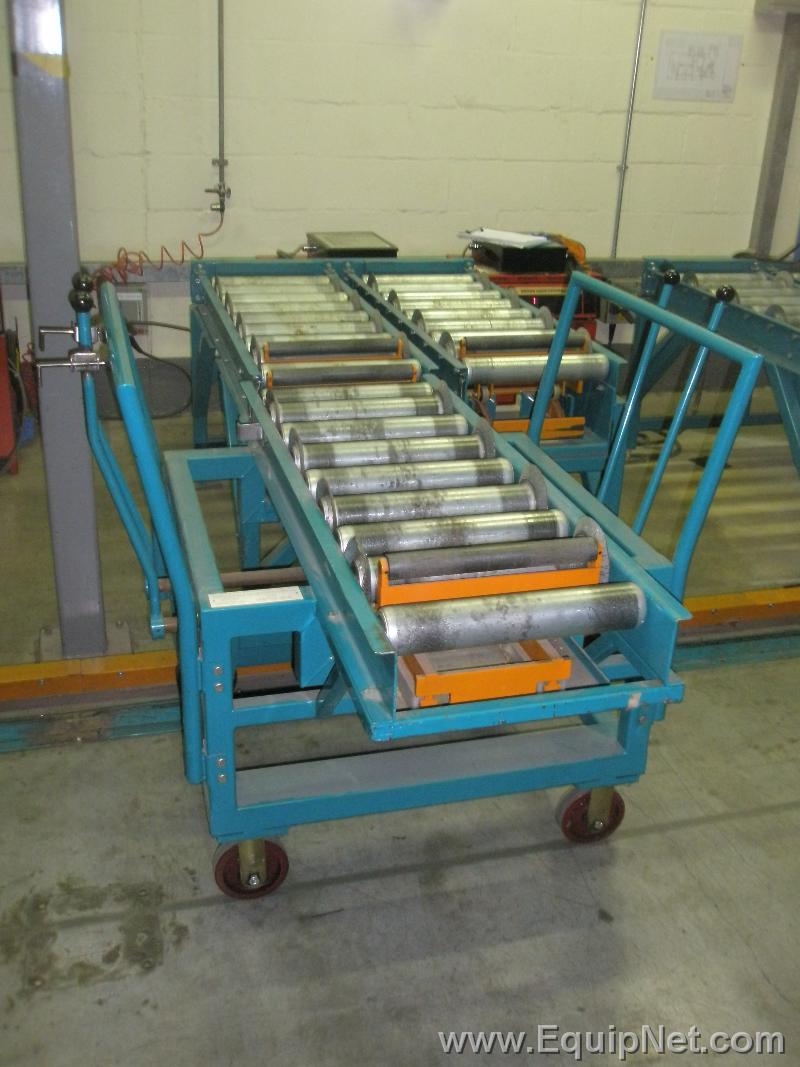

    Logan Fenamec Ltd AGV Forklift Battery Manual Double Roller Guided Transfer Bogie unit

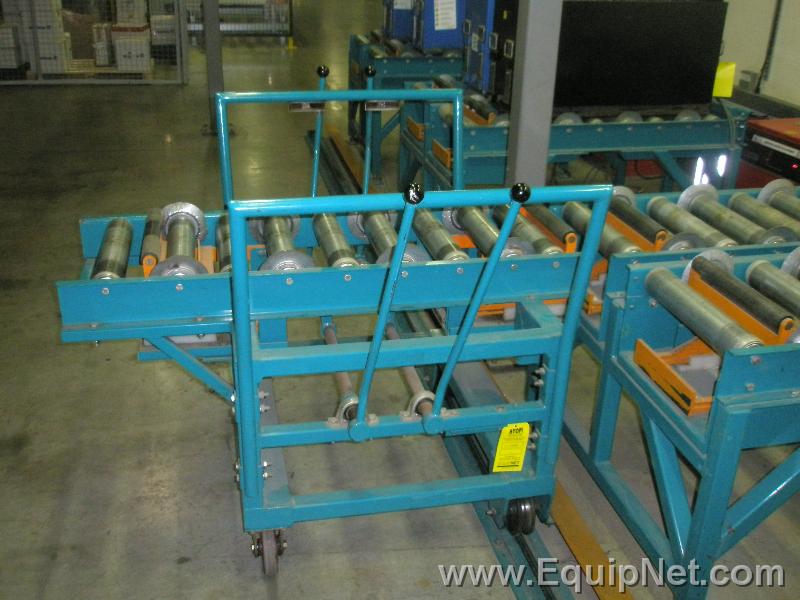

    Logan Fenamec Ltd, AGV Forklift Battery, Manual Double Roller Guided Transfer Bogie unit
  • This unit is fitted with 2 off sets of Battery Safety stops, complete with Manual release levers, and it is guided laterally in front of the 4 off sets of Double Battery Roller Supports stands by means of a floor mounted guide rail, onto which the 2 off rear roller supports engage.
    • Equipment Specifications
    Estimated Shipping Weight300 Kgs
    Height1.15 M
    Length1.36 M
    Width1.4 M
    Recommended Packaging FormCUSTOM PALLET
