Listing #246724
Ceram 4 off 500 Litre Stainless Steel Coned and Vented Feed Hoppers Tower 2
EquipNet Tag #246724-1-5, 246724-2-5, 246724-3-5, 246724-4-5, 246724-5-5
Not Available for Removal Until: Monday, June 18, 2012
The seller will entertain offers on this listing prior to the date of removal.
Equipment Description:

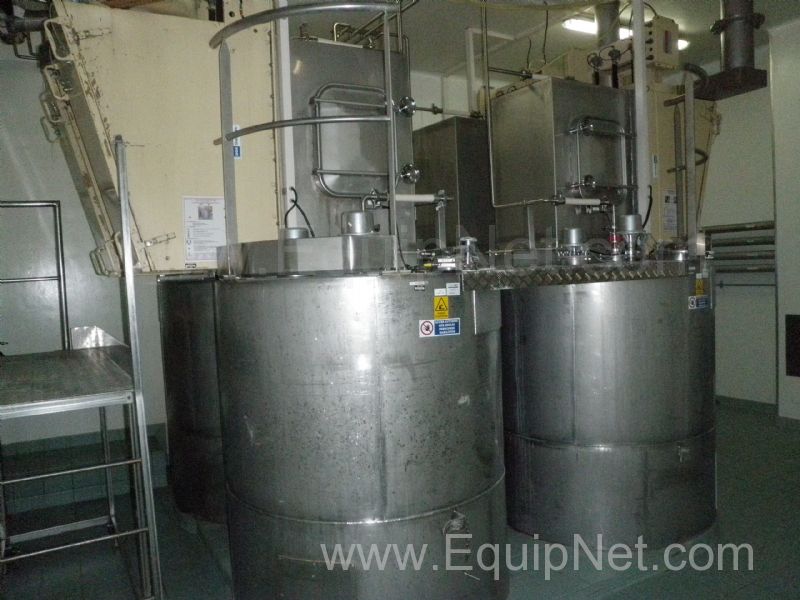

4 off Ceram 500 Litre Stainless Steel Coned and Vented Feed Hoppers, Tower 2, manufactured in 1990. They are used for storing Paracetomol, Citric Acid, Sodium Bicarbonate, and Minor pre-mixed powders, which then pass through the 5th Floor of Tower 2, and each hopper is mounted on 3 off Side Lugs, supported from the surrounding 5th floor.

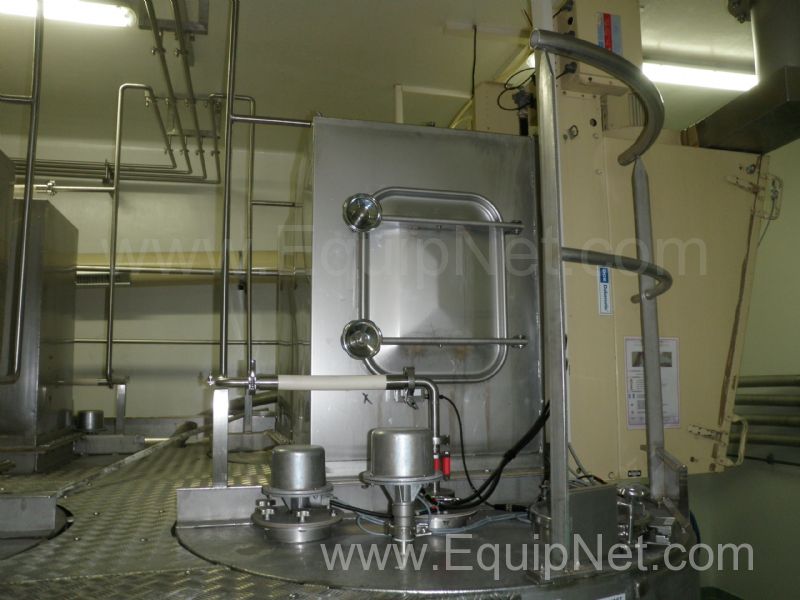

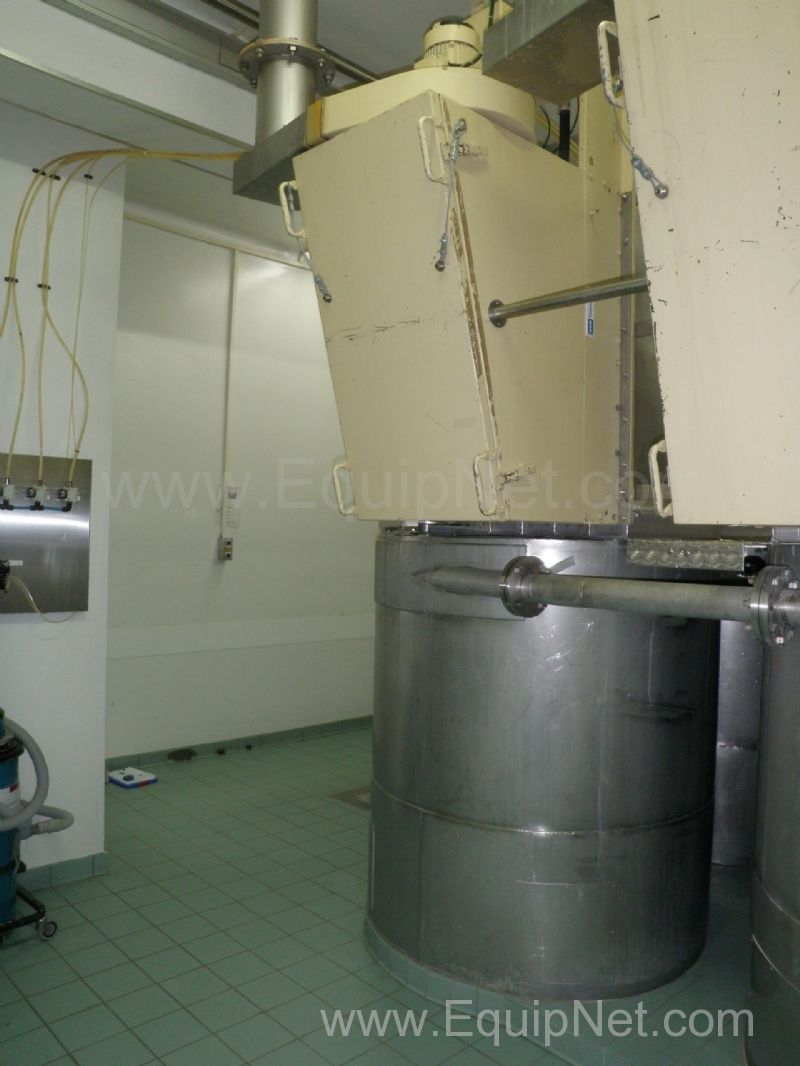

The 1400mm diameter flat hopper top is fitted with 2 off vibrating level probes, a 25mm diameter CIP feed, a top hinged and clamped Inspection panel that measures 250mm diameter, and a 1200 x 1200mm top mounted DCE Vokes Dalamatic Dust Extractor Filter unit, fitted with a side mounted hinged and clamped Inspection panel, that measures 450mm wide x 600mm high, and a 90 degree side mounted Explosion Relief Vent, that measures 600mm wide x 1100mm high.

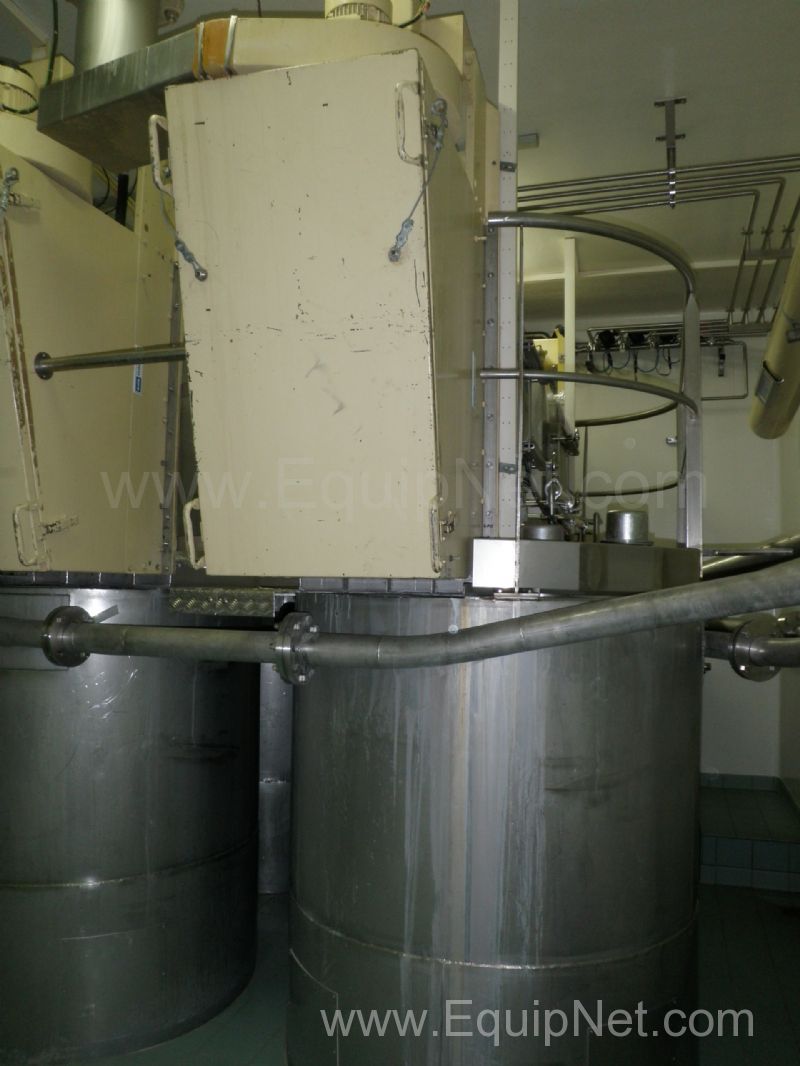

The 1400mm hopper top cones down over 3700mm through the 5th floor in to a 250mm diameter outlet. On the top side of the coned hopper is fitted a 90mm diameter tangentially side mounted S/s product feed blowline. On the bottom of the coned side is fitted 2 off pneumatic Vibrator bridge breaker units, using 6Bar compressed air.
Under each of the hoppers 250mm coned base outlets is fitted a 250mm actuated butterfly valve, which discharges the various powders into each dedicated Rotaval HD 250, S/s Rotary Valve feeder unit. This 415/3/50/0.75Kw driven rotary valve meters the product into either of the 4th floor mounted 2 off Pre-mix S/s Hoppers on demand, see Listing No 246725.

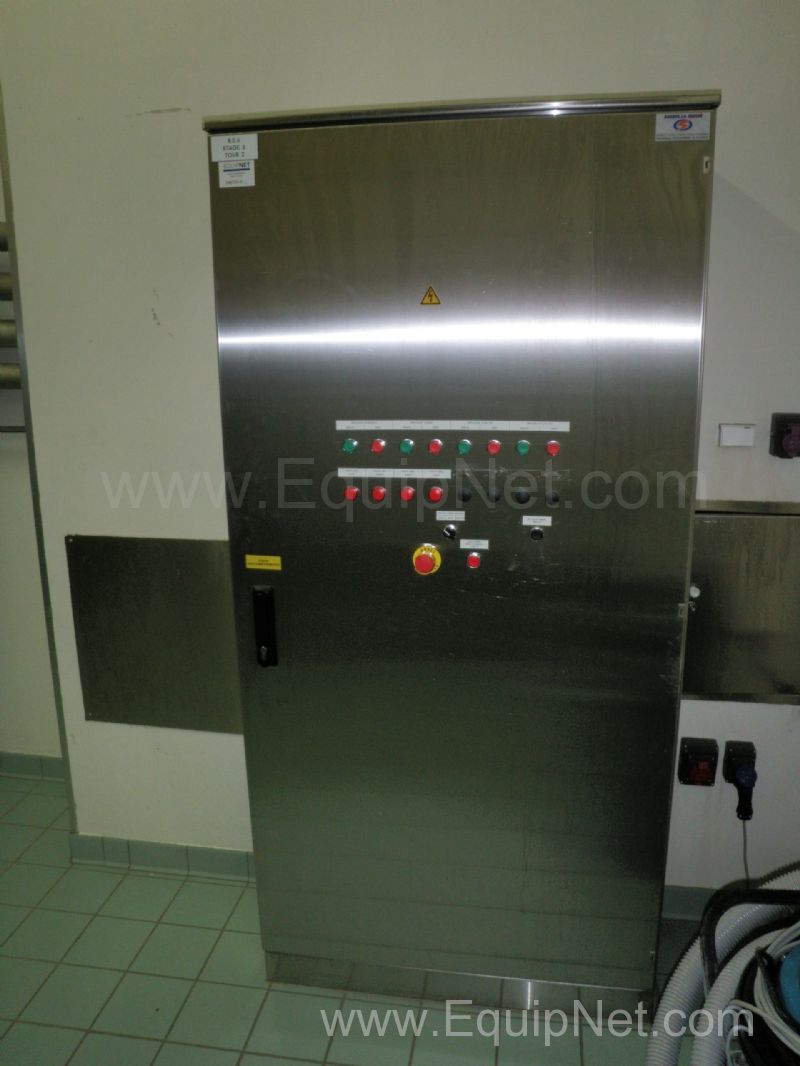

The 4 off 500 Litre Pwder Feed Hoppers are all controlled from a common floor standing S/s Wardrobe style Control Panel, which measures 1m x 0.45m x 2.1m high, and weighs approx 300 Kgs.
Please Note; This equipment will not be available for removal until Mid-2012 earliest.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Ceram |
| Length | 6.6 M |
| Width | 1.4 M |
| Height | 2.1 M |
| Voltage | 380 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Estimated Shipping Weight | 2300 KGS |
| Material of Construction | 316 STAINLESS STEEL |
| Capacity Size | 500 |
| Pallet Location | BMS Agen, Gascoyne, France |
| Recommended Packaging Form | CUSTOM PALLET |
| Model | 500 Litre |
