Listing #285546

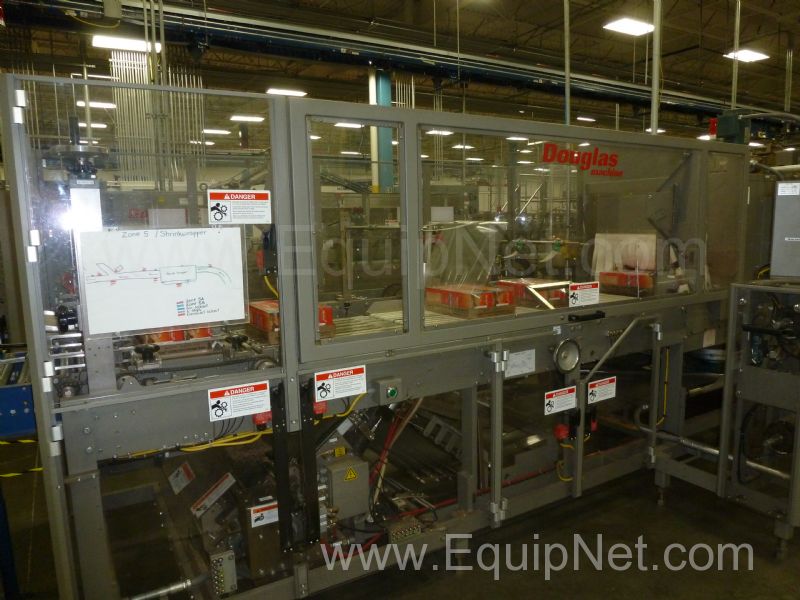

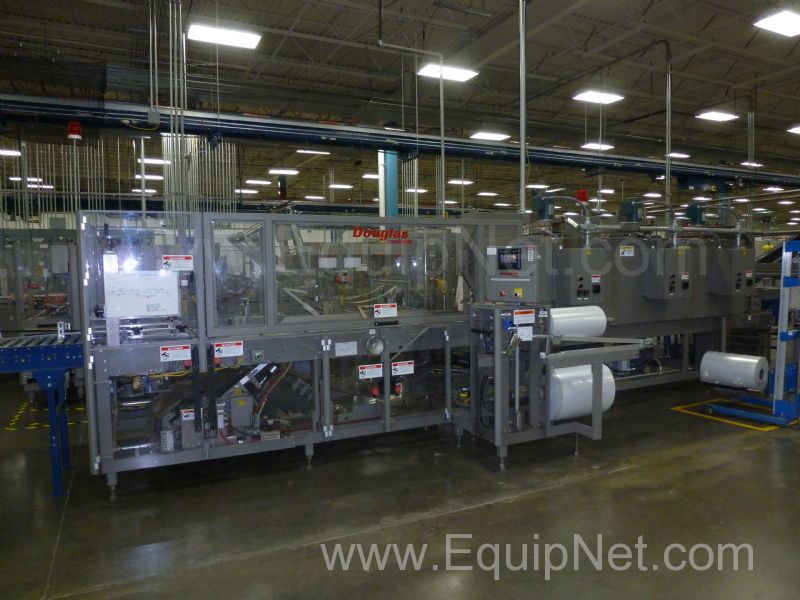

Douglas Machine Inc. Poly Wrap Overwrap Model SR10-1124
EquipNet Tag #285546-1
Equipment Description:
Douglas Machine Inc. Poly Wrap Overwrap Model SR4

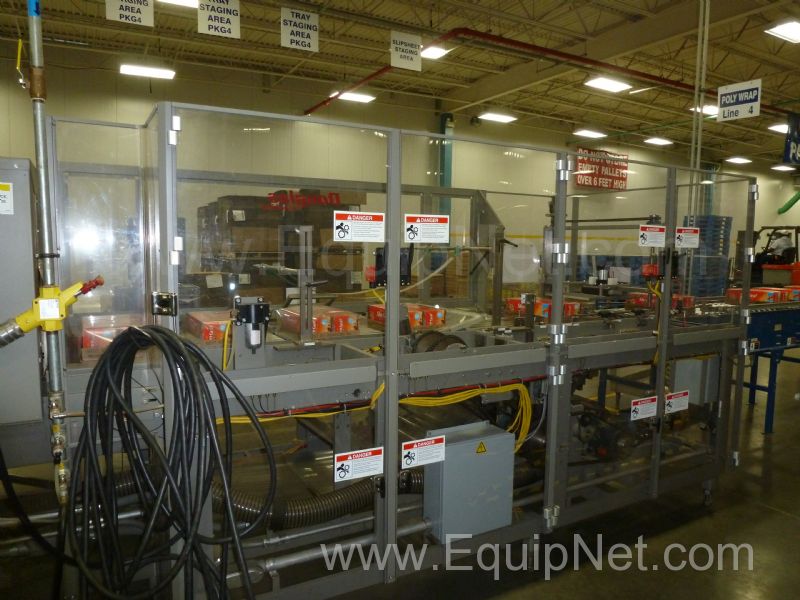

the function of the shrink wrapper is to receive trays of product on the infeed and transfer the product onto the servo driven vacuum belts in the wrapping section. As the product arrives at the wrapping section, a single sheet of film that has been automatically cut to the correct length is wrapped around the trayed product to form a sleeve with the leading and trailing edges overwrapping beneath the tray. The sleeved tray is is than conveyed into the heat zones of the tunnel were it is exposed to the blowing air. The tray is than conveyed out of the tunnel through the cooling section were the film finishes cooling and shrinks to it's final dimensions

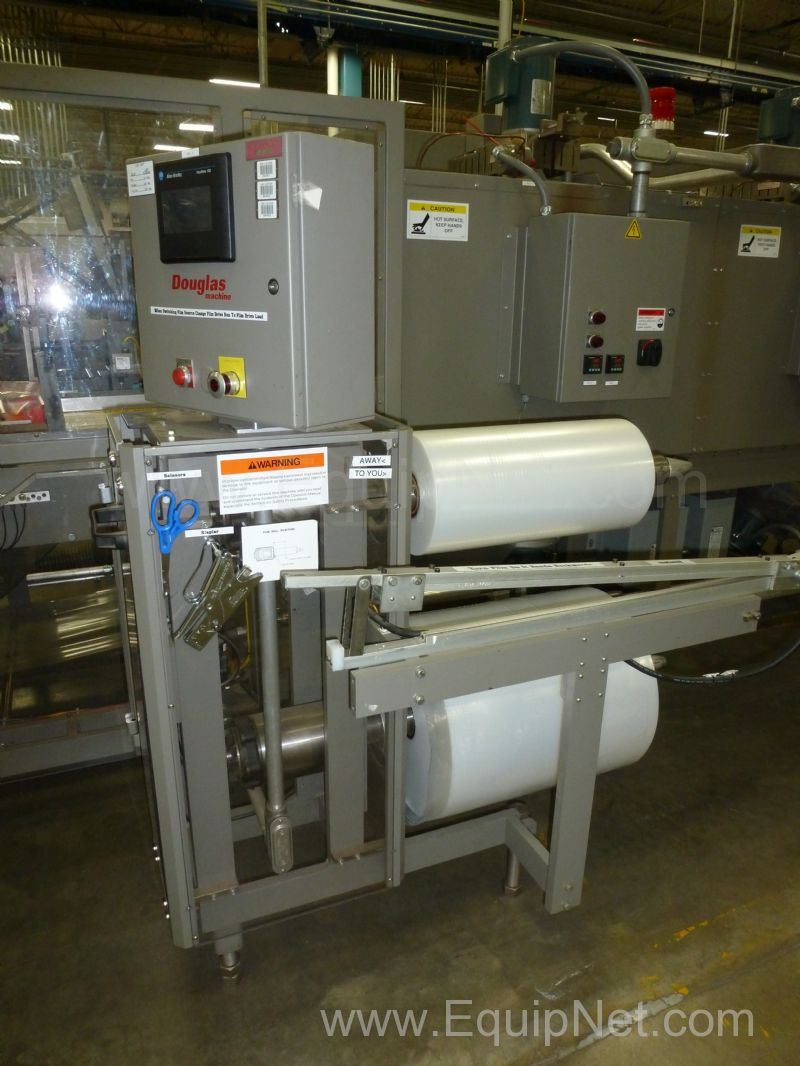

twin film rolls
horizontal stretch wrapper

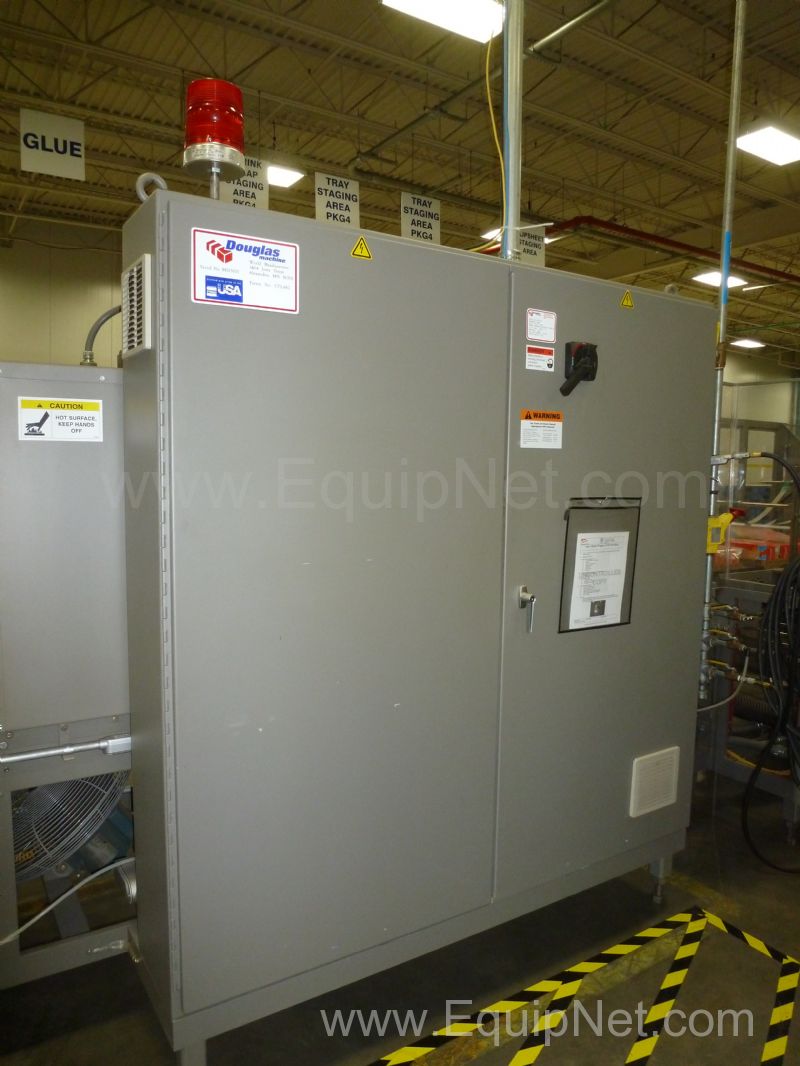

full controls for automatic operation

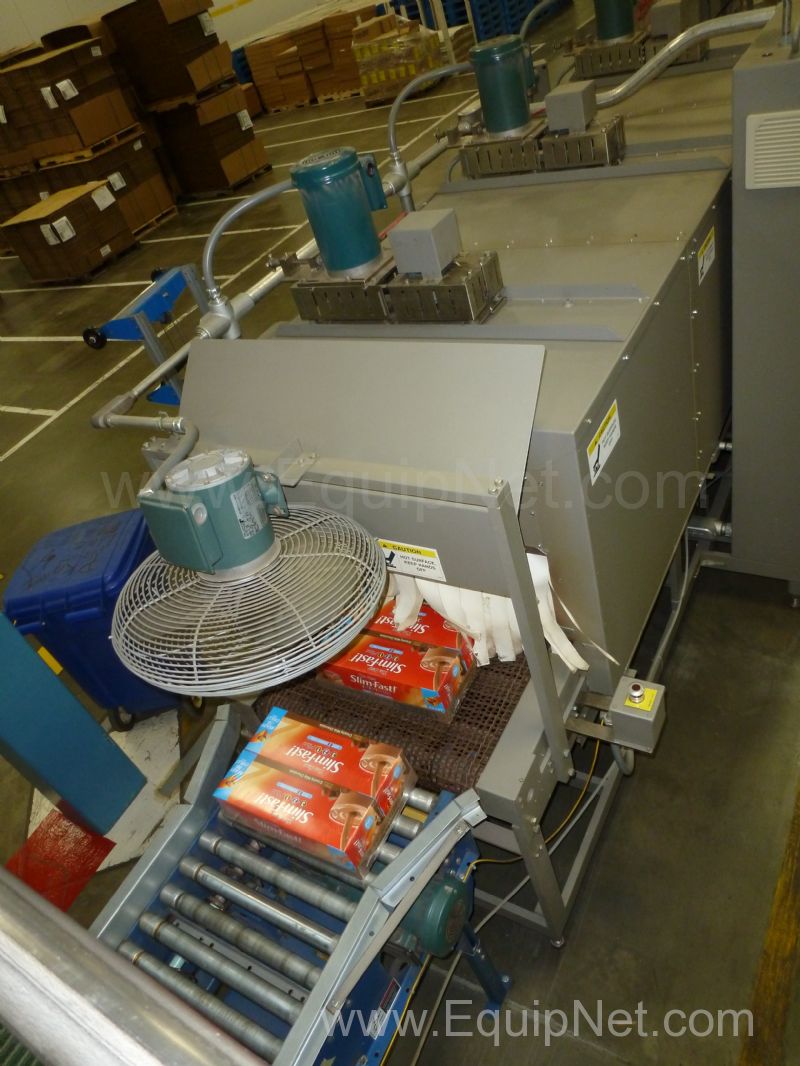

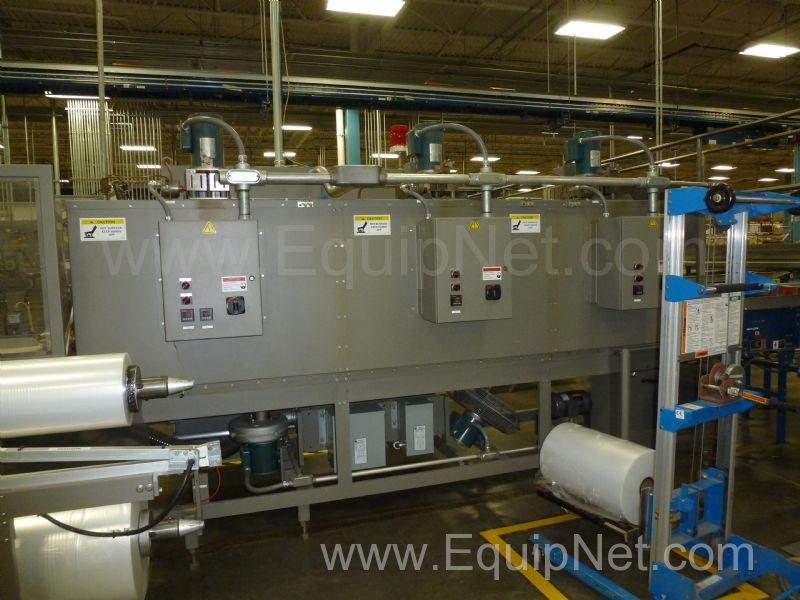

Douglas Heat Tunnel
28" wide Belt X 12" opening X 11' long heat area
three (3) heat zones with high/low temperature controllers
low blower pressure warning

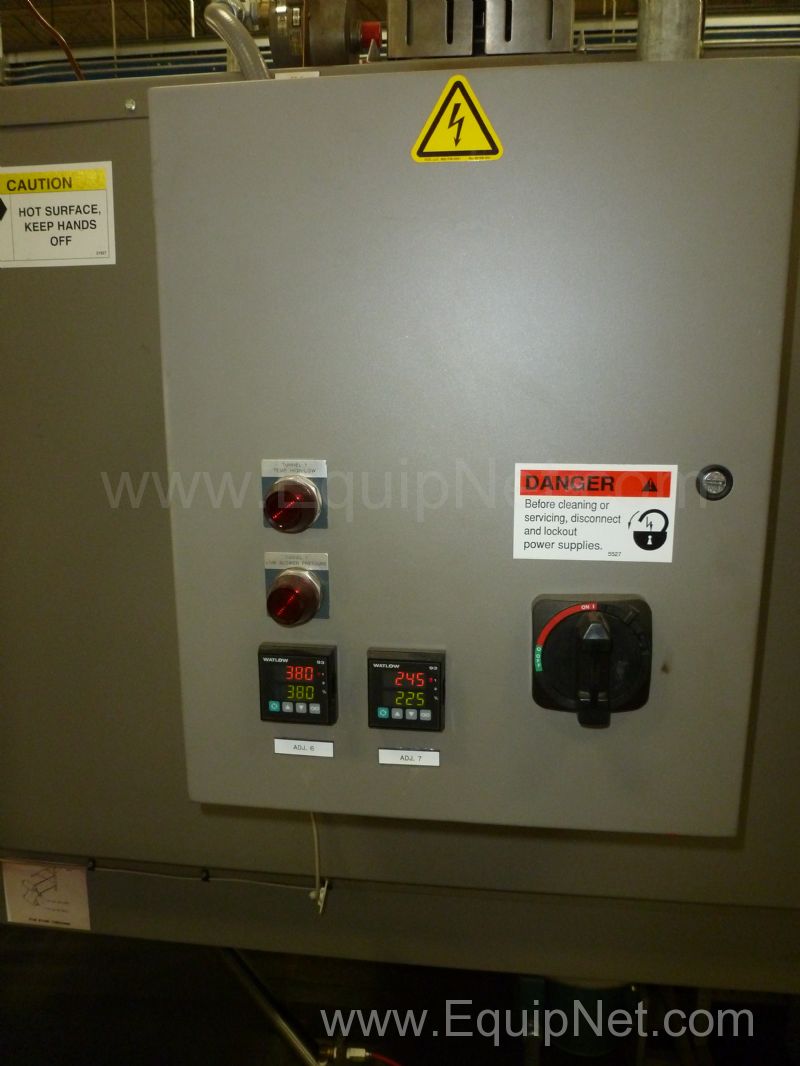

temperature controllers
this equipment was originally part of a can packaging line. The unit was installed and running when inventoried and shut down the week of June 29, 2011 and now in storage. Conveyors shown in the pictures are not included and not available. |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Tennessee. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:

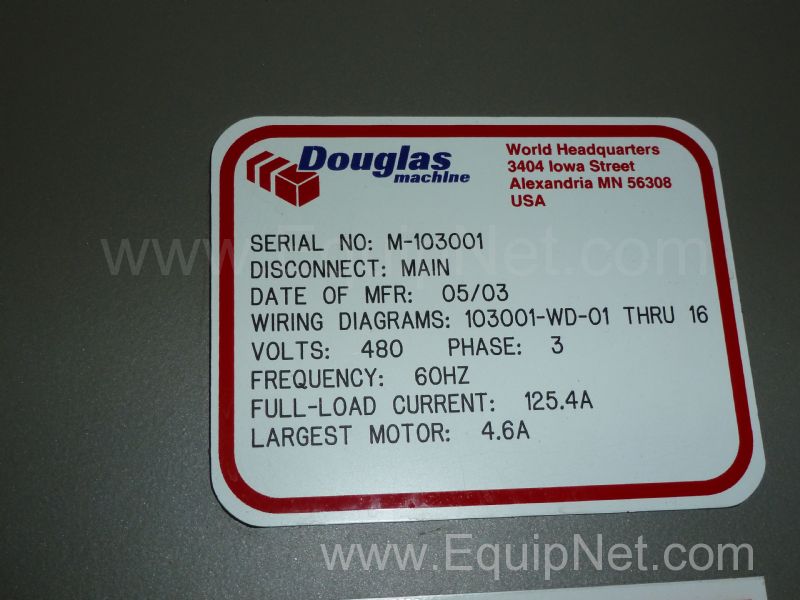

| Manufacturer | Douglas Machine Inc.. |
| Year | 2003 |
| Model | SR4 |

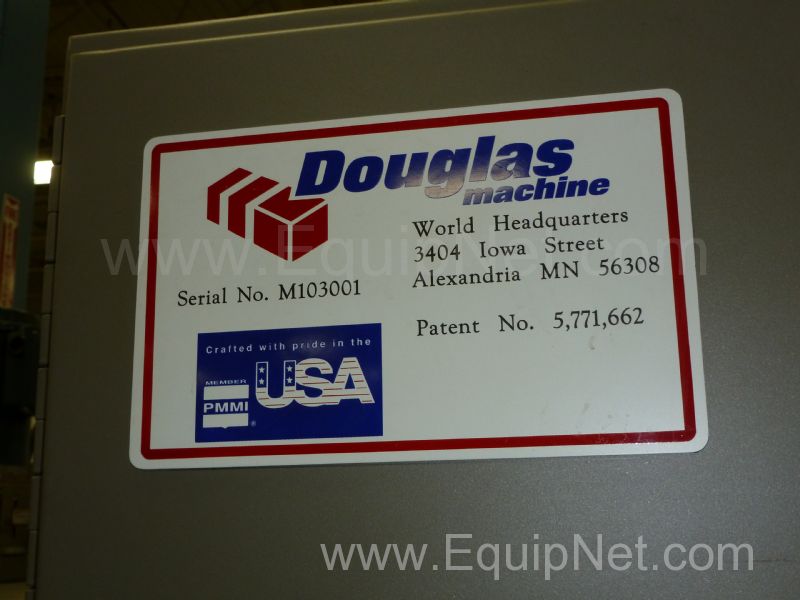

| Serial Number | M-103001 |
| Products Run | can packaging line |
| Estimated Shipping Weight | 5000 LBS |
| Length | 300 IN |
| Width | 60 IN |
| Height | 102 IN |
| Voltage | 480 VOLTS |
| Frequency | 60 HERTZ |
| Phase | 3 |
| Recommended Packaging Form | CUSTOM |
