246716 ECI Refroidisseur Type 2500 Horizontal Rotary 316L Stainless Steel Jacketted Cooler
Rate listing info and photo quality
Why?
EquipNet strives to provide quality information to help with Buyer purchasing decisions. Please provide feedback as to how well this equipment is represented to give you the type of both visual and written descriptions that you find helpful in evaluating making an offer to purchase. We use this feedback in a continuous improvement process to constantly elevate our ability to create raving fans from our customers.
Listing #246716
ECI Refroidisseur Type 2500 Horizontal Rotary 316L Stainless Steel Jacketted Cooler
EquipNet Tag #246716-1-2, 246716-1-2
Equipment Description:

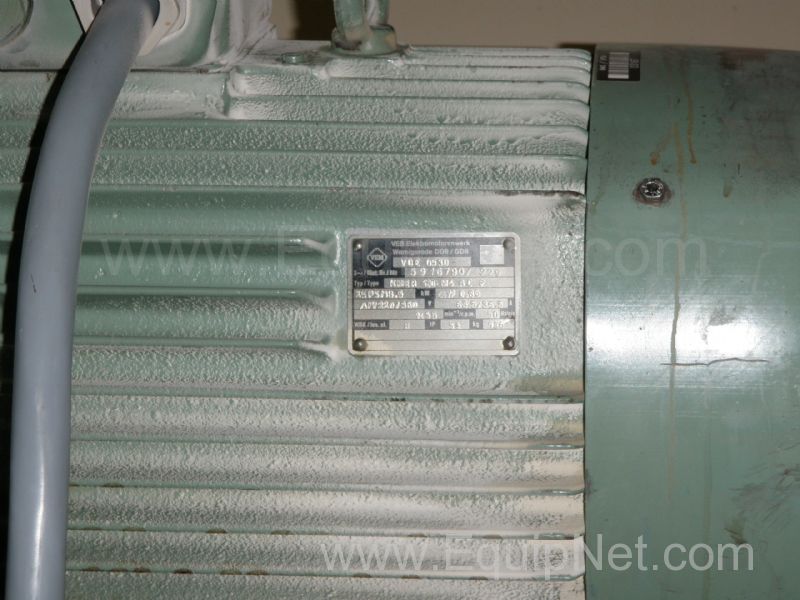

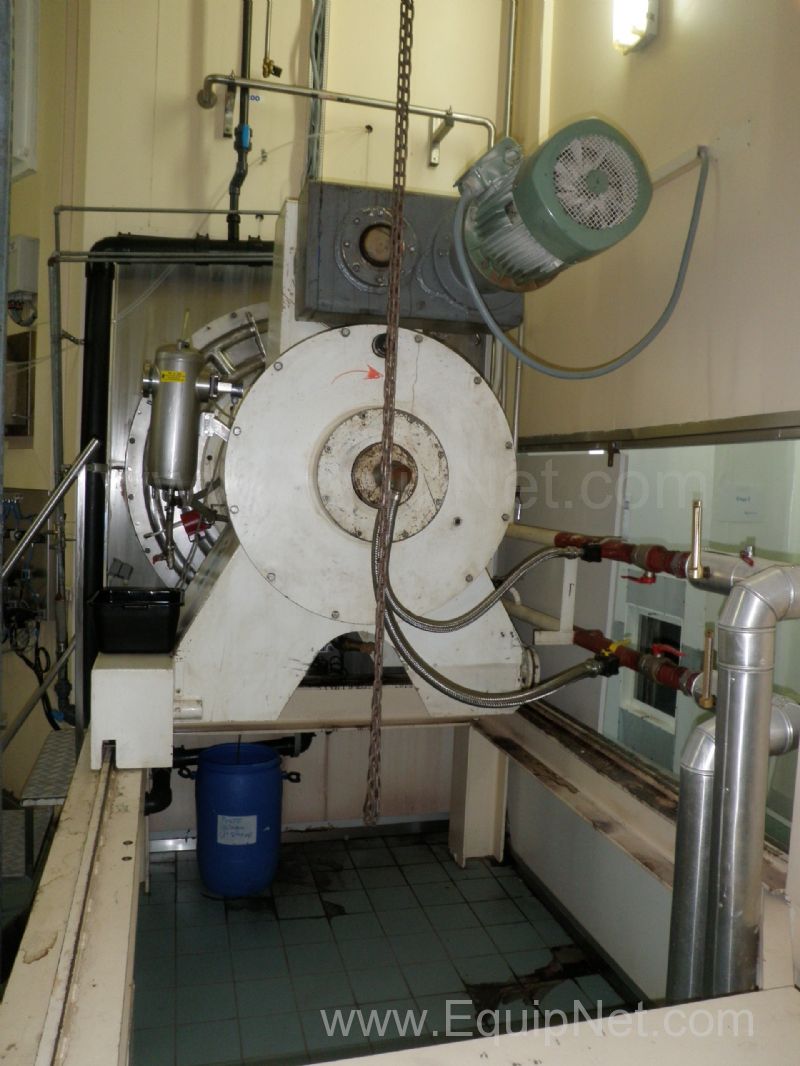

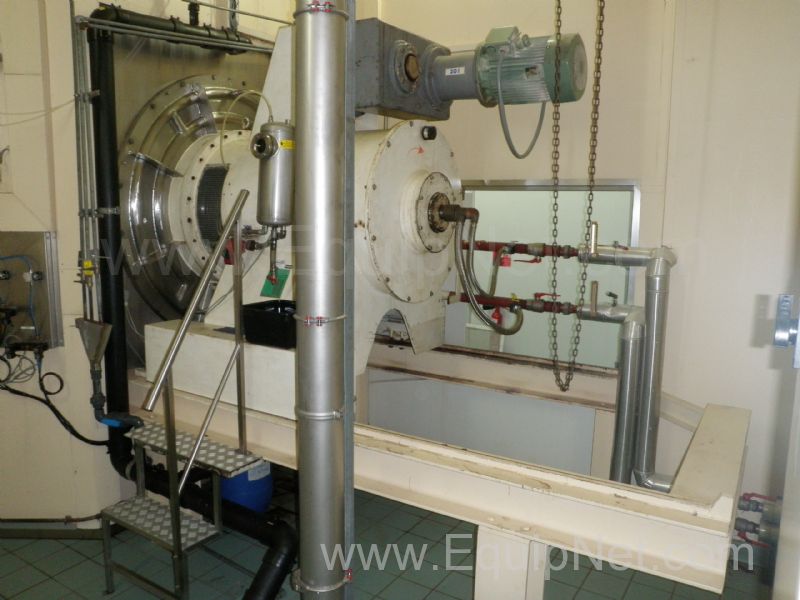

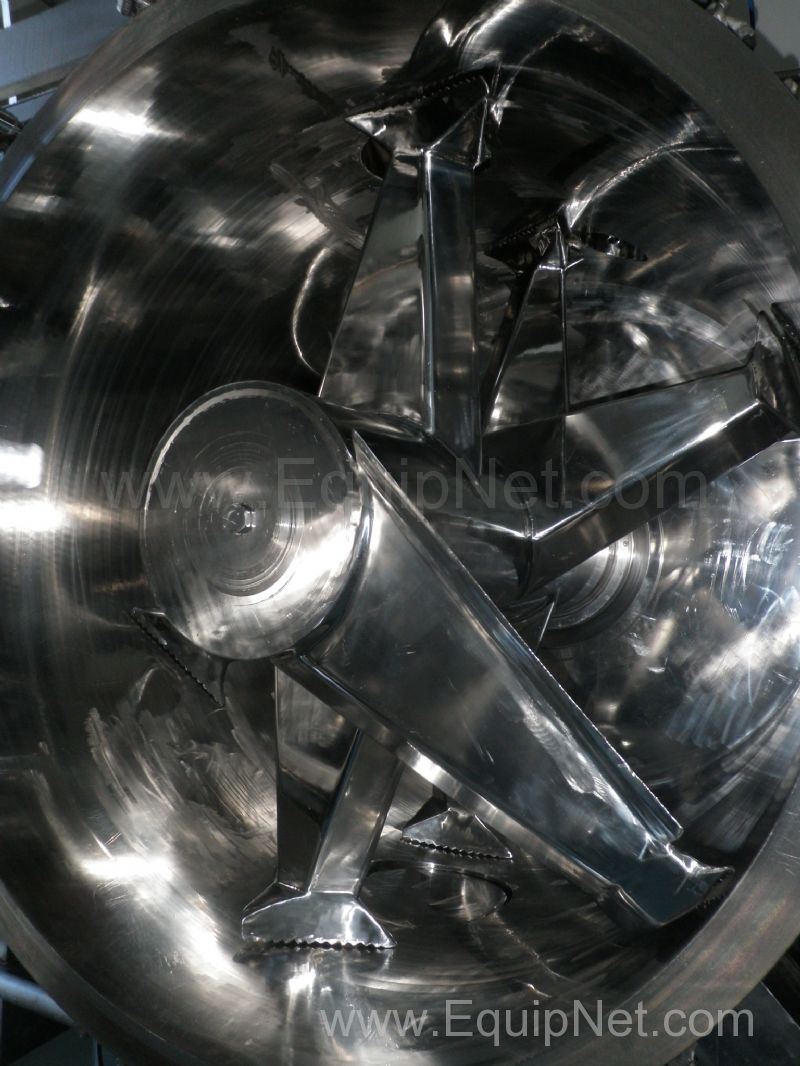

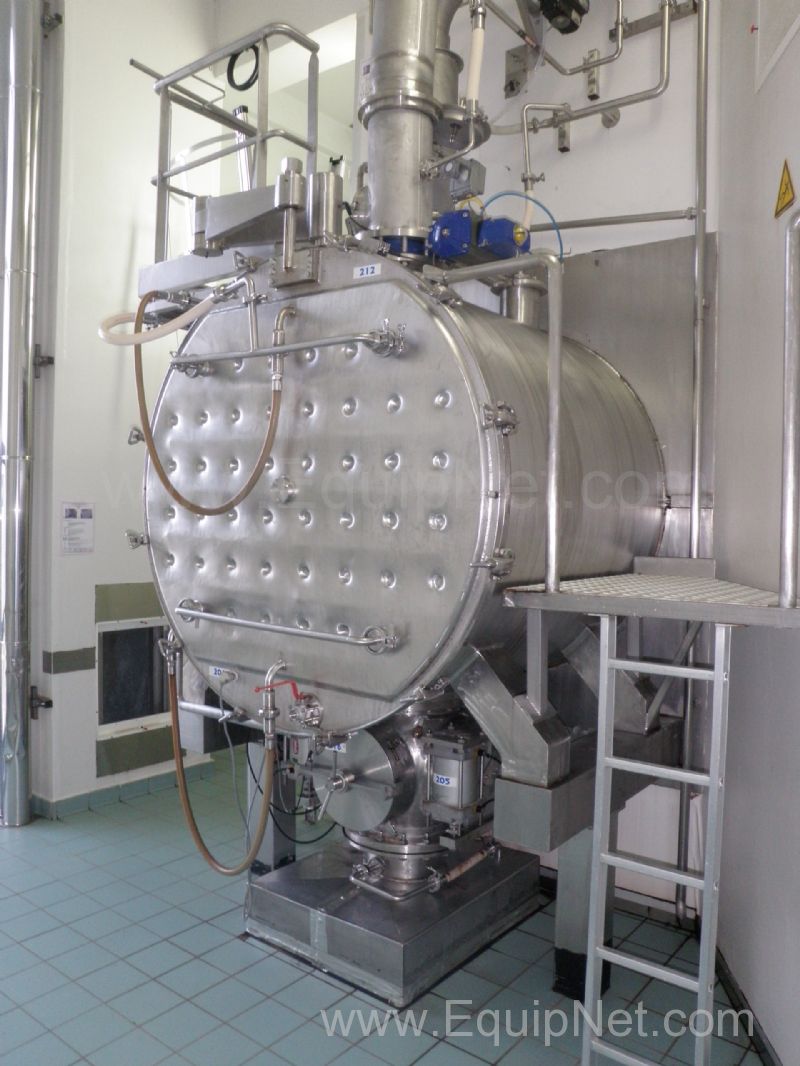

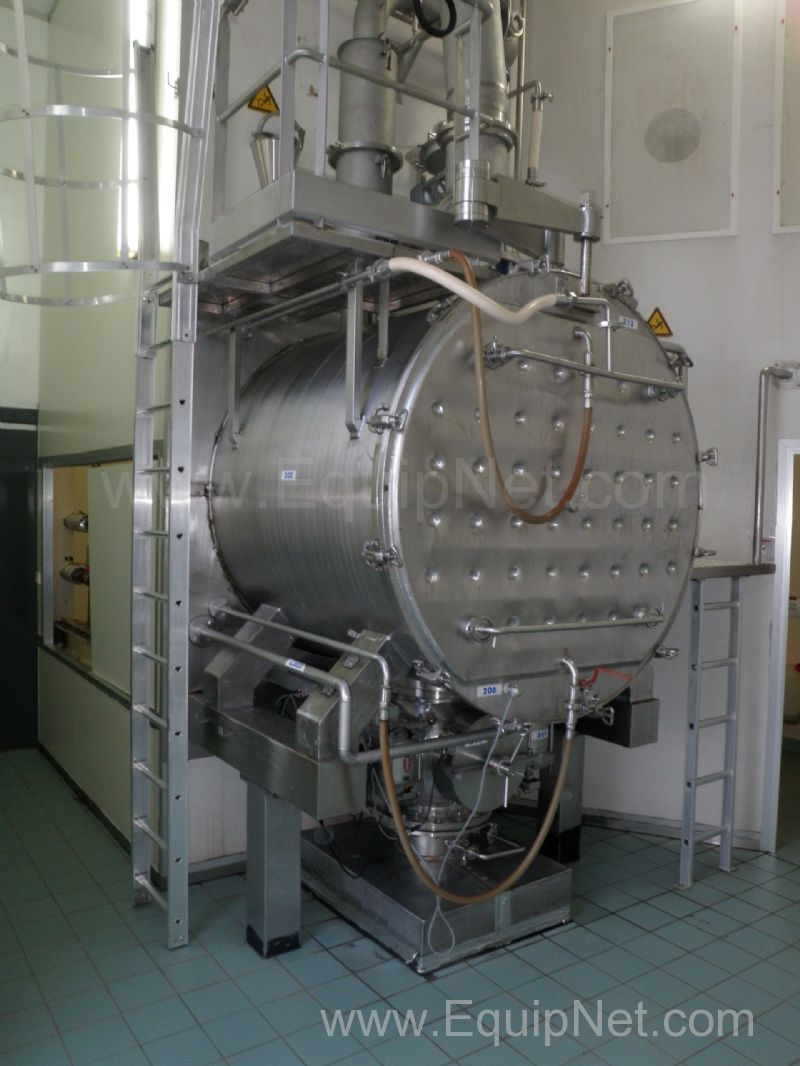

Item 1, ECI-Lussan, Refroidisseur Type 2500 Horizontal Rotary 316L Stainless Steel Jacketted Cooler, has its internal stirrer driven by a 18.5 Kw, 1455 RPM Drive motor, which is mounted on track so that it can be retracted 1100mm to allow internal cleaning and maintenance work. The machine measures 4.8 x 1.9 x 3m high, and weighs 6200 Kgs.

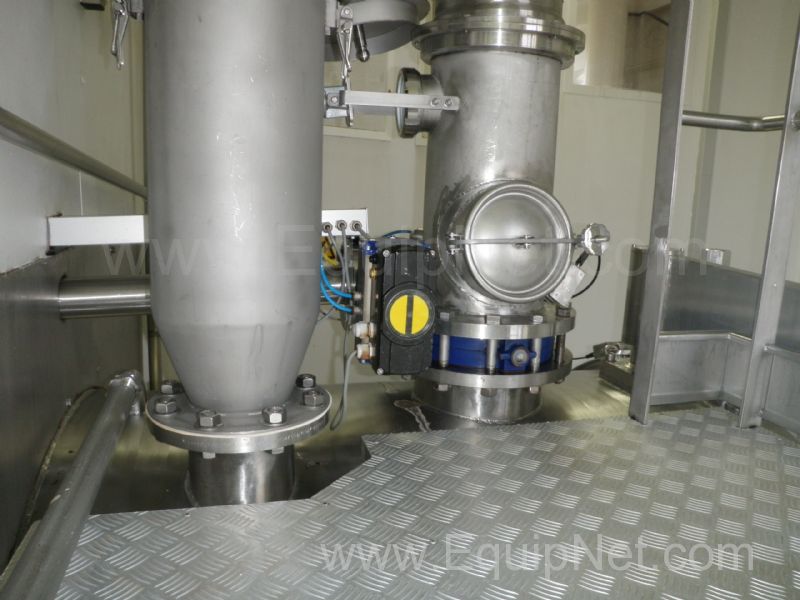

The 2500 Litre capacity Vessel is capable of handling pressures from -1 to a maximum of + 3 Bar, at Temperatures from -20 to a maximum of + 150 degrees C, when cooling the mixed powder, that has been fed into the vessel via its 250mm diameter S/s piped top inlet.
The 110 Litre capacity Jacket is capable of handling pressures of upto a maximum of + 3 Bar, at Temperatures from -20 to a maximum of + 150 degrees C, when cooling the mixed powder.

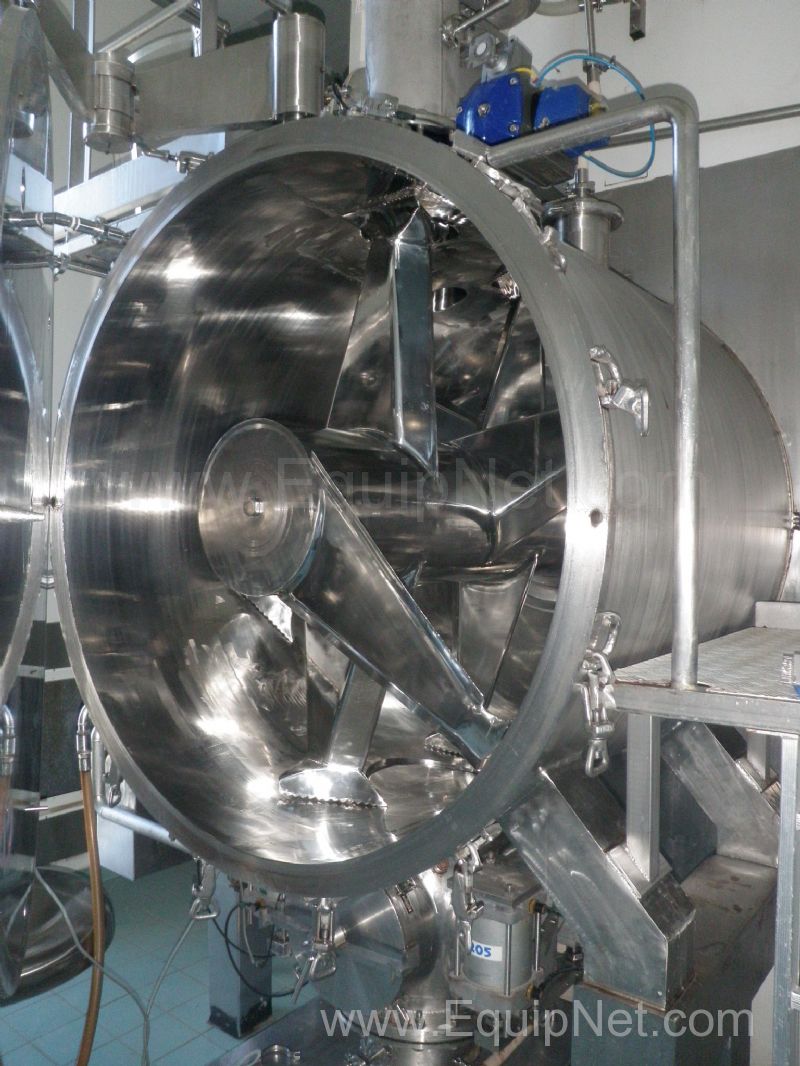

The dimple jacketed front door of the cooler, is supported by an overhead cantilever hinge support, and clamped shut via 12 front door clamps.

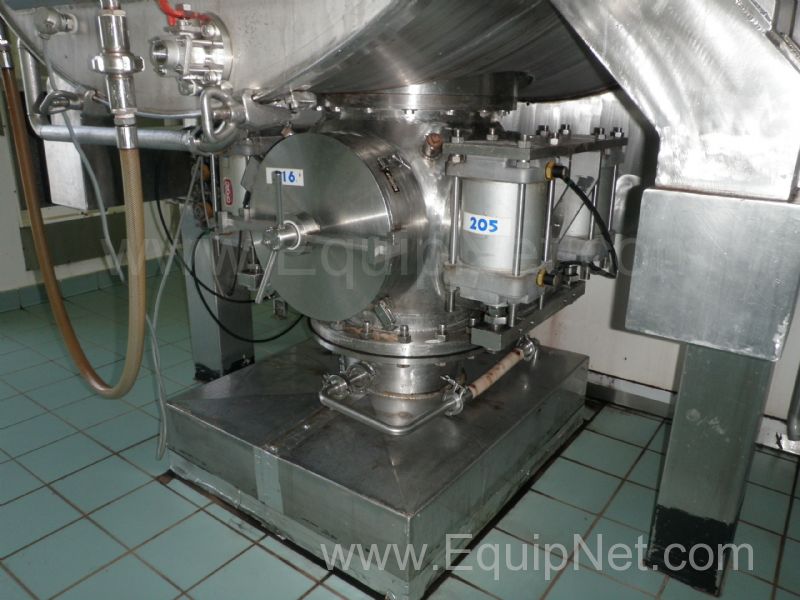

The Cooler discharges via a 350mm diameter central bottom actuated valve discharge, which is fitted with a 400mm diameter front facing hinged and clamped inspection door.

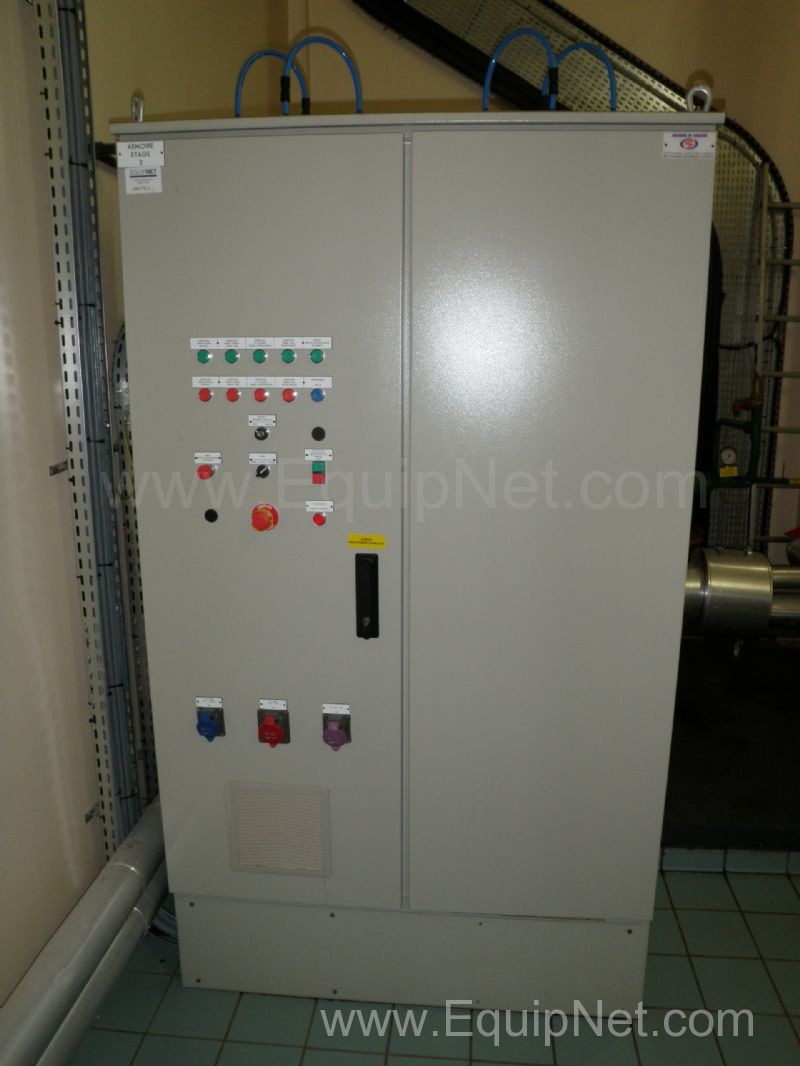

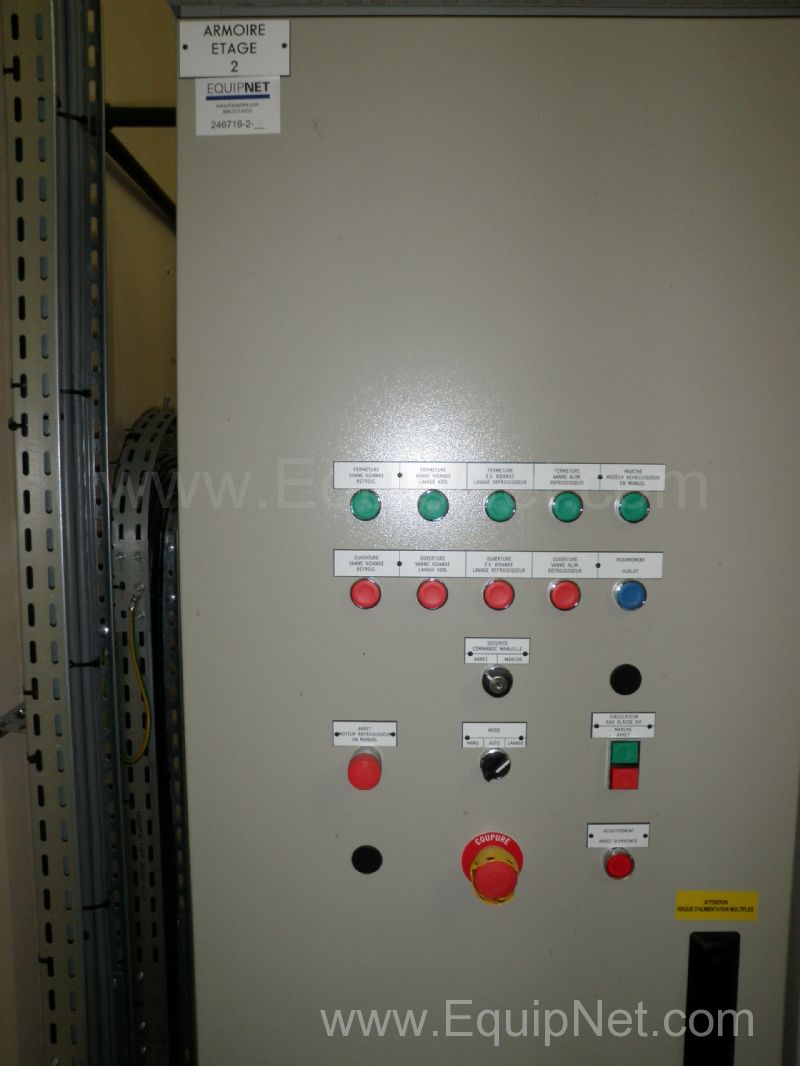

Item 2, ECI Refroidisseur Type 2500 Horizontal Cooler, Double Door Floor Standing Cabinet Control Panel, measures 1.2 x 0.65 x 2.1m high, and weighs approx 300 Kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | ECI-Lussan |
| Year | 1989 |
| Model | Refroidisseur Type 2500 |
| Serial Number | 911-10 / 2150-01 |
| Capacity Size | 2500 L |
| Products Run | Powder |
| Temperature Range | -20 to 150 DEG C |
| Material of Construction | 316 STAINLESS STEEL |
| Chamber Dimensions | 80 CU FT |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 6500 KGS |
| Heating Cooling Requirements | Cooling Water |
| Length | 6 M |
| Width | 1.9 M |
| Height | 3 M |
| Diameter | 1.55 M |
| Depth | 1.35 M |
| Voltage | 380 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Current | 18.5 Kw |
| Pallet Location | BMS Agen, Gascoyne, France |
| Recommended Packaging Form | CUSTOM PALLET |
