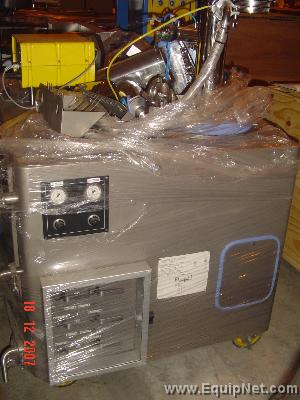

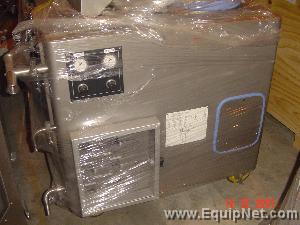

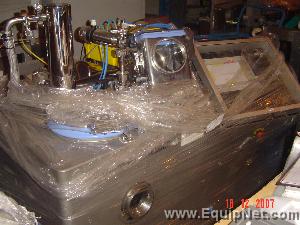

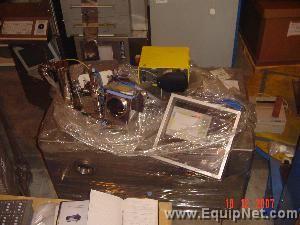

You are making an offer on a FIELDER PMA 65 MIXER GRANULATOR with nitrogen purge located in United Kingdom. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
FIELDER PMA 65 MIXER GRANULATOR: The PHARMA MATRIX™ is a one pot enclosed batch mixer / granulator, designed on aerodynamic principles characterized by a main bottom-driven mixing impeller and a high speed side positioned granulator. The resultant combination of the fluidised vortex movement of the constituents whilst circulating within the mixing bowl, plus the addition of granulation media provides fast, reproducible granulates.
SPECIFICATIONS:
Working volume:- nominal ( 66%) 40 Ltrs
Working volume:- maximum (75%) 50 Ltrs
Working volume:- minimum (40%) 25 Ltrs
Main Impeller motor: 7.5kW
Motor speed: 33 - 2640 RPM
Impeller speed: 5 - 400 rpm
Starter: DC drive
Chopper Motor: 4 / 3.2kW
Chopper Speed: 1500 - 3000 rpm
Starter: DOL (SLOW) DOL ( FAST)
- Manufacturer Niro-Fielder
- Model PHARMA MATRIX PMA 65
- Capacity Size 65 L
- Manual Available Yes
- Estimated Shipping Weight 1300
- Length 1620 MM
- Width 1520 MM
- Height 1020 MM
- Voltage 380 VOLTS
- Frequency 50 HERTZ
- Removal Difficulty EASY
- Requires rigging or removal NO
- Requires a flatbed truck NO
- Level of shipment preparation necessary UNCRATED/LOOSE
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
United Kingdom
Dimensions: 1620x1520x1020 MM
Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
|
