Listing #303538

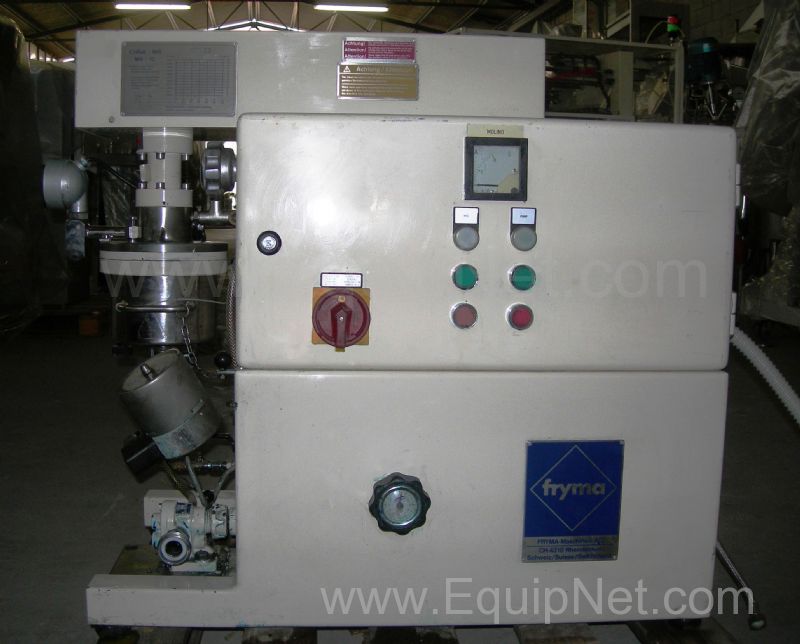

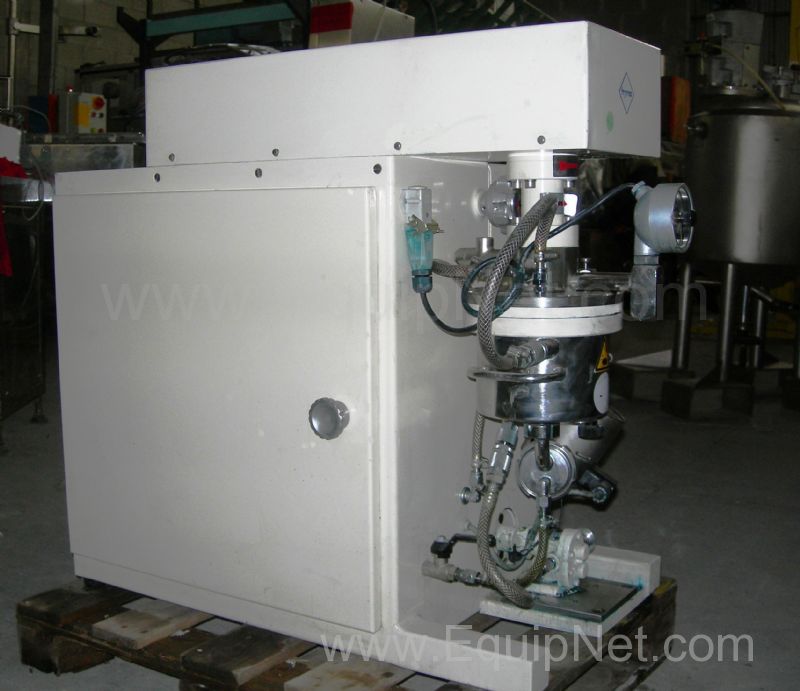

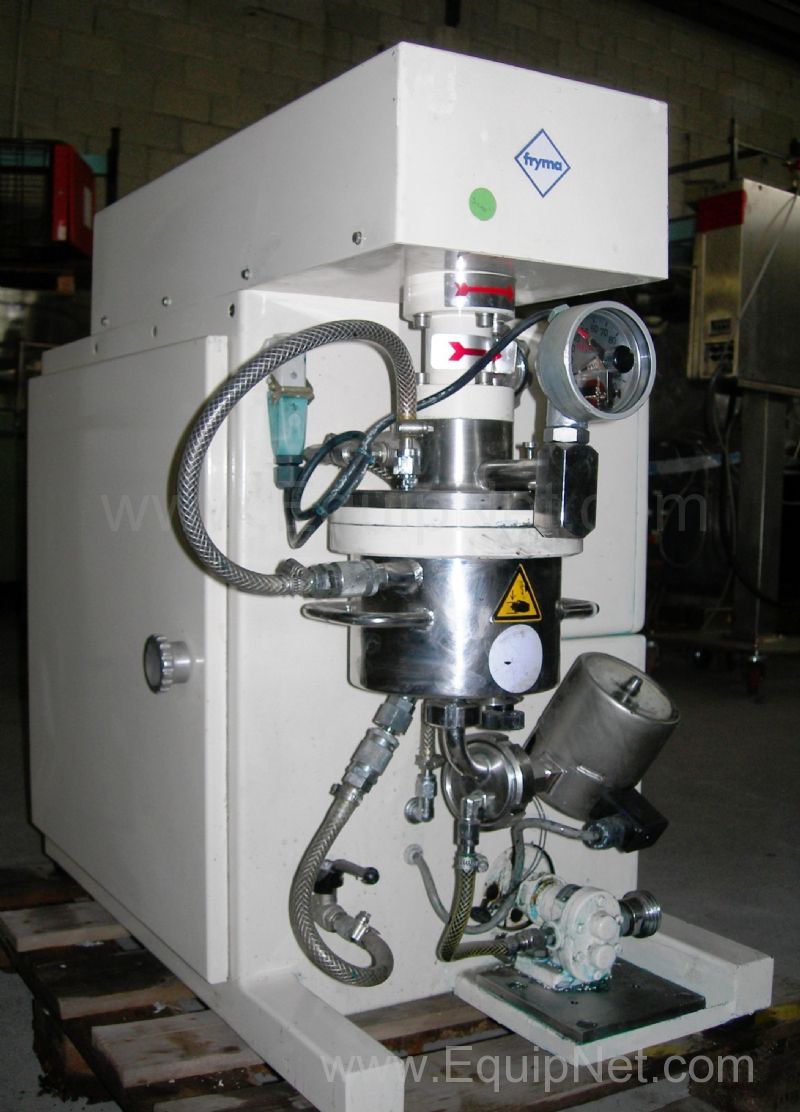

Fryma Colloid Mill Model MS-12
Equipment Description:
Fryma Model MS-12 Colloid Coball Mill
DESCRIPTION: The CoBall Mill is used for finest grinding of high viscous products. This mill is supremely versatile, satisfying the most demanding quality requirements efficiently and cost effectively. The product is fed to the milling chamber by an external variable flow pump. The milling action is created in the gap between the conical working vessel and a conical rotor. Due to the special conical shape of the grinding chamber it is guaranteed that all product particles are subjected to the same grinding effect. That results in a product with balanced and dense particle size distribution.
SECTORS OF USE: The CoBall Mill is used for food-products as chocolate coatings and fillings, for cosmetic products as lipsticks, in the pharmaceutical industry for additives and in the chemical industry for pigments, paints and ceramics.
MAIN FEATURES: Balanced product fineness with very dense particle-size distribution
Extremely high energy transmission
Top reproducibility of results
Low quantity of grinding material
High quality product with consistent particle size distribution
Optimum adjustment for each product
Product temperature controlled
High throughput with very fine milling results, even for highly viscous products
Quick change over between products

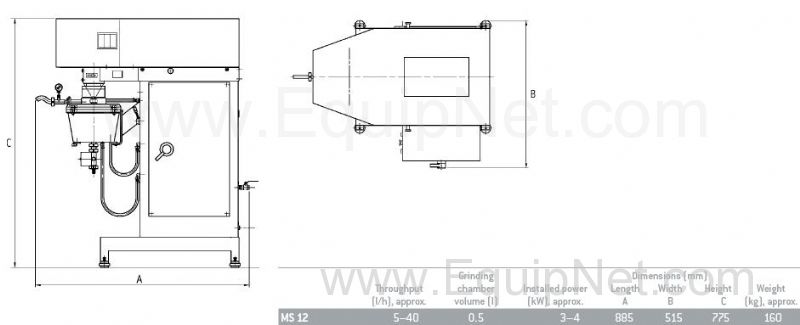

TECHNICAL DATA:
Power installed: 3-4 Kw
Pressure resistance maximum: 2 bar
Capacity : 5-40 l/h
Grinding chamber volume: 0.5 L
Rotor driving capacity: 2,2 – 3 kW |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Italy. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Fryma |
| Model | MS-12 |
| Capacity Size | 0 |
| Estimated Shipping Weight | ca. 160 KGS |
| Length | 900 MM |
| Width | 500 MM |
| Height | 1700 MM |
| Frequency | 50/60 HERTZ |
| Recommended Packaging Form | PALLET |
