246778 GEC Alsthom PL 50 Double Hydro Liquid ring Vacuum Pumping Skid

Rate listing info and photo quality Why?

Not rated yet

Listing #246778

GEC Alsthom PL 50 Double Hydro Liquid ring Vacuum Pumping Skid

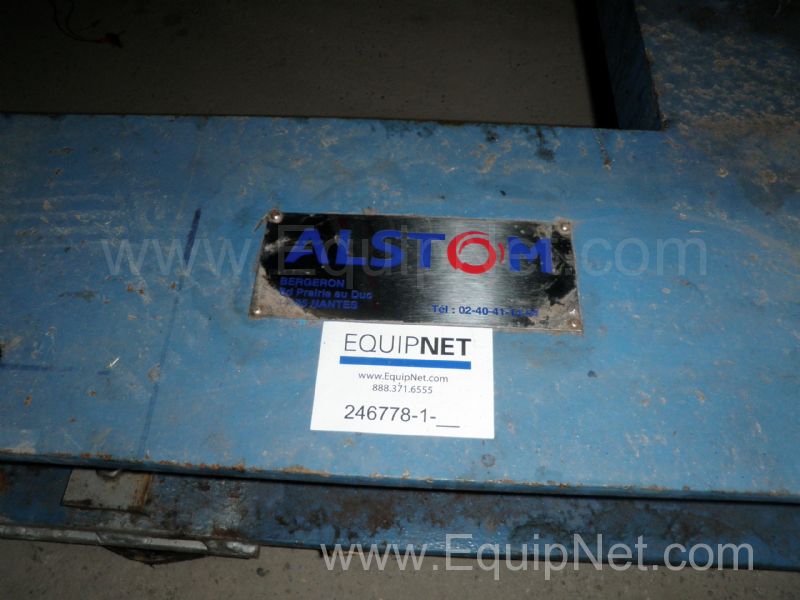

EquipNet Tag #246778-1-1

€10,000.00 Seller's Acceptable Currency

All offers are submitted in Seller's Acceptable Currency

Equipment Description:

GEC Alsthom PL 50 Double Hydro Liquid ring Vacuum Pumping Skid

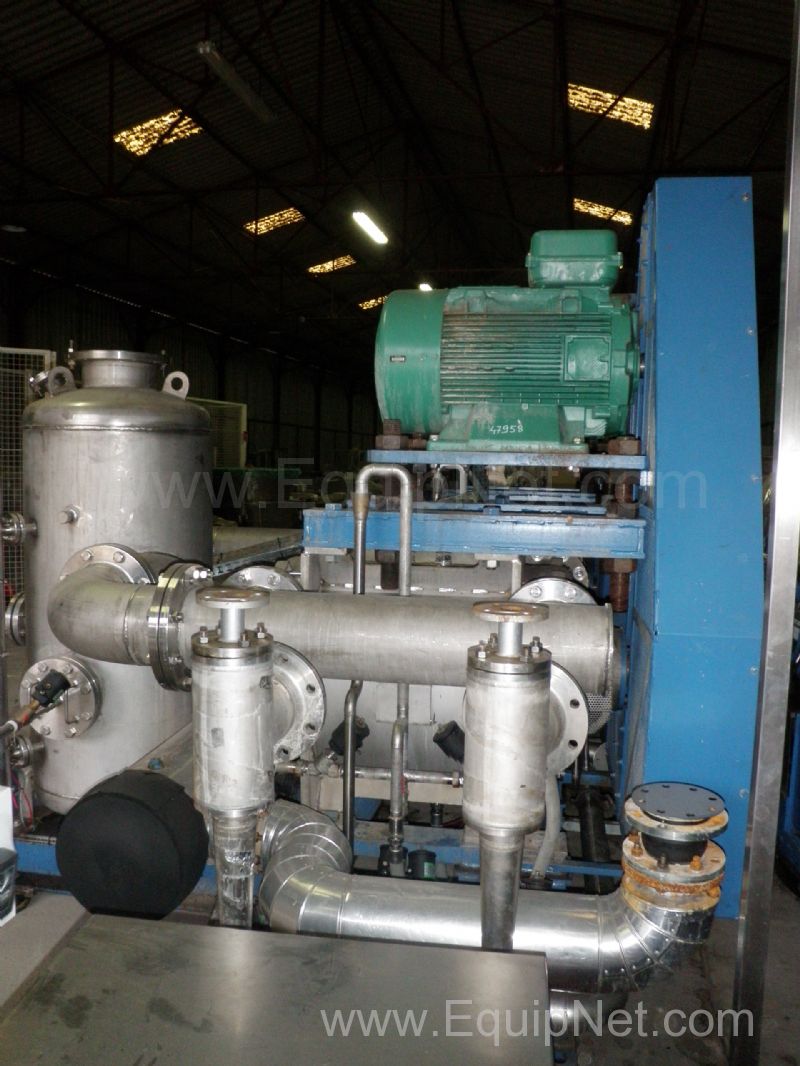

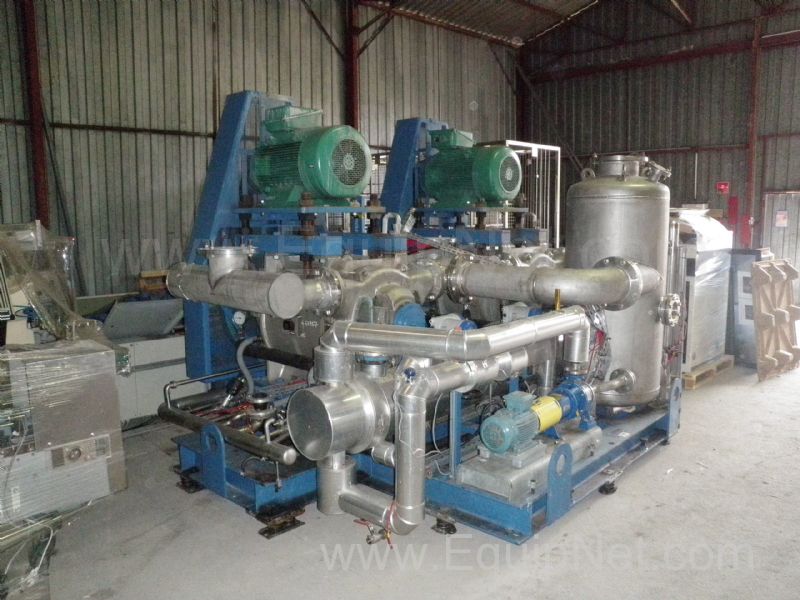

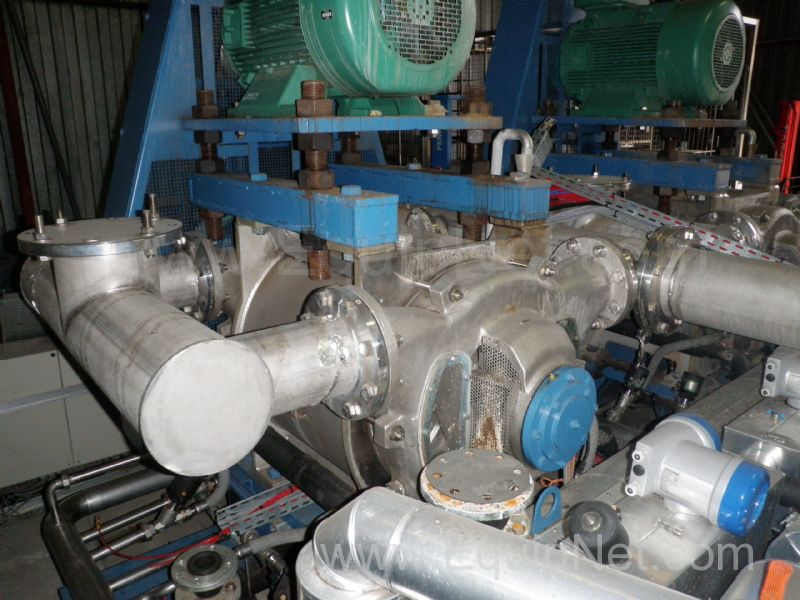

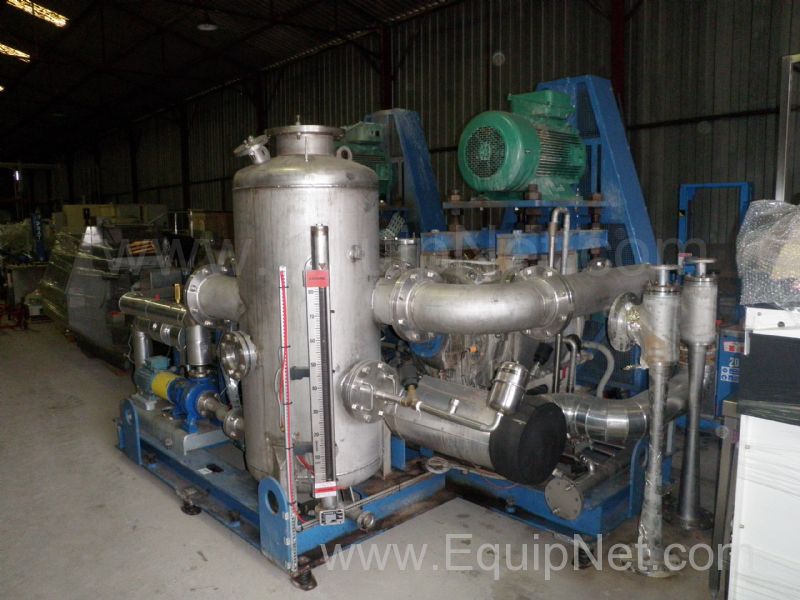

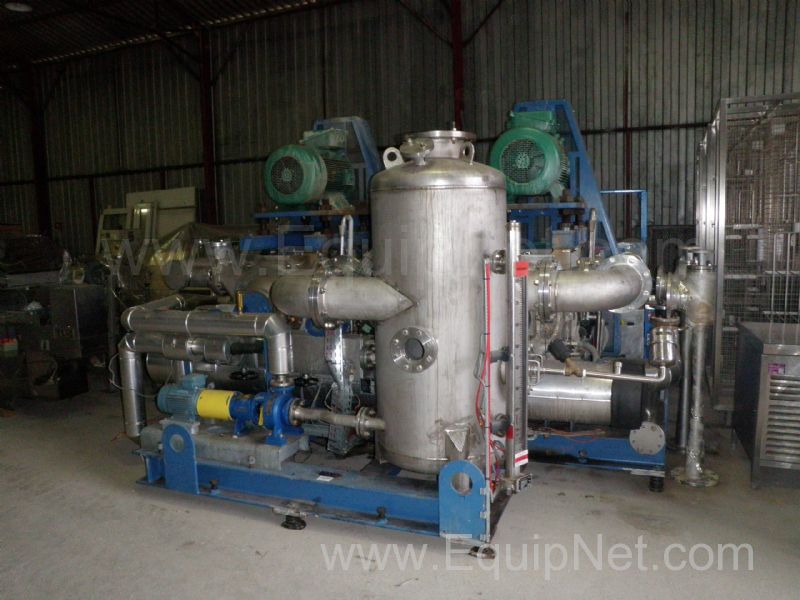

Item 1, The 3.9m long x 2.6m wide skid is fitted with 2 off GEC Alsthom PL 50 Double Hydro Liquid ring Vacuum Pumps, fitted with 150mm diameter Inlet & Outlet manifold connections to an adjacent skid mounted vertical S/s Vacuum LIquid Ring Water Receiver, which is 600mm in diameter x 1300mm Straight Side, fitted with 150mm diameter inlet and a 250mm diameter flanged outlet piped connection. The Vacuum receiver is fitted with a side mounted 80cm glass water level indicator.

The receivers internal water level is maintained by an adjacent skid mounted 50mm diameter piped water pumping system, which maintains the liquid ring vacuum sealing of the vacuum pumps via the receiver.

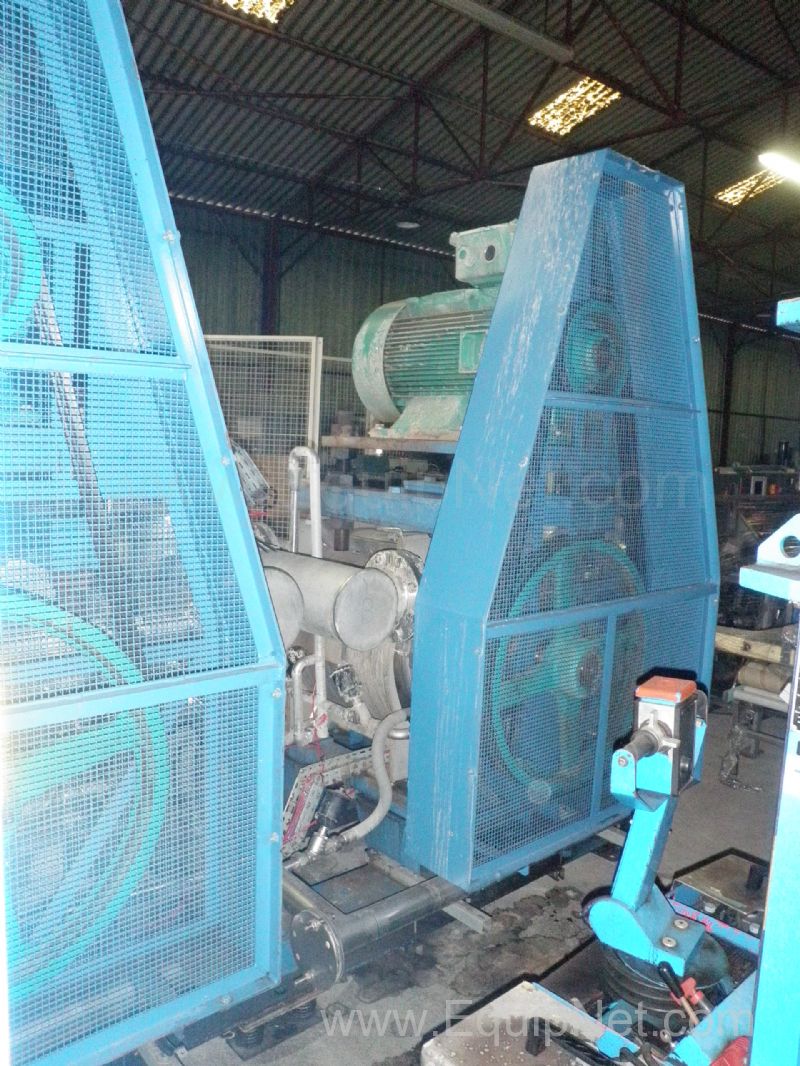

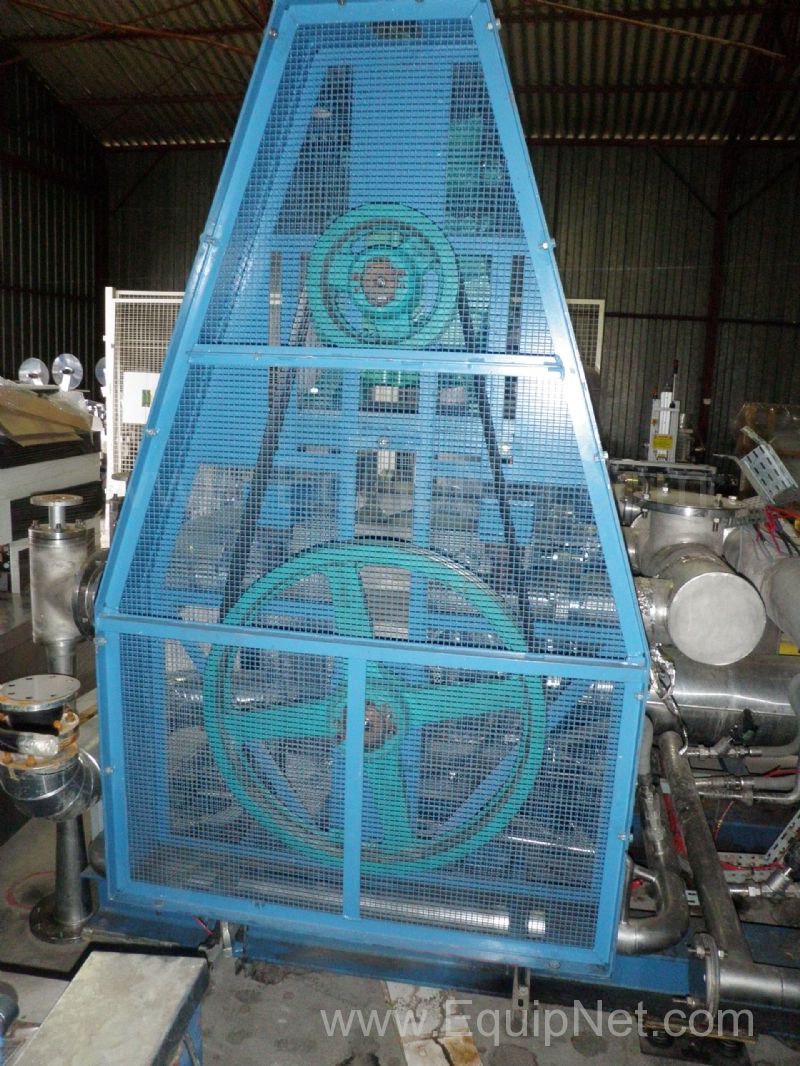

Each Vacuum Pump is rated to operate at 1355 RPM, with their Liquid Sealing Rings operating with a 115 L/min water supply at 0.5-1 Bar pressure, and is triple belt driven from a dedicated overhead mounted 75 Kw drive, rotating at 1465 RPM.

The supporting skid framework is fitted with 4 off lifting lugs.

Disclaimers:

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France.

Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Equipment Specifications:

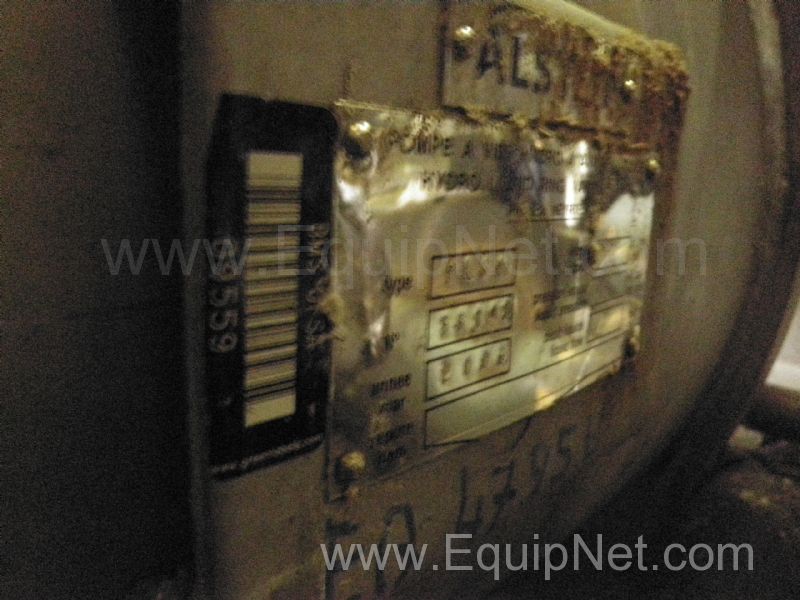

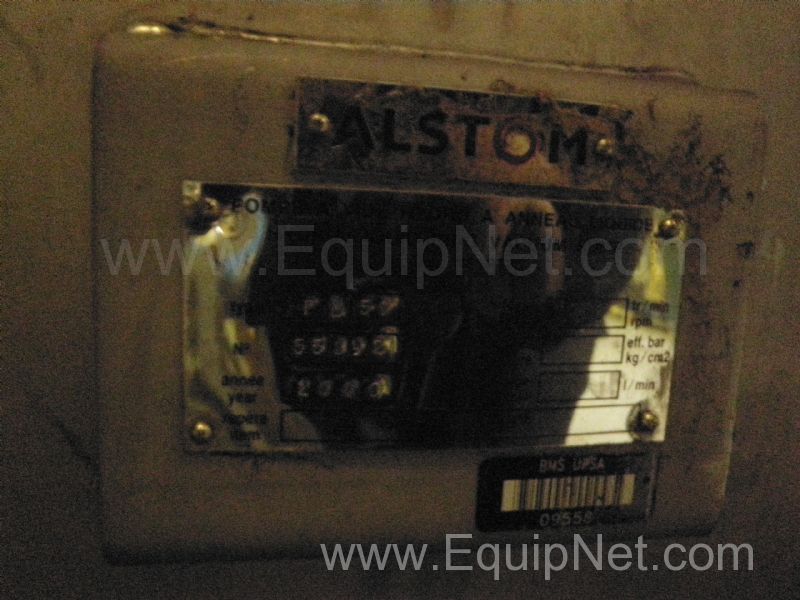

Manufacturer	GEC Alsthom
Year	2006
Model	PL 50
Serial Number	55892, 55898
Inlet size	150 MM
Outlet Size	150 MM
Estimated Shipping Weight	10000 KGS
Heating Cooling Requirements	Water Cooling
Voltage	415 VOLTS
Frequency	50 HERTZ
Phase	3+1
Current	2 x 75 Kw Vacuum Pump Drives
Height	2.55 M
Length	3.9 M
Width	2.6 M
Pallet Location	BMS Agen Warehouse, France
Recommended Packaging Form	CUSTOM PALLET
