Listing #298223

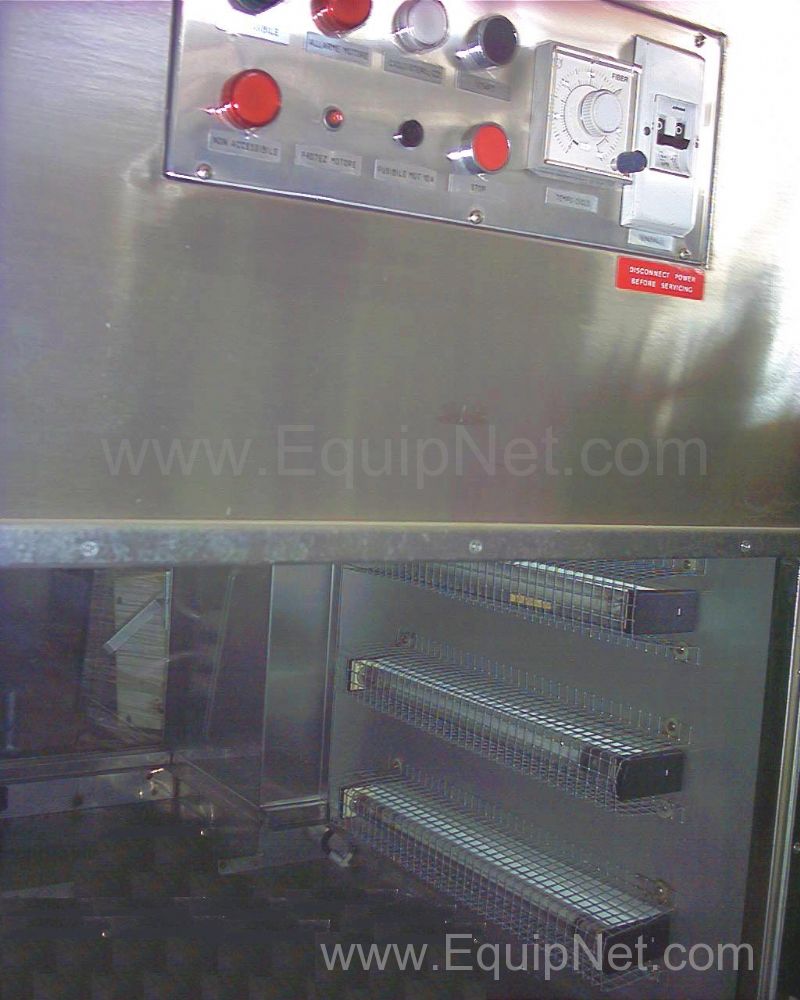

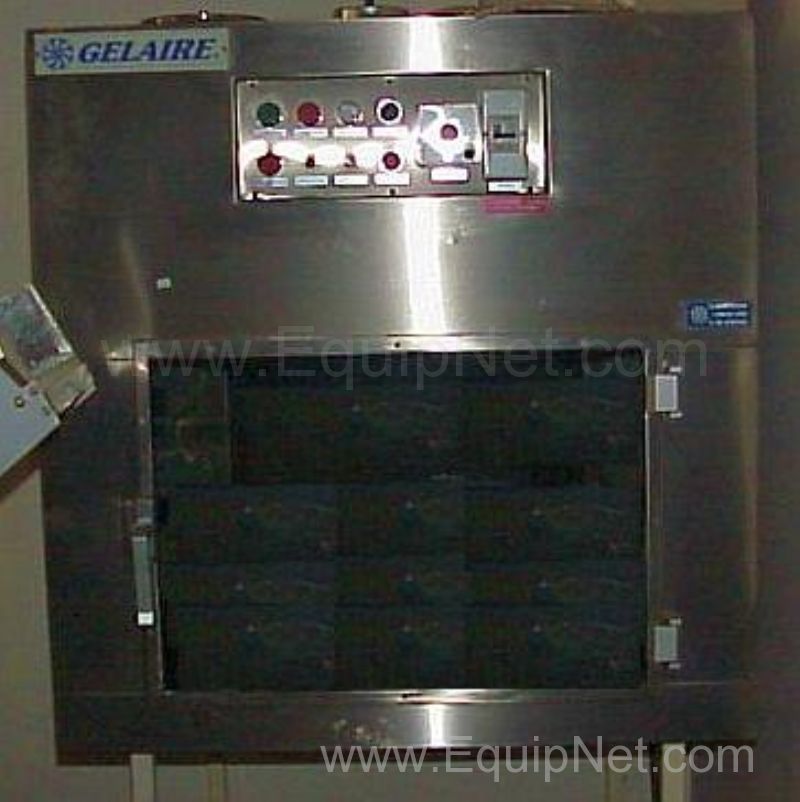

Gelaire Stainless Steel Pass Through Chamber
Equipment Description:
Stainless Steel Pass Through Chamber
DESCRIPTION: Pass-through hatches protect critical environments while allowing transfer or materials to or from adjoining rooms. Typical installations are in the walls of cleanrooms and laboratories. In these applications, materials must be transferred with minimal loss of room pressure; and without the need for personnel movement between rooms.
Standard hatches have an interlock that permits only one door to be opened at time and ensures clean operation.
SECTORS OF USE: Pharmaceutical, electrical, food, aerospace technology, biological laboratories, forensic, dietary and medical appliances.
MAIN FEATURES: All stainless steel construction with ultra-smooth stainless steel surfaces.
Windowed door with safety glass and stainless steel frame.
Contamination-free transfer of materials in and out of the cleanroom Wall-mount model that can be positioned at a comfortable standing height.
The Pass Through is supplied with HEPA filters for filtering incoming air and UV lamps for the further sterilization of the air.
TECHNICAL DATA:
Vertical rectangular passage width: 660 mm
Vertical rectangular passage height: 470 mm
Chamber length: 910 mm
Chamber width mm: 800
Chamber height mm: 930
Wall-through passage length mm: 660
Wall-through passage height mm: 530
Wall-through passage depth mm: 310 |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Italy. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Gelaire |
| Estimated Shipping Weight | 0 KGS |
| Height | 930 MM |
| Length | 910 MM |
| Width | 800 MM |
| Recommended Packaging Form | PALLET |
