Listing #245883

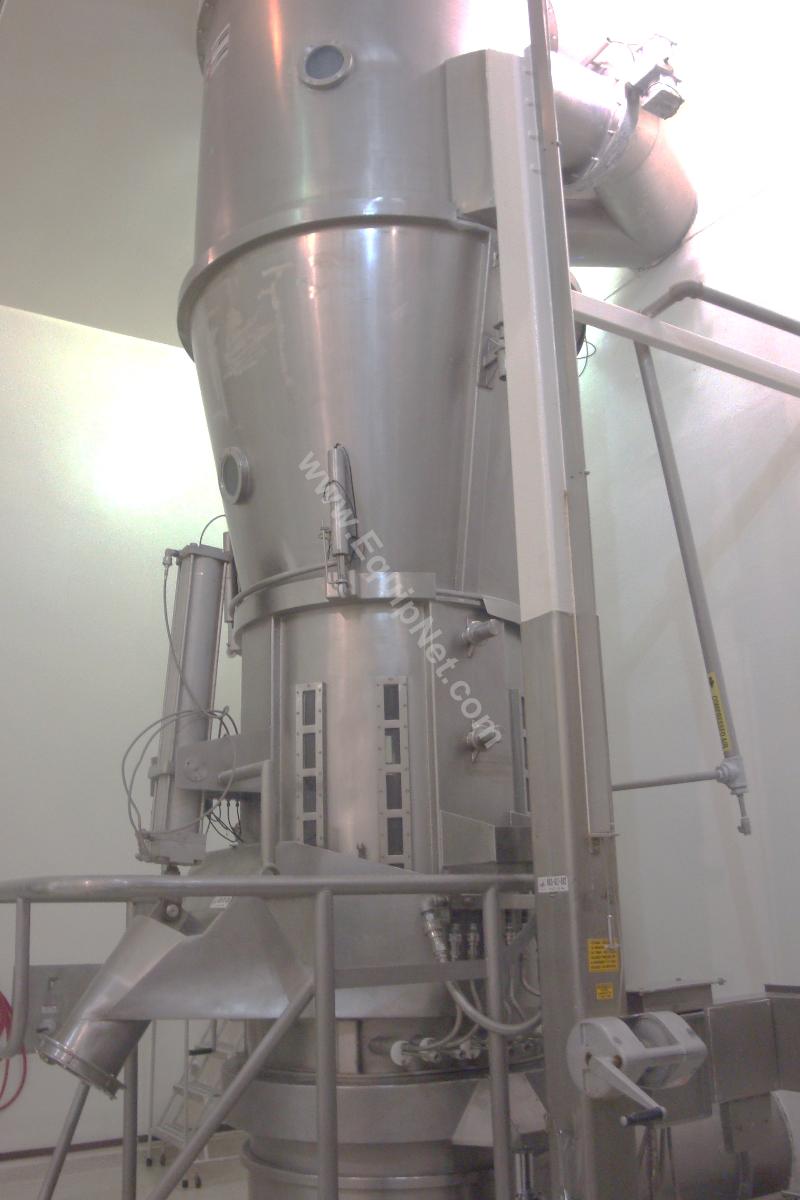

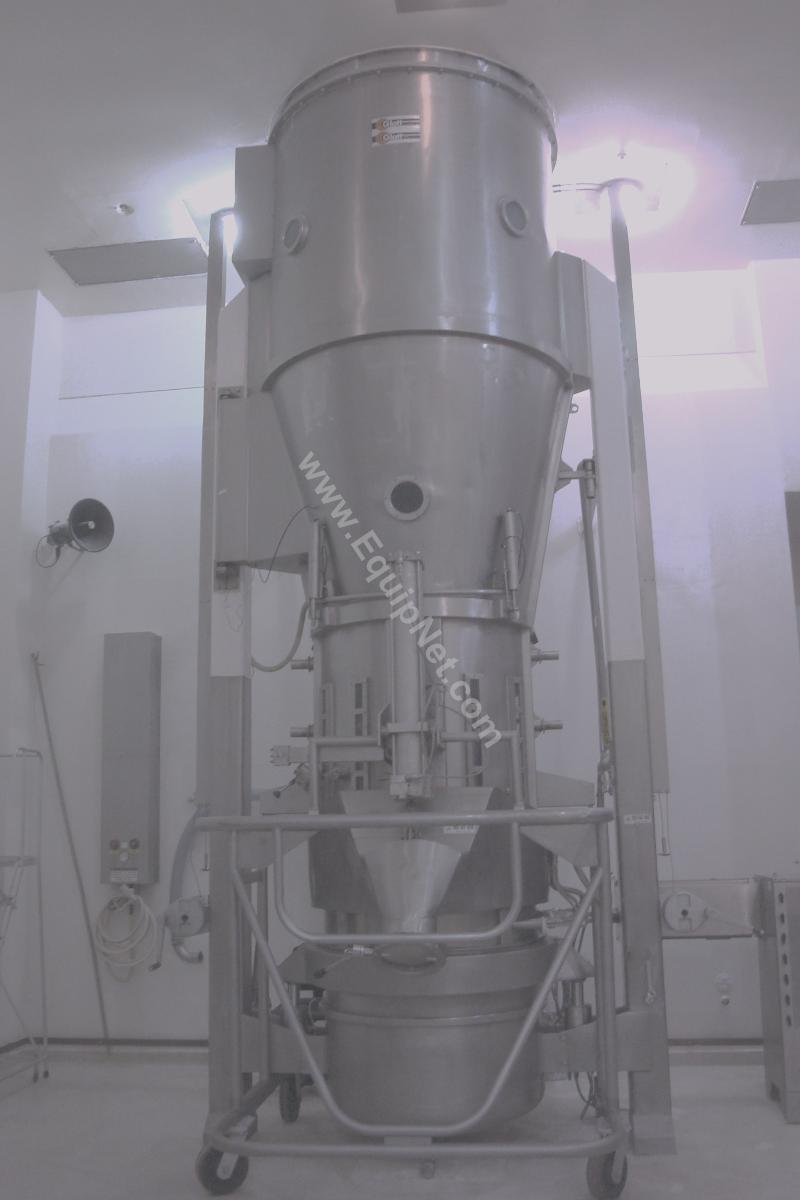

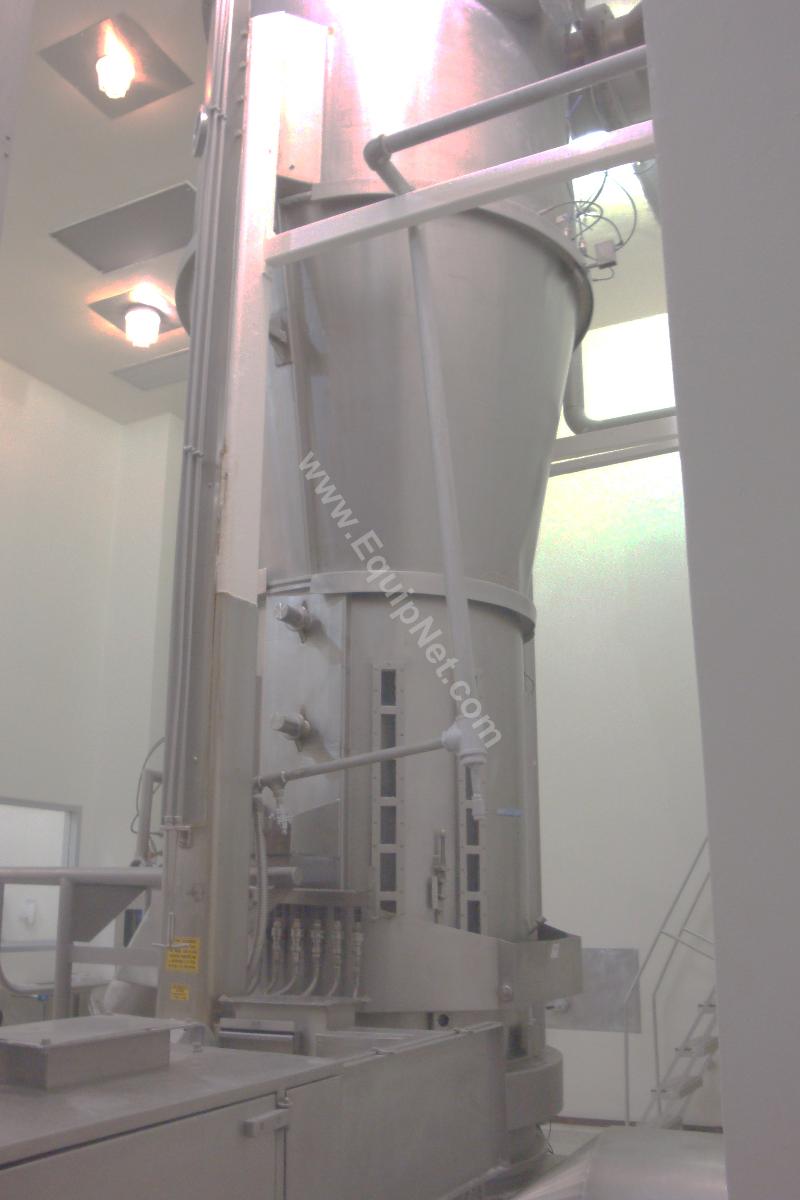

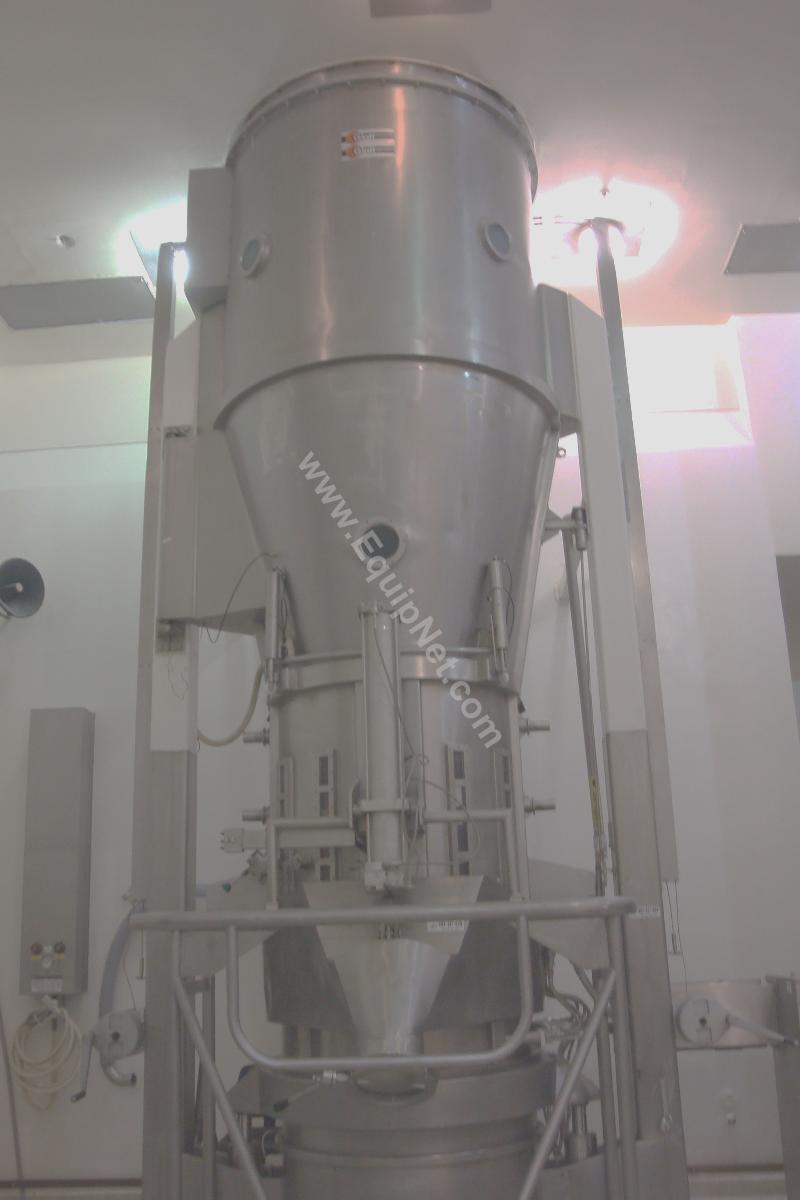

Glatt Fluid Bed Dryer Model GPCG 300
EquipNet Tag #245883-1-11, 245883-2-11
Equipment Description:
Glatt GPCG 300 Fluid Bed Dryer/Granulator/Coater/dryer, bottom spray, 2 Bar
Fluid bed processing involves drying, cooling, agglomeration, granulation, and coating of particulate materials. It is ideal for a wide range of both heat sensitive and non-heat sensitive products. Uniform processing conditions are achieved by passing a gas (usually air) through a product layer under controlled velocity conditions to create a fluidized state.
In fluid bed drying, heat is supplied by the fluidization gas, but the gas flow need not be the only source. Heat may be effectively introduced by heating surfaces (panels or tubes) immersed in the fluidized layer.
Equipment S/N 4232
Manufacture Late 1980's
System upgraded Yr 2001
Content Product container:1.6 cubic meter
Steam consumption: 409 kg/h
Steam pressure required: 3 bar
Compressed air pressure 6 bar
Total power consumption 80 kw
Voltage: 460V
Frequency 60Hz
•Unit Consists of the Following:
•Machine Tower
•Post Hoist Device
•PLC Control System & HMI System
•Two (2) 46" Wurster Container Columns Insert for Coating Fine Particles

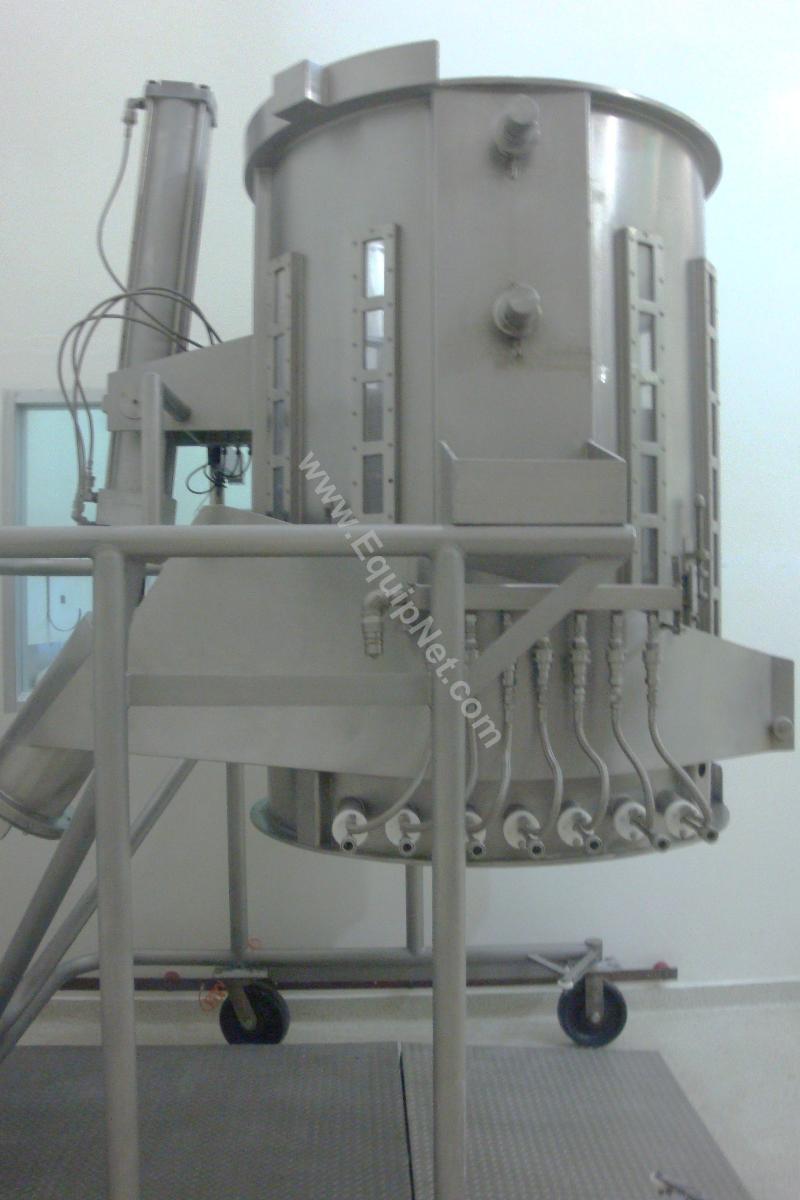

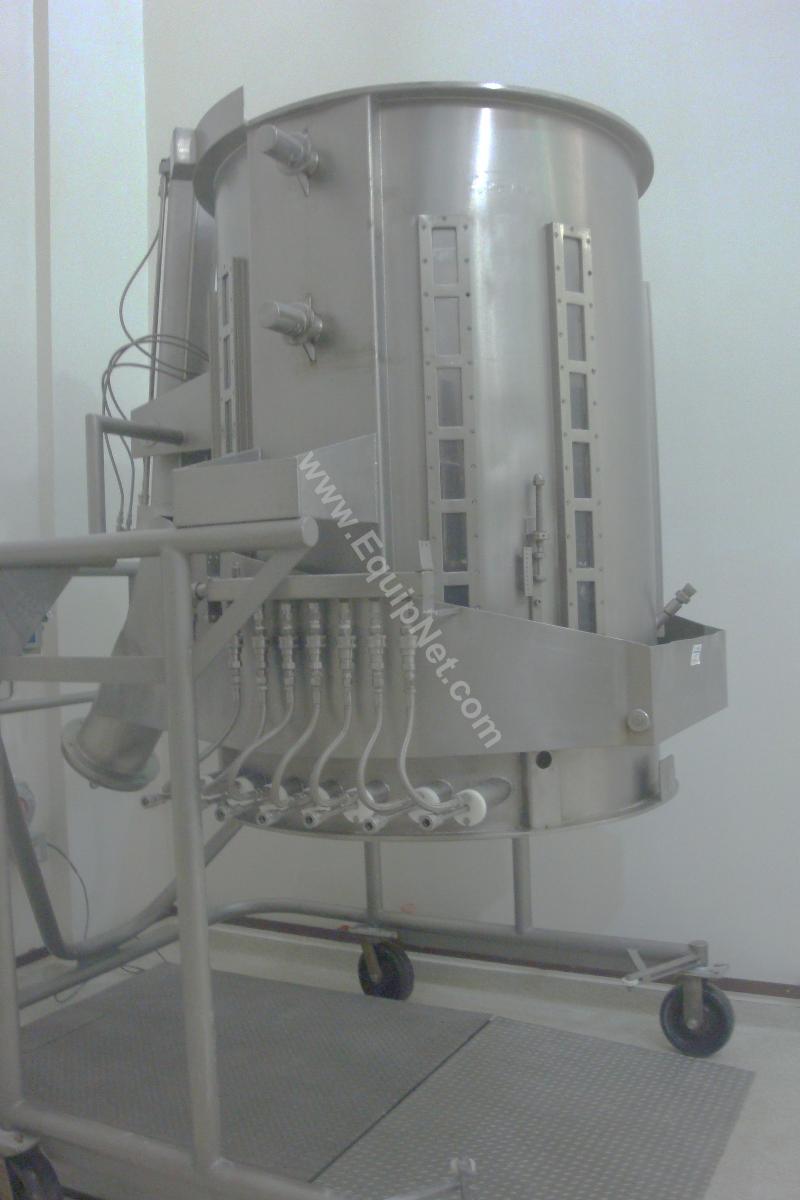

Tilting bottom section with Stainless steal bottom sieve, a spray manifold that includes 7 Spray Nozzles
Each spray nozzles is 6.9 inches from the base of the nozzle tip
Nozzle tip inner diameter is 0.119 inches
Product contact surfaces were manufactures of 304 Stainless Steel polished
Inlets and exhaust air ducts are each equipped with an explosion proof, quick action stop valve(QASV)
Includes Product Filter Shaker Assembly of two 60 mesh polyester filter located in expansion chamber

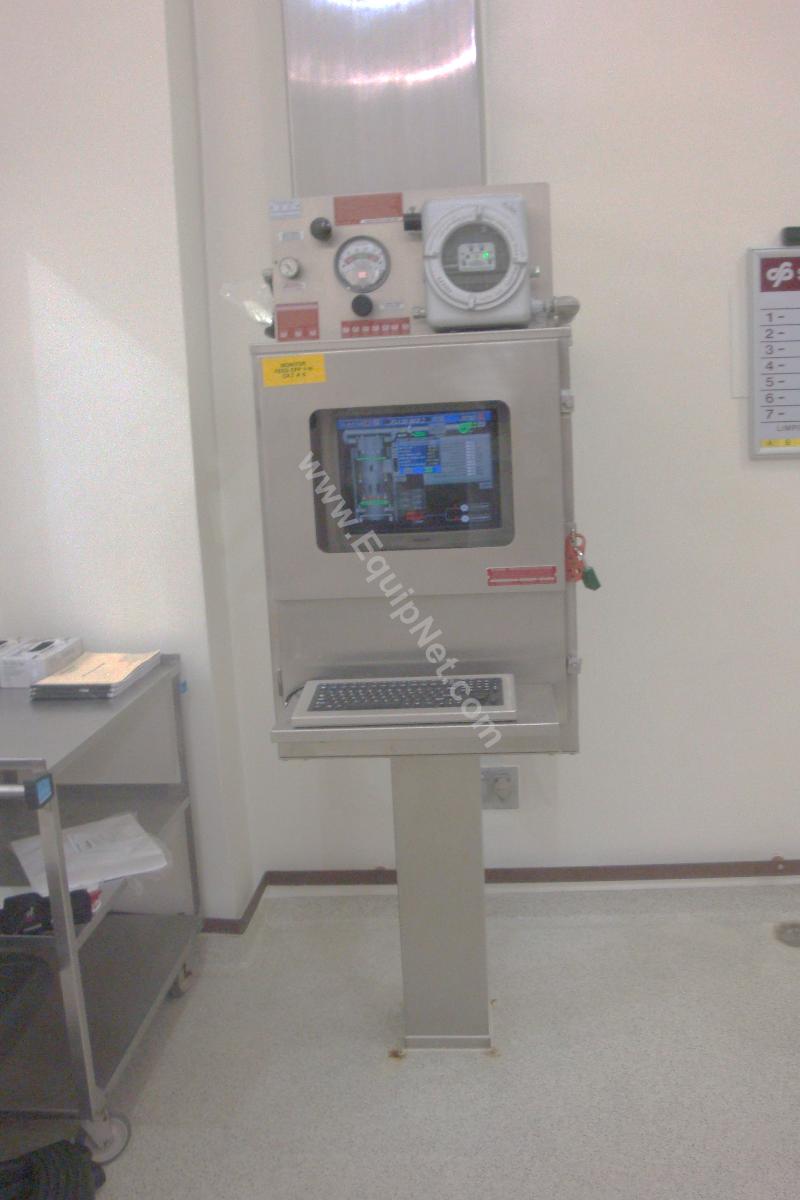

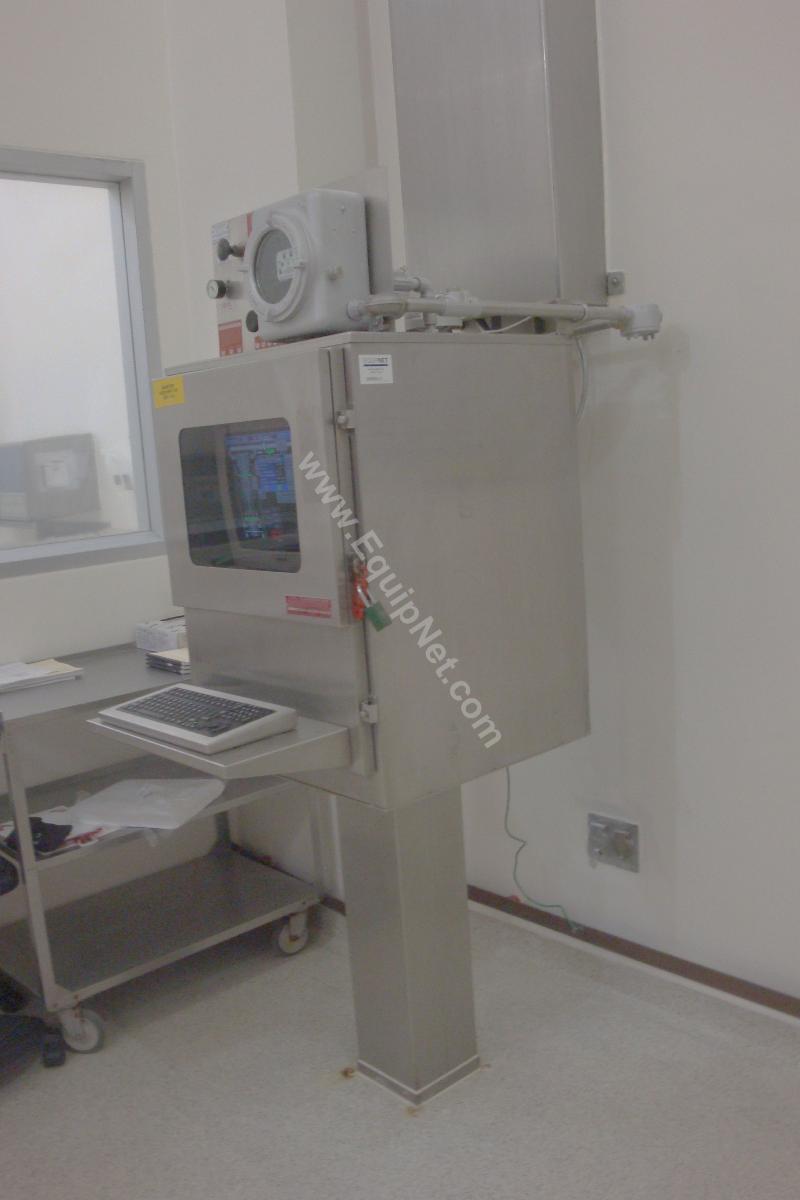

Control System Specifications
Control System: Modicon PLC
Model: Quatum Series 140 CPU
OIT with Intellution FIX 32 software
Windows NT Platform
Security: FIX & WINDOWS NT |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Puerto Rico. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Glatt |
| Year | Upgraded 2001 |
| Model | GPGC 300/500 |
| Serial Number | 4232 |
| Capacity Size | 300 |
| Estimated Shipping Weight | 10000 LBS |
| Length | 8 FT |
| Width | 8 FT |
| Height | 24 FT |
| Voltage | 480 VOLTS |
| Frequency | 50/60 HERTZ |
| Phase | 3 |
| Recommended Packaging Form | CUSTOM |
