Glatt WSG 60 UD Fluid Bed Dryer system

Listing #220528
EquipNet Tag #11140872, 11140874, 11140873, 11140908
Listing Price:£30,000.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom.

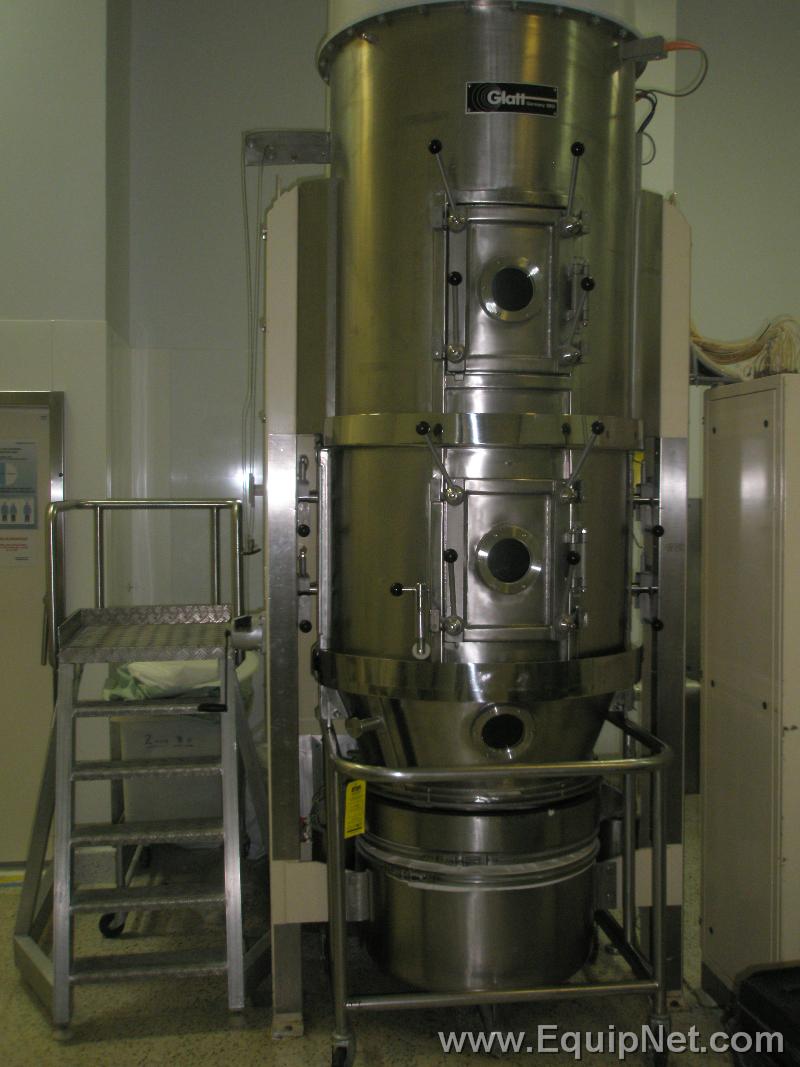

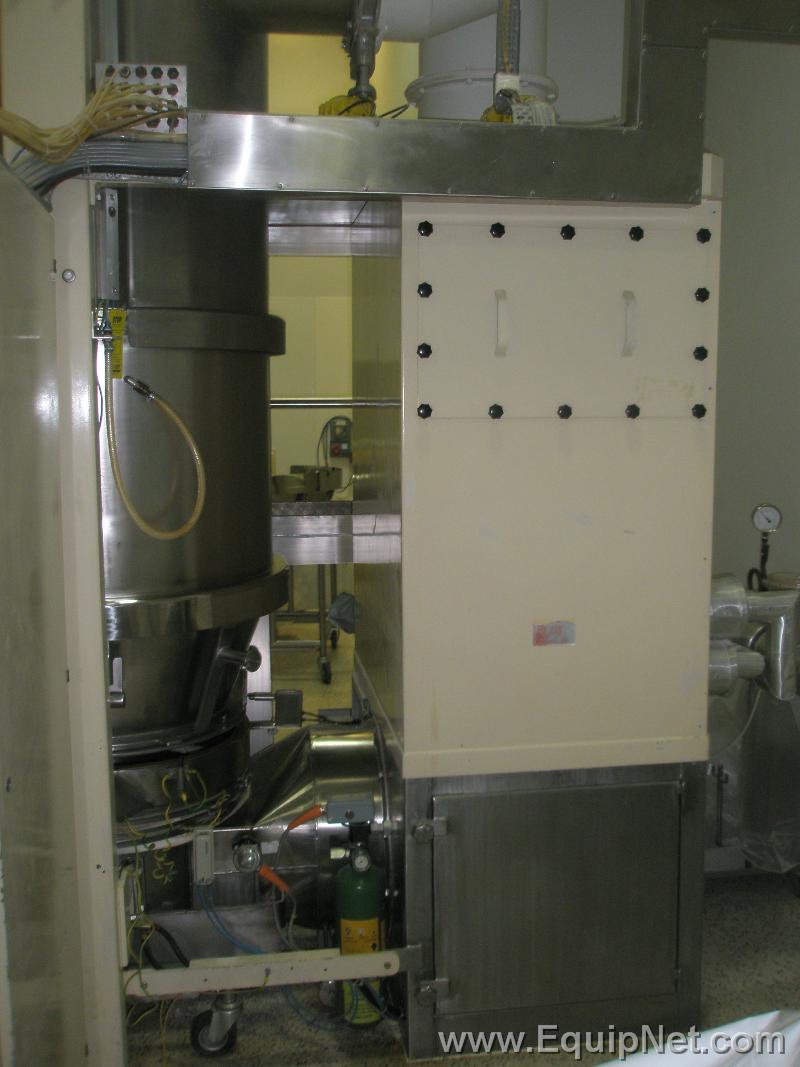

Glatt, WSG 60 UD, Fluid Bed dryer system, rated to dry 60 kgs per hour, Sperical 1mm diameter pelleted product
  • Rated to produce 92,000 K Cal/Hour drying, via the Inlet Ducted Steam heated coil.
  • The machine is rated to have Working Pressure of 2 Bar, with an Explosion rating EX RLE of 3.2 Bar
  • The Ventilator = 18.5 Kwatts, Dampfdruck = 4 Bar, Druckluft = 6 Bar, and the Stainless Steel Drying chamber is 950mm in diameter x 2m high.

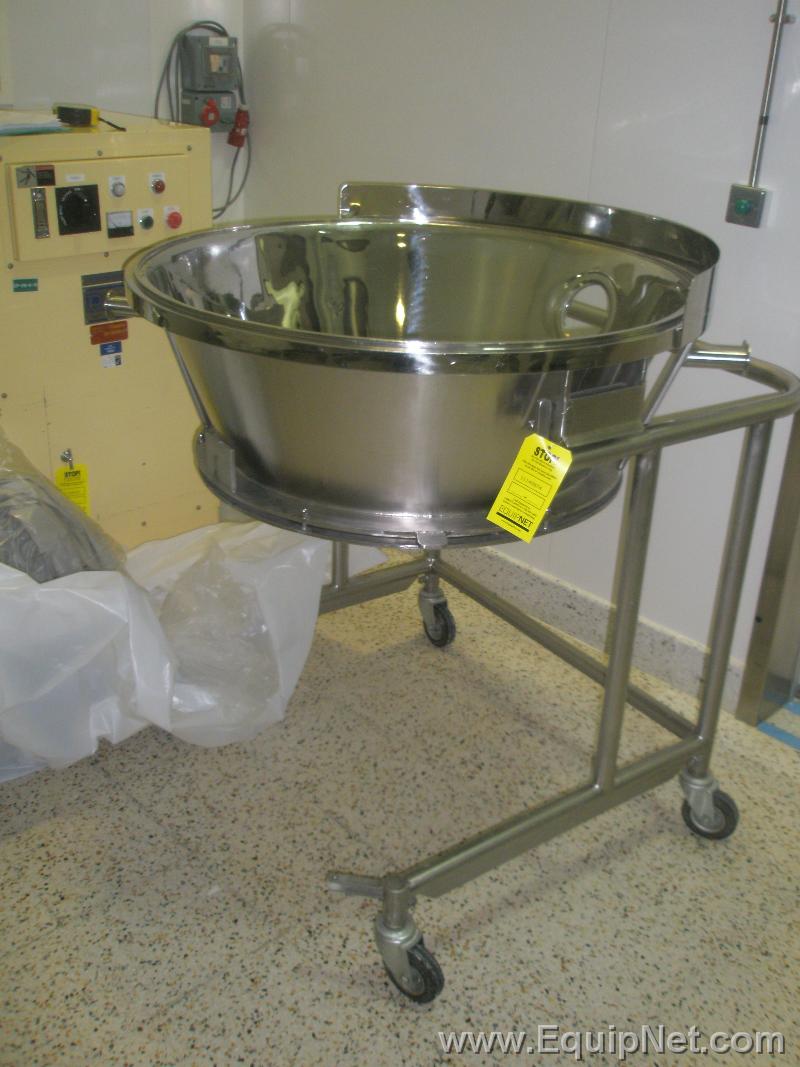

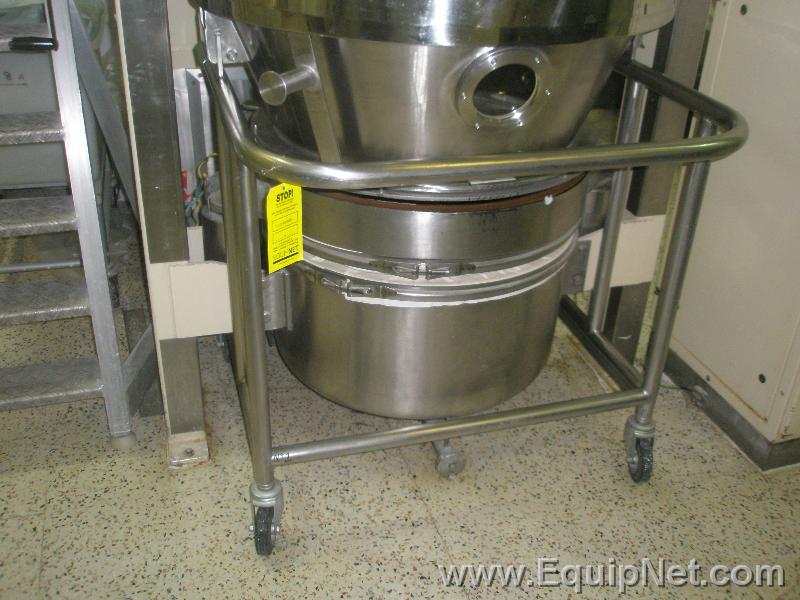

  • The Glatt Fluid Bed Dryer comes with 2 off Mobile Stainless Steel Dischage Filter Cones, Tagged 11140908, & 11140874, mounted on 4 wheeled trolleys, that taper from 980mm to 730mm internal diameter in there 400mm height, and measure externally 1.1m x 1.2m x 1.26m high, and weigh approx 100 kgs each, and can take a maximum drying batch size of 120 kgs of pelleted product.

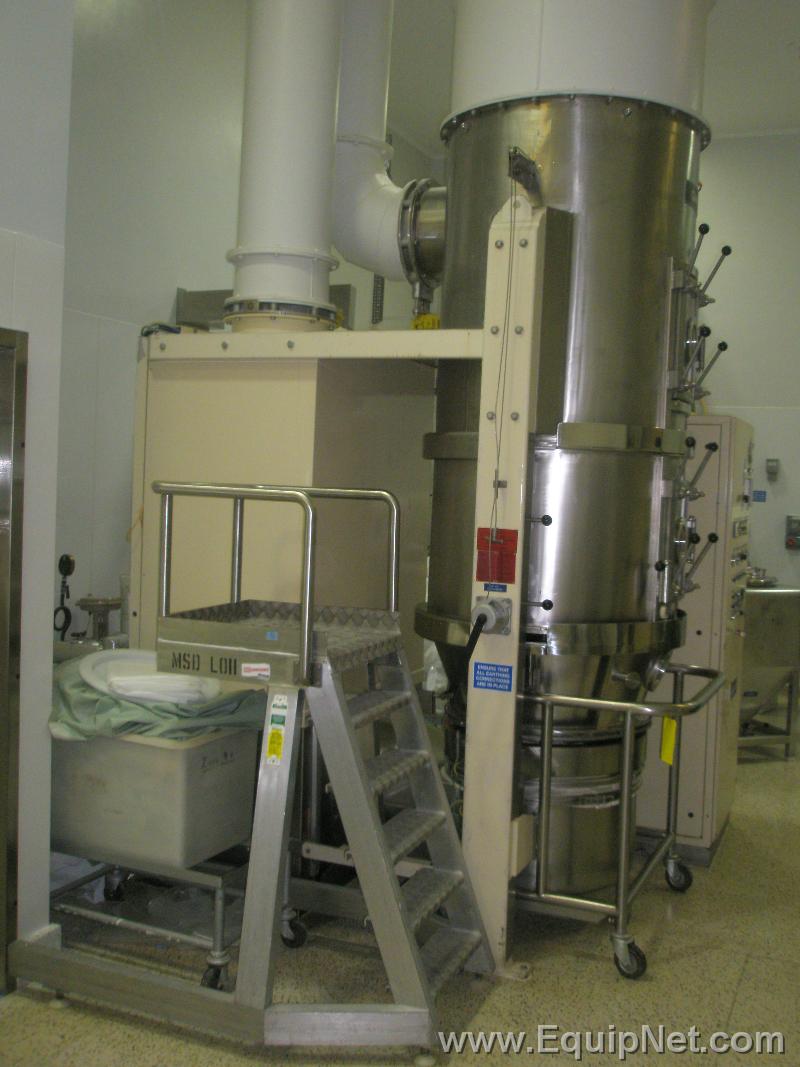

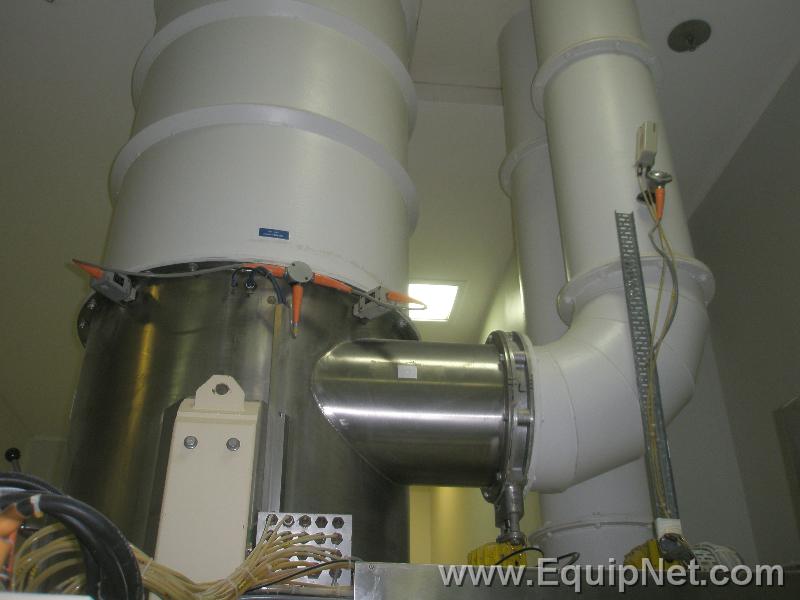

  • The machine is heated via the rear ducted internally installed steam heating battery coil, and ventilated by the overhead ducting which is linked to the overhead plant-room situated twin ventilation fan unit.

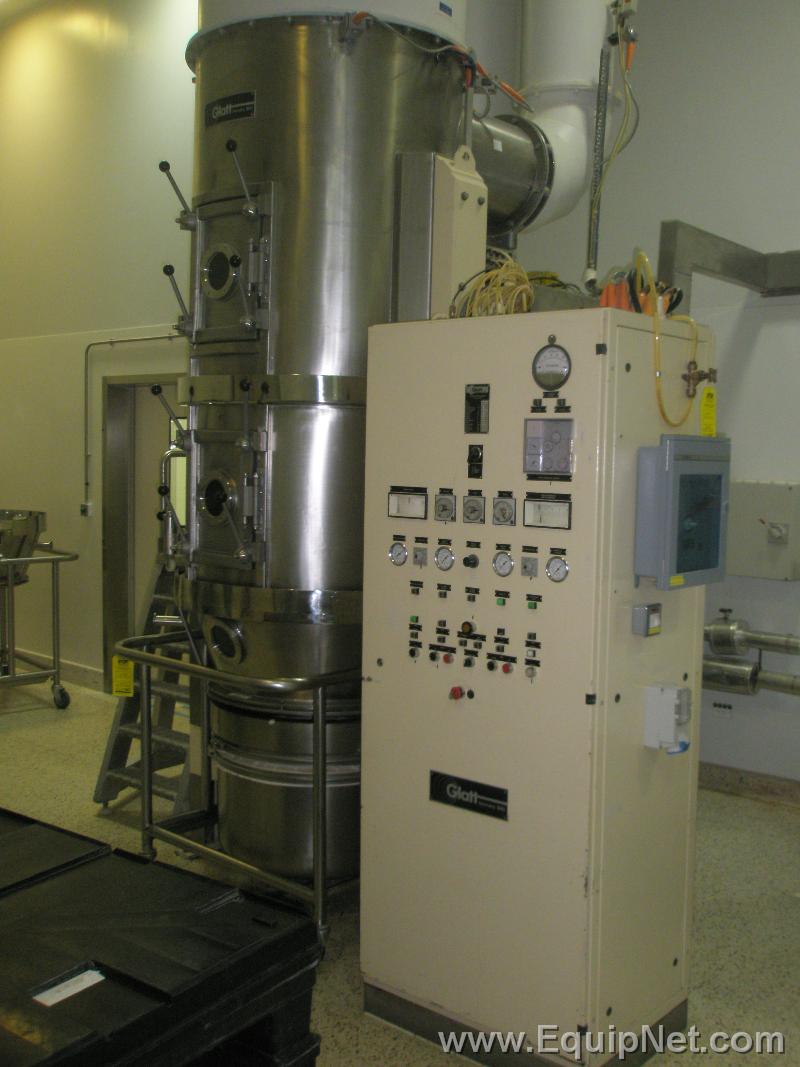

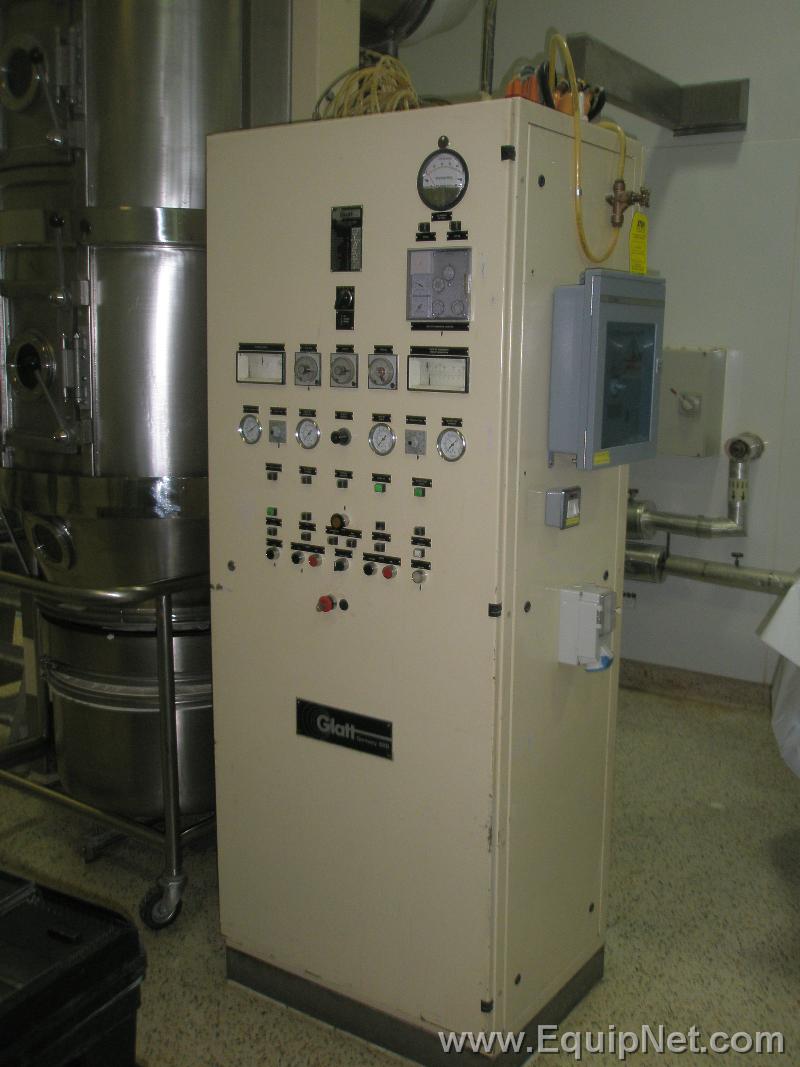

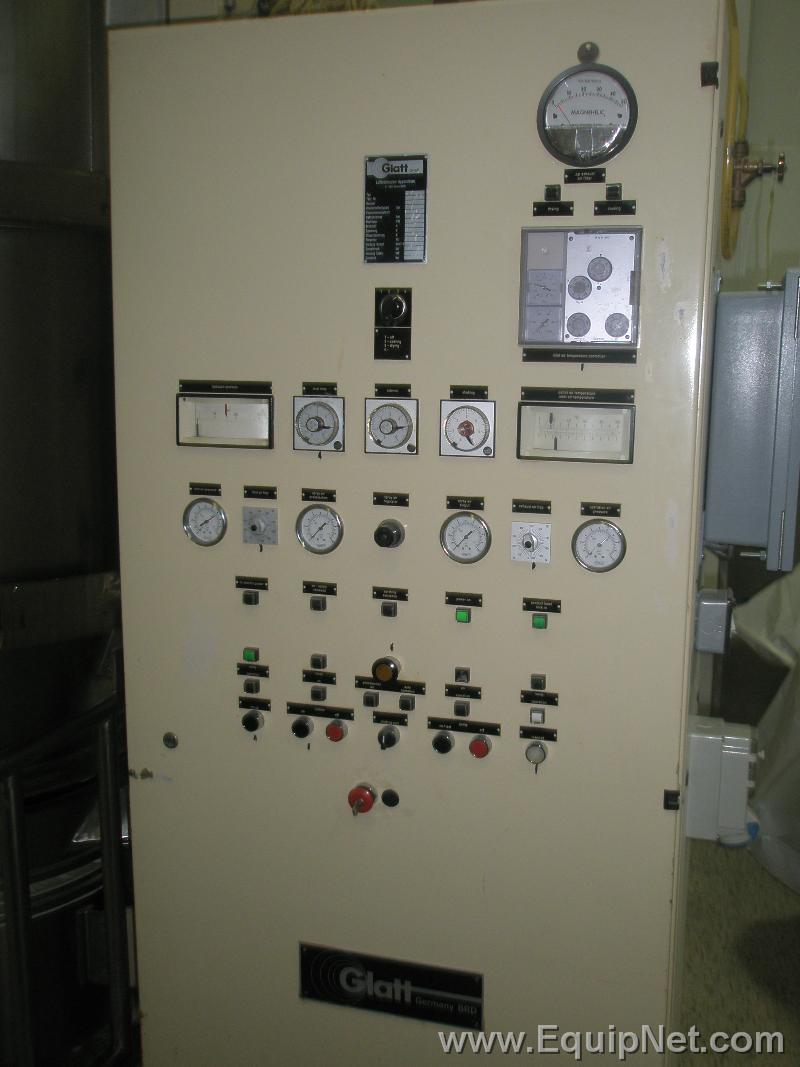

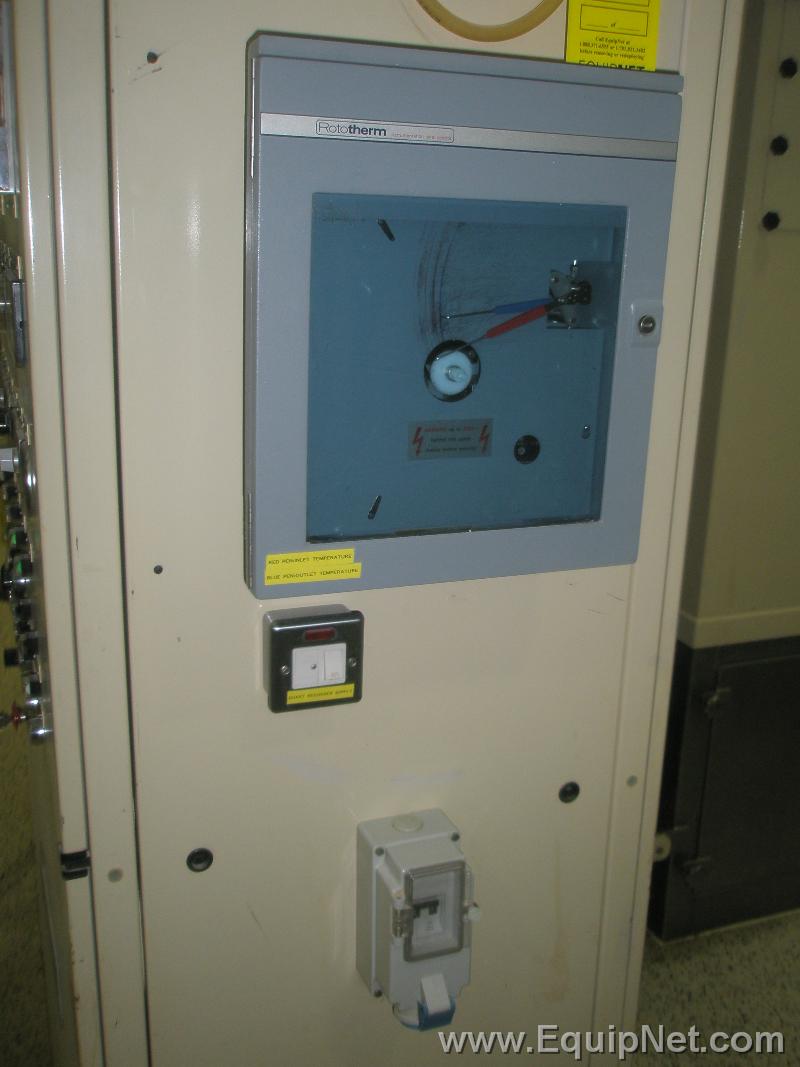

  • The machine being controlled by a Stand alone wardrobe style Glatt control panel, Tag No 11140873, that measures 800mm x 600mm x 2150mm high, and weighs 300 kgs, and is fitted with a chart recorder unit.

    • Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


    Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin

    Equipment Specifications

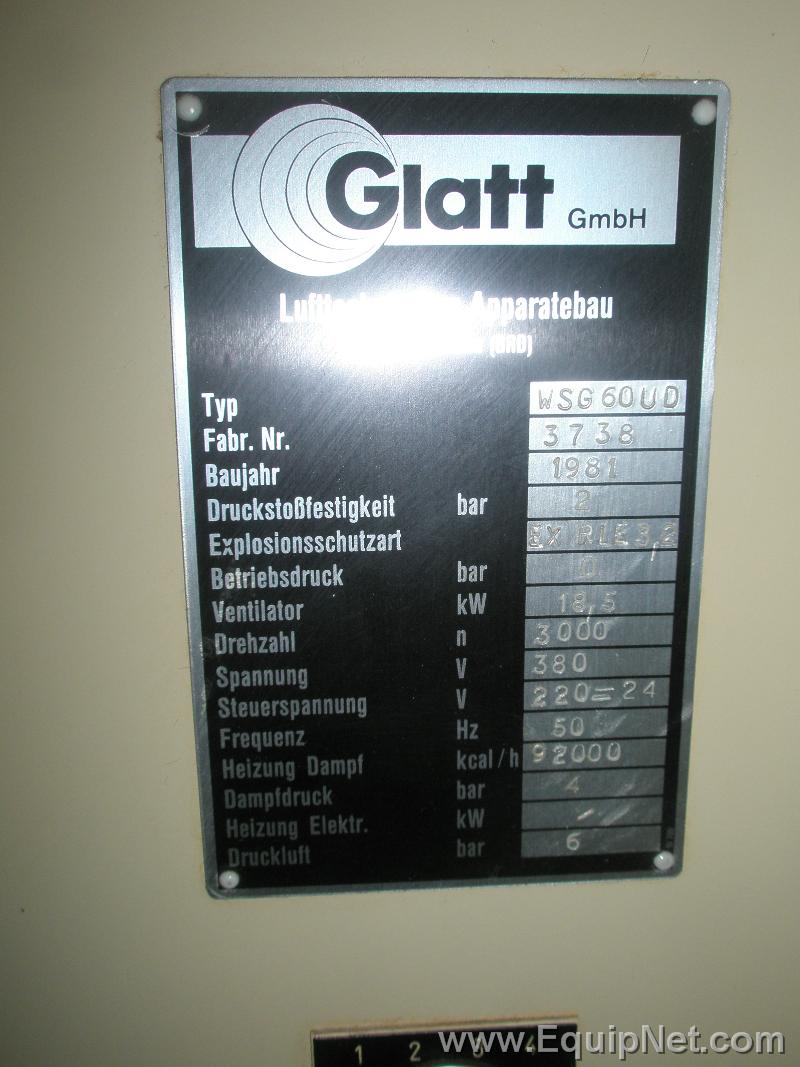

    ManufacturerGlatt
    Year1981
    ModelWS 960 UD
    Serial Number3738
    Capacity Size60 L
    Capacity Speed60 KG/HR
    Product SizingSperical 1 mm
    Products RunPellets
    Air Requirements6 BAR
    Estimated Shipping Weight6.7 Tonnes LBS
    Heating Cooling RequirementsSTEAM HEATED
    Length3 M
    Width1.4 M
    Height3.15 M
    Voltage380/240/24DC VOLTS
    Frequency50 HERTZ
    Phase3+1
    Recommended Packaging FormCUSTOM PALLET
