Listing #246718
Gondhard 7500 Litre Stainless Steel Trough Paddle Blender
EquipNet Tag #246718-1-2
Equipment Description:

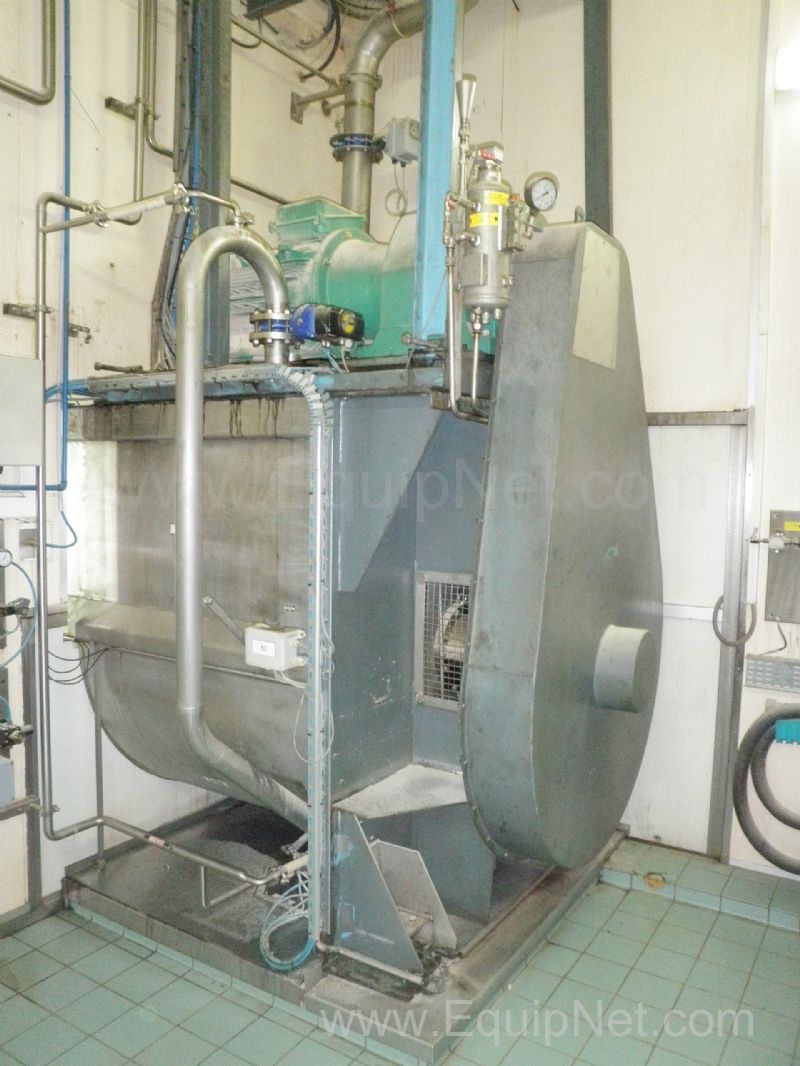

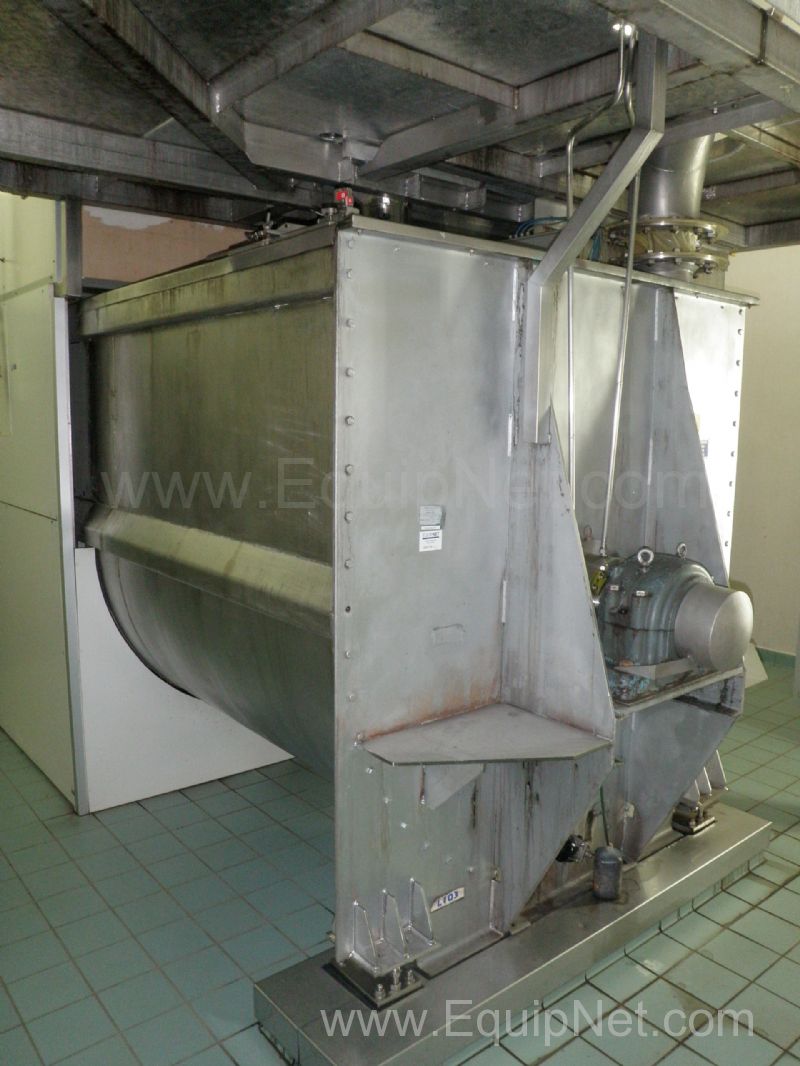

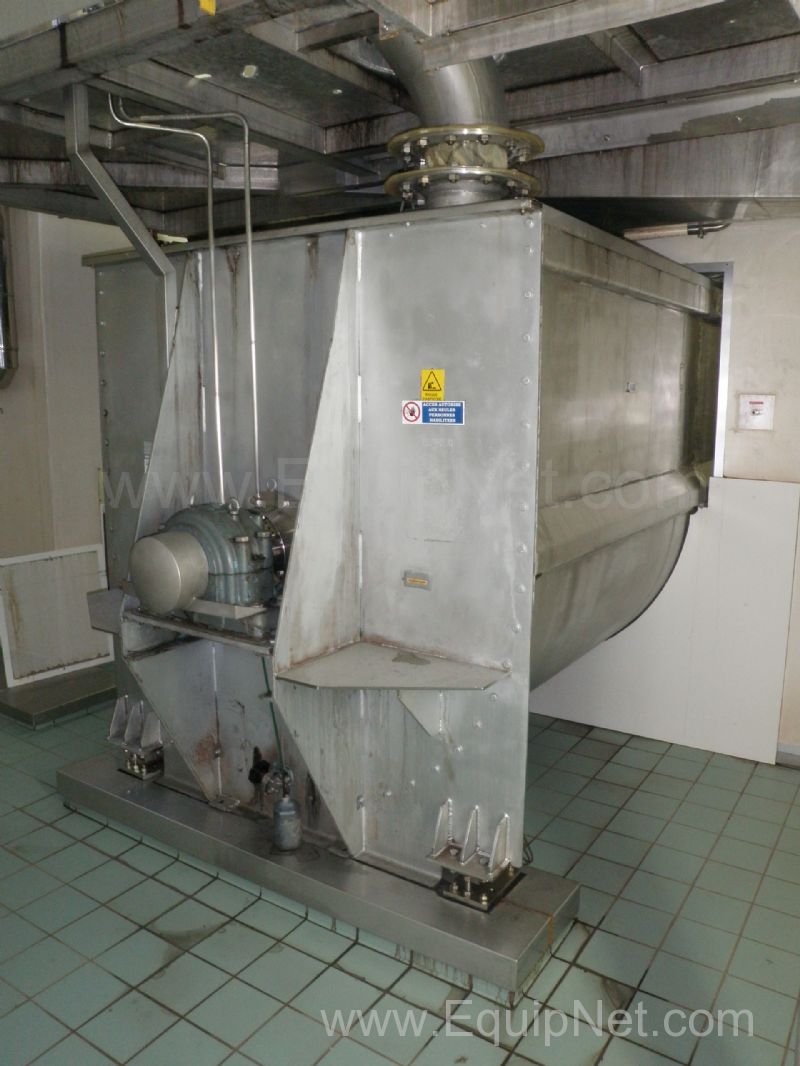

Gondhard 7500 Litre Stainless Steel Trough Paddle Blender

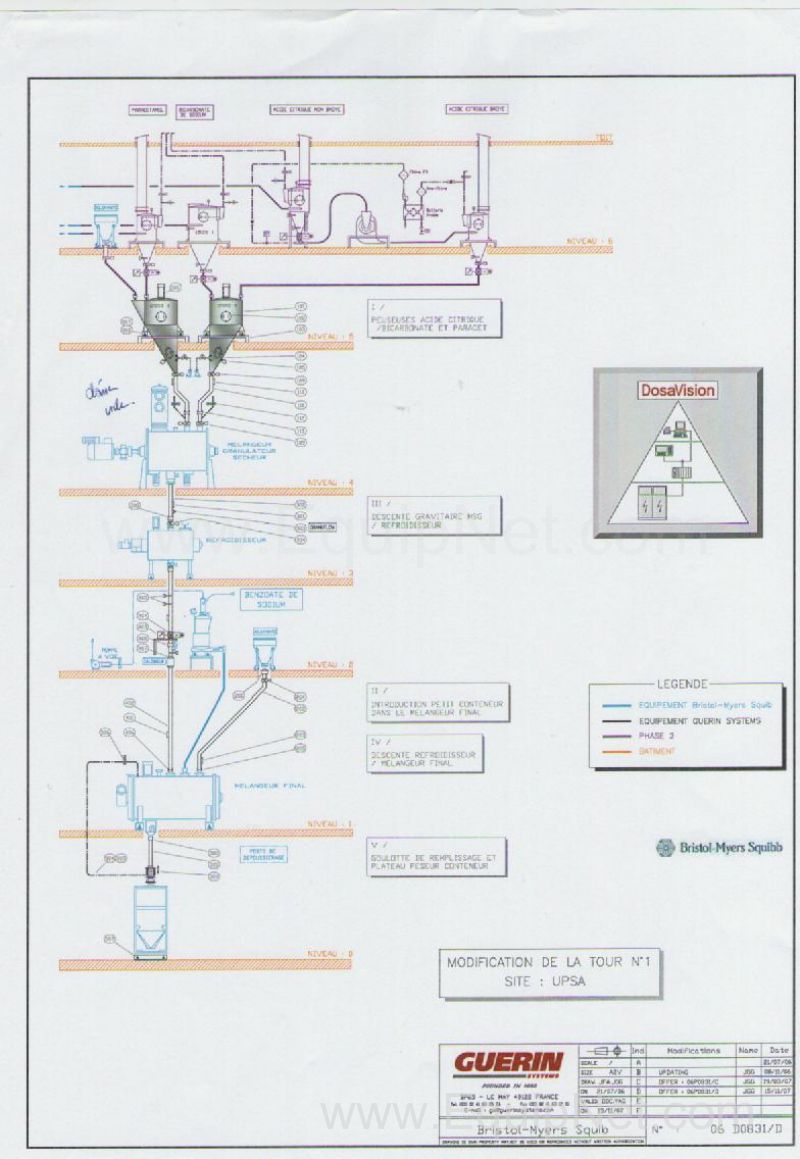

Item 1, The Blender is fitted with a flat interlocked cover lid, through which pass a 200mm Inlet pipe fed from the flexible jointed overhead piped Mezzanine mounted Hammer mill, a secondary 250mm diameter valved Inlet for another flexible jointed piped inlet for the overhead mezzanine manually added powder ingredients, and a 80mm diameter venting oulet pipe.

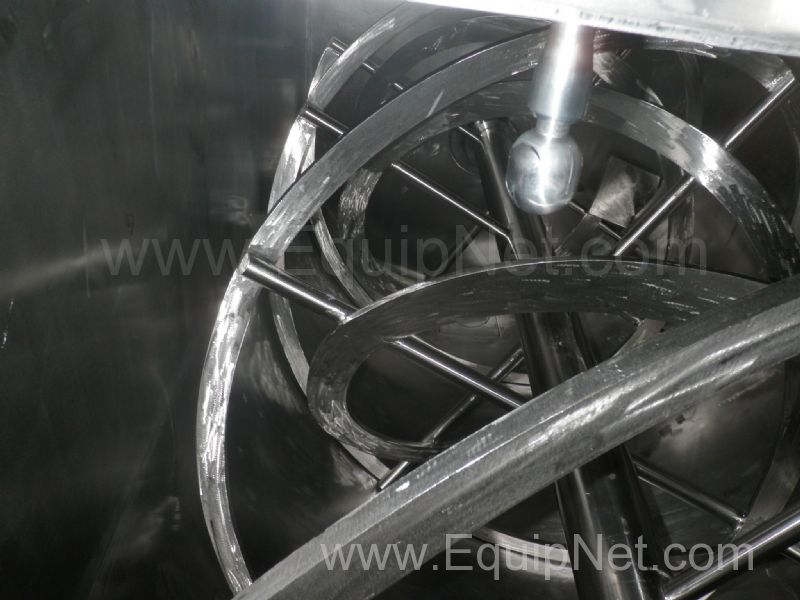

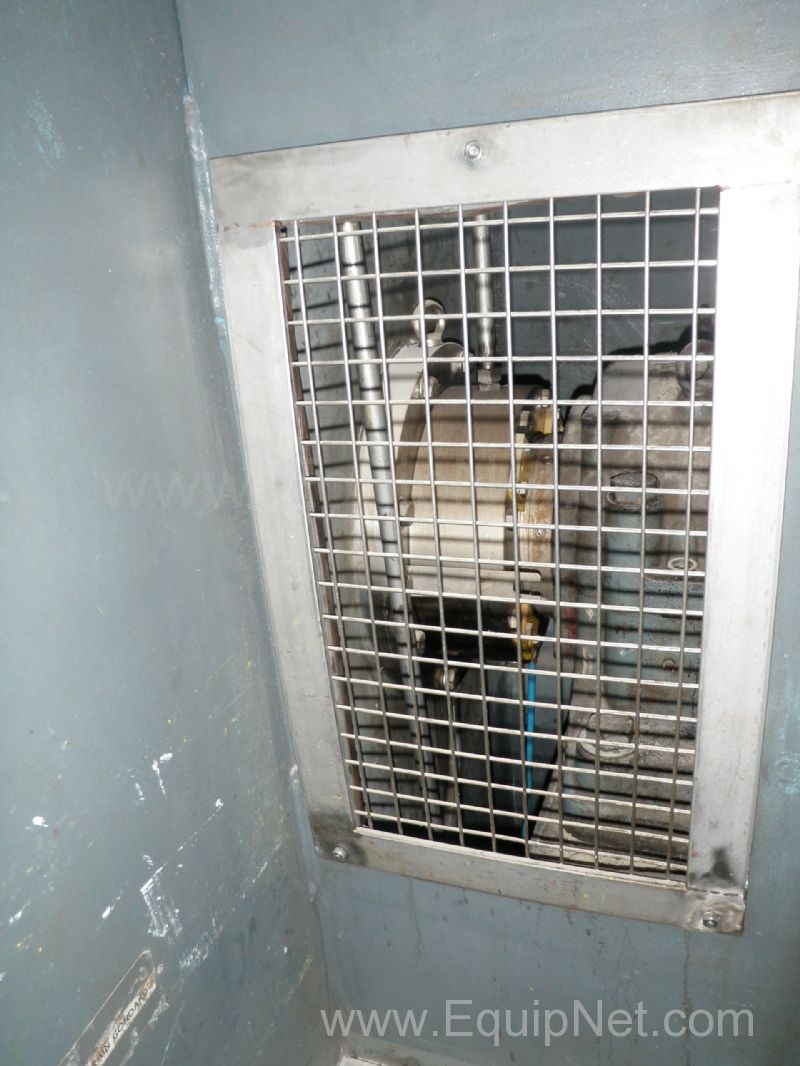

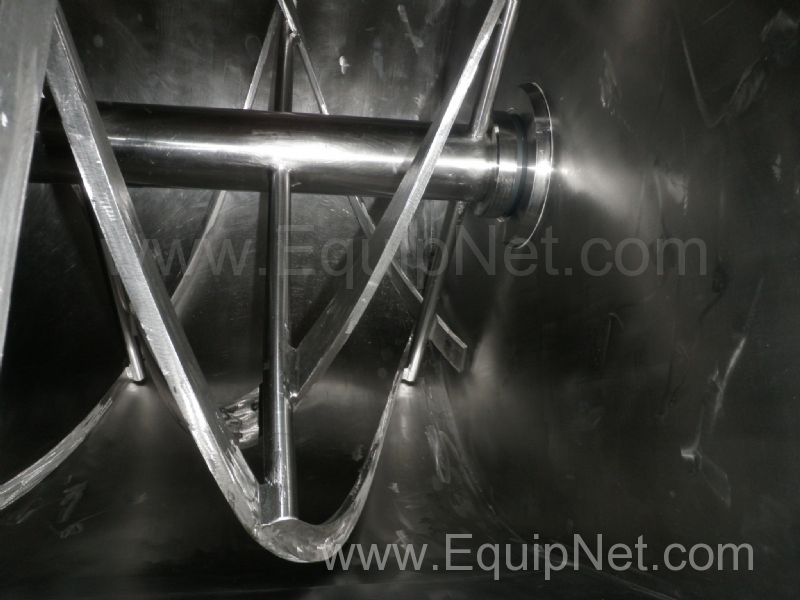

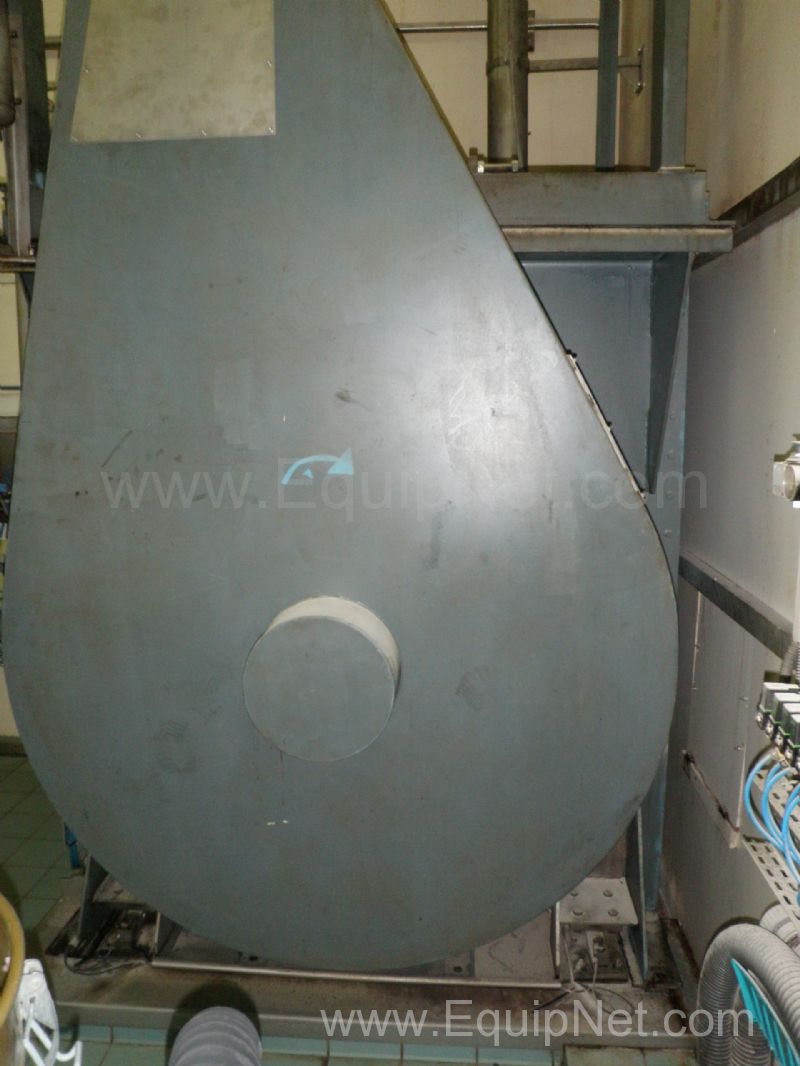

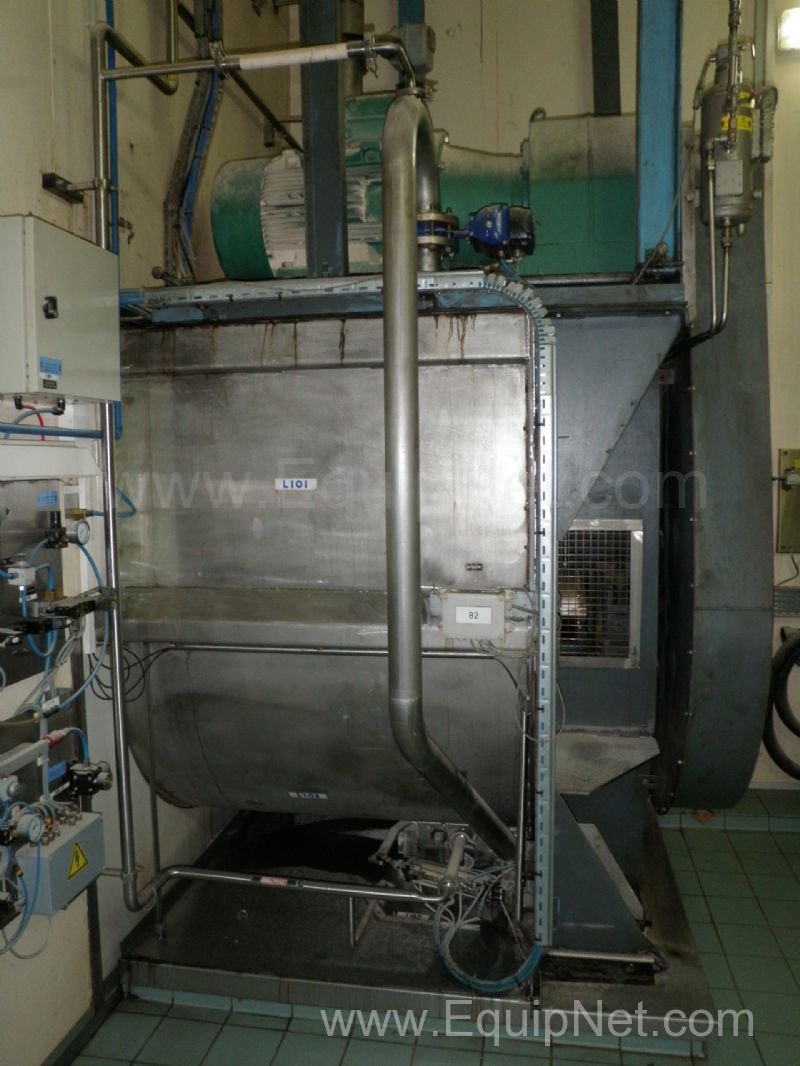

The Blender mixing paddle shaft is driven by an overhead mounted Drive mounted, which drives via a guarded triple belt pulley system the paddle drive shaft. The drive shaft being sealed by an overhead pressurised shaft sealing system.

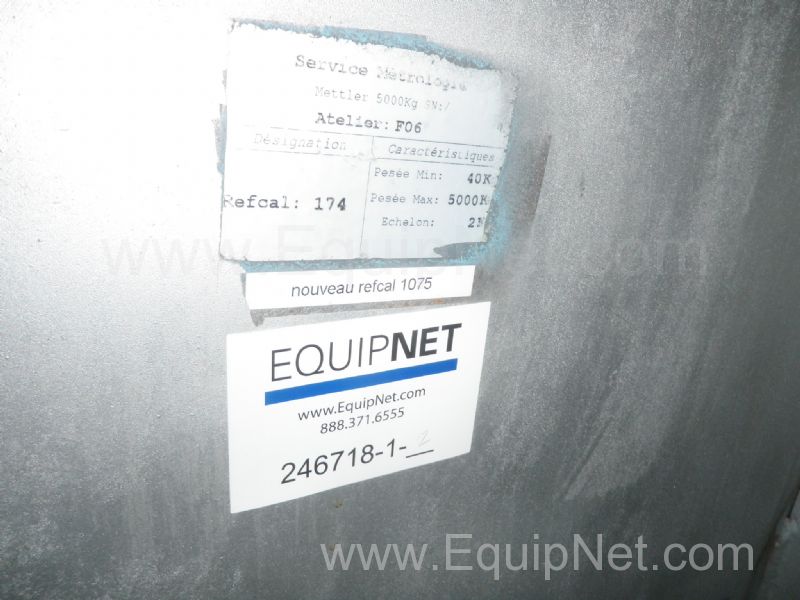

The Blender body is mounted on 4 Loadcells, mounted off floor mounted metal support pads. These Loadcells are rated to work between a minimum weight of 40 Kgs upto a maximum weight of 5000 kgs in 2 Kg Increments.
The Blender is drained via rear mounted actuated outlet to a feed the S/s holding bins mounted in the ground floor room below.

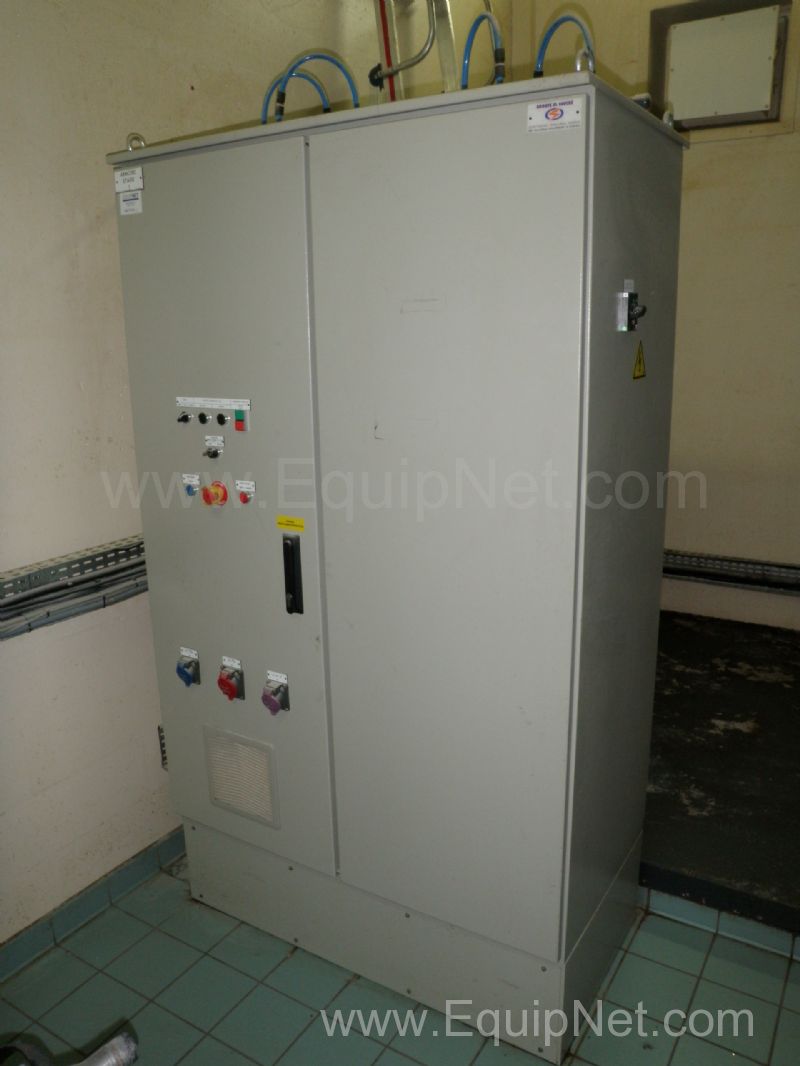

Item 2, The Blender is controlled from a Floor Mounted Control Panel that measures 1200 x 650 x 2100mm high, and weighs approx 300 kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Gondhard |
| Year | 1984 |
| Model | 7500 Litre Blender |
| Capacity Size | 7500 |
| Products Run | Powder |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 10300 KGS |
| Length | 5.8 M |
| Width | 1.9 M |
| Height | 3 M |
| Diameter | 1.75 M |
| Depth | 3.15 |
| Voltage | 380 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Material of Construction | 316 STAINLESS STEEL |
| Pallet Location | BMS Agen, Gascoyne, France |
| Recommended Packaging Form | CUSTOM PALLET |
