This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.

Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

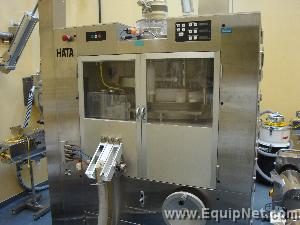

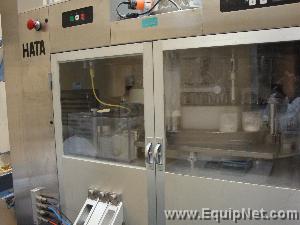

For large-volume tablet production, This Hata high-output, double-sided, automated tablet press comes equiped with a 77 stations turret. Tablets produced on both sides of the press can be discharged from the front, eliminating the need for two sets of tableting accessories or double handling of tablets. The tablet tester alternates sampling from one side of the press to the other. Any double-sided tablet press can be converted easily to conventional two-sided discharge to suit individual preference or to accommodate larger tablets. In addition, the cams and feeding system can be modified with available optional components to convert the double-sided press to a single-sided press for two-layer tablet production ranging from 900 to 3550 tablets per minute. The maximum diameter of round tablets for the 77 station press is 7/16". The tabletting capacity is between 1,232 and 15,400 tablets per minute. The maximum tabletting pre-compression and main compression is 6 tons. The diameter of the die is .945"

• Manufacturer Hata
• Year 2002

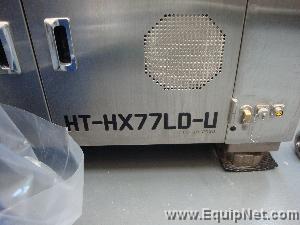

• Model HT-HX77LD-U
• Serial Number 2028
• Capacity Speed 15400 TPM
• Spare/Change Parts Y
• Air Requirements 80 PSI
• Manual Available Yes
• Estimated Shipping Weight 20000 lbs
• Heating Cooling Requirements UNKNOWN
• Maintenance Log/Records Available Y
• MSDS Available Y
• Length 4 FT
• Width 4 FT
• Height 8 FT
• Voltage 480 VOLTS
• Frequency 60 HERTZ
• Phase 3
• No. of Stations 77
• Removal Difficulty MODERATE
• Removal difficulty notes Machine weight 14000 lbs alone
• Requires rigging or removal NO
• Requires a flatbed truck UNKNOWN
• Level of shipment preparation necessary STILL INSTALLED
