Hosakawa Ter Braak Premix Batch Autoweigher and High Speed Mixer

Listing #235147
EquipNet Tag #11140710

Part of multi-equipment listing: Hosakawa Ter Braak Complete Candy Depositor Line 2
Listing Price:€100,000.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency

You are making an offer on a Hosakawa Ter Braak Premix Batch Autoweigher and High Speed Mixer. This item is surplus to the ongoing operations of a manufacturing facility in Spain .

This and other lots from this location are now available because the facility needs to make room for manufacturing capacity.

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection.

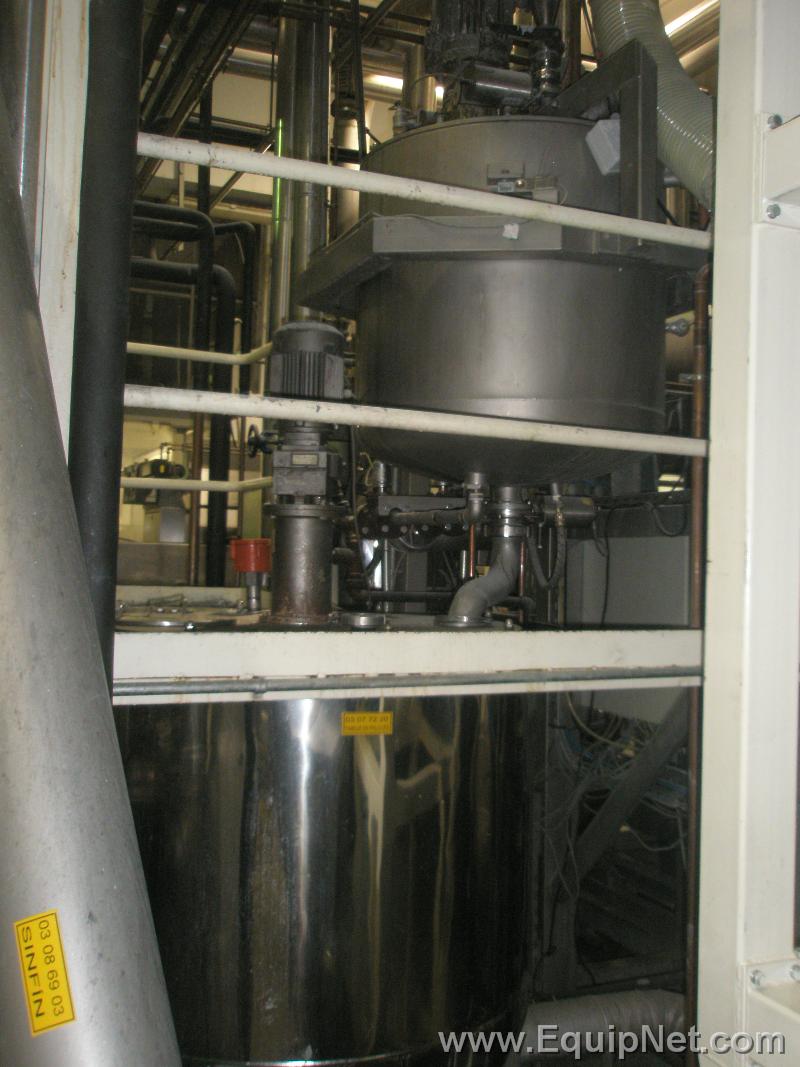

Hosakawa Ter Braak Pre-mix Batch Autoweigher and High Speed Mixer

  • This Pre-mix Batch Weighing machine is mounted on 3 Load cells, supported off a S/s Frame, and contains in its 800 diameter x 650mm straight side S/s Mixing Vessel a Steam heated coil, and a Hi-speed mixer.
  • The Autoweigher is fed all the liquid premix ingredients by pumped jacketted S/s pipework and the Isomalt by a 150 diameter screw feeder.
  • The mixed batch of pre-mix is discharged via a bottom mounted 75mm diameter actuated valve, into the lower Premix Storage tank.



  • Manufacturer: Hosakawa Ter Braak

    Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

    Hosakawa Ter Braak Premix Batch Autoweigher and High Speed Mixer
    Assets in this listing
    Hosakawa Ter Braak Premix Batch Autoweigher and High Speed Mixer (now showing)
    Hosakawa Ter Braak Complete Candy Depositor Line 2
    Hosakawa Ter Braak Candy Depositor Cooling Tunnel and Sweet Ejection system.
    Hosakawa Ter Braak Flavour & Colour Metering System A
    Hosakawa Ter Braak Flavour & Colour Metering System B
    Hosakawa Ter Braak GB 1350 Twin Headed Double deposit Centre Spot Candy Depositor
    Hosakawa Ter Braak Horizontal Scraped Surface Rotor Cooker and Vacuum Flash off Chamber A
    Hosakawa Ter Braak Horizontal Scraped Surface Rotor Cooker and Vacuum Flash off Chamber B
    Hosakawa Ter Braak Vertical Spiral Steam Heated Coil 'Serpentin' Premix Pre Cooker
    Isomalt Big Bag Stainless Steel Receiving Hopper and Screwfeed discharger
    Lactose PreMix Holding Tank Hot Water Jacketted with Vertical Scrapped Stirrer and 2 Metering pumps
    Overhead 5m high I Beam Isomalt 1 Tonne Big Bag Lifting Crane 1600 Kg SWL Pendulum control
    Stainless Steel Hot Water Jacketted Lactose Mixing Tank with Vertical High Speed Stirrer and pump
    Stainless Steel Manual Milk Whey Feed Hopper and Inoxpa Stainless Steel pumping system
    Stainless Steel Hot Water Jacketted Butter Melting Tank with Vertical Gate Stirrer
    Stainless Steel Hot Water Jacketted Butter Melting Tank with Vertical Gate Stirrer
    Stainless Steel Hot Water Jacketted Uncooked Candy Recovery Tank with Vertical Gate Stirrer and pump
    Stainless Steel Isomalt PreMix Holding Tank internal Steam coil heated with Vertical Impeller mixer
    Equipment Specifications
    Year2001
    ModelAutoweigher
    Air Requirements6 BAR
    Estimated Shipping Weight1.5 Tonnes
    Heating Cooling RequirementsSTEAM HEATED
    Length1.1 M
    Width1.3 M
    Height3.5 M
    Voltage380 / 220 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Recommended Packaging FormCUSTOM PALLET
