Processing Equipment    Pulverizers    322451 Hosokowa Micron Model MVM 50 Vetex Mill And Separator System
Hosokowa Micron Model MVM 50 Vetex Mill And Separator System
Rate listing info and photo quality Why?

Not rated yet
Listing #322451

Hosokowa Micron Model MVM 50 Vetex Mill And Separator System

 EquipNet Tag #00000-0

$45,000.00 Seller's Acceptable Currency

$55,000.00 This price has been reduced from

All offers are submitted in Seller's Acceptable Currency

Equipment Description:

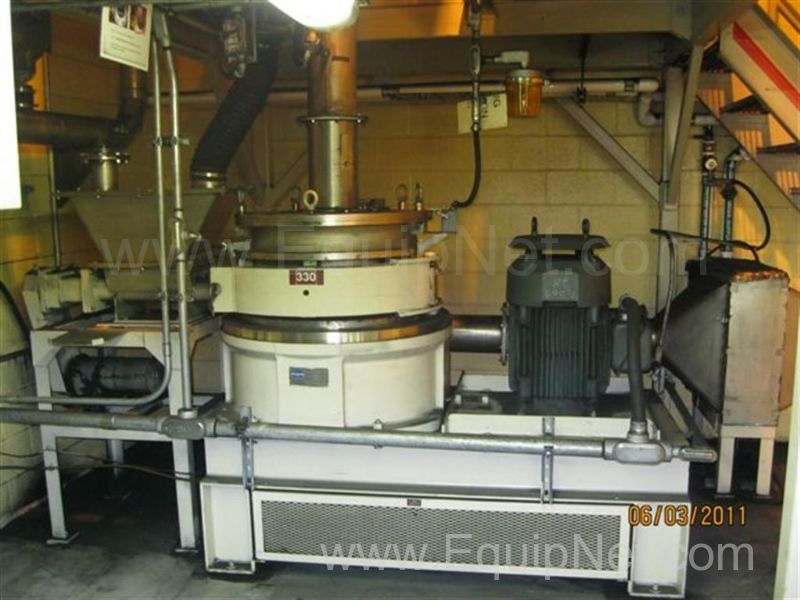

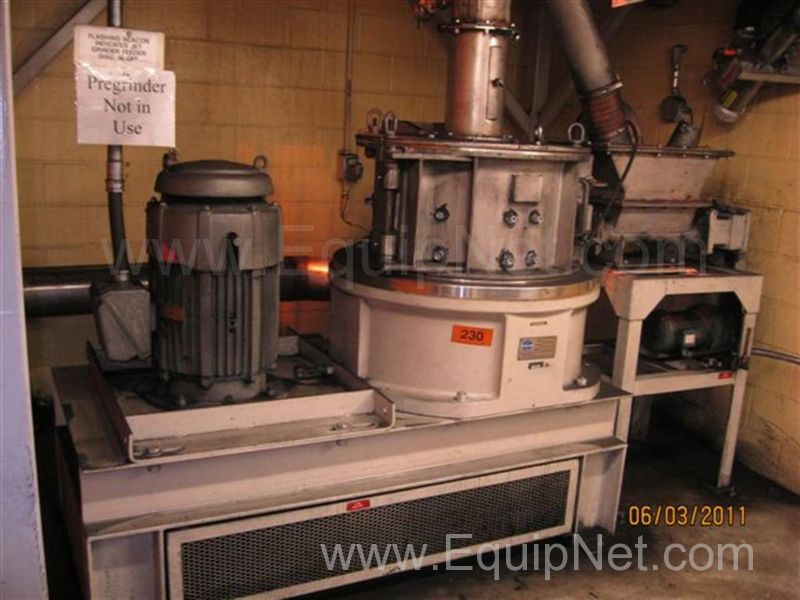

Hosokawa Micron Model MVM 50 Vetex Mill And Separator System
  • 304 stainless steel construction
  • 50 HP main drive; 1 HP screw feeder
  • Bar hammers, (8) pcs. X two stages

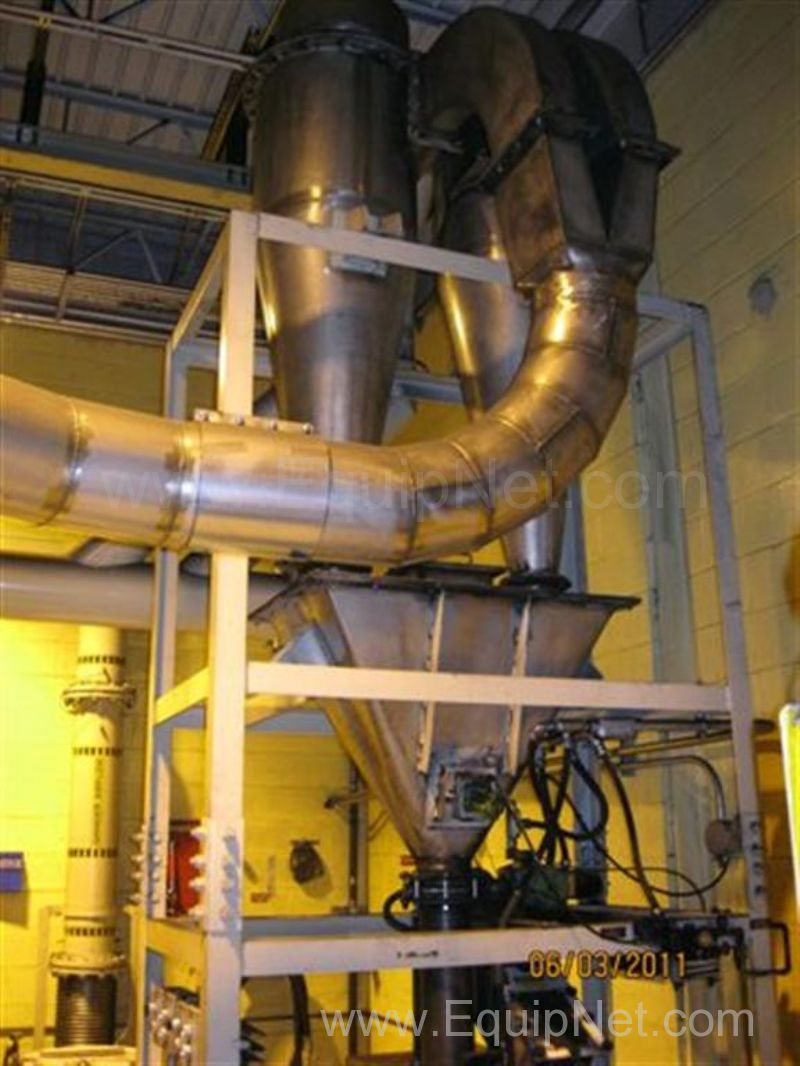

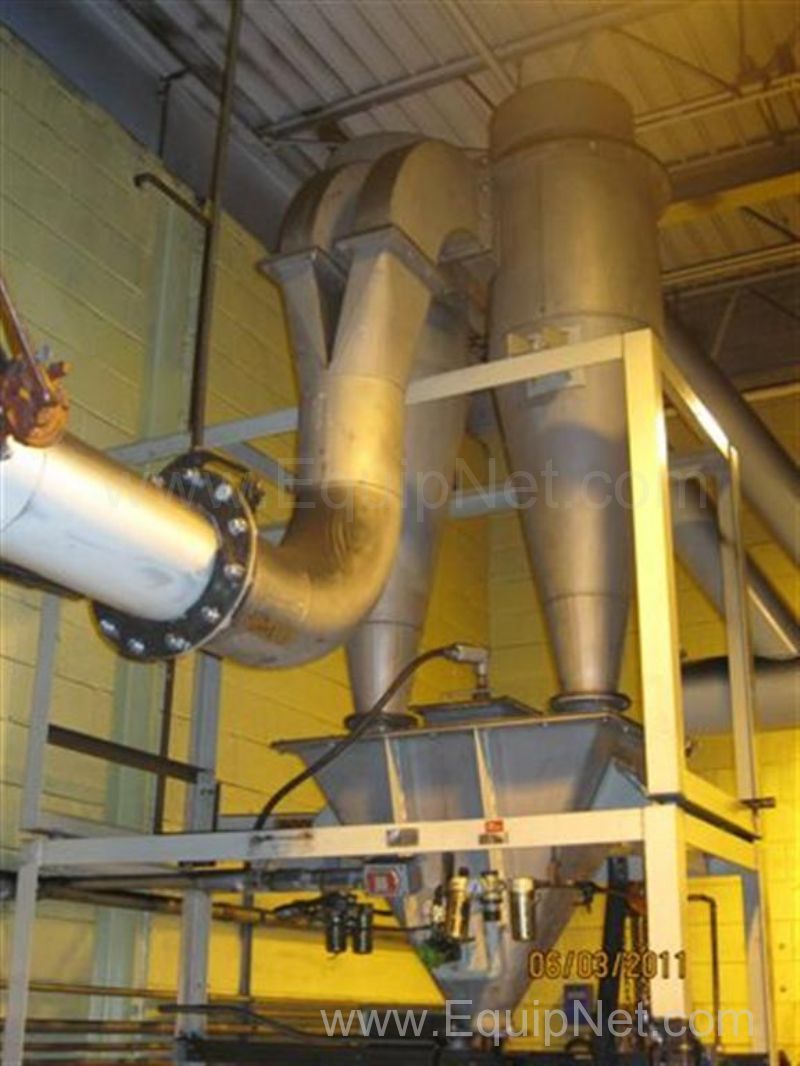

  • Stainless steel cyclones

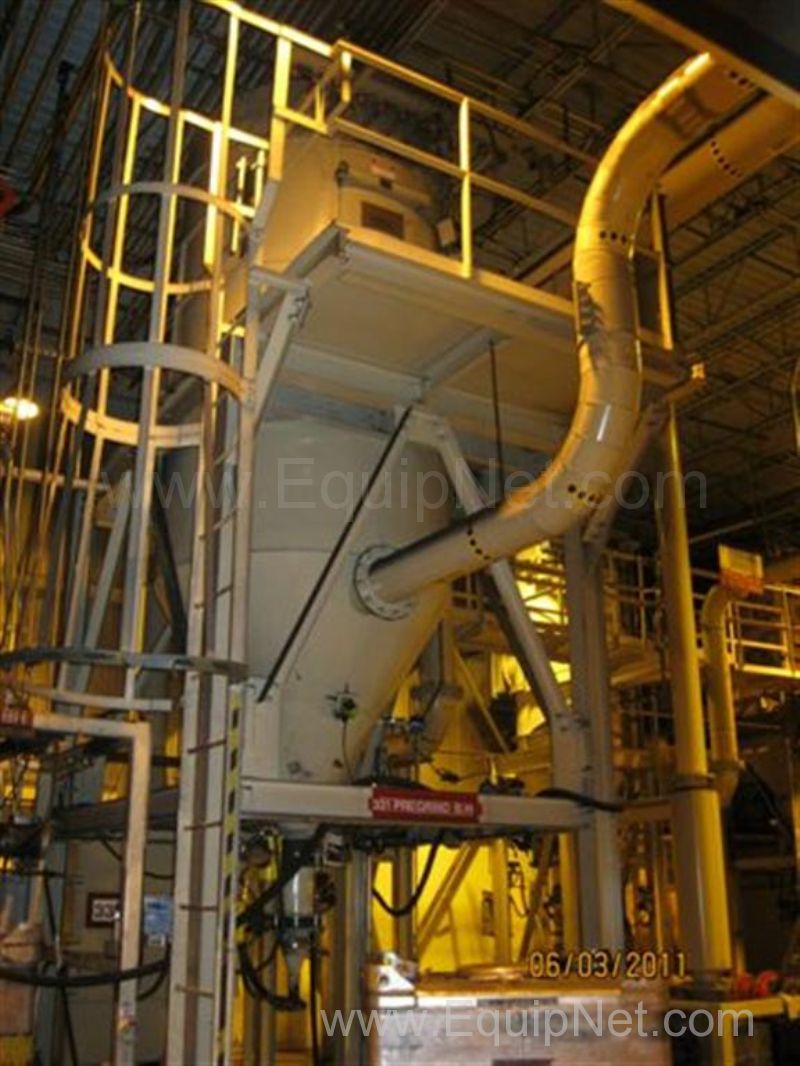

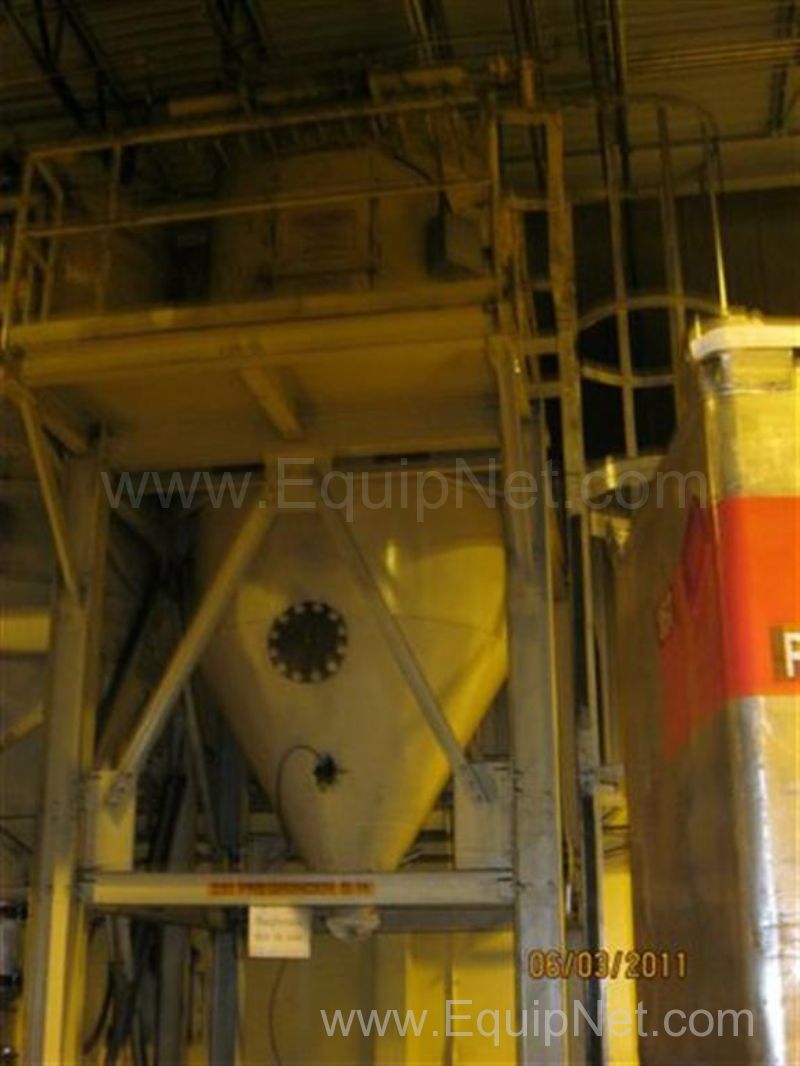

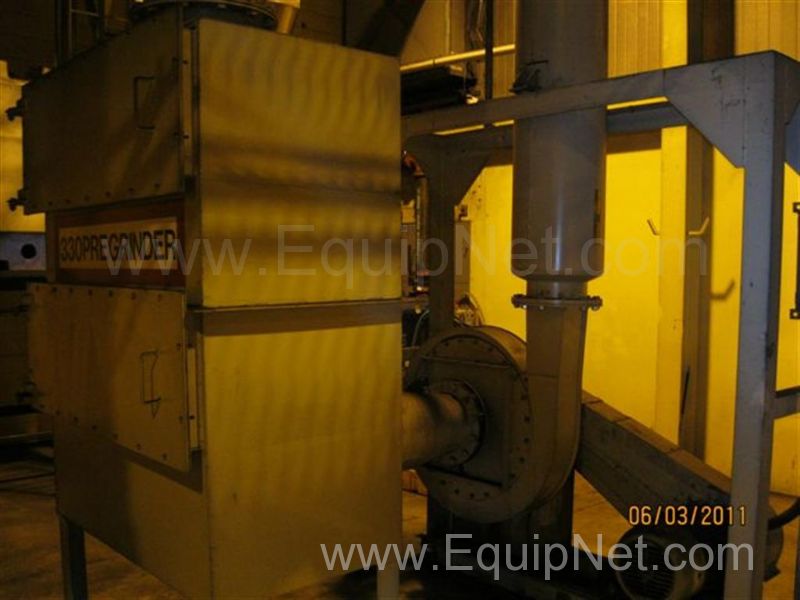

  • Baghouse collector
  • Blowers
  • Interconnecting piping
  • On a base

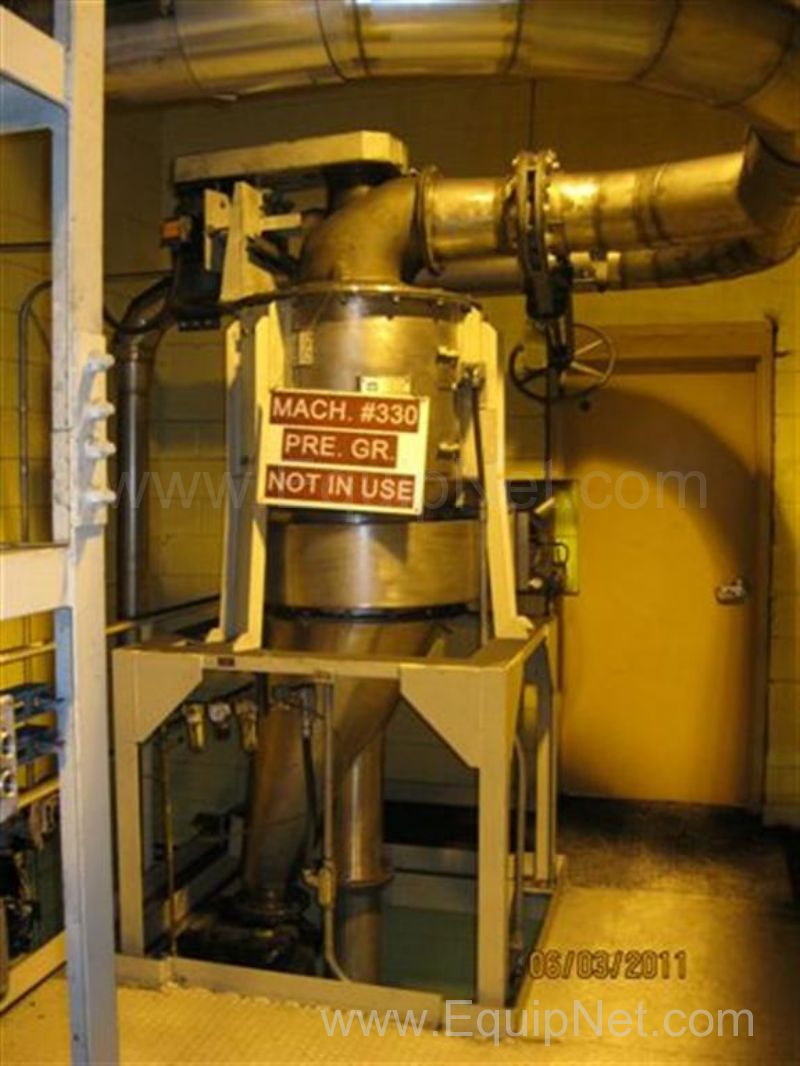

  • The Micron Vertec Mill is an impact type gringer equipped with a built in separator.
    The fed material is ground by the vertical type two-stage rotors, each wquipped with a sqiate hammer and liner installed around the rotors.
    The material fed to the mill is coarsely ground by the lower stage rotor and than finely groung by the upper stage rotor which is larger in diameter than the lower stage rotor which effectively grinds the fed material into a fine powder.
    The material comes out of the upper stage rotor moves inside the guide ring with an air stream and is than separated. At this point, coarse material is sent back to the lower stage rotor for regrind and the fine material is moved to the micron separator on an air stream. In the separator, the material is sepatated again with coarse material being sent back to the mill and fine material sent to the fiished product storage component.
  • This listing is for (1) system. There are two systems available, each listed separtaly. Pictures posted are of both systems.

    • Disclaimers:

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in South Dakota.


    Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Equipment Specifications:

    ManufacturerHosokowa Micron
    ModelMVM 50

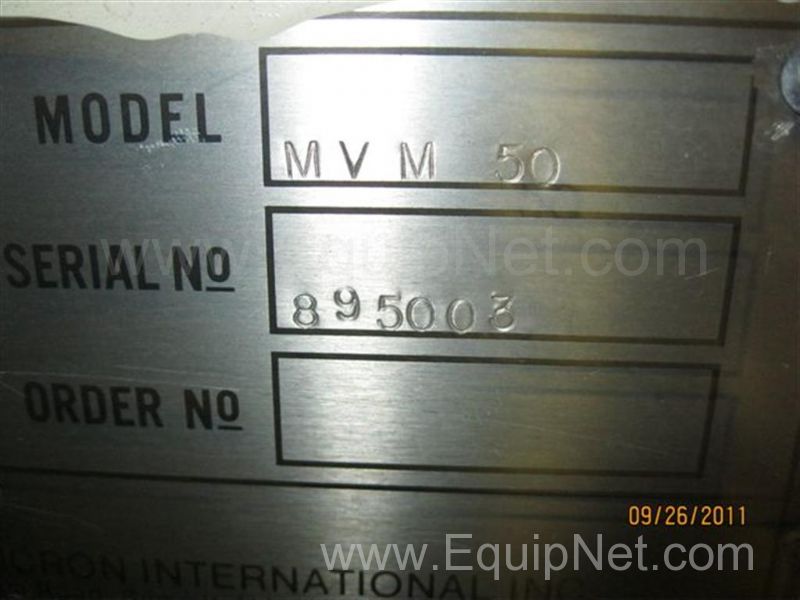

    Serial Number895003
    Capacity Speed3000 RPM
    Estimated Shipping Weight3000 LBS
    Length8 FT
    Width5 FT
    Height8 FT
    Voltage460 VOLTS
    Frequency60 HERTZ
    Phase3
    Type of FeedSCREW FEED
    Type of BladeKNIVES/HAMMERS
    Recommended Packaging FormCUSTOM
    Truck LoadFULL TRAILER
