Listing #278937

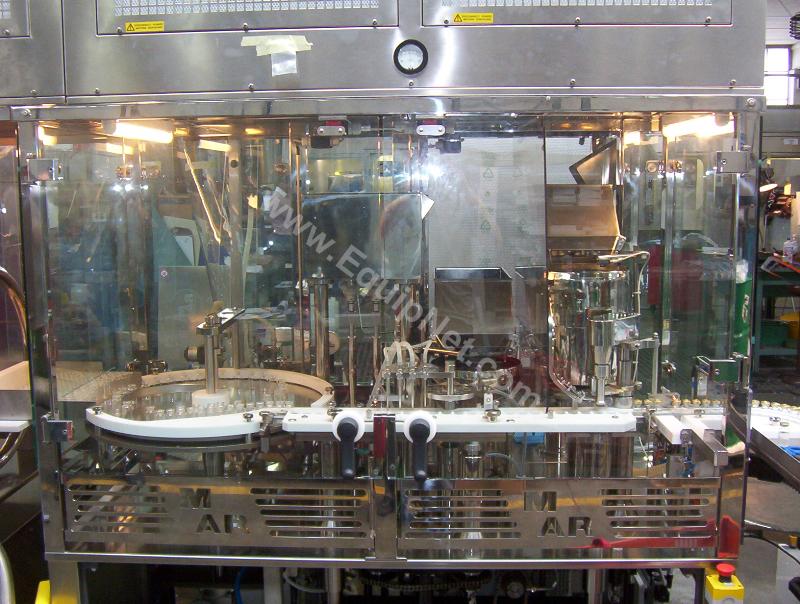

MAR STERILE FILLING, STOPPERING & CAPPING MACHINE
EquipNet Tag #278937-1-1
Equipment Description:

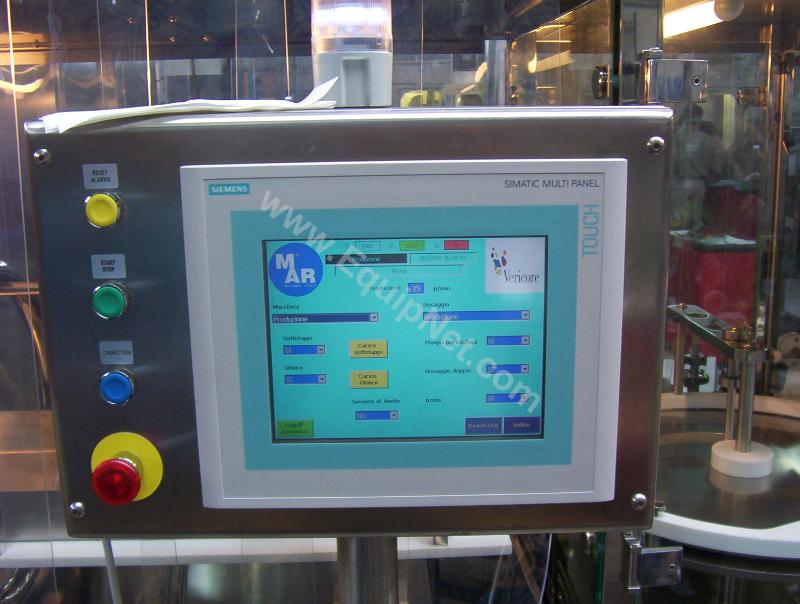

The MAR Automatic Filling, Stoppering and Capping Monobloc Model “M53-2R/1S/1A” is controlled by the SIEMENS Programmable Logic Controller (PLC), to control machine functions, provided with the machine.
This is an intermittent motion monobloc machine carrying out Filling, Stoppering and Capping operations running at single pitch (1 syringe/vial per time). It is complete with:

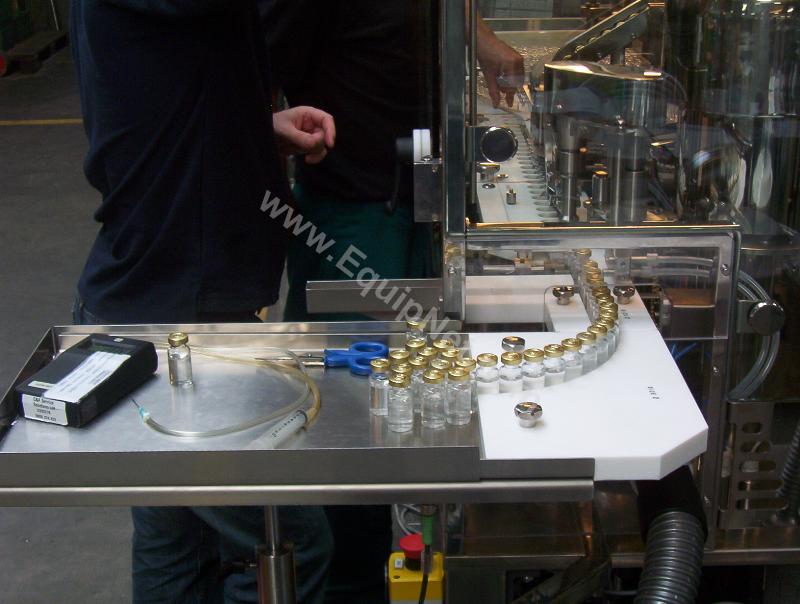

One Vial feeding unit to feed container through their way on the machine; it is complete with 1 infeed turntable compact with the machine frame used to load empty vials to the machine infeed, “comb” style transfer system for vial moving under the different stations of the machine.

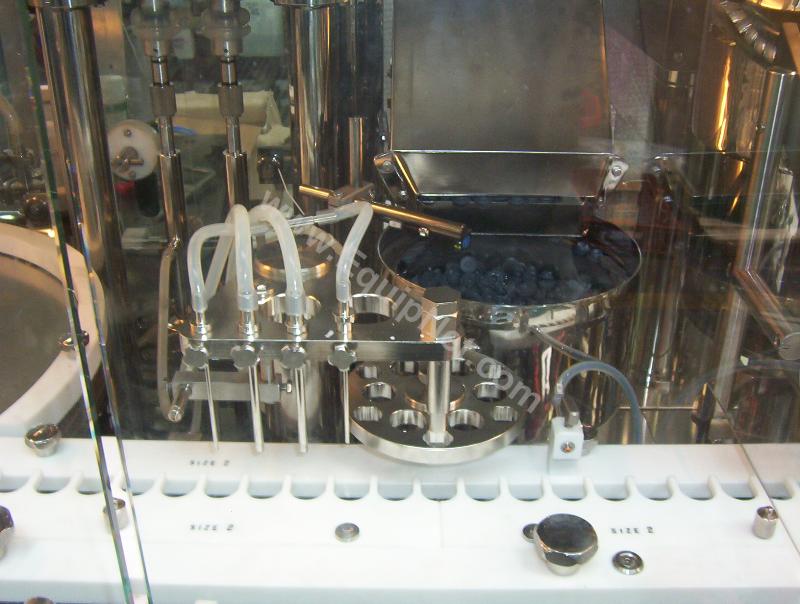

One Filling unit (2R) complete with 2 AISI 316 stainless steel unidirectional rotary valve-less and seal-less volumetric syringes, nominal capacity 10 ml. and 2 AISI 316L stainless steel dosing nozzles.
One Nitrogen Purging unit including 1 AISI 316 stainless steel nozzle for nitrogen purging before filling and 1 for nitrogen purging after filling.

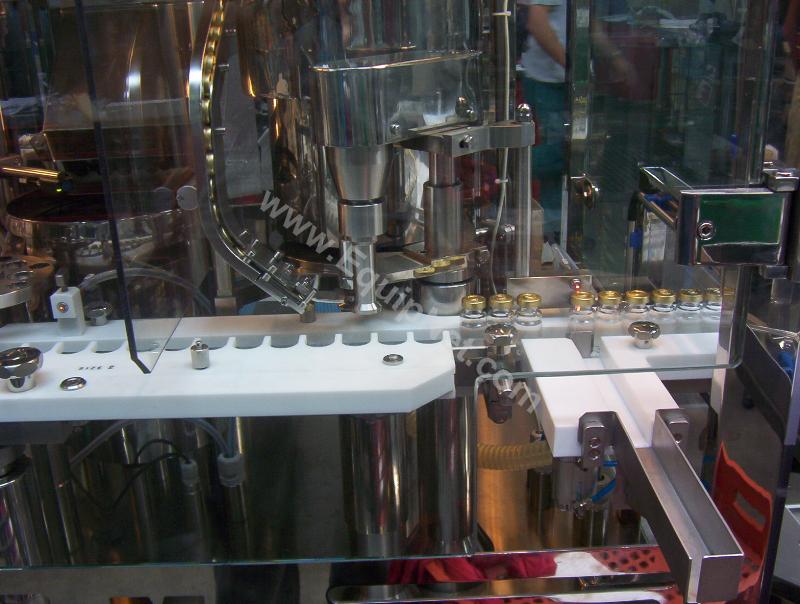

One Rubber Stopper application unit (1S) including 1 AISI 316 stainless steel vibrating bowl feeder completed with 1 AISI 316 stainless steel disc for rubber stopper positioning and centring over vial mouth and a pusher for the insertion on the vial.
One Alu-cap application Unit (1A) to apply alu-caps onto filled vials, including 1 AISI 316 stainless steel vibrating bowl feeder completed with 1 AISI 316 stainless steel vertical chute and a mechanical sealing roller for sealing operations.
It will be possible to operate the machine in three operating modes named “Production”, “Production End” and “Jog”.
The machine is equipped with a number of safety sensors and emergency stop buttons.
On the activation of any of the emergency stop buttons, or violation of any of the safety sensors, the machine will stop immediately (i.e. “out of phase”). This function is achieved by electrical hardwiring.
Other “process critical” sensors are also located on the machine. If any of these sensors are violated during production the PLC will ensure that the machine stops “in phase” (i.e. the machine shall continue until dosing of vial is complete).
Comes complete with L.A.F. unit (never been used)
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | MAR |
| Year | 2006 |
| Model | M53-2R/1S/1A |
| Serial Number | 515 |
| Capacity Size | UPTO 20ML MAX VIAL FILL ML |
| Spare/Change Parts | NO |
| Manual Available | YES |
| Estimated Shipping Weight | TBA KGS |
| Maintenance Log/Records Available | NO |
| Length | TBA MM |
| Width | TBA MM |
| Height | TBA MM |
| Voltage | 415 VOLTS |
| Phase | 3 |
| Recommended Packaging Form | CRATE |
