Packaging Equipment - Cartoners - Horizontal Cartoners - 238255 MARCHESINI CONTINUOUS MOTION HORIZONTAL CARTONER Model BA 400
Rate listing info and photo quality why?
Not rated yet
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

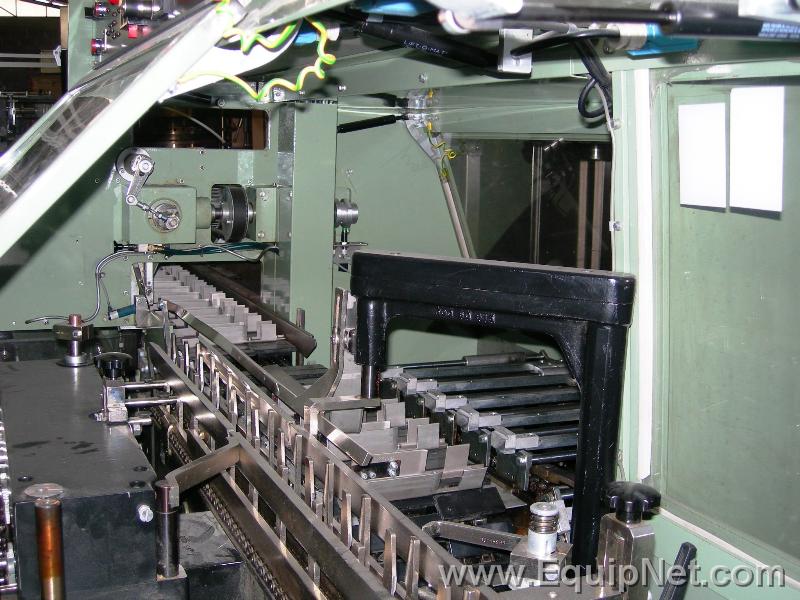

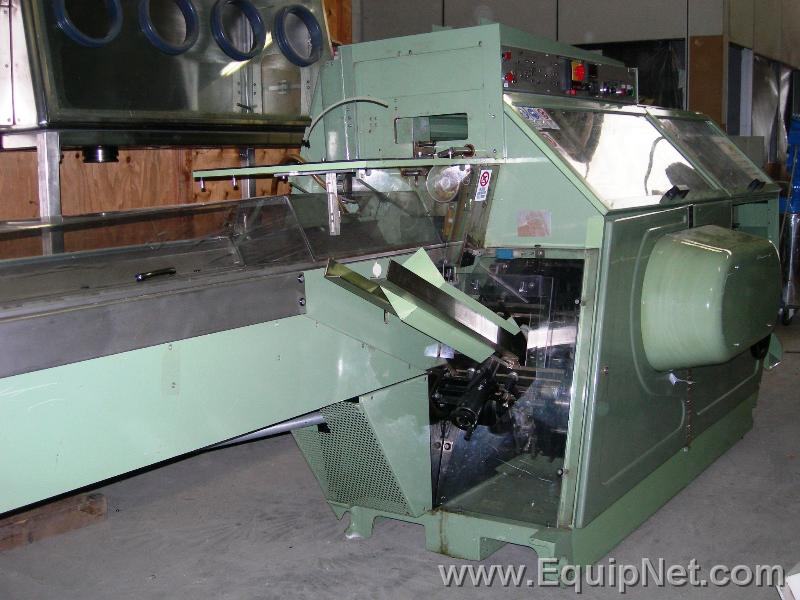

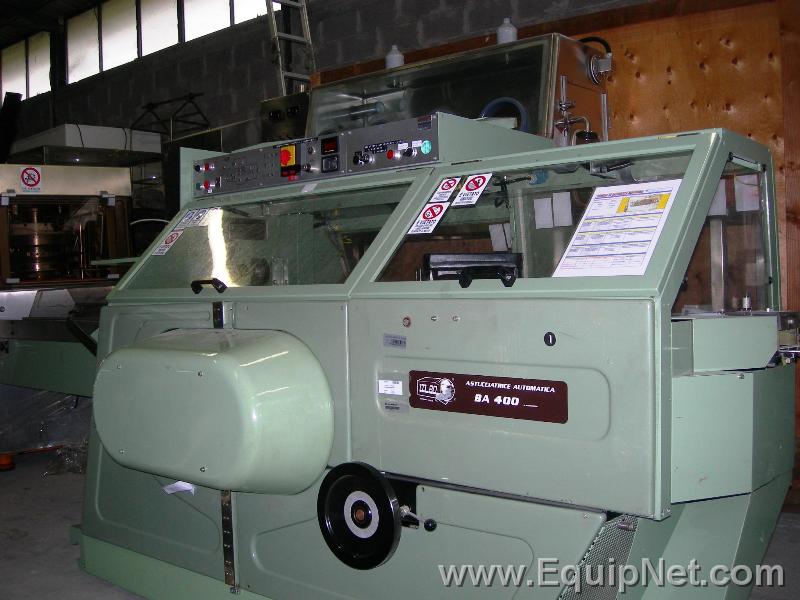

MARCHESINI CONTINUOUS MOTION HORIZONTAL CARTONER Model BA 400
Listing #238255
EquipNet Tag #238255-1-1
Listing Price:€30,000.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Italy.

The BA 400 series continuous motion cartoners provide all the benefits of the most advanced production technology and constant research in this particular sector of automatic packaging. They combine the advantages of reduced overall dimensions with greater sturdiness and improved reliability presented in an attractive modern line.

Balcony (cantilever) Layout allows for simple cleaning. Differentiated placement of mechanical and drive units as well as separated product handling are basis for a clean machine, assuring safety when executing lot changes. These cartoners have a completely enclosed structure with safety devices on all the opening parts to ensure overall protection and compliance with all the current safety regulations. The Mehanite cast iron base and the motor unit also in cast iron, enclose the main drive mechanisms and the transmission in oil bath structures, permitting high speed operation without vibrations or noise, and reduce maintenance to a minimum.

The basic and completely original feature of the BA 400 cartoning machines consists of their carton loading pick-up and erection system. The magazine is positioned below the product conveyor line on the operator side to facilitate loading. The positive motion pick up and erection drum can open cartons out by 180°, thus obtaining correct pre-breaking of the cartons which can then be transferred by the traverse drum onto the conveyor belt and centred perfectly against the pockets containing the product. The cartoning unit consists of two drive boxes, one fixed and the other with automatic size change adjustment.

The pusher unit on the opposite side to the operator allows space for maneuvering and easy access to all parts of the machine. The rapid centralized adjustments of the Product and Carton conveyor belts, the rapid size setting systems with no need for tools permit rapid and precise Size Change adjustments.

The cartoner is without folding machine.

CM144/27
matricola GRUPPI CM 17804
Brevetti : 3357A/80
Year 1985
Installed power Kw 6
Frequency Hz 50
Voltage Volt 380
Compressed air consumption bar 120 Nl/1’-6
Phase 3

Format range
(The size range is referred to the carton size)
Width: 25-70 (mm)
Height:15-70 (mm)
Length: 78-150 (200) (mm)

Capacity speed
300 boxes/min

Length mm 4200
Width mm 1400
Height mm 1550
Approx net weight Kg 2000


Equipment Specifications
ManufacturerMarchesini
Year1985
ModelBA 400
Serial NumberCM144/27 CM 17804 3357A/80
Capacity Speed0 BPM
Estimated Shipping Weight2000 kg LBS
Length4.2 M
Width1.4 M
Height1.55 M
Product HandlingHORIZONTAL
Product LoadingAUTOMATIC
ClosureSPECIAL
Method of Code DaterNONE
Line MotionCONTINUOUS
AccessoriesUNKNOWN
Recommended Packaging FormPALLET
