Listing #221042

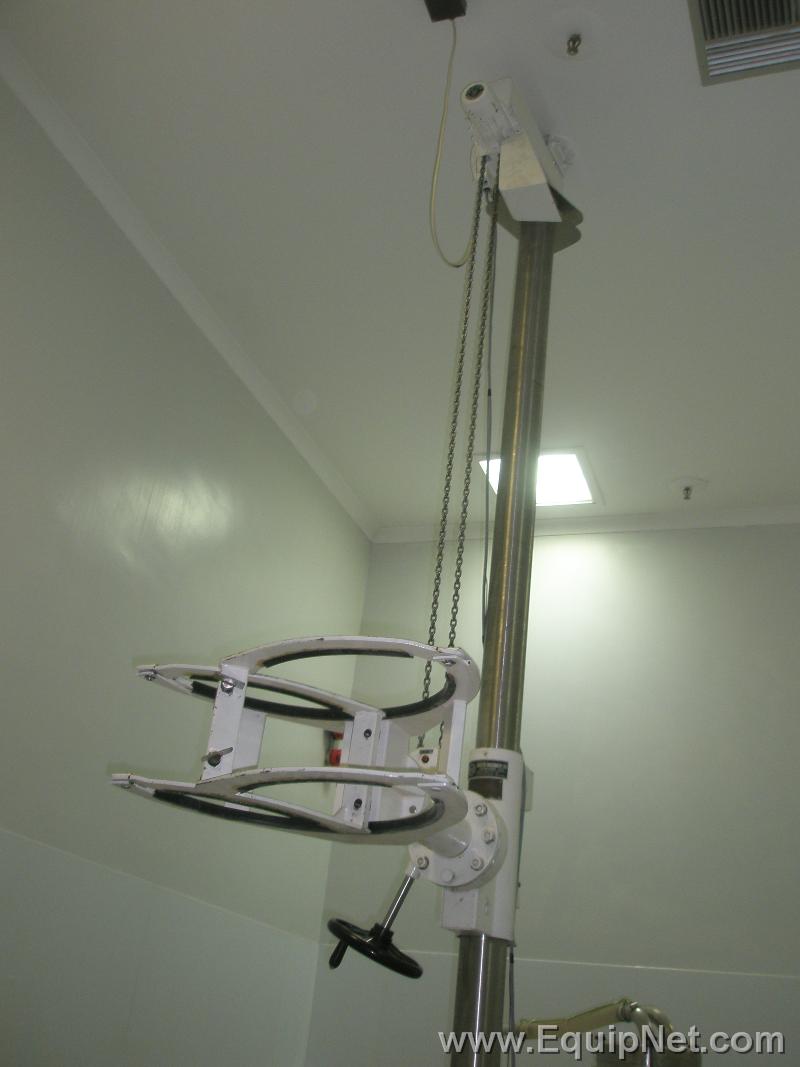

Master Machinery 210Kg SWL Vertical Swivelling Column Barrel Lifter
EquipNet Tag #11139171, 11139190
Equipment Description:

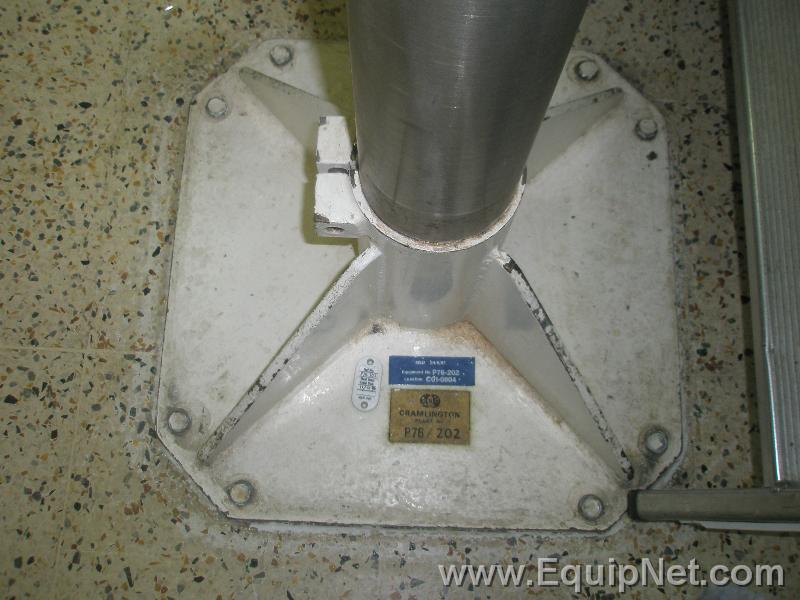

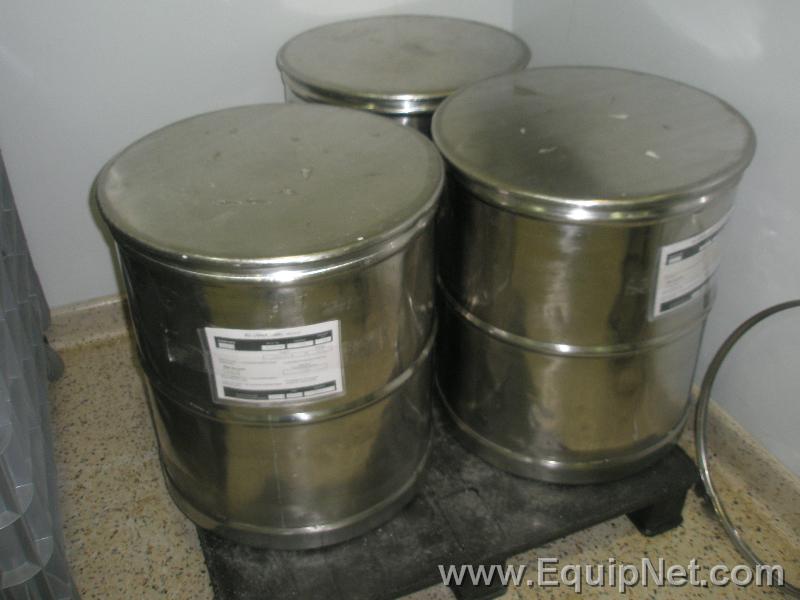

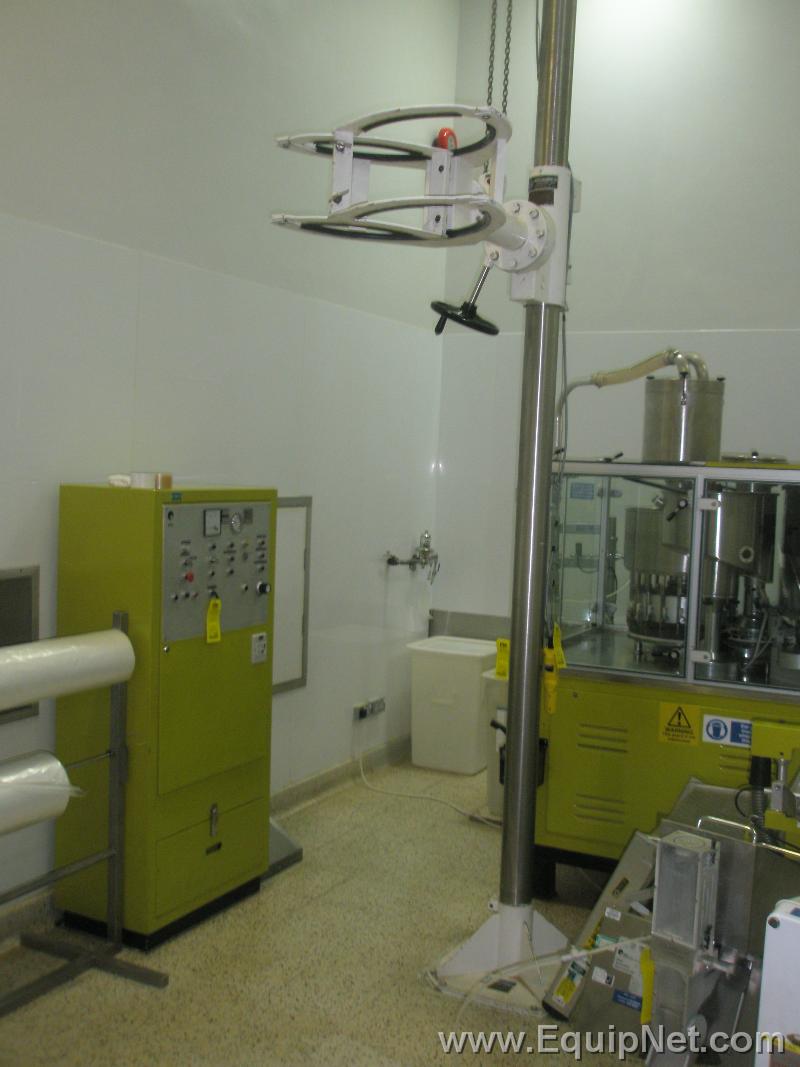

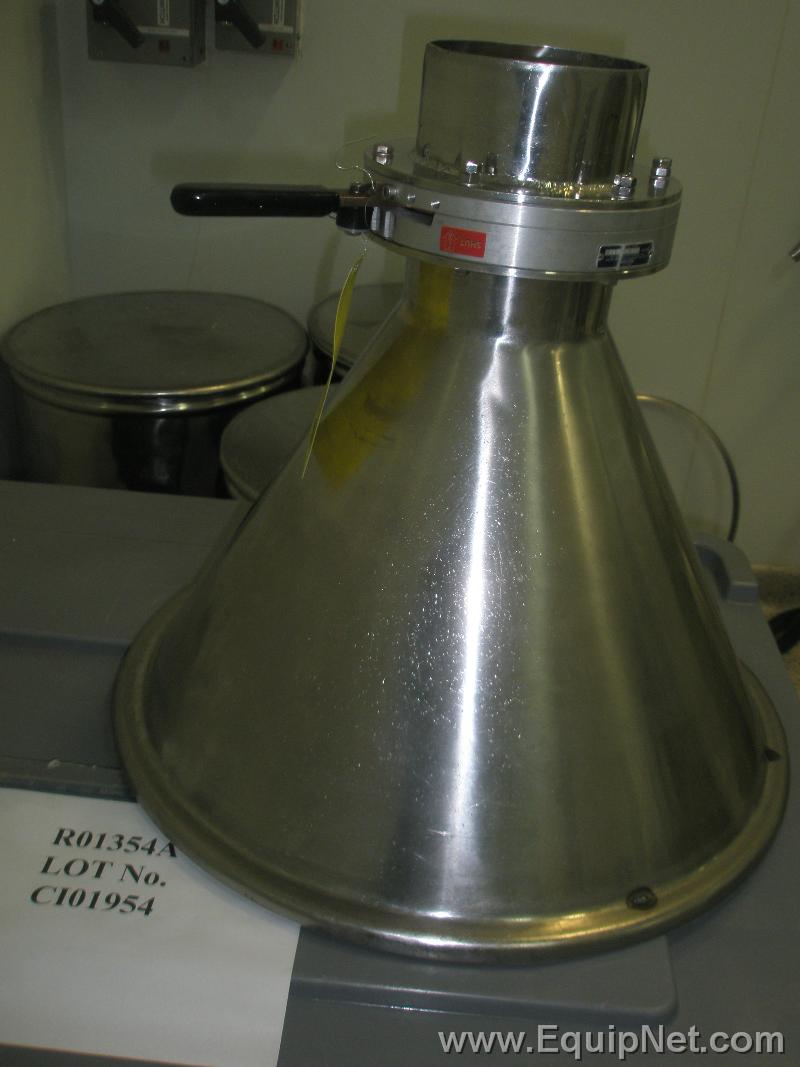

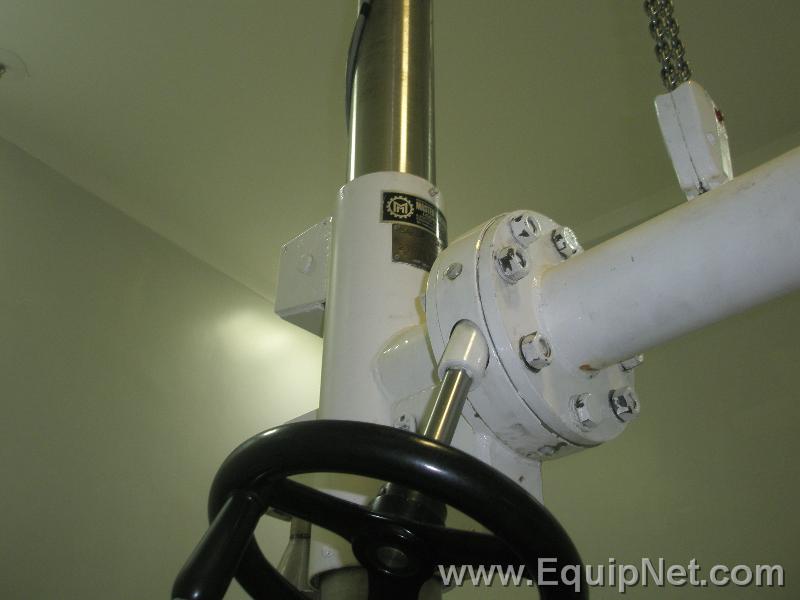

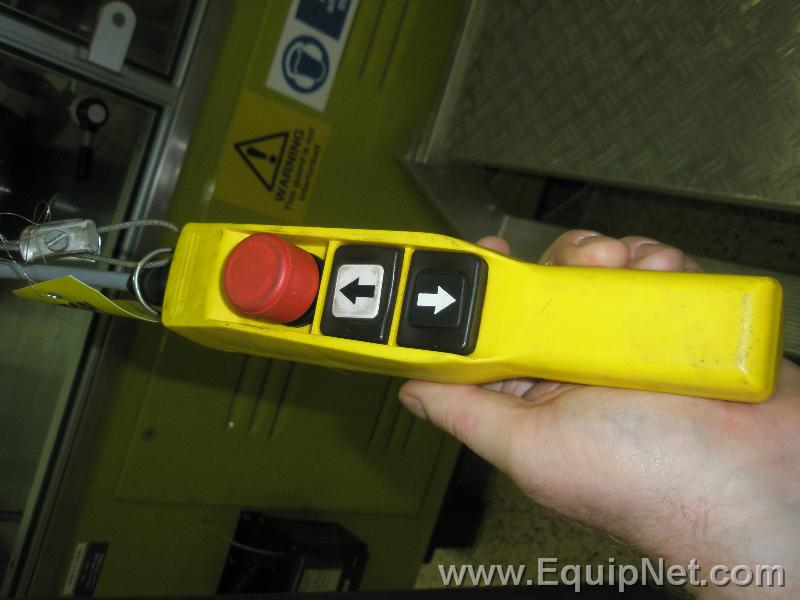

Master Machinery, 210Kg SWL, Vertical Swivelling Column Barrel Lifter, Electrically powered + Funnel The unit is mounted on a Floor footed to Ceiling bracketed 5.75m high 4.5" diameter swivelling column, fitted with a top mounted Electric motor chain lifting hoist, which lifts the Stainless Steel 600mm diameter x 680mm high drums, filled with the blended Incocid pellet / powder mixture, in its manually screw clamped barrel clamps, complete with attached barrel emptying funnel, to above the MG 2 Capsule filling Machine hopper, where the barrel is emptied, by upending the barrel using the manually operated barrel clamp swivel gearbox handwheel. For added control of product emtying the attached drum discharge funnel, Tag No 11139190, which measures 600-150mm diameter x 600mm long, is fitted with a manual 150mm gate valve.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Master Machinery |
| Year | 1976 |
| Model | Vertical 210 Kg Barrel Lifter |
| Capacity Size | 210 KGS |
| Length | 0.75 M |
| Width | 1.35 M |
| Height | 5.75 M |
| Estimated Shipping Weight | 500 Kgs LBS |
| Other Specs | Needs removing from ceiling |
| Recommended Packaging Form | CUSTOM PALLET |
