Listing #234612

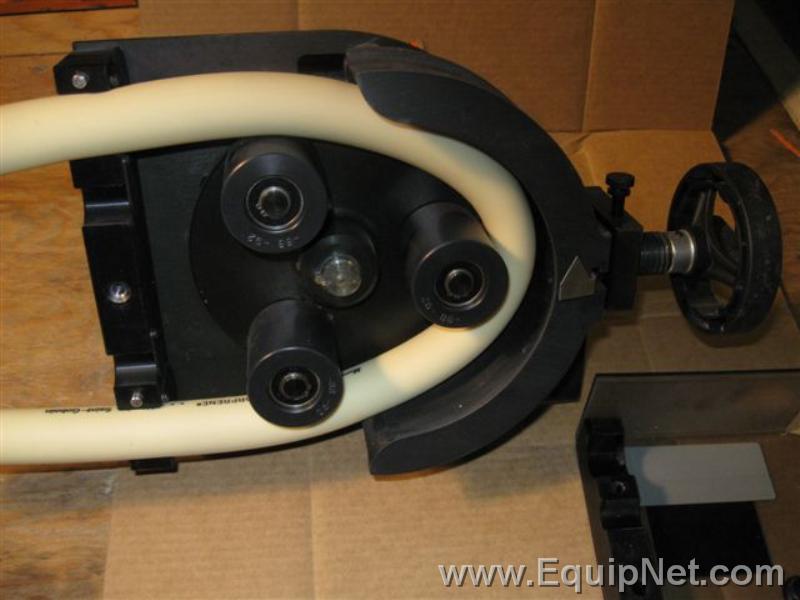

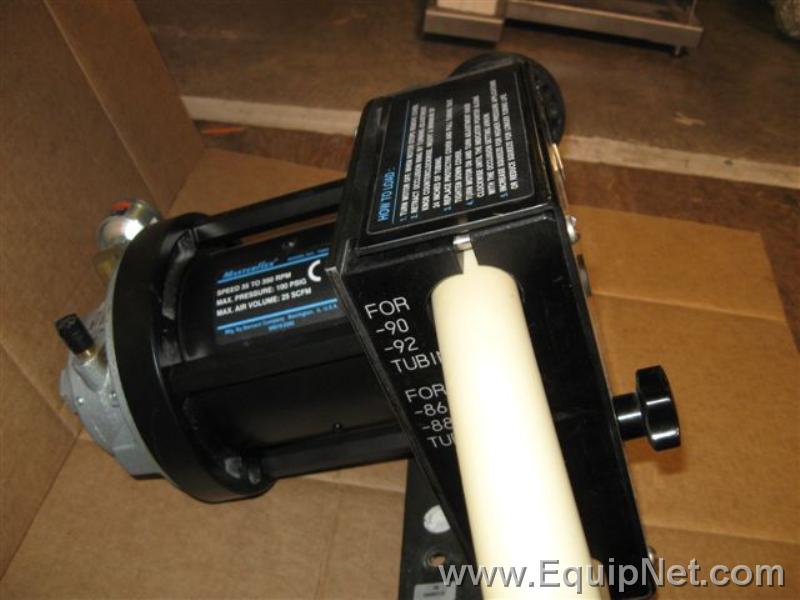

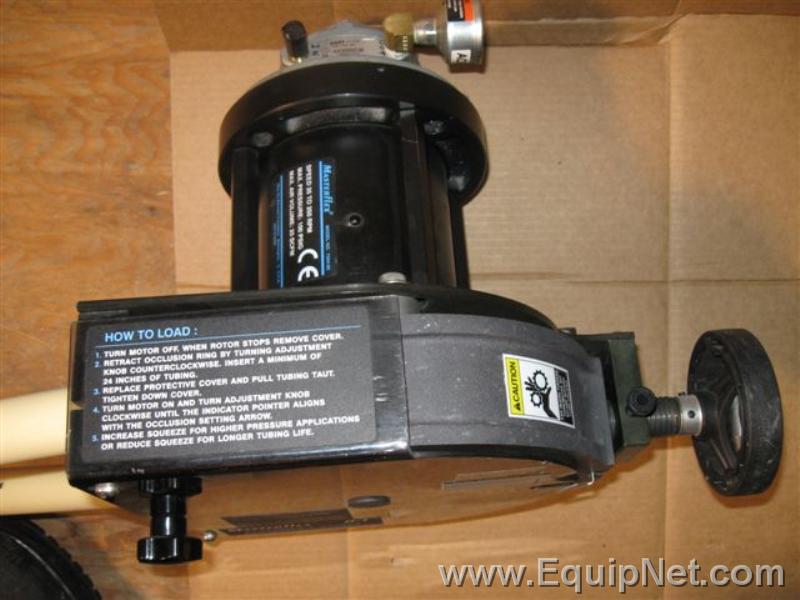

Masterflex Air-Powered Pump Model 7584-80
Equipment Description:
Marque : Masterflex
Modèle : 7584-80
Speed 35 to 350 RPM
Max Pressure : 100 PSIG
Max : Air Volume : 25 CFM
RK-07584-80
Masterflex® B/T® air-powered pump, 35-350 rpm.
Flow range: 0.8 to 7.5, 1.5 to 15, 3 to 30, or 4.5 to 45 LPM. Choose flow
range based on tubing size; see flow table below.
Air-powered motor; use in locations where electricity is unsafe or
impractical.
IP56 rated pump protects against dust and low pressure jets of water.
Pressure regulator included. Control your compressor air to match your pump
requirements.
12 cfm (0.34 m3), 40 psi (2.7 bar) minimum air required. Supply your own
compressor to power pump.
Specifications
Pump Series
Min flow rate
Liters/min
0.8
Max flow rate
Liters/min
45
Flow rate with B/T 86 tubing
Liters/min
0.8 to 7.5
GPM
0.2 to 2
Flow rate with B/T 88 tubing
Liters/min
1.5 to 15
GPM
0.4 to 4
Flow rate with B/T 90 tubing
Liters/min
3 to 30
GPM
0.8 to 8
Flow rate with B/T 92 tubing
Liters/min
4.5 to 45
GPM
1.2 to 12
rpm
35 to 350
IP rating
IP56
Motor type
Air-powered
Motor
hp
3/4
Dimensions
16-1/2"L x 13"W x 10-1/2"H, (42 cm x 33 cm x 26.7 cm)
Power
Air-powered: Minimum 12 cfm at 40 psi |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Canada. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Masterflex |
| Model | 7584-80 |
| Spare/Change Parts | no |
| Housing Material | Rubber |
| Empeller Material | Plastic |
| Inlet Size | 1,1/4 IN |
| Outlet Size | 1,1/4 IN |
| Estimated Shipping Weight | 100lbs |
| Maintenance Log/Records Available | no |
| MSDS Available | no |
| Length | 16-1/2 IN |
| Width | 13 IN |
| Height | 10-1/2 IN |
| Recommended Packaging Form | PALLET |
