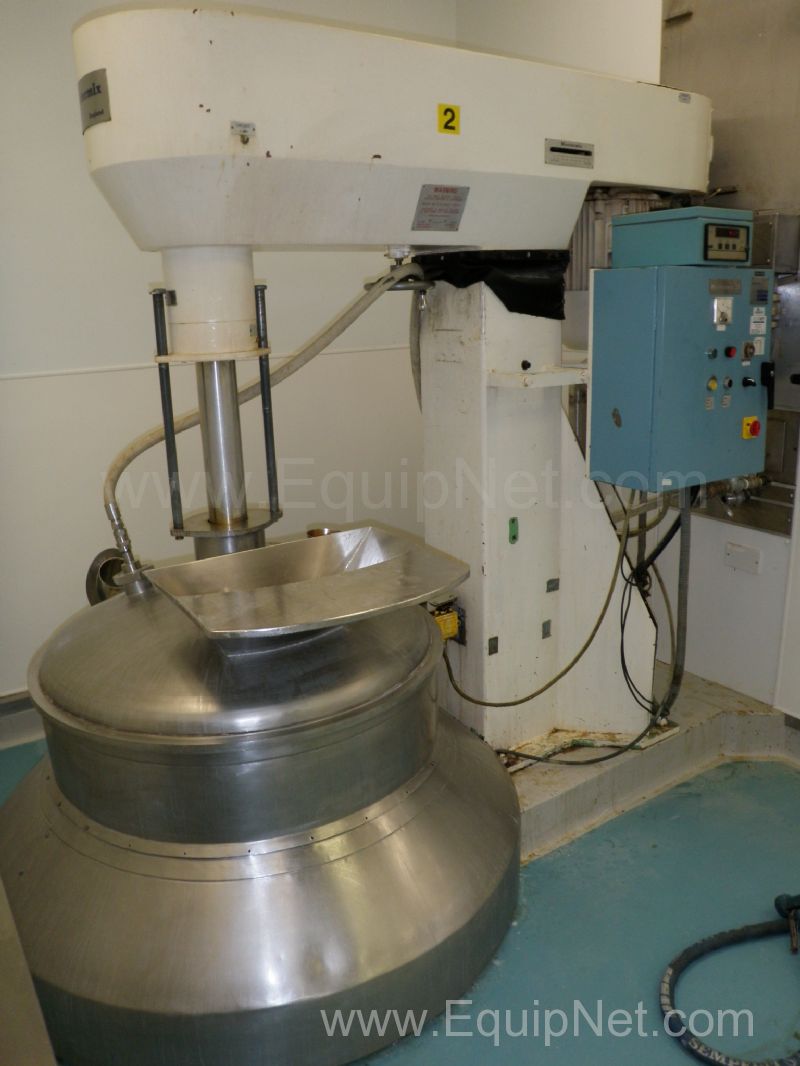

Mastermix High Shear Turbine Mixer inside a 316L Stainless steel Vertical 1200 Litre Mixing Vessel
Rate listing info and photo quality Why?

Not rated yet
Listing #283254

Mastermix High Shear Turbine Mixer inside a 316L Stainless steel Vertical 1200 Litre Mixing Vessel

 EquipNet Tag #283254-1-1

£20,000.00 Seller's Acceptable Currency

All offers are submitted in Seller's Acceptable Currency

Equipment Description:

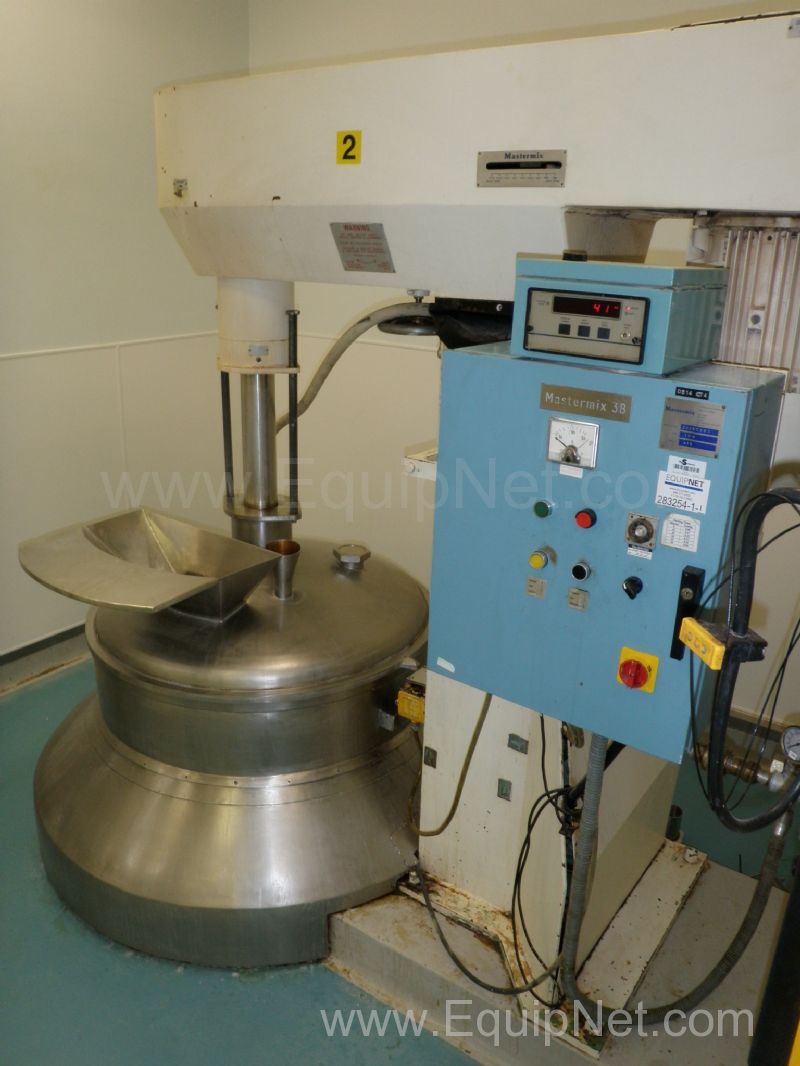

Mastermix High Shear Turbine Mixer inside a 316L Stainless steel Vertical 1200 Litre Mixing Vessel

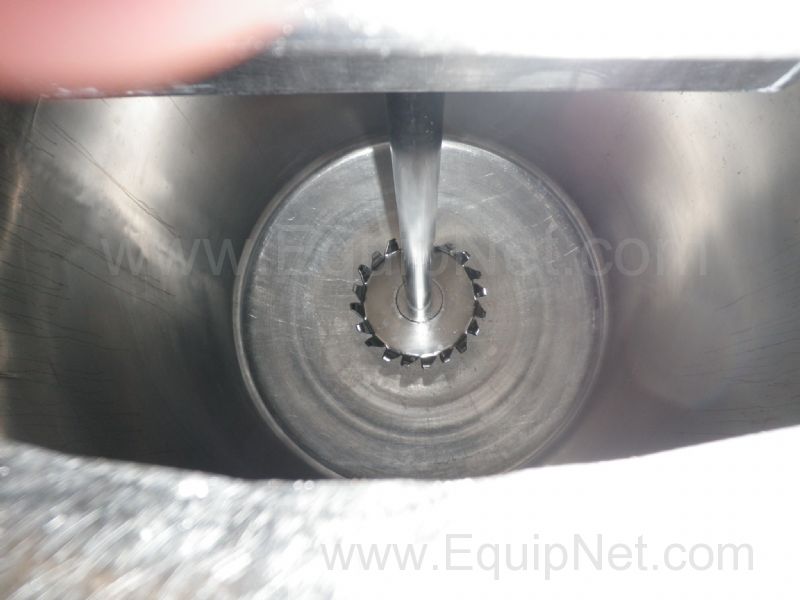

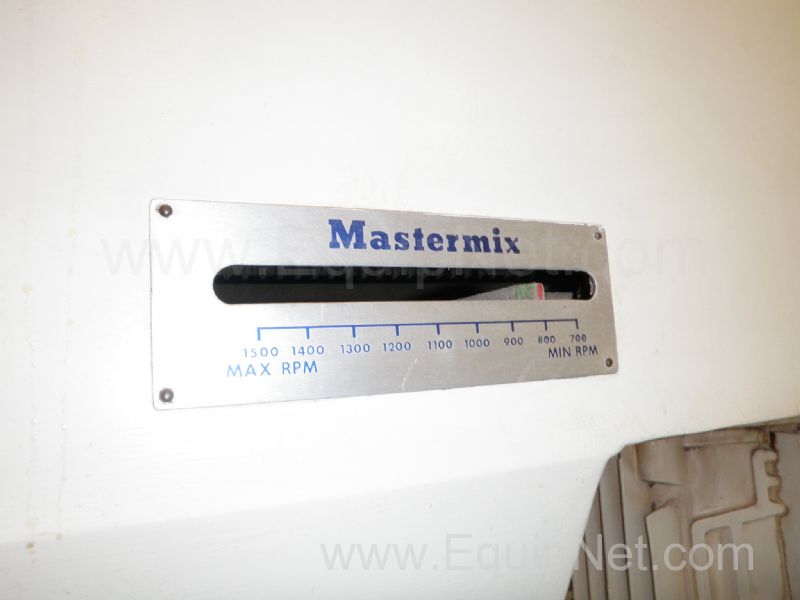

  • The Turbine Hi Shear Mixing Head can operate at speeds between 700 -1500 RPM, is capable of being manually lifted by means of 2 off side screw adjustable supports.
  • The Mezzanine supported Mixer operates inside an unjacketted side lagged and clad 316L S/s 1200 Litre Vertical Mixing Vessel, 1000mm internal diameter x 1550mm Straight side high, which is fitted with a Domed top and bottom, and supported by 3 side mounted lugs from the surrounding Mezzanine floor structure.

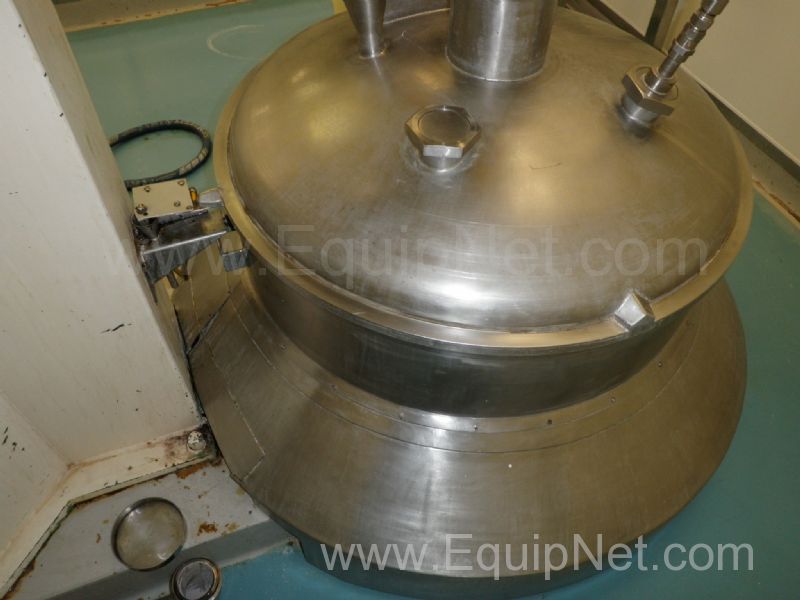

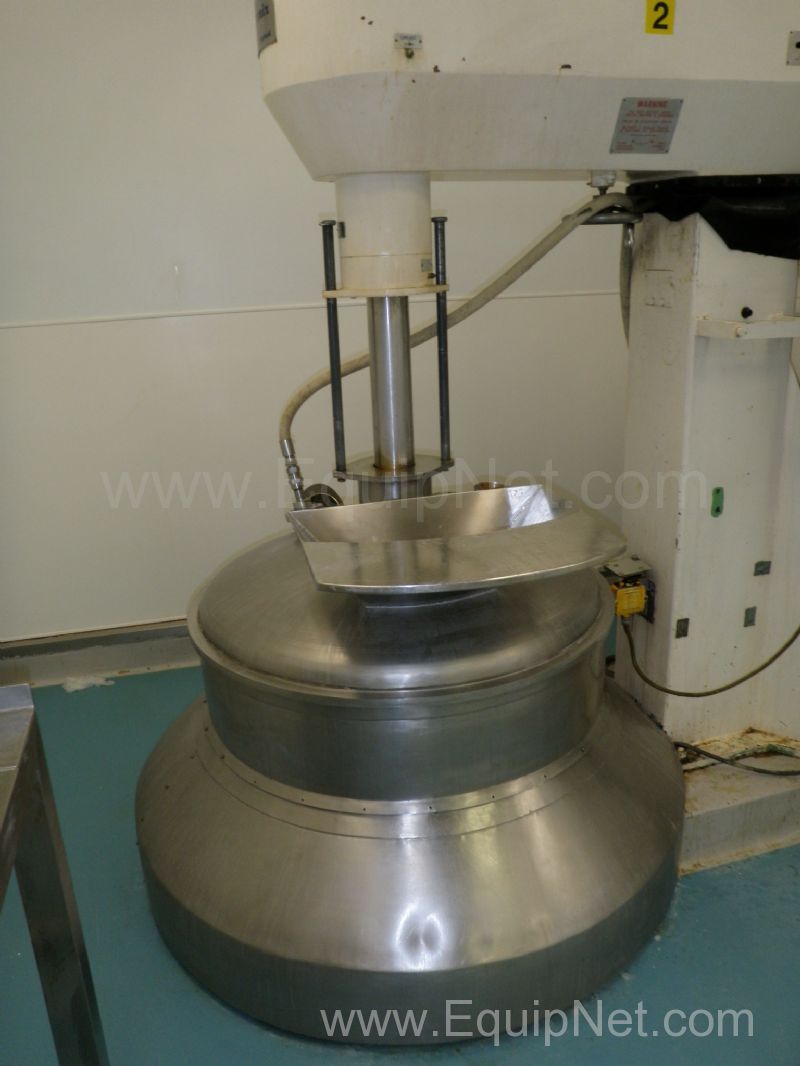

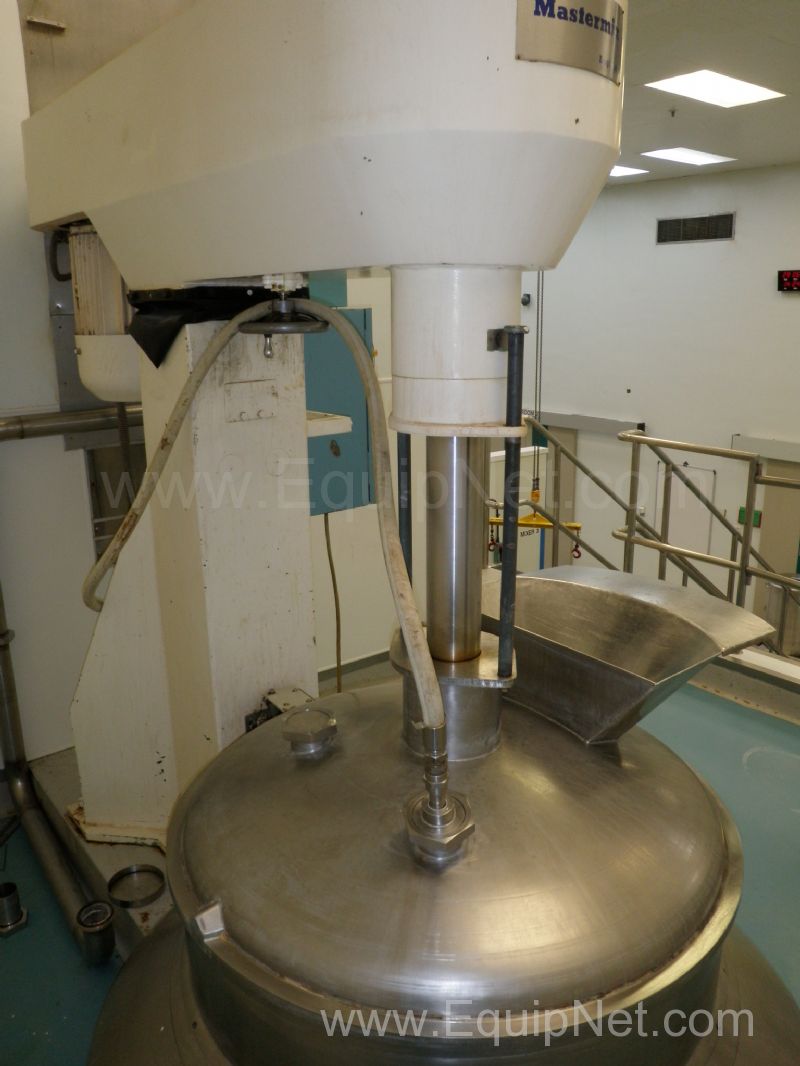

  • The domed top is fitted with the central Mixer drive shaft, which is surrounded by 2 off 80mm diameter quick release liquid ingredient Inlets, plus a 50mm diameter coned Minor Ingredients Inlet, 1.4m high, and a 300mm long x 112mm wide x 1060mm high Major Powder Ingredients Inlet Funnel.

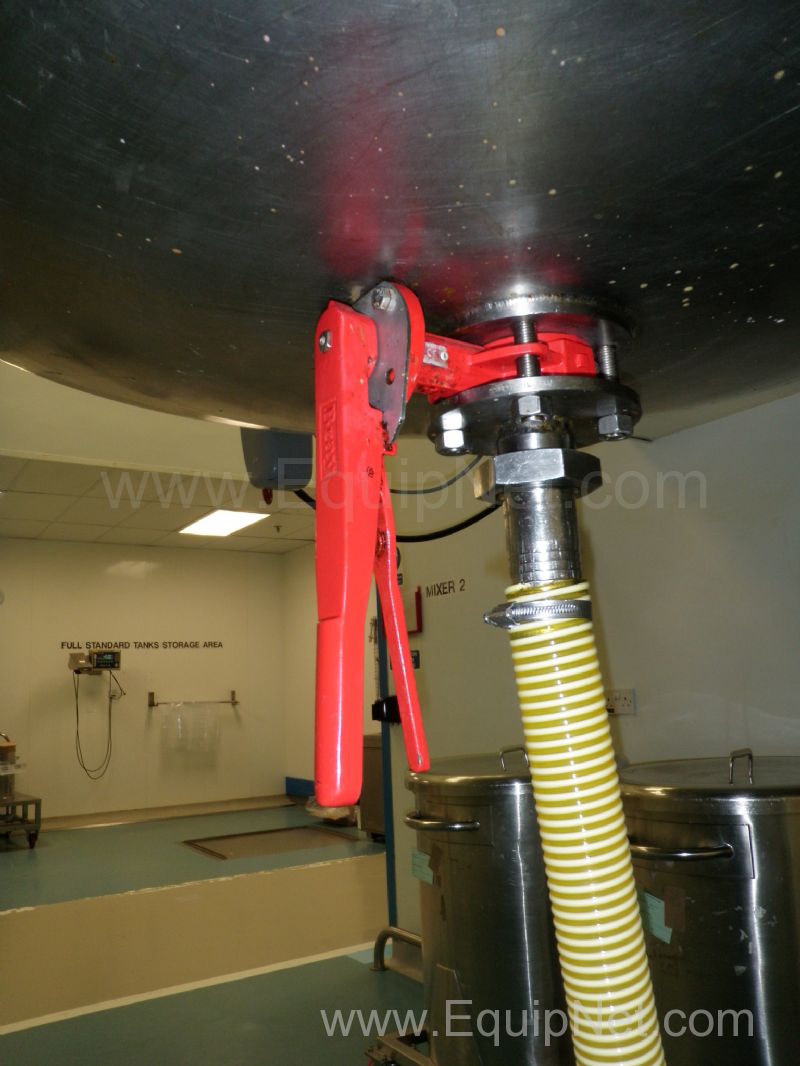

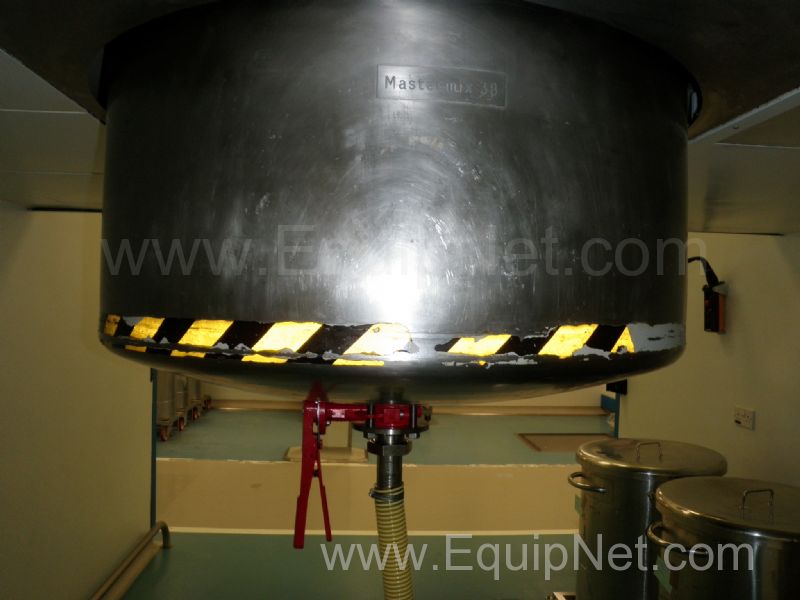

  • The domed base of the Vessel is fitted with a central 50mm diameter Outlet, fitted with a manual Butterfly valve.

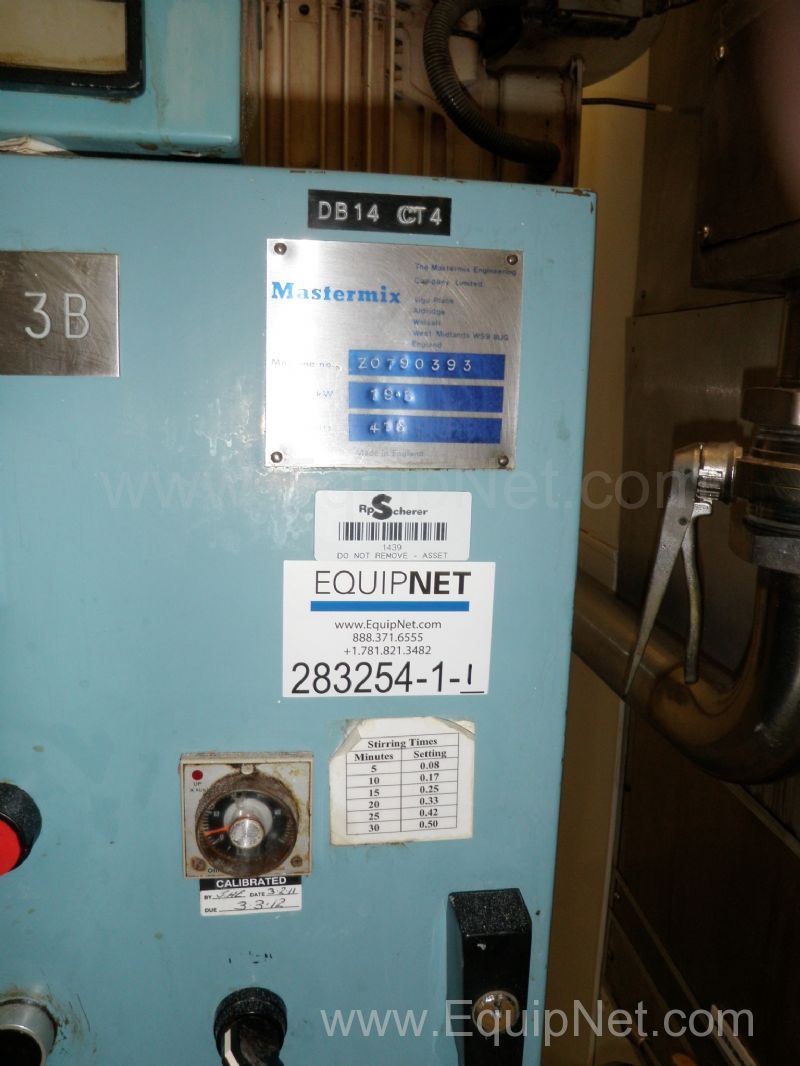

  • The Mixer support frame is fitted its side mounted Control Panel.

    • Disclaimers:

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom.


    Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Equipment Specifications:

    ManufacturerMastermix
    ModelMastermix 3B
    Serial NumberZ0790393
    Capacity Size1200
    Speed/Motor700 - 1500 RPM
    Products RunGelatine
    Estimated Shipping Weight5000 KGS
    Length2.6 M
    Width1.6 M
    Height3.25 M
    Diameter1000 MM
    Depth1550
    Voltage415 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Current19.5 Kw
    Recommended Packaging FormCUSTOM PALLET
