Listing #321684
Mega-Tech Model GC-6B Liquid Filler Capper Combination
EquipNet Tag #321684-1, 321684-2
Equipment Description:

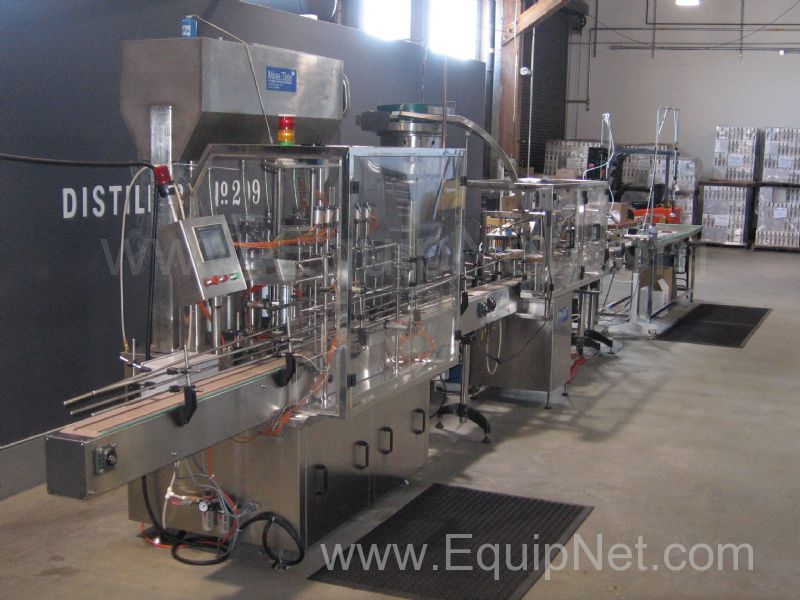

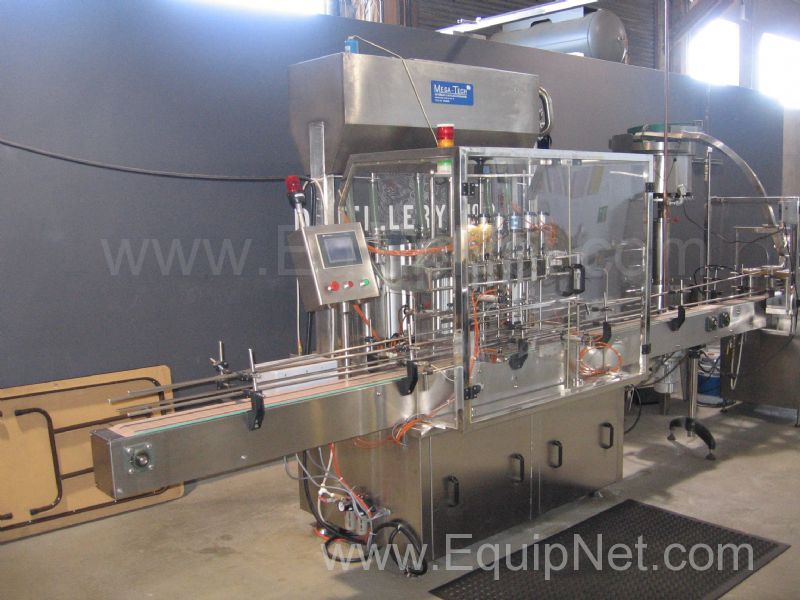

Mega-Tech Model GC-6B Liquid Filler Capper Combination
304 stainless steel construction

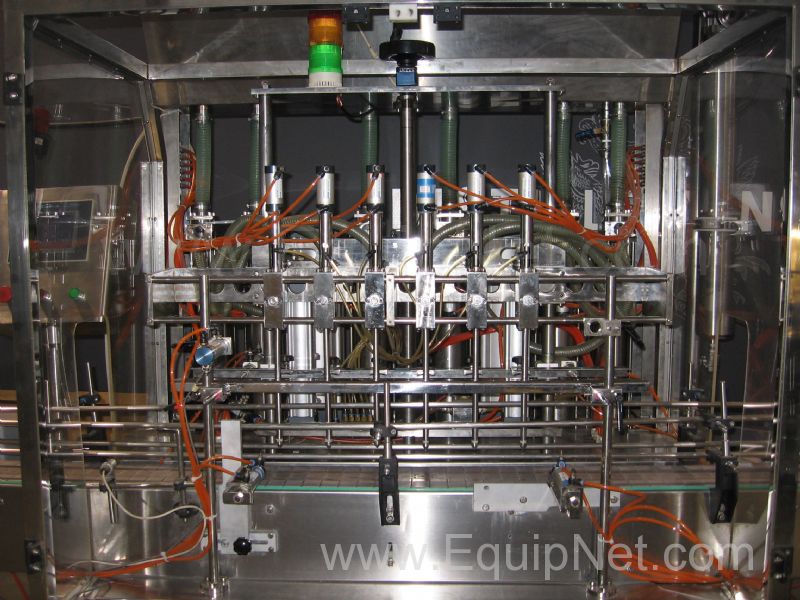

Six (6) head filler

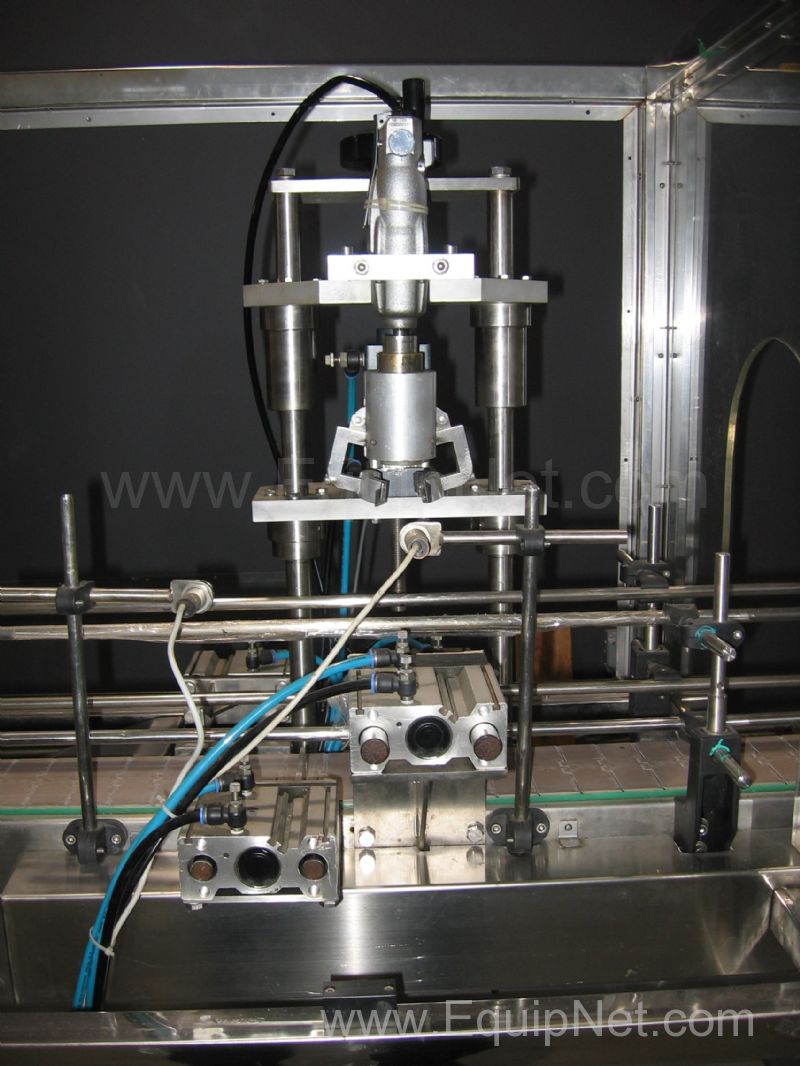

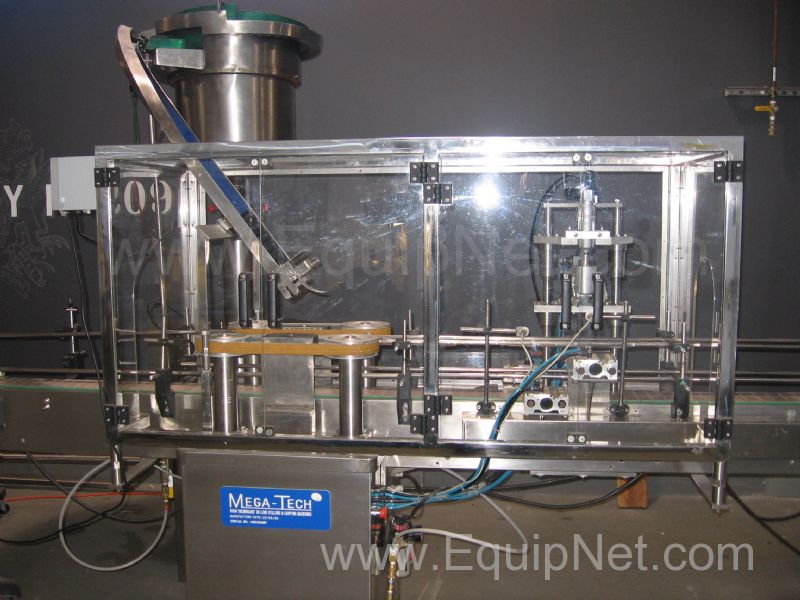

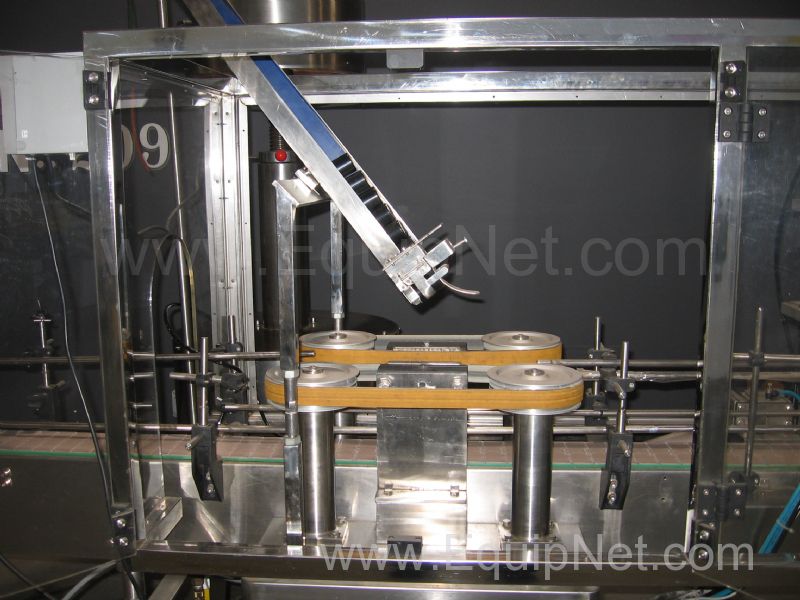

Cap Feeder
Three sizes of bottles were filled on this line: 375ml, 750ml, and Liter. The manual specifies a range of 300ml to Liter
The speed ran was about 12 bottles a minute, but the unit can run much faster than tha,t as the previous service was a custom bottle that is tapered, wide at the top and narrow at the base. This bottle required more handling and slowed down the line speed. A more standard bottle can be run much faster, as the slow running speed was not due to the capabilities of the machine but the restrictions of previous bottle design. This filling line was designed for bottles with uniform sides that would be able to butt against each other without knocking themselves over
The closure size that the unit is designed for is 37mm in diameter and 63mm tall
The specification page of the manual (included as an attachment) is a bit cryptic. There is a “productive ability of 4-5 times/min”. This refers to the number of filling cycles per minute. At six bottles a cycle that would put the theoretical maximum speed of the line at 24-30 bottles per minute. The volume of the container being filled and the size of the bottle would account for the variability of the speeds
Table is not included with filling line, but is available at a separate negotiated price
Previous service was in a distillery
Unit is in excellent condition |
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in California. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Mega-Tech |
| Year | 2005 |
| Model | GC-6B |

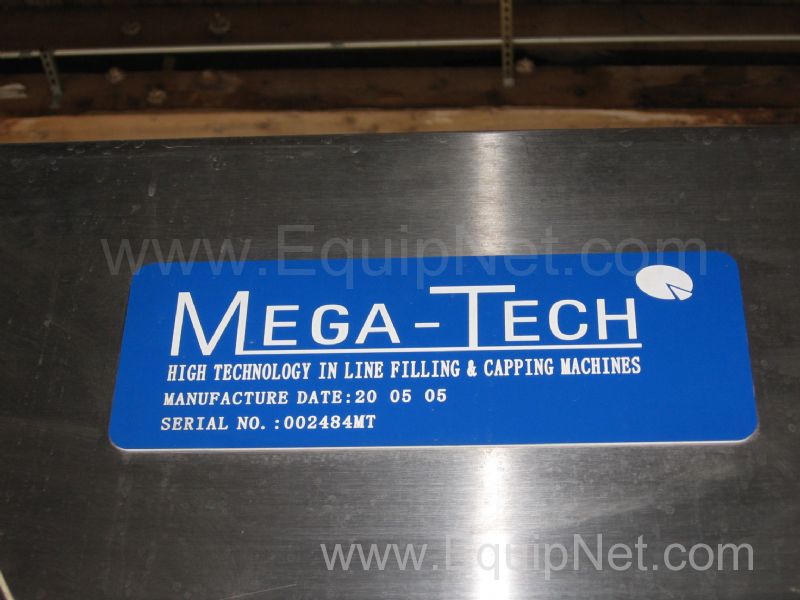

| Serial Number | 002484MT |
| Capacity Size | 300-1000 ml/g |
| Air Requirements | 3 CU FT/MIN |
| Estimated Shipping Weight | 1300 LBS |
| Length | 5000 MM |
| Width | 1200 MM |
| Height | 2400 MM |
| Frequency | 60 HERTZ |
| Type of Cap | SCREW |
| Filling Method | VOLUMETRIC |
| Recommended Packaging Form | CUSTOM |
