311841 Ross Model HDM-10 Double Planetary HV Blade Mixer

Rate listing info and photo quality Why?

Not rated yet

Listing #311841

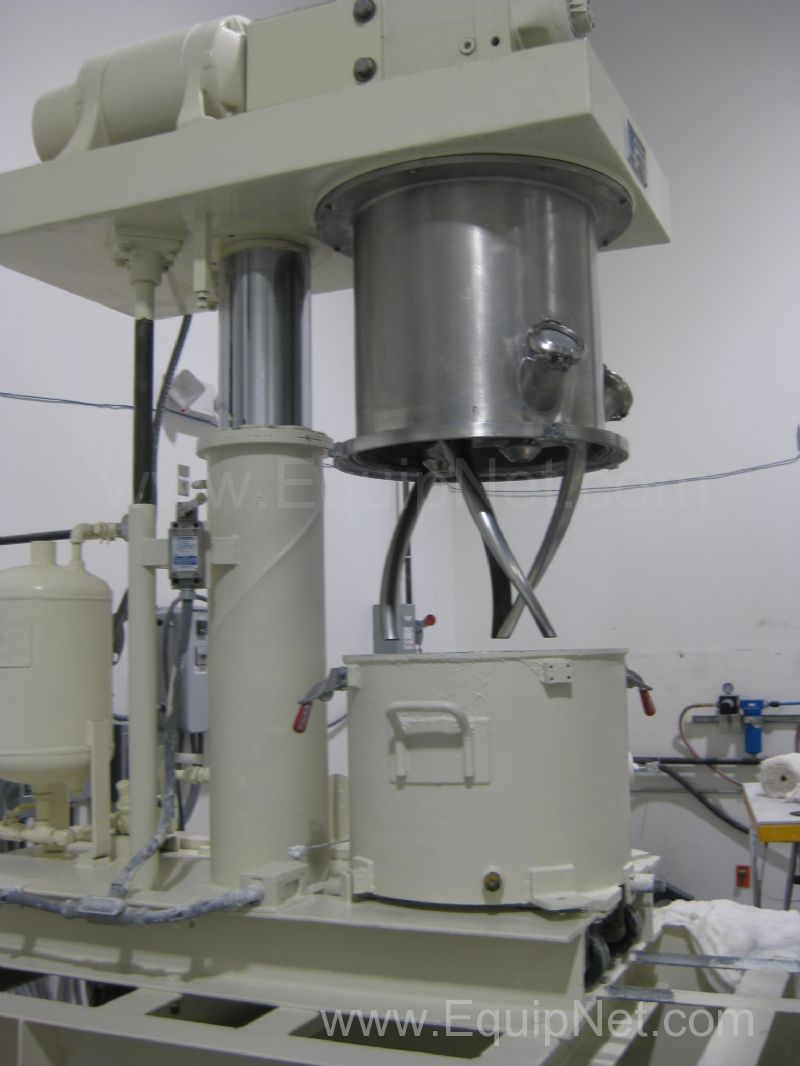

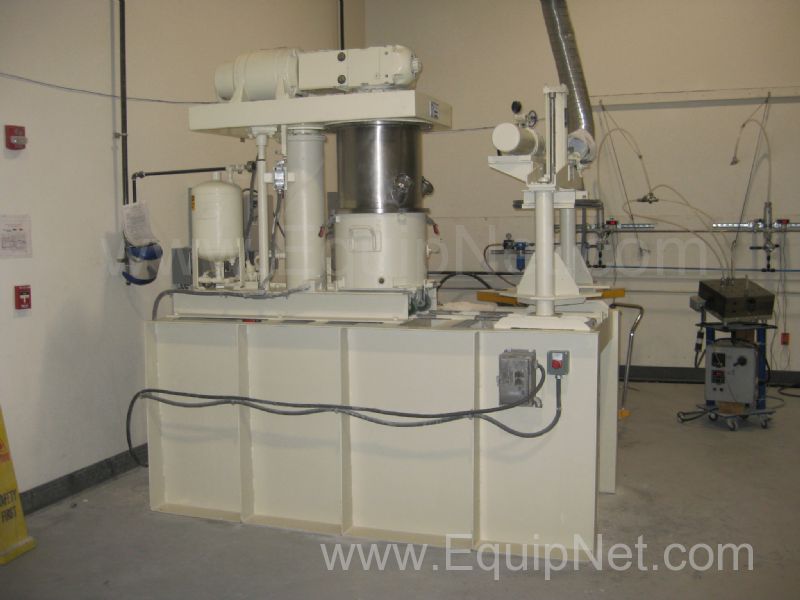

Ross Model HDM-10 Double Planetary HV Blade Mixer

EquipNet Tag #311841-1-1

$40,000.00 Seller's Acceptable Currency

Removal

$600.00 Seller's Acceptable Currency

All offers are submitted in Seller's Acceptable Currency

Equipment Description:

Ross Model HDM-10 Double Planetary HV Blade Mixer having a working capacity of 2 to 12 Gallons, and a full holding capacity of 15 gallons (56 liters).
Seller will consider any reasonable offer

Currently de-installed and stored in a controlled production area.

Equipment mixed powders and resins for casting electrical insulators.

Removal costs include palletizing equipment and loading equipment onto the buyer's truck

GENERAL FEATURES

Air/Oil Hydraulic lift with raise/lower air powered controls. (80-100 psig air supply required)

Change can design to allow the use of multiple mix cans.

Stainless steel type 316 wetted parts are polished to an 80 grit finish.

All interior and exterior 304 stainless steel surfaces are polished to an 80 grit finish.

All non-stainless steel exterior surfaces to be painted with a two-part coating.

All elastomers to be Viton.

Explosion proof limit switches to prevent operation of drives when stirrers are in the raised position or when mix can removed.

AGITATORS AND DRIVES

Heavy-duty ductile iron, sealed gearbox with special gearing.

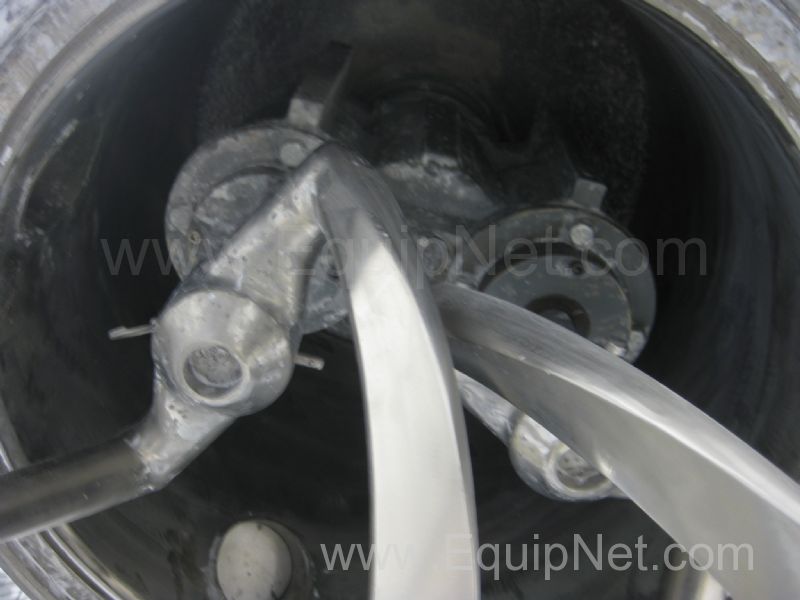

Heavy-Duty type 316 stainless steel High Viscosity HV blades stirrer blades.

5 HP, TEFC mechanical variable speed drive for variable speed operation of stirrer blades on their own axis between 10 and 39 RPM, orbital rotation of agitators at 9 to 37 RPM.

VACUUM HOOD
Type 316 stainless steel vacuum hood which includes the following features:

Two (2) 3in diameter combination sight and charge ports.

One (1) Half coupling vacuum exhaust port.

Lower vacuum hood flange overlaps top mix can flange.

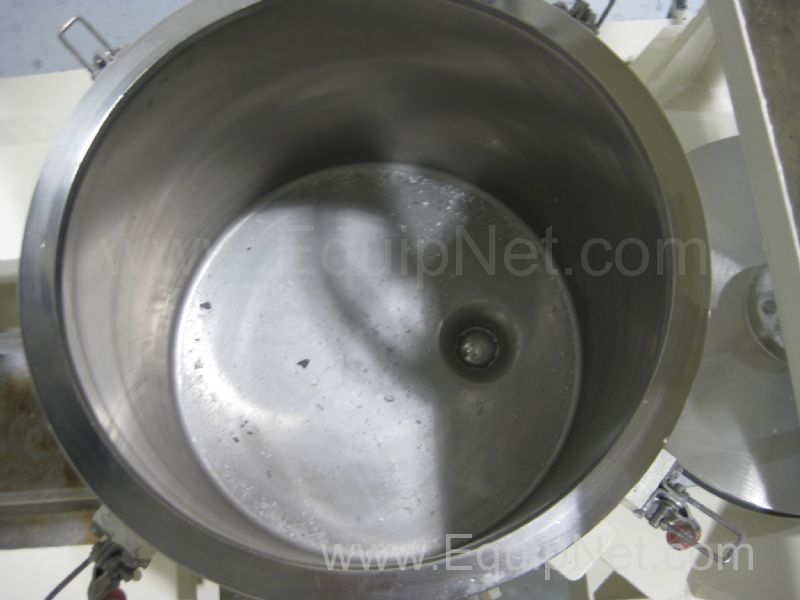

HDM-10 MIX CAN
One (1) 316 stainless steel mix can designed for vacuum operation, and to include the following:

2in Dia. Bottom Discharge valve in bottom, towards front of mix can.

50 PSIG Carbon steel jacket and side walls and bottom.

Low profile thermowell and type J thermocouple to side wall of mix can.

Internally machined suitable fore use with a Discharge System.

Stainless steel type 316 interior with an 80-grit finish.

One (1) Push/Pull handle.

Mounted on four (4) V groove caster wheels.

MIXER CONTROLS

Variable Speed Controls of orbiting gearbox and stirrers is accomplished by use of a mechanical variable speed hand-wheel.

On/Off Operator Station with motor starter to be installed and wired on-site by customer suitable for 3ph, 60Hz, 230 or 460 volt input.

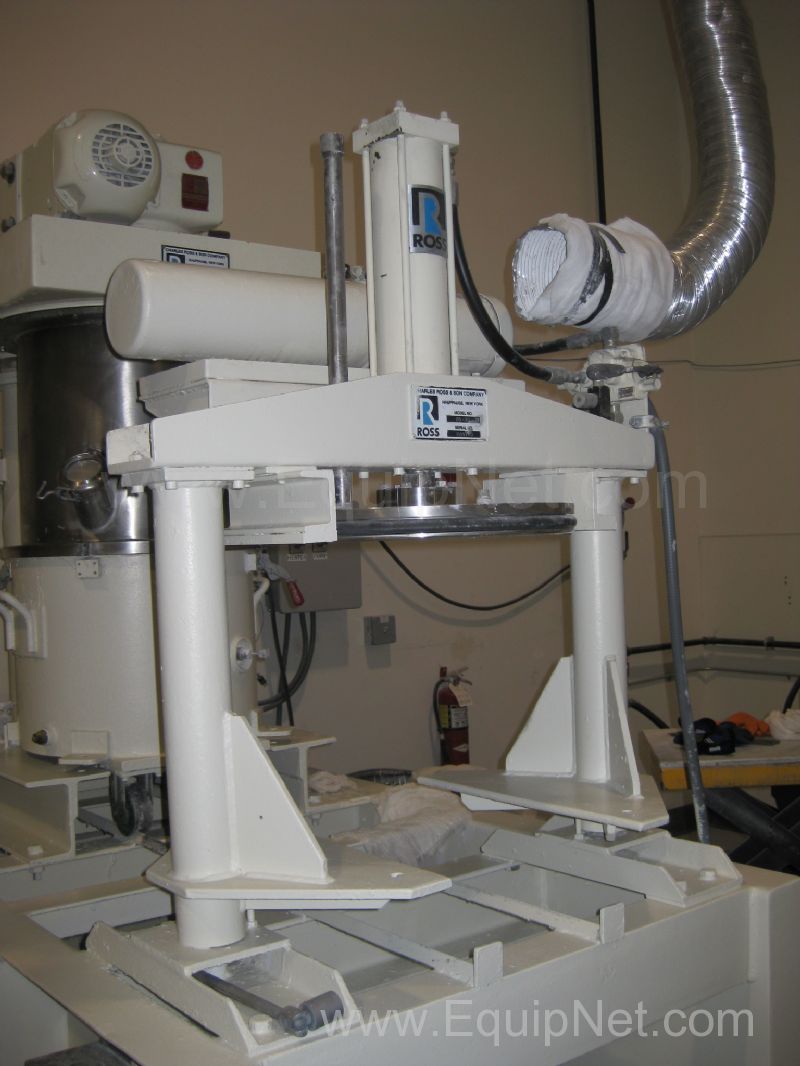

DISCHARGE SYSTEM:

Model DS-10 for use with ROSS 10 – 12 gallon internally machined mix cans.

Heavy duty support structure is fabricated in carbon steel and finished with a two-component epoxy paint.

Platen with type 304 stainless steel wetted parts polished to an 80 grit finish, having a special conical O-Ring positioner and Viton sealing O-Ring.

Platen activated by means of a self-contained hydraulic power unit driven by a 230/460 volt, 3 phase, 60 cycle, TEFC motor. A hydraulic pressure gauge and four-way hydraulic valve is provided to raise and lower the platen. Standard designed pressure under the platen is 25 psi.

DISCHARGE SYSTEM CONTROLS:
On/Off Operator Station with motor starter to be installed and wired on-site by customer suitable for 3ph, 60Hz, 230 or 460 volt input.

Disclaimers:

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Massachusetts.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Equipment Specifications:

Manufacturer	Ross
Year	1992
Model	HDM-10
Capacity Size	12
Capacity Speed	37 RPM
Estimated Shipping Weight	4000 LBS
Length	96 IN
Width	48 IN
Height	118 IN
Recommended Packaging Form	CUSTOM
