Listing #277490
Schubert Robotic Kitting Line for Bottles of Tablets or Capsules - Line 72
EquipNet Tag #277490-1-1
Equipment Description:
Line was manufactured in 2006
Due to a marketing - packaging change it is no longer needed
Line was running 75 (60 count) and 150cc (90 count) round plastic containers
Approximate line speed was 100 kits per minute
Kits were run in groups of four at a time.

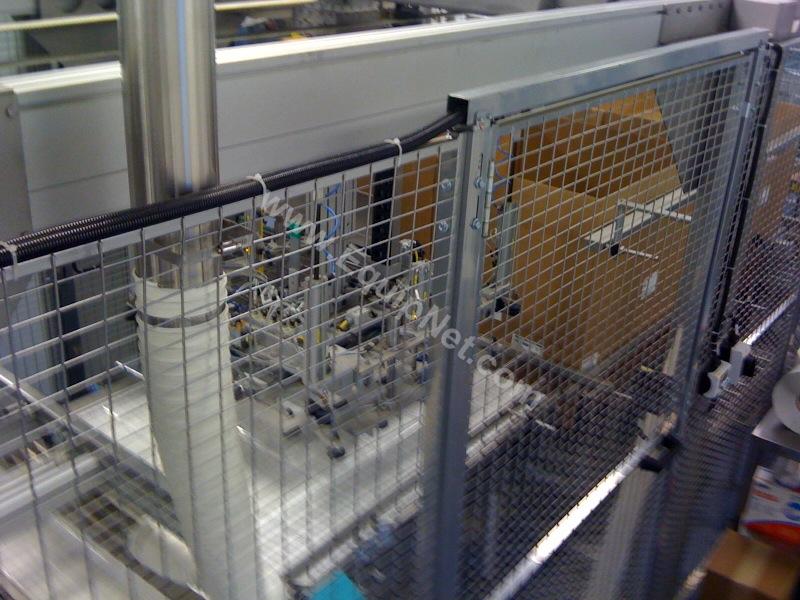

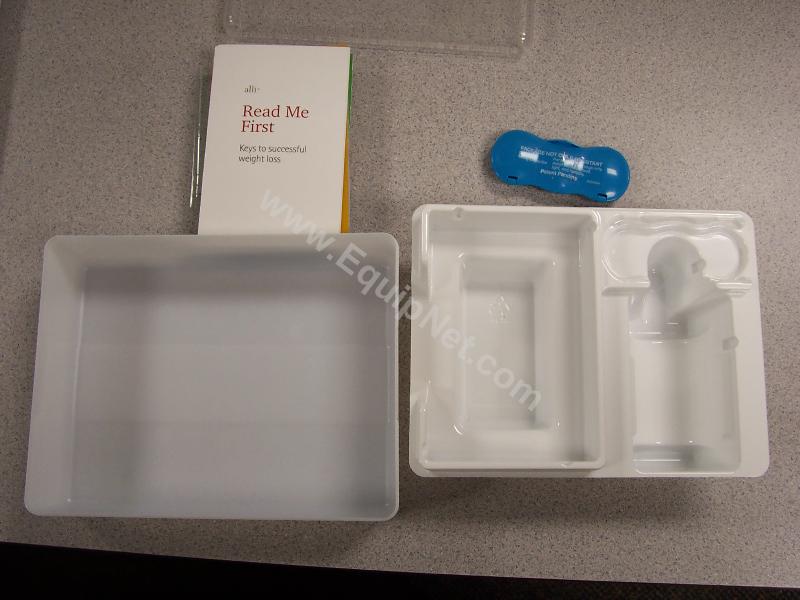

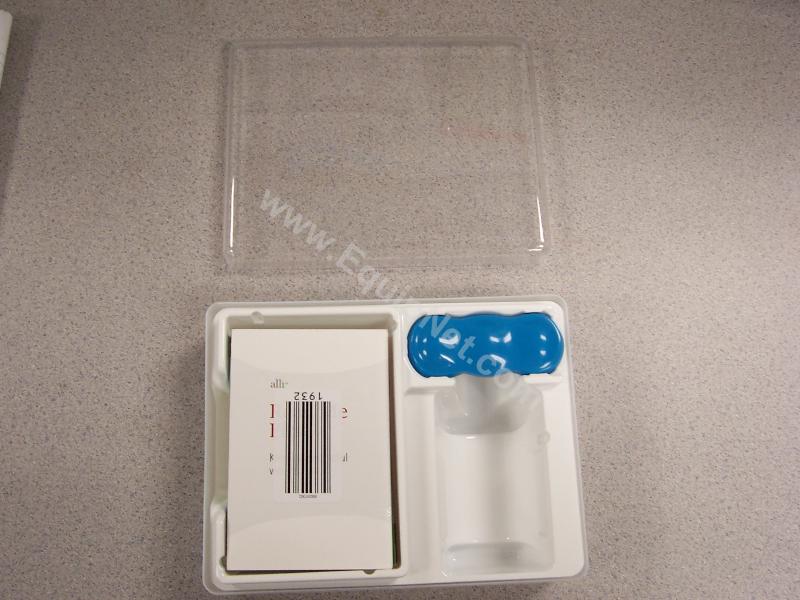

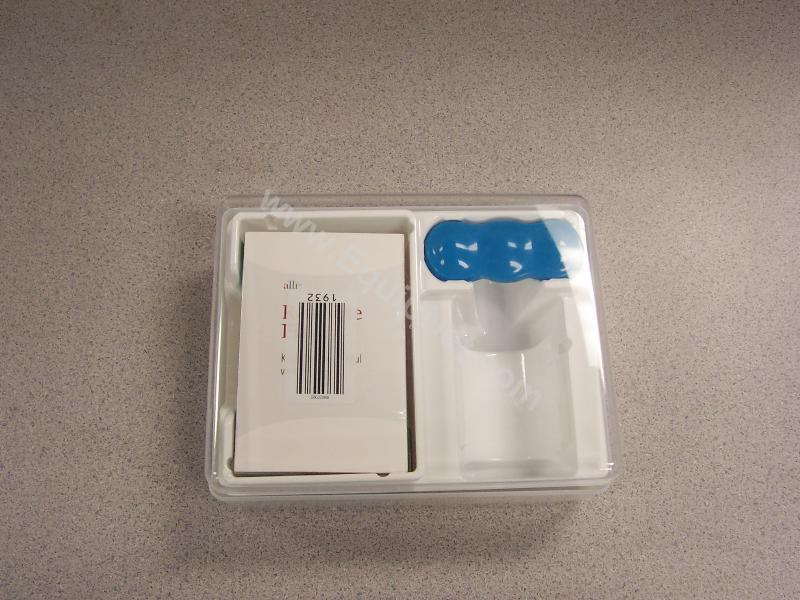

Each kit consisted of a base tray - bottom / partioned insert / bottle of product / capsule case / banded package of information booklets and top clear lid
Line consists of the following components:

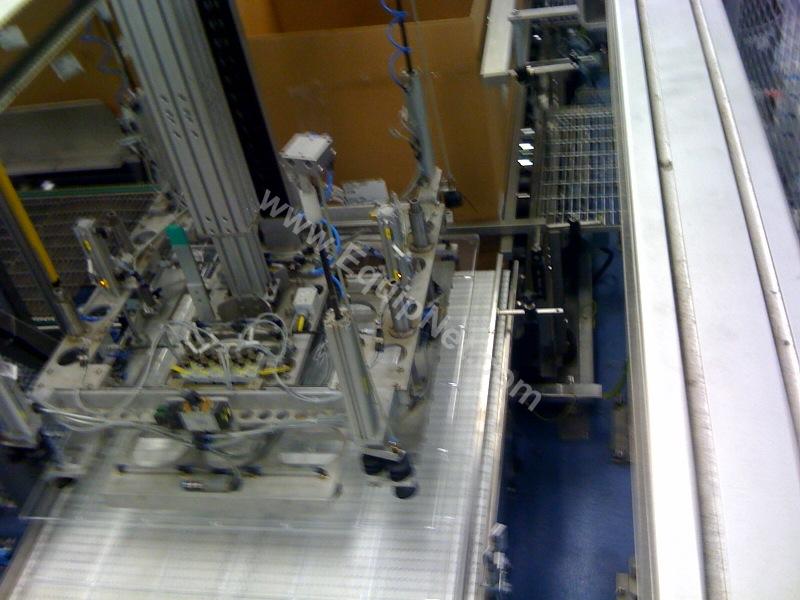

Base Depalletizer
Manufactured by PCA
Serial #: HP-130
Robotic pick and place style vacuum transfer head
Each layer of base trays is seperated by a slip sheet (in order to prevent nesting)
The pick and place picks one entire layer of base trays at a time allong with the slip sheet.
As the head indexes to the tray take away conveyor it drops the sheet into a collection gaylord or D container
The pick and place then discharges the bottom trays on to the conveyor in groups of four at a time.
The base tray dimensions are: 8-1/2"long x 6-5/8"wide x 2"deep
Tray Inserter
Manufactured by Schubert
Model: TLM 903-610
Serial #: 00035432

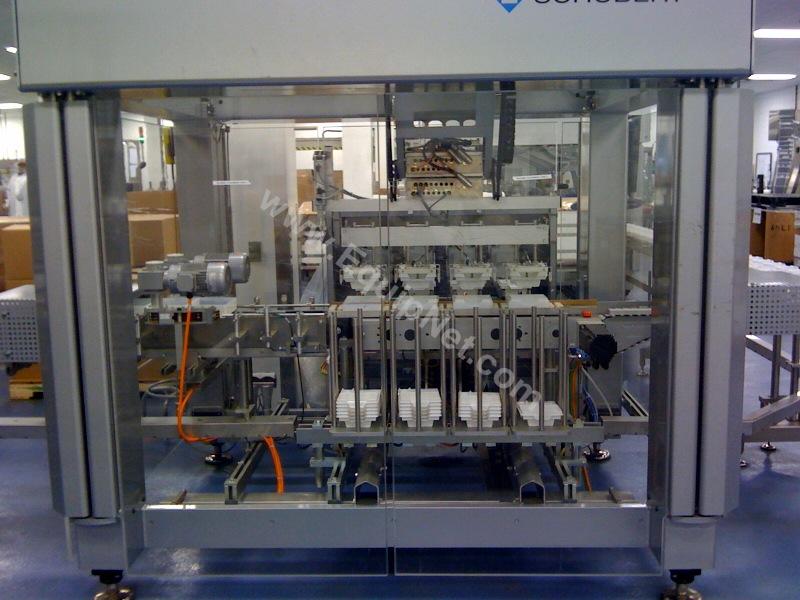

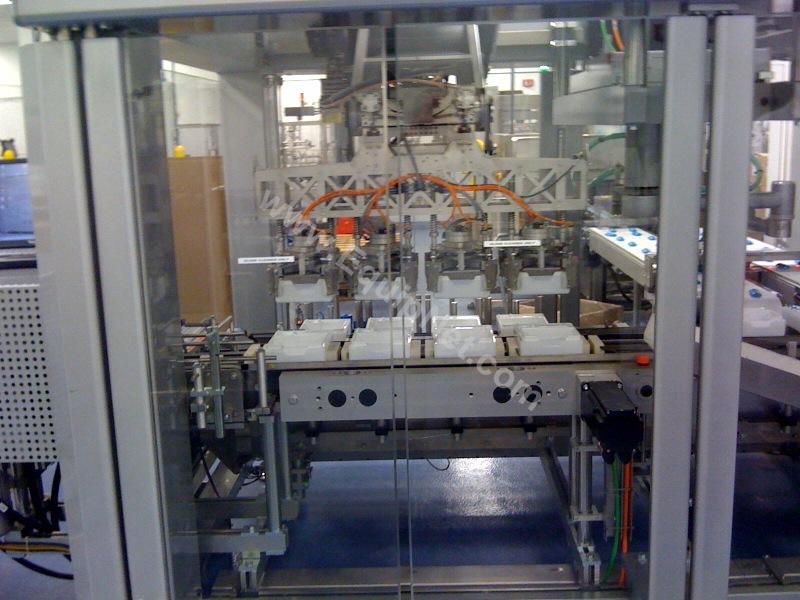

Four head vacuum pick and place
Saftey guard package with interlockes doors
Each head has it's own operator loaded insert magazine
The insert has three compartments. One for bottle of capsules. One for capsule carry case and one for booklets
Speeds to 100 kits per minute

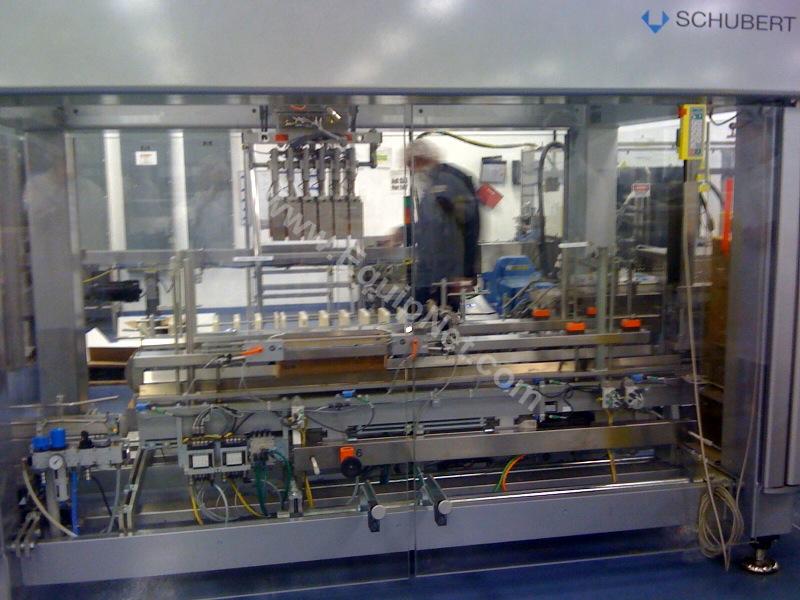

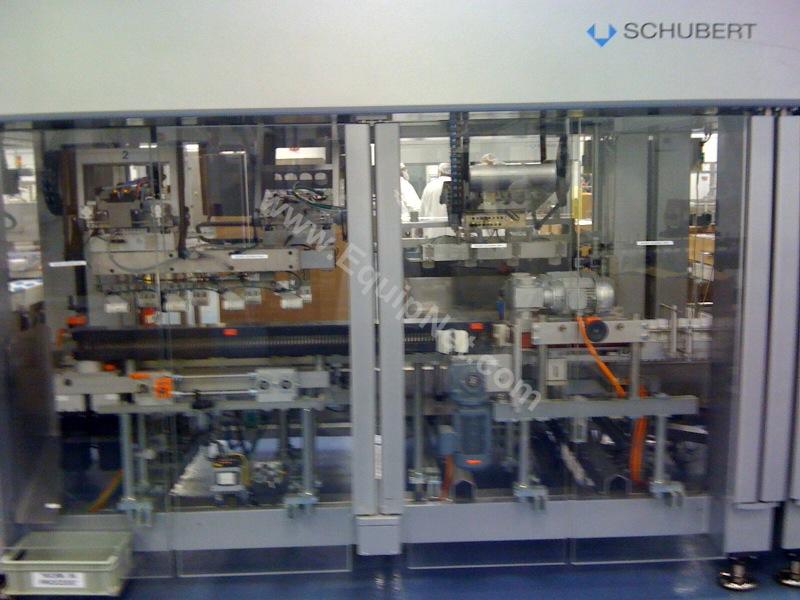

Schubert Kit Assembly Machine
Unit consists of four seperate cells
Cell 1 serial #: 00035475

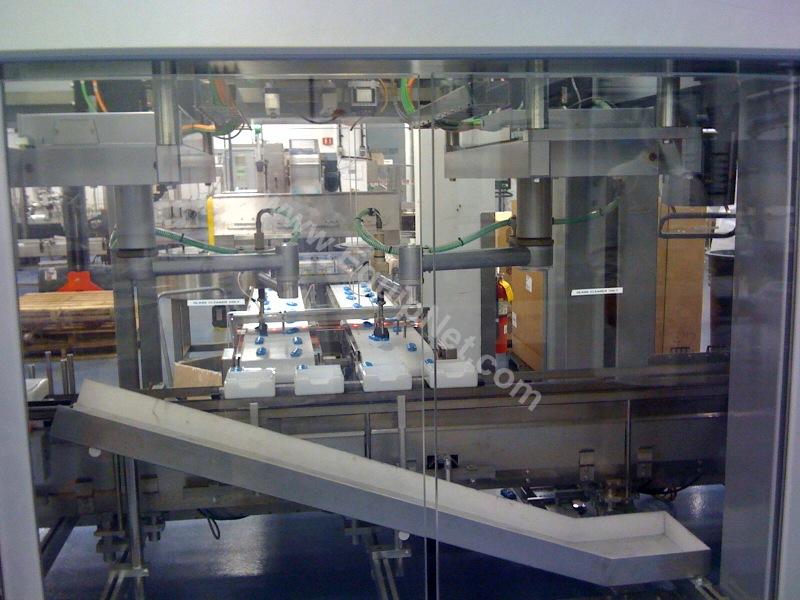

Used to orient and place capsule cases (shuttles) into the tray insert
Two head robotic pick and place vacuum heads

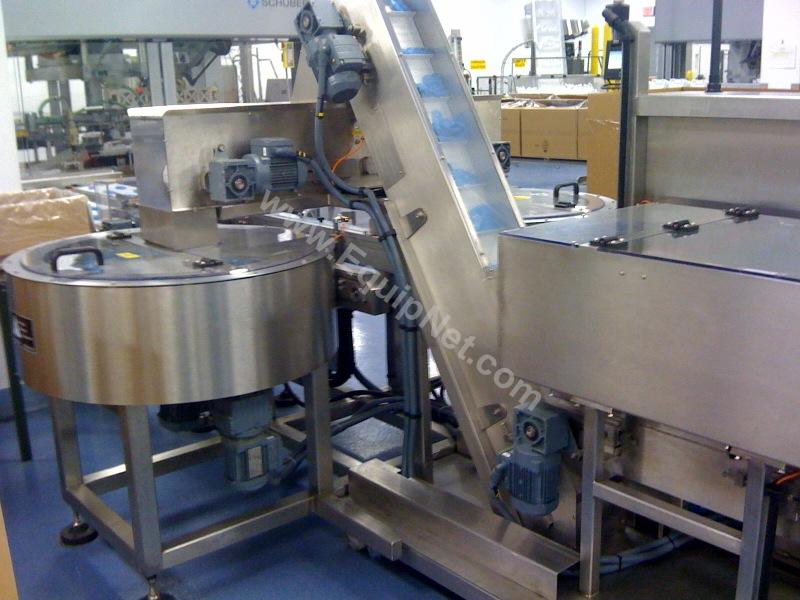

Shuttles are supplied to the machine by two small elevators with centrifugal sorters
After they are oriented they are placed on a short belt conveyor and sent to the main machine
They are fed in a random pattern and pass through a scanner to determine their orientation
The pick and place heads then pick the shuttle, rotate it in to position and place it in the tray
Cell 2 serial #: 00035521

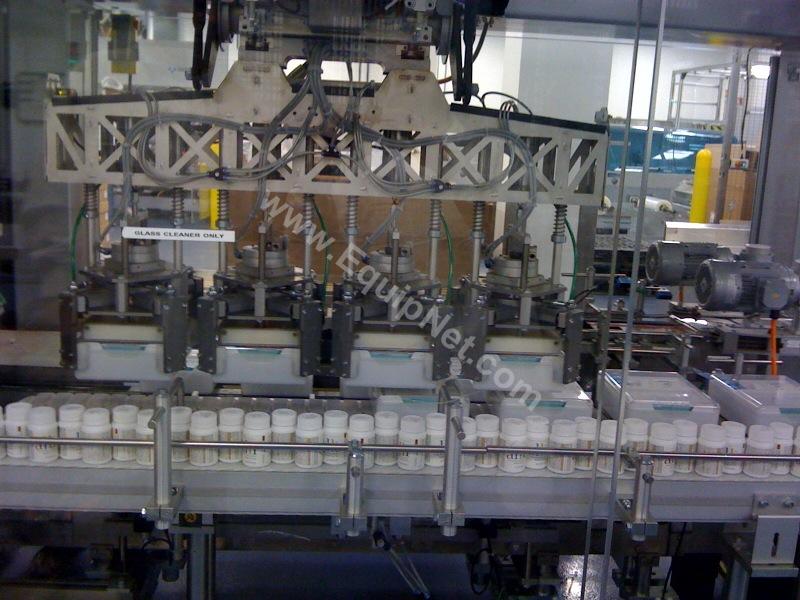

Used to receive, space, lay over bottles, rotate for orientation and place them in to the tray
Bottles are placed in to four trays at a time
The bottles are laid over on to their sides in four cradles.
They are then rotated until the front label is facing up for good appearance in the tray
Each rotation station is independent and will keep spinning the bottle until the registration mark is recognized
After all four bottle labels are facing up they are then taken by pick and place heads and placed in the kit
Cell 3 serial #: 00035483

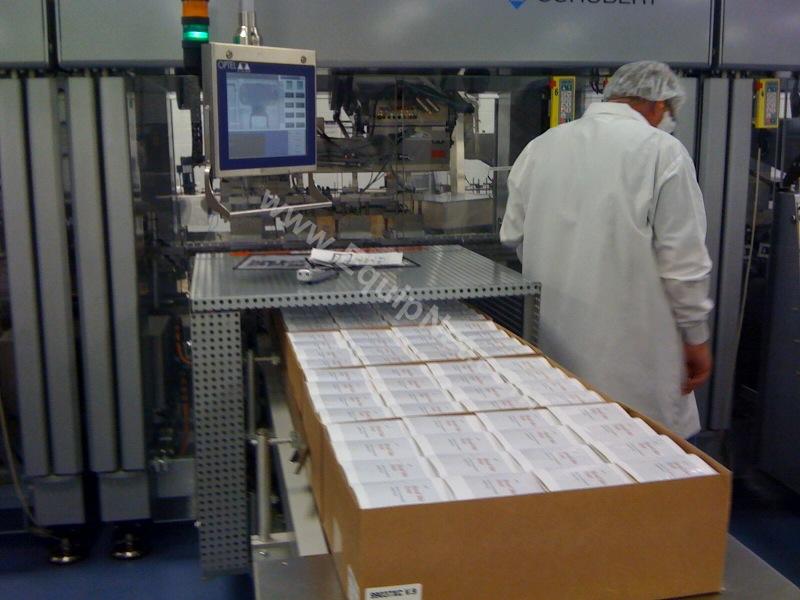

Booklet placing station
Books are supplied to the machine in layered boxes
There is a four head pick and place system used to take the booklets from the box and place them in the tray
The package consists of seven booklets all shrink banded together.
The finished dimensions of the package are 5-1/4" long x 3-1/2"wide x 1"high
The weight of each booklet pack is .50 lb.
Cell 4 serial #: 00035513
Lid placing and reject station
Four head placement station of clear lids to the top of the finished kit.
Lids are supplied to the machine by conveyor from the lid depalletizer (listed below)
There is also a reject station that will remove any kit that was missing any component
Lid Depalletizer
Manufactured by PCA
Serial #: HP-131
Robotic pick and place style vacuum transfer head
Each layer of lids is seperated by a slip sheet (in order to prevent nesting)
The pick and place picks one entire layer of base trays at a time allong with the slip sheet.
As the head indexes to the tray take away conveyor it drops the sheet into a collection gaylord or D container
The pick and place then discharges the bottom trays on to the conveyor in groups of four at a time.
The lid dimensions are: 8-1/2"long x 6-5/8"wide x 3/4"deep
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in the USA. |
|
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Various |
| capacity | 100 kits per minute |
| Serial number | see above |
| Estimated Shipping Weight | 0 LBS |
| Recommended Packaging Form | CUSTOM |
