Listing #283253

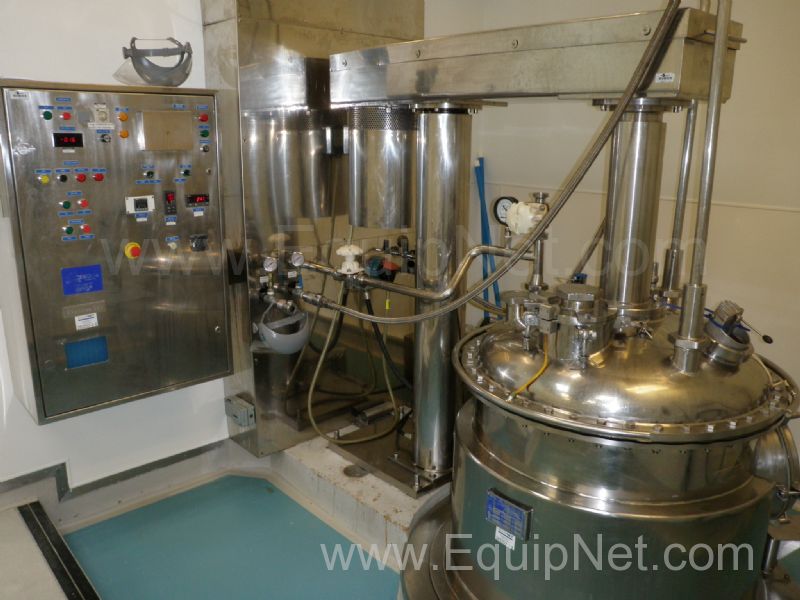

Skerman SK1 316L Stainless Steel Vertical 1500 Litre Jacketed Gelatine Hi Shear Mixing Vessel
EquipNet Tag #283253-1-2, 283253-2-2
Equipment Description:
Skerman SK1 Stainless Steel Vertical 1500 Litre Jacketed Gelatine Hi Shear Mixing Vessel

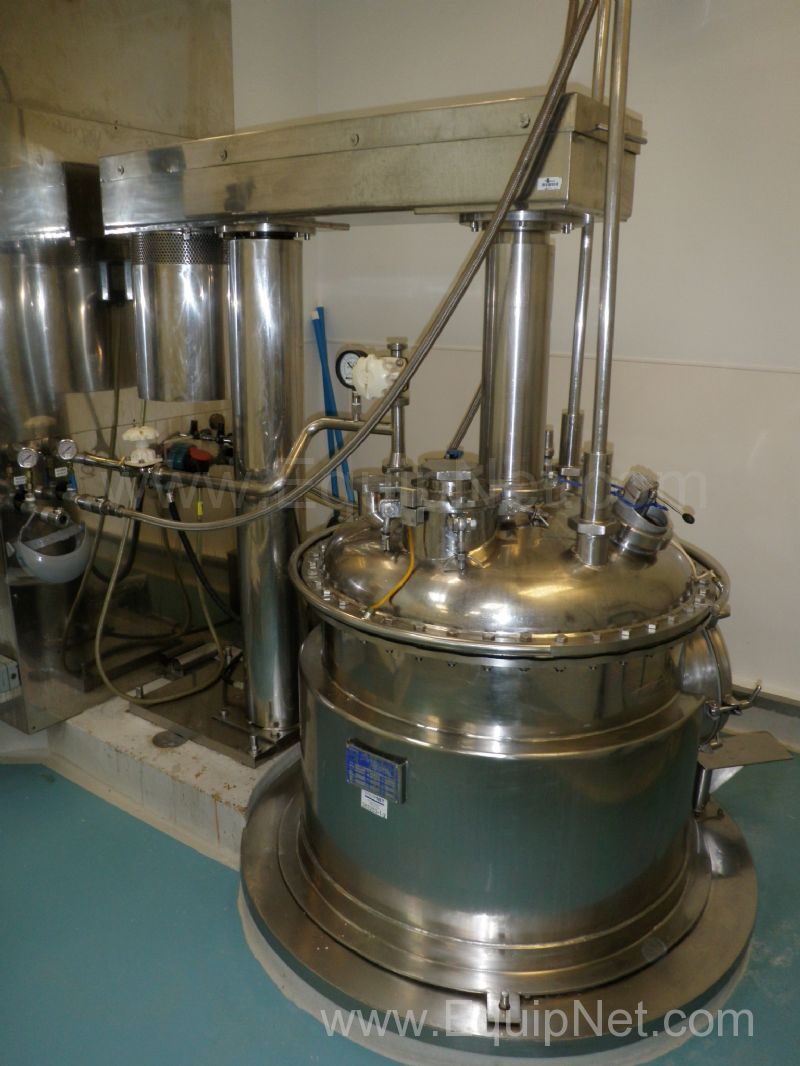

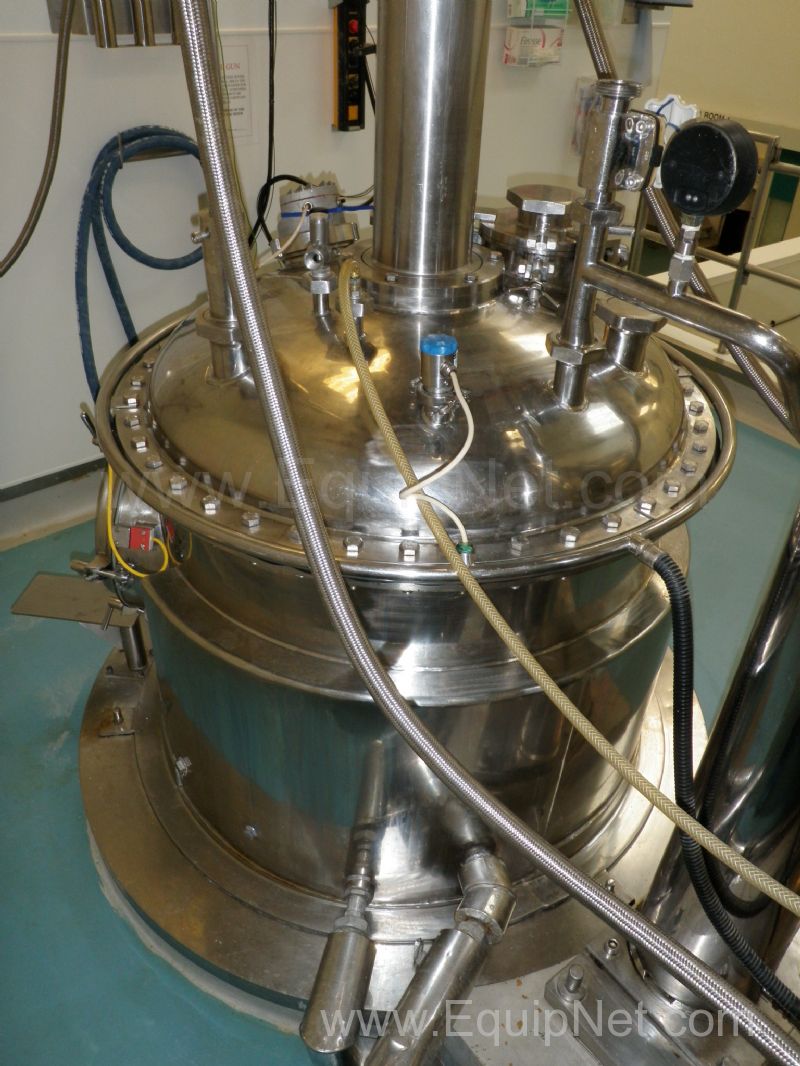

Item 1, The Mezzanine mounted 1500 Litre Vertical S/s jacketted vessel has been Tested to 5 Bar pressure, and has a domed top through which passes the central Hi-shear Turbine mixer drive, surrounded by 3 x 70mm, 1 x 50mm, 1 x 35mm, 3 x 25mm diameter Inlets, plus a 150mm diameter Inspection Window with Wiper and lamp, and a 200mm diameter hinged, clamped and interlocked Inspection door.
The Vessel sides and domed base are jacketed and lagged with 50mm thick lagging which is S/s clad. The jacket has a Design Pressure rating of Full Vacuum to + 3.5 Bar, at 120 degrees C, Test Pressure = 6.8 Bar.

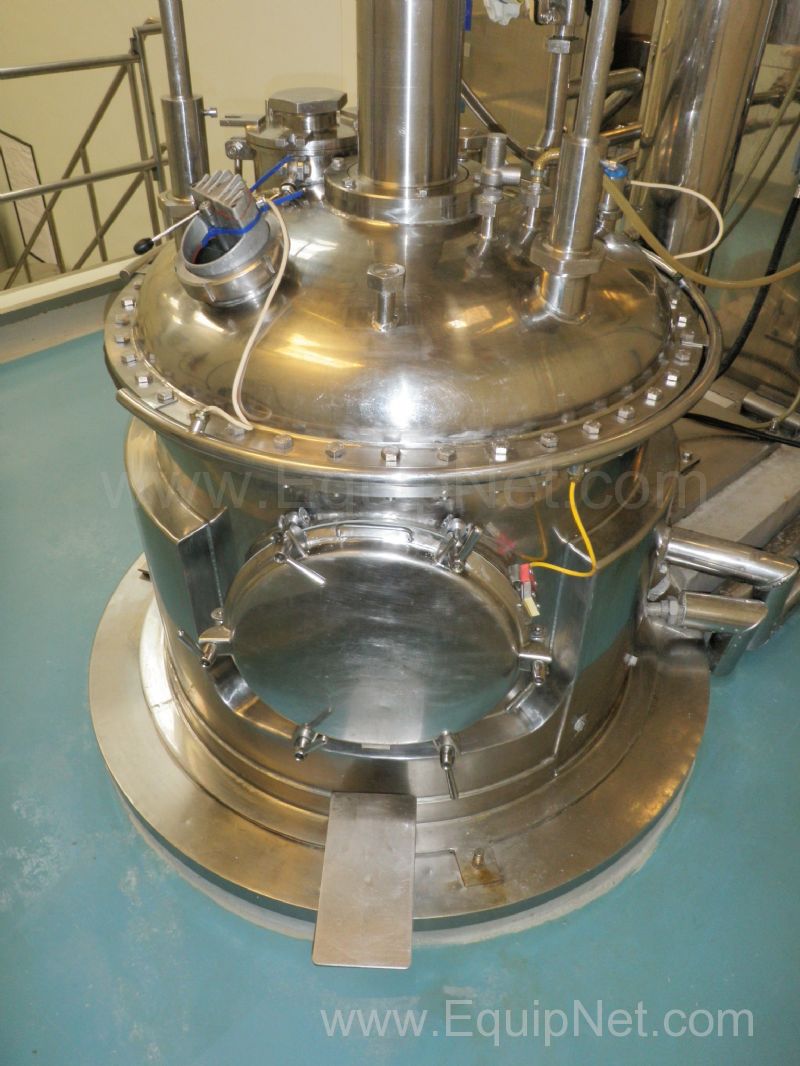

The side of the vessel is supported from the surrounding Mezzanine floor by 3 support Lugs. In the upper side of Vessel, above the Mezzaniner floor, is fitted a 450mm diameter interlocked Manhole, which is clamped shut by 6 clamps.

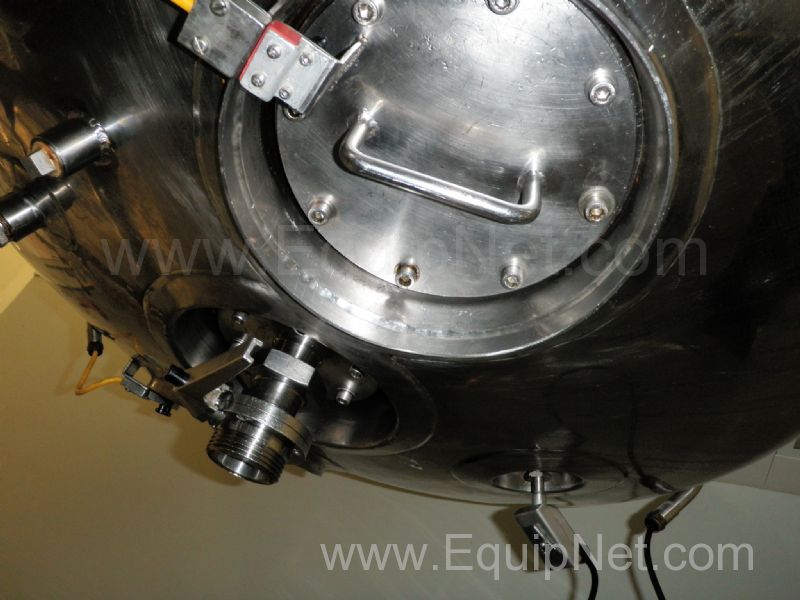

The domed jacketted, lagged, and S/s clad base of the Vessel is fitted with a 50mm diameter manually butterfly valved outlet, 1.32m high, plus a 250mm diameter bolted and interlocked discharge hatch, and a low level probe.

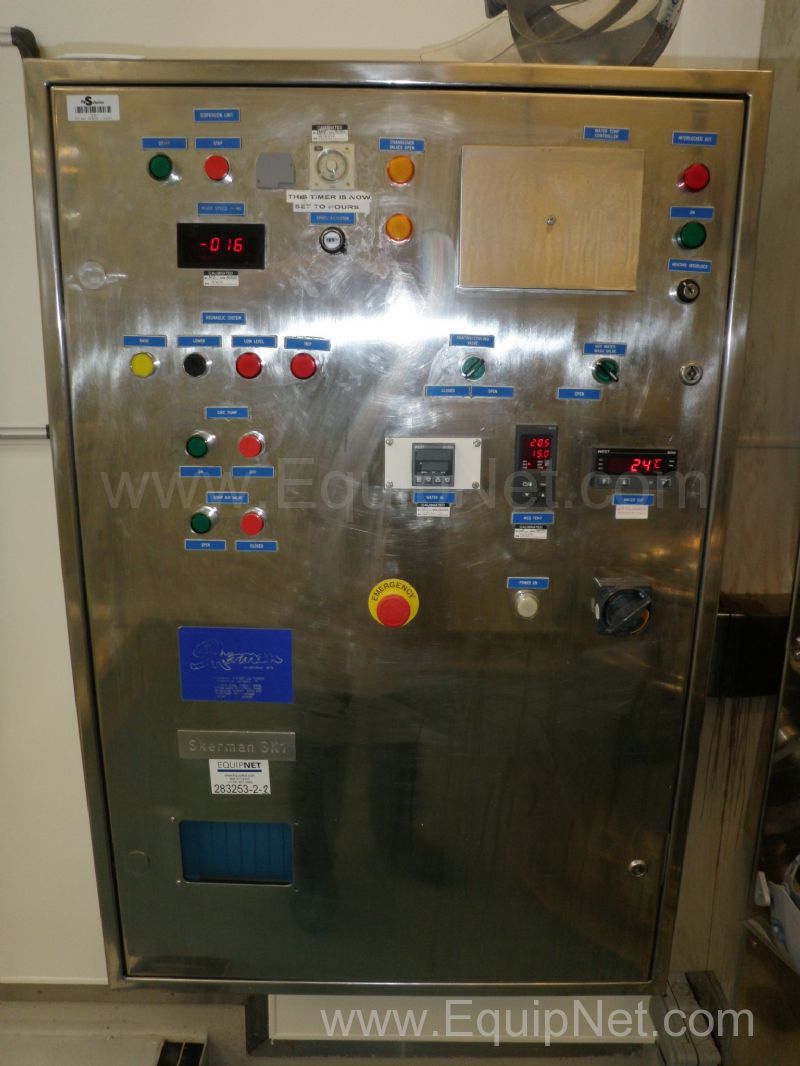

Item 2, Wall Mounted S/s Control Panel, measures 800 x 400 x 1200mm high, and weighs approx 400 Kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:

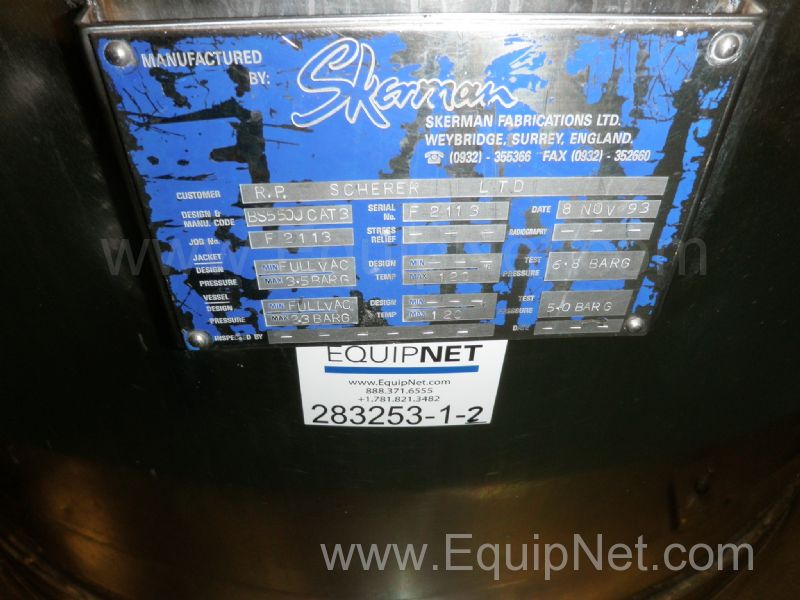

| Manufacturer | Skerman |
| Year | 1993 |
| Model | SK1 |
| Serial Number | F 2113 |
| Capacity Size | 1500 |
| Products Run | Gelatine |
| Material of Construction | 316L STAINLESS STEEL |
| Inlet Size | 3 x 70 MM |
| Agitation | YES |
| Pressure Rating (Temperature) | 120 degrees C |
| Pressure Rating (Pressure) | Full vacuum - 2.3 Bar |
| Outside Diameter | 1200 MM |
| Overall Height | 3250 MM |
| Inside Diameter | 1000mm |
| Straight Side (T/T) | 1850mm |
| Voltage | 415 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 5000 KGS |
| Legs/Stand | Supported by 3 side lugs |
| Top and Bottom Heads | DISHED TOP/DISHED BOTTOM |
| Width | 1.2 M |
| Recommended Packaging Form | CUSTOM PALLET |
| Length | 2.85 M |
| Height | 3.25 M |
