Listing #283256
Skerman SK4 316L Stainless Steel Vertical 600 Litre Jkd Stirred and Bottom Homogenised Mixing Vessel
EquipNet Tag #283256-1-2, 283256-2-2
Equipment Description:
Skerman SK4 316L Stainless Steel Vertical 600 Litre Jkd Stirred and Bottom Homogenised Mixing Vessel

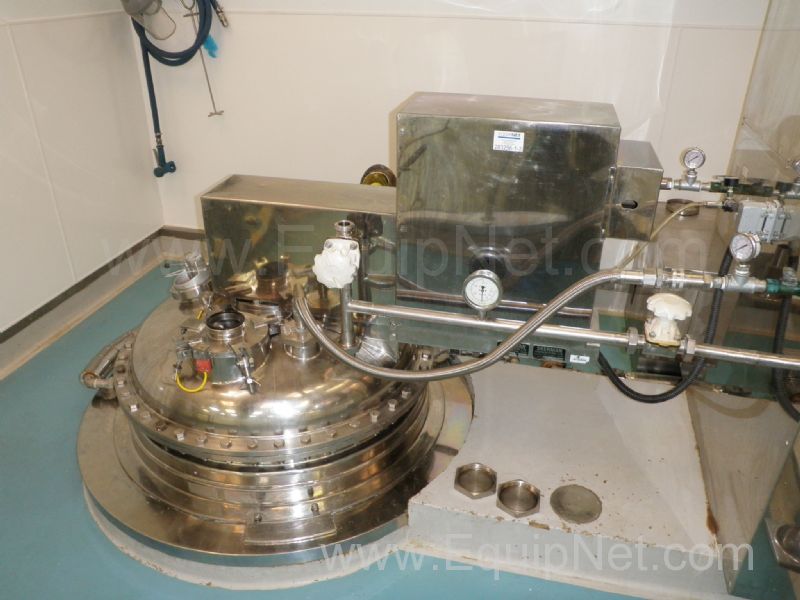

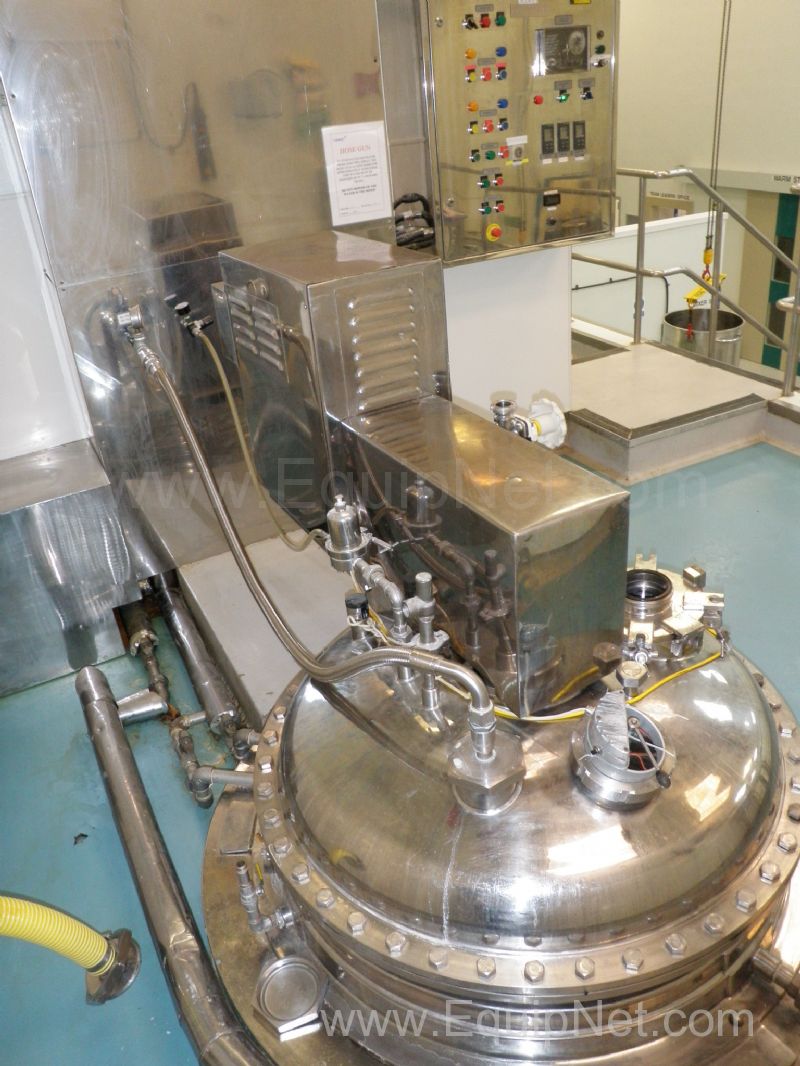

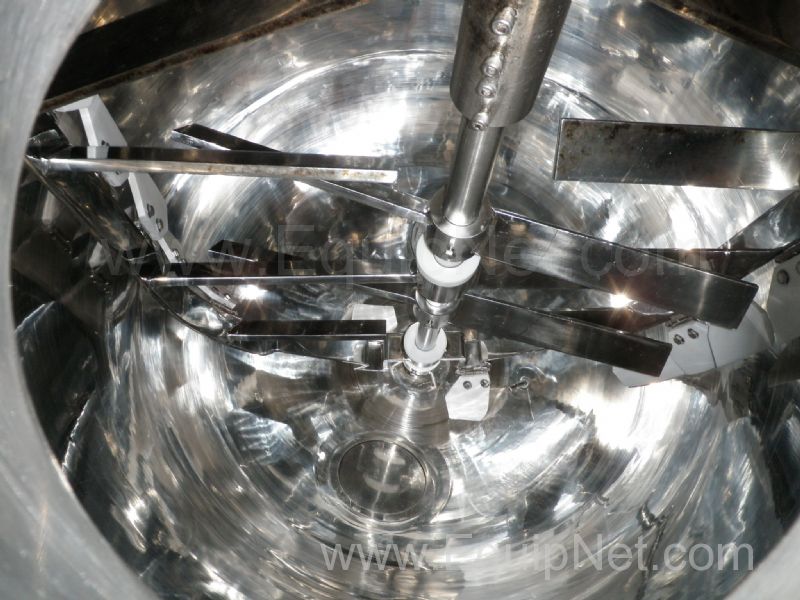

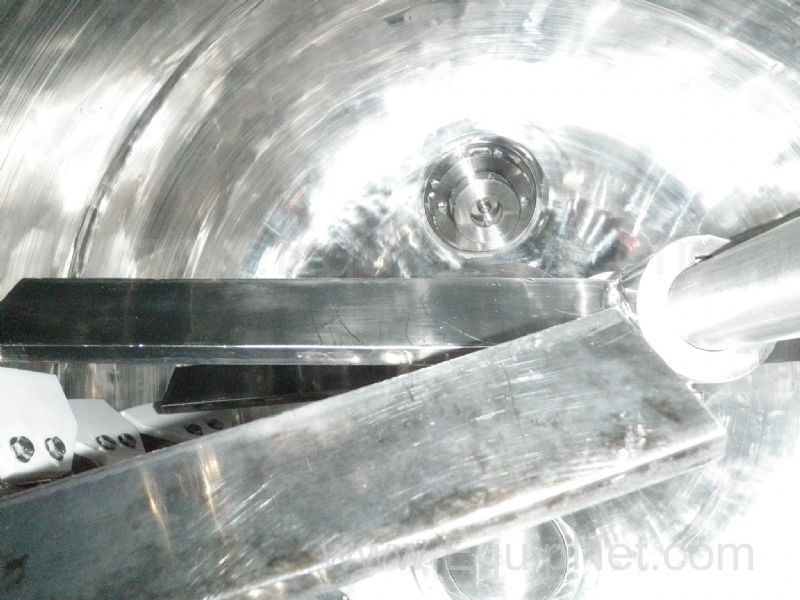

Item 1, The Mezzanine mounted 600 Litre Vertical S/s jacketted vessel has been Tested to 2.5 Bar pressure, and has a domed top through which passes the central multi-bladed stirrer / internal vessel wall scraper mixer drive, surrounded by 2 x 80mm, 1 x 50mm, 1 x 35mm, 2 x 25mm diameter Inlets, plus a 150mm diameter Inspection Window with Wiper and lamp, and a 250mm diameter clamped and interlocked Inspection Hatch, fitted with central 100mm diameter viewing window.
The Vessel sides are jacketed and lagged with 50mm thick lagging which is S/s clad. The jacket has a Design Pressure rating of Full Vacuum to + 5 Bar, Test Pressure = 7.5 Bar.
The side of the vessel is supported from the surrounding Mezzanine floor by 3 support Lugs.

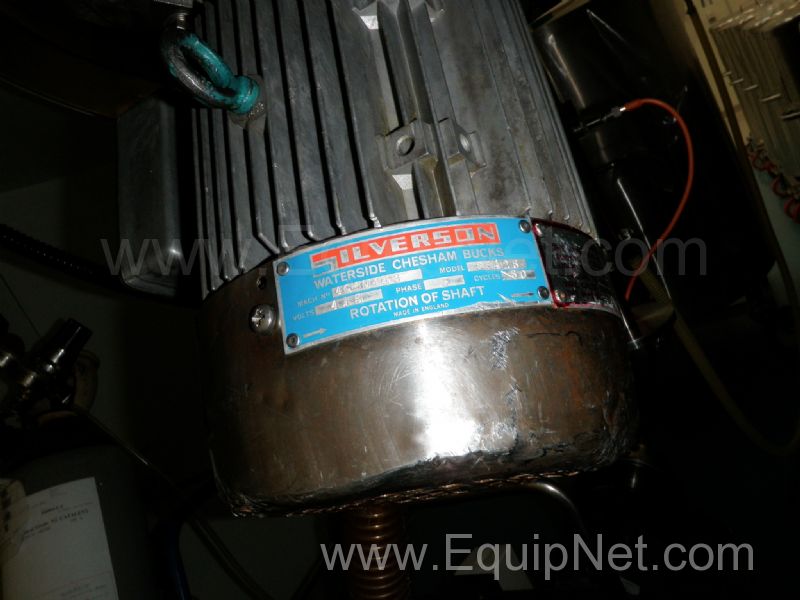

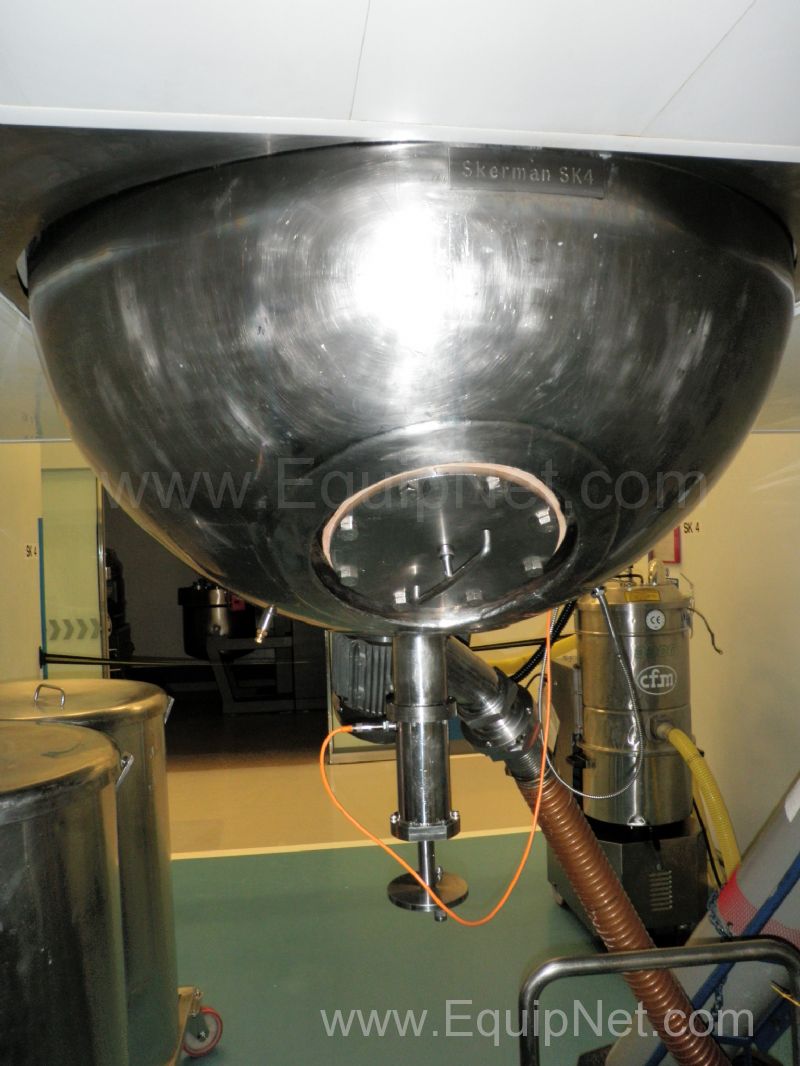

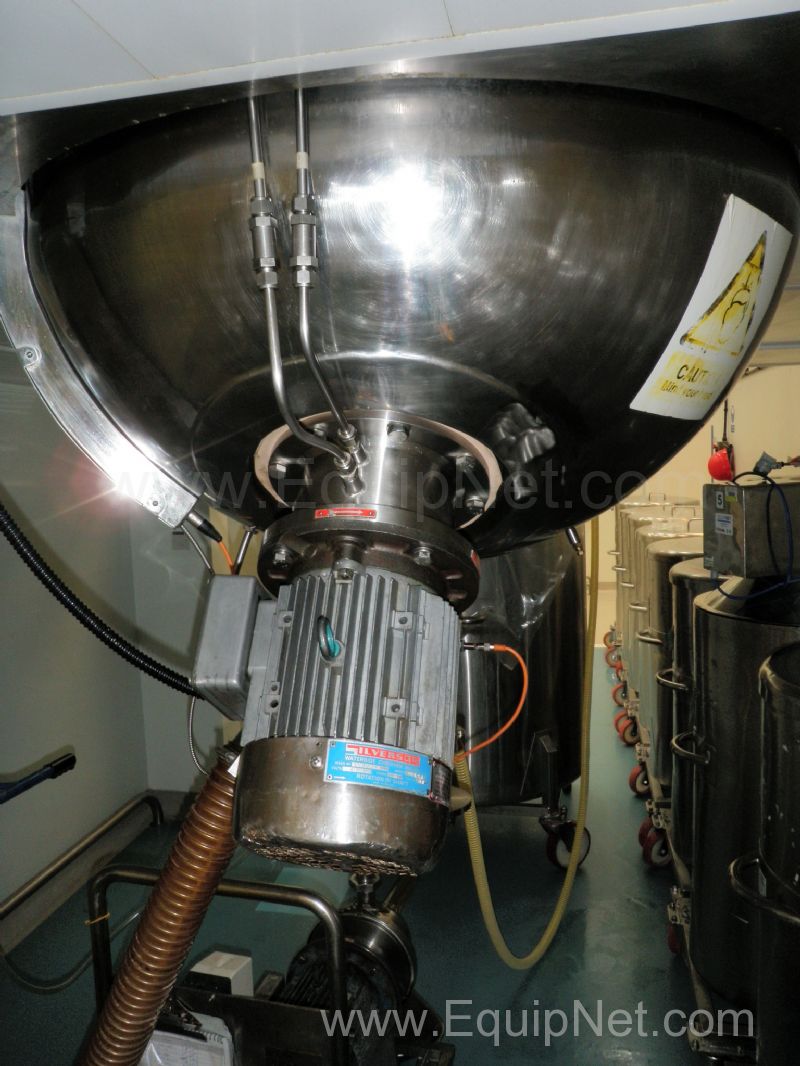

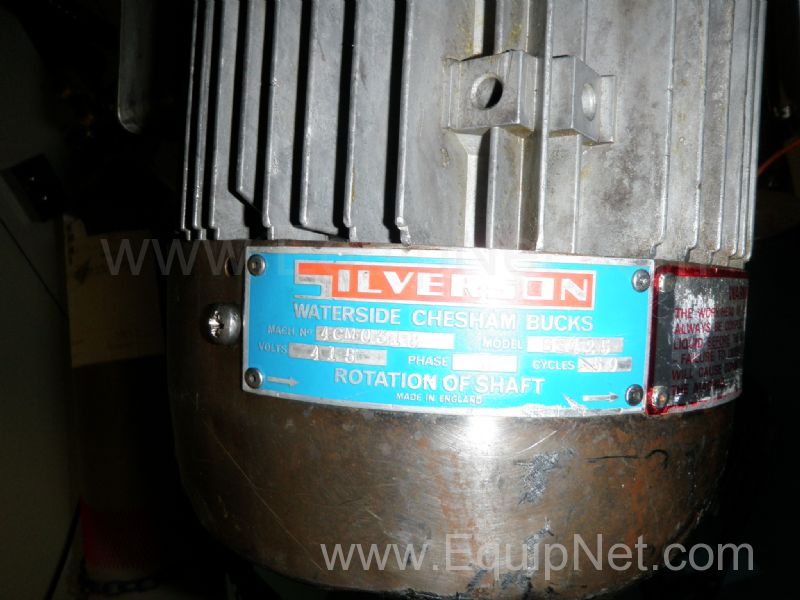

The domed S/s base of the Vessel is fitted with a Silverson BE 425 Hi Shear Homogenising Mixer unit, a central 80mm diameter manually flush fitting poppet valved outlet, 1.32m high, a 250mm diameter bolted and interlocked discharge hatch, and a low level probe.

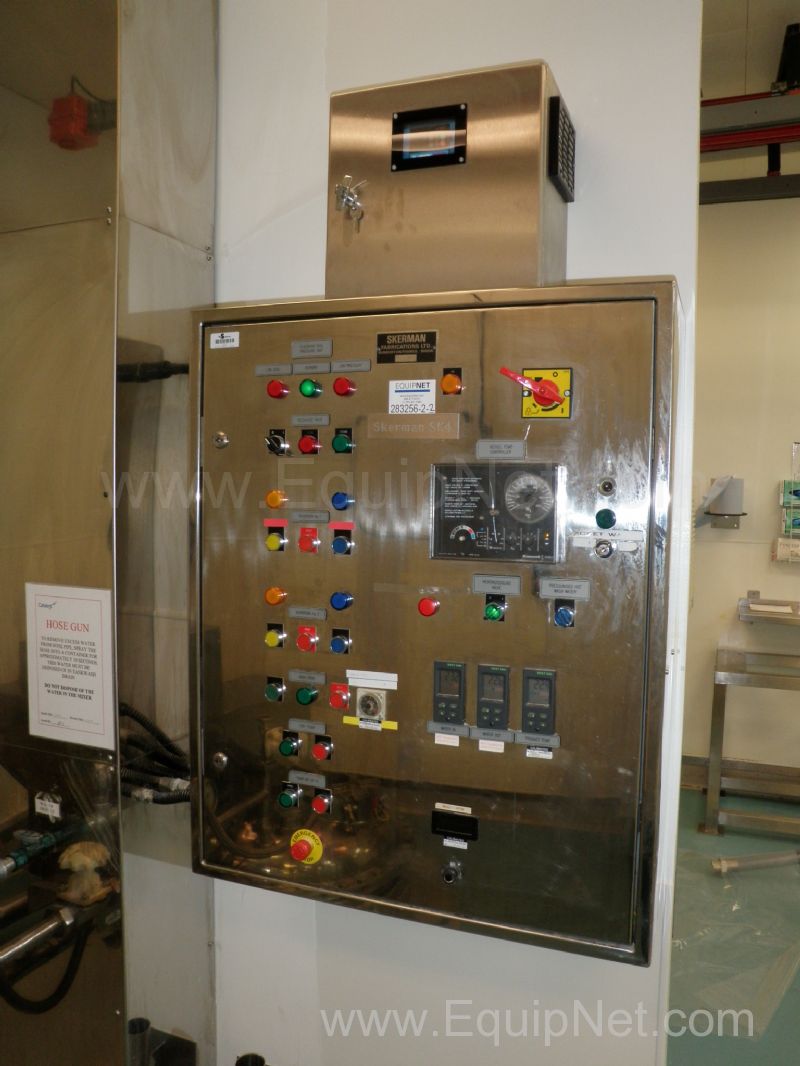

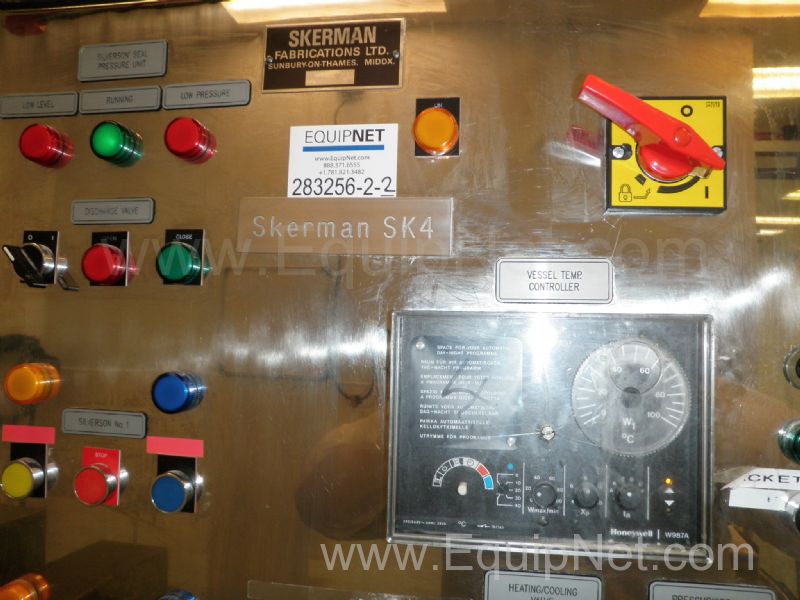

Item 2, Wall Mounted S/s Control Panel, measures 800 x 300 x 1400mm high, and weighs approx 300 Kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Skerman |
| Year | 1989 |
| Model | SK4 |
| Serial Number | BE 425 |
| Capacity Size | 600 |
| Products Run | Gelatine |
| Material of Construction | 316L STAINLESS STEEL |
| Inlet Size | 2 x 80 MM |
| Agitation | YES |
| Pressure Rating (Temperature) | 120 degrees C |
| Pressure Rating (Pressure) | Full vacuum - 1.7 Bar |
| Outside Diameter | 1200 MM |
| Overall Height | 2800 MM |
| Inside Diameter | 1000mm |
| Straight Side (T/T) | 750mm |
| Voltage | 415 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 5000 KGS |
| Legs/Stand | Supported by 3 side lugs |
| Top and Bottom Heads | DISHED TOP/DISHED BOTTOM |
| Width | 1.5 M |
| Recommended Packaging Form | CUSTOM PALLET |
| Length | 3 M |
| Height | 2.8 M |
