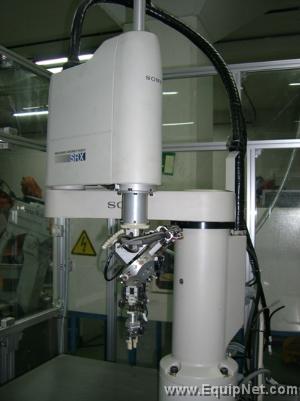

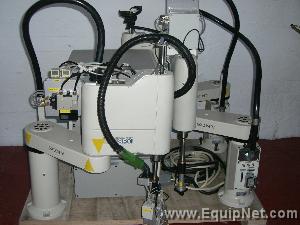

You are making an offer on a Sony Srx-611 Scara robots located in Spain. Extremely accurate and fast assembly and pick&place robot. Almost new, very few working hours, year 1999-2001. Indicated for the electronics manufacturing industry, pharmaceutical, special machinery construction, plastic industry, etc...
Arm length:
- 1st arm: 350mm
- 2nd arm: 250mm
- Total length: 600mm
Work envelope:
- 1st arm: 220 degrees
- 2nd arm: ±150 degrees
- Z axis: 150mm
- R axis: ±360 degrees
Payload: 4.4 lbs, 6.6 lbs and 11 lbs
Cycle time when 4.4 lbs: 0.6 seconds/per unit
Max speed when 4.4 lbs:
- combination if 1 and 2 axis 5200mm/sec
- Z axis: 770mm/sec
- R axis: 1500 degrees/sec
- Manufacturer Sony
- Year 1999-2001
- Model Sony Srx611
- Length 200 MM
- Width 200 MM
- Height 300 MM
- Estimated Shipping Weight 0,1 TONS
- Manual Available Yes
- Removal Difficulty EASY
- Requires rigging or removal NO
- Requires a flatbed truck NO
- Level of shipment preparation necessary UNCRATED/LOOSE
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Spain
Dimensions: 200x200x300 MM
Disclaimer
Please note: All listing descriptions take precedence over what may be showing in the photo. If you have any questions at all on this listing, please contact EquipNet.
|
