Listing #283260
Stekko 316L Stainless steel 3750 Litre Jacketed Gelatine Mixer Melter Vessel No 2
EquipNet Tag #283260-1-3, 283260-2-3, 283260-3-3
Equipment Description:
Stekko 316L Stainless steel 3750 Litre 80 degrees C Hot Water Jacketed Gelatine Mixer Melter Vessel, No 2

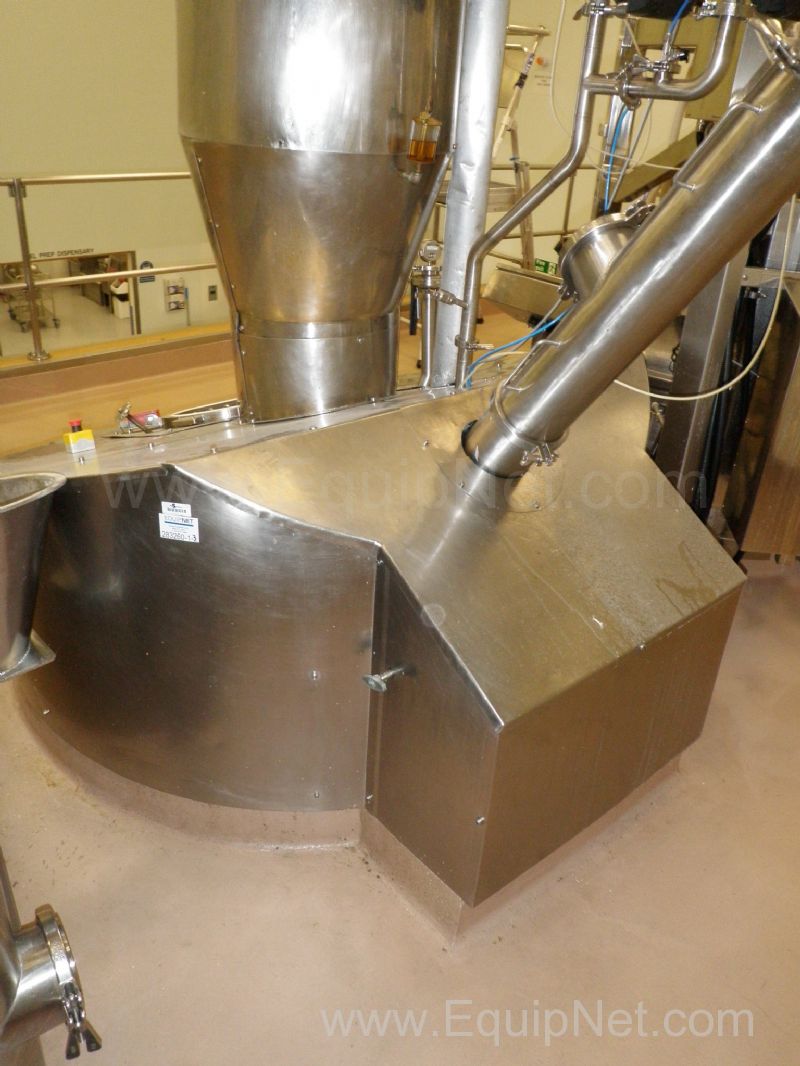

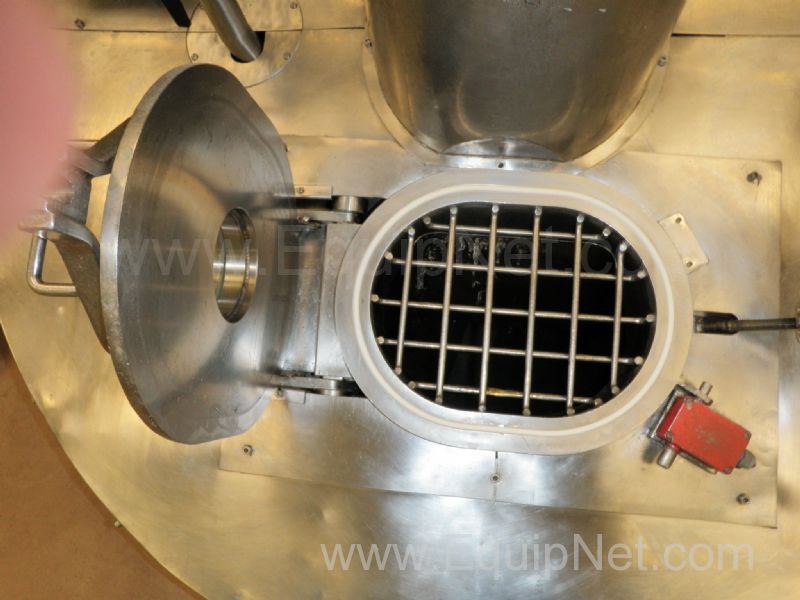

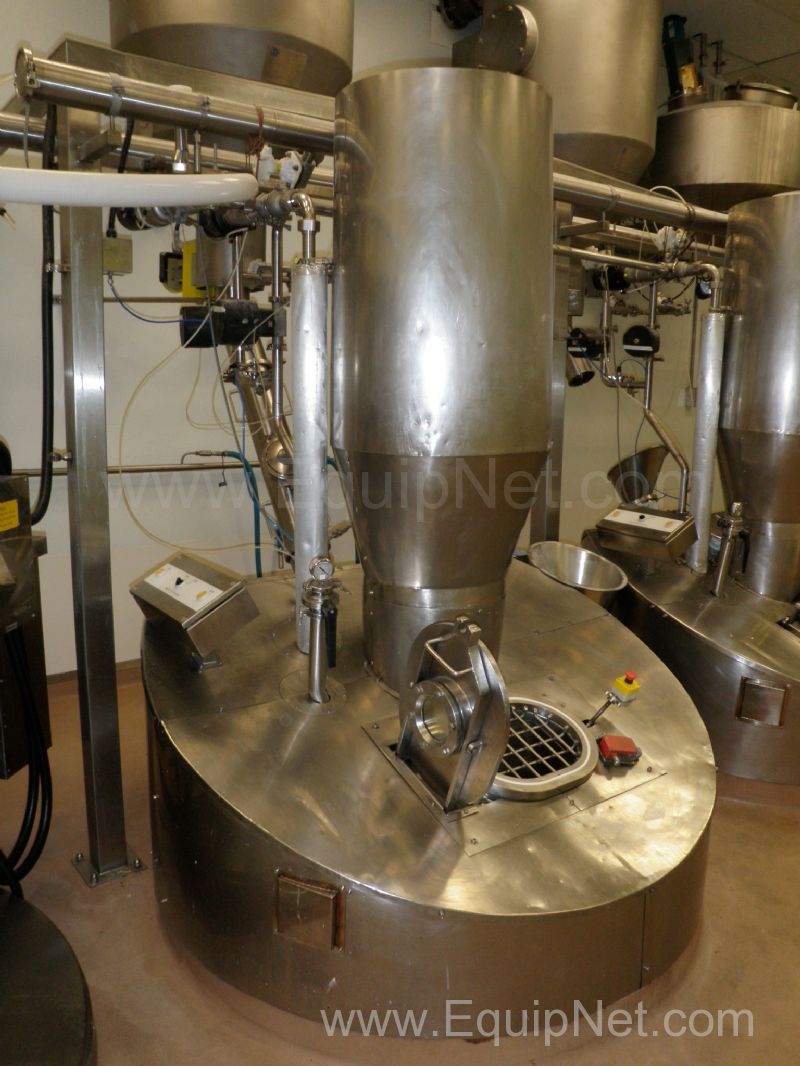

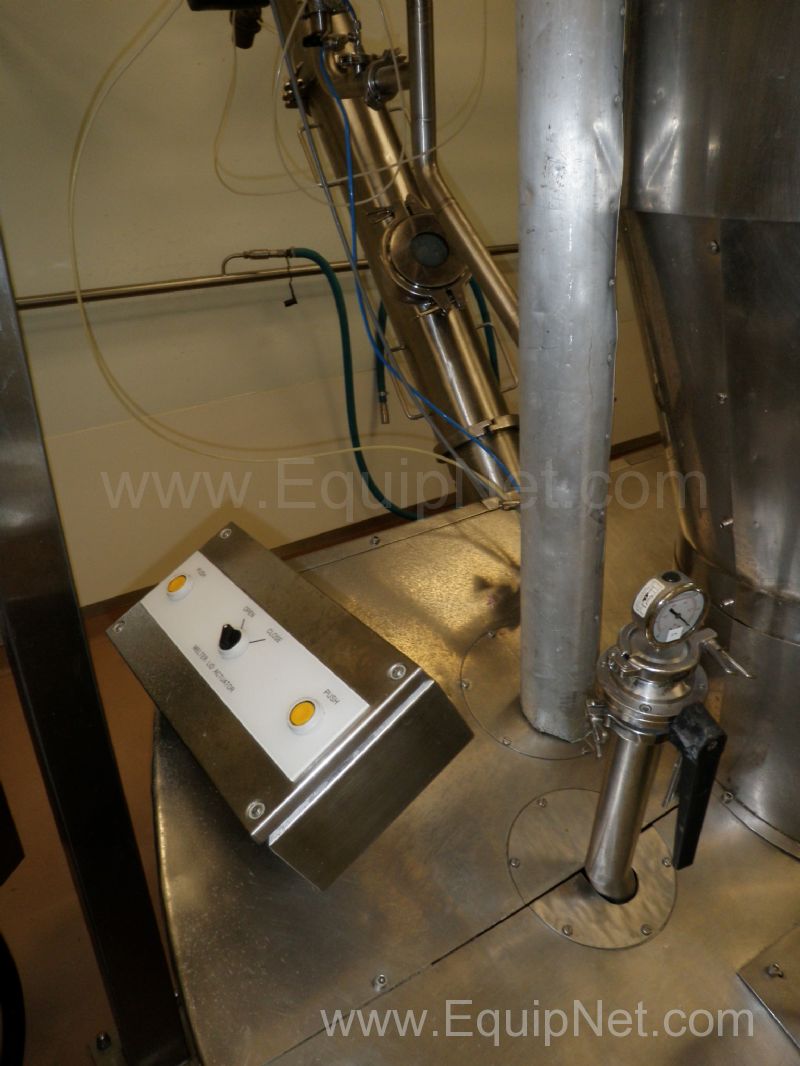

Item 1, The Gelatine Melter / Blender unit is fiited with an angled Flat top, fitted with a central Gate Stirrer Mixer Drive shaft, which is driven by the Overhead mounted Drive unit. Behind this drive shaft is the 120mm diameter coned powdered Gelatine Inlet, automatically fed on demand from the overhead S/s Weigh hopper. Also around the front of this Angled Flat vessel top are mounted; 1 x 50mm diameter vacuum gauge Inlet, 2 x 35mm Liquid Ingredient Inlets, and a pneumatically assisted 400 x 300mm safety grilled, hinged, interlocked Inspection Door, complete with fitted 120mm diameter Inspection window.

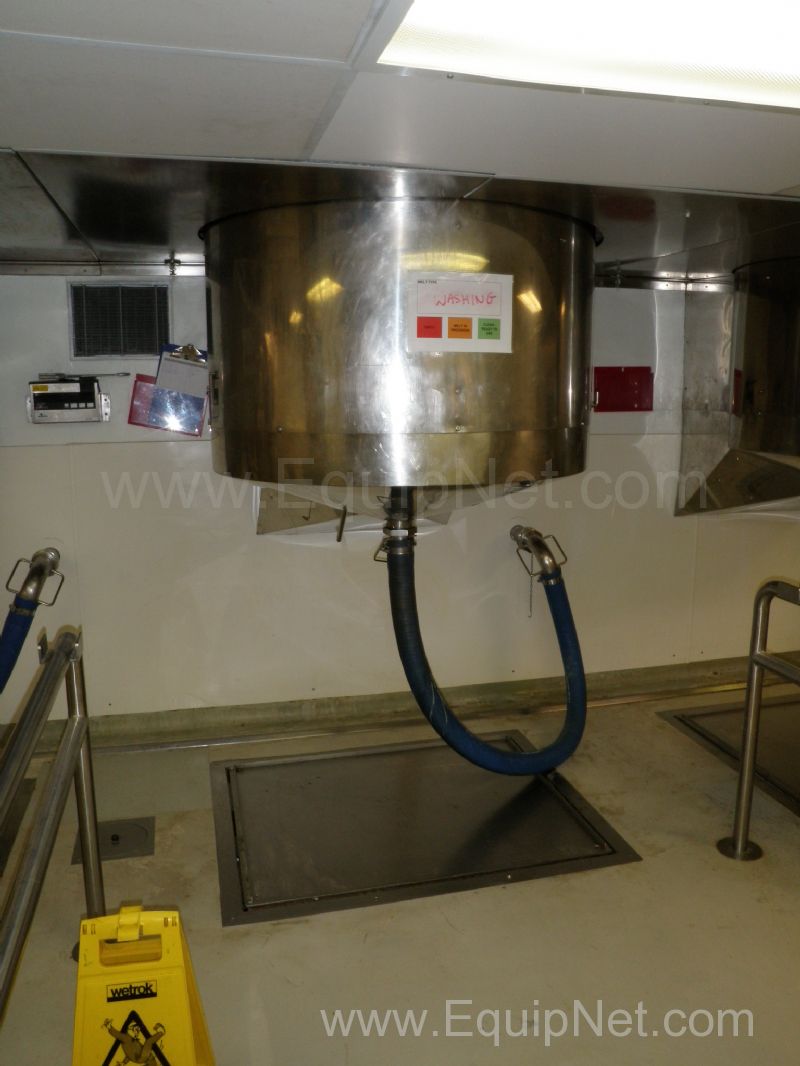

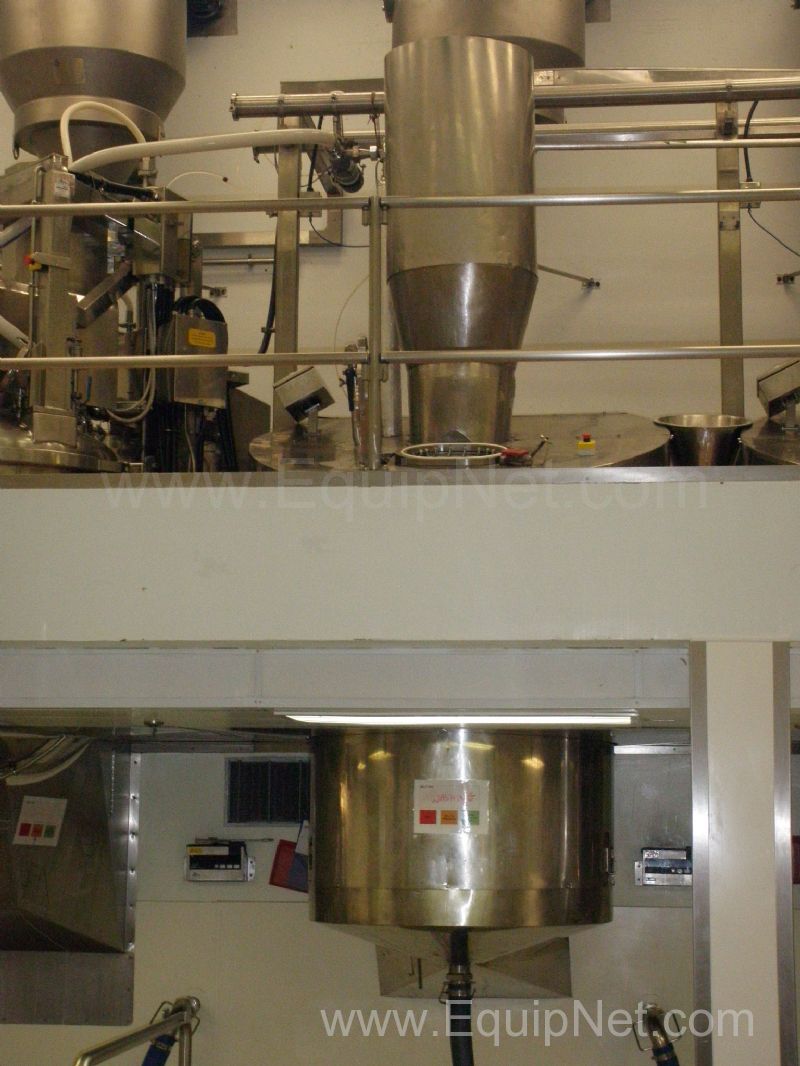

The Gelatine Melter / Blender unit is supported on 3 side lugs from the surrounding Mezzanine floor. Its domed bottom is fitted with a central 80mm quick release coupling Outlet, at a height of 1.05m above the lower Drum mounted floor scales.
This Gelatine Melter / Blender unit measures 2.15 x 1.8 x 4.05m high, and weighs approx 6000 Kgs

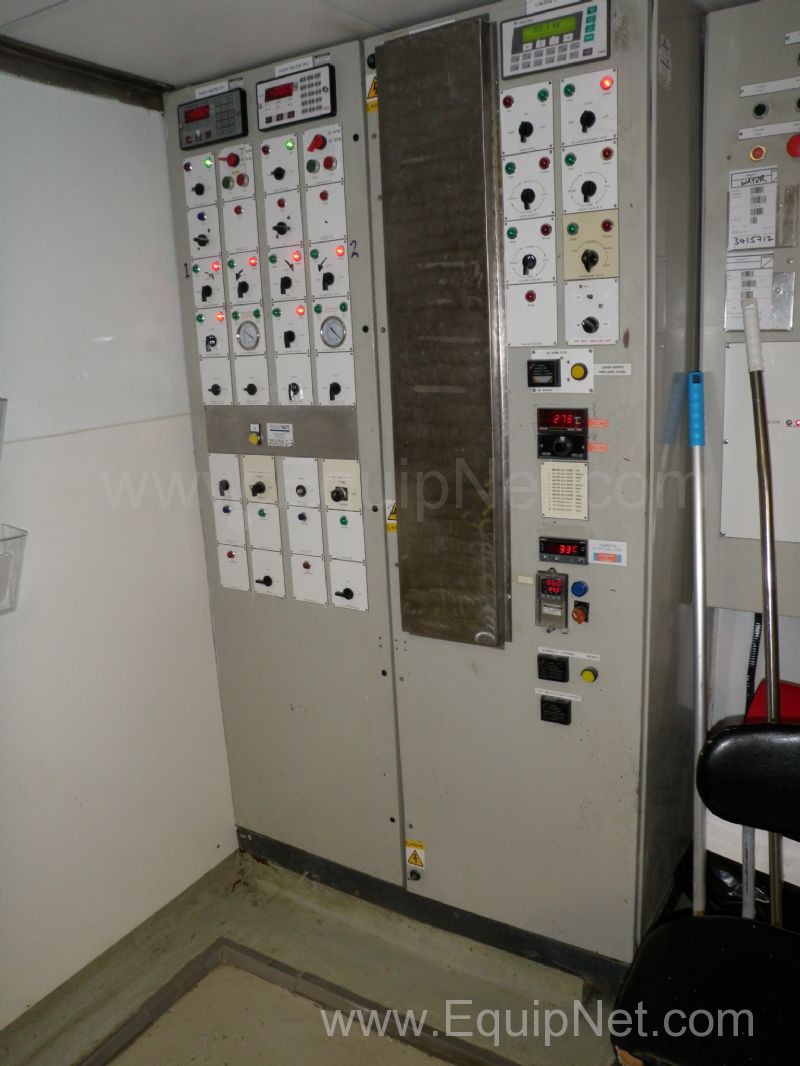

Item 2, Ground Floor mounted shared Control Panels for 2 off Gelatine Melter / Blender units, No's 1 & 2, Listing No's 283259, and 283260. These 2 off wardrobe style panels measure 1.13 x 0.65 x 2.05m high, and weigh approx 400 Kgs.

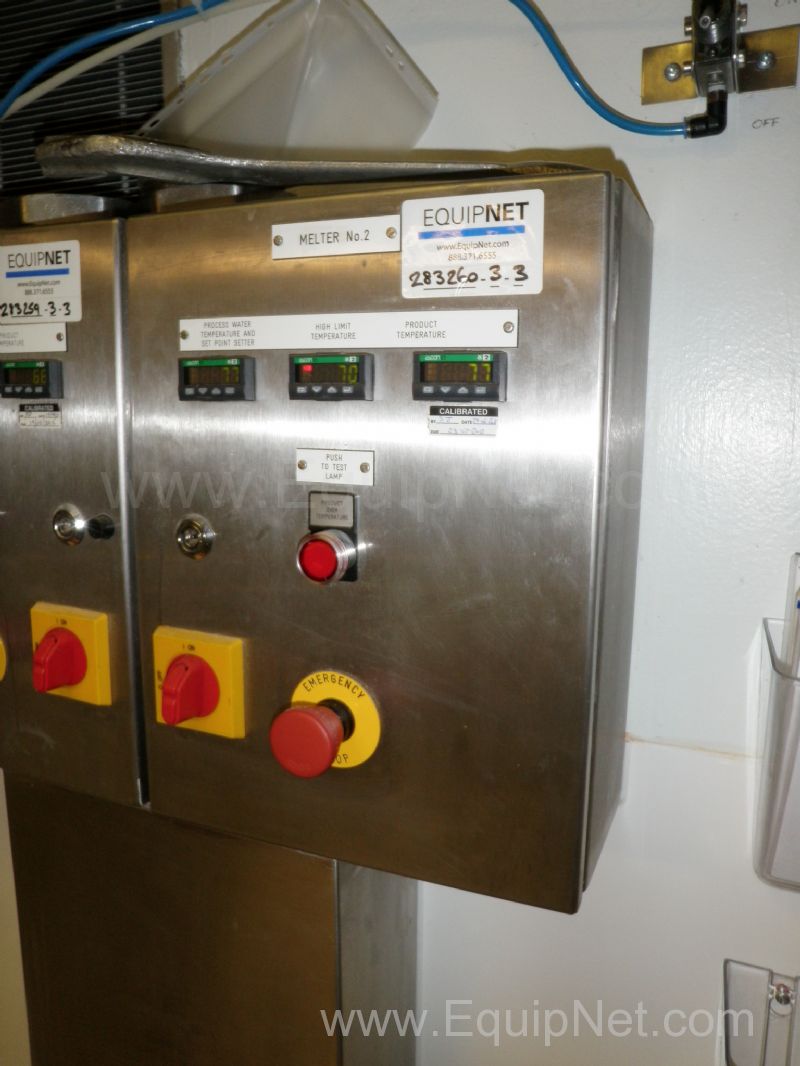

Item 3, Hot Water Jacket wall mounted Control Panel, measures 0.3 x 0.2 x 0.4m high, and weighs approx 100 Kgs.
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in United Kingdom. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Stekko |
| Year | 1982 |
| Model | 3750 Litre |
| Capacity Size | 3750 |
| Products Run | Gelatine |
| Material of Construction | 316L STAINLESS STEEL |
| Inlet Size | 120 MM |
| Agitation | YES |
| Pressure Rating (Temperature) | 80 degrees C |
| Outside Diameter | 1800 MM |
| Overall Height | 4050 MM |
| Inside Diameter | 1700mm |
| Straight Side (T/T) | 1650mm |
| Voltage | 415 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Air Requirements | 6 BAR |
| Estimated Shipping Weight | 6500 KGS |
| Legs/Stand | Supported by 3 side lugs from surrounding Mezzanine |
| Top and Bottom Heads | FLAT TOP/DISHED BOTTOM |
| Width | 1.8 M |
| Recommended Packaging Form | CUSTOM PALLET |
| Length | 3.58 M |
| Height | 4.05 M |
