Listing #311352
Unused IWK - Oystar TFS 80 Tube Filling Line with SC5 Cartoner
EquipNet Tag #287490-1-1, 287491-1-1, 287492-1-1, 287493-1-1, 287494-1-1, 287495-1-1, 287497-1-1, 287498-1-1, 287499-1-3, 287499-2-3, 287499-3-3
Equipment Description:
Line consists of the following:

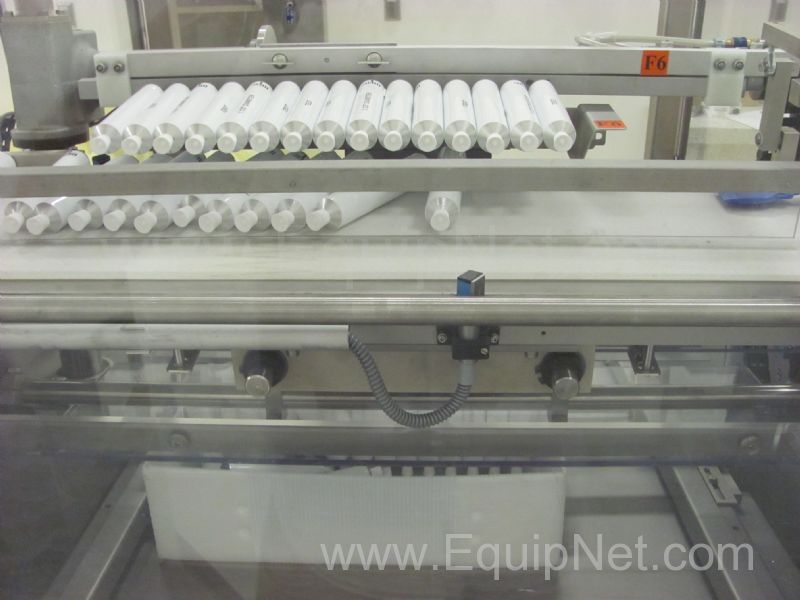

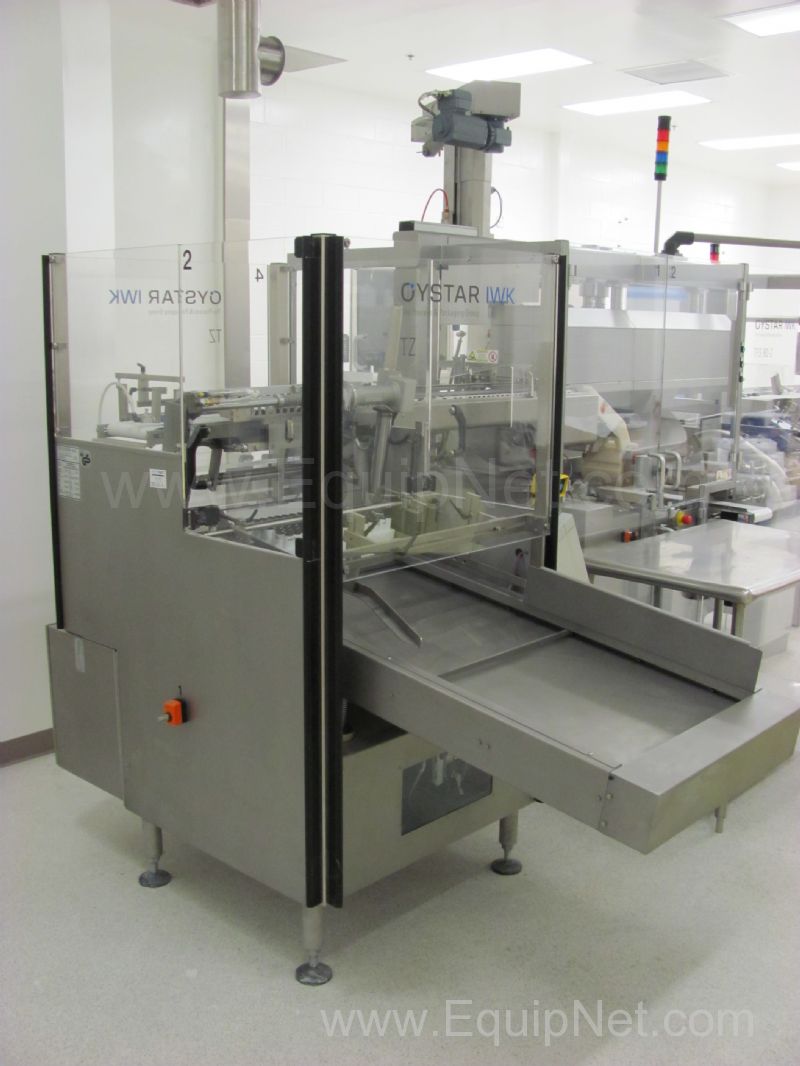

Tube Unloader
Manufactured by IWK
Model: TZ-201
Serial #: 425
Order #: 41631
Year of manufacture: 2008
Safety guards with interlocked doors
Six sets of change parts (D12.7, D15.8, D19.5, D22.2, D25.4, D28.5)
Minimum - maximum tube diameter from 12.7mm to 60mm
Minimum - maximum tube length from 75mm to 250mm
Electrical: 480volt, 60hz, 3ph, 3amp
Air requirement: 6 bar (87 psi)
Machine was running at 180 tubes per minute
Capable of running up to 300 tubes per minute

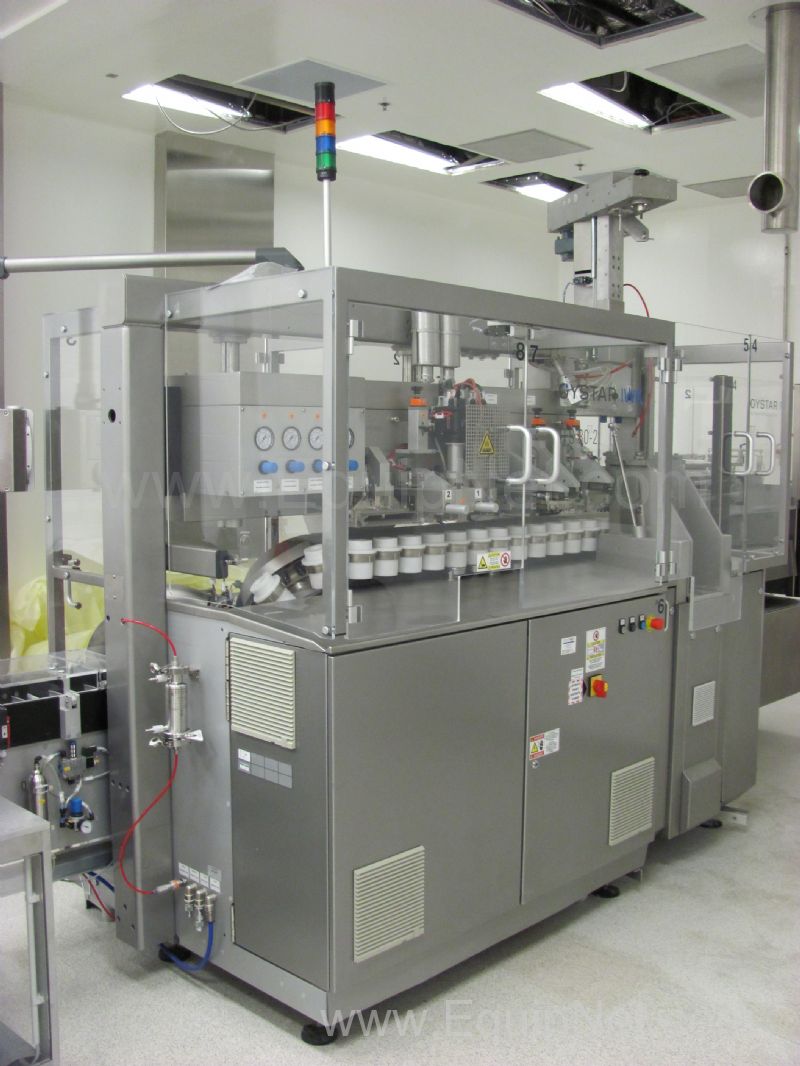

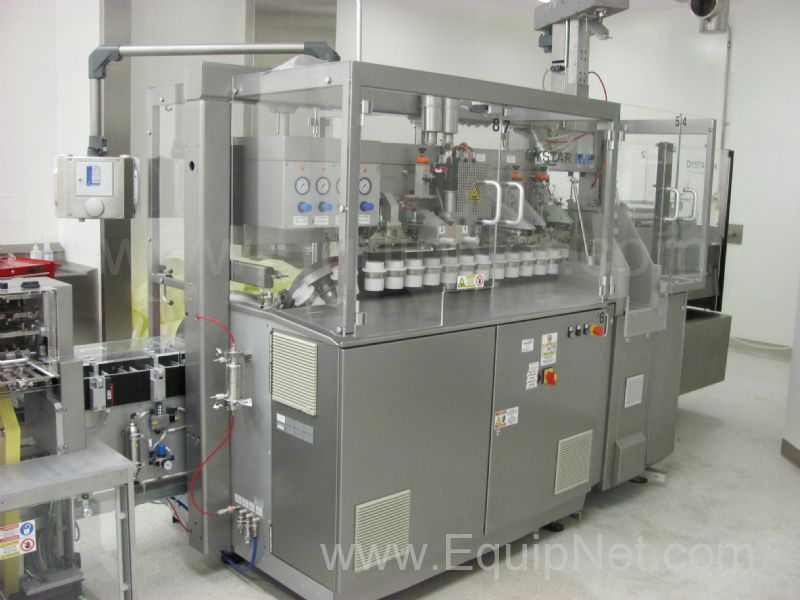

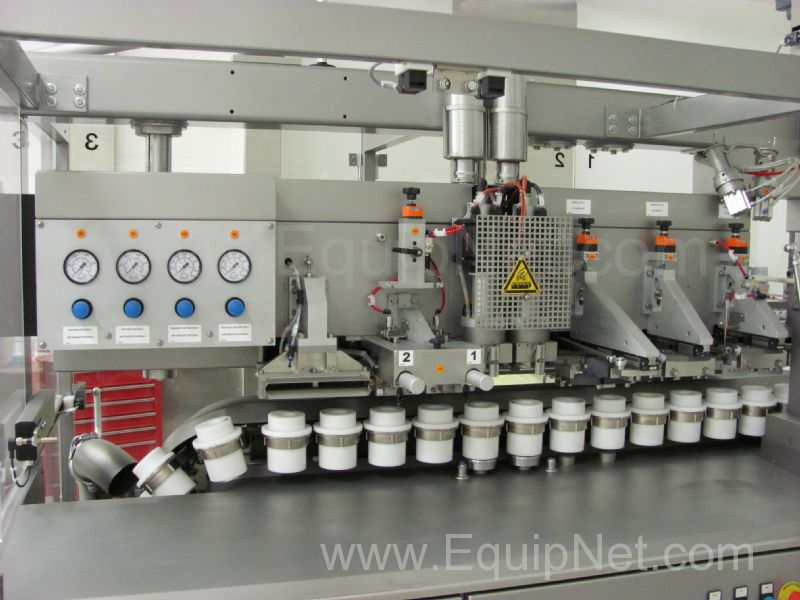

Tube filler
Manufactured by IWK
Model: TFS80-2
Serial #: 81
Order #: 41632
Manufactured in 2009
Rotary tube loading drum

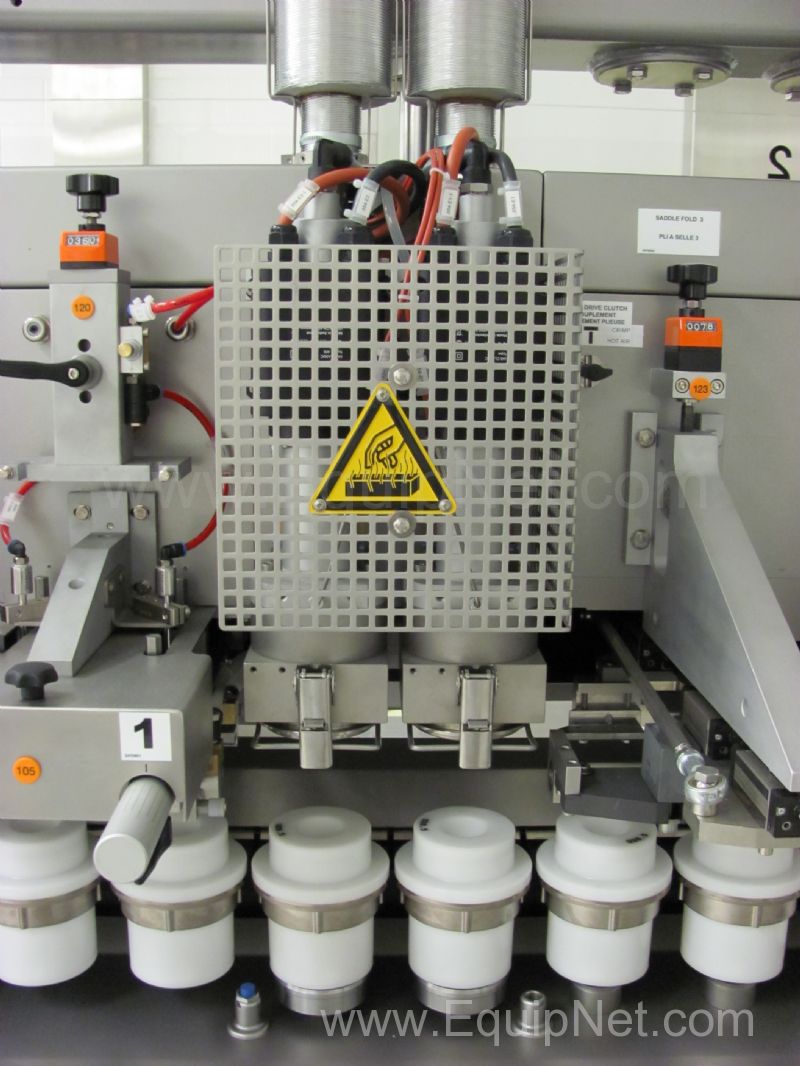

Dual filling nozzles
Tube diameters from 10 to 52mm (depending on change parts)
Tube lengths from 50mm to 250mm (depending on change parts)
Fill volumes from 1.0 to 400ml (depending on change parts)
Speeds to 180 tubes per minute (depending on application)
Machine was going to run from 2g tubes up to 6 oz. tubes
Unit had the IQ/OQ done but was never run in production

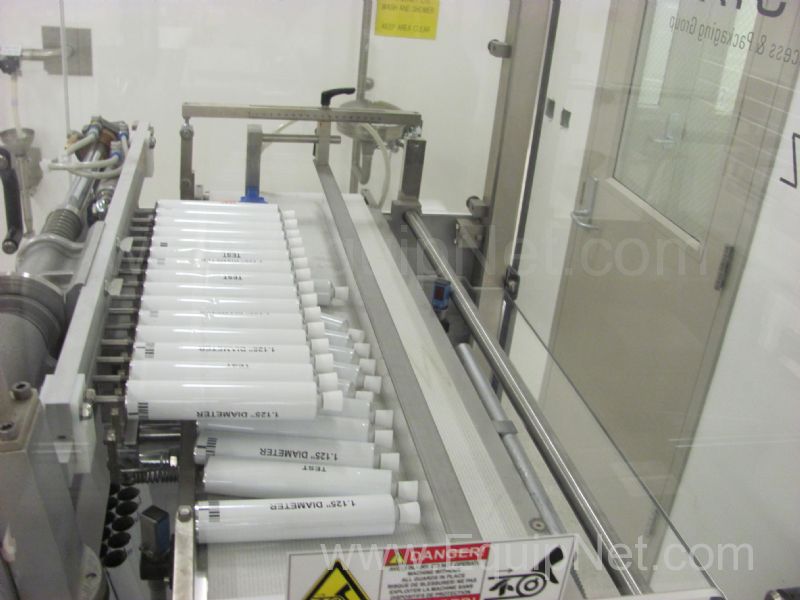

Change parts that are included are D12.7, D15.8, D19.5, D22.2, D25.4 and D28.5-(installed on machine - tube was 1.125" in diameter)

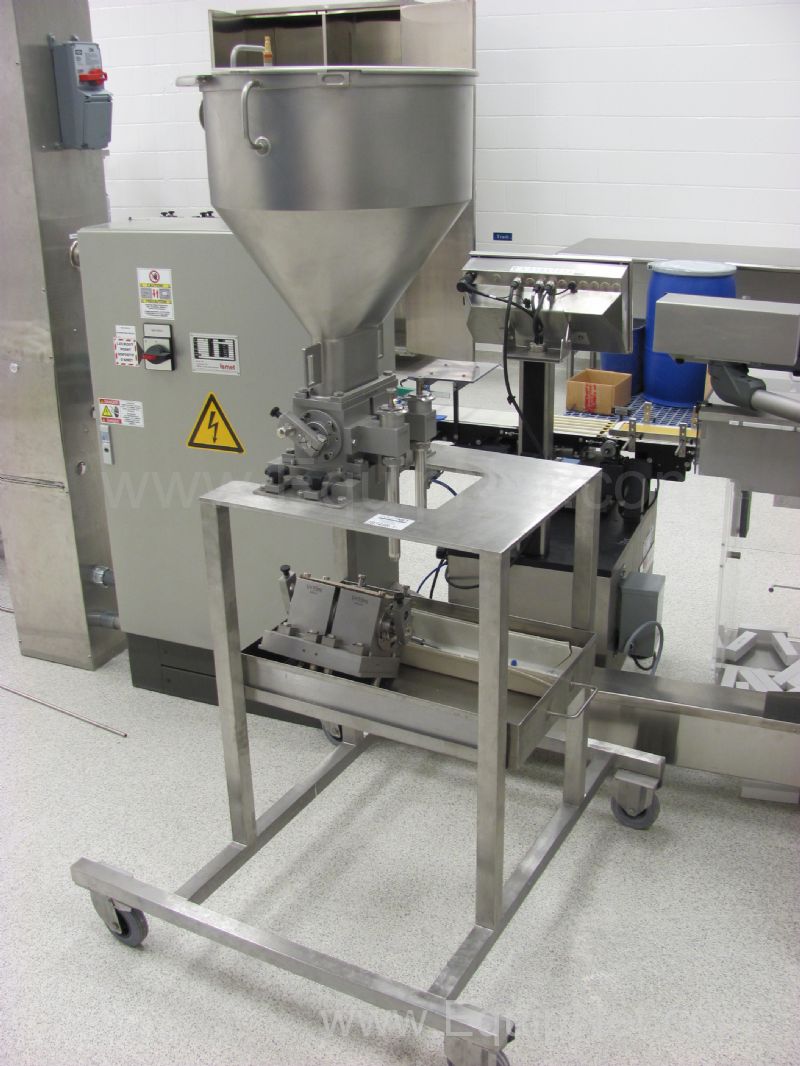

Agitated product hopper
Hot air sealing
Capable of running both metal and plastic tubes
Print registration
Swing arm mounted operator interface
Stainless steel construction
Saftey guards with interlocked doors
Dual tube discharge with direct flight loading for transfer to the cartoner
Electrics: 480volt, 60hz, 3ph, 46amp

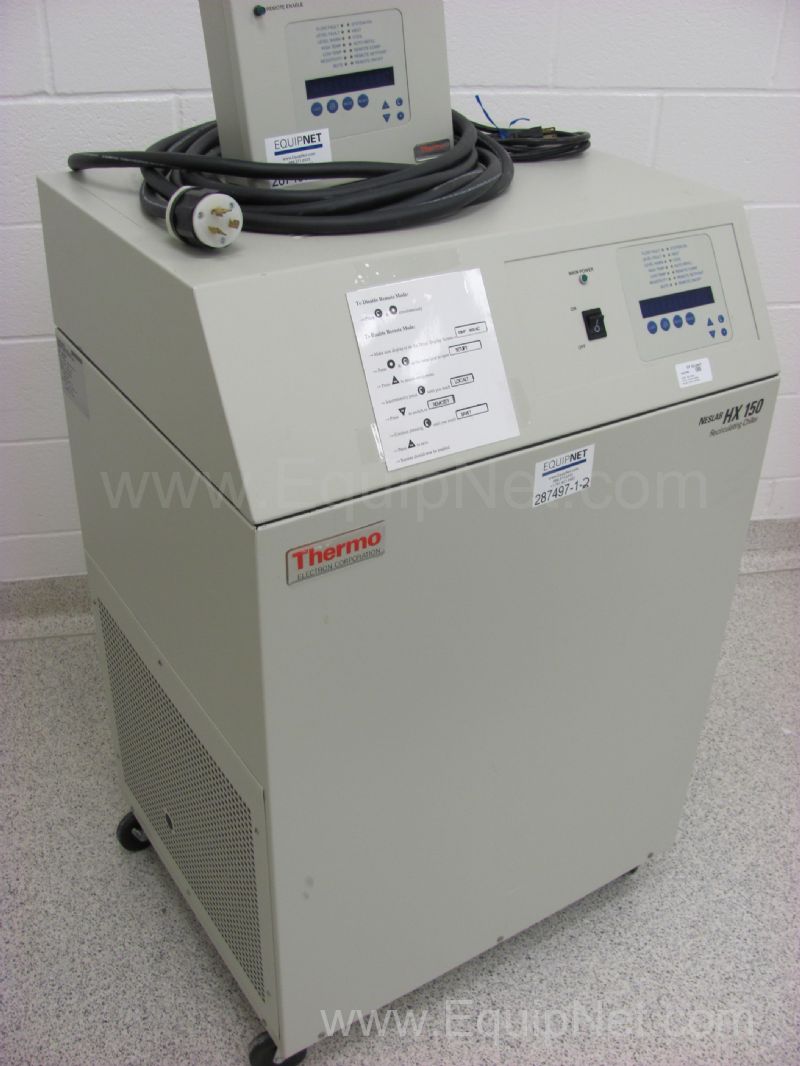

Includes Neslab model HX150 recirculating chiller

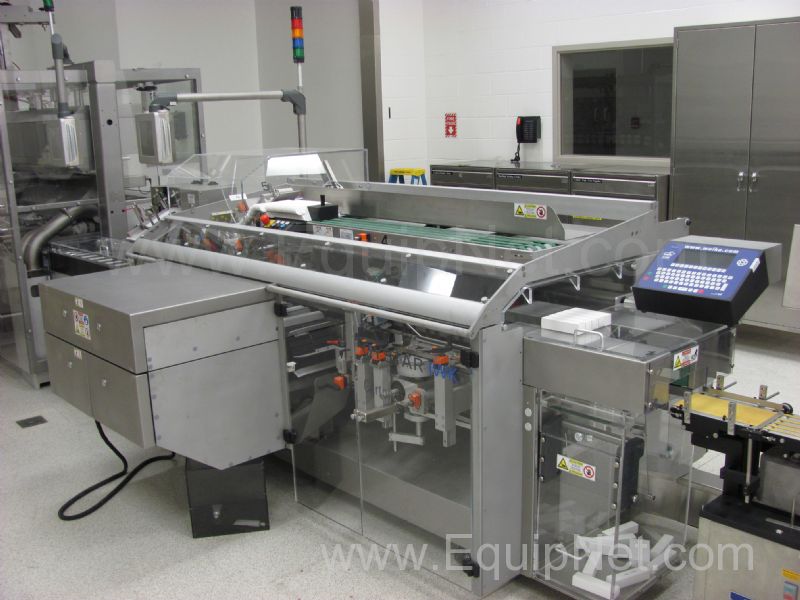

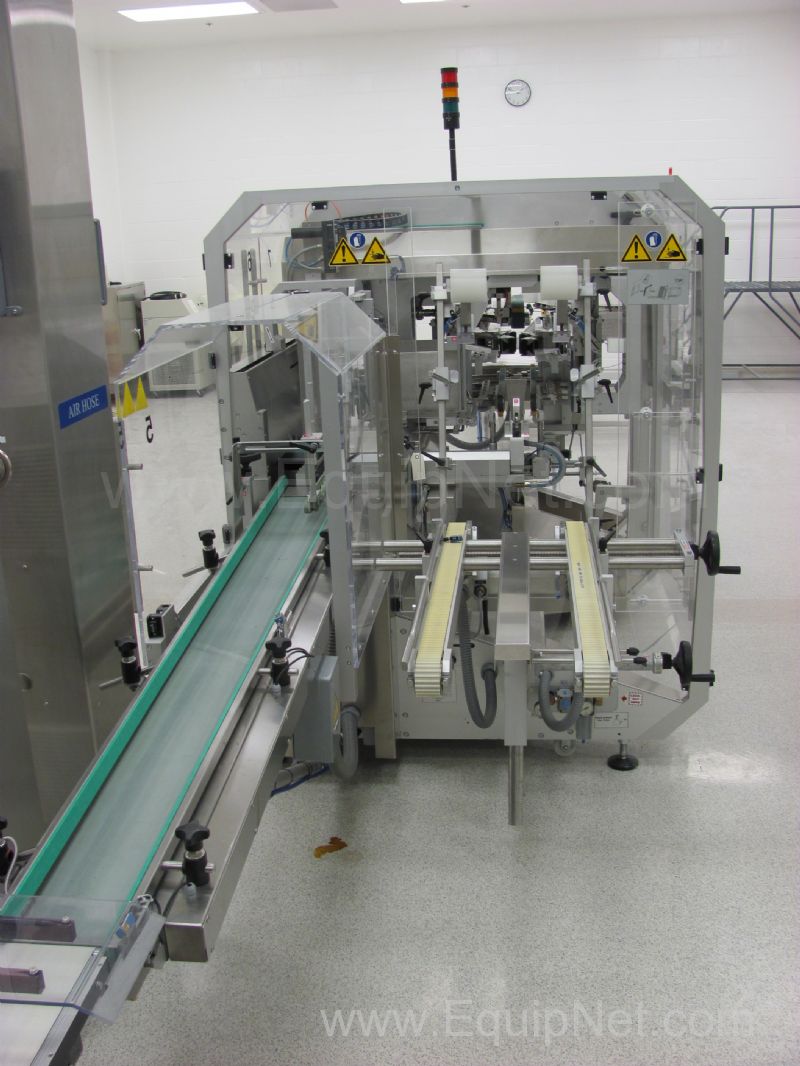

Tube Cartoner
Model: Cartopac SC5
Serial #: 1
Order #: 31430
Year of manufacture: 2008
Electrics: 480volt, 60hz, 3ph, 12 amp
Stainless steel construction
Saftey guards with interlocks
Currently configured for tuck cartons
Swing arm mounted operator interface

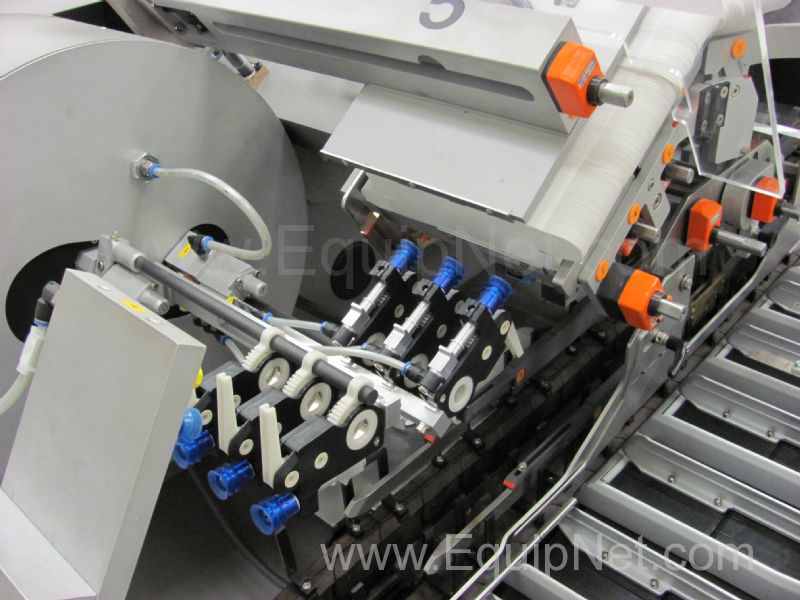

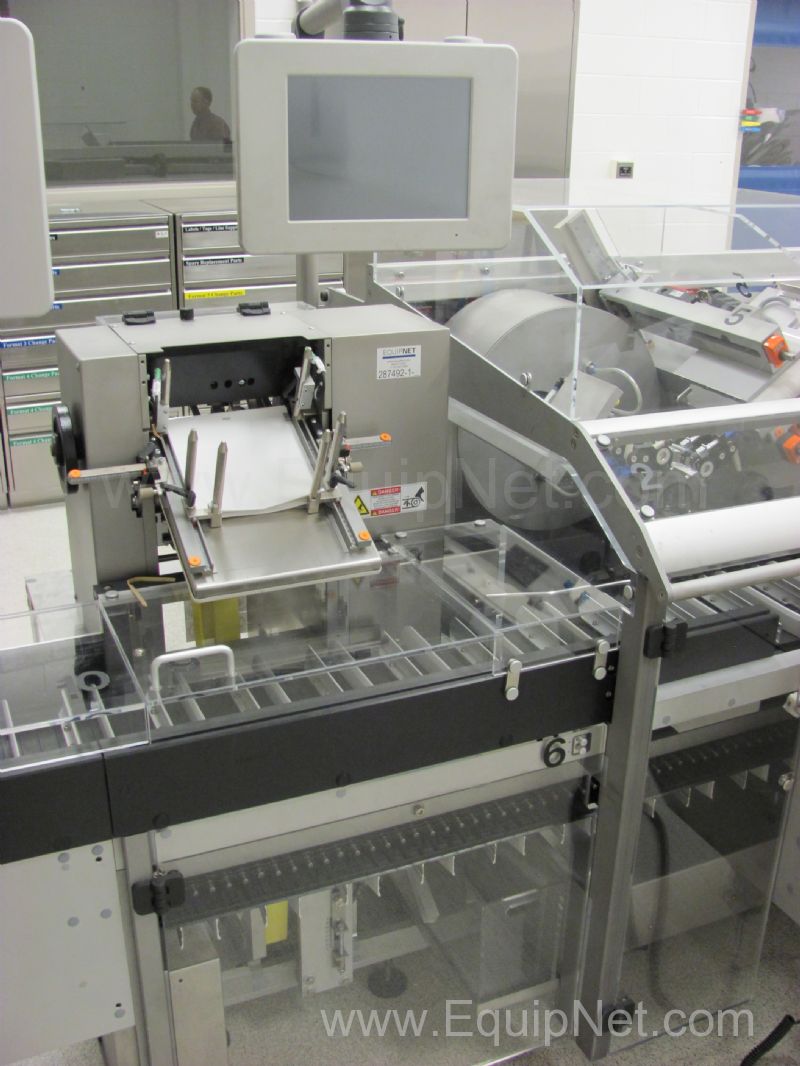

Sheet fed leaflet inserter
Two vacuum arm rotary barrel style carton pick off
Horizontal product loading (no carton no load feature)
Continious motion
Minimum carton size range: L 20mm xW 15mm x H 65mm
Maximum carton size: L 100mm x W 100mm x H 230mm
Speeds up to 200 cpm (line was running at 180 per minute)

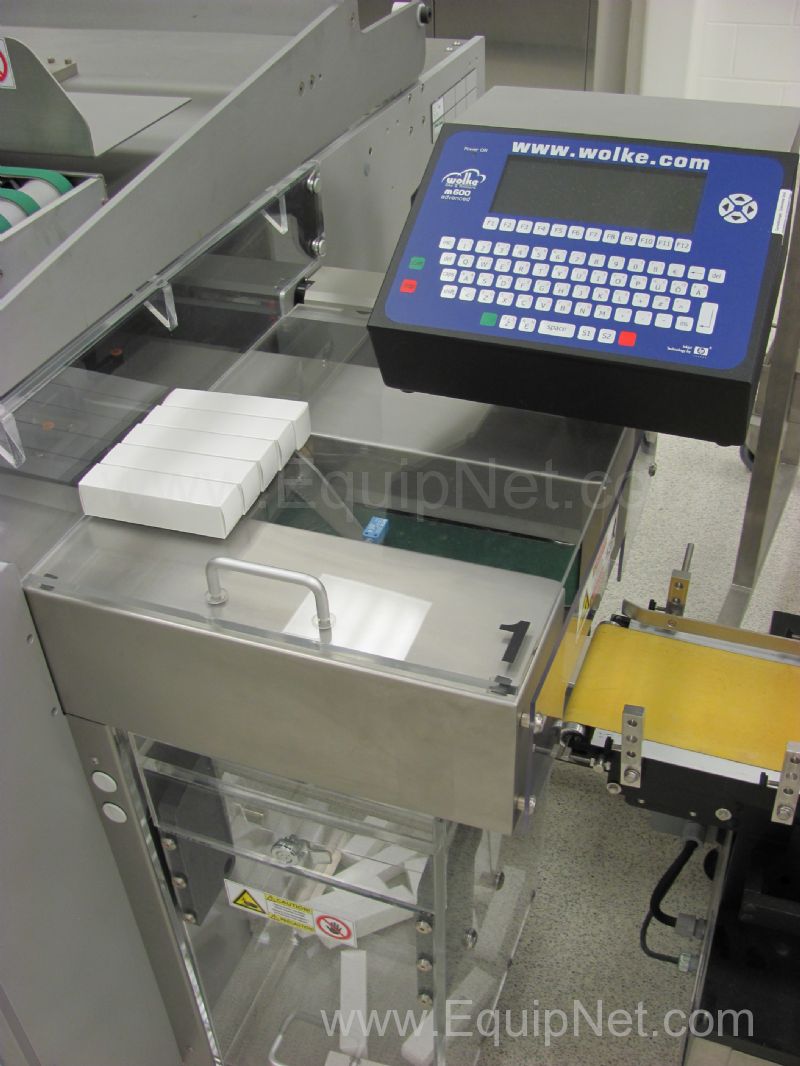

Integrated Wolke ink jet printer
Automatic reject on carton discharge

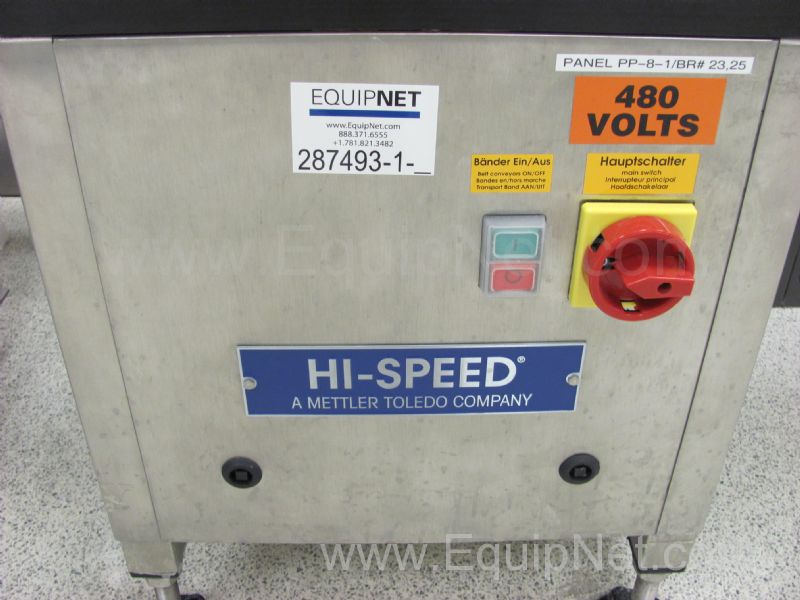

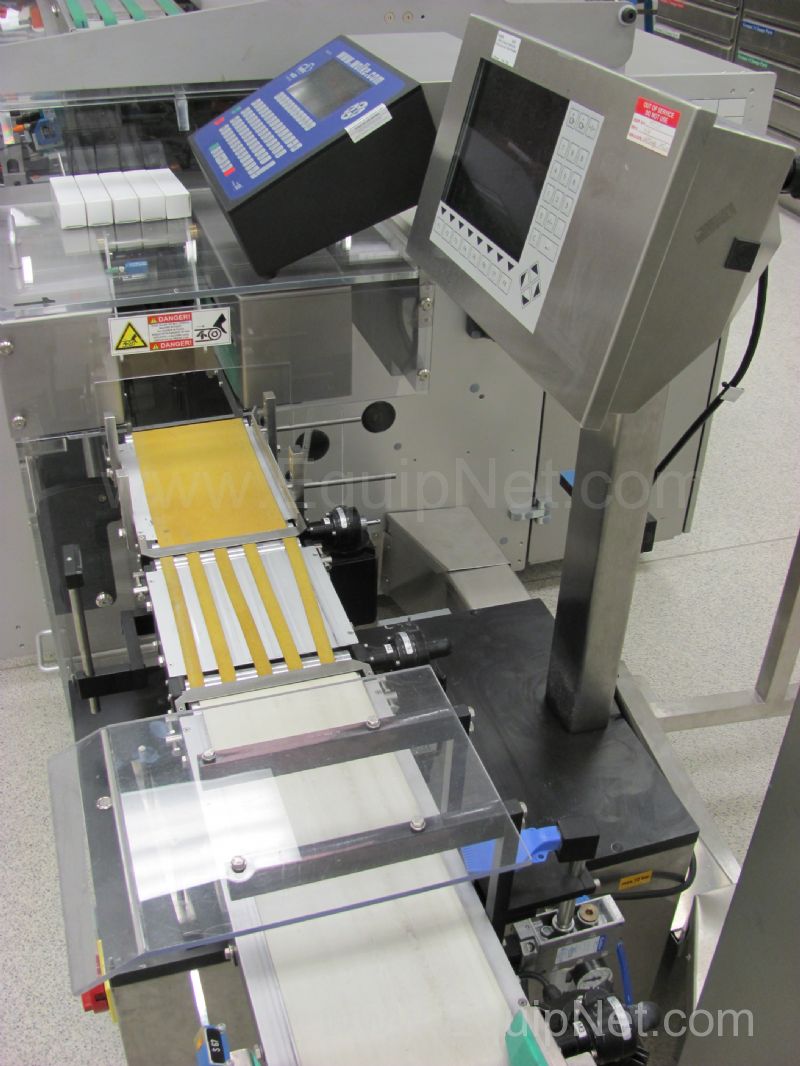

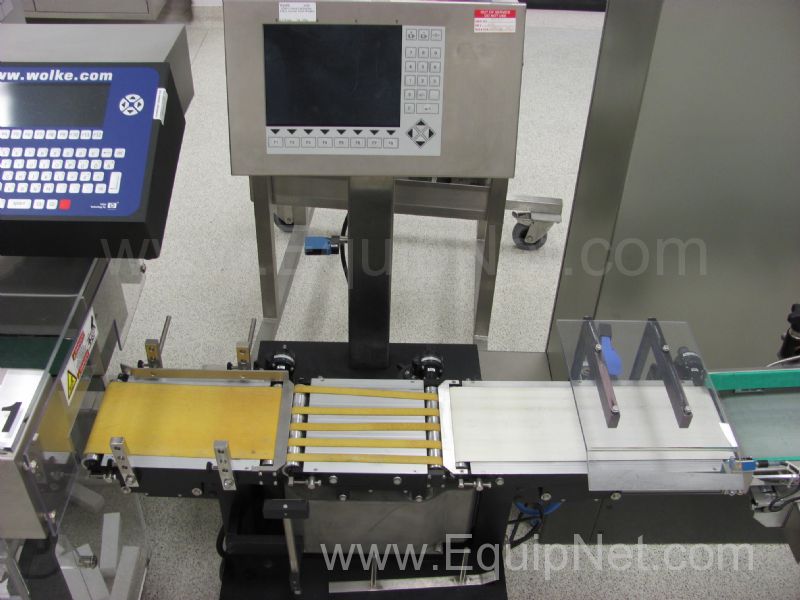

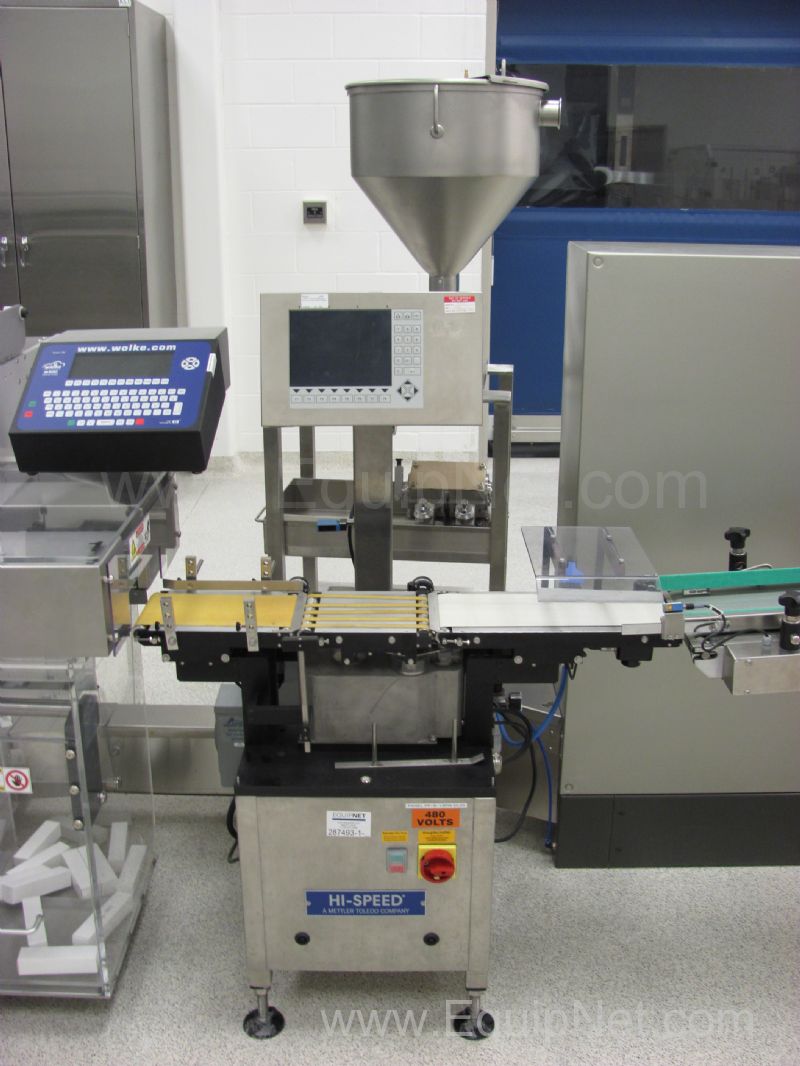

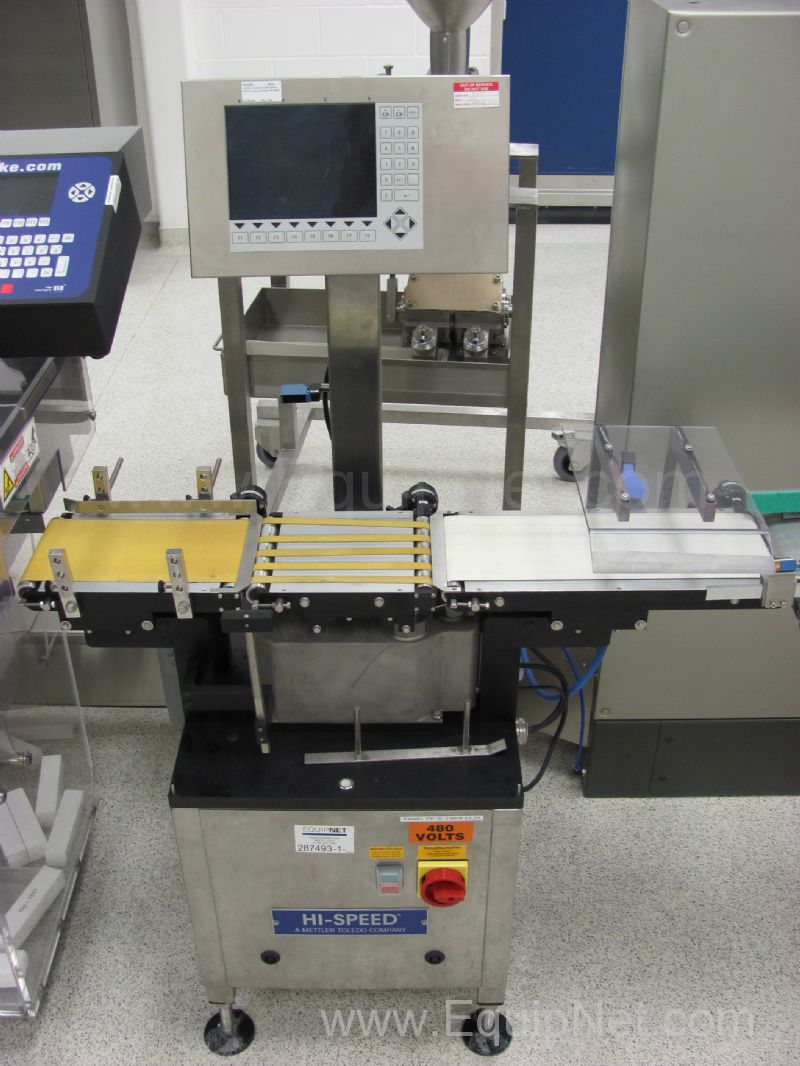

Garvens - Hi Speed Checkwigher
Model: VS2
Serial #: 120833
Part #: 000391
Calibaration range from 10g to 120g
Stainless steel construction
Belt style product transfer
Pedestal mounted operator interface
Pneumatic blow off style reject

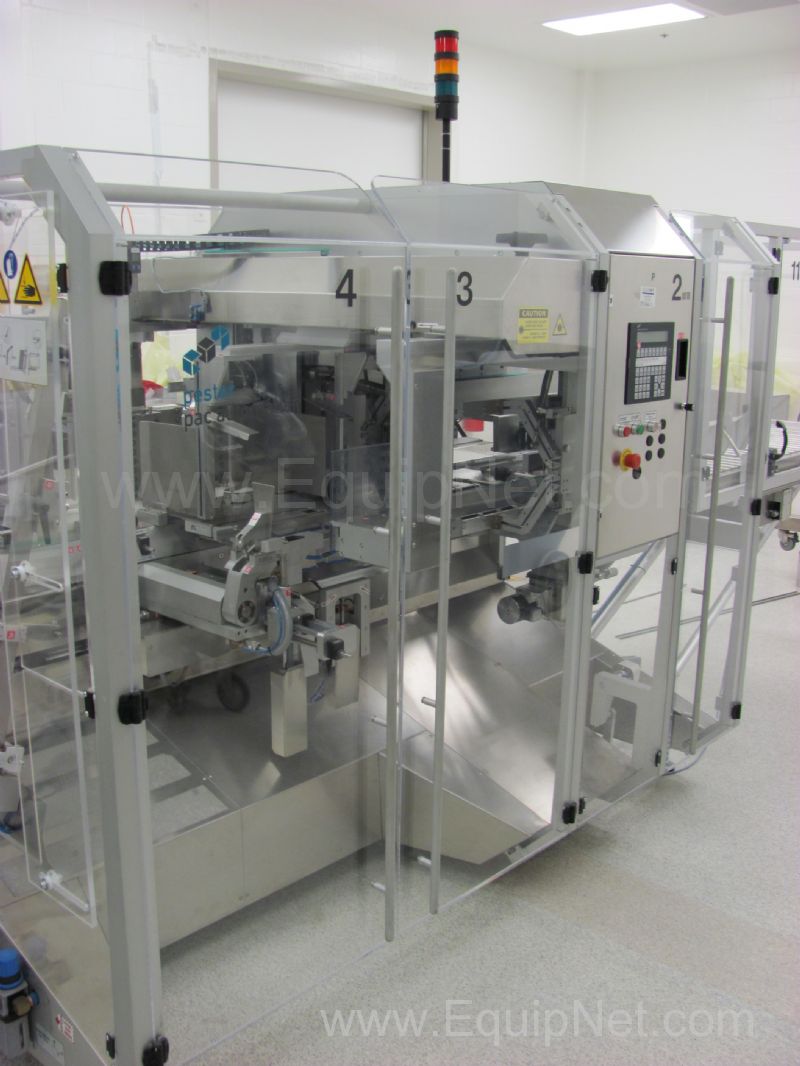

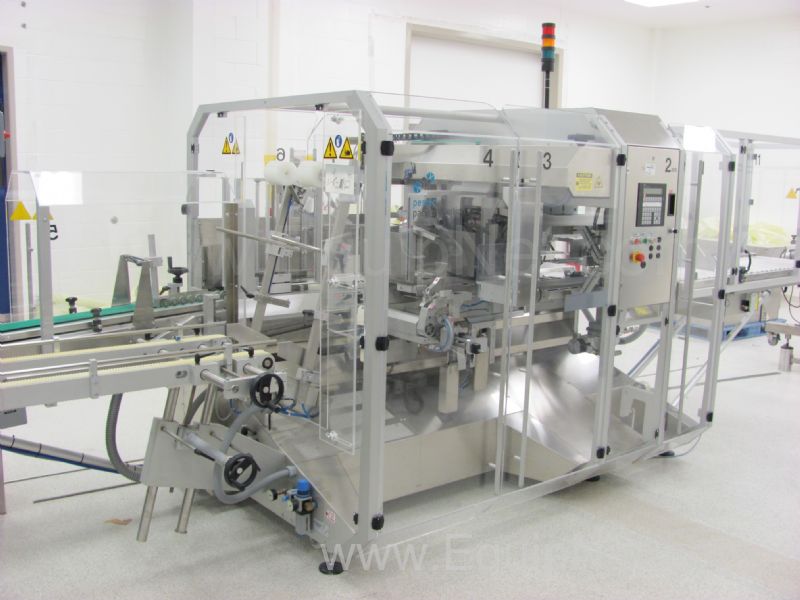

Pester PEWO-form Case Packer
Model: PEWO-form UVP-2
Serial #: 10372A
Year of manufacture: 2002
Electrics: 480volt, 50/60hz, 3ph, 20amp
Air requirement: 6 bar
Speeds up to 5 cases per minute
Infeed coalation station
Side losded case packer
Dual tape heads on case discharge (cases are tipped upright on discharge)
Minimum case size: 150mm long x 140mm wide x 120mm high
Maximum case size: 450mm long x 320mm wide x 320mm high
Speeds up to 20 cases per minute

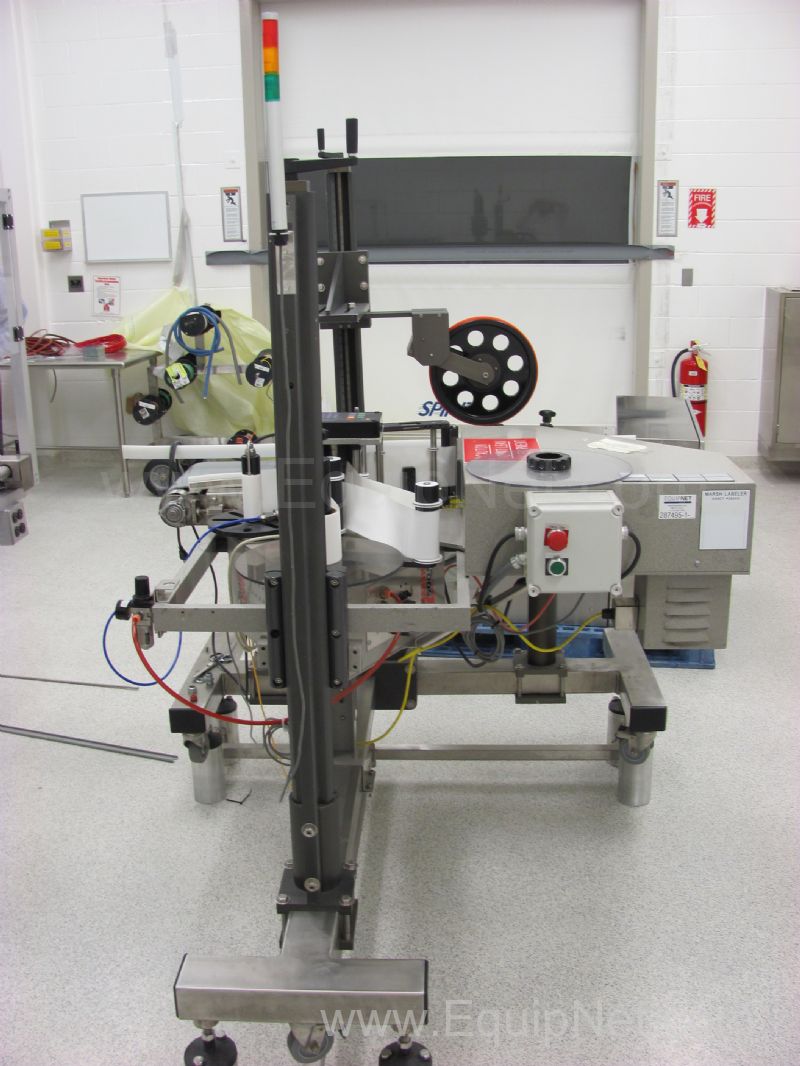

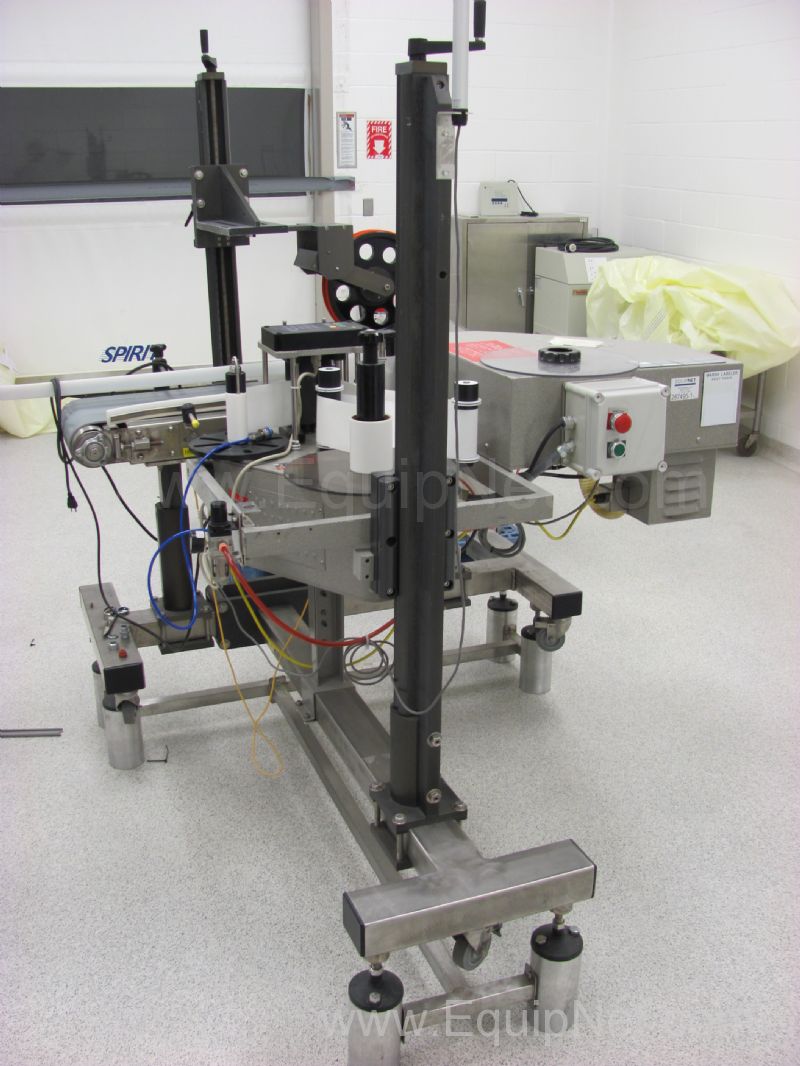

Marsh 500a Case Labeler
Model: 500a
Serial #: 2944609011
Year: 1999
Adjustable height label head
Integrated blet conveyor for case transport
Adjustable height spacing wheel
Belt conveyor is approx 5'long x 8-1/2"wide
Conveyor model: TA
Serial #: 363032
Additional pictures are avail. upon request
Line includes three - seven drawer stainless steel parts cabinets with change parts
Seller would consider selling the end of line equipment (checkweigher, case packer, case labeler) separately
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in New York. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | IWK - Oystar |
| Year | 2008 |
| Model | Various |
| Serial Number | See below |
| Capacity Size | 180 tubes per minute |
| Product Sizing | Various |
| Products Run | None |
| Spare/Change Parts | YES |
| Length | 807 IN |
| Width | 96 IN |
| Height | 120 IN |
| Estimated Shipping Weight | 15675 LBS |
| Recommended Packaging Form | CUSTOM |
