You are making an offer on an Unused 304 Stainless Steel Compressed Air Surge Tank located in the USA. This lot is being sold "as is, where is." We recommend that you contact an EquipNet sales representative to set up your own inspection.
Serial #: S25107
Single wall
Tank Capacity 5336 Gals
84" diameter x 204" long
Year of construction: 2007
304 stainless construction
National board #: 3592
Attached skirt
Vertical style vessel
Shell Thickness 1/2"
MAWP 150 PSI @ 200 Deg. F (Vessel)
External MAWP FV PSI @ 200 Deg. F
Vessel MDMT -20 Deg. F @ 150/FV PSI

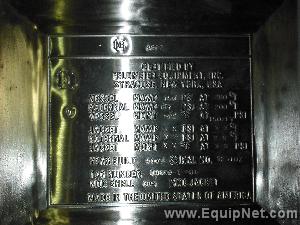

NB# 3592
- Manufacturer Feldmeier
- Year 2007
- Serial Number S25107
- National Board # 3592
- Capacity Size 5336 GALS
- Products Run None
- Material of Construction 304 STAINLESS STEEL
- Agitation N
- Top and Bottom Heads DISHED TOP/DISHED BOTTOM
- Pressure Rating (Temperature) 200 degrees F.
- Pressure Rating (Pressure) 150 psi
- Length 23.1 IN
- Height 98 IN
- Diameter 84 IN
- Estimated Shipping Weight 20000lbs
- Removal Difficulty MODERATE
- Requires rigging or removal YES
- Requires a flatbed truck YES
- Level of shipment preparation necessary UNCRATED/LOOSE
- Width 92 IN
Contact Information
If you need further information, please contact our Sales Department at 888.371.6555, outside USA at +1.781.821.3482, or click here to send us a message, or by email to sales@EquipNet.com
Payment Methods:
Certified Check, Bank Check, Company Check w/Bank Guarantee, or Wire Transfer
Crating, Rigging, and Shipping Info:
Buyer is responsible for all crating and shipping charges. EquipNet can furnish a quote upon request. Please contact sales@equipnet.com.
Location:
Puerto Rico
Dimensions: 23.1x98x92 IN
