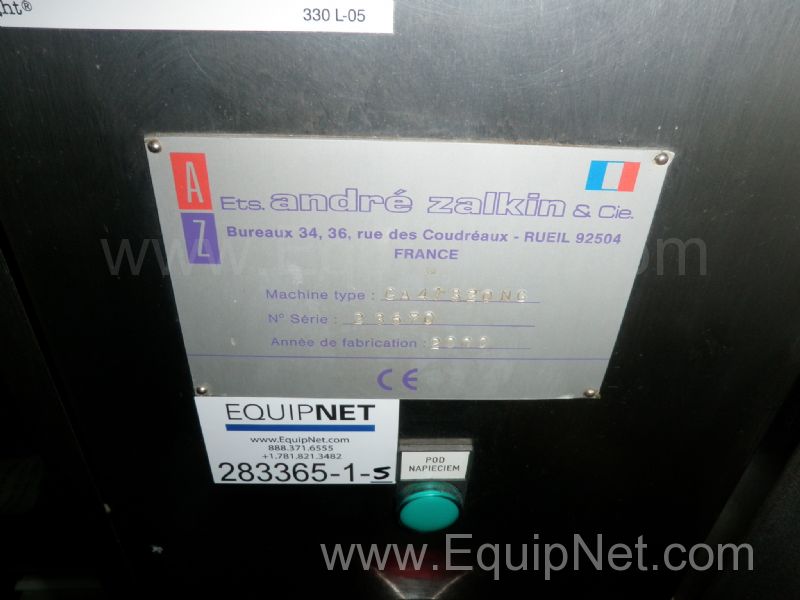

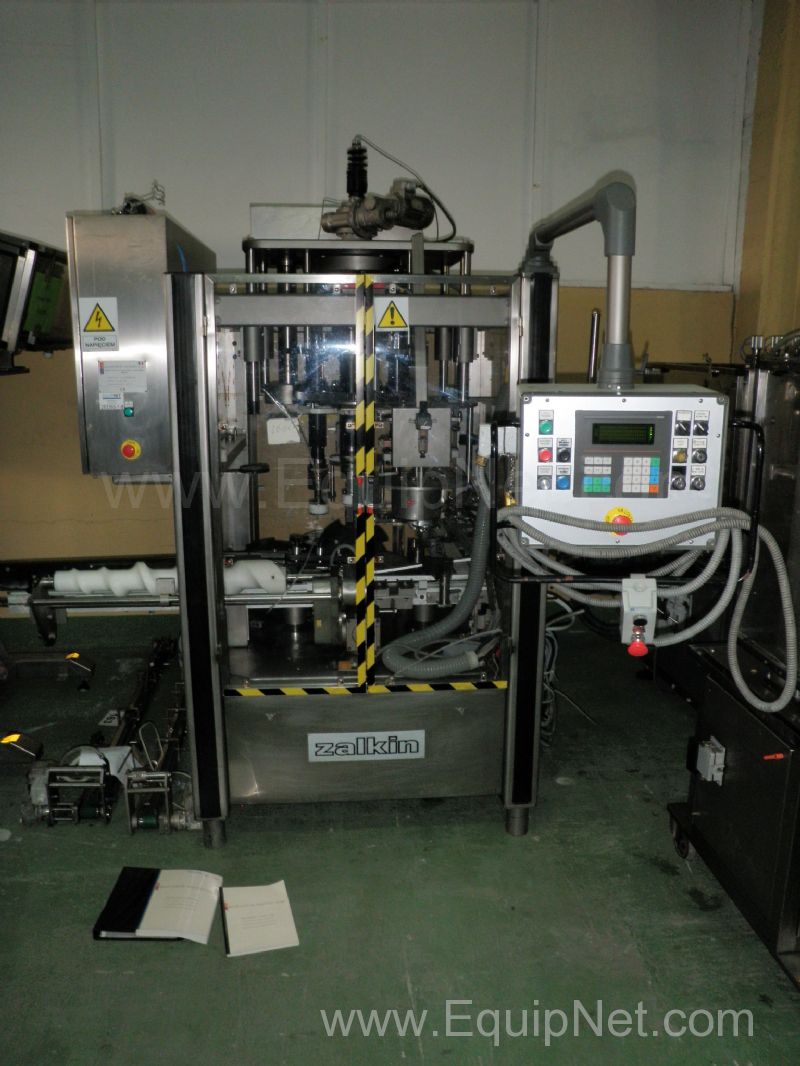

Zalkin CA4 360 NG Rotary Automated Capping machine and 2 off Alternative Cap Feeder systems, Left to Right motion, CE Rated

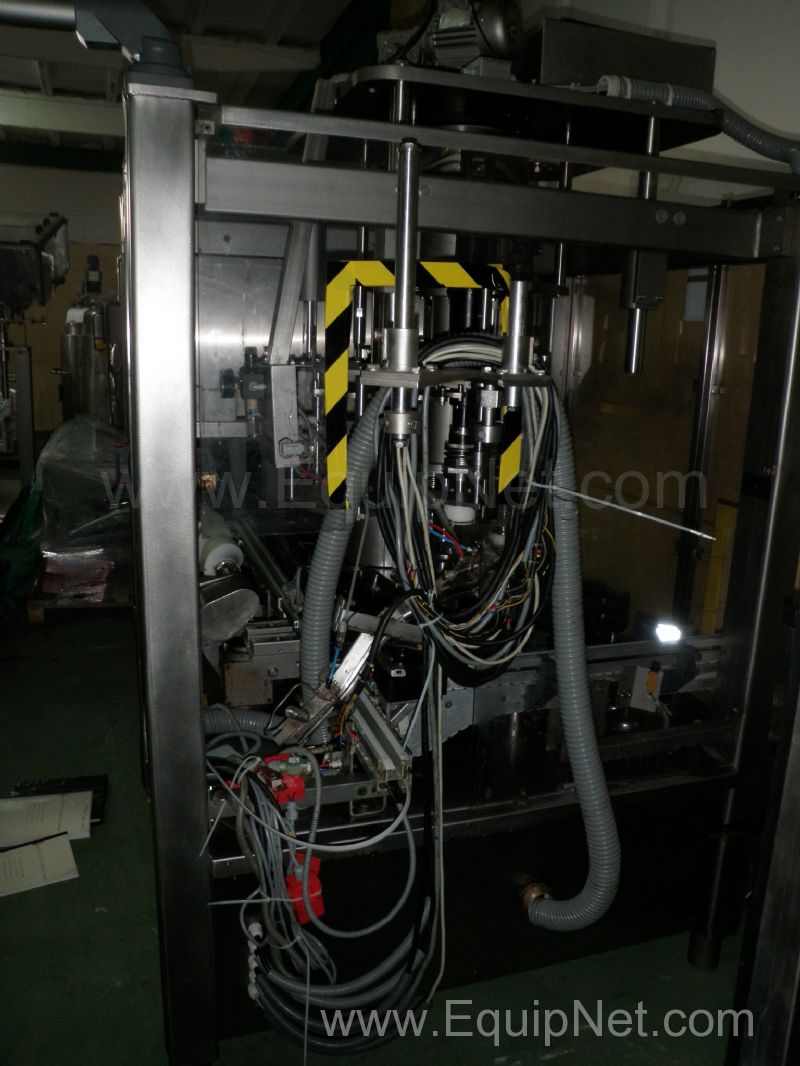

Item 1, Zalkin Capper is a Left to Right hand configured machine, which is capable of automatically screw pressure capping 2 types of plastic cap, at the production rate of 100 plastic Lotion bottles / minute.

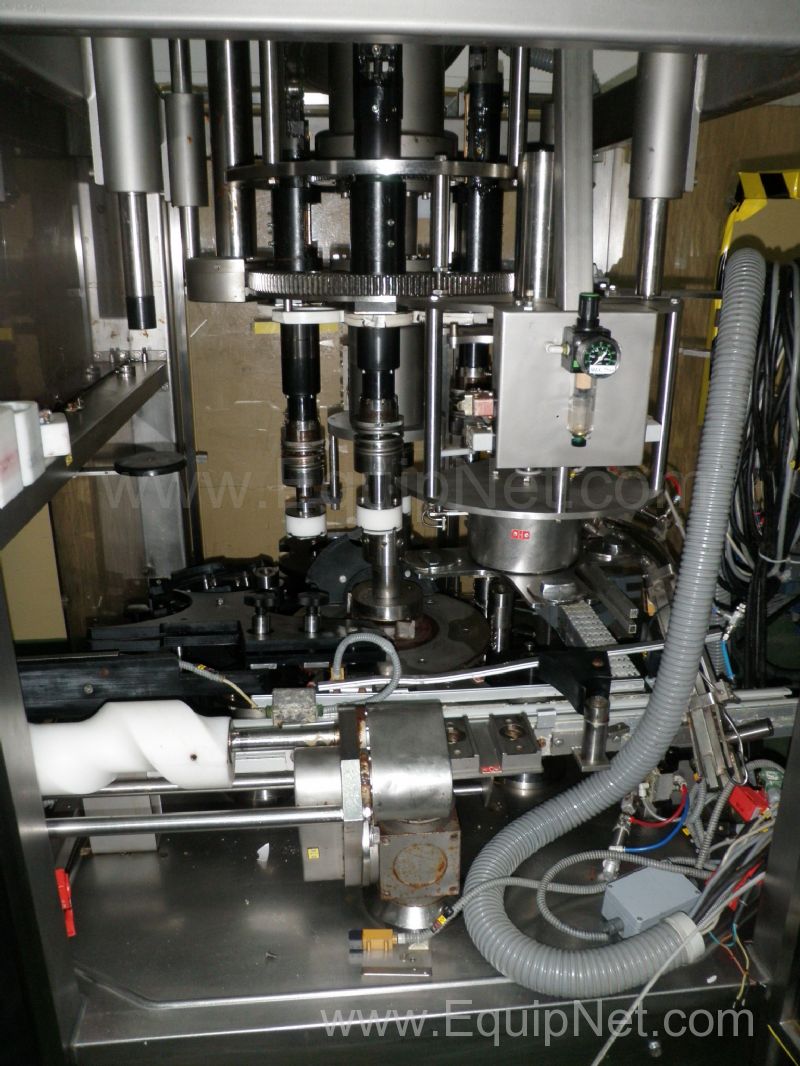

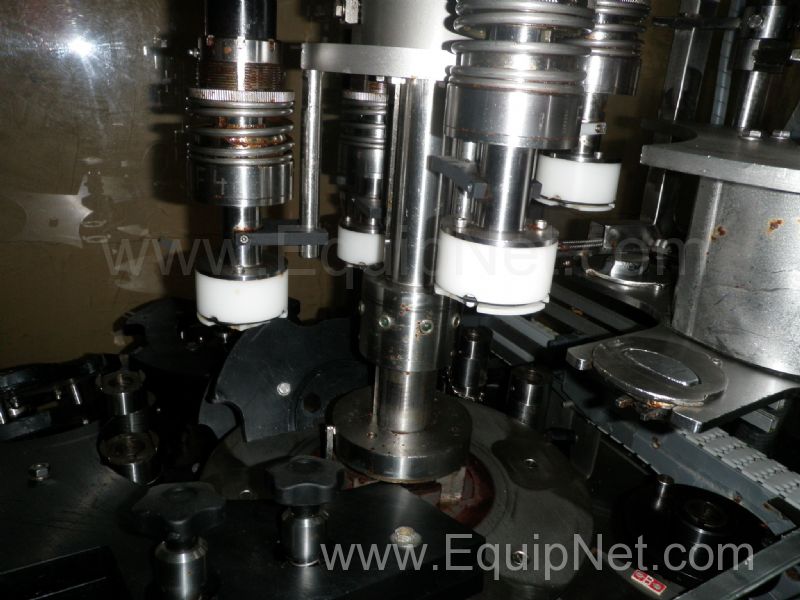

The 200-500ml bottles which measure between 50-100mm diameter x 100- 170mm high, are fed into the machine via the 930mm high x 65mm wide side guided Inlet slat conveyor, to the infeed timing scroll, prior to to being capped under one of the 4 off Zalkin screw pressure capping heads. The good capped bottles being then discharged via the 930mm high x 65mm side guided Discharge slat conveyor. Reject bottles being discharged via the right angled side guided reject slat conveyor.
The S/s framed machine is fully guarded, with interlocked clear macralon doors, and includes a 1250mm long x 550mm wide x 650 mm high S/s framed / macralon Infeed Conveyor guard.

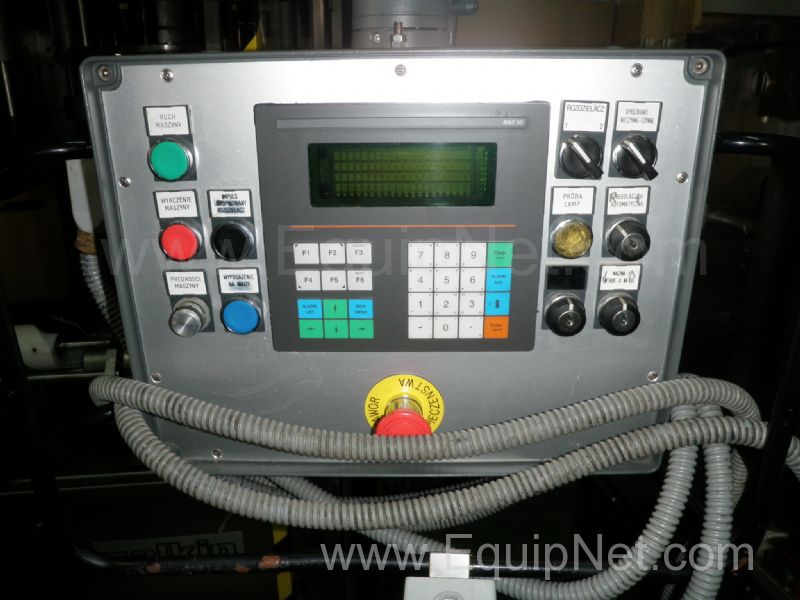

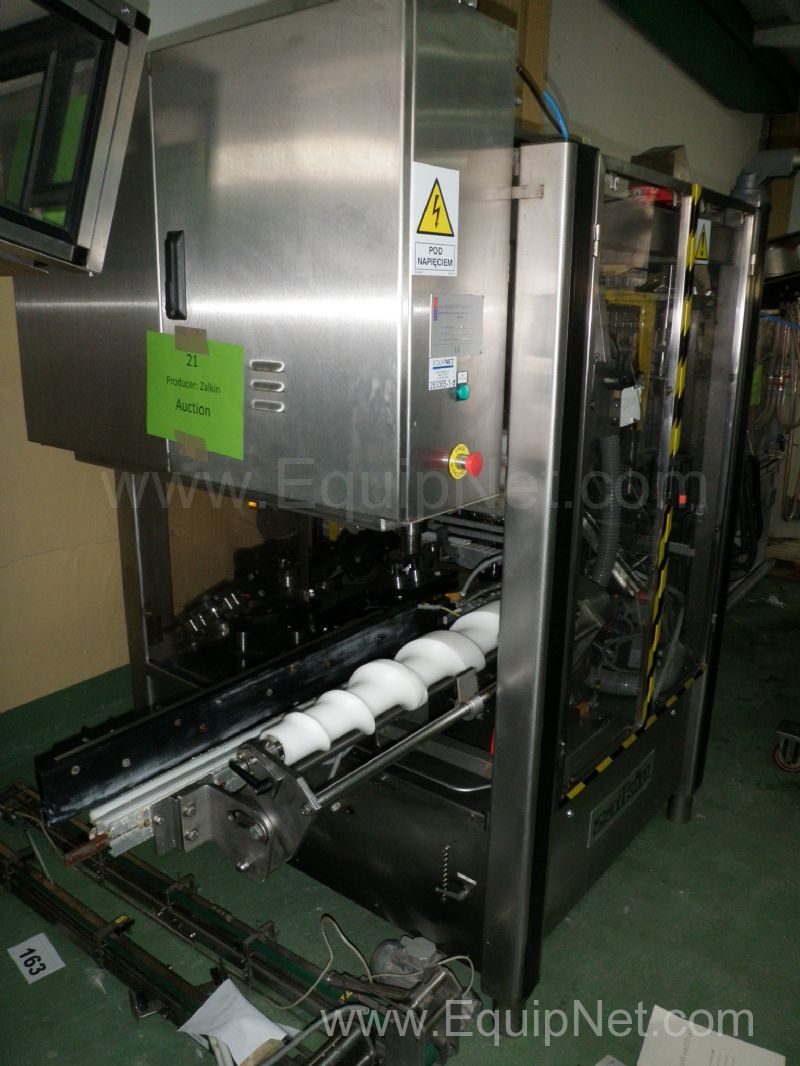

The machine is controlled by means of the overhead swinging cantilever supported mounted Operator Control panel, fitted with the Mac50 VDU unit, which is linked to the S/s side mounted main PLC Control Panel
The Zalkin Capper measures 2.75m long x 2.2m wide x 2.55m high, and weighs approx 1500 Kgs.

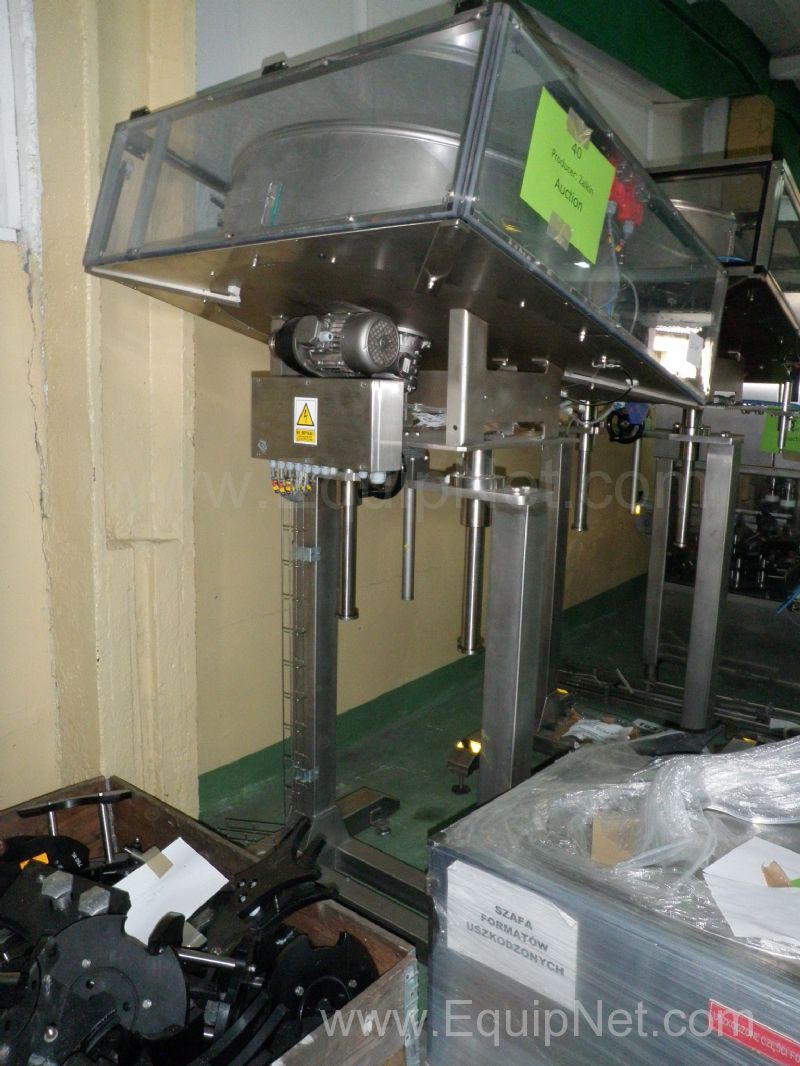

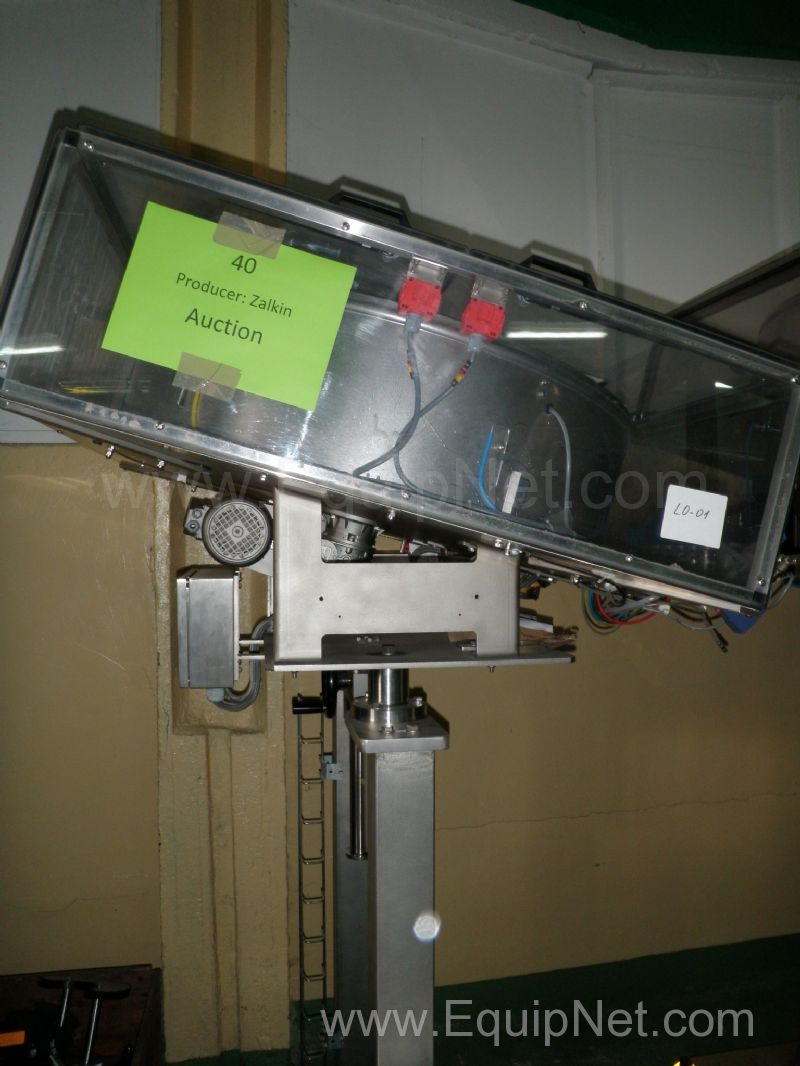

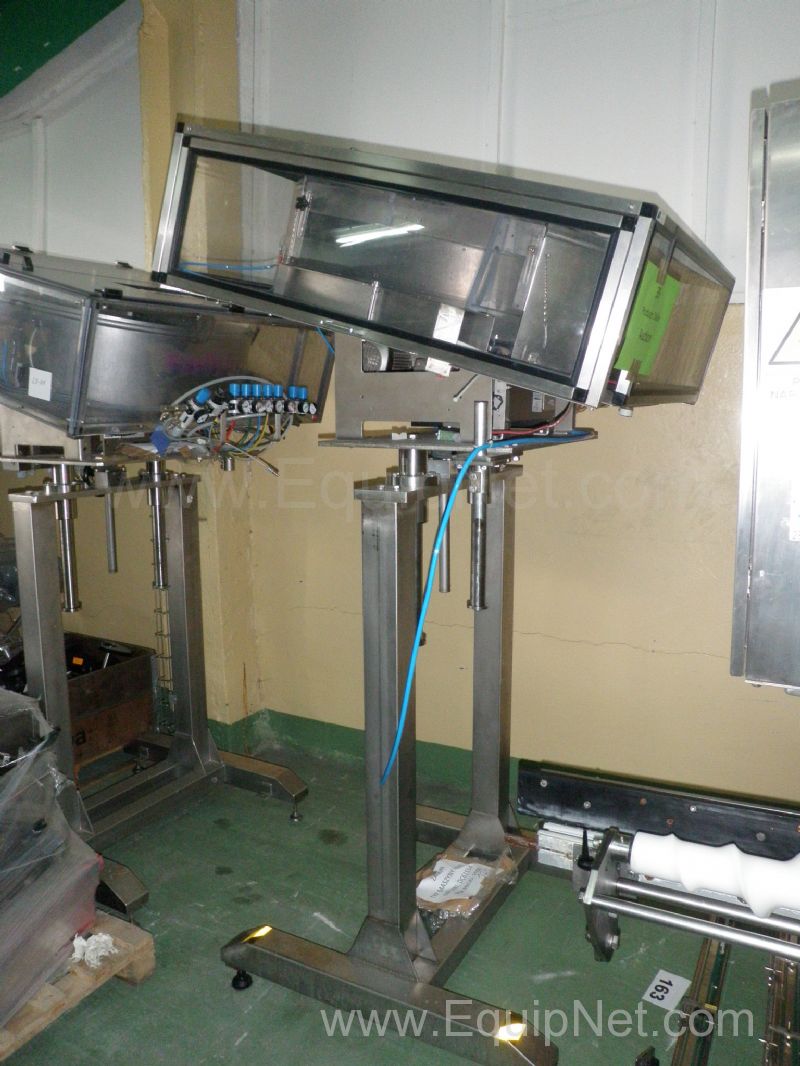

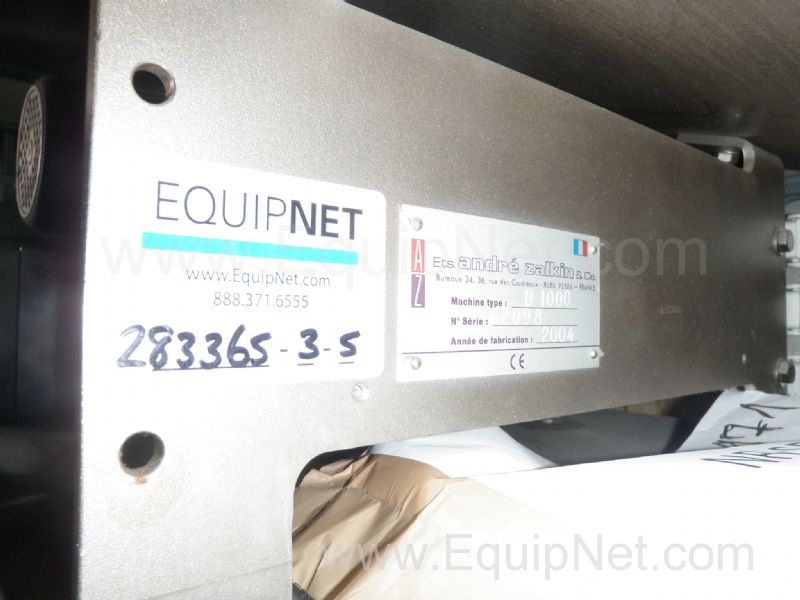

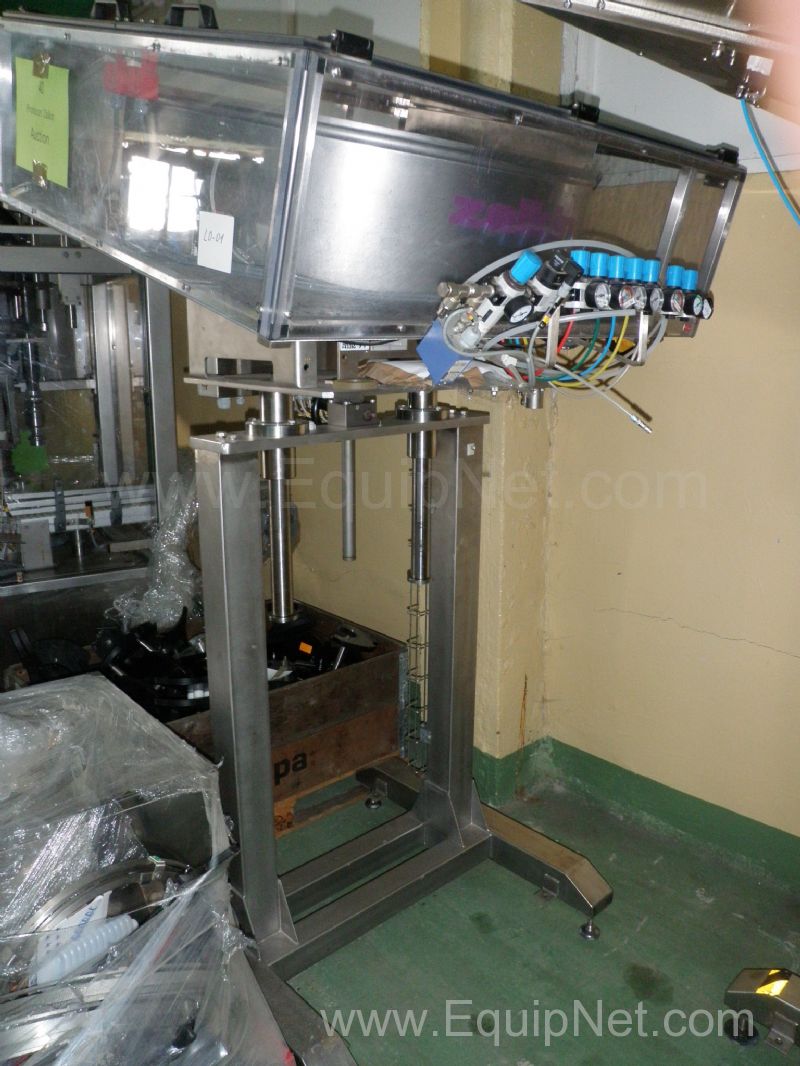

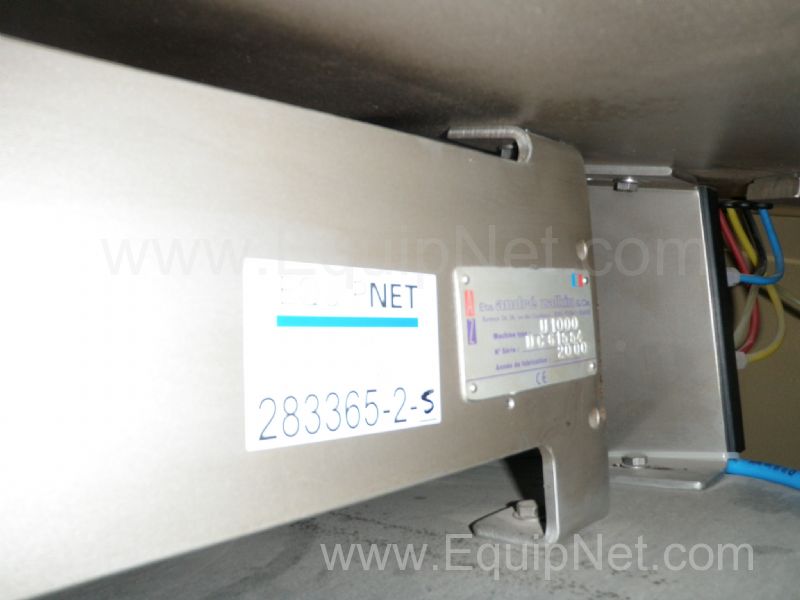

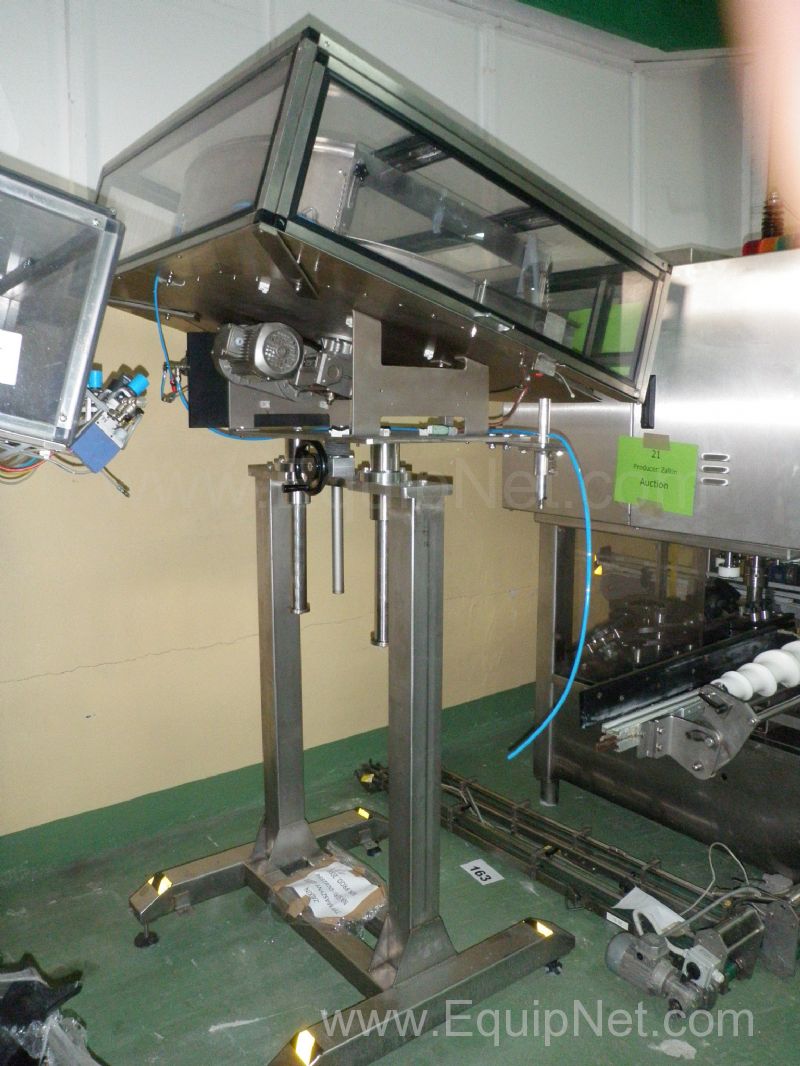

Items 2 & 3, 2 off Zalkin U 1000 Automated Cap Sorting / Feeding Machines, which each measure 900mm diameter x 250mm high, and are each rated to automatically feed upto 100 caps/minute, via their guided cap gravity feed shutes to the infeed of the Zalkin capping m/c.
The 2 off Sorter / Feeders are each dedicated to a certain size Cap, which they discharge into their gravity feed system at a height of 1900mm. However, this discharge height can altered by means of the Sorting / Feeder machine support / lifting system, from 1800 to 2000mm high.
Each Zalkin U 1000 Automated Cap Sorting / Feeding Machine, measures 1.3 x 1.2 x 2.45m high, and weighs approx 500 Kgs.

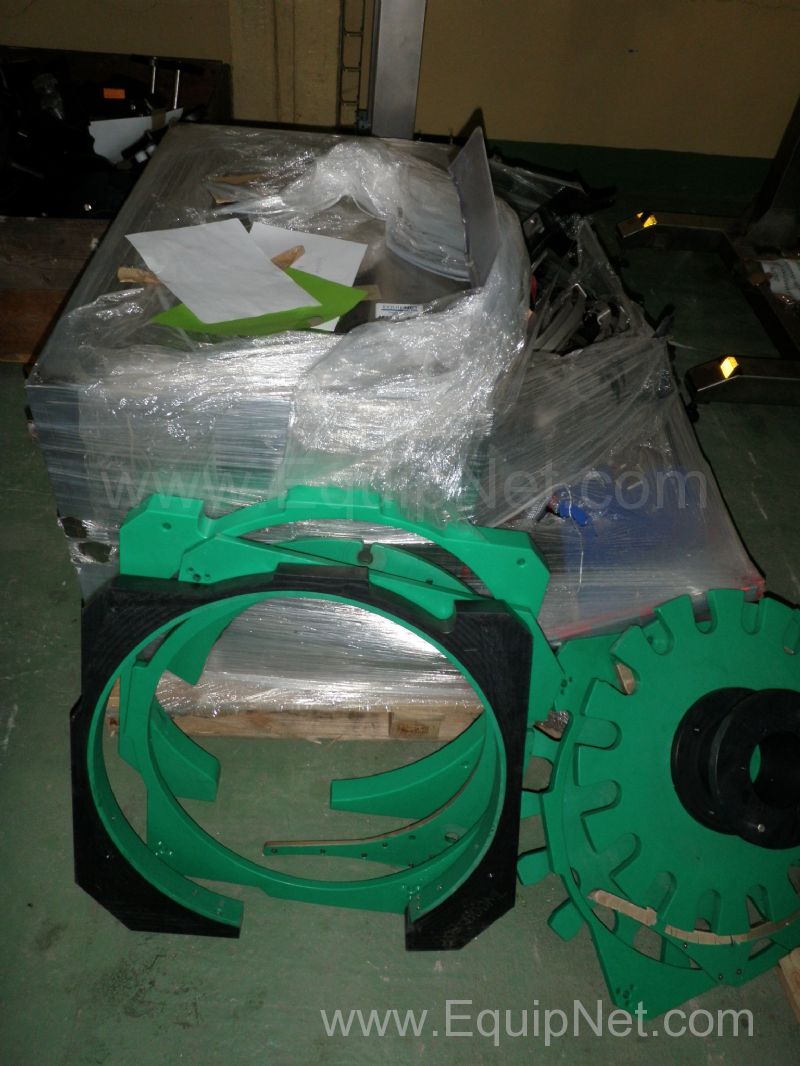

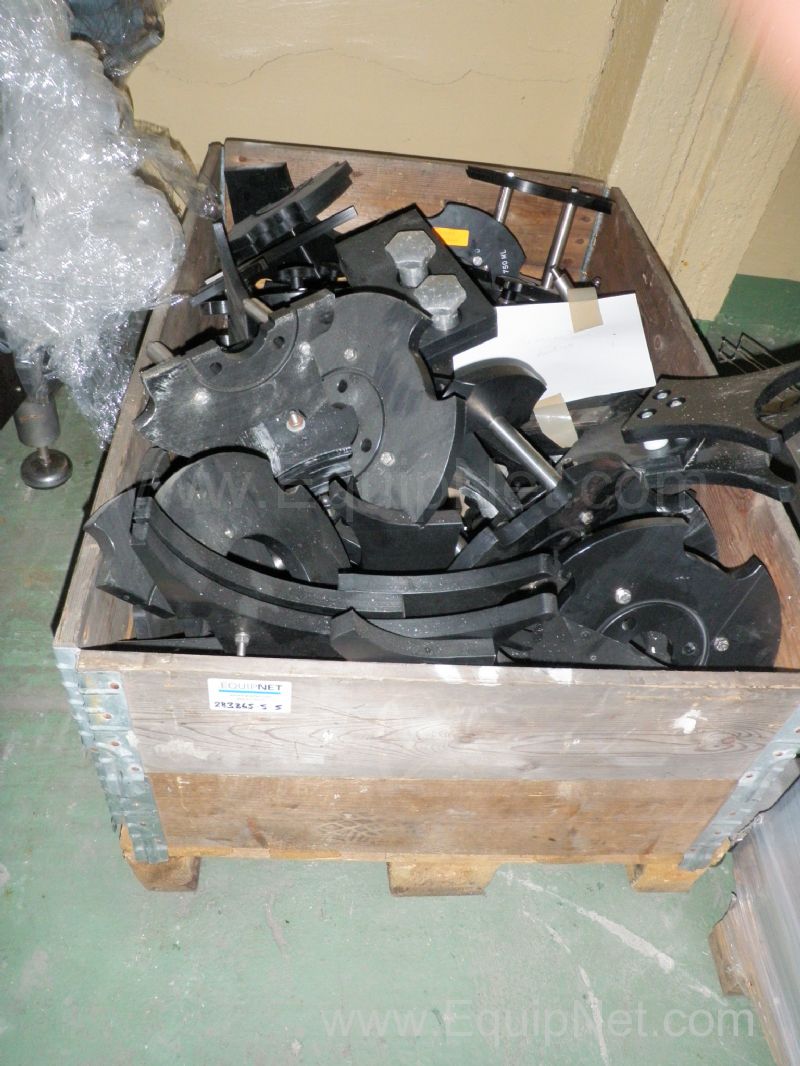

Item 4, Pallet of Zalkin CA4 360 NG Rotary Automated Capping machine changeparts, measures 1.2 x 0.8 x 0.6m high, and weighs approx 300 Kgs.
Item 5, Pallet with removed Infeed Guarding, measures 1.2 x 0.8 x 0.8m high, and weighs approx 300 Kgs.

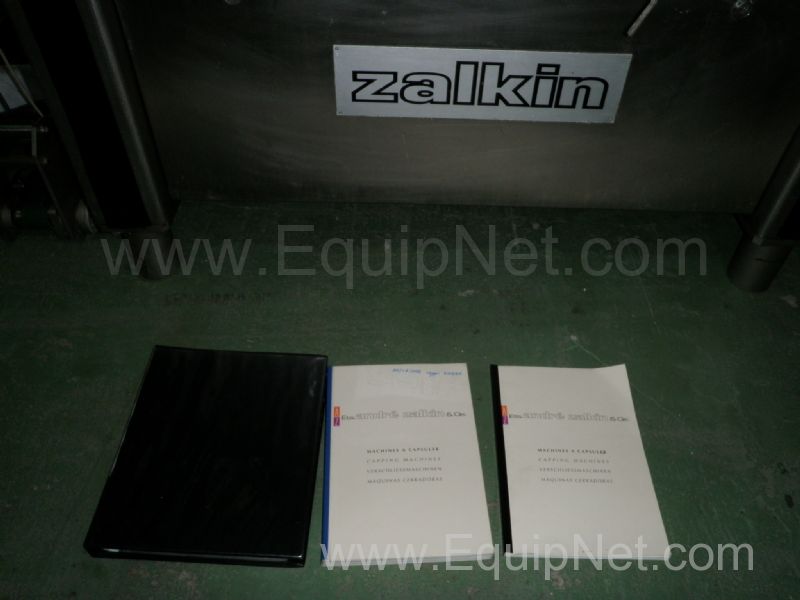

Supplied with original OEM Manuals.
|
