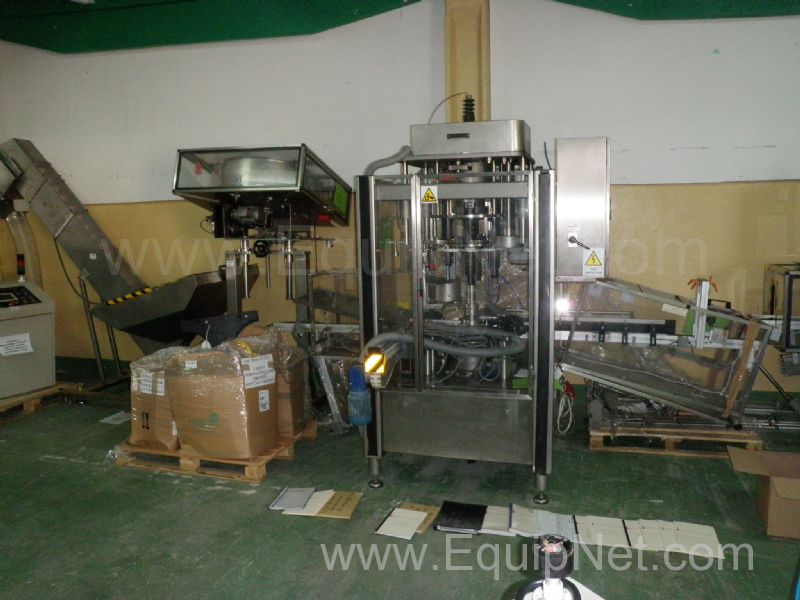

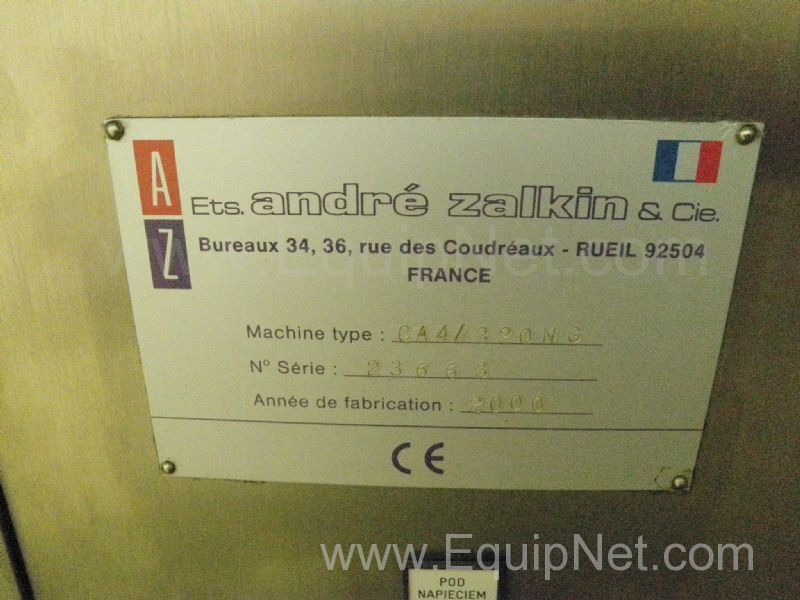

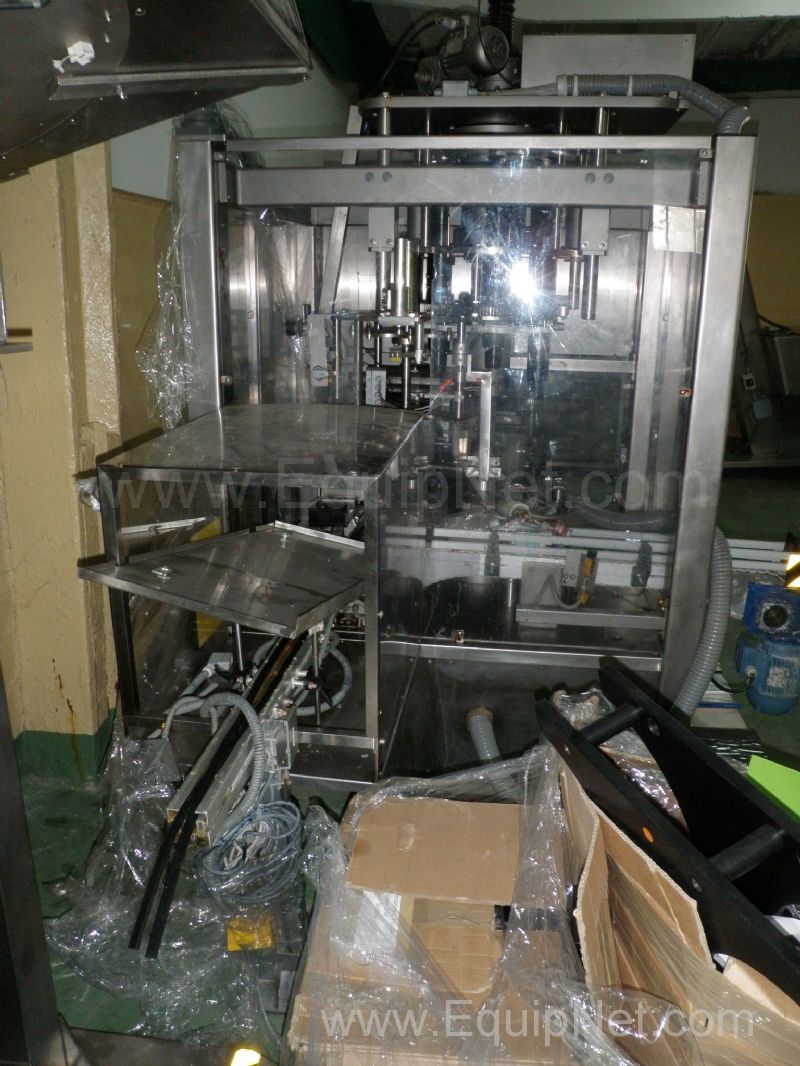

Zalkin CA4 360 NG Rotary Automated Capping machine with Cap Sorter / Feeder + Cap Elevator system, Left to Right motion, CE Rated

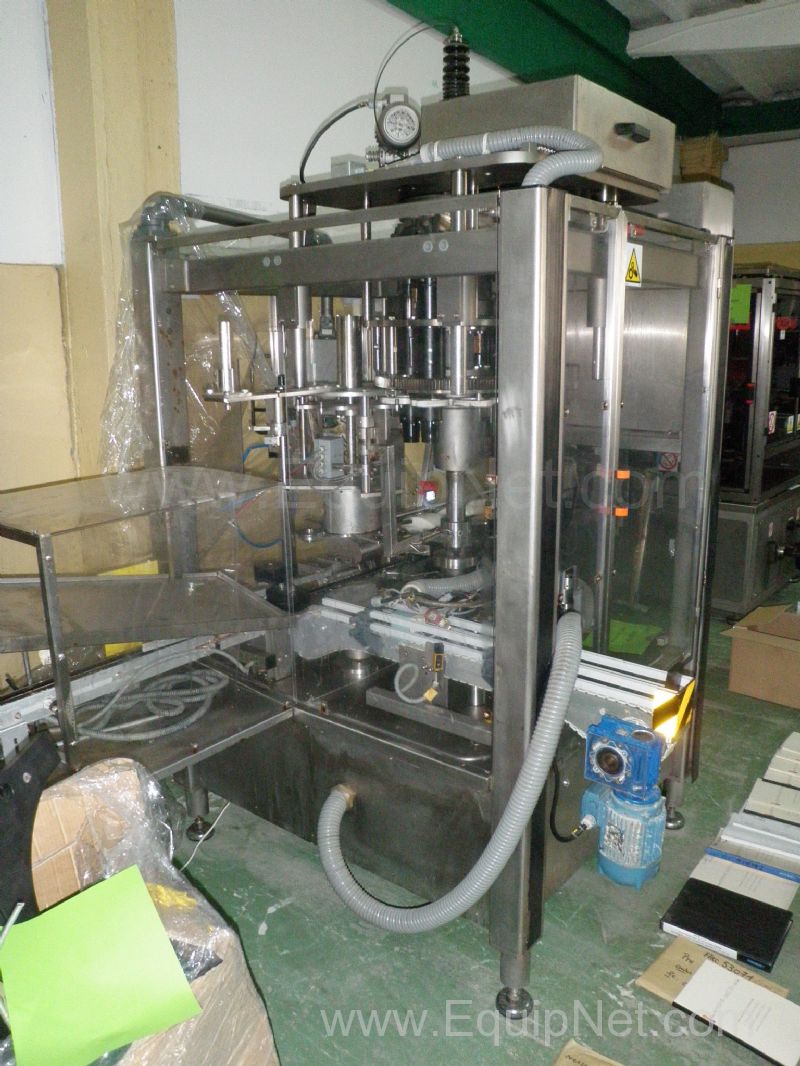

Item 1, Zalkin Capper is a Left to Right hand configured machine, which is capable of automatically screw pressure capping 2 types of plastic cap, at the production rate of 100 plastic Lotion bottles / minute.

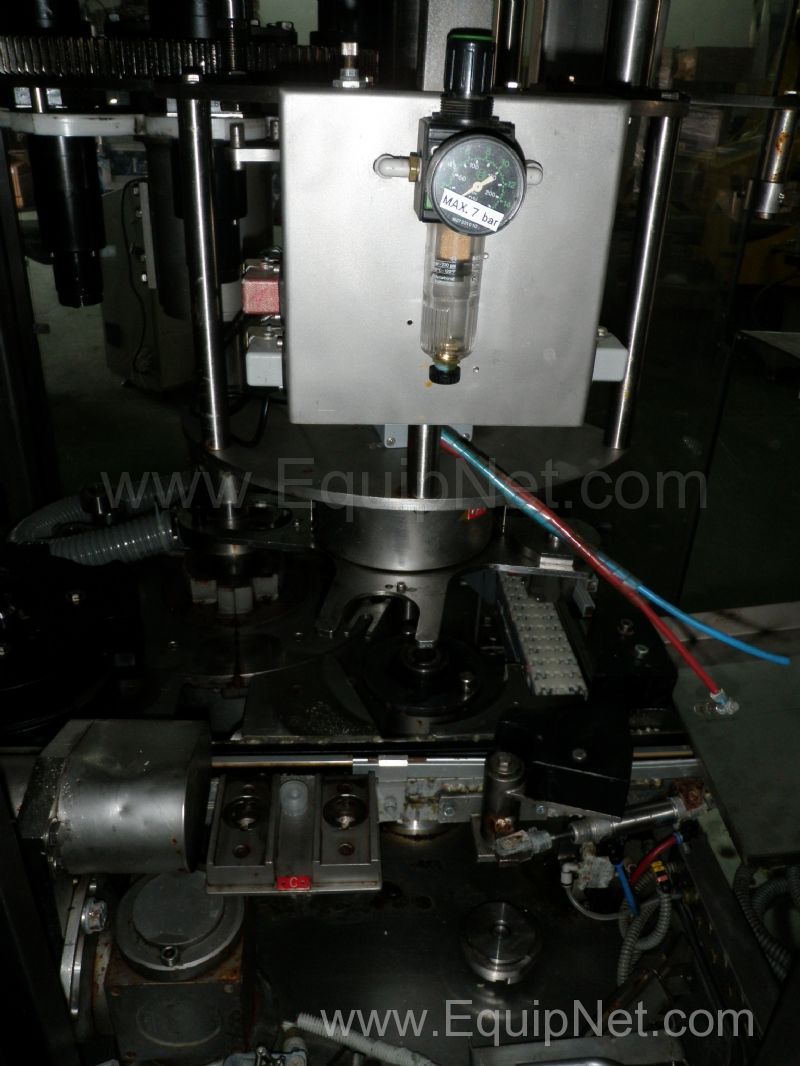

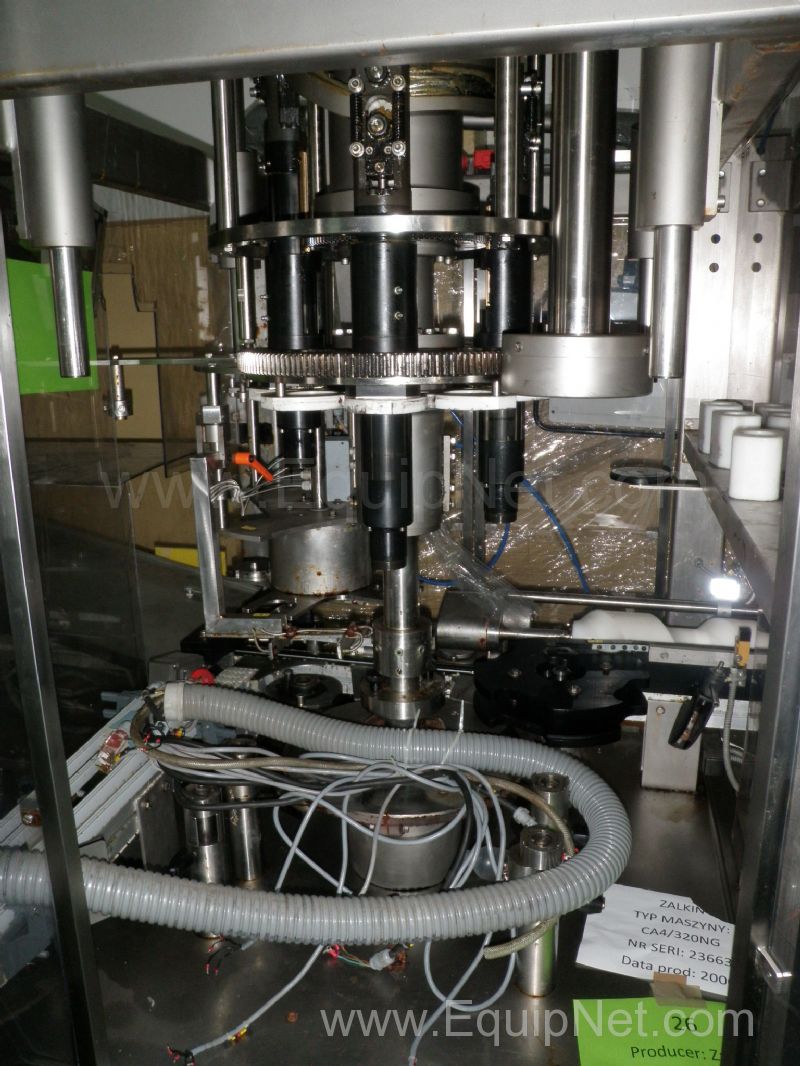

The 200-500ml bottles which measure between 50-100mm diameter x 100- 170mm high, are fed into the machine via the 930mm high x 65mm wide side guided Inlet slat conveyor, to the infeed timing scroll, prior to to being capped under one of the 4 off Zalkin screw pressure capping heads. The good capped bottles being then discharged via the 930mm high x 65mm side guided Discharge slat conveyor. Reject bottles being discharged via the right angled side guided reject slat conveyor.
The S/s framed machine is fully guarded, with interlocked clear macralon doors, and includes a 1300mm long x 550mm wide x 650 mm high S/s framed / macralon Infeed Conveyor guard, and a 1100mm long x 550mm wide x 650 mm high S/s framed / macralon Outfeed Conveyor guard.

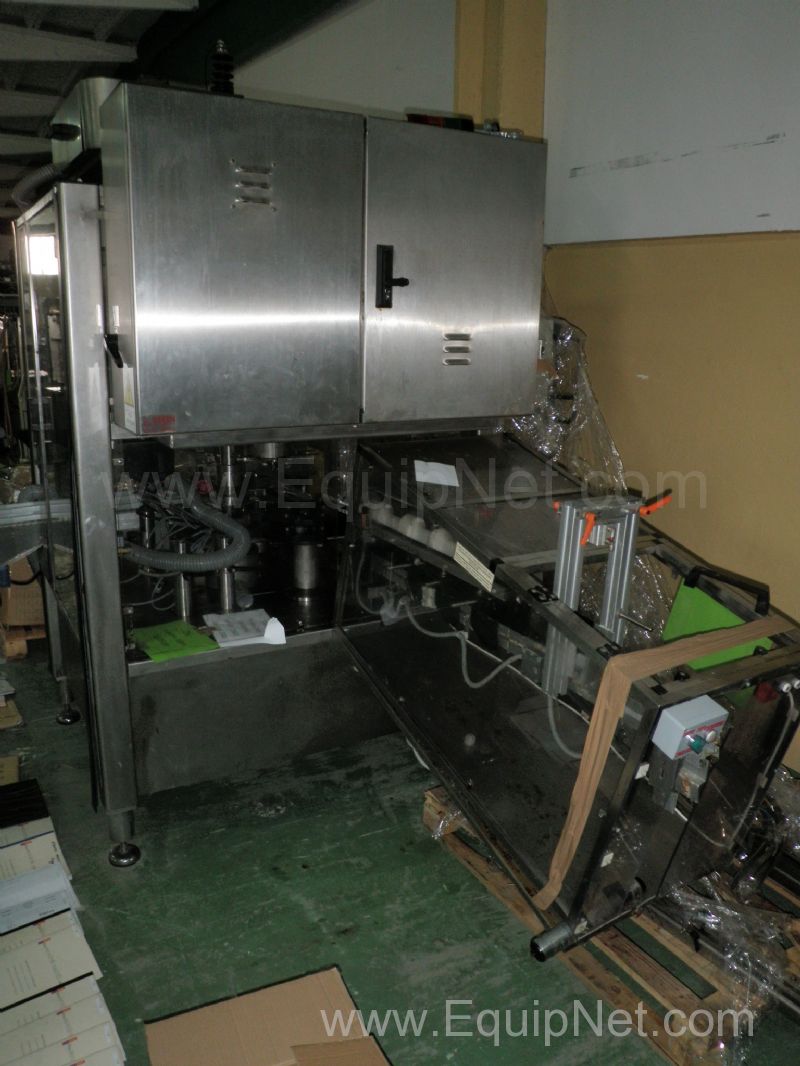

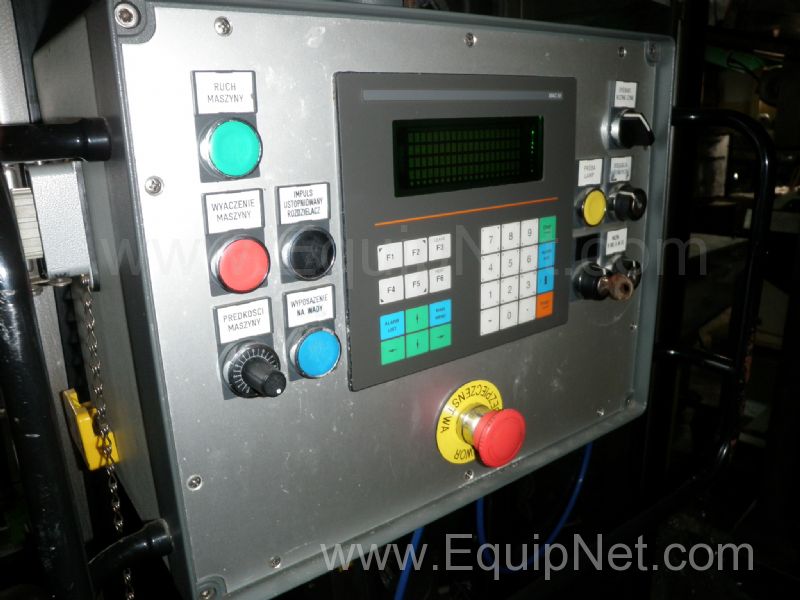

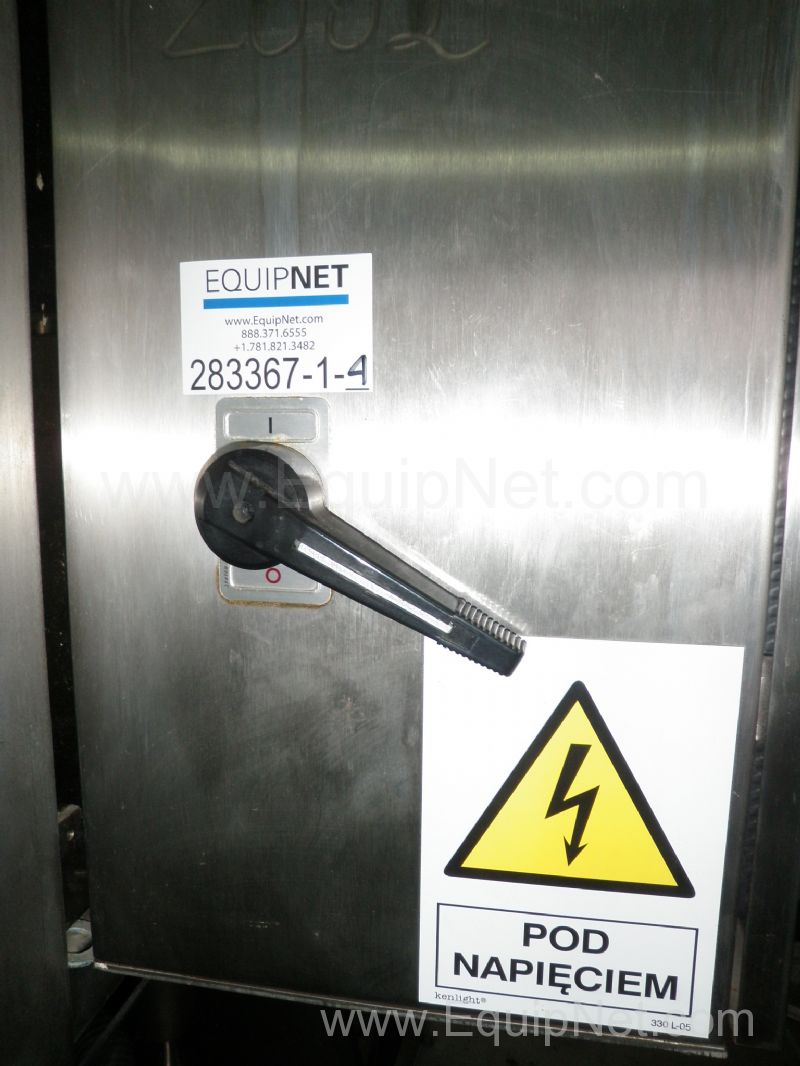

The machine is controlled by means of the overhead swinging cantilever supported mounted Operator Control panel, fitted with the Mac50 VDU unit, which is linked to the S/s side mounted main PLC Control Panel
The Zalkin Capper measures 3.6m long x 2.2m wide x 2.55m high, and weighs approx 1500 Kgs.

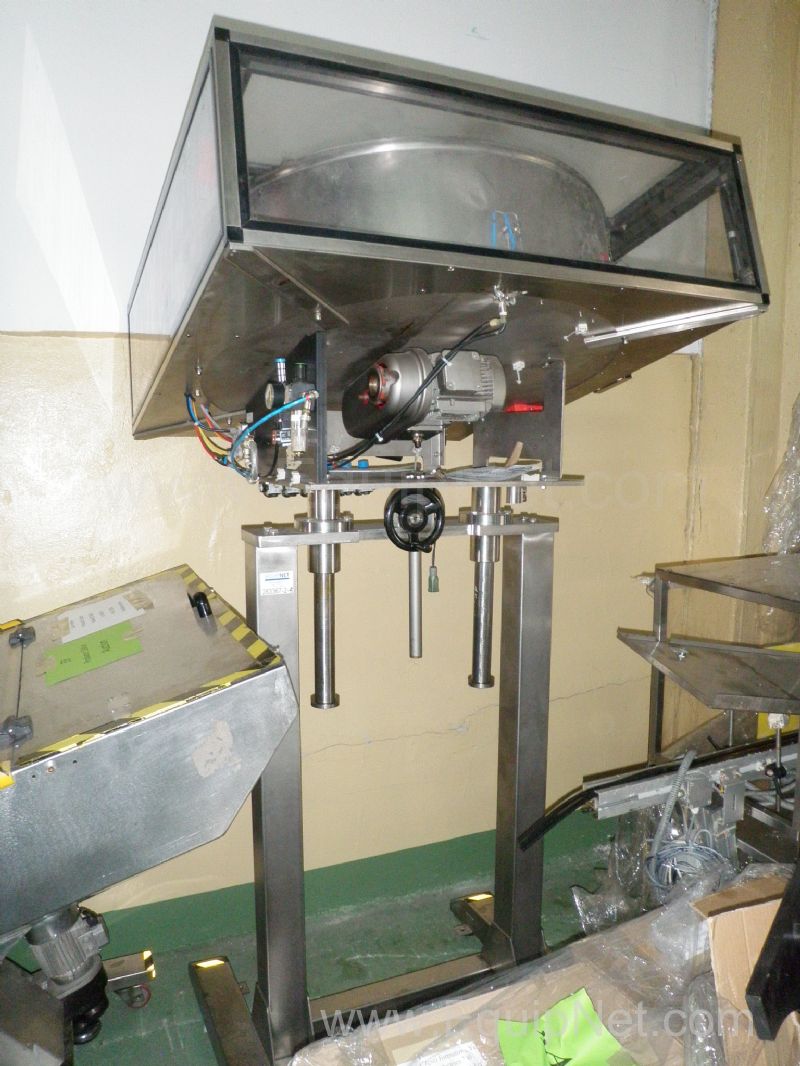

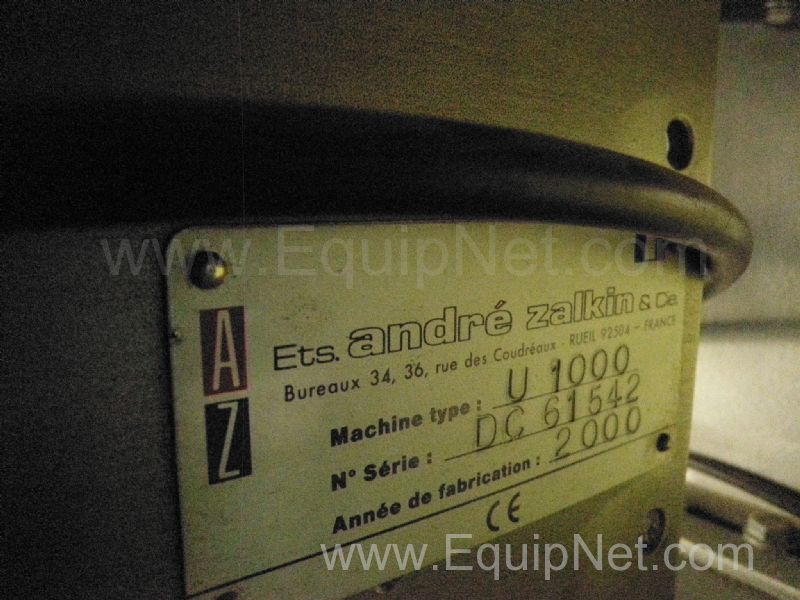

Items 2, Zalkin U 1000 Automated Cap Sorting / Feeding Machine, which measures 900mm diameter x 250mm high, and is rated to automatically feed upto 100 caps/minute, via its guided cap gravity feed shute to the infeed of the Zalkin capping m/c.
The Sorter / Feeder discharge the caps via the gravity feed system at a height of 1900mm. However, this discharge height can altered by means of the Sorting / Feeder machine support / lifting system, from 1800 to 2000mm high.
Zalkin U 1000 Automated Cap Sorting / Feeding Machine, measures 1.3 x 1.2 x 2.45m high, and weighs approx 500 Kgs.

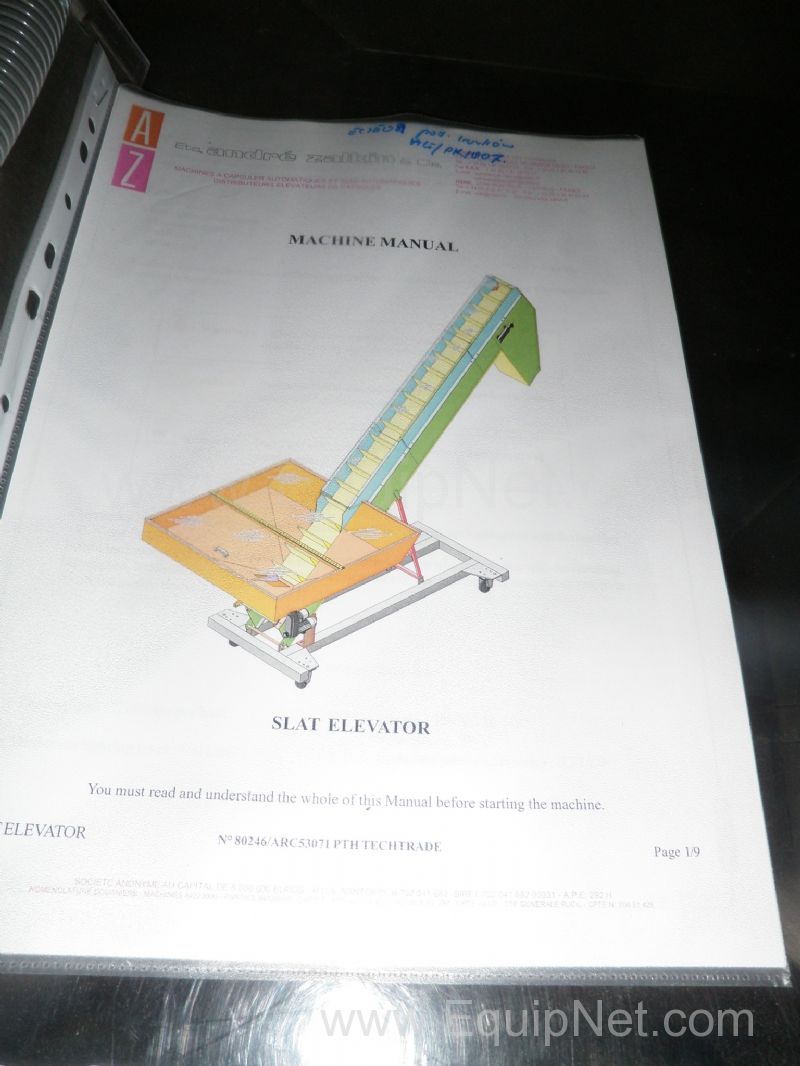

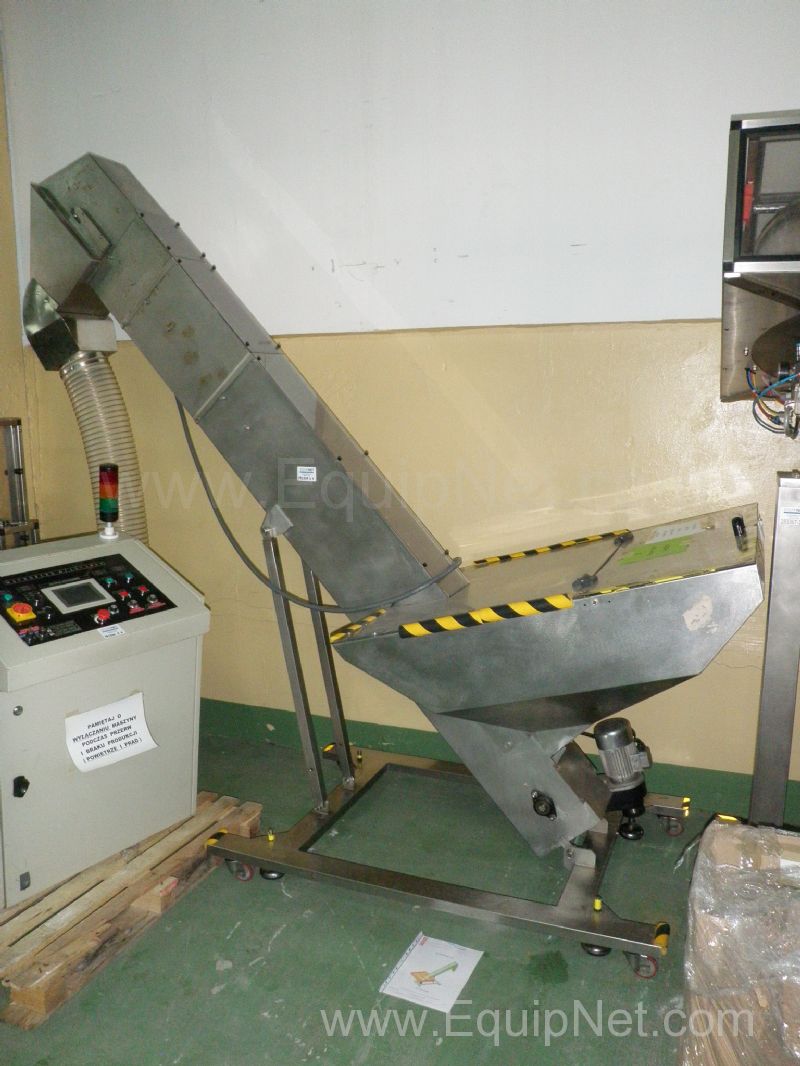

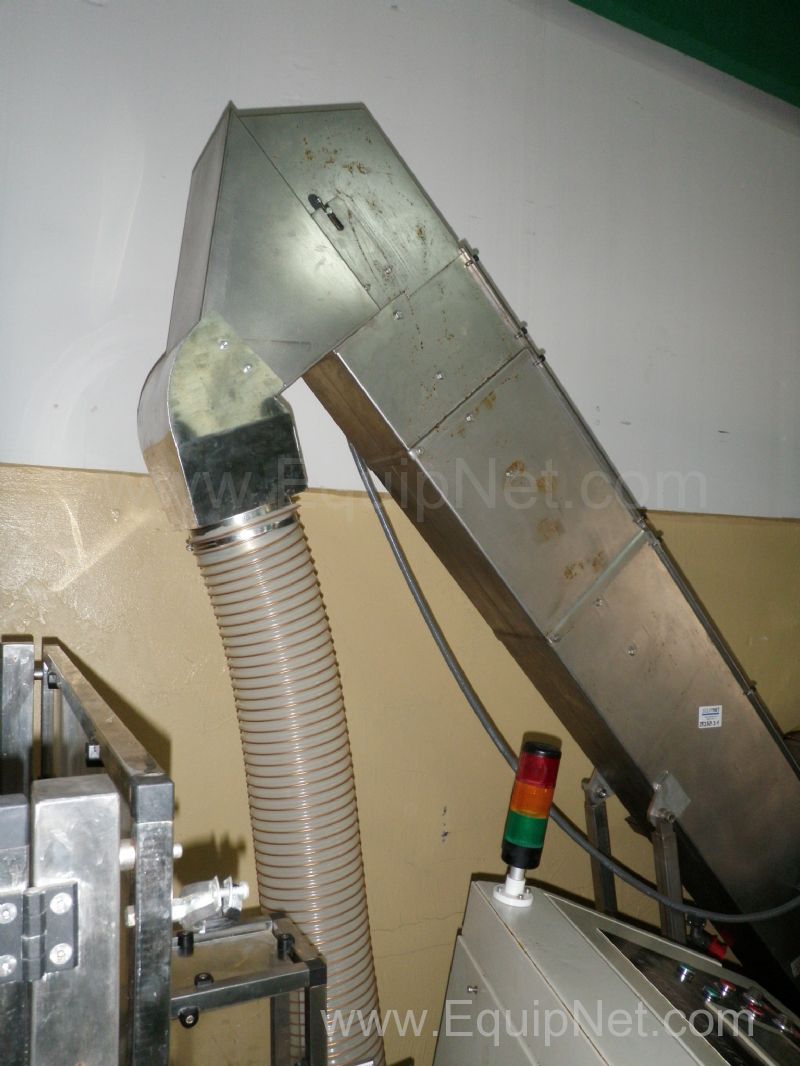

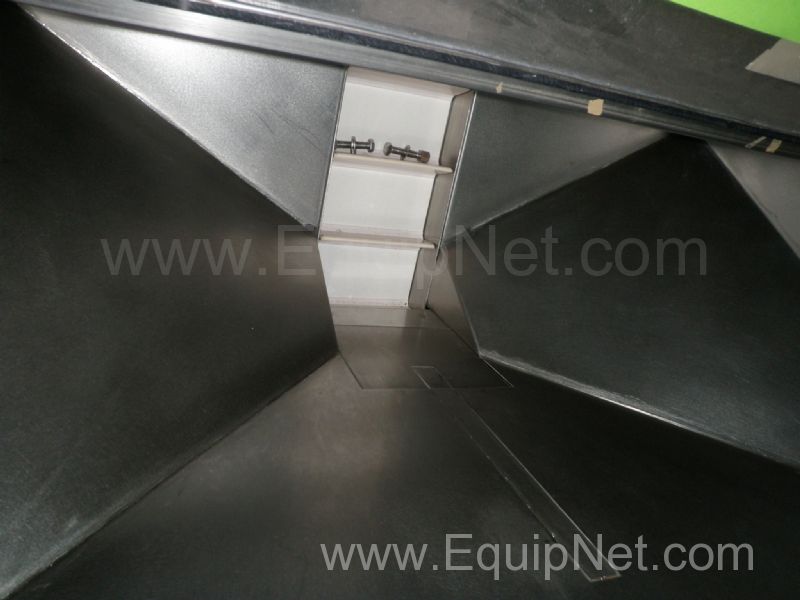

Item 3, Zalkin, ECT 400L S/s Cap Elevator, S/No 80246, aged 2004, fitted with a 1.2 x 1.1 x 0.6m deep S/s lidded hopper which is manually loaded and automatically emptied by an angled 200mm wide flighted belt, fitted with 60mm flights pitched every 150mm. Discharge height of the Elevator into the Zalkin U 1000 Sorter / Feeder unit is 2m high. This machine measures 3 x 1.12 x 2.7m high, and weighs approx 500 Kgs.

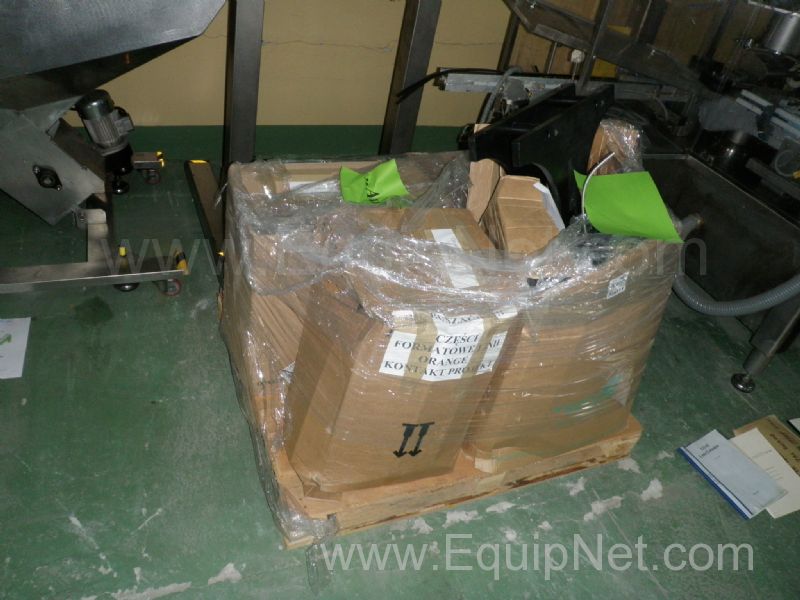

Item 4, Pallet of Zalkin CA4 360 NG Rotary Automated Capping machine changeparts, measures 1.1 x 0.9 x 1.1m high, and weighs approx 300 Kgs.
Supplied with a complete set of original OEM Manuals and Drawings.
|
