#283258 1200 Litre 316L Stainless Steel External Steam Coil Heated Stirred Fat Melting Vessel

Equipment and Machinery Appraisals and Valuations

Online Auctions - Complete Facility Closure of a Global Pharmaceutical Manufacturer - Lot Catalog - 283258 1200 Litre 316L Stainless Steel External Steam Coil Heated Stirred Fat Melting Vessel

You are not signed in. Please sign in here to bid on this item.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Click on a photo below to see a much larger image.

Download High Resolution Photos

	Red Status Indicator:
	No bids have been entered for this item.

1200 Litre 316L Stainless Steel External Steam Coil Heated Stirred Fat Melting Vessel
Lot 13
Refresh Page

Listing Number:

283258

Location:

Swindon , , United Kingdom

Days to Auction

6 days

Start Date:

6/25/2013 9:00:00 AM EST

End Date:

6/27/2013 4:02:00 PM EST

Current / Opening Bid:
View Status Light Terms

No bids have been entered for this item.

£25.00 Refresh Page
(Last Refreshed 6:03 PM)

Handling Fee:

£1,600.00

Next Acceptable Bid:

£25.00

Bids (Bid History)

	Lot Catalog		Auction Increments & Help/FAQ
	My Watch List		Add to your watch list
	Email this page		Currency Calculator
	Contact Auctions 781.821.3482 ext.2162

Equipment Specifications

Manufacturer	Unknown
Year	1995
Model	120 Litre
Capacity Size	1200 L
Products Run	Fat
Agitation	YES
Voltage	415 VOLTS
Frequency	50 HERTZ
Phase	3+1
Pressure Rating (Temperature)	External steam coil heated

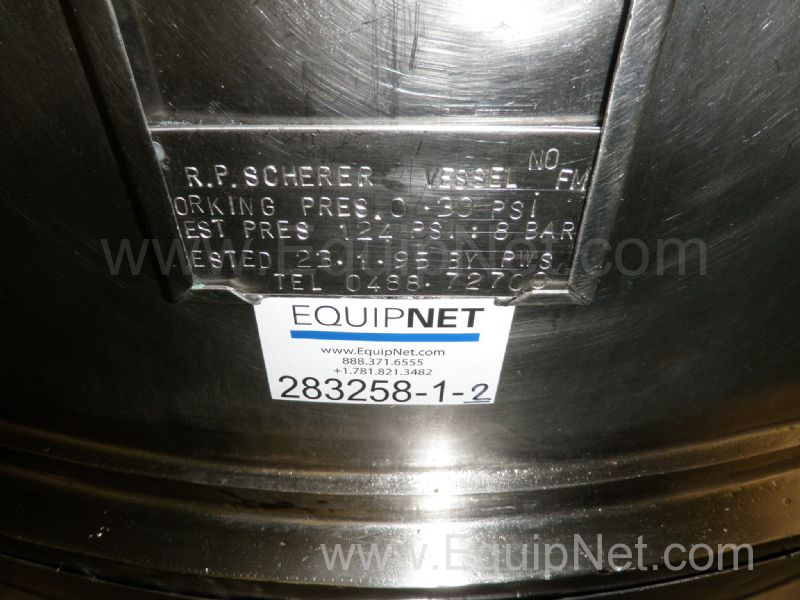

Pressure Rating (Pressure)	Heating Coil = 0.33 - 124 psi
Length	2.5 M
Width	2.2 M
Height	2.43 M
Estimated Shipping Weight	4050 KGS
Recommended Packaging Form	CUSTOM PALLET

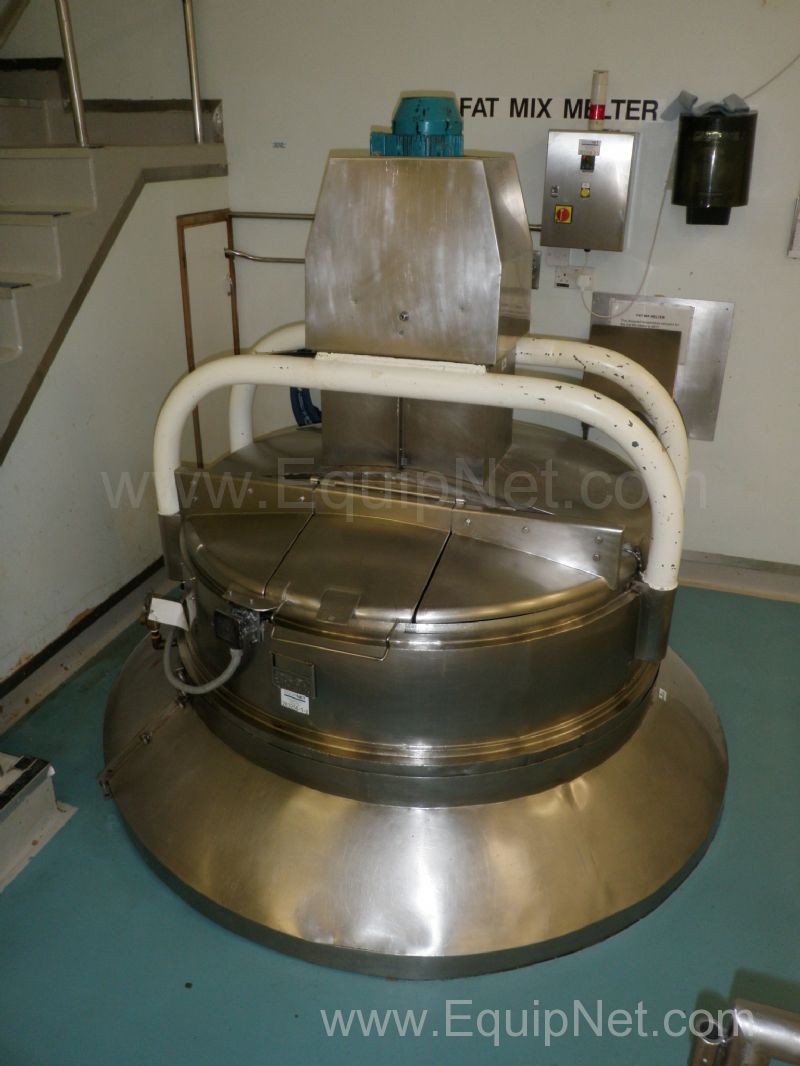

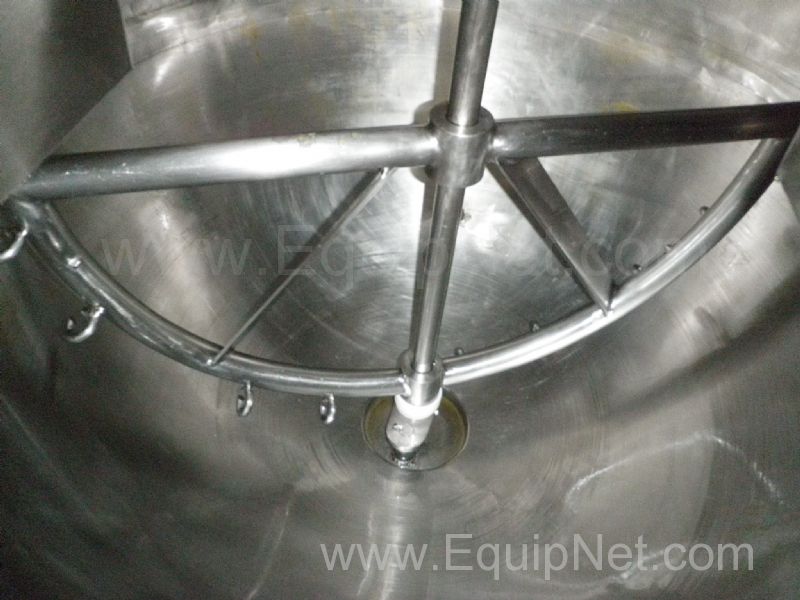

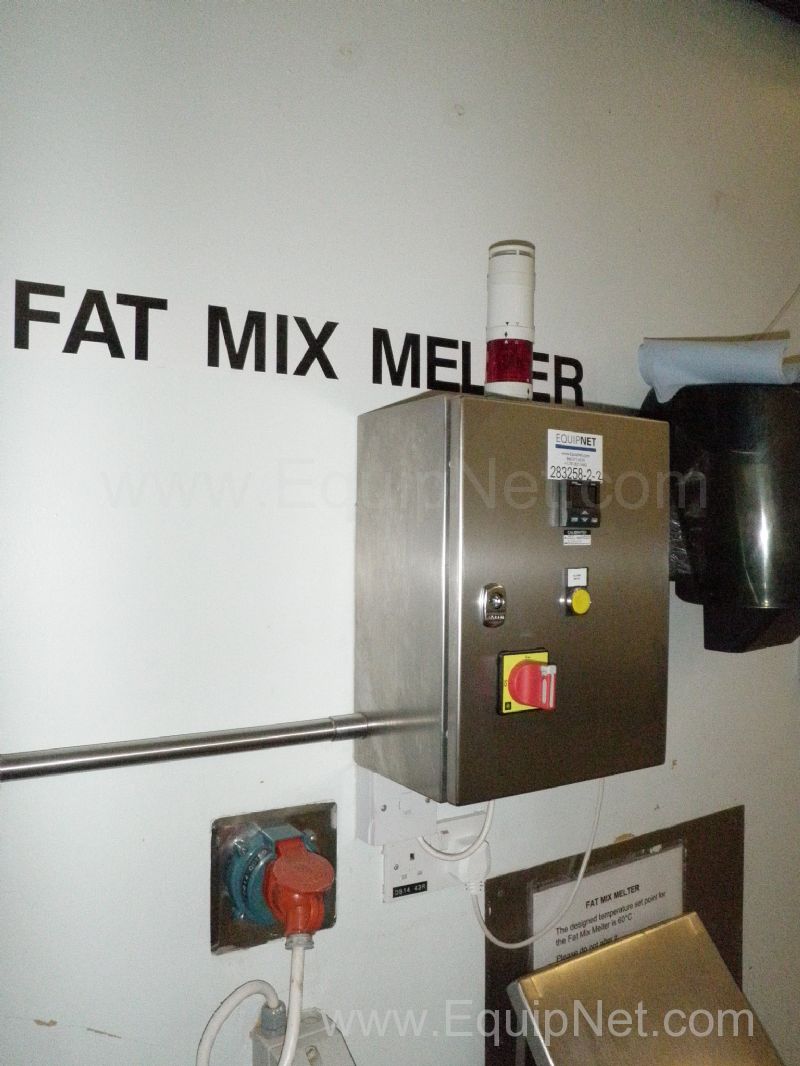

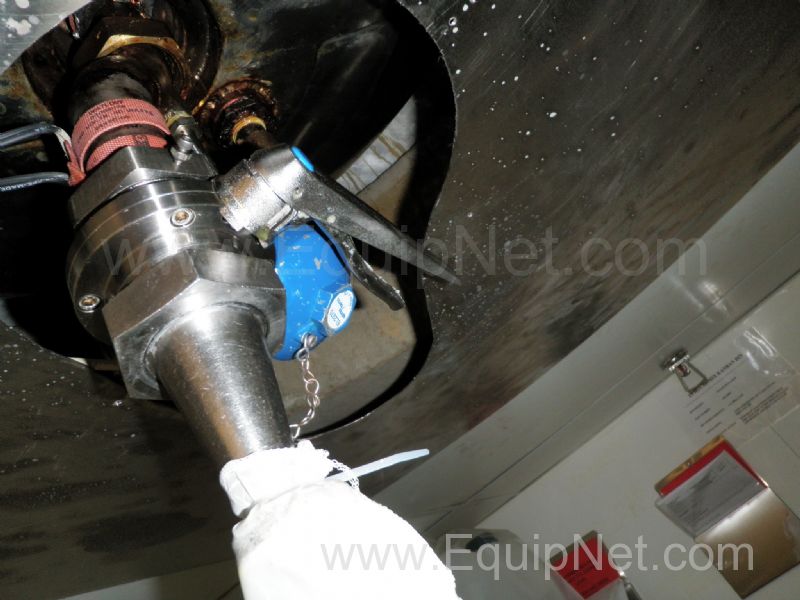

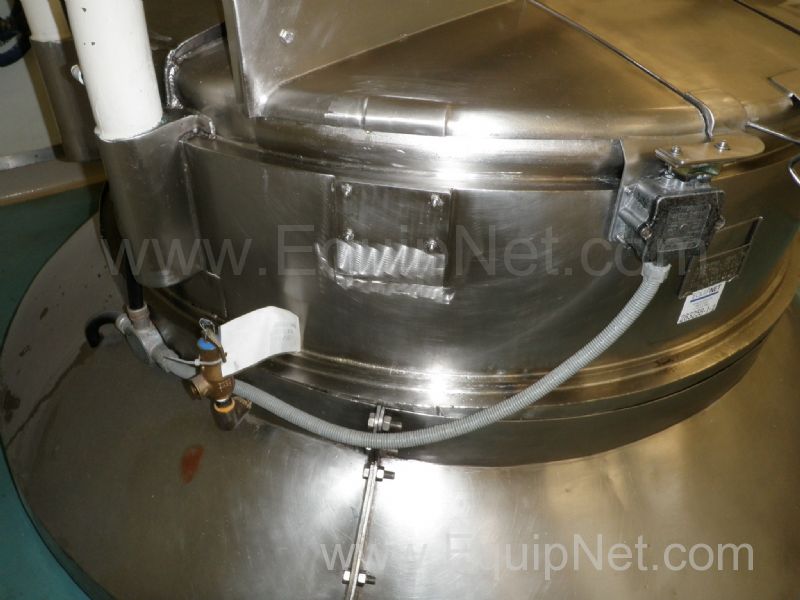

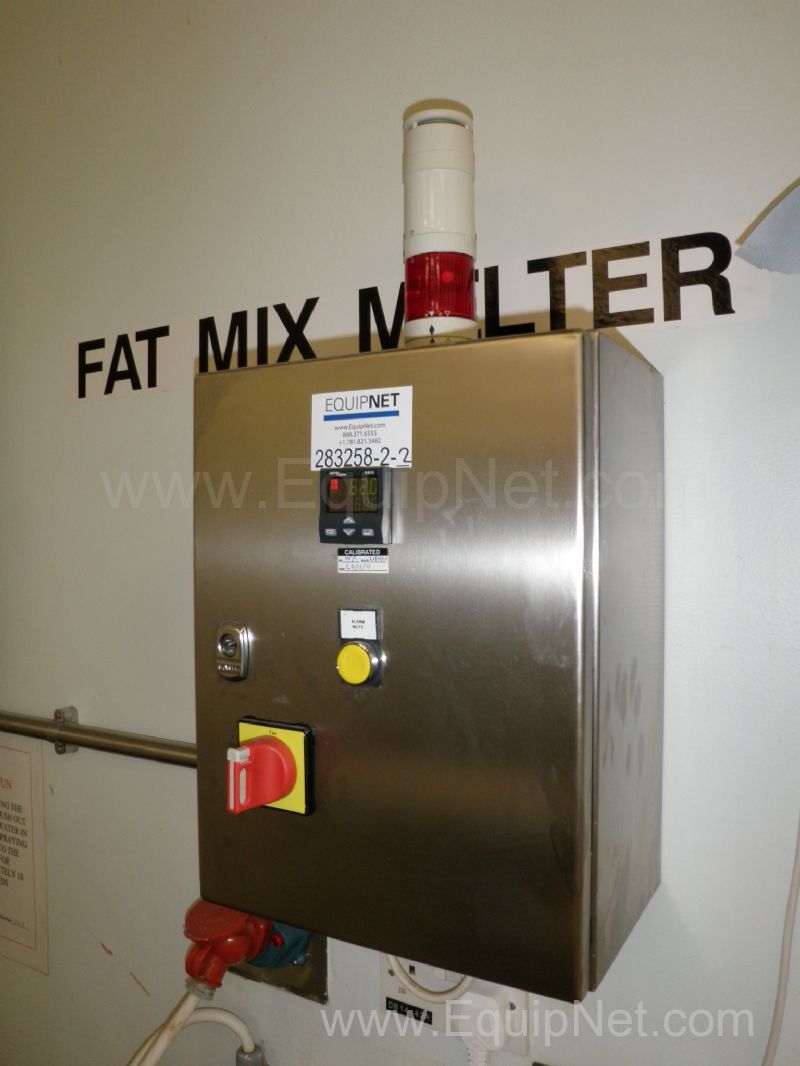

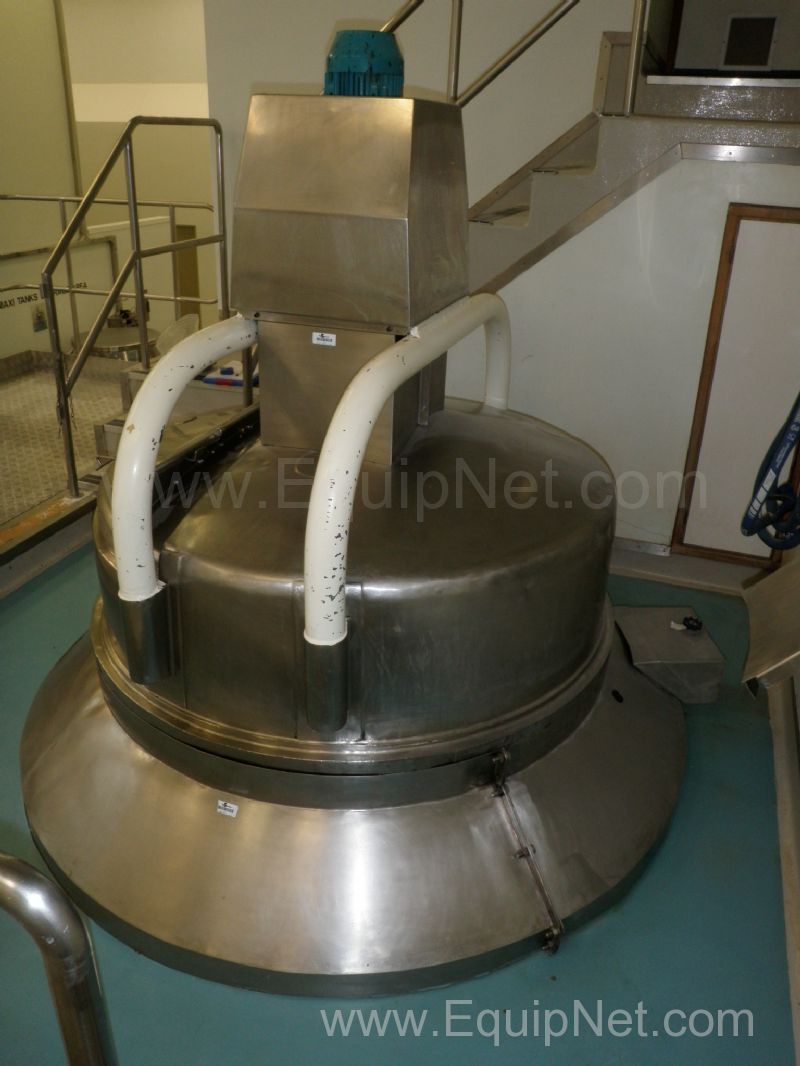

Additional Details	1200 Litre 316L Stainless Steel External Steam Coil Heated Stirred Fat Melting Vessel, supported on by 3 mounted support lugs from the surrounding Mezzanine / Access Gantry. Item 1, This unjacketed external Steam coil lagged and clad 1200 Litre 316 L S/s Stirred Fat Melting Vessel, is domed top and bottom, and fitted with a central top mounted Drive, which drives the internal Gate Stirrer / Internal Scraper unit. The domed top is fitted with a front mounted Fat Block manual loading hinged, and interlocked doorway, which measures 350mm x 330mm wide. The domed bottom is fitted with a central 50mm diameter Outlet and manual Bufferfly discharge valve, plus a bottom mounted temperature probe. This 1200 litre Fat Melter vessel measures 2.2m diameter x 2.43m high, and weighs approx 4000 kgs. Item 2, The 1200 litre Fat Melter is controlled from a S/s Wall mounted Control Panel, that measures 0.3 x 0.2 x 0.6m high, and weighs approx 50 Kgs This item is not available for collection / delivery until w/c 22nd July 2013 This item is an auction listing. The auction closes on 6/27/2013 4:02:00 PM.
