Packo Inox N.V. 600 Litre Stainless Steel Water Jacketed Reactor
Lot 129
Auction Ended
Refresh Page
| Listing Number: |
326130 |
| Location: |
Bridgend , , United Kingdom |
Time Left |
Auction ended |
| End Date: |
4/25/2013 11:12:00 AM EST |
| Loading: |
£25.00 |
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
| Manufacturer | Packo Inox N.V. |
| Year | 1998 |

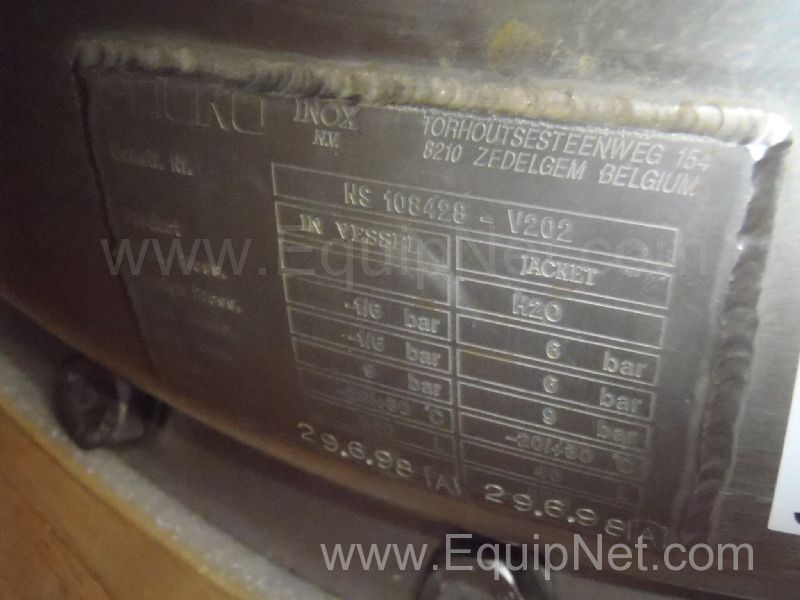

| Serial Number | NS 108428-V202 |
| Capacity Size | 600 |
| Air Requirements | 6 BAR |
| Jacket Pressure Rating | 6 BAR |
| Length | 950 MM |
| Voltage | 230/400 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Internal Temperature Rating | -20/+30 DEG C |
| Internal Pressure Rating | -1/6 BAR |
| Estimated Shipping Weight | 1750 KGS |
| Jacket Temperature Rating | -20/+30 DEG C |
| Top and Bottom Heads | DISHED TOP/DISHED BOTTOM |
| Straight Side | 1100 MM |
| Height | 3200 MM |
| Width | 950 MM |
| Recommended Packaging Form | CRATE |
| Additional Details | Packo Inox N.V. 600 Litre Stainless Steel Water Jacketed Reactor

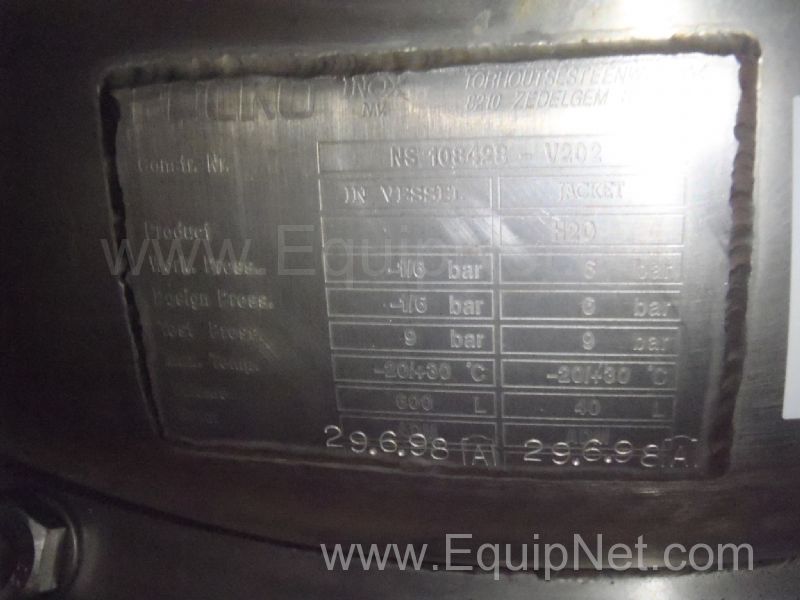

Tank working pressure = -1/6 bar, design pressure = -1/6 bar, test pressure = 9 bar. Max temp = -20/+30 deg C.
Tank volume = 600 litres.
Jacket working pressure = 6 bar, design pressure = 6 bar, test pressure = 9 bar. Max temp = -20/+30 deg C.
Jacket volume = 40 litres.

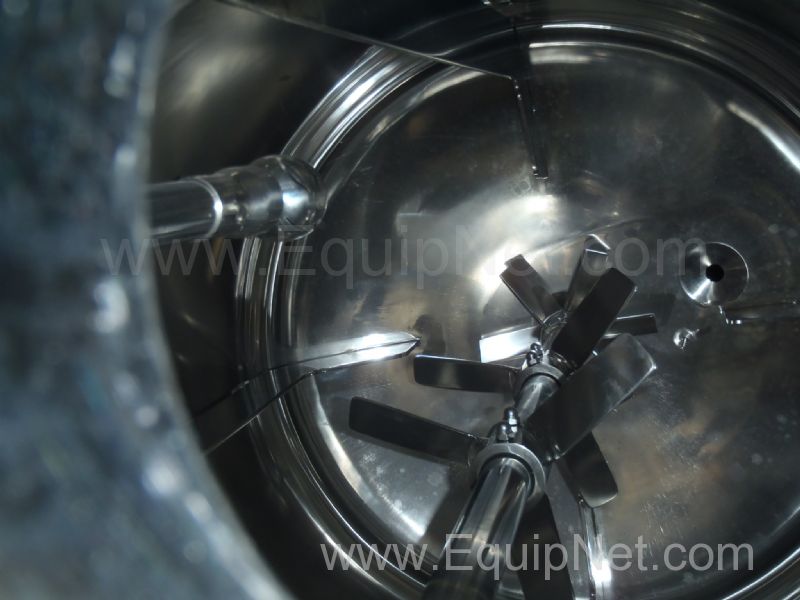

With central 1420 rpm stirrer with 2 x three bladed and 1 x 6 bladed agitators. 1.1kW.

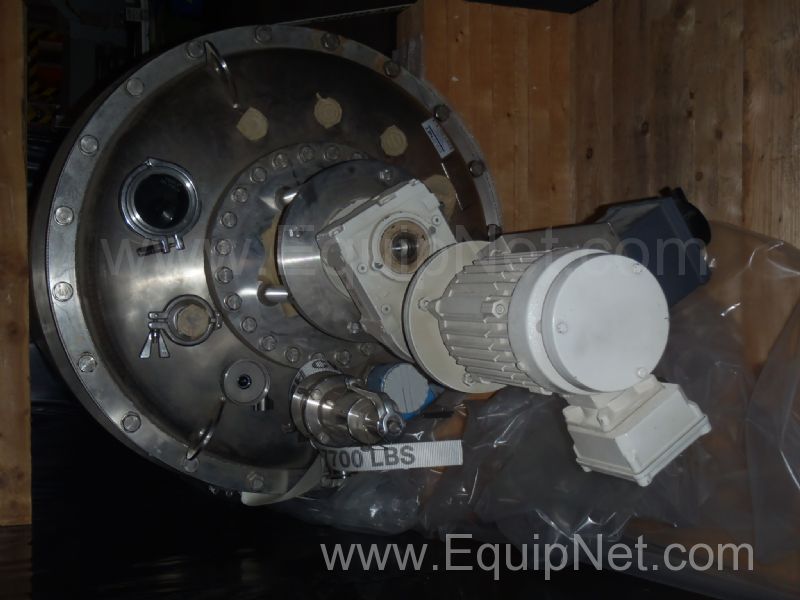

Bolted lid has 5x25 mm, 3x40mm, 2x50mm, & 1x100mm ports for variety of connections, sensors, light, spray ball, etc.
Three lifting lugs on lid.

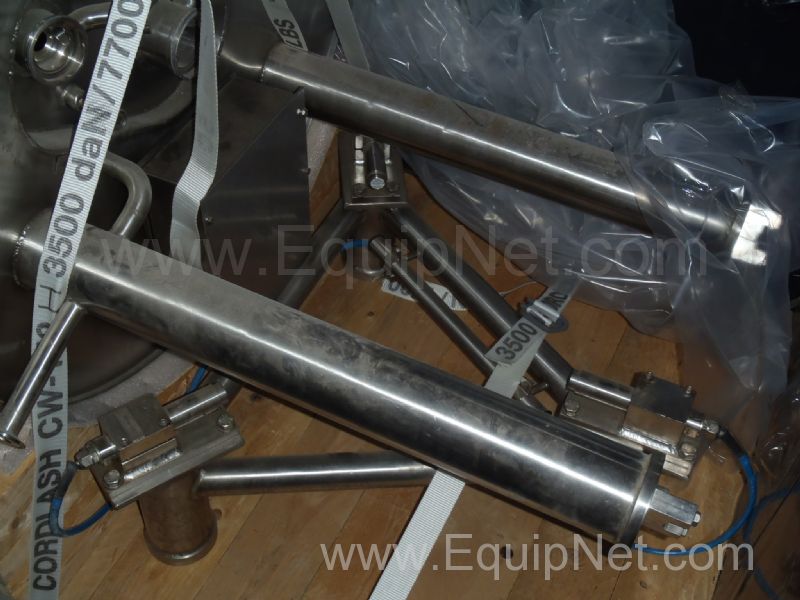

Mounted on three point loadcell frame approx. 300mm high making total unit height approx 3200mm x 950mm diam.

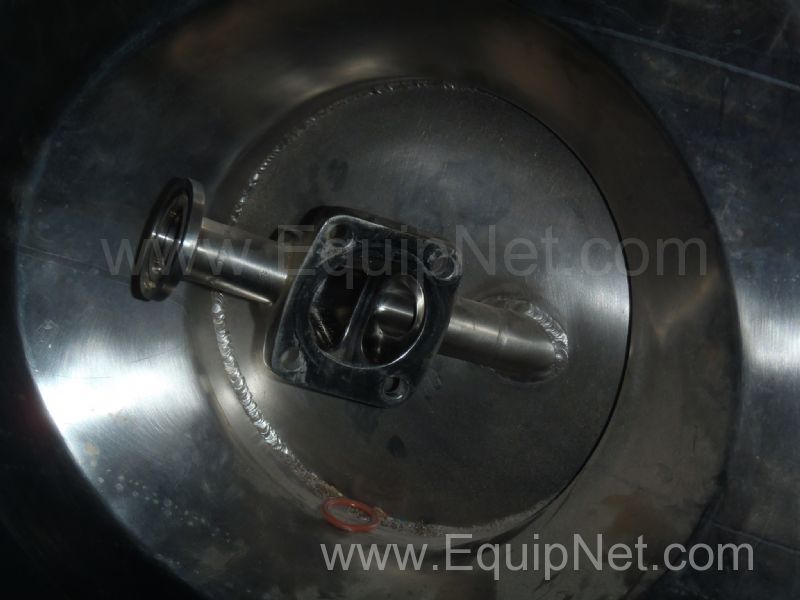

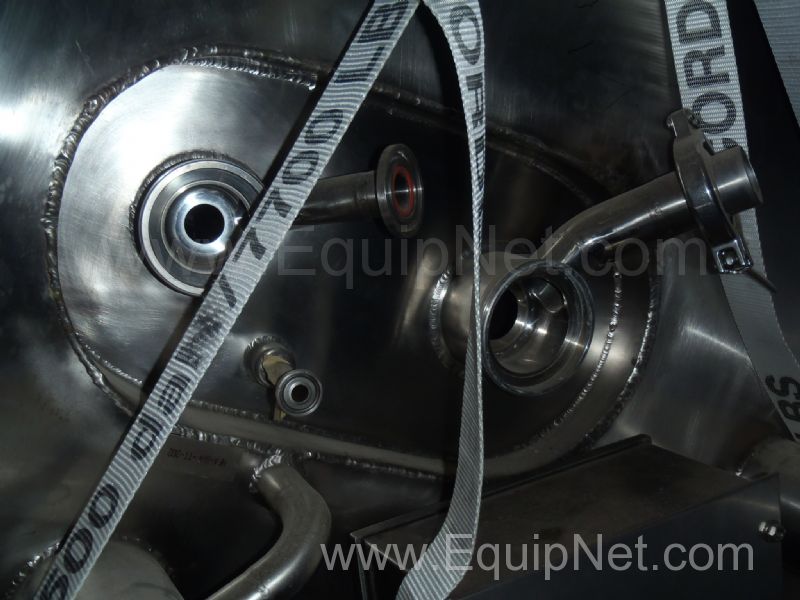

1x25mm and 1x40mm outlet ports at base with pneumatic shut off valves.

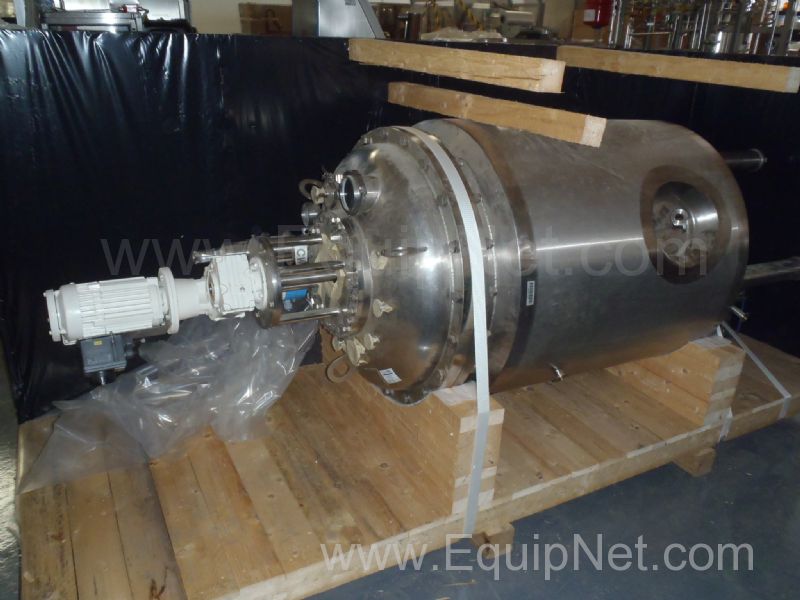

Crate size 3250 x 11400 x 1530mm high. Untreated timber.
This item is an auction listing. The auction closes on 4/25/2013 11:12:00 AM. |
