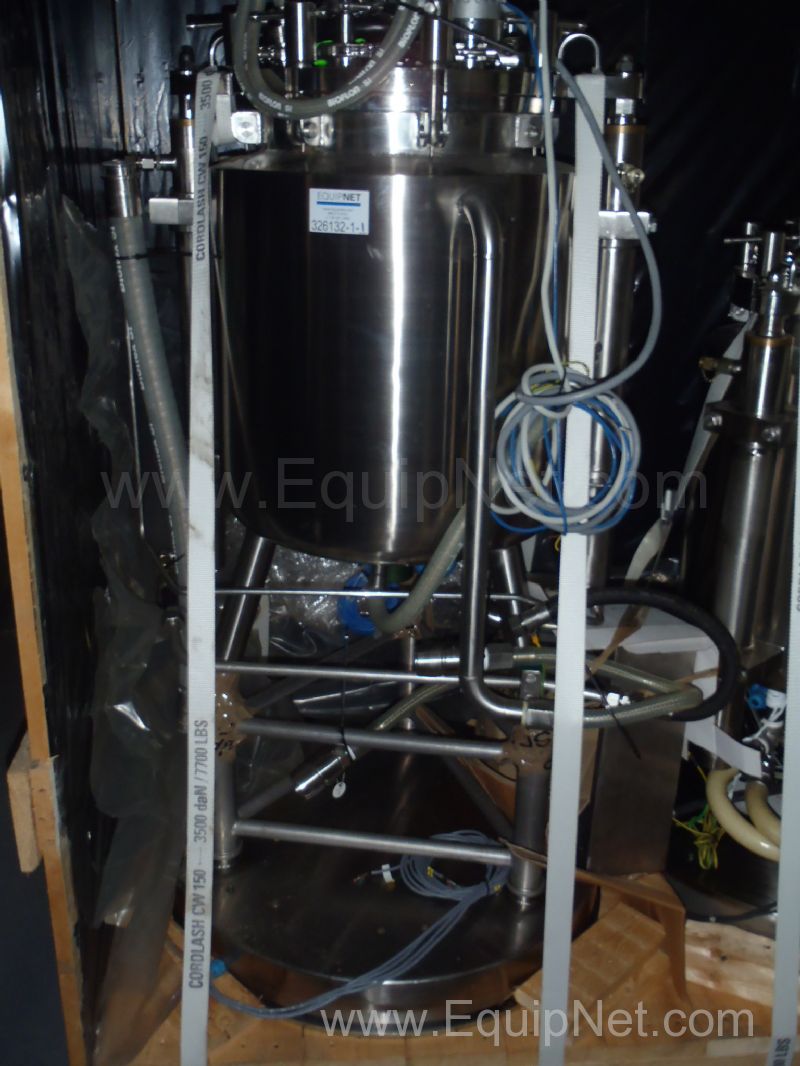

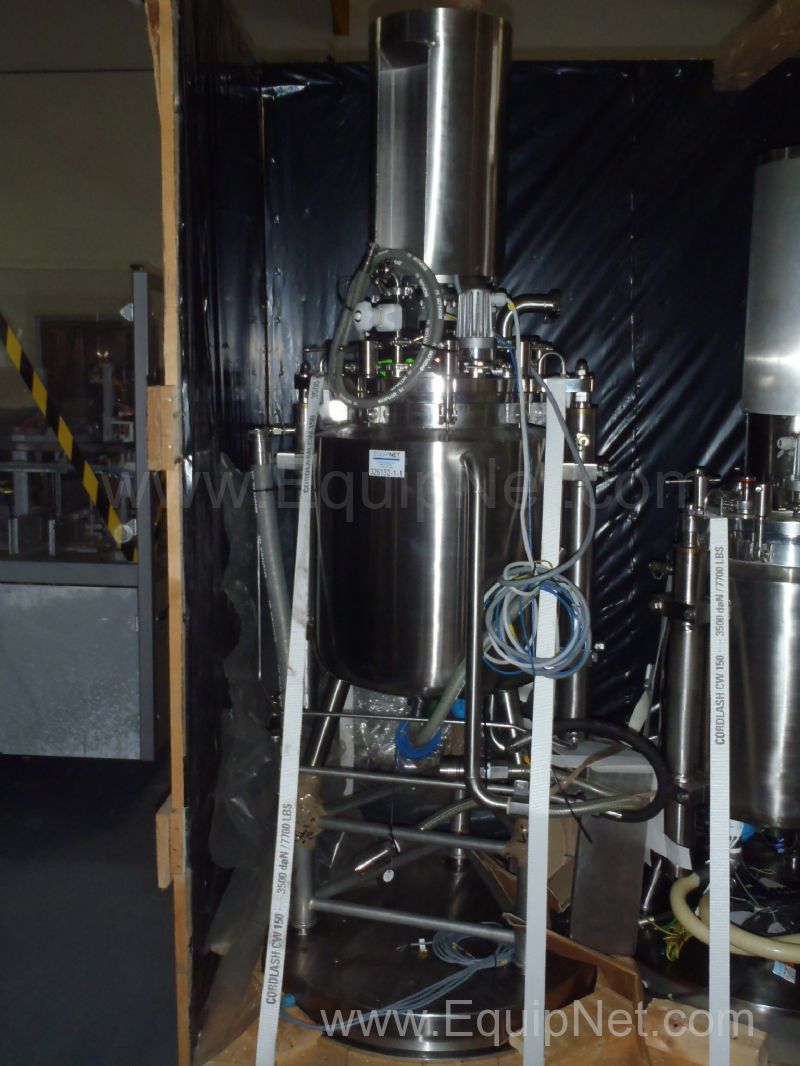

Packo Inox N.V. 70 Litre Stainless Steel Water Jacketed Reactor
Lot 131
Auction Ended
Refresh Page
| Listing Number: |
326132 |
| Location: |
Bridgend , , United Kingdom |
Time Left |
Auction ended |
| End Date: |
4/25/2013 11:12:00 AM EST |
| Loading: |
£25.00 |
Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.
| Manufacturer | Packo Inox N.V. |
| Year | 2001 |
| Serial Number | 126718 |
| Capacity Size | 70 |
| Air Requirements | 6 BAR |
| Jacket Pressure Rating | 11 BAR |
| Length | 800 MM |
| Voltage | 230/400 VOLTS |
| Frequency | 50 HERTZ |
| Phase | 3+1 |
| Internal Temperature Rating | -20/+100 DEG C |
| Internal Pressure Rating | -1/7 BAR |
| Estimated Shipping Weight | 600 KGS |
| Jacket Temperature Rating | -20/+100 DEG C |
| Top and Bottom Heads | FLAT TOP/DISHED BOTTOM |
| Straight Side | 500 MM |
| Height | 2100 MM |
| Width | 800 MM |
| Recommended Packaging Form | CRATE |
| Additional Details | Packo Inox N.V. 70 Litre Stainless Steel Water Jacketed Reactor

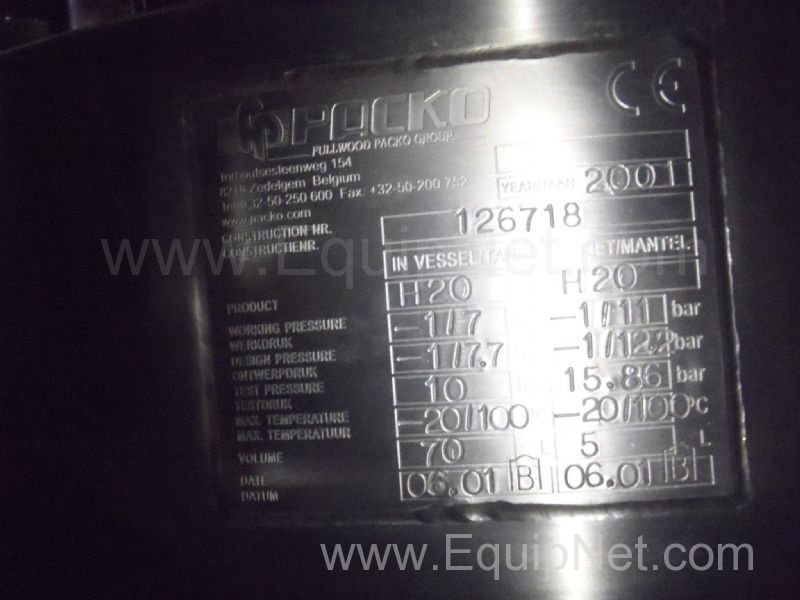

Tank working pressure = -1/7 bar, design pressure = -1/7.7 bar, test pressure = 10 bar. Max temp = -20/+100 deg C.
Tank volume = 70 litres.
Jacket working pressure = -1/11 bar, design pressure = -1/12.2 bar, test pressure = 15.86 bar. Max temp = -20/+100 deg C.
Jacket volume = 5 litres.

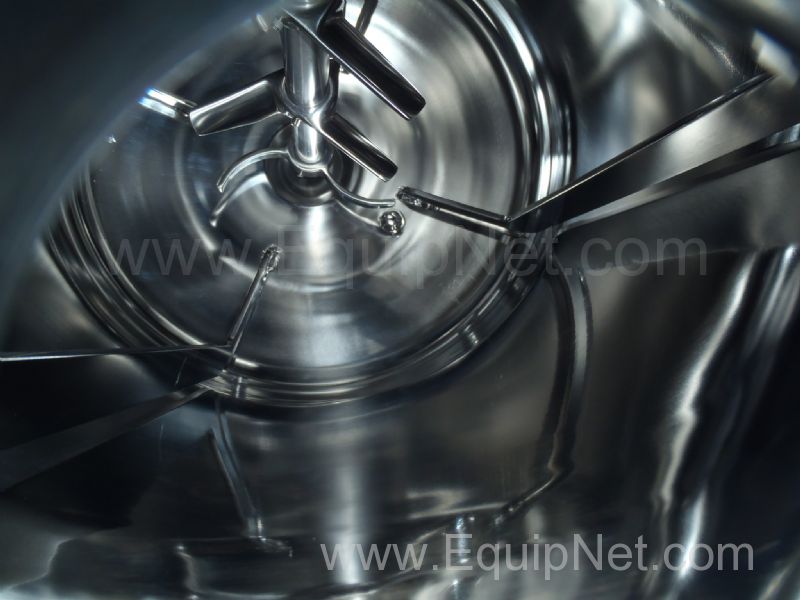

With central stirrer with 3 x three bladed agitators.

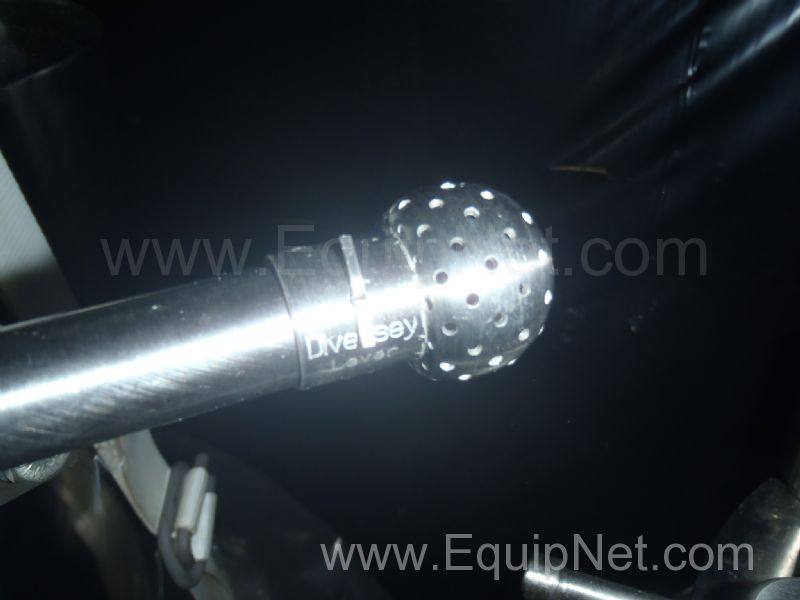

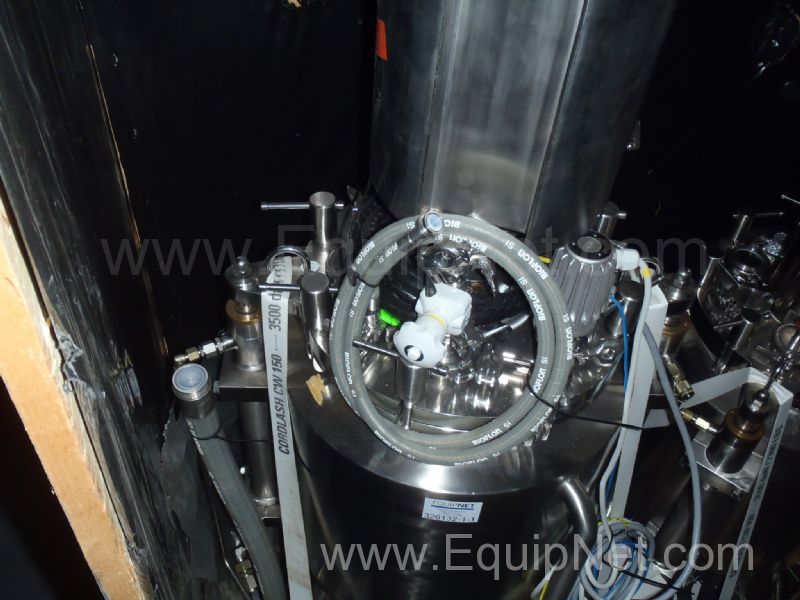

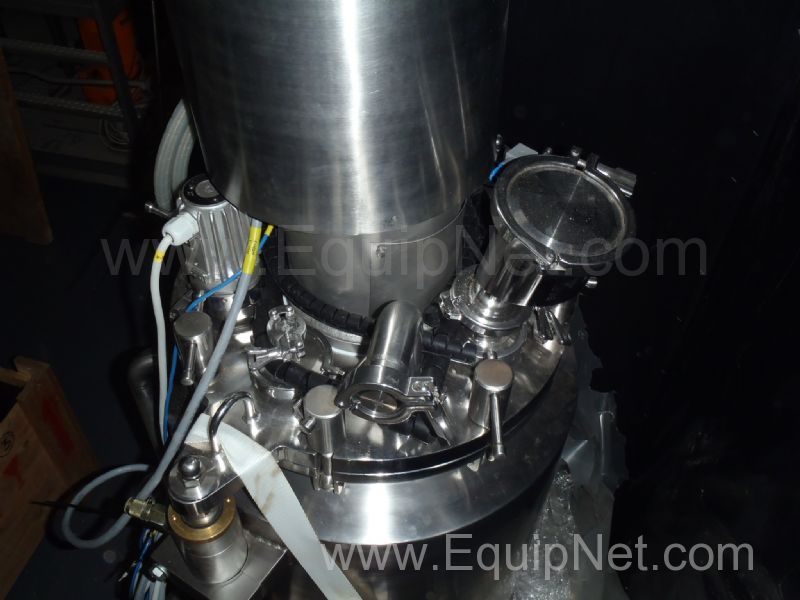

Clamped lid has 2x12 mm, 3x40mm, 2x50mm, & 2x70mm, ports for variety of connections, sensors, light, spray ball, etc.
Lid is raised via 2 off lifting pistons. Two lifting lugs on lid.
Mounted on three point round loadcell frame.
Whole unit 800mm diam x 2100mm high.

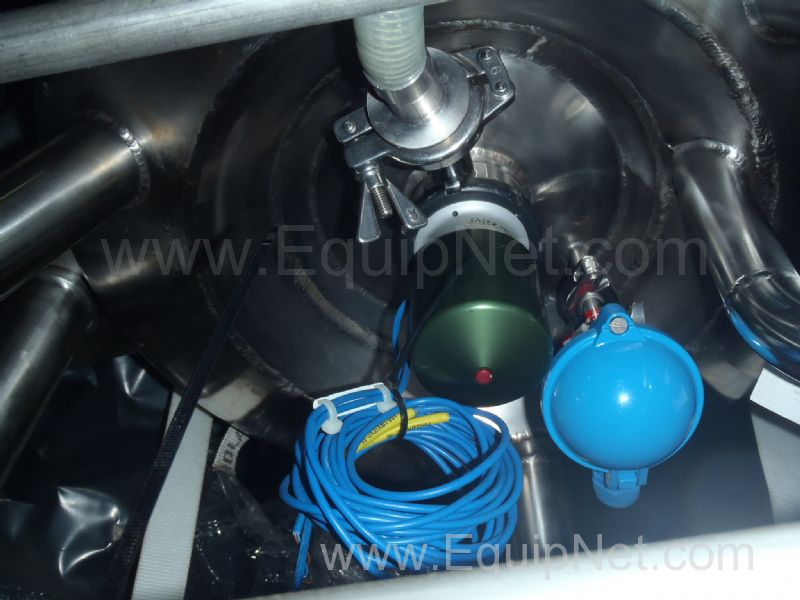

1x25mm outlet port at base with pneumatic shut off valve.
This item is an auction listing. The auction closes on 4/25/2013 11:12:00 AM. |
