Listing #274386

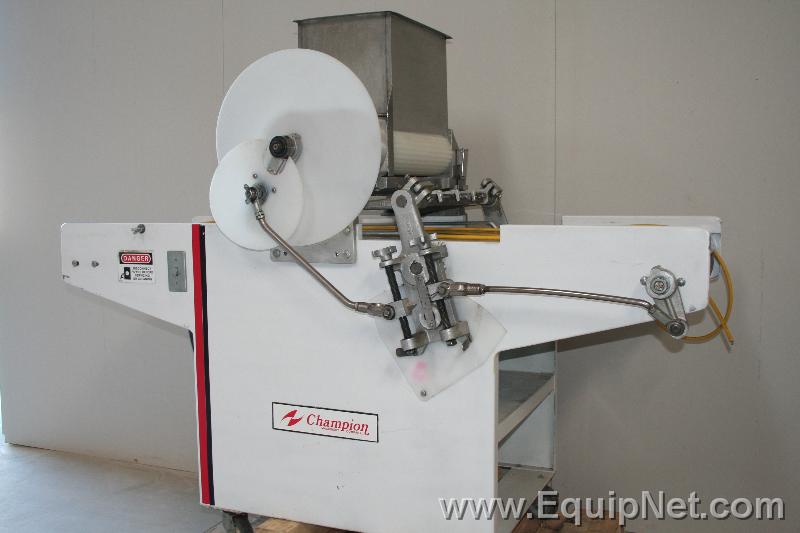

Champion Dough Dividing and Moulding Model 65-S
Equipment Description:
Champion Champion Cukie Depositor Model 65-S.
* Variable speed motor for 90 dozen to 1,200 dozen cukies per hour
* Dough feed and pan speed fully adjustable to fit your production requirements
* Wide range of dies in stock. Custom dies available
* Roller designed to extrude doughs of any consistency - regular to hard
* Hopper capacity of 30 quarts.
The flexibility to grow with your business PLUS these features:
* Needs only 66" X 32" floor area.
* Sturdy 4" casters make it easily movable
* Takes seconds to remove parts for cleaning
* Safety guard to keep moving parts totally enclosed
* Backed by Champions experience in bakery machinery since 1888.
Model 65S/ETL Cukie Depositor
Construction:
Frame and base electrically welded steel to form rigid one piece unit. Equipped with shelf for die storage.
Mounted on 4" diameter ball bearing rubber tired (or plastic) casters - two swivel and two fixed.
Sanitation:
All parts in contact with dough and under the product zone are rustless:
* Stainless Steel hopper.
* Stainless Steel table top - 22" X 65"
* Stainless Steel Feed roll shafts
* Polyurethane feed rolls
* Aluminum alloy die holder, and dies.
* Aluminum alloy cutter fingers
Above parts easily removable without the use of tools for washing after use without taking mechanical drive components (like gears and clutches) to the sink.
Hopper:
30 Quart capacity is standard - larger sizes available.
Drive:
Compact fully enclosed geared in head motor unit with reduction gears running in oil bath and with direct linkage drive.
Drive gears operate feed rolls and pan belts through silent automatic clutches.
Pans ride on two adjustable V belts.
Feed rolls are striated for positive dough feed.
Variable speed - 35-70 strokes per minute.
Adjustment knob for cukie thickness.
Adjustment knob for cukie spacing.
Drive Motor:
1/2 H.P., 1 phase, 115 volt, or 3 phase, 220 volt, complete with three wire 8 ft. cord with molded three prong grounding plug and adapter.
Switch:
Snap type with thermal overload and safety light.
Lubrication:
Pressure grease fittings and oil fittings.
Rustless metal lubrication chart (showing points of lubrication) affixed to machine.
Pan Guide:
Adjustable for 17" to 19" pans

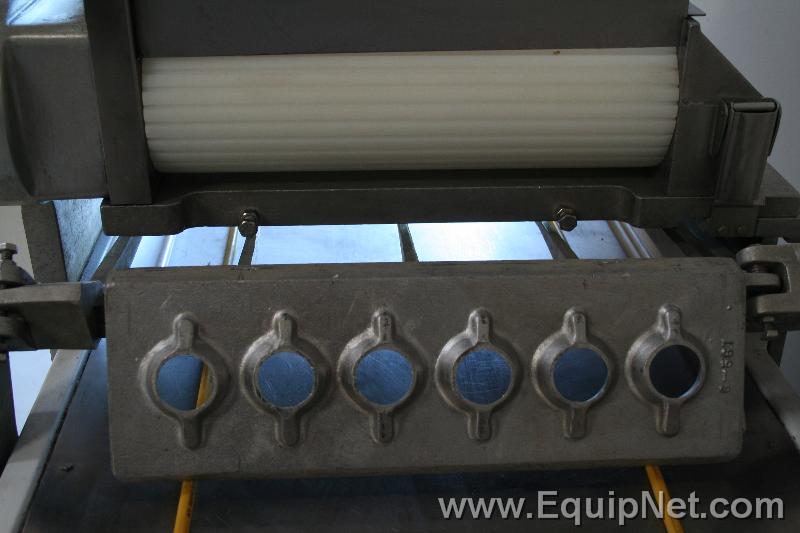

Dies:
Dozens of rustless aluminum dies available. Please request sheet via fax.
Finish:
Best grade white enamel
Size:
66" X 32" X 56" High
Shipping Weight 510 lbs
Max. Cukie Weight: *
1/4 - 6 oz*
* Depends on the specific gravity of dough
Approvals: ETL, BISSC
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in the USA. |
|
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Champion |
| Model | Model 65-S |
| Estimated Shipping Weight | 400 LBS |
| Recommended Packaging Form | PALLET |
