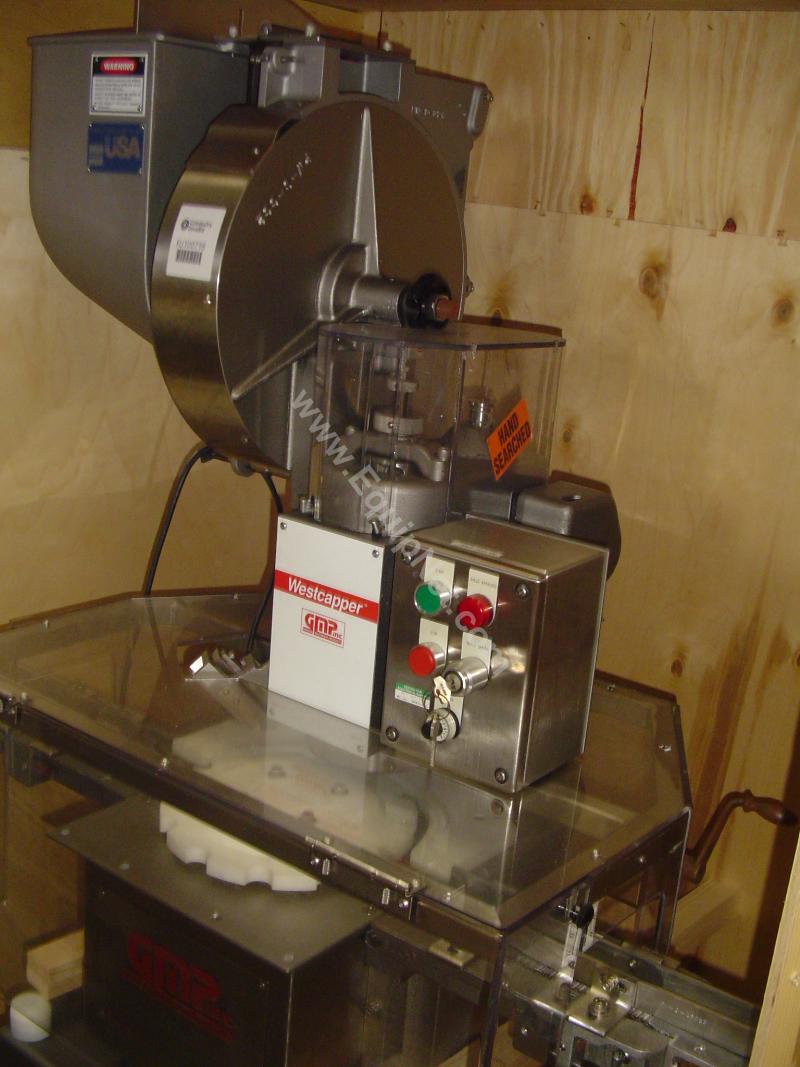

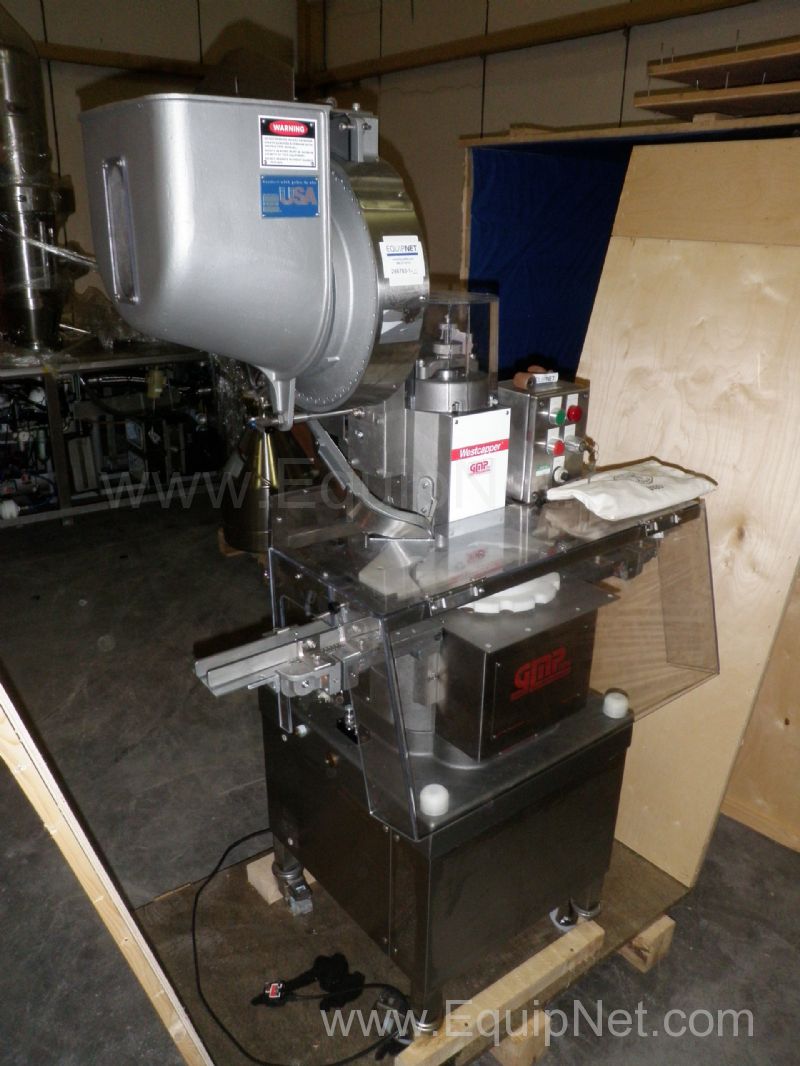

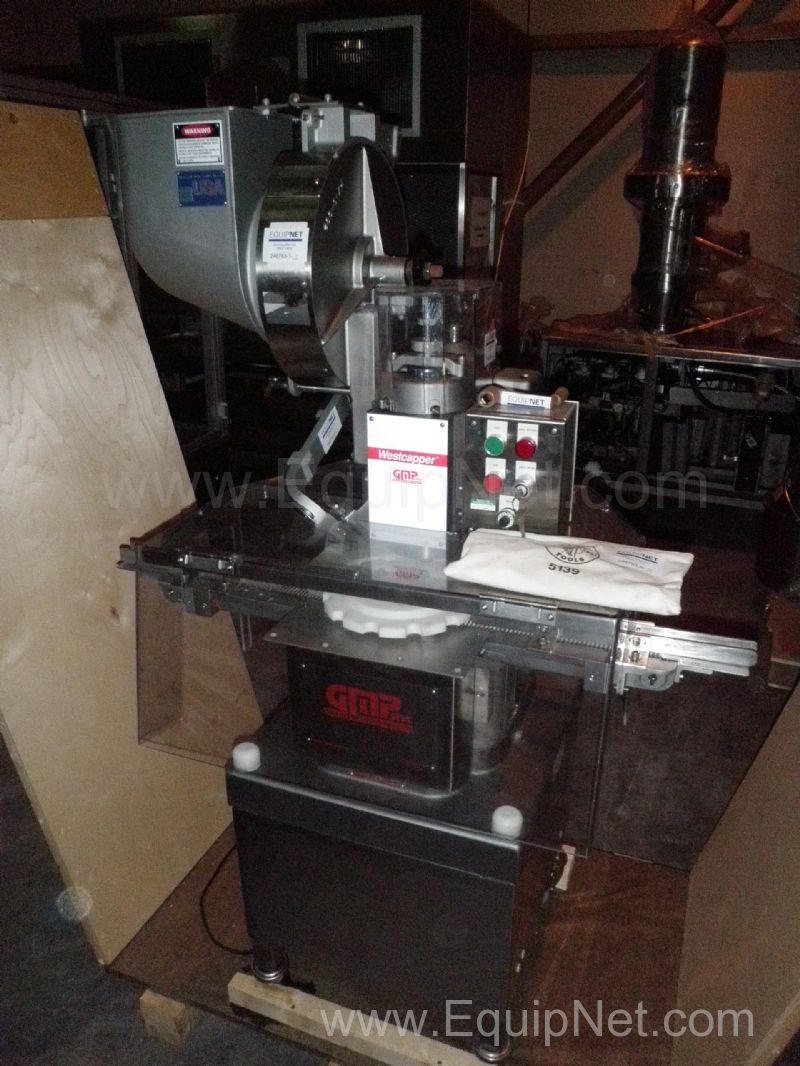

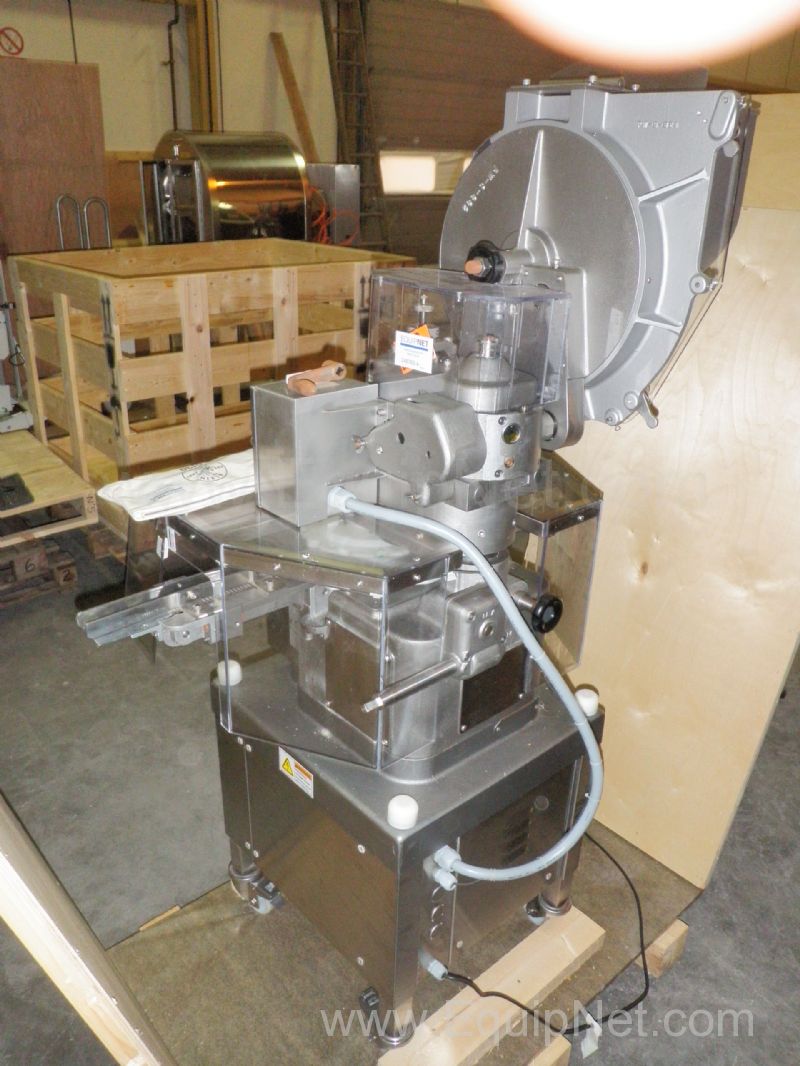

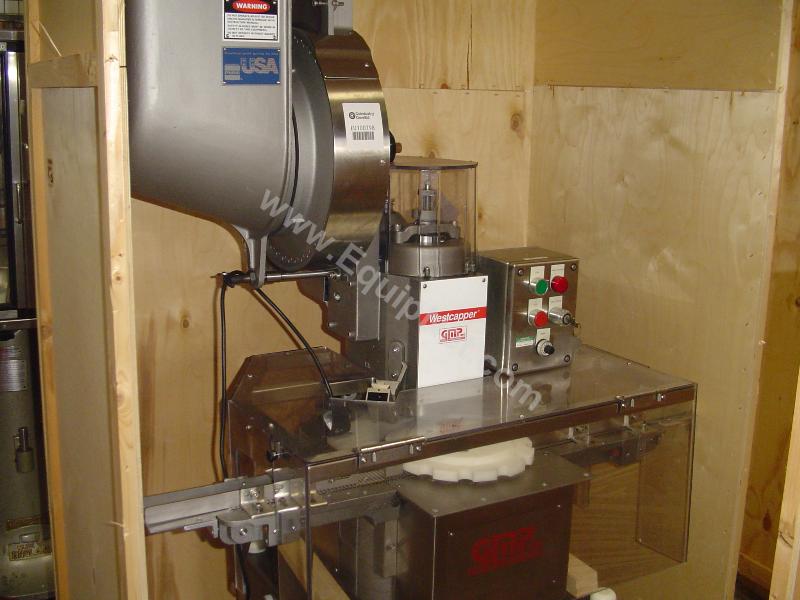

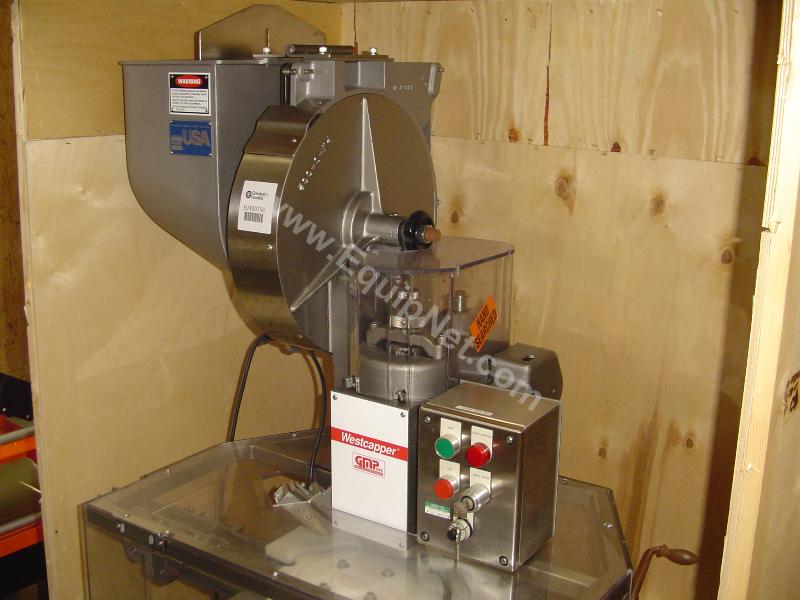

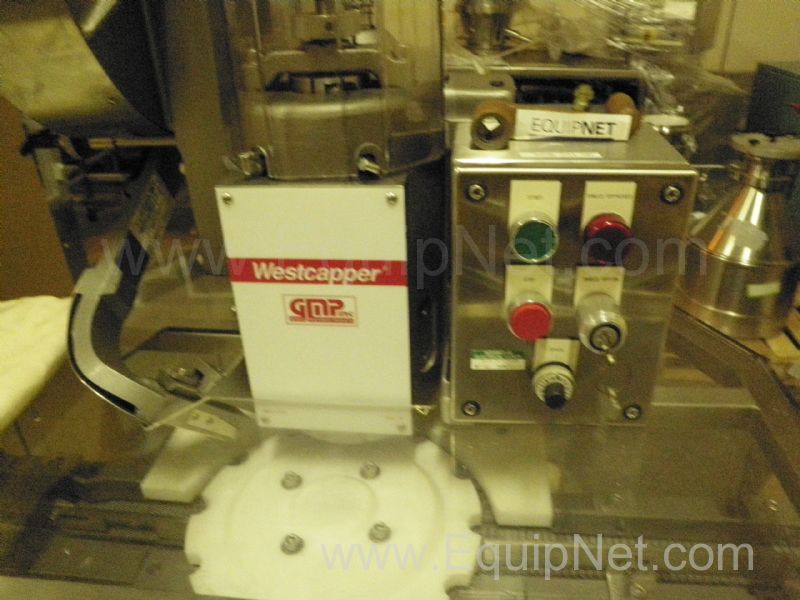

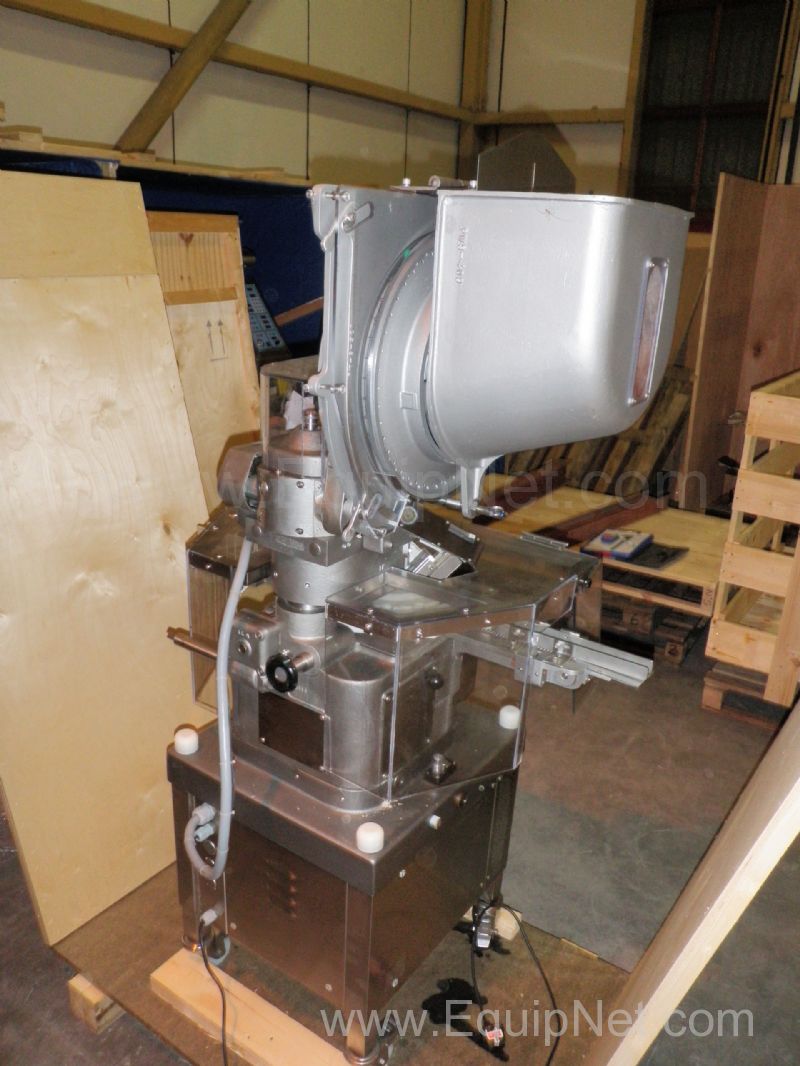

Please note: This equipment is currently in storage and not located at its original location. Item 1, The PW-500 Westcapper is a fully automated capper using 3 spinning rollers as the sealing mechanism. The hoppering system uses a turning disk to select caps and transfer them to the chute and the cap feed. As the starwheel indexes, the stoppered vials pass under the cap feed, pick a cap and vials progress to the sealing area. The adjustable spring loaded bottle rest and a fixed pressure block compress the stopper while the skirt of the cap is reformed under the locking finish of the vial. The three spinning rollers roll the skirt into place. The starwheel now indexes the vial onto the discharge conveyor. Vial flow is from left to right. Rolling casters are standard, with stationary legs available as an option. Depending on vial size, the capper has a maximum variable speed of 120 vials per minute. The OSHA compliant safety enclosure is wired to alarm and shut down the capper whenever it is opened during operation.

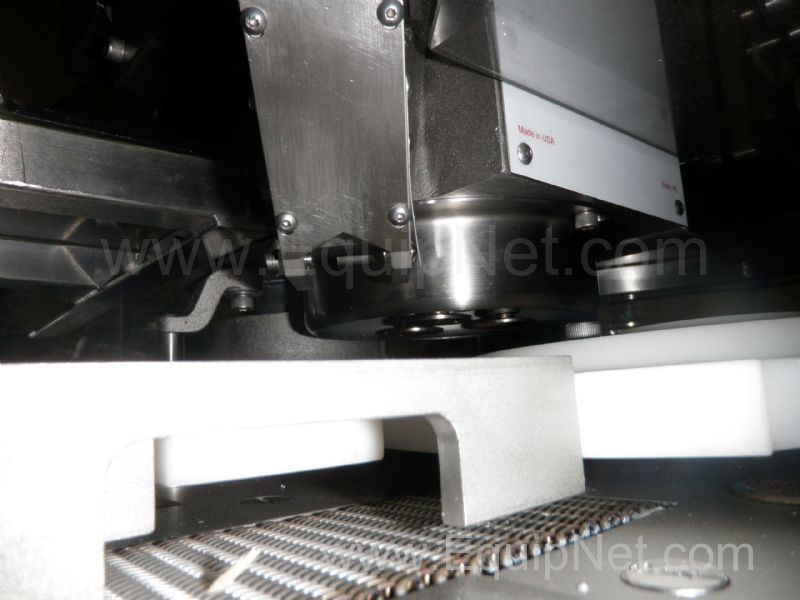

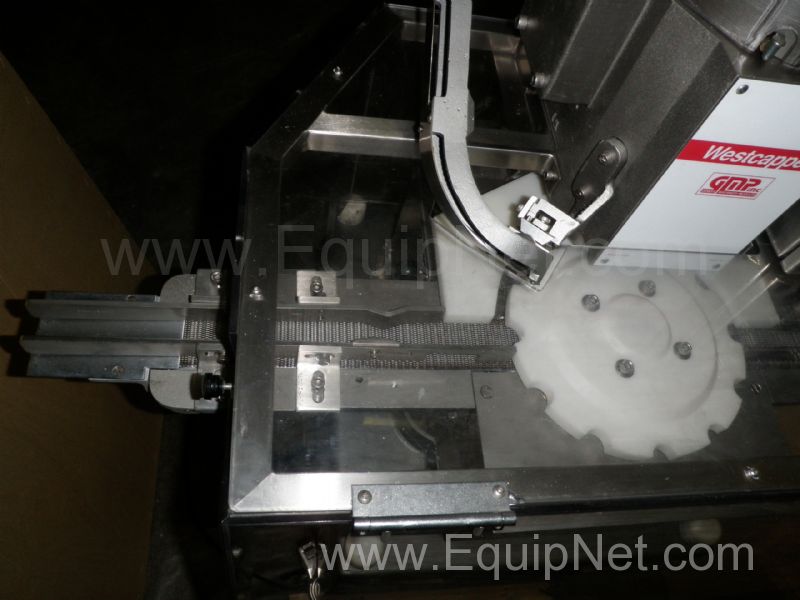

Fitted with 12 x 27.5mm wide x 12.5mm deep pockets in the 10" diameter Capping Rotor sprocket, for capping 22-25mm diameter bottles, currently set for 22mm diameter bottles.. The 3 off capping heads are 30mm in diameter.
The machine is fitted with a 26.5mm high guided 50mm wide S/s mesh Infeed belt conveyor. The conveyor infeed is 400mm long x 900mm high, and the conveyor outfeed is 430mm long x 900mm high.
The removable cap feeding shute has an internal dimensions of 26mm wide x 17mm high, for use with 25mm diameter x 15mm high caps.
The machine is mounted 4 off lockable swivel castors.
Item 2, Removable Cap Infeed Shute, which measures 360mm long x 100mm x 100mm, weighs approx 500g
Item 3, Machine Winding Handle.
Item 4, Removable macralon top guard, which measures 180 x 300 x 200mm high
item 5, Small Bag of Adjustment / Setting tools.
