Inova Syringe Filling Line

EquipNet Tag #272529-1-1

This is part of a multi-listing. To view a specific listing, click from the list below.

Equipment included in this listing

Equipment Description:

Inova Syringe Filling Line
  • Line was running 1, 2 and 3ml syringes at a line speed of approx. 67 pieces per minute
  • 5 and 10ml syringes were running at a line speed of approx. 50 pieces per minute
  • Year of manufacture varies between machinery from 2002 to 2005
  • The filler uses 2 x Piston type pumps for filling syringes.
  • There are different sizes for different fill volumes.
  • The pumps have ranges they work in, but have to go up or down a size depending upon how much larger the volume is
  • Accuracy

  • 0.2 – 0.6 mL: +/- 1.5%
  • 0.6 – 1.0 mL: +/- 1.0%
  • Larger than 1.0mL: +/- 0.5%

  • 1,2,3,5,10 ML Change Parts
  • Completely Sealed

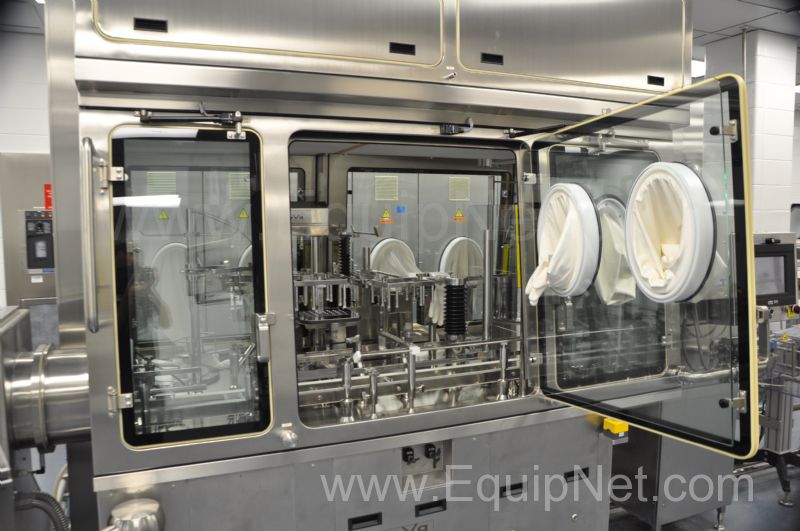

  • Class 100 Isolator
  • Aseptic Barrier
  • Sealed Vessel Transfer Barrier
  • Syringes are removed from the tub and filled and stoppered in the tub matrix after stoppering they are returned to the tub
  • After the tub is indexed out of the filler - isolator and to the de-nester. The line utilizes a denester for handling the filled barrels. It was working when we shut the line down.
  • Used to remove tray from the tub and syringes are transfered to a 'Y' conveyor
  • The 'Y' conveyor is used to split the single lane of syringes in to two lanes.
  • Then they are sent to two Seidenader inspection units
  • Vacuum Pick and place
  • For Individual separation of syringes from trays
  • Small Transfer Double "V" Conveyor Included
    Inspection Machines
  • Quantity of two
  • Machine #1
  • Model: V90-AVSB/60-LR
  • Serial #: 129/01
  • Year of manufacture: 2002
  • Semi Automatic
  • Reject station
  • Luminescent Back Light
  • Touch Screen Display
  • Visual inspection Station
  • Machine #2

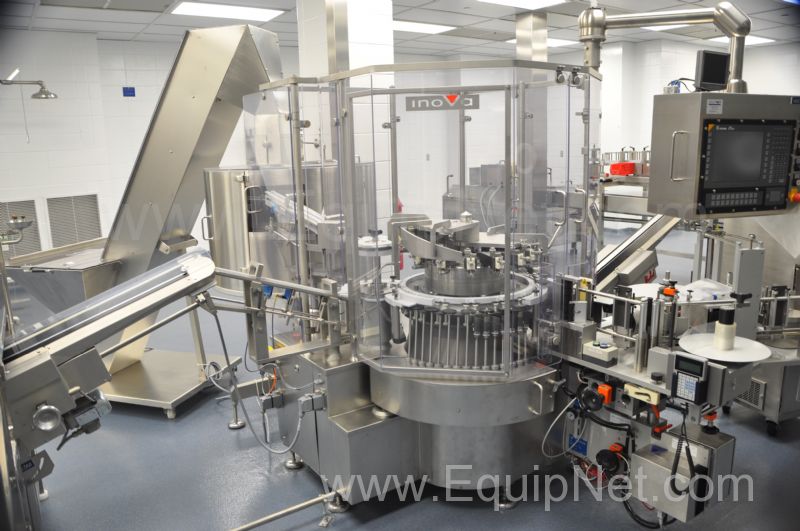

  • There is a feeder bowl and hopper that feeds the plunger rods to the rod labeller/inserter.
  • The line was designed and ran 1ml, 3ml, 5ml and 10ml nested plastic syringes from Schott.
  • Automatically places plastic plunger rod (with threaded end) into barrel and screws plunger rod to rubber stopper inside barrel.
  • The labeller was working before we shut the system down.
  • The vision system was there to inspect the printed information. In addition, there is a barcode reader to read the barcode on the pre-printed label.

  • Disclaimers:

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Mississippi.

    This equipment is subject to a removal and loading charge.

    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non transferable.

    Equipment Specifications:

    Capacity Speed67 CPM67 CPM
    Estimated Shipping Weight0 LBS0.00 kg
    Estimated Shipping Height0 IN0.00 cm
    Estimated Shipping Length0 IN0.00 cm
    Estimated Shipping Width0 IN0.00 cm
    Recommended Packaging FormCUSTOM
