Please note: This equipment is currently in storage and not located at its original location. Inova VSVM 4052 Automated complete Stainless steel Sterile Syringe Filling System complete with Overhead Laminar Flow units, for automatically filling upto 6000 Syringes/hour.
Year of Manufacture 1999
The system consists of the following 10 sets of equipment;

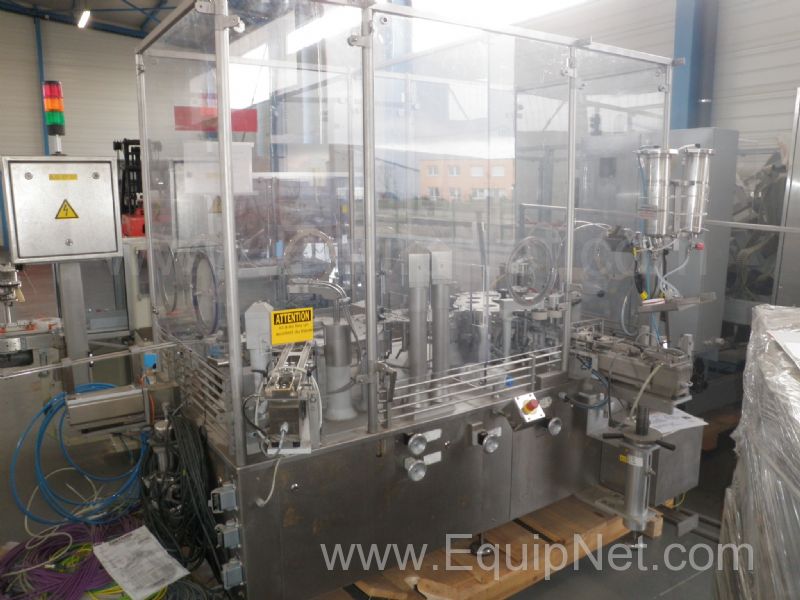

Item 1, Automated Stainless steel fully interlocked guarded sealed with Gloved side entries clear macralon hinged door Syringe Filling M/c, with Overhead HEPA filtered Laminar Downflow units, all controlled from a cantilever supported Inova Operator VDU Control Panel.

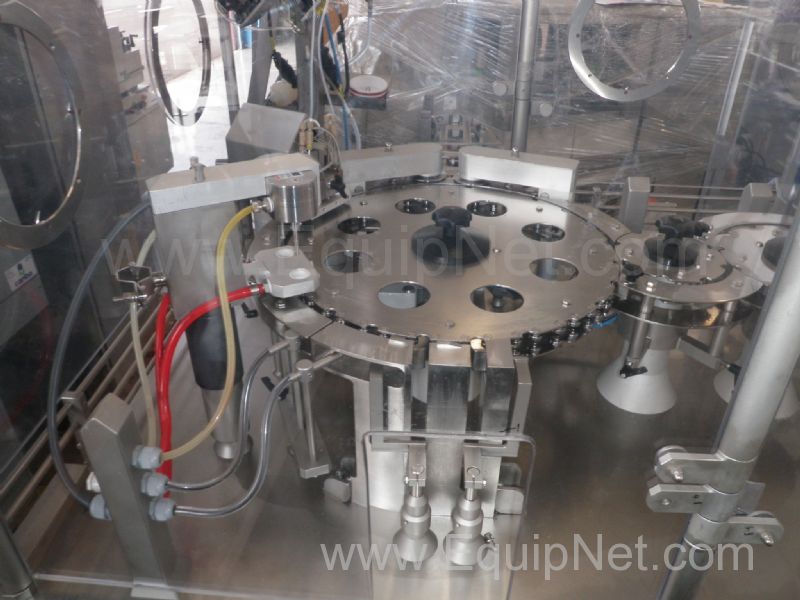

The Syringe Filling M/c is fitted with 2 Head rotary pumps for 5 & 10 mls Plastic syringes, and a Plugging machine with siliconisation ( Vent tube insertion of plug)
The Syringe Filling Machine requires a 400volt x 3 Phase x 50 Hz x 16 amp Power supply, and a 6 bar Compressed Air supply. The Syringe Filling M/c measures 2900 x 1850 x 2100mm high, and weighs approx 2000 Kgs
Item 2, Wardrobe style S/s Double Door Main PLC Control Panel, containing Siemens S7 PLC, AB 1305 unit, and a set of AB and RedElectronik Inverters. This item measures 1600 x 600 x 2100mm high, and weighs approx 500 Kgs
Item 3, 2 off Vibratory Bowl feeders for Syringe Screw tips and Syringe Rubber Plungers, mounted on a common pallet, which measures 1200 x 1100 x 1600mm high, and weighs approx 300 Kgs. The Syringe Screw Tip Feeder unit is fitted 400mm diameter x 100mm deep Vibratory Bowl Feeder unit, and the Screw Tip Feeder measures 1000 x 450 x 1350mm high, and weighs approx 130 Kgs. The Syringe Rubber Plunger Feeder unit is fitted 500mm diameter x 150mm deep Vibratory Bowl Feeder unit, and the Plunger Feeder measures 1050 x 550 x 1450mm high, and weighs approx 170 Kgs.

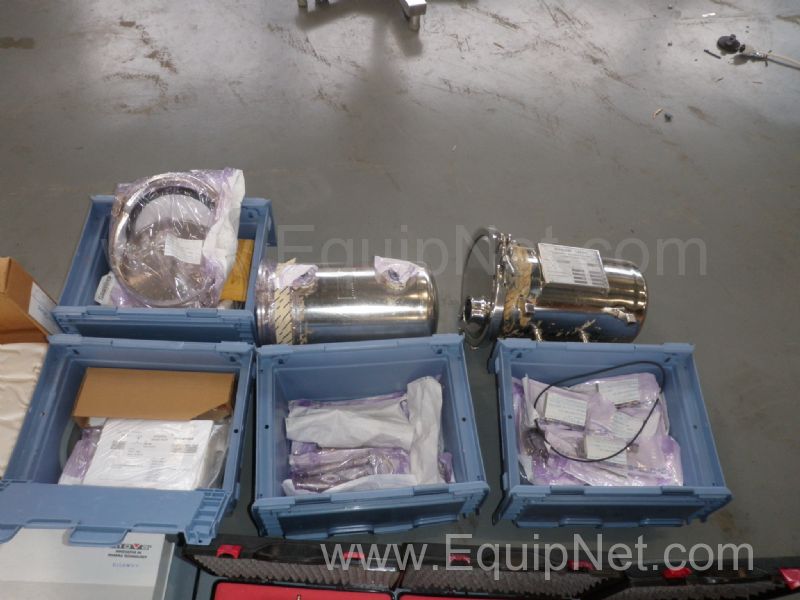

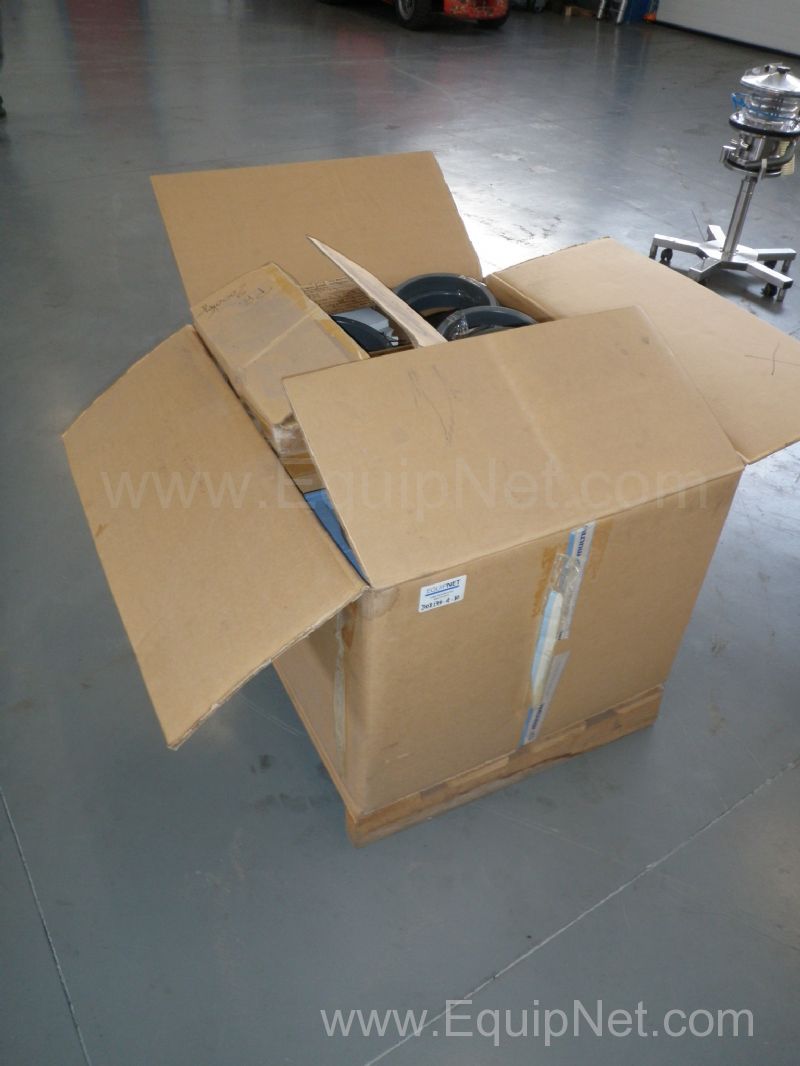

Item 4, Pallet Box of Spares, Pump Parts, Gloves and OEM Manuals, which contains 4 sets of alternative sized Syringe Filling Pump Parts, Spare new Glovebox gloves and Glove Sealing rings, plus a full set of Inova OEM Manuals. This Box of Parts & Spares measures 900 x 750 x 800mm high, and weighs approx 100 Kgs.
Item 5, 4 off Overhead Laminar AirFlow HEPA Filter modules, each measuring 1400 x 1400 x 650 high stacked 2 high per pallet, stacked 2 pallets high. Measures 1400 x 1400 x 2900mm high, and weighs approx 400 Kgs.
Items 6, 7, 8, 3 sets of 2 off Overhead Laminar AirFlow HEPA Filter modules, each measuring 1400 x 1400 x 650 high stacked 2 high per pallet. Each Pallet of 2 off filter units measures 1400 x 1400 x 1760mm high, and weighs approx 250 Kgs
Item 9, Flighted Belt Elevator for Syringes from S/s 600 x 600 x 600mm deep hinge lidded hopper. The Syringes are lifted from the manually filled hopper by means of the 180mm wide x 150mm pitched x 30mm high flighted belt, to a discharge chute height of 1350mm. This Flighted Belt Elevator measures 1500 x 600 x 2000mm high, weighs approx 200 kgs.
Item 10, Double Syringe Vibratory Bowl Feeder unit, fitted with 2 off Vibratory Syringe Bowl Feeder units, each 450mm diameter x 150mm deep mounted in a common frame, with a automated switchable diversion flap filling system. The Machine measures 1800 x 850 x 1600mm high, and weighs approx 200 Kgs.
Description of the operation of this Inova VSVM 4052 Automated complete Stainless steel Sterile Syringe Filling System;
The 5 or 10ml x 15mm diameter Syringes are manually loaded into the Flighted Belt Elevator hopper, which transfers them on demand one of 2 off automated Syringe Vibratory Bowl Feeder / Aligning units mounted in a stand alone machine, with syringe discharge linked to the front side mounted 900mm high Inova Syringe Filling Machine vibratory double lane infeed shute. This feeds the Syringes into the 26 pocket x 500mm diameter Filling Machine Inlet Turret.
Additionally, the Syringe Screw Tips, and the Syringe Rubber Plungers are also manually loaded into their respective Vibratory Bowl Feeder / Aligning units, which feed the Screw Tips by second dedicated rear RHS side mounted pair 900mm high Inova Syringe Filling Machine vibratory double lane infeed shute. The Plungers by a third dedicated rear LHS side mounted pair 900mm high Inova Syringe Filling Machine vibratory double lane infeed shute.
The Syringes held within the Filling Machine turret are first passed under an compressed air blow off station, prior to Silicon sealant being applied and the vibratory fed Screw Tips attached to the Syringes. The Syringes are then coveyed from the Screw tip insertion section of the machine via linking transfer sprockets under a macralon internal sealing partition to the Syringe filling section via a side mounted pair of pumped injection units.
After being filled the Syringes are transferred by the second 26 pocket 500mm diameter Filling M/c Turret, under the Rubber Plunger insertion and pressing unit, using the plungers that have been fed into the machine from their vibratory infeed shute.
The filled, plugged, and screw tipped Syringes then exit the Filling M/c via Single Discharge conveyor, fitted with a Auto Reject diversion facility into a container, at a discharge height of 900mm along a 600mm long guided vibratory dicharge conveyor, at the rate of upto 6,000 Syringes / hour.
|
