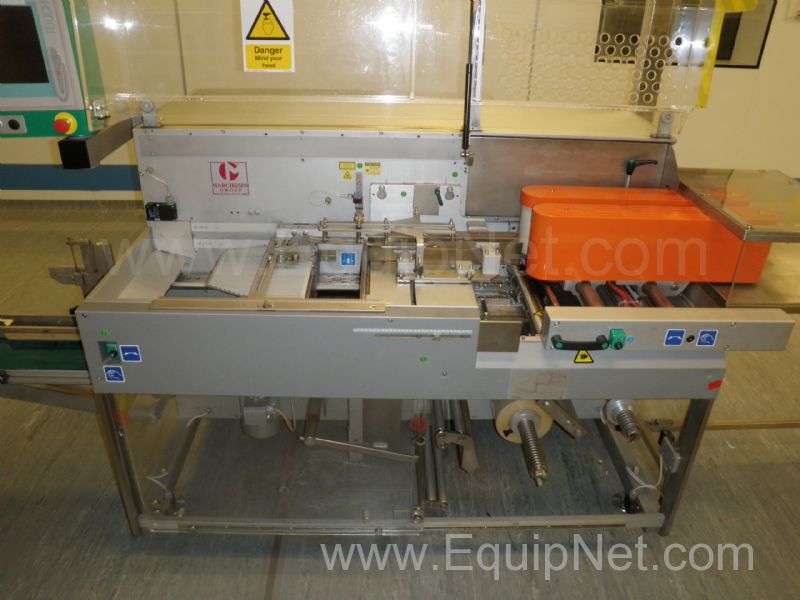

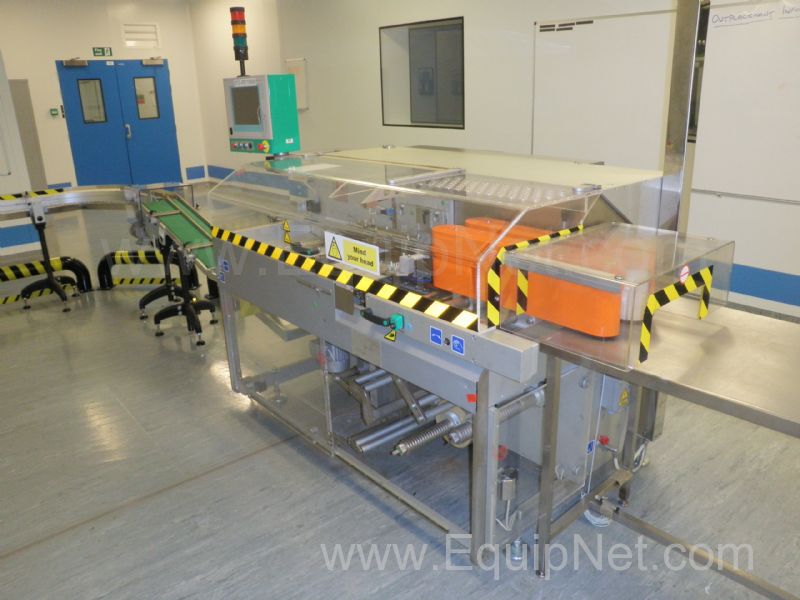

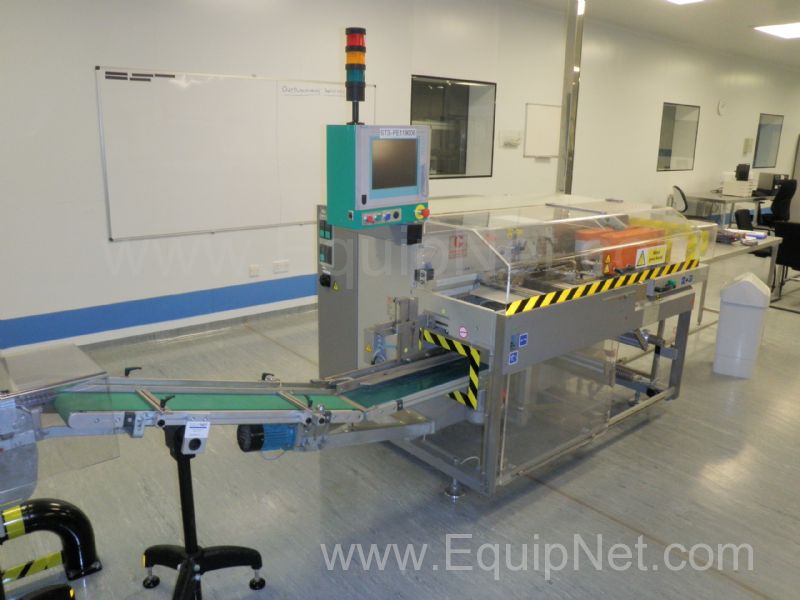

Please note: This equipment is currently in storage and not located at its original location. Marchesini MF 910 Mini Auto Bundler Overwrapping Machine, Item 1.

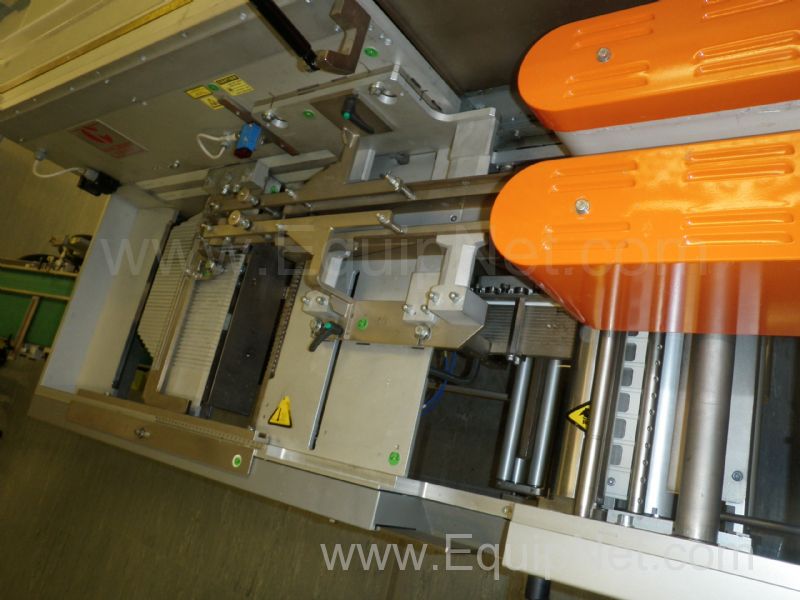

This machine takes in the individual 23 x 23 x 70mm long cartons, and bundles them into 2 high x 5 long bundles, prior to overwrapping the 115 long x 70mm wide x 46mm high packs of 10.
The overwrapped bundles are then passed between the heated vertical discharge side conveyors, which are 700mm long x 150mm high, and set 70mm apart, prior to the end sealed overwrapped bundles passing out of the machine onto the Manual Case Packing table.

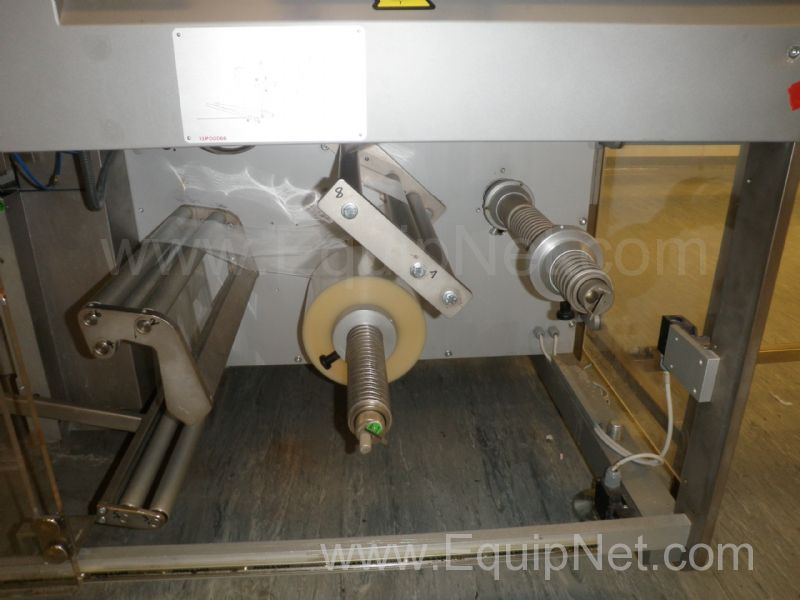

The 150mm wide overwrapping film is fed from a front bottom mounted 200mm diameter feed reel, with a 50mm inside bobbin diameter. This overwrap feeder can accept reels upto 400mm wide x 300mm diameter.

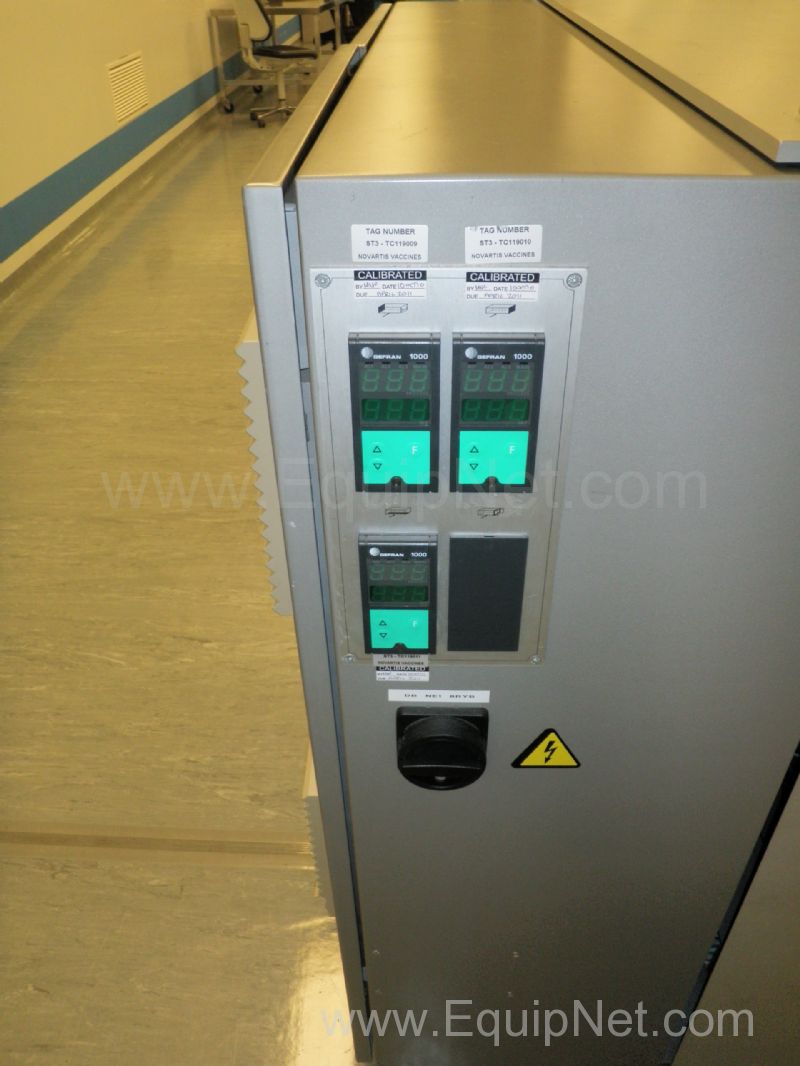

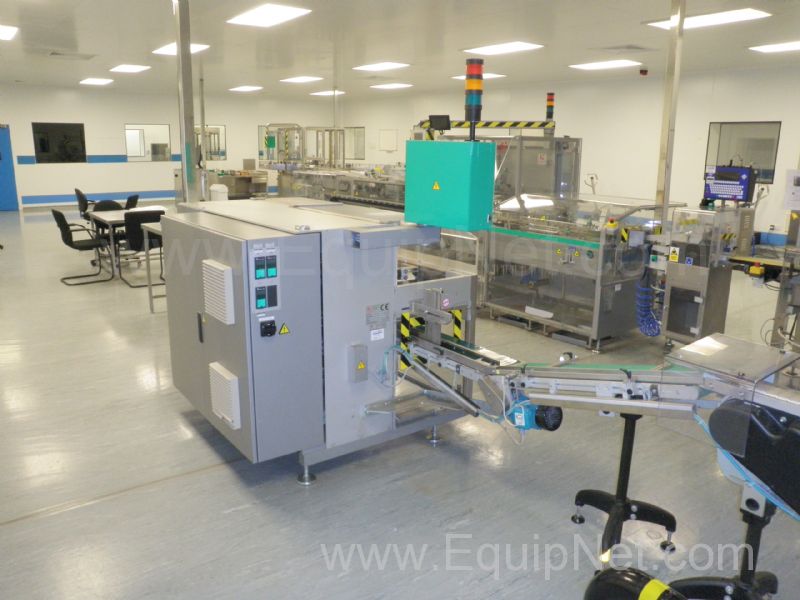

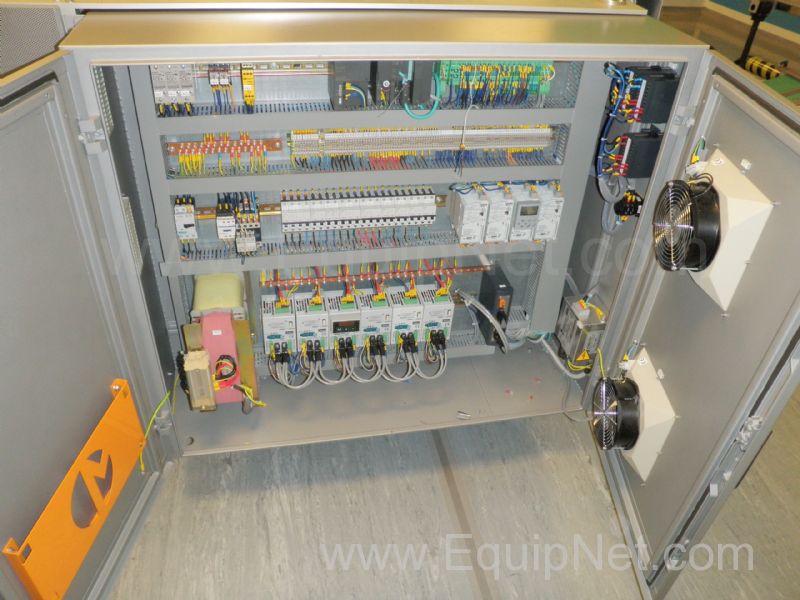

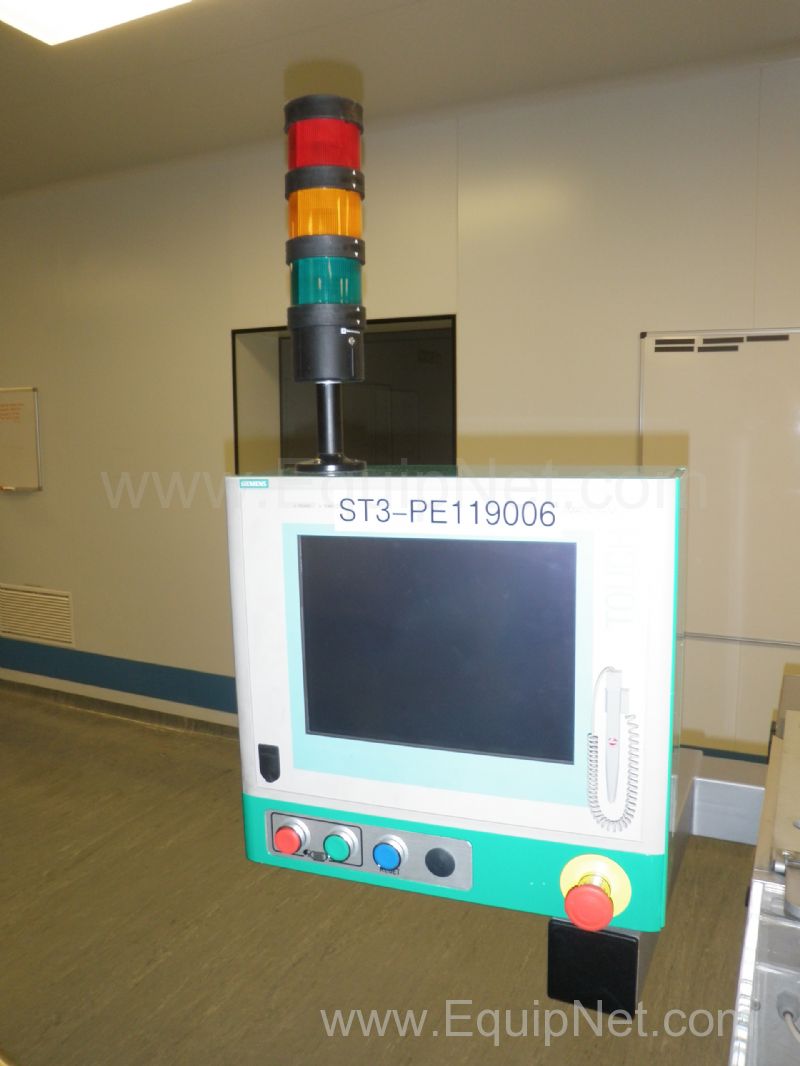

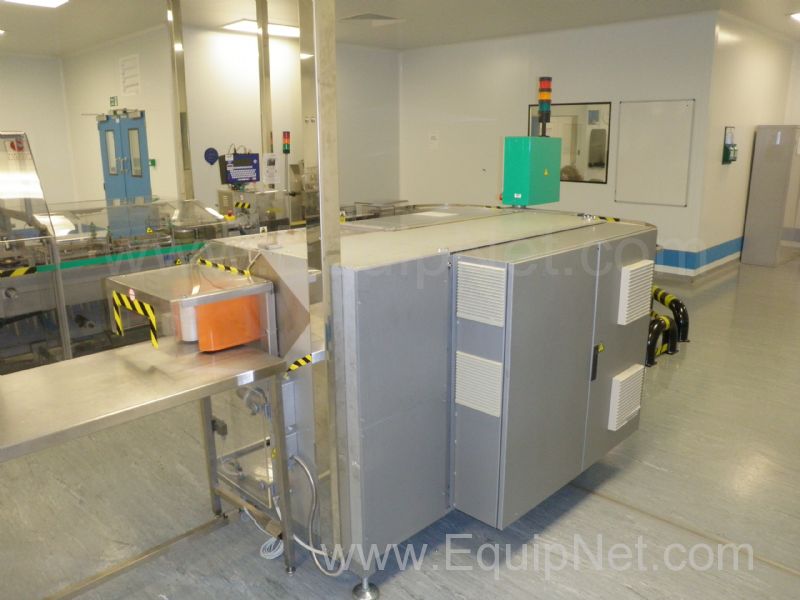

The Overwrap heat sealing systems are controlled by 3 sets of Heater Controllers, and the Machine is controlled by a cantilever supported Siemens Simatic Operator Interface VDU Control Panel, linked to rear in built main Machine Control Panel.

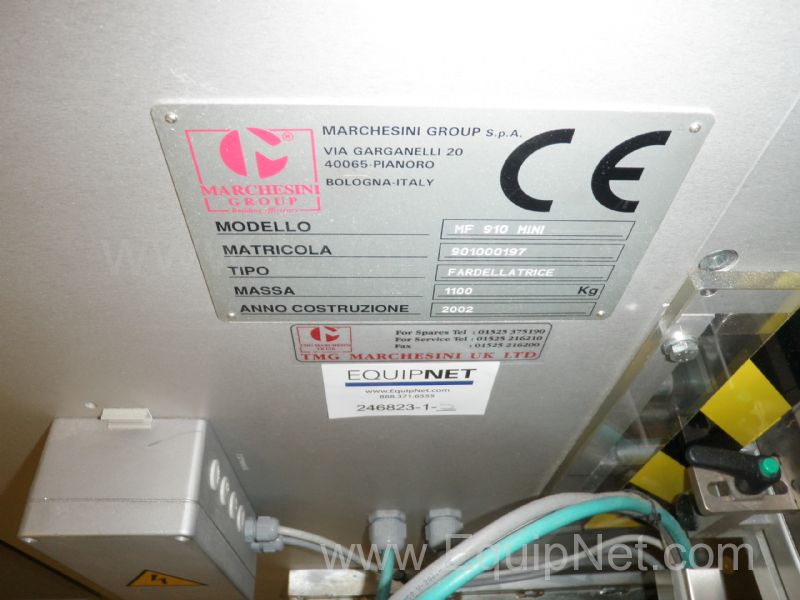

The machine measures 2.7 x 1.4 x 2m high, and weighs 1100 Kgs.

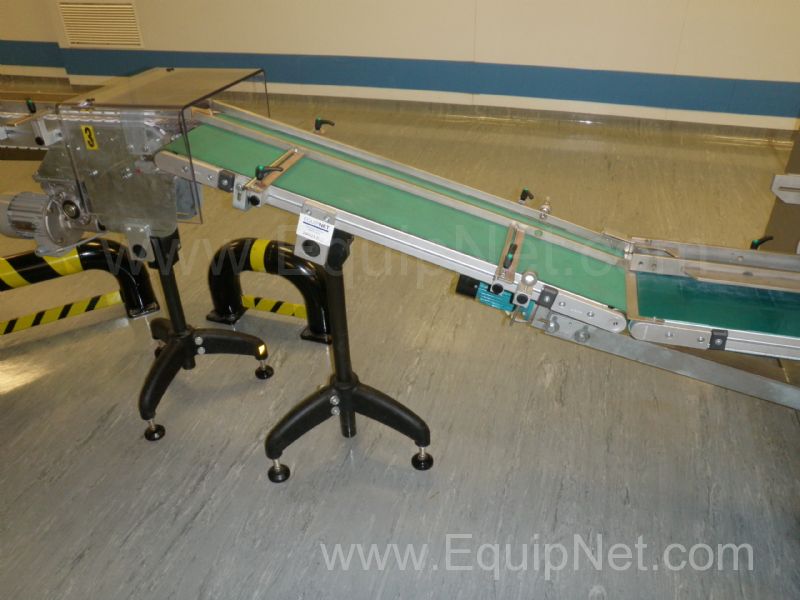

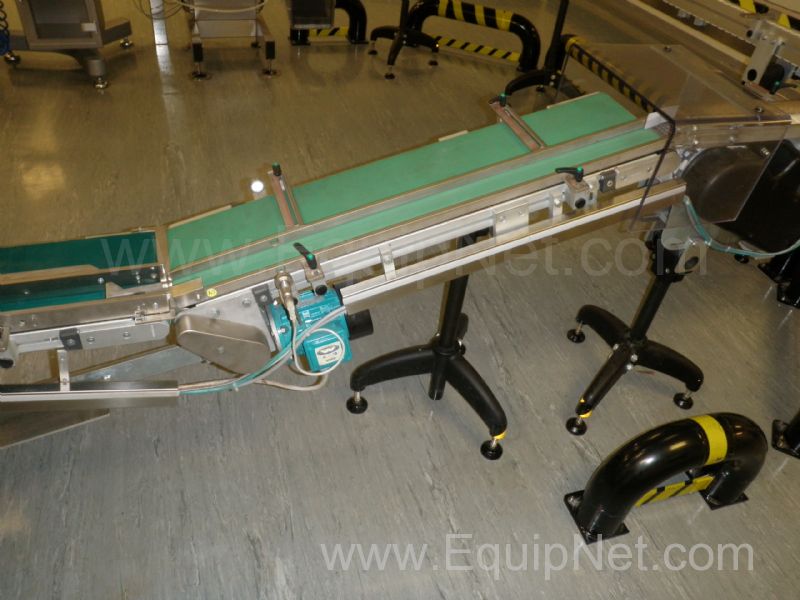

The Bundler / Overwrapping M/c is fed with the cartonned product by means of a Declining Infeed Belt Conveyor, Item 2, which is driven by a 0.37Kw Drive, and fitted with a 250mm wide gripper belt, and overhead 25mm high sideguides, set 74mm apart. The conveyor is 550mm long x 400mm wide and declines from a height of 900 to 620mm height.
***Removal ONLY fee for this item: £50 (GBP) (Packing Skidding Crating are not included)*** |
