Listing #291716

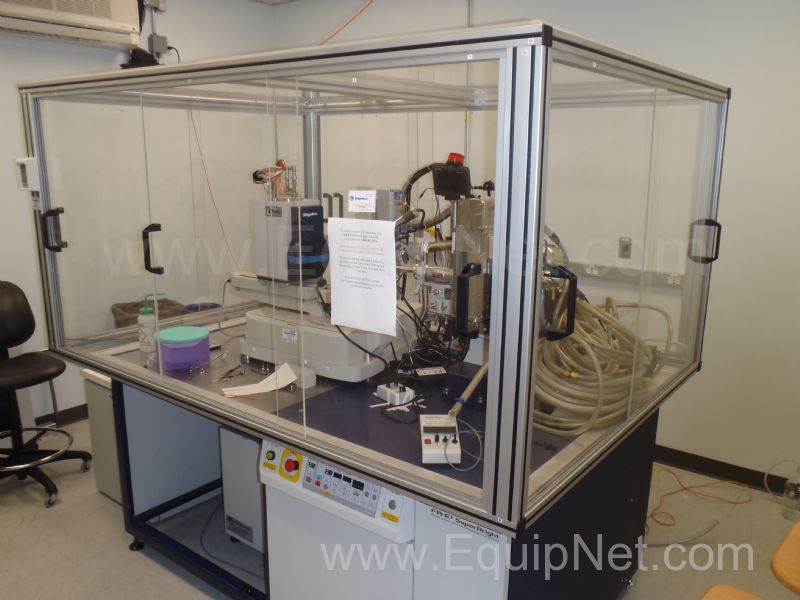

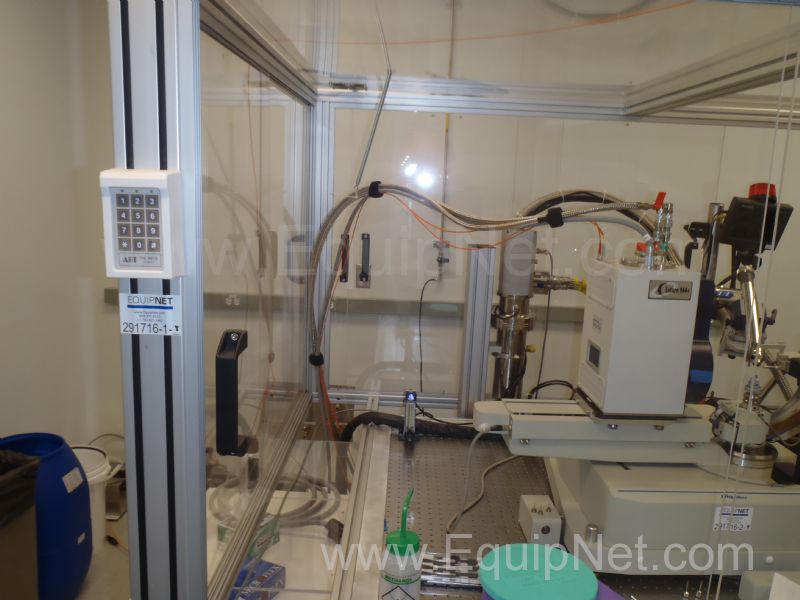

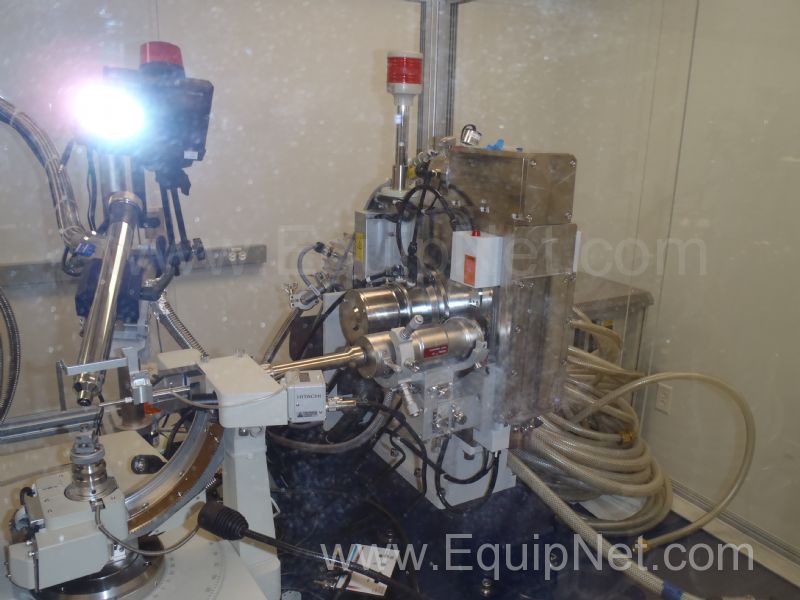

Rigaku Protein Crystallography Ultimate HomeLab X-ray diffraction system
EquipNet Tag #291716-1-8, 291716-2-8, 291716-3-8, 291716-4-8, 291716-5-8, 291716-6-8, 291716-7-8, 291716-8-8
Equipment Description:
System is currently functional with the following components installed
1) Rigaku Saturn 944 S:FD007362

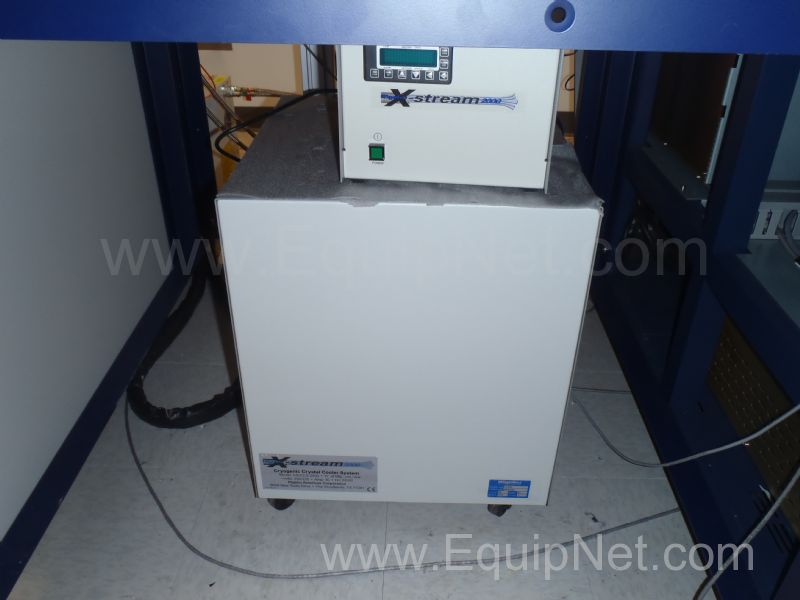

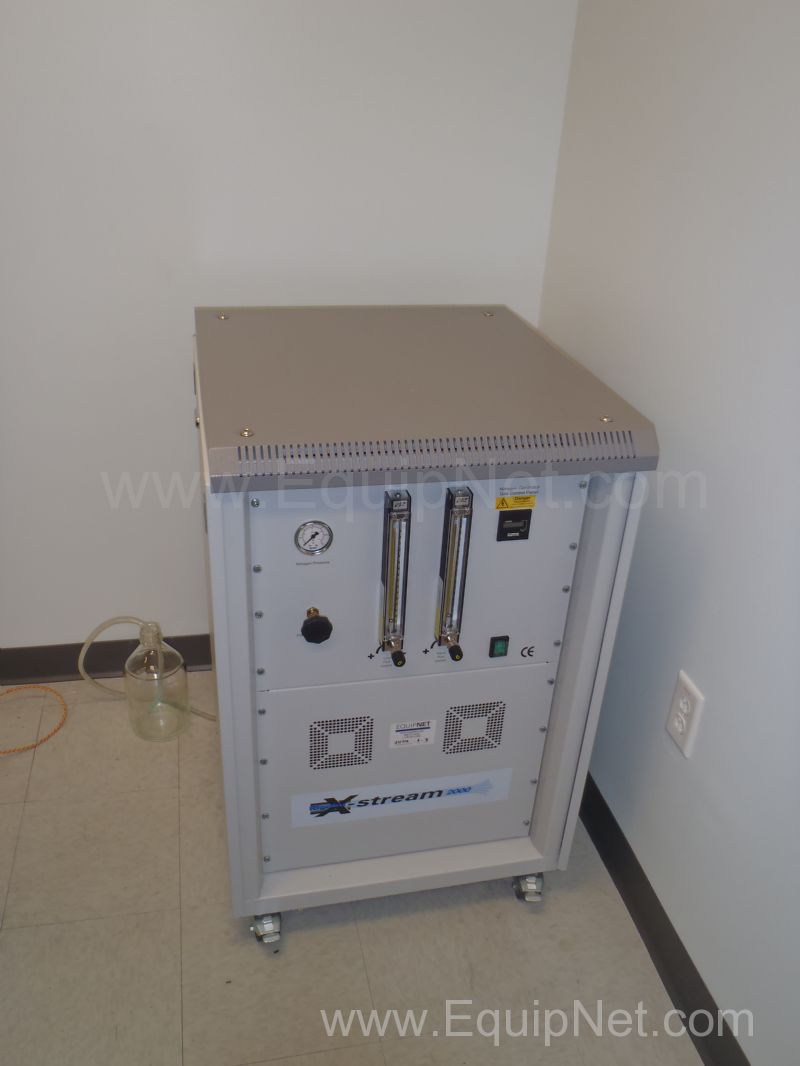

1) Rigaku X-Streme 2000 N2 Generator
1) Poly Cold PCC
1) AFC Controller S:090125A
1) Rigaku CP830 Helium Compressor S:090125A
1) Rigaku Cryogenic Cooler

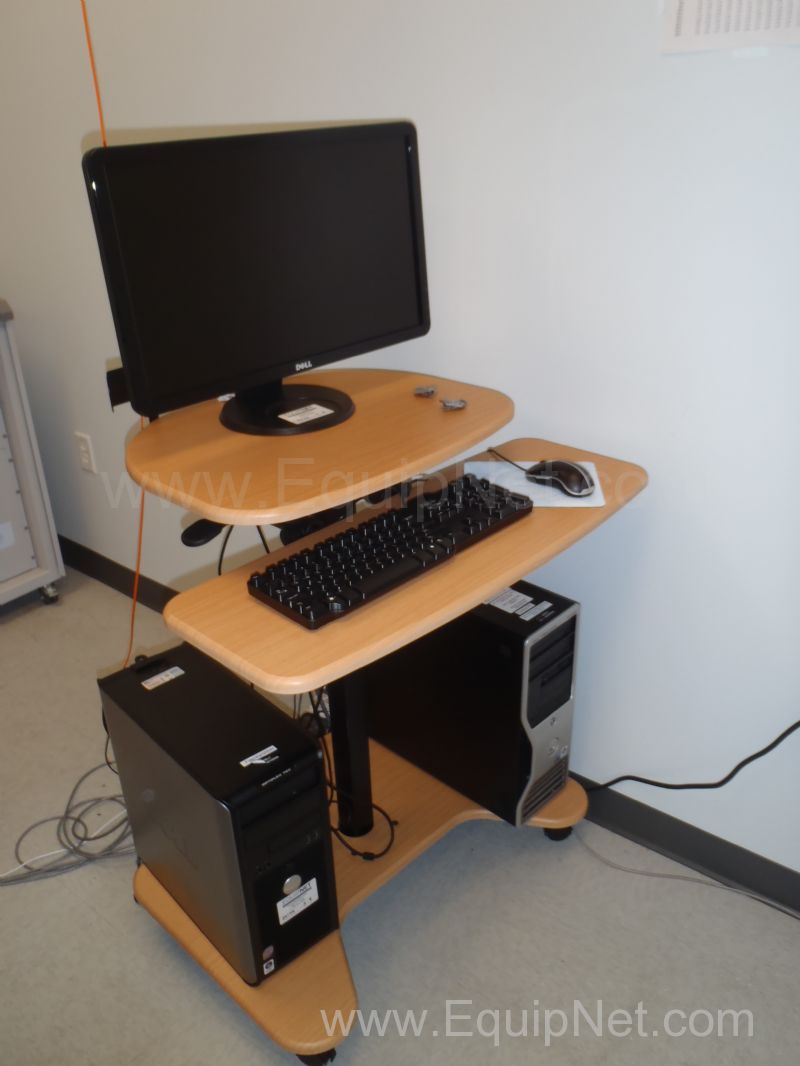

1) Dell Optiplex 760 PC
1) Dell Precision T3400 PC
1) Dell 24" Monitor
Ultimate HomeLab™
The Ultimate HomeLab is the ultimate home X-ray diffraction system, enabling data collection on the widest range of protein crystal samples. The foundation is the FR-E+ SuperBright™ microfocus generator. When coupled with VariMax™ optics, the Ultimate HomeLab provides the highest possible usable flux available in a home laboratory source. Using the latest in microfocus technology, the FR-E+ SuperBright has a 70 x 70 micron anode focal spot. When coupled with a VariMax optic, this uniquely small focal spot leads to a small, monochromatic beam on the sample which is the perfect complement to optimize signal-to-noise for the small crystals used in today's protein laboratories. The usable flux produced by the Ultimate HomeLab is up to 35 times greater than that of a conventional generator and optic, enabling the collection of quality data on small crystals that diffract too weakly on standard home sources.
Rigaku manufactured detectors are fully integrated with the FR-E generator and VariMax optics to allow high resolution data collection on your samples. Rigaku manufactures both imaging plate (IP) and CCD based detectors that are state-of-the-art for protein X-ray diffraction data screening and data collection. Both IP and CCD detectors have unique capabilities that make them complementary technologies to have in any one laboratory. With the Ultimate HomeLab, one port is configured with a Rigaku R-AXIS IP detector for small or poorly diffracting crystals with possibly large unit cells. The second port is configured with a Rigaku Saturn CCD detector for screening or fast data collection with crystals that diffract well.
For increased throughput, a Rigaku ACTOR™ crystal mounting robot ensures maximum productivity.

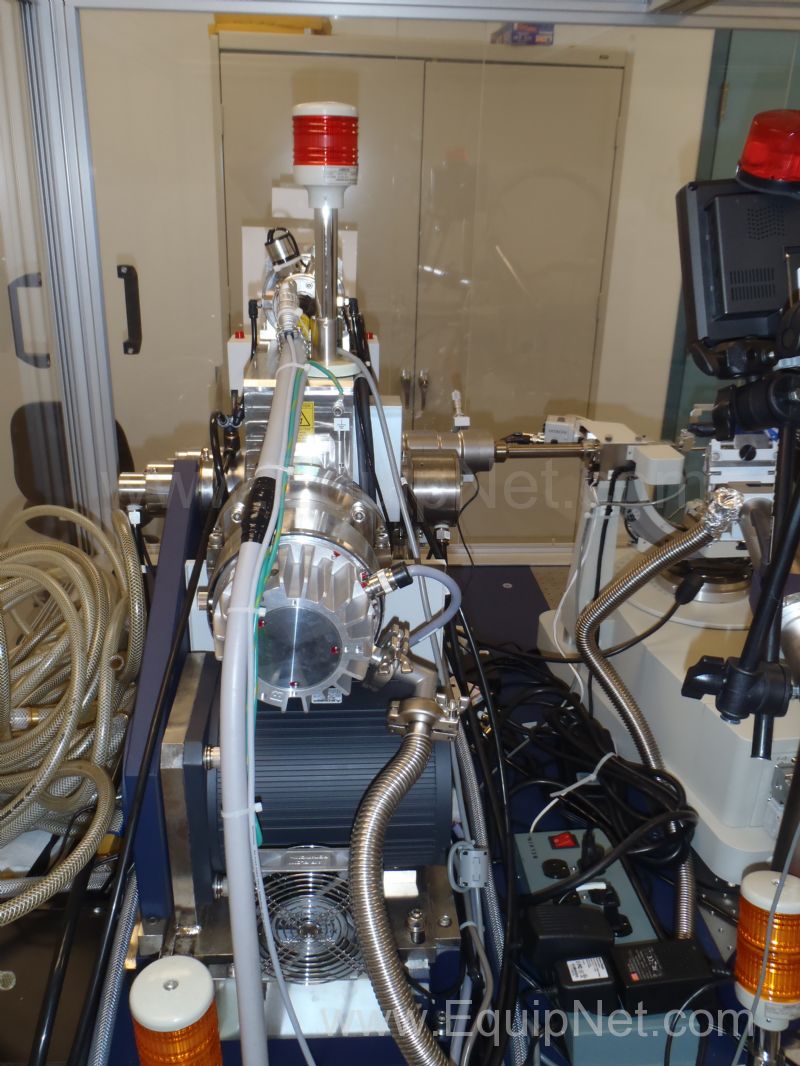

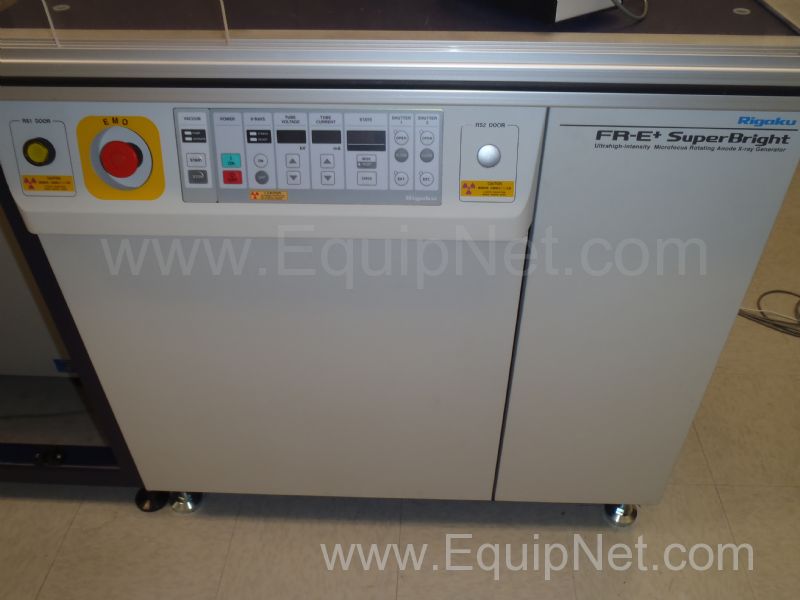

Source: FR-E+ SuperBright microfocus rotating anode generator
VariMax optics
Detector: R-AXIS IV++ two-IP system
R-AXIS HTC three-IP system

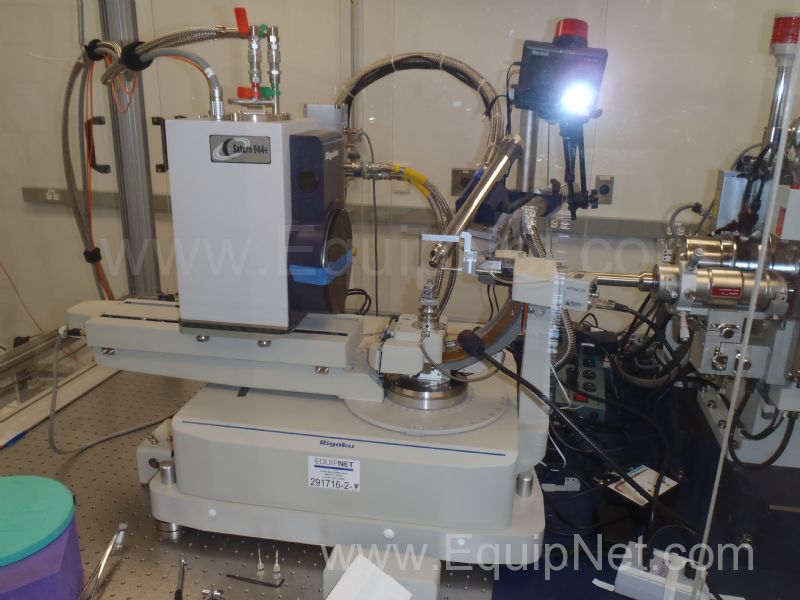

Saturn 944 HG CCD detector
Goniometer: Single ö vertical or 3-axis partial ÷ goniometer for R-AXIS detectors

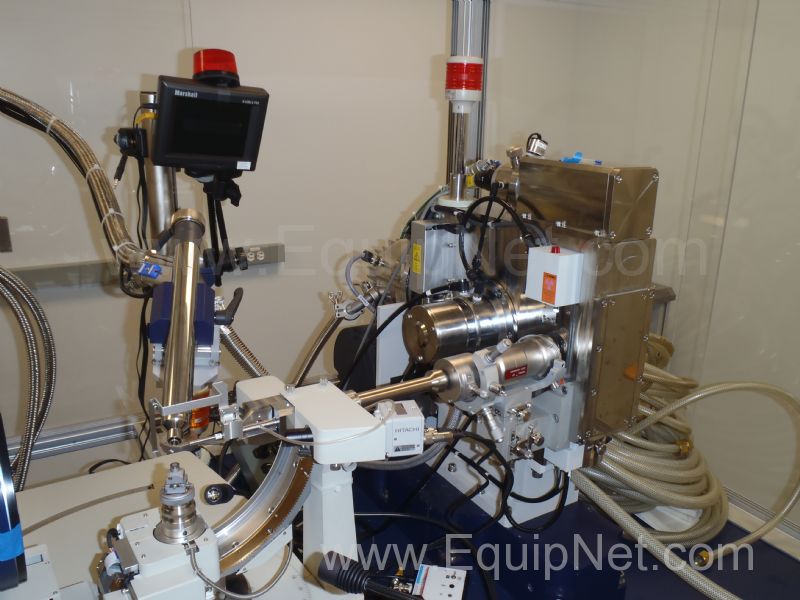

AFC-11 4-axis partial ÷ goniometer for Saturn 944
Software: CrystalClear™ for data collection and processing
StructureStudio™ for data collection
d*TREK® and HKL-2000® for data processing
Automation: ACTOR for automated crystal mounting
|
Disclaimers: |
|
| This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Massachusetts. |
|
Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Equipment Specifications:
| Manufacturer | Rigaku |
| Model | Ultimate HomeLab |
| Spare/Change Parts | NO |
| Estimated Shipping Weight | 2440 LBS |
| Length | 251 IN |
| Width | 72 IN |
| Height | 72 IN |
| Voltage | 240 VOLTS |
