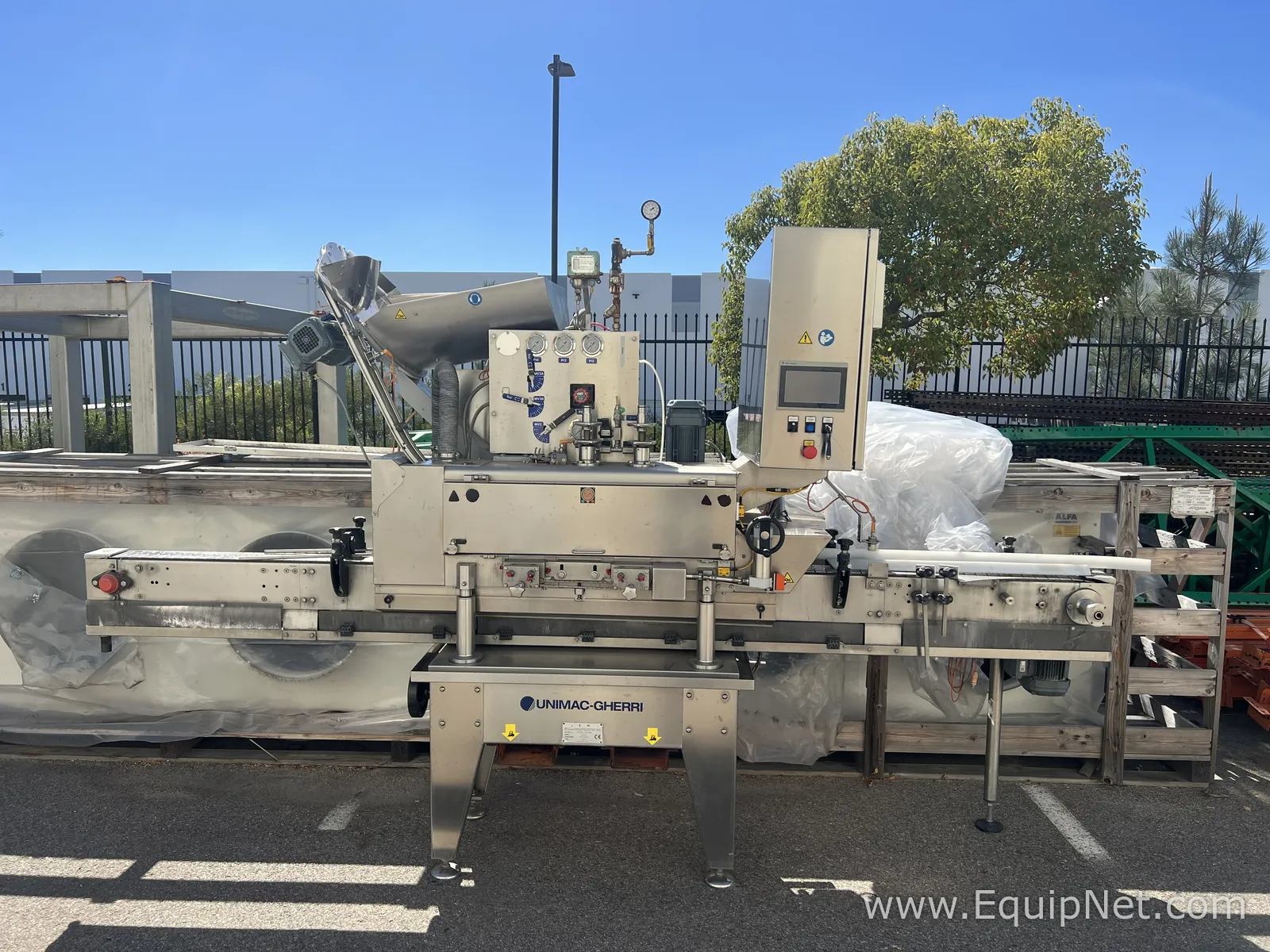

Korkenschließmaschine Unimac/Gherri

I also have Linear Piston Filler PF3T and Cap Feeder GG700 posted and priced separately Products Dessert creams – Semi-viscous Fill Temperature: 18°C Glass jars 2oz to 3oz glass containers 66mm Diameter x 60mm H Caps Ø 70mm RTO Rate 2500/hour Motive power 480 V , 60 Hz, triphase, 24 VDC controls Environmental conditions inside factory Min 5 °C, max 35 °C, max 70% r.h. The machine is designed with the suitable optional sets of change parts to close jars and/or bottles with metal caps type: Regular, Medium, Deep Twist-Off, Pry-Twist, Pry-Off. Project characteristics: - caps: diameter from 27 to 110 mm height from 5 to 19 mm - containers: diameter from 30 to 160 mm height from 50 to 260 mm The basic machine is composed of: • lower structure made of stainless steel with adjustable supporting feet to the floor • stainless steel collection tank under the working area • upper head made of stainless steel • Stainless steel telescopic columns with height adjustment by hand-wheel • Cap chute with preheating by steam • Cap slip-off unit with direct pick-up from the mouth of the passing-by container and pre-screwing by the relevant device • Stainless steel steam distribution unit equipped with on-off valve, pressure adjustment, pressure gauge and steam trap • Screwing unit motorised by gear motor controlled by frequency converter and cap closing by screwing and/or pressure belts • Belt lubrication unit • Brackets unit for container tightening and centring, consisting of two independent roll units for belt sliding. Vertical and width adjustment • 3500mm-long stainless steel conveyor belt, with 114mm stainless steel chain. Lubrication tank. Sliding on pads made of anti-wear material suitable for high temperatures. Direct transfer at infeed and outfeed with contact between the chains. Motorised by gear motor controlled by frequency converter • Doors closing with safety micro switches • Stainless steel electric control cabinet with low-voltage controls and PLC. Advantages: • capping operation executed in a saturated steam chamber with high vacuum in the container • constant vacuum value • easy adjustment to different sizes with no need of special change parts, even with the machine in production • constant screwing strength in any working conditions • quick format change-over • high resistance to corrosion • easy cleaning and maintenance. Technical features of basic machine: - Motorization : 1,5 kW - Steam consumption : 70 kg/h at 3 bar - Water consumption : 12 l/h at 2 bar 8-10 French degrees - Overall dimensions : 3500 x 1000 x h 2400 mm - Weight : 520 kg (without feeder) - Air consumption : 5 Nl/1” when starting the machine – pressure 6 bar The machine is equipped to handle Ø 53 ÷ 89mm RTO caps and is complete with: - Motorised height adjustment, driven by 0.25 kW motor - Encoder (including 5 recipes) - Centralised bracket units adjustment including indicator - Steam exhauster kit (0,55 kW) including anticondensation cooling fan and stiff piping - Overaccumulation photocell at outfeed - Cap lack sensor to stop the machine, programmable from 1 to 10 - Hour-meter and piece-numerator - Steam intercept valve - Steam pressure gauge - PLC ALLEN BRADLEY - UL MATERIALS
