Verpackungsanlage Various

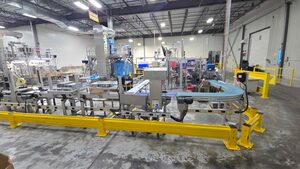

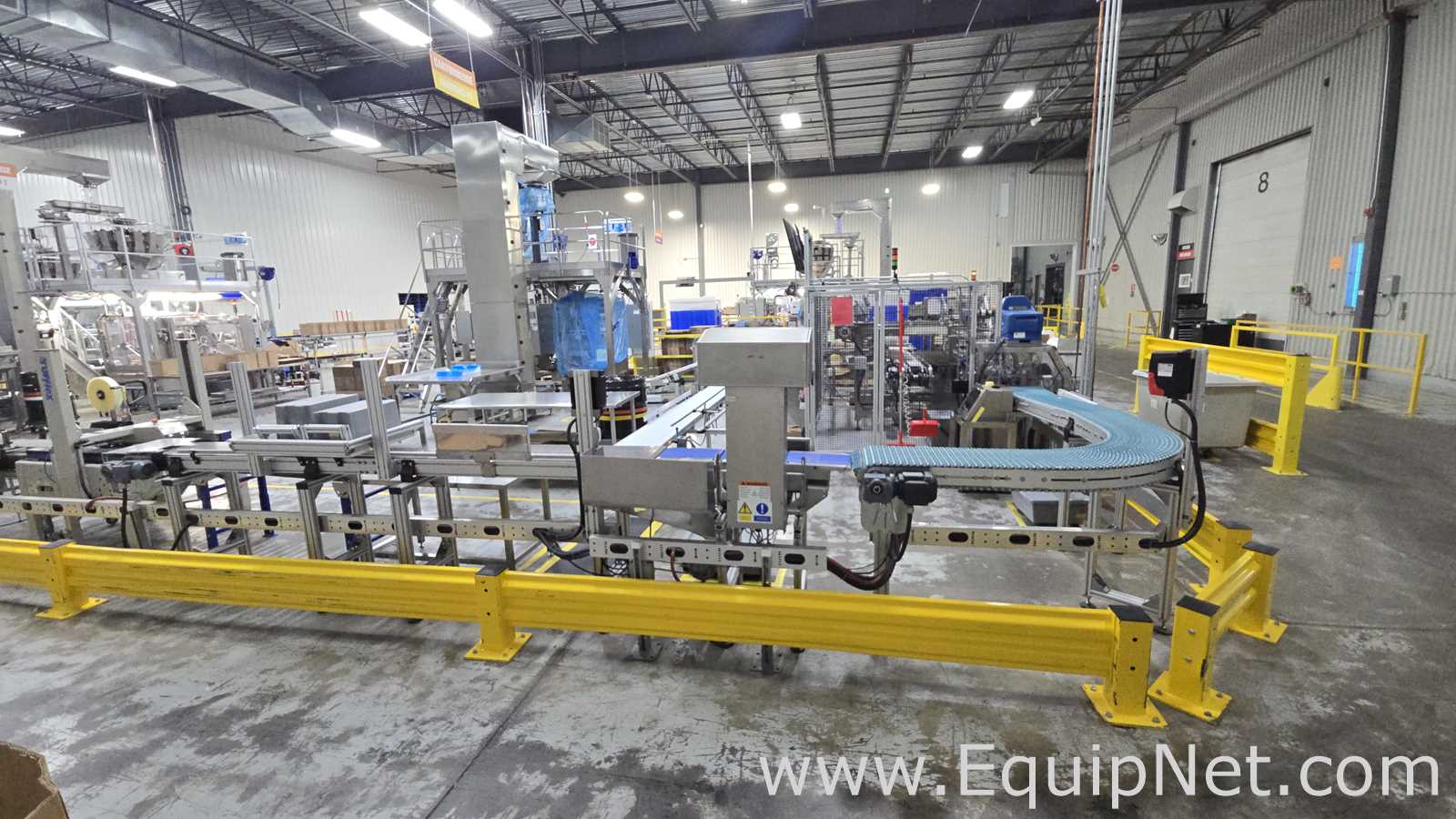

Complete Vertical Bagging and Cartoning Line

Line consists of:

Feeding: Loading hopper, bucket elevator and one vibratory transfer feeder.

Weighing and inspection: WeighPack combination weigher and Loma gravity-feed metal detector.

Bagging: White Eagle vertical bagger, discharge conveyor and bag levelling conveyor.

Cartoning: HC-3200 horizontal cartoner with Nordson hot melt system.

End of line: Carton conveyors, coding, case sealer, gravity rollers and Loma AS checkweigher.

Recorded average rates: 90 g: 42.8 units/min. 114 g: 40.2 units/min. Each figure is the arithmetic mean of the average actual rates of the product references in that format in the production export.

Documented package formats: 114 g folding carton: 3.5 × 1 × 6 in the packaging list, with no unit stated. The 90 g folding-carton dimensions are not documented.

Footprint: 383.12 × 589.24 inches, Approximately 9.73 × 14.97 m (width × length).

Equipment Details:

Loading hopper - Stainless-steel feed station, inventory ID 640-111-CUVE. Its capacity and dimensions are not recorded.

Bucket elevator - Via Pack conveyor, 2018. The inventory lists 90 buckets. It lifts product toward the weighing section.

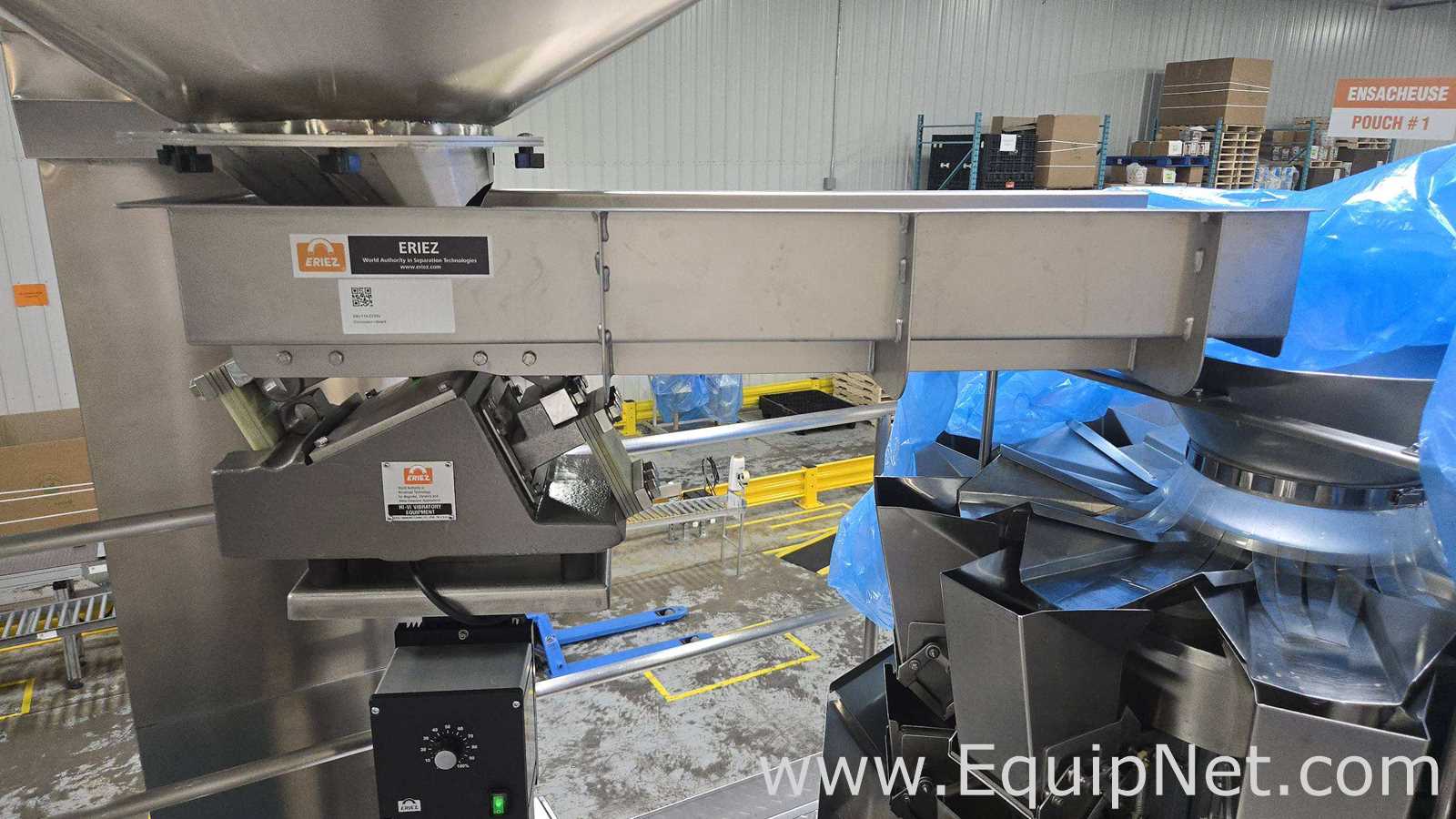

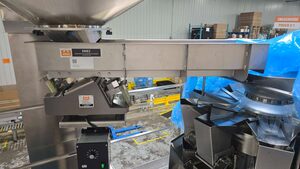

Vibratory transfer feeder - Eriez model 56C, identified by its nameplate and inventory, 2025. One unit is included in the line presented.

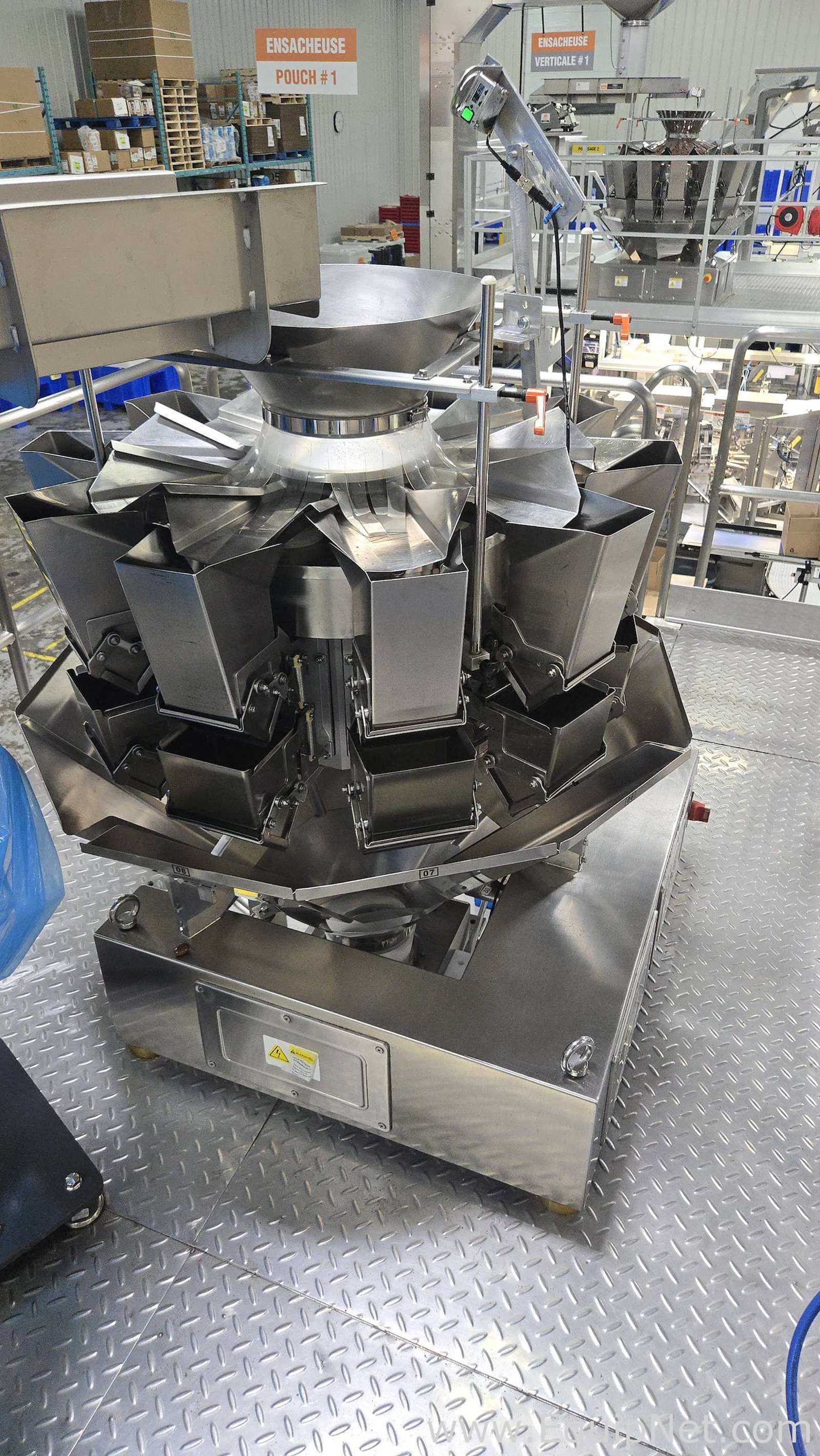

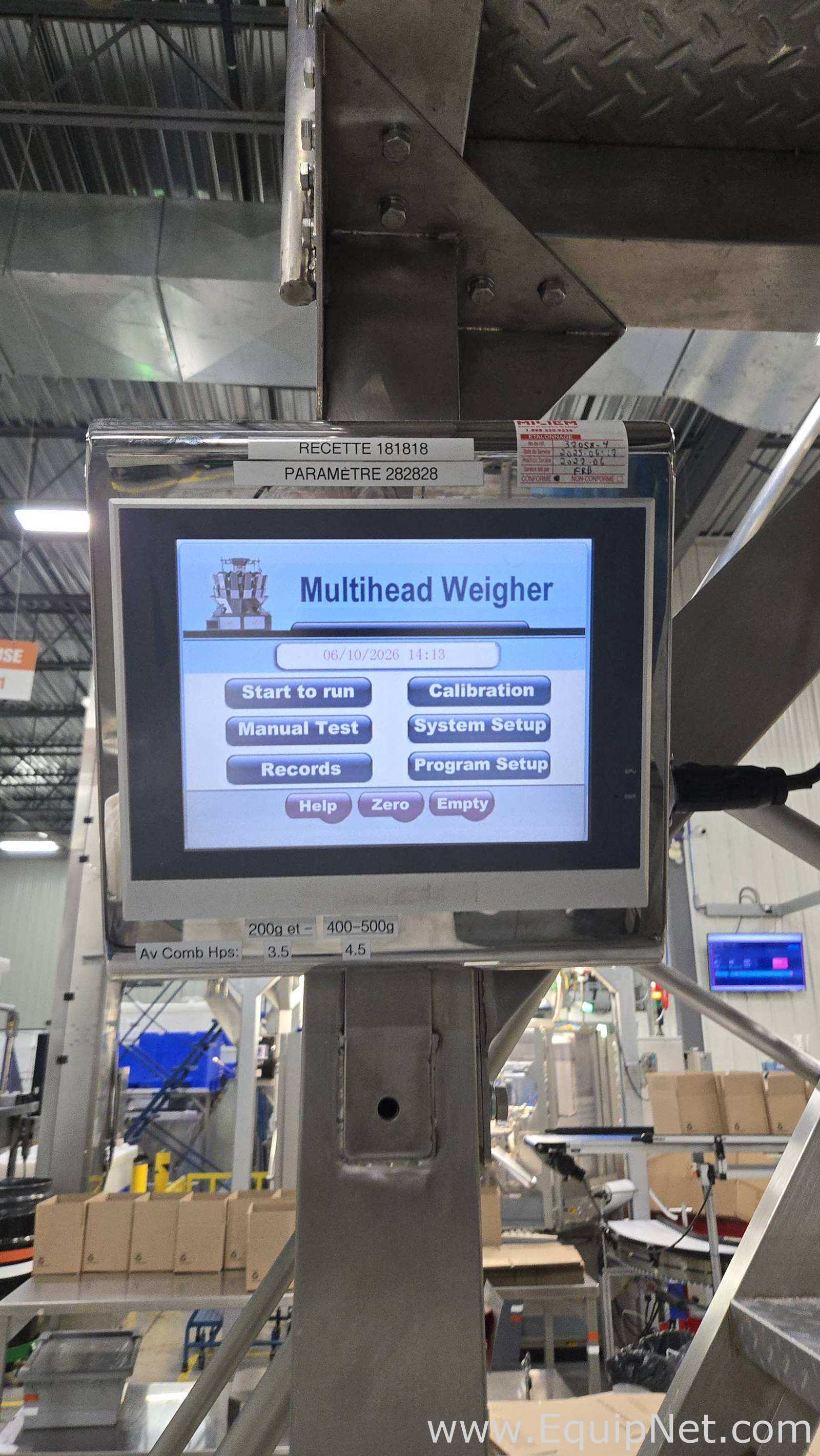

Combination weigher - WeighPack 10H 2.5 L, serial number 4838, 2017. It prepares portions for bagging.

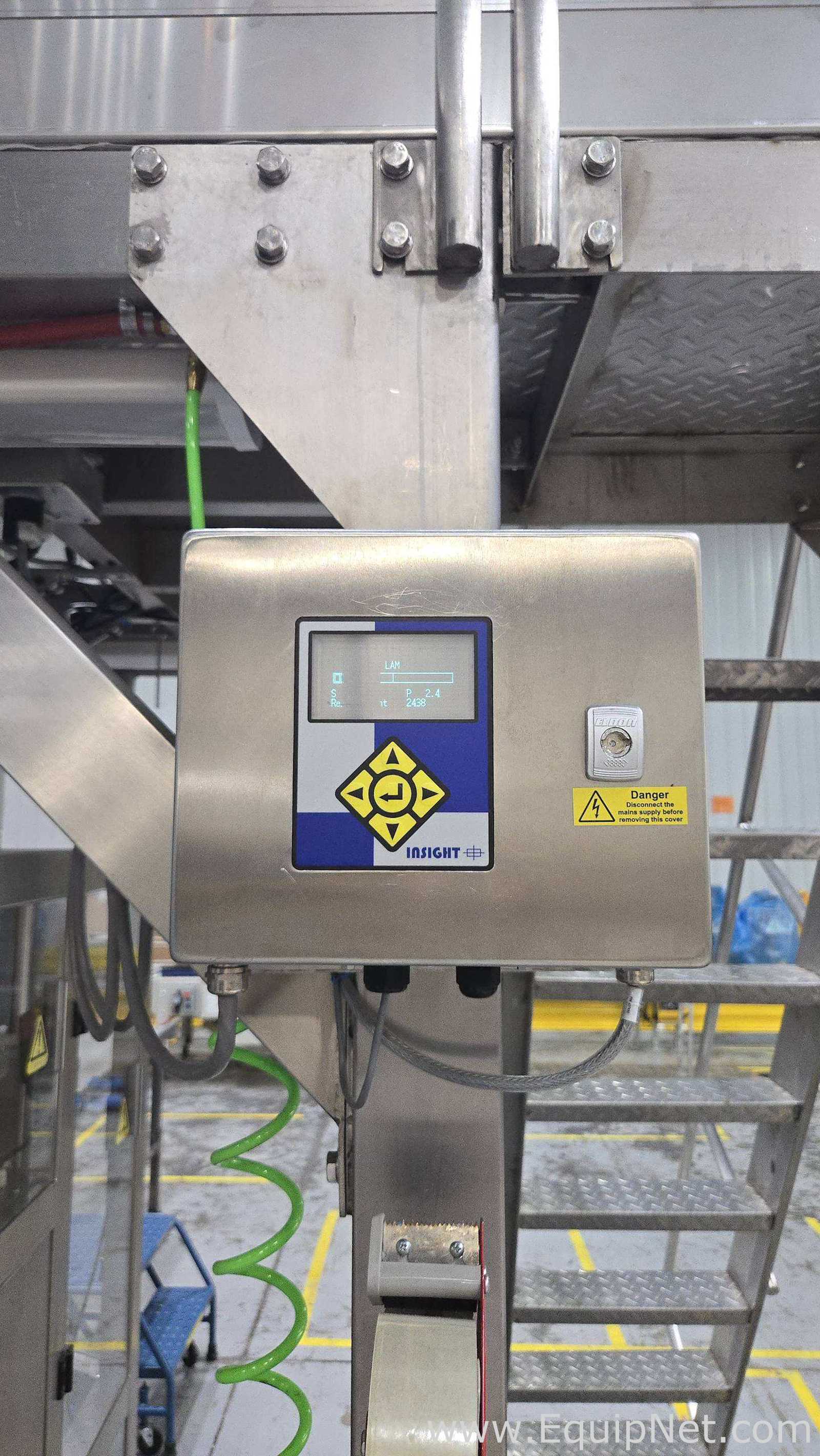

Gravity-feed metal detector - Loma IQ4, 2017, on the product flow before bag formation.

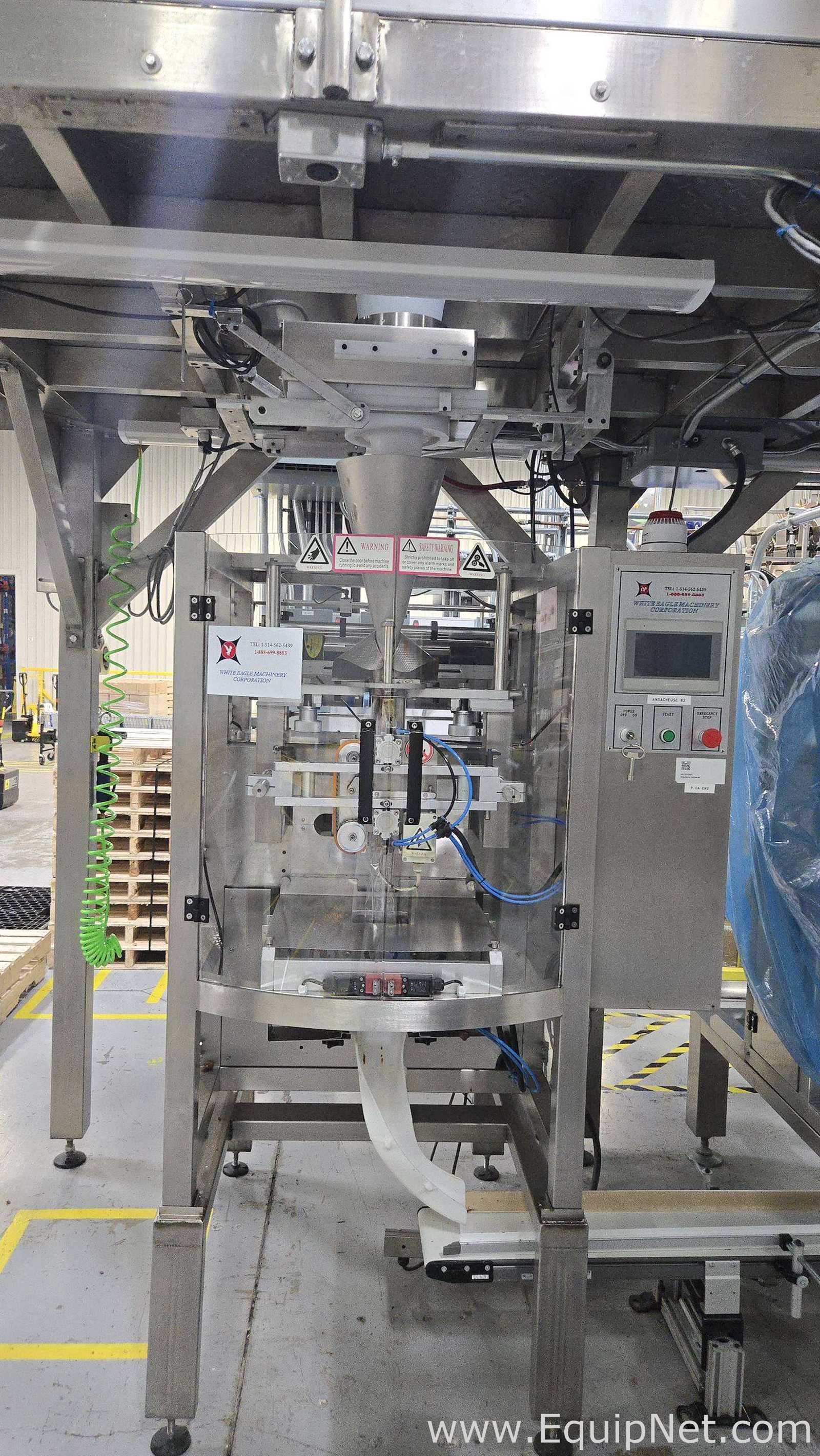

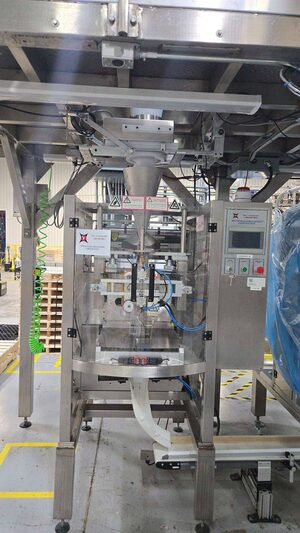

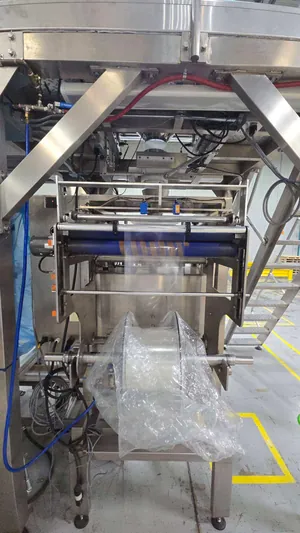

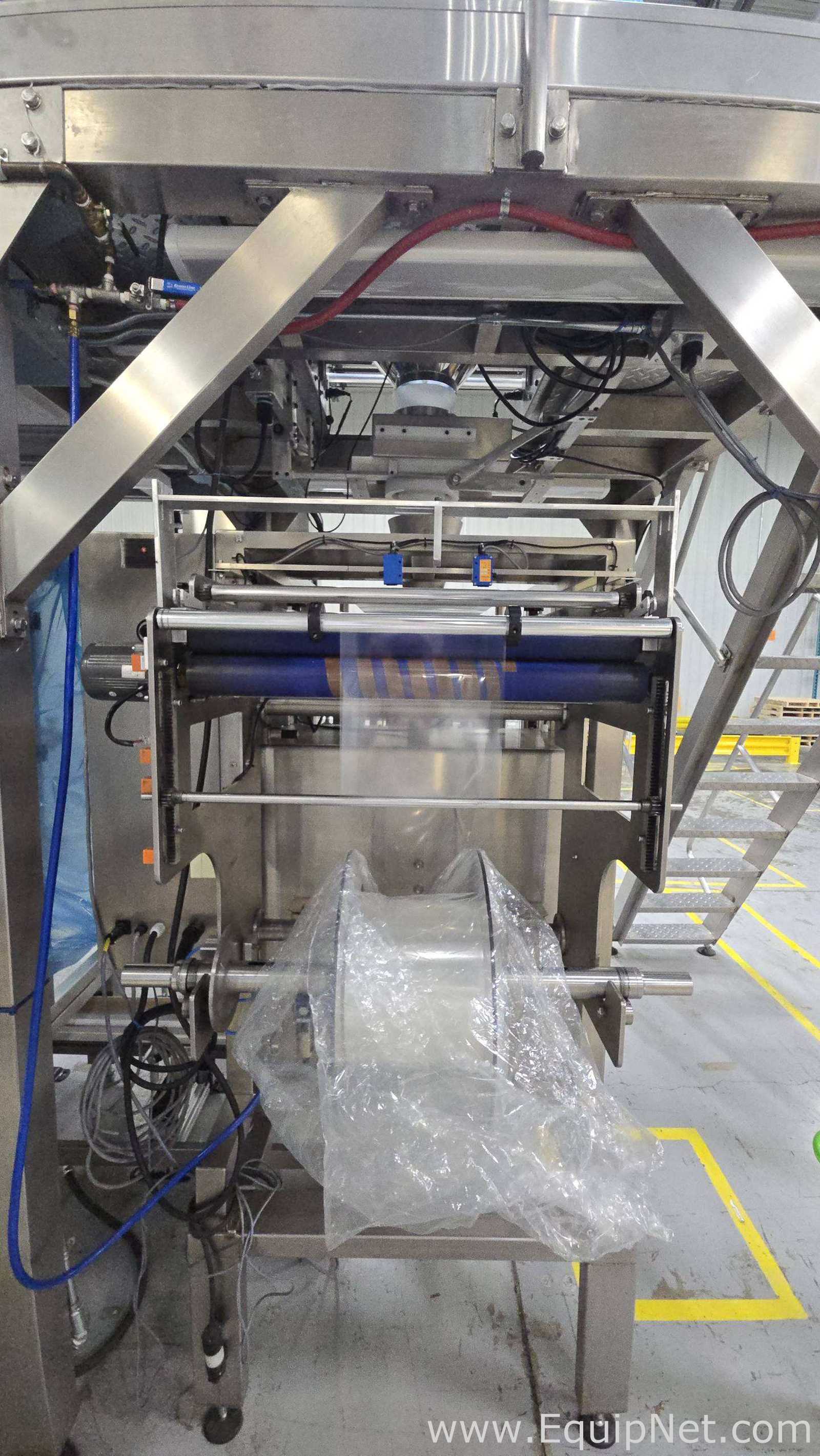

Vertical bagger - White Eagle WEMC, serial number 114, 2016. It forms bags from film, receives weighed portions and seals the bags.

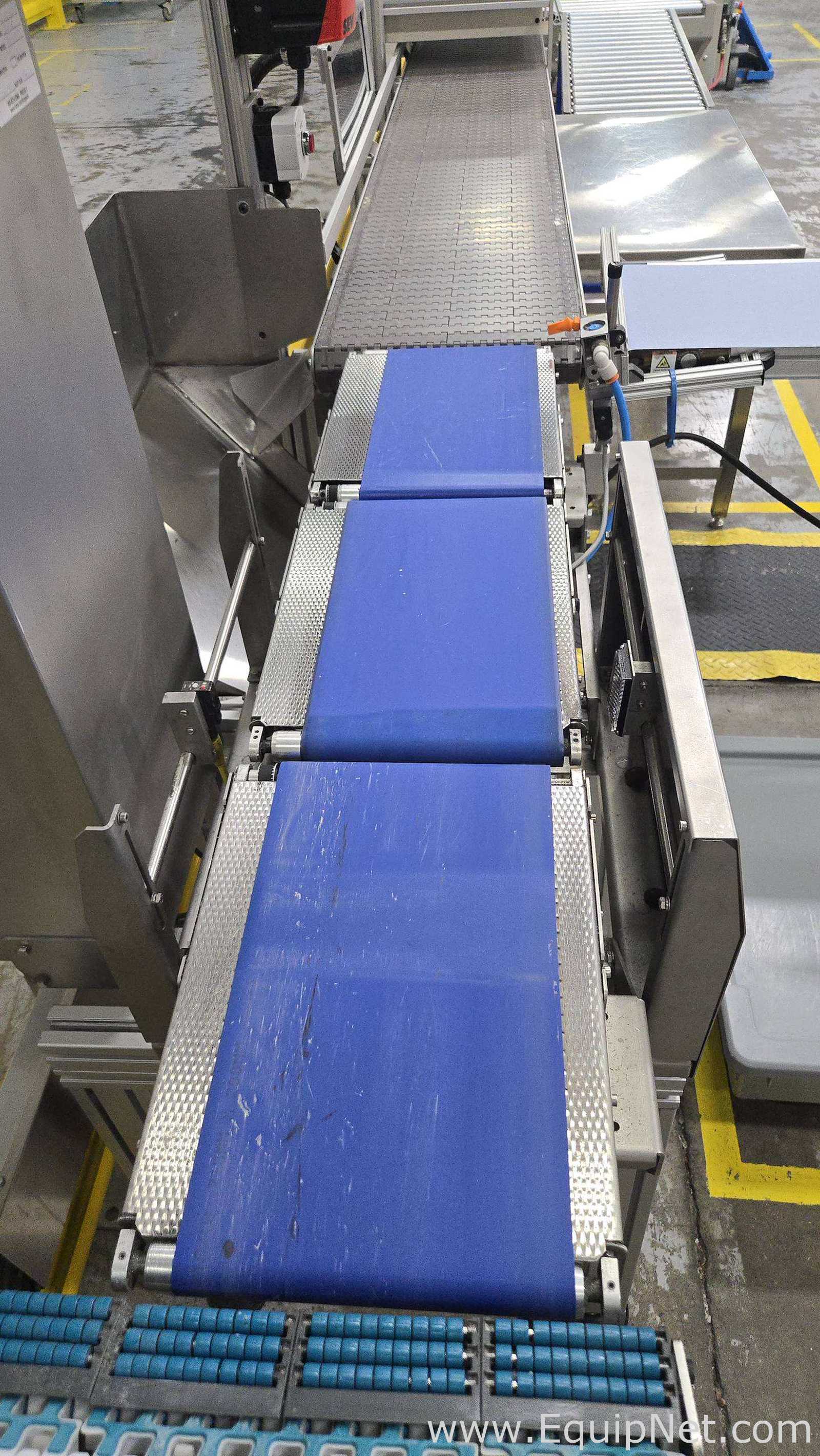

Transfer conveyor - Dorner 2200 series, 2019. The inventory describes a 5.45 ft inclined section and a 10 ft horizontal section.

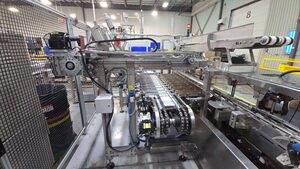

Bag levelling conveyor - Via Pack conveyor, 2018. It levels the bags after bagging and before transfer.

Documented films - Documented roll widths: 185 mm for the 90 g format and 205 mm for the 114 g format. Roll width is not the finished bag dimension.

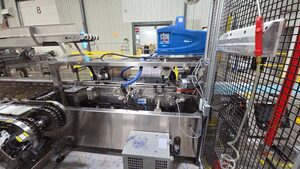

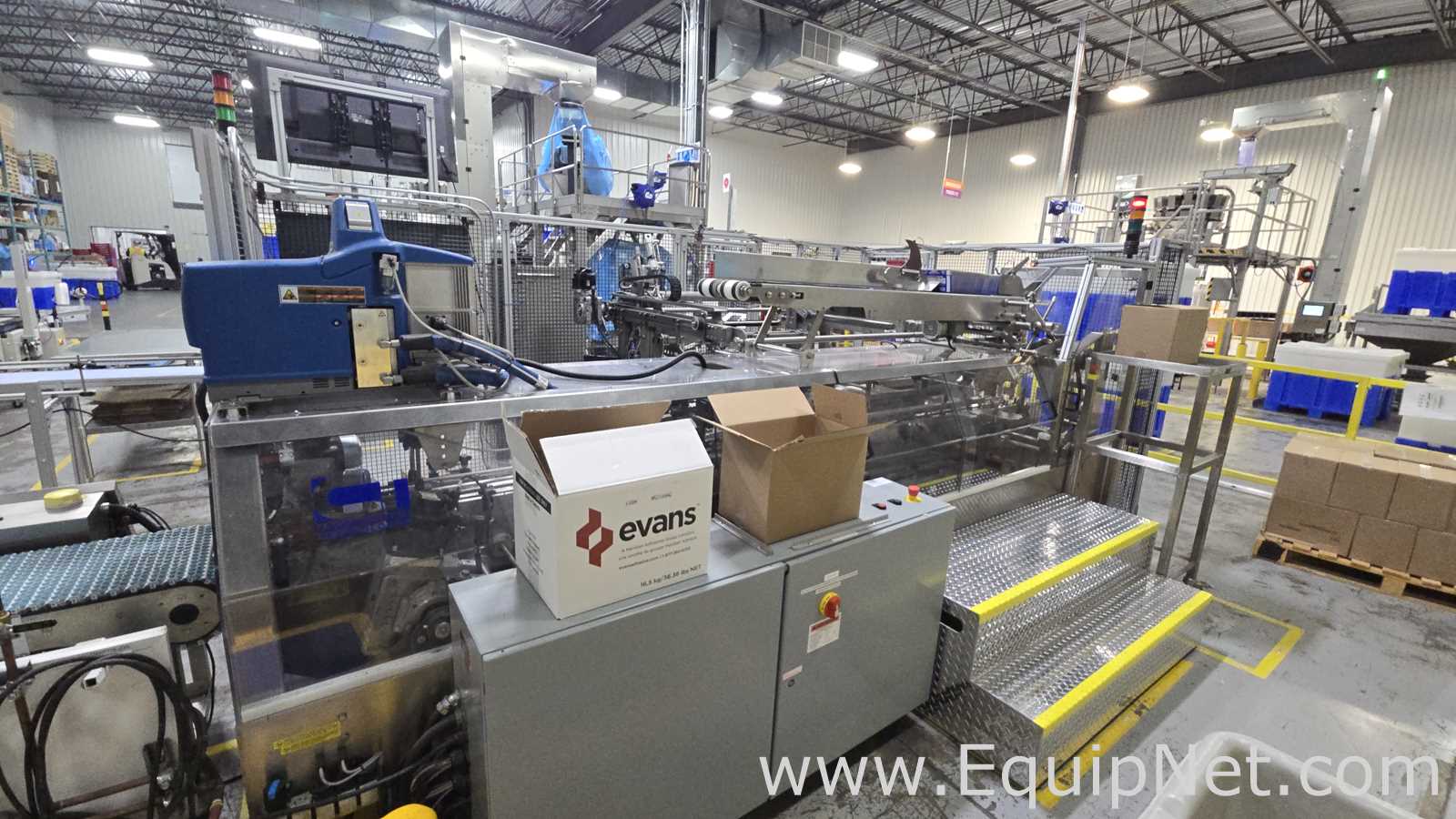

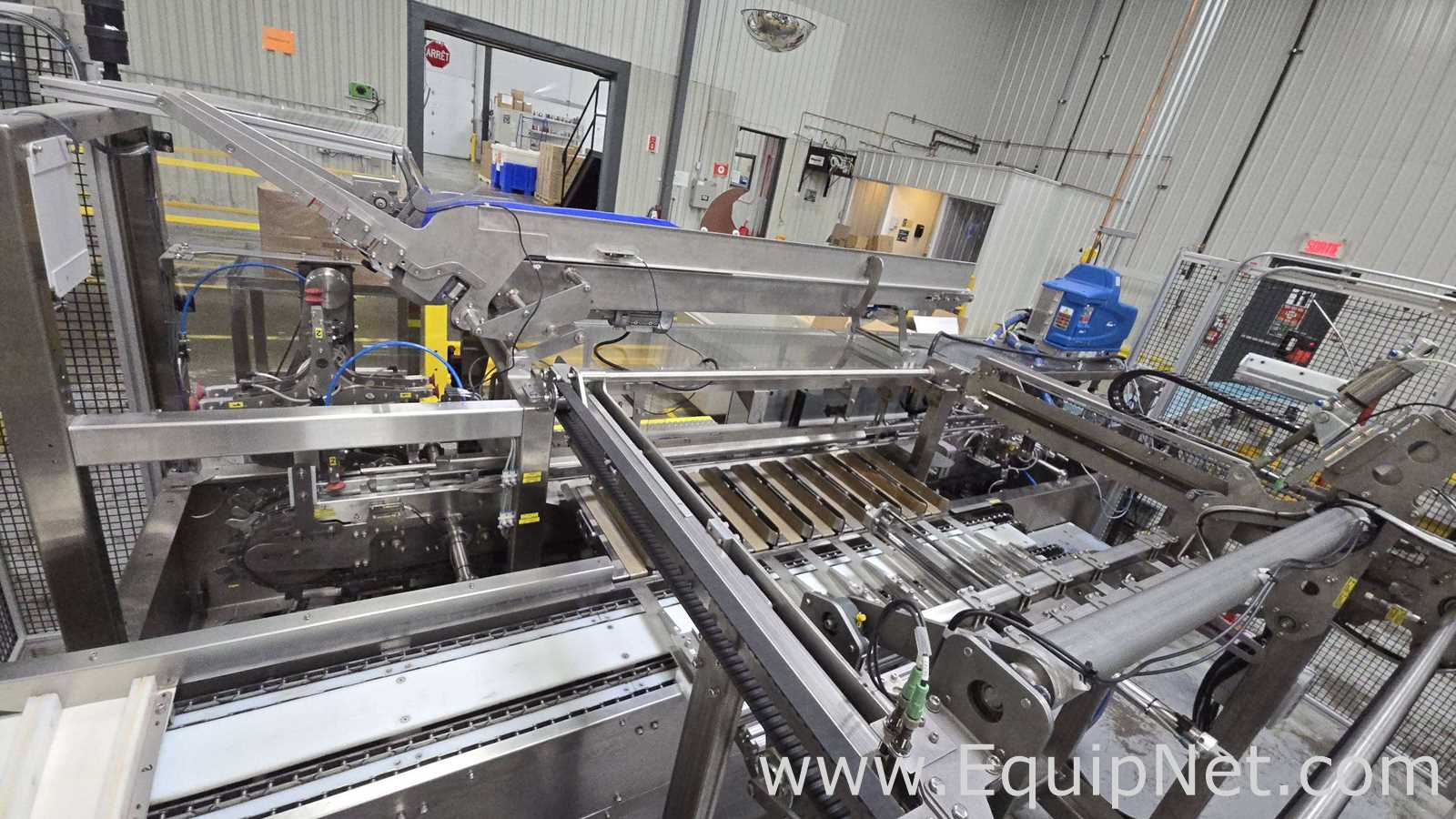

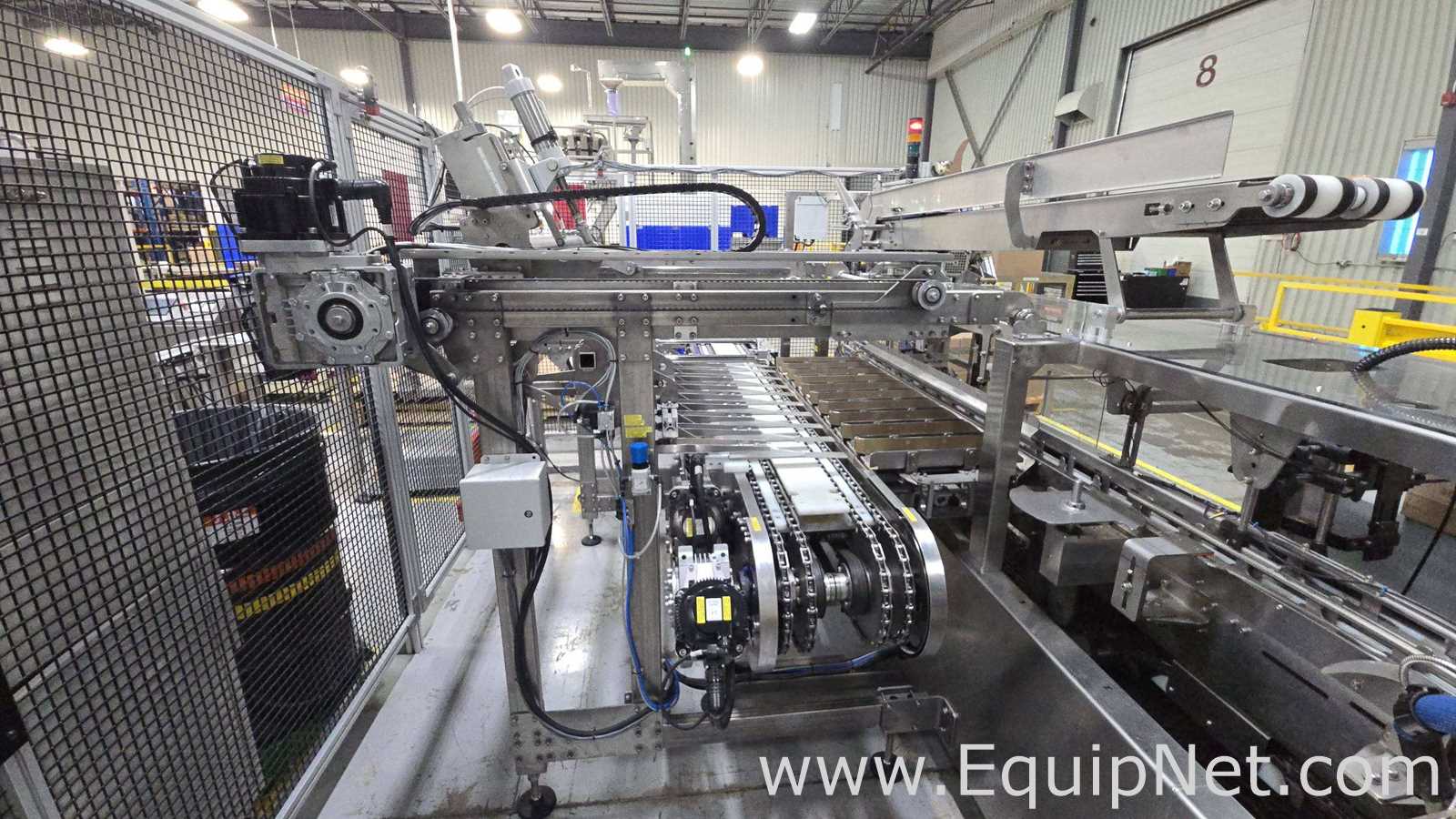

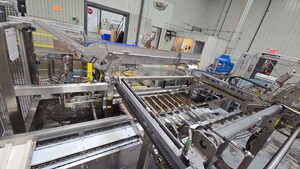

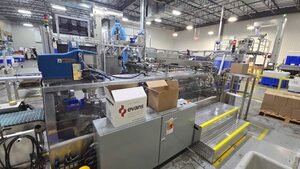

Horizontal cartoner - Consolidated Technologies HC-3200, serial number 11154, 2018. It opens flat folding cartons and closes their flaps.

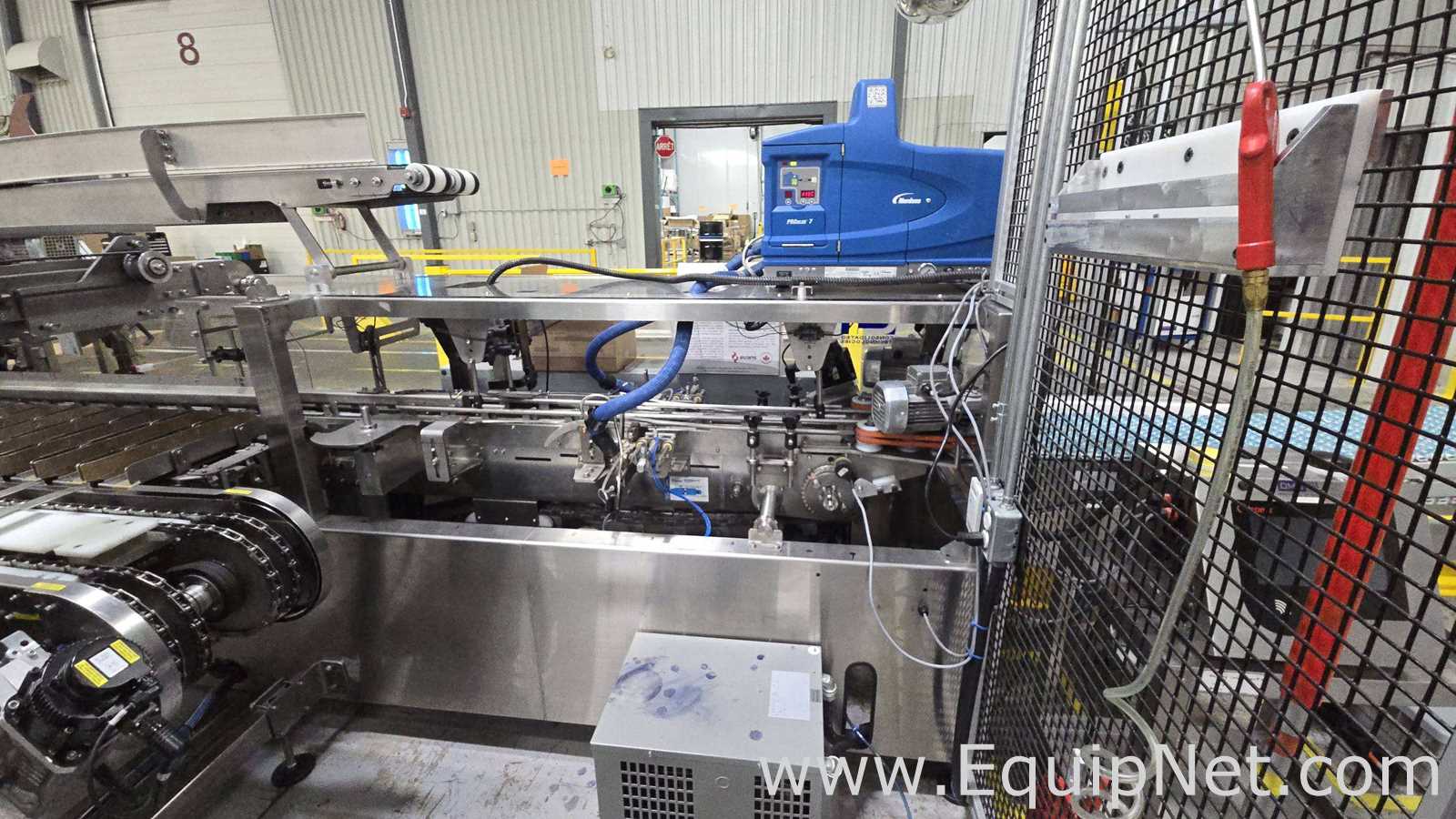

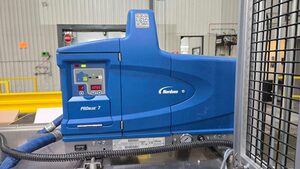

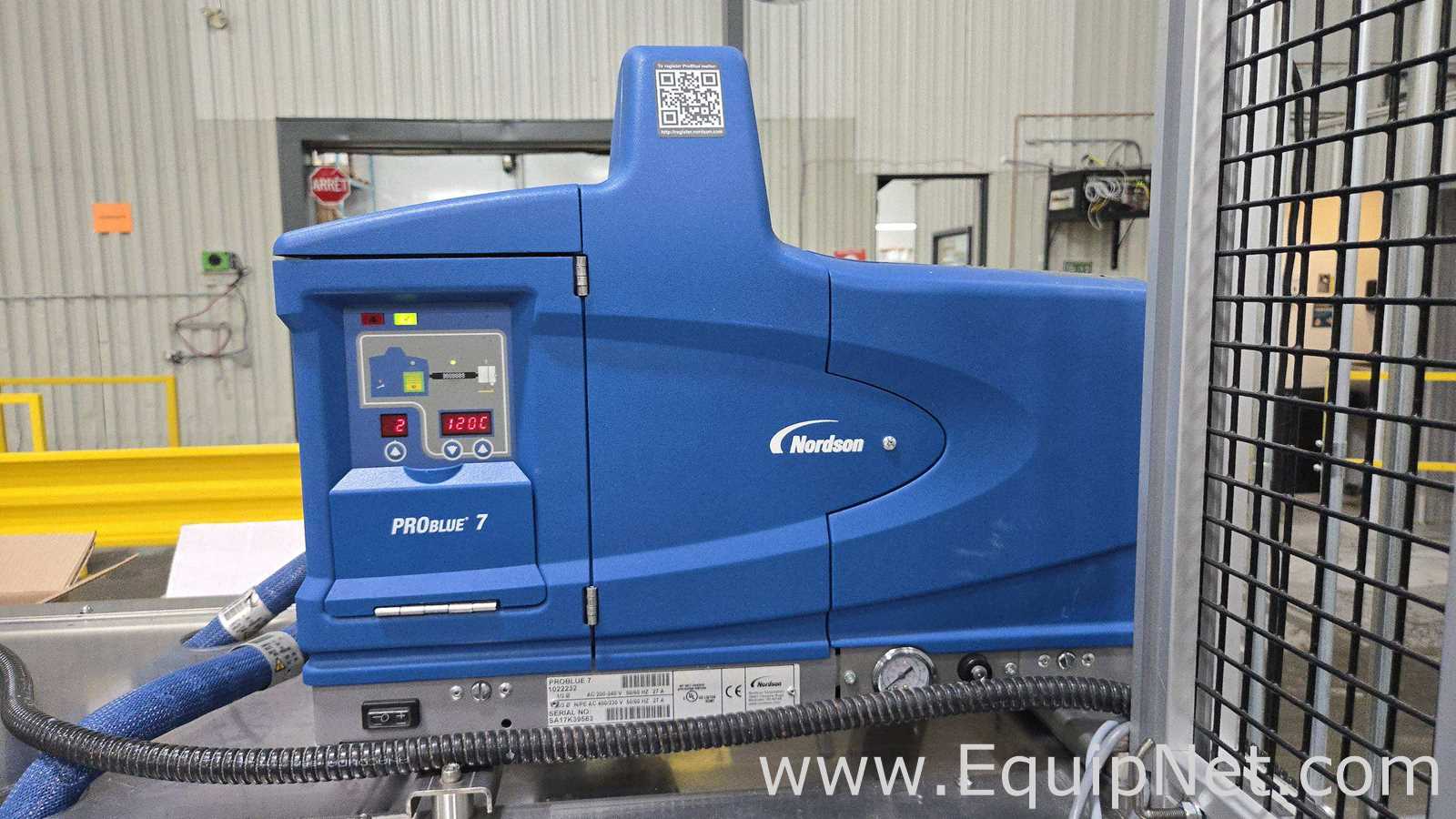

Hot melt glue system - Nordson ProBlue 7 with two applicator guns, integrated into the cartoning station for flap closure.

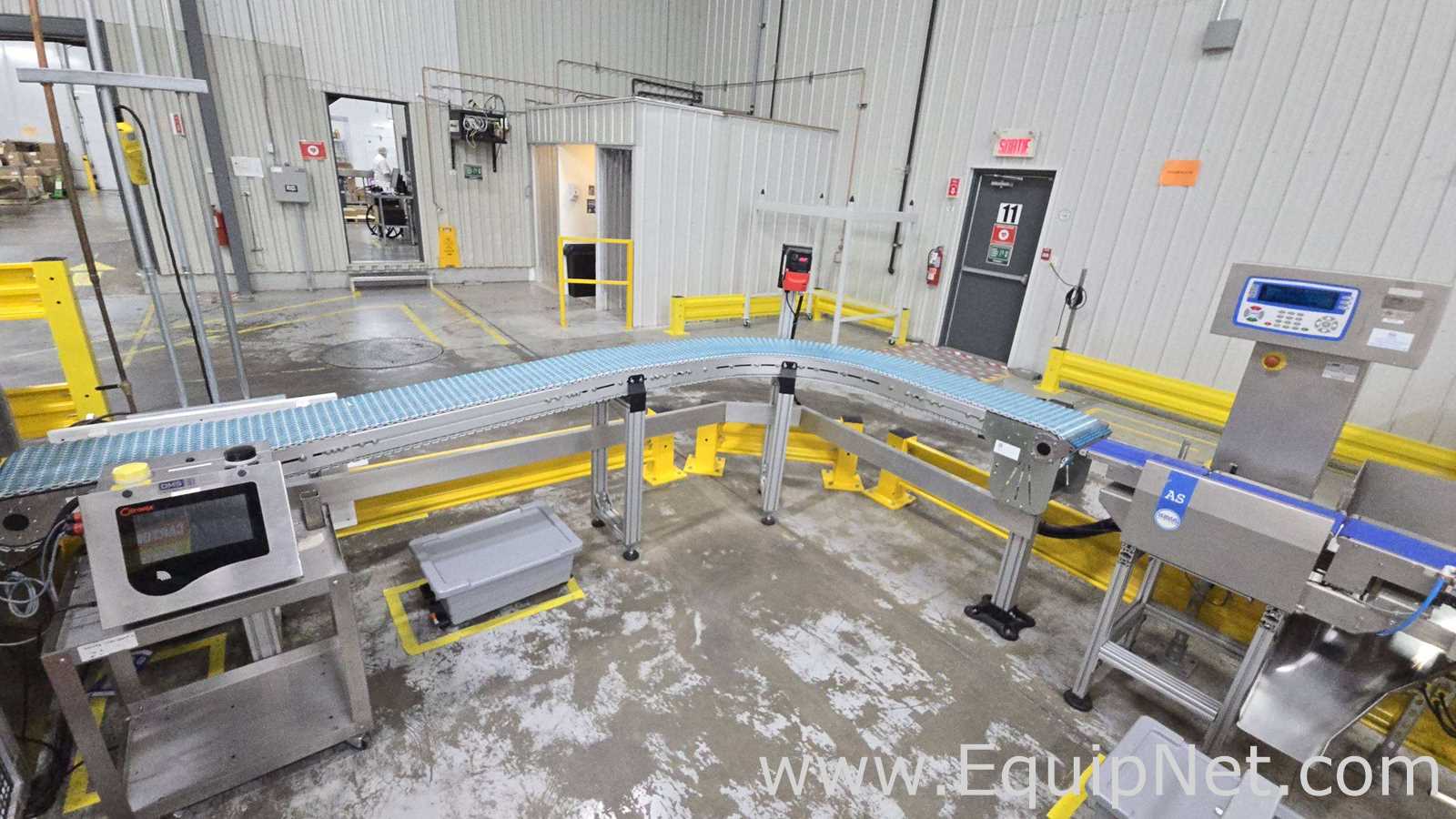

90° conveyor - Easy Conveyors EMBS, 2018. It changes carton travel direction at the exit. The drawing specifies a 90° bend, 340 mm width and 750 mm radius.

Accumulation conveyor - Easy Conveyors EMBS, inventory length 144 in. It receives cartons at the exit.

Carton conveyor - Conveyor identified as 640-170-CONV, 2015, for moving boxes.

Case sealer - Tufflex TF122-SB/3 2000. It closes shipping cases after packing.

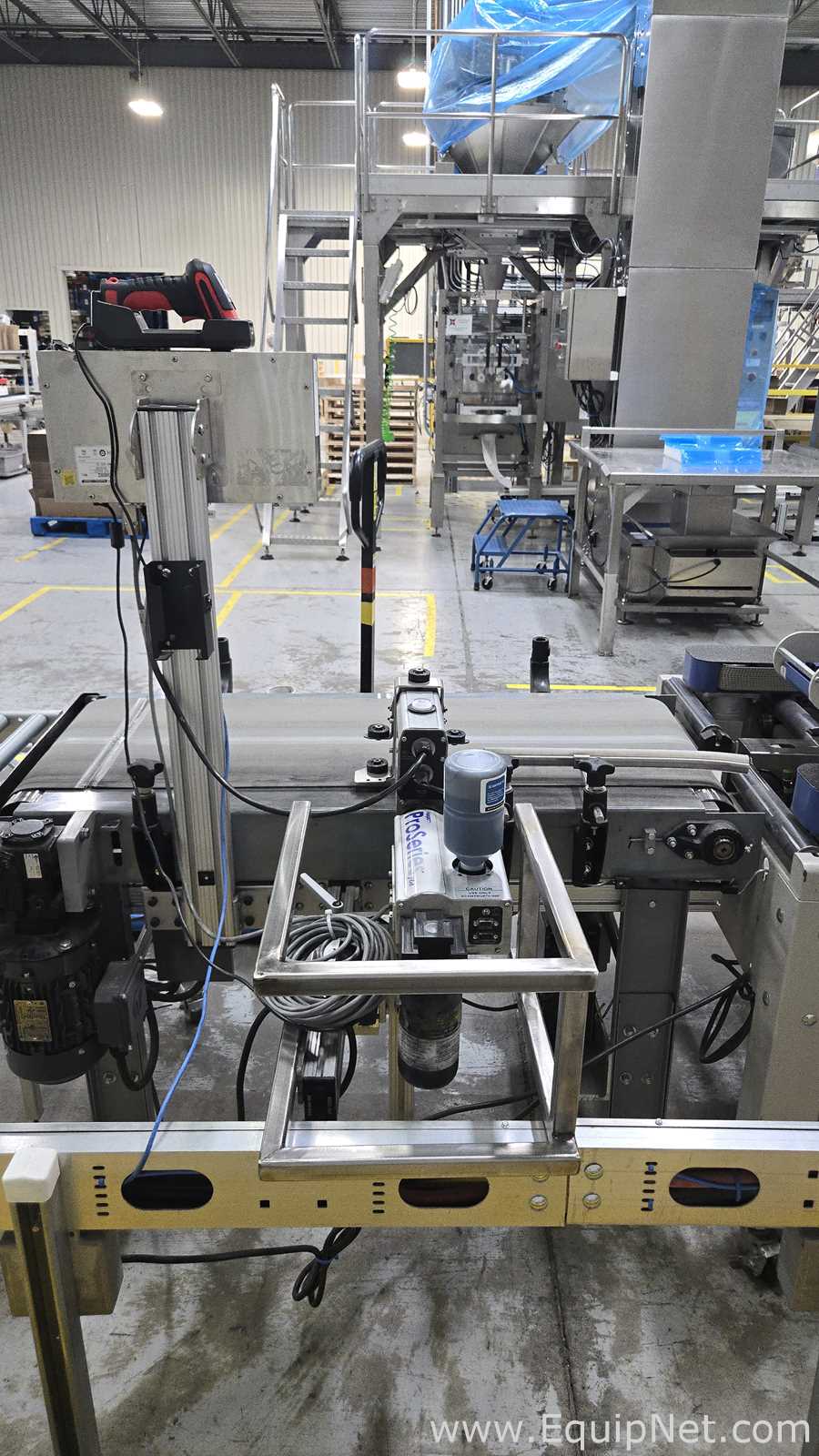

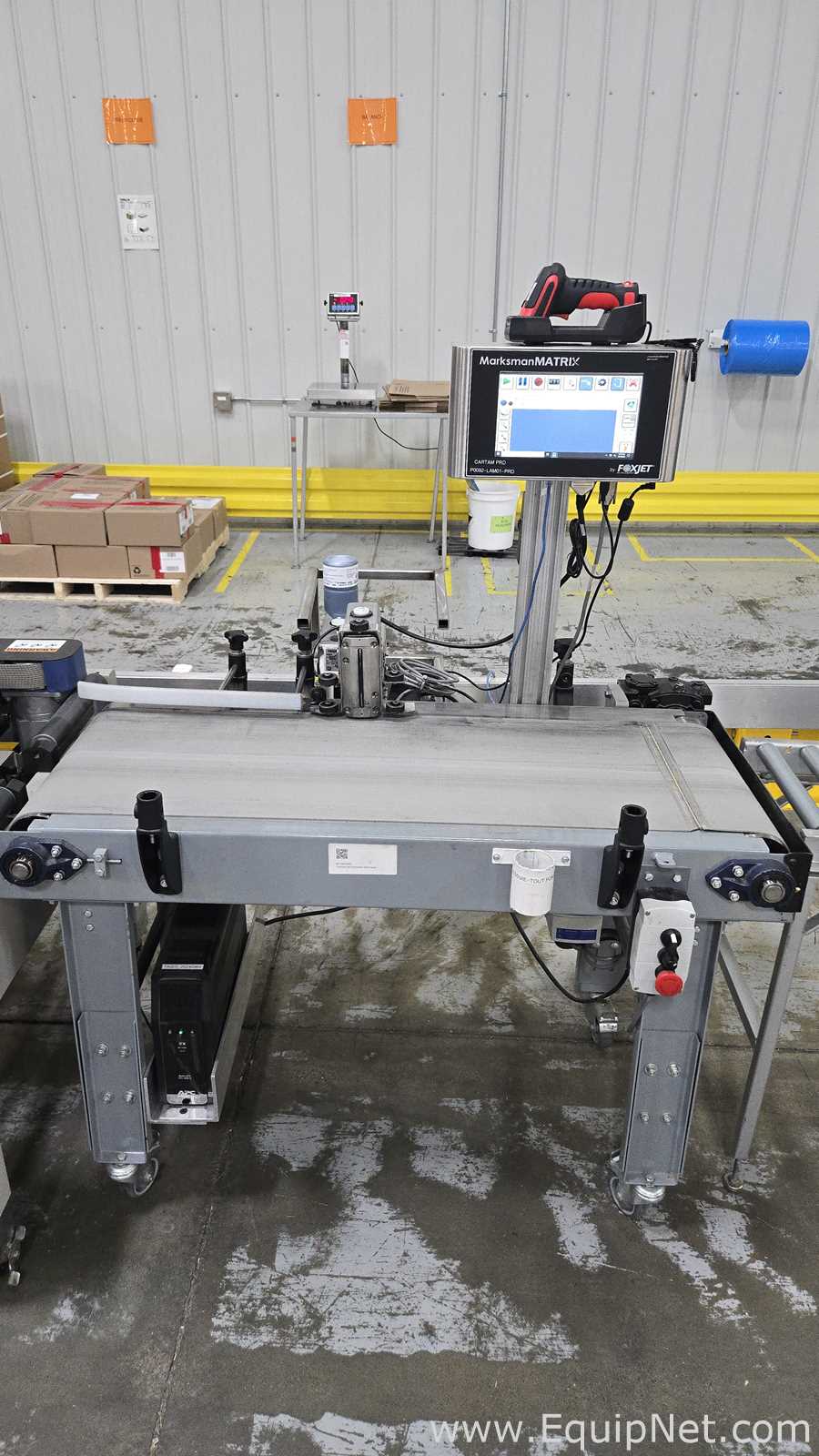

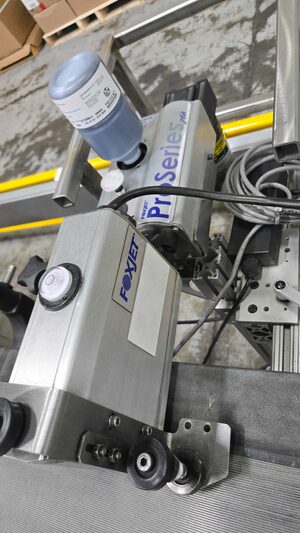

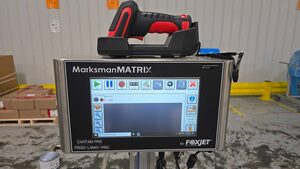

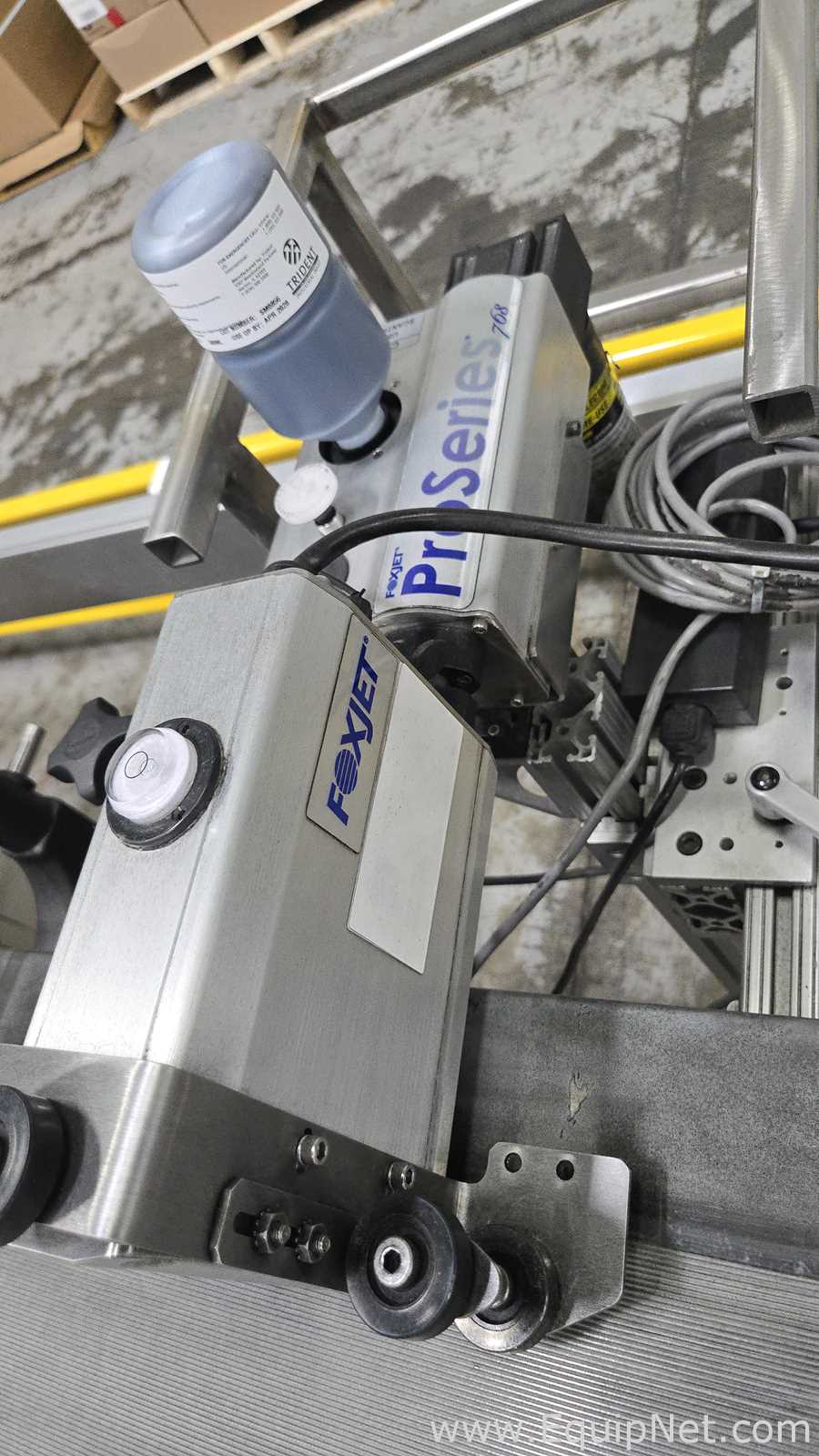

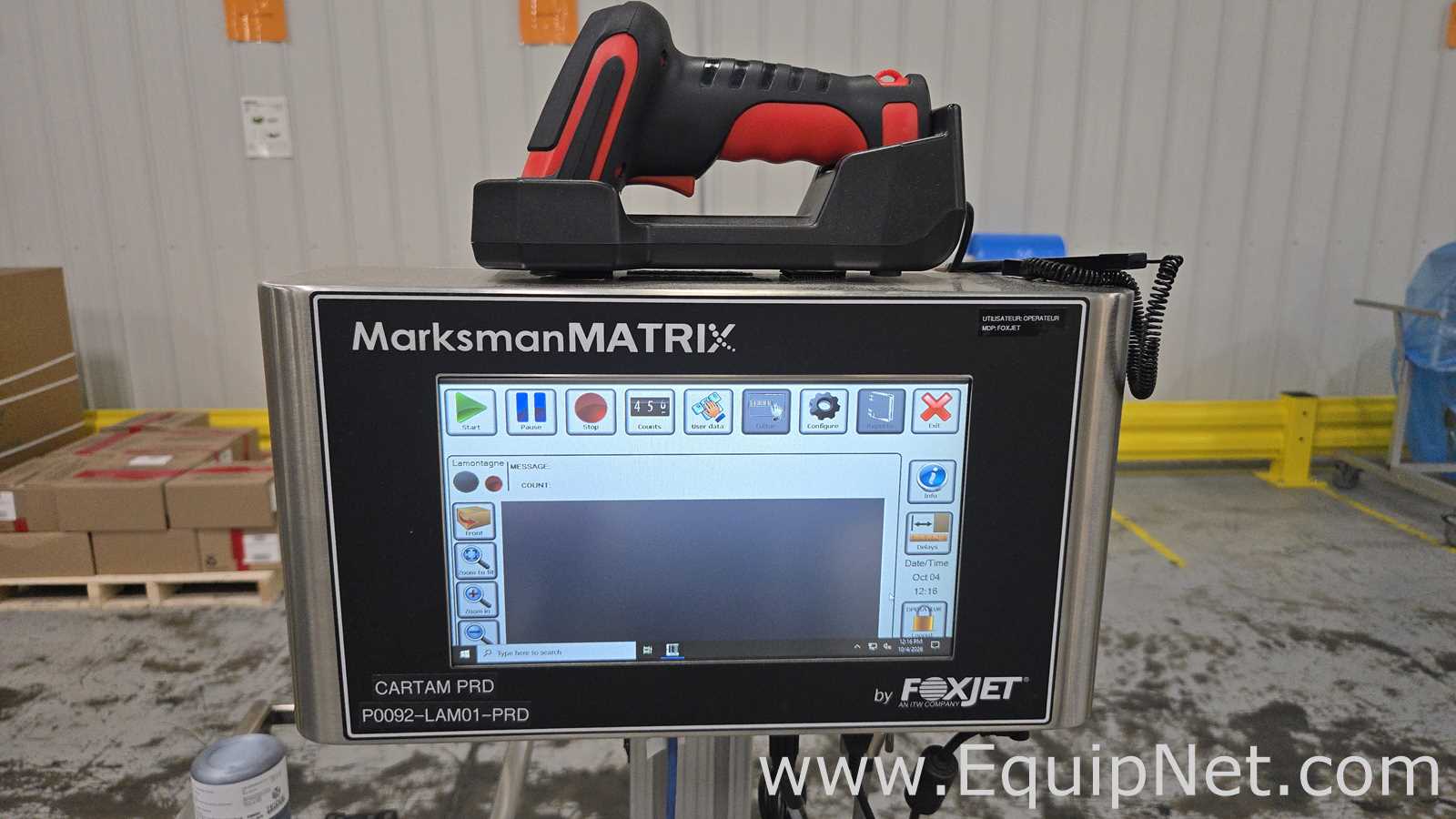

Foxjet coding system - Foxjet printer model 2464025 with controller 2465006D4, installed at the exit conveyor.

Printing conveyor - Motorized section approximately 4 ft long according to the inventory, 2018.

Gravity conveyors - Two sections, 5 ft and 6 ft, for the exit toward palletizing.

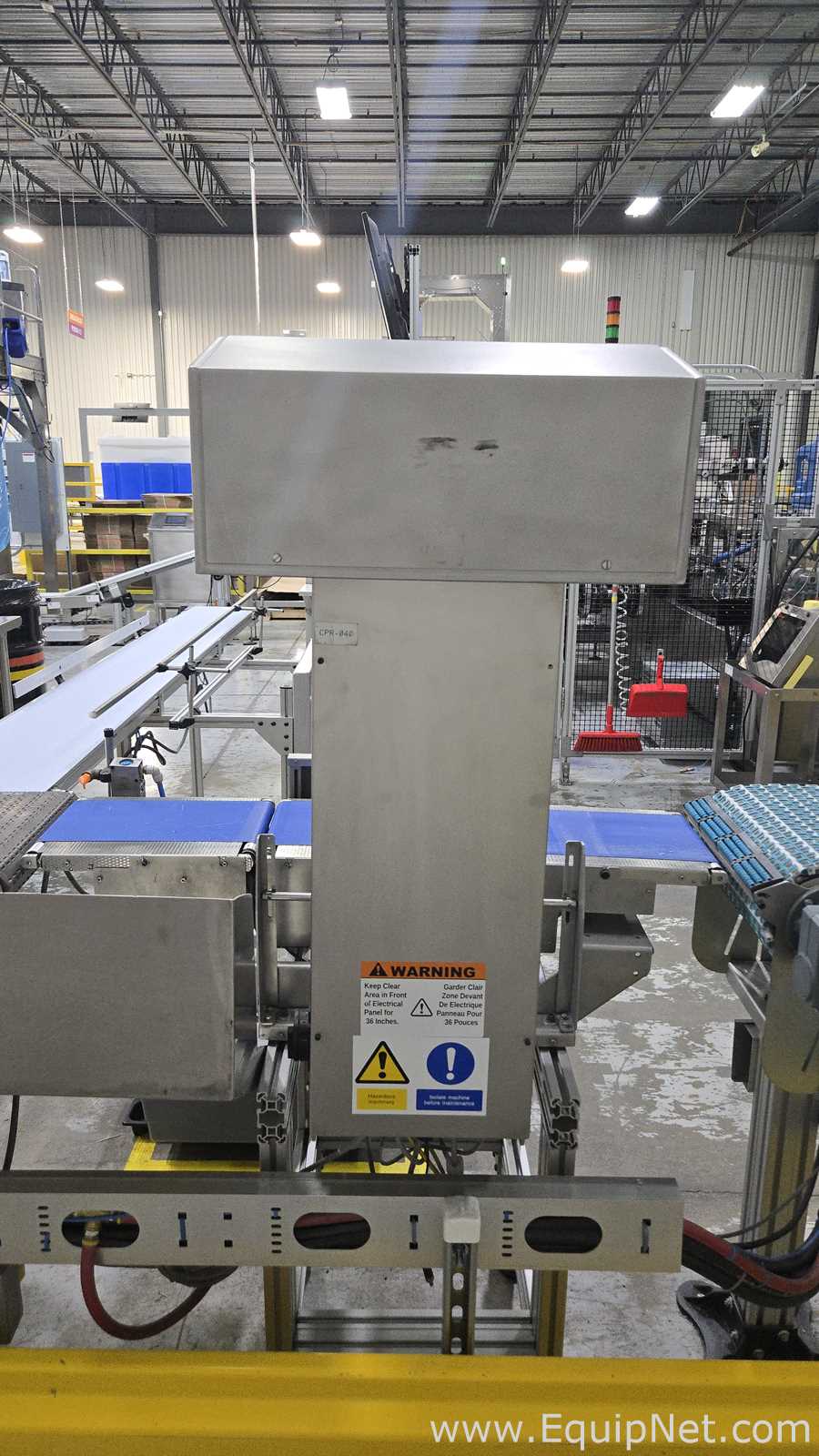

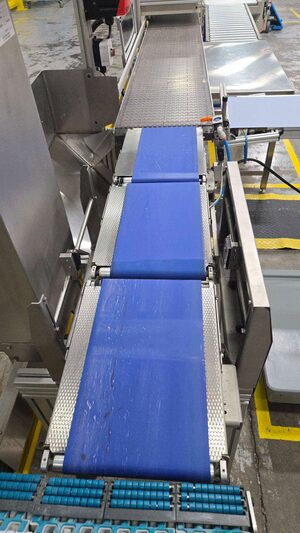

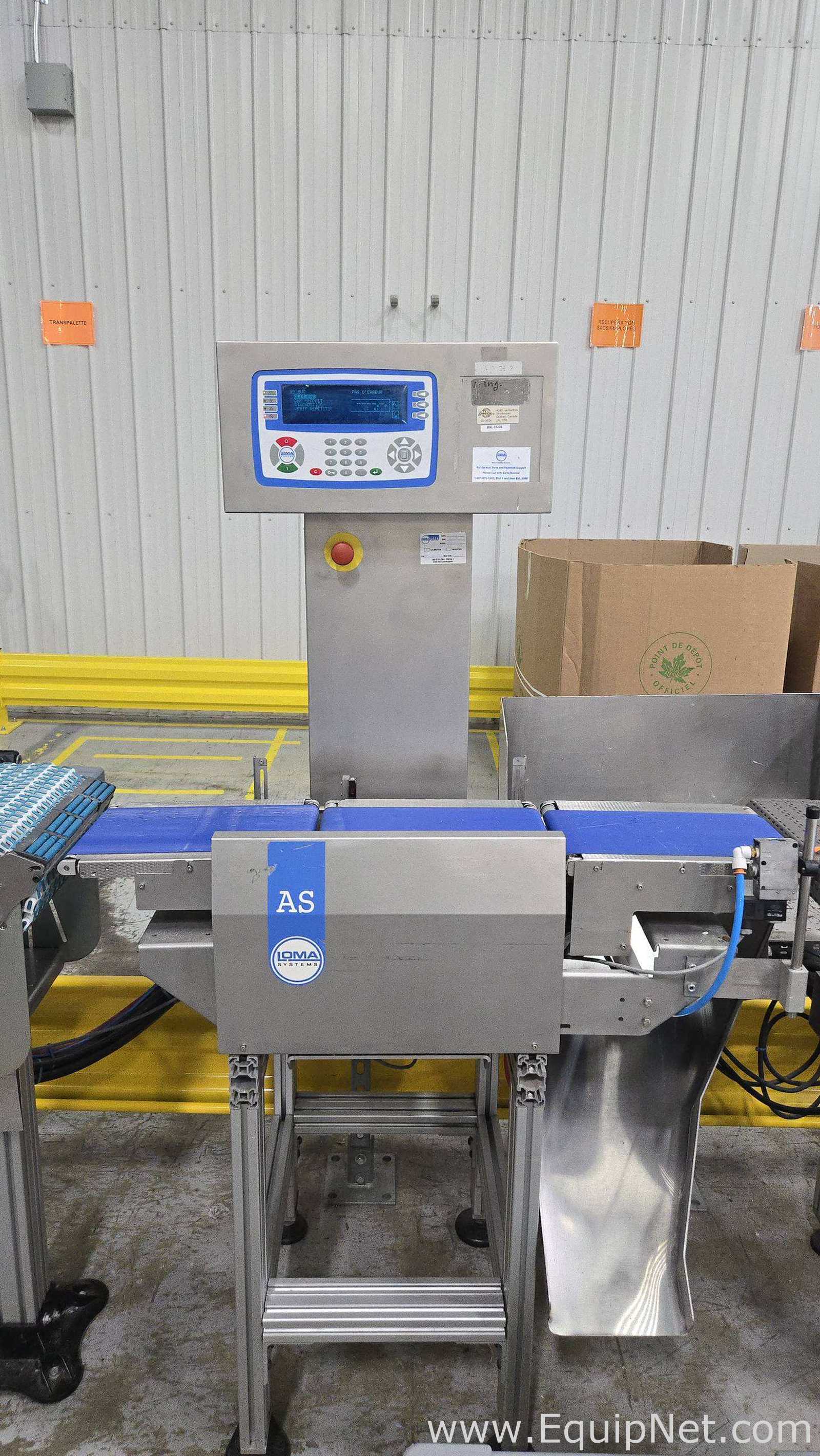

Final checkweigher - Loma AS Series checkweigher shown on a conveyor. The manual describes weight checking and several reject options depending on configuration; the exact model of this unit still needs to be identified.
