Listing# 1096773

Alfa Laval M15-BFG TITANIUM 366.92 Sq. Ft. Plate Heat Exchanger M-15

Pre-Owned Alfa Laval Heat Exchanger/Condenser for Sale

Browse this pre-owned Alfa Laval Heat Exchanger/Condenser available now on EquipNet MarketPlace™ located in IL, USA and backed by our logistics support - Inquire today.


Seller's Acceptable Currency:

$25,000.00 USD

Request More Info   Make An Offer

Location:  IL, USA

Level of Removal:  Still Installed

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

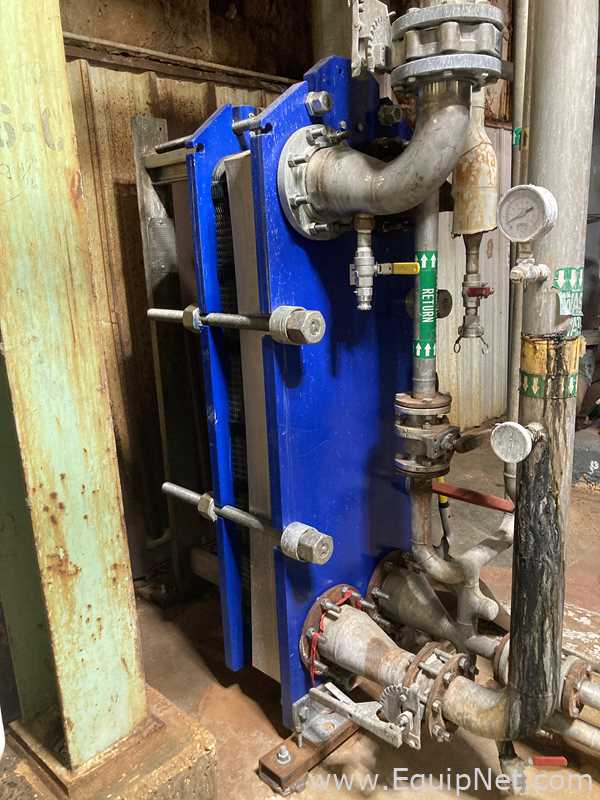

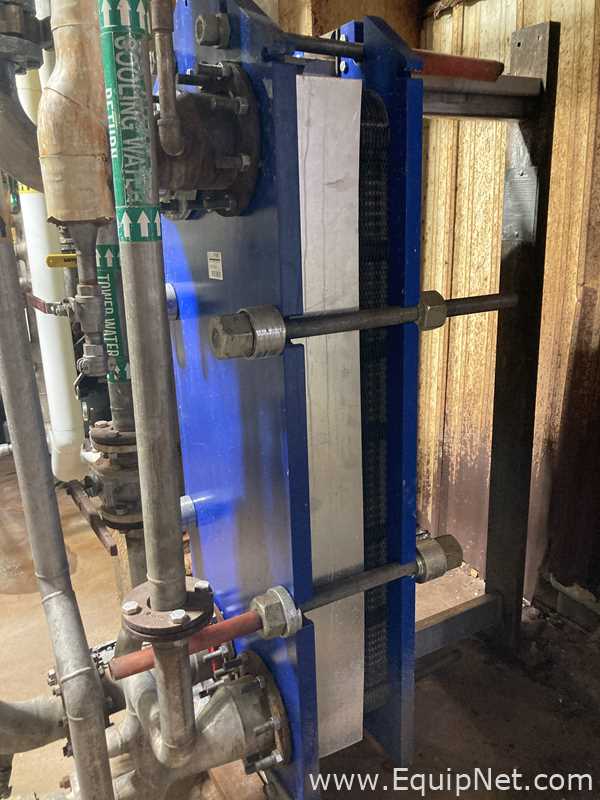

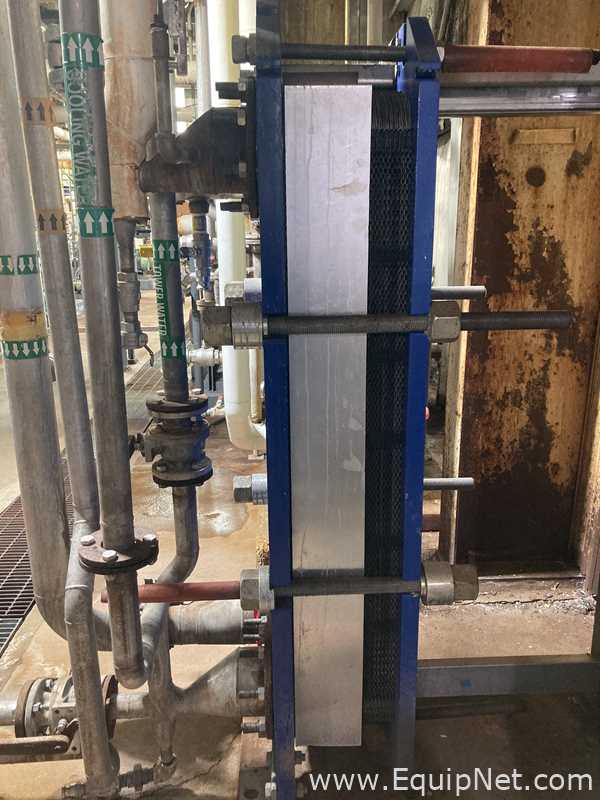

Alfa Laval M15-BFG TITANIUM 366.92 Sq. Ft. Plate Heat Exchanger M-15

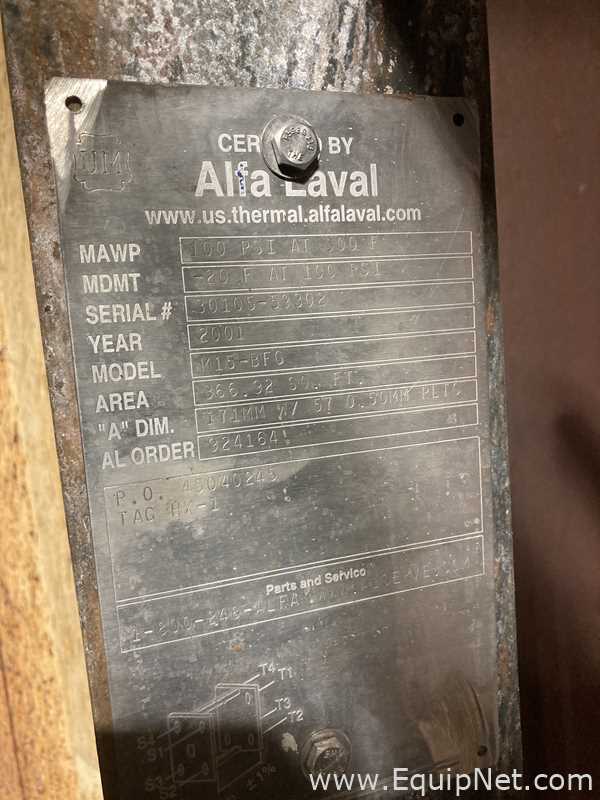

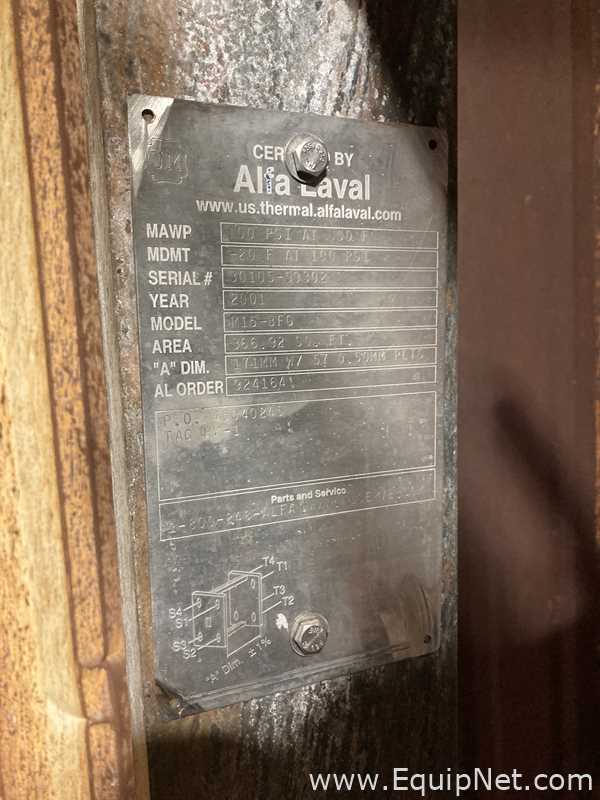

  • 366.92 Sq. Ft. according to the name plate

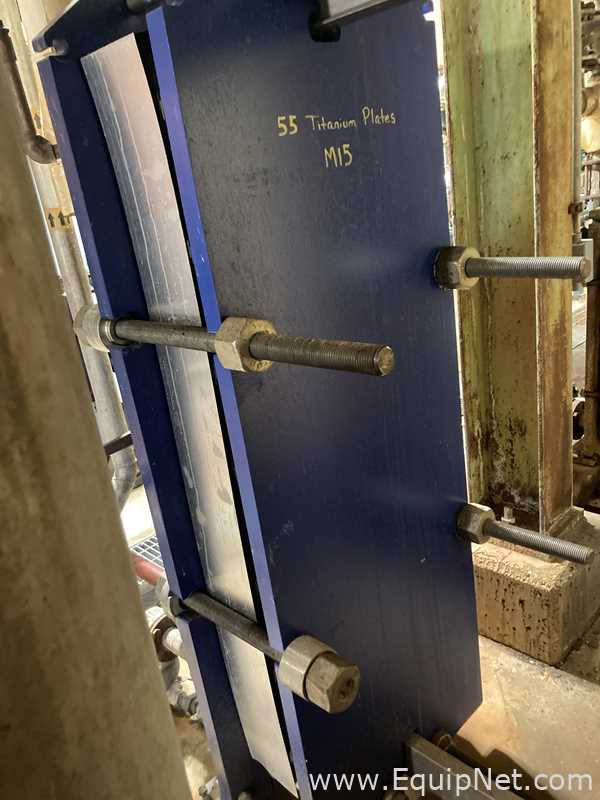

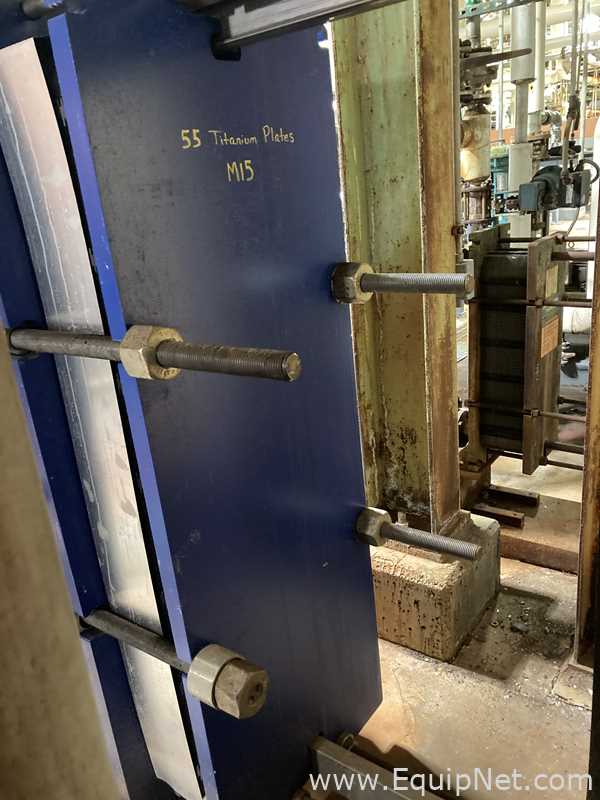

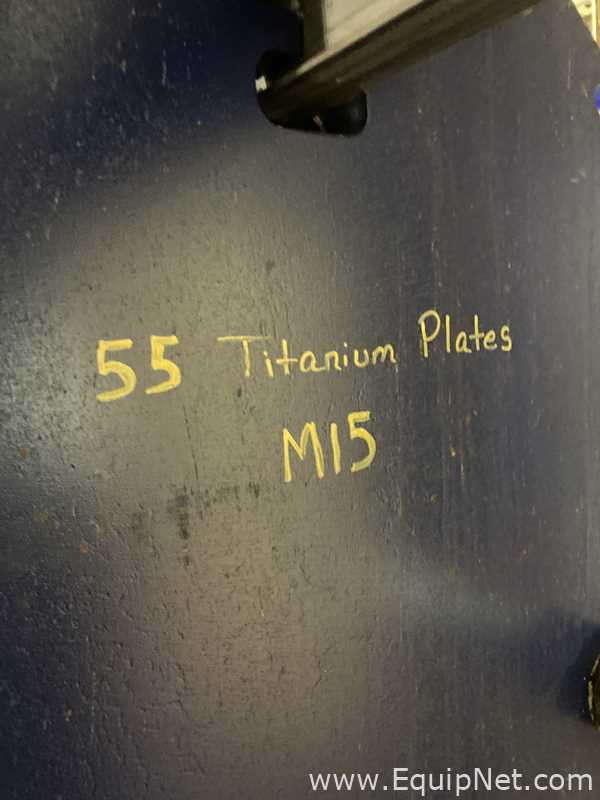

  • Marked as (55) Plates
  • Extra Plates available as spares

  • Specifications:
    Standard
    Metric

    Manufacturer Name

    Alfa Laval


    Year:

    2001
    2001

    Serial Number:

    30105-59302
    30105-59302

    Model:

    M15-BFG
    M15-BFG

    Capacity of Heat Exchanger:

    366.92 SQ FT
    34.09 sq m

    Type of Heat Exchanger:

    PLATE AND FRAME
    PLATE AND FRAME

    Plate Material of Construction:

    TITANIUM
    TITANIUM

    Frame Material of Construction:

    CARBON STEEL
    CARBON STEEL

    Plate Pressure Rating:

    100 PSI
    100 PSI

    Plate Temperature Rating:

    300 DEG F
    300 DEG F

    Products Run:

    Sugar plant
    Sugar plant

    Recommended Packaging Form:

    PALLET
    PALLET


    Dimensions:
    Standard
    Metric

    Overall:

    60 x 30 x 80 IN - 750 LBS
    1524.00 x 762.00 x 2032.00 mm - 340.20 kg
